Whirlpool WTW4957PW0

Model: WTW4957PW0

Save Part Not Listed?
product name

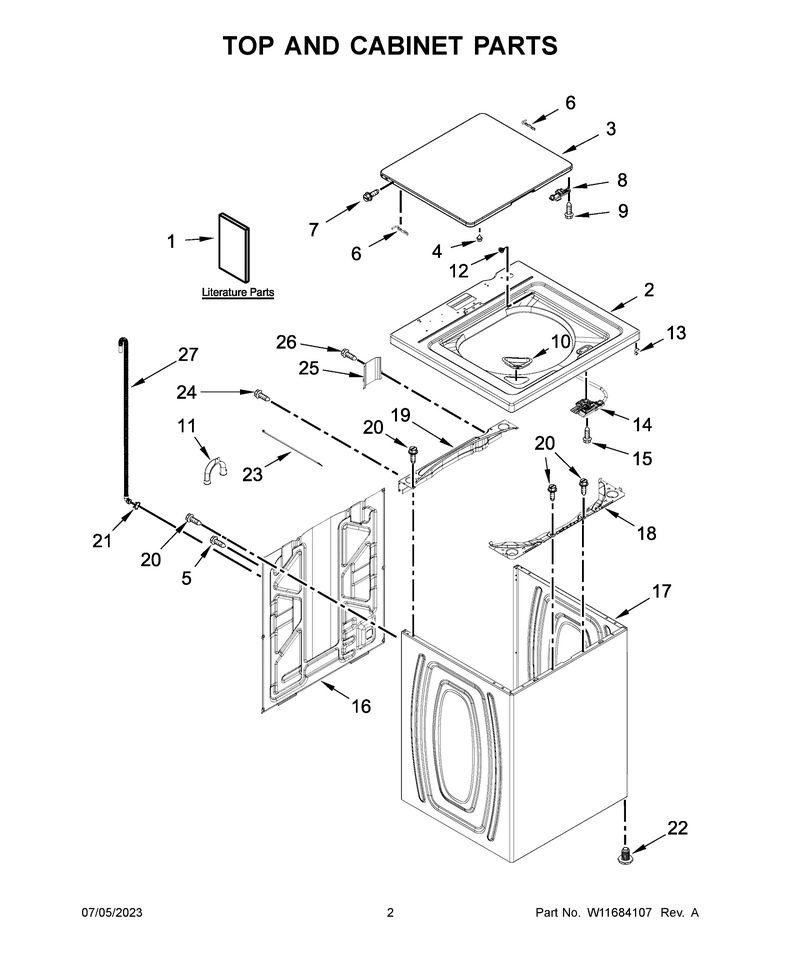

02 - Top And Cabinet Parts

...
...
1
Owners Manual WPL-W11354658
...
1C
Energy Guide WPL-W11670071
...
1A
Quick Start Guide WPL-W11652868
...
1B
Tech Sheet WPL-W11656672
...
2
Top WPL-W11210992
...
3
Lid WPL-W10860912
...
4
Bumper WPL-WP9724509
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
6A
Hinge WPL-WP54583
...
7
Screw WPL-WPW10119828
...
8
Strike WPL-W10837741
...
9
Screw WPL-WPW10273971
...
10
Dispenser WPL-WPW10192089
...
11
Retainer WPL-WPW10280024
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-W11307244
...
15
Screw WPL-WPW10213953
...
16
Panel-Rear WPL-W11486091
...
17
Cabinet WPL-W10596395
...
18
Brace WPL-W11661767
...
19
Brace WPL-W11712680
...
20
Screw WPL-W11685943
...
21
Clamp WPL-WP356138
...
22
Feet-Lvlng WPL-W11213957
...
23
Tie-Wire WPL-WPW10339879
...
24
Screw WPL-W11568617
...
25
Cover, Harness WPL-W10676061
...
26
Screw WPL-W10846509
...
27
Hose WPL-W11244231

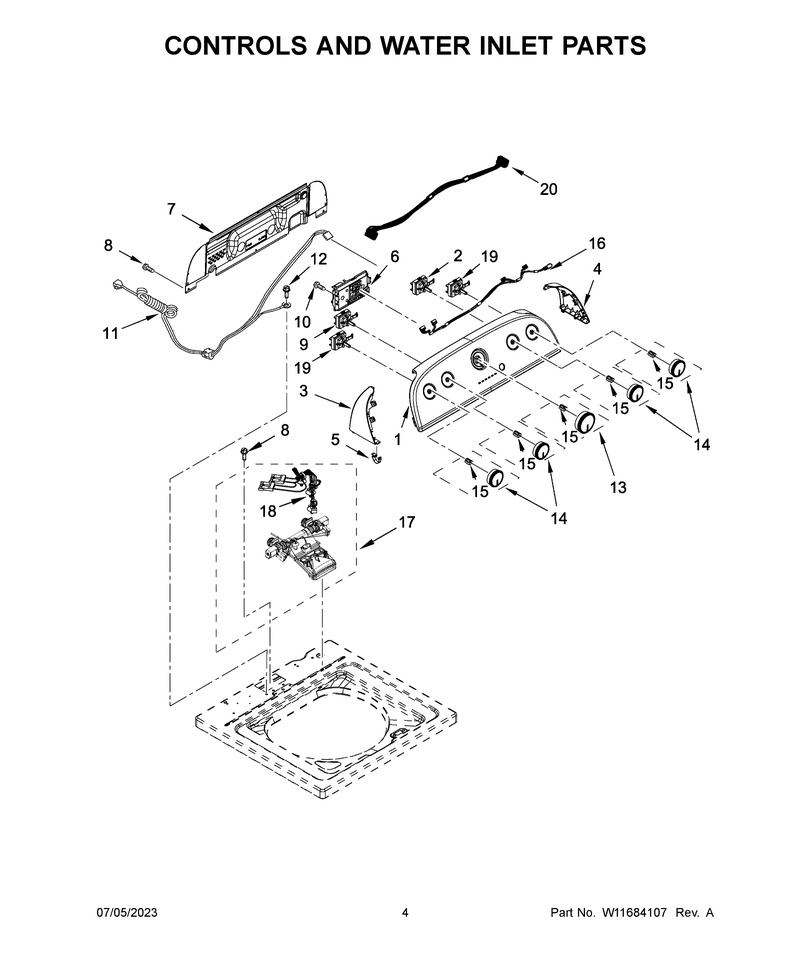

03 - Controls And Water Inlet Parts

...
...
1
Panel-Cntl WPL-W11687417
...
2
Switch-Cyc WPL-WPW10285512
...
3
Panl WPL-WPW10520782
...
4
Panl WPL-WPW10520780
...
5
Clip WPL-WP8312709
...
6
Cntrl-Elec WPL-W11608056
...
7
Panel, Console Rear Cover WPL-W10552335
...
8
Screw WPL-W11685943
...
9
Switch-Cyc WPL-WPW10285518
...
10
Screw WPL-WP90767
...
11
Cord-Power WPL-W10877409
...
12
Screw WPL-W10846509
...
13
Knob WPL-W10756270
...
14
Knob WPL-W10756270
...
15
Clip WPL-WP688805
...
16
Harns-Wire WPL-W11211519
...
17
Valve WPL-W11641117
...
18
Harness, Valve WPL-W10701401
...
19
Switch-Cyc WPL-WPW10285511
...
20
Harness, Jumper WPL-W10786100

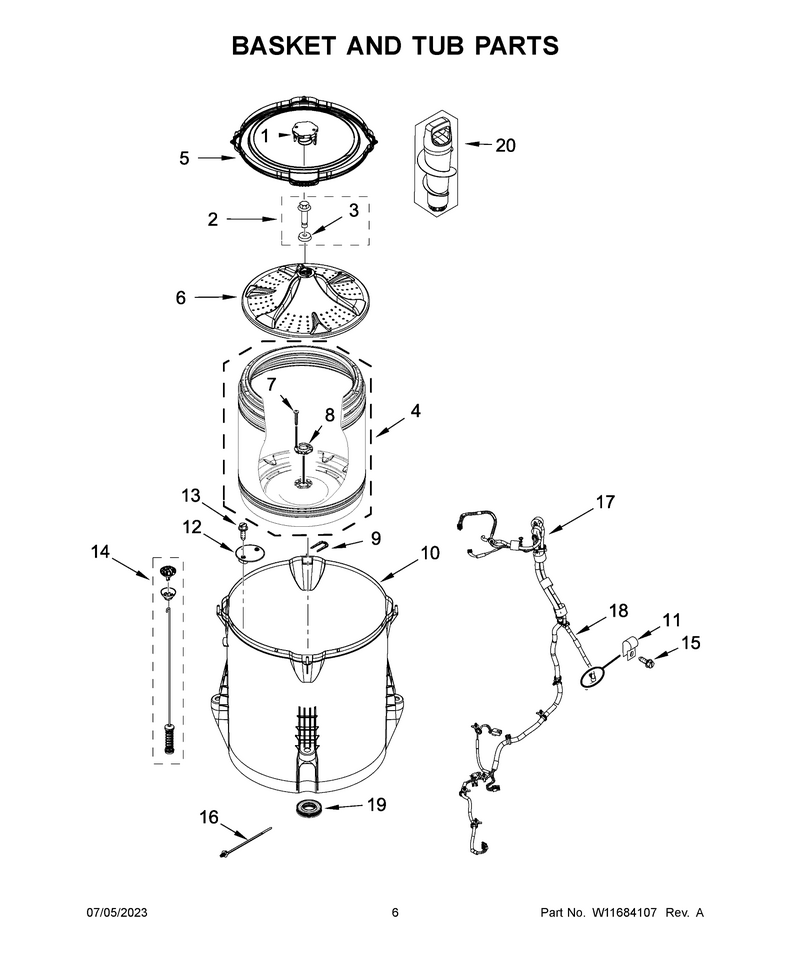

04 - Basket And Tub Parts

...
...
1
Cap WPL-W11510462
...
2
Screw WPL-W10772621
...
3
Washer WPL-WP3949550
...
4
Basket Assembly WPL-W11172199
...
5
Ring-Tub WPL-W11550886
...
6
Washplate WPL-W11686052
...
7
Screw WPL-WP8533953
...
8
Hub WPL-W10528947
...
9
Retainer WPL-W11385424
...
10
Tub-Outer WPL-W10371566
...
11
Clamp, Cable WPL-W10005430
...
12
Filter WPL-WPW10215093
...
13
Screw WPL-WP8533928
...
14
Suspension WPL-W11217817
...
15
Screw WPL-WPW10109200
...
16
Cable Tie WPL-W10339680
...
17
Harns-Wire WPL-W11665968
...
18
Hose WPL-WP353244
...
19
Seal-Tub WPL-W10324647
...
20
Agitator WPL-W11614636

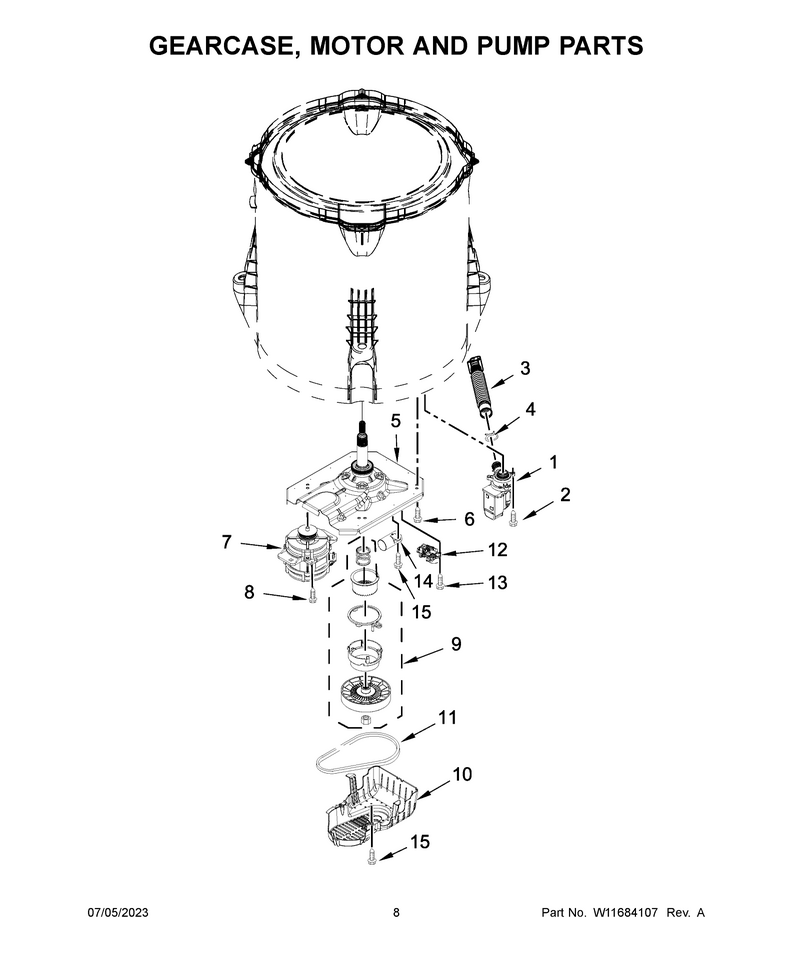

05 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-W10919003
...
2
Screw WPL-WPW10004910
...
3
Hose WPL-W10899966
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454372
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-W11686050
...
8
Screw WPL-W11685857
...
9
Splutch Kit (60hz) WPL-W10721967
...
10
Shield WPL-W11409708
...
11
Belt WPL-W11239857
...
12
Actuator WPL-W11481722
...
13
Screw WPL-W11596033
...
14
Capacitor WPL-W11428524
...
15
Screw WPL-W11573574

...
...
NI
Accessory Parts, Inlet Hoses, 4.5 Ft (Cold Water - One Braided Hoses W/ One Straight End And One 90 Degree End) WPL-W11379000
