Whirlpool WSIS5030RV0

Model: WSIS5030RV0

Save Part Not Listed?
product name

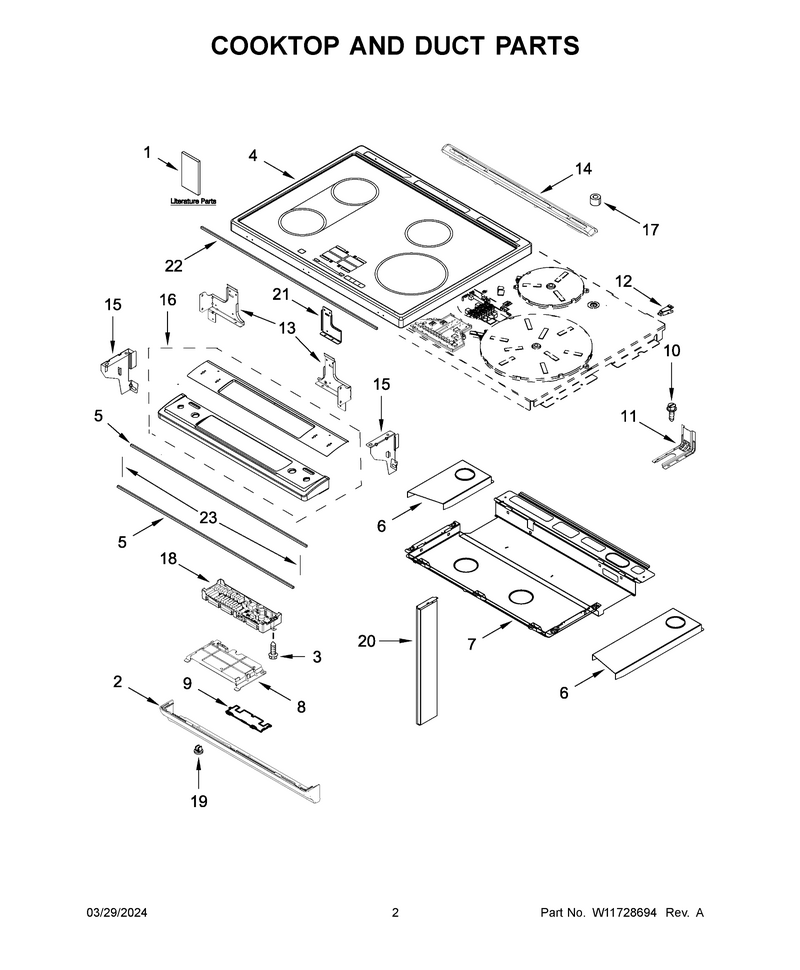

02 - Cooktop And Duct Parts

...
...
NI
Harns-Wire WPL-W11025616
...
1
Use And Care Guide WPL-W11637353
...
1A
Tech Sheet WPL-W11692352
...
1B
Quick Start Guide WPL-W11692162
...
2
Brkt-Mntg WPL-W11218703
...
3
Screw WPL-W11233072
...
4
Cooktop WPL-W11730439
...
5
Gasket WPL-W11744482
...
6
Duct-Side WPL-W11693489
...
6A
Duct-Side WPL-W11693490
...
7
Pan WPL-W11691349
...
8
Cntrl-Elec WPL-W11122852
...
9
Bracket, Control WPL-W10558372
...
10
Anchor-Tip WPL-WP7101P485-60
...
11
Anchor-Tip WPL-W11502257
...
12
Brace, Corner (Left) WPL-W10162253
...
12A
Brace, Corner (Right) WPL-W10162252
...
13
Support, Cooktop (Left) WPL-W10289170
...
13A
Support, Cooktop (Right) WPL-W10289169
...
14
Trim-Vent WPL-W11240519
...
15
Bracket, Console (Left) WPL-W10547960
...
15A
Bracket, Console (Right) WPL-W10547961
...
16
Panl-Cntrl WPL-W11730257
...
17
Bumper WPL-W11690600
...
18
Cntrl-Elec WPL-W11730280
...
19
Insert WPL-W11025100
...
20
Duct-Side WPL-W11691362
...
21
Bracket, Console (Center) WPL-W10598048
...
22
Gasket WPL-W10802441
...
23
Gasket WPL-W10802457

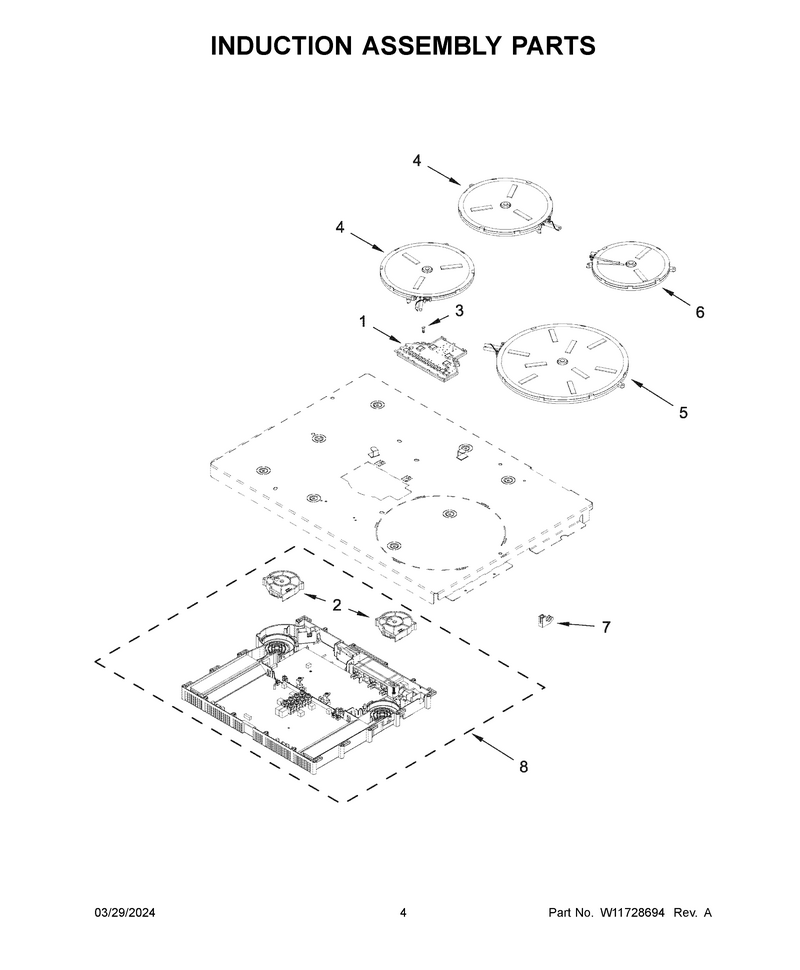

03 - Induction Assembly Parts

...
...
NI
Harns-Wire WPL-W11689159
...
1
Display WPL-W11689156
...
2
Fan-Blwr WPL-W11687652
...
3
Display WPL-W11689156
...
4
Hotplate WPL-W11689152
...
5
Hotplate WPL-W11689153
...
6
Hotplate WPL-W11689154
...
7
Relief WPL-W11689160
...
8
Module WPL-W11689155

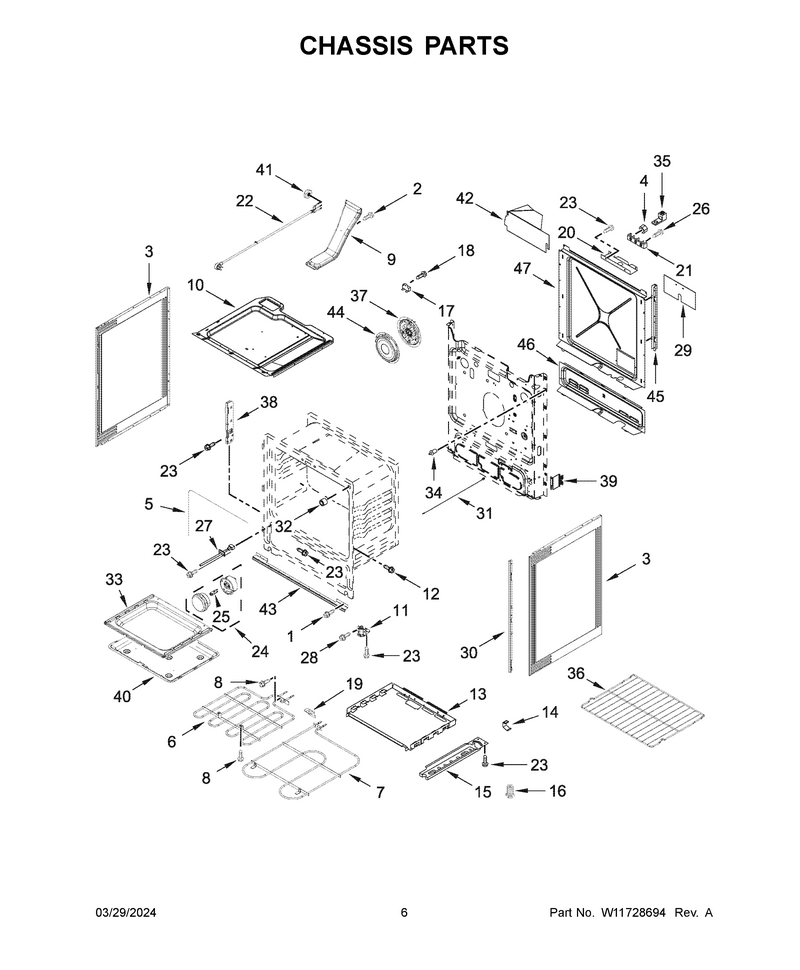

04 - Chassis Parts

...
...
NI
Clip WPL-W10841090
...
1
Screw WPL-W11169708
...
2
Screw WPL-W11233072
...
3
Panel-Side WPL-W11730303
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11562931
...
6
Elmnt-Brol WPL-W11238400
...
7
Elmnt-Bake WPL-W10779716
...
8
Screw WPL-W11233072
...
9
Assembly, Flue WPL-W11122085
...
10
Box, Burner Si WPL-W10289168
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Shield, Bake WPL-W10541959
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Support, Oven Bottom WPL-W10035900
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WP8203546
...
22
Cord-Power WPL-W11226497
...
23
Screw WPL-W11233072
...
24
Light-Oven WPL-W11707255
...
25
Light Bulb WPL-8009
...
26
Screw WPL-WP3400016
...
27
Sensor WPL-W10833885
...
28
Screw WPL-WP3196557
...
29
Shield, Power Cord WPL-W10655441
...
30
Barrier Rail, Rubber (Front Left) WPL-W11510561
...
30A
Barrier Rail, Rubber (Front Right) WPL-W11510562
...
31
Rod, Door Switch WPL-W10273192
...
32
Spacer WPL-W10877054
...
33
Bottm-Oven WPL-W10777210
...
34
Swtch-Lite WPL-W11620712
...
35
Connector WPL-WPW10281322
...
36
Rack-Oven WPL-WPW10531060
...
37
Fan-Convct WPL-W11441001
...
38
Hinge-Recv WPL-W10647259
...
39
Bracket, Oven Support WPL-W10273002
...
40
Bake Pan WPL-W11379357
...
41
Nut WPL-WP7103P027-60
...
42
Shield, Wire WPL-W10818358
...
43
Brkt-Suprt WPL-W11686853
...
44
Cover WPL-WPW10346154
...
45
Channel, Rear WPL-W10162241
...
46
Cover, Wire WPL-W10162248
...
47
Cover, Back WPL-W11379354

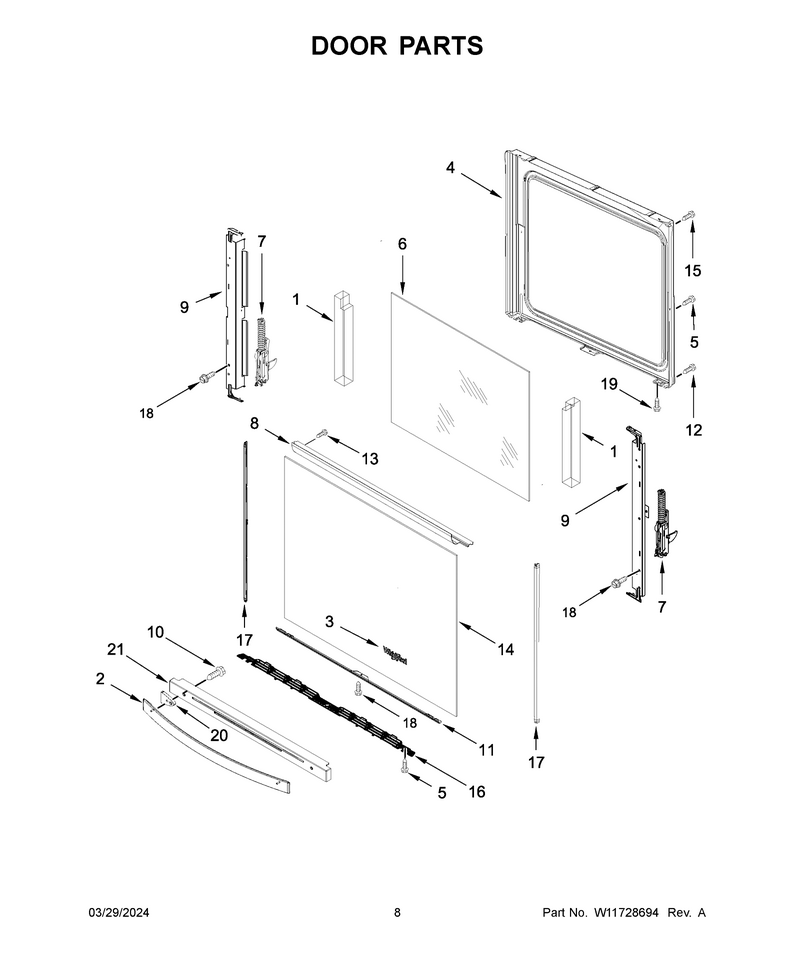

05 - Door Parts

...
...
1
Insulation WPL-W11688565
...
2
Hndle-Door WPL-W11110500
...
3
Nameplate WPL-W11178521
...
4
Liner-Door WPL-WPW10297318
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-WPW10300487
...
7
Hinge-Door WPL-WPW10440013
...
8
Bracket, Glass Liner WPL-W10294853
...
9
Brkt-Suprt WPL-W11116956
...
10
Screw WPL-WP3196175
...
11
Trim, Door Bottom (Black) WPL-W10334031
...
12
Screw WPL-W10777162
...
13
Screw WPL-W10896982
...
14
Glass-Door WPL-W11730255
...
15
Screw WPL-WPW10317886
...
16
Brkt-Mntg WPL-W11726954
...
17
Trim, Door Side (Black) WPL-W10334004
...
18
Screw WPL-WP355214
...
19
Screw WPL-W11245710
...
20
Standoff, Handle (Black) WPL-W10917796
...
21
Trim-Vent WPL-W11106938

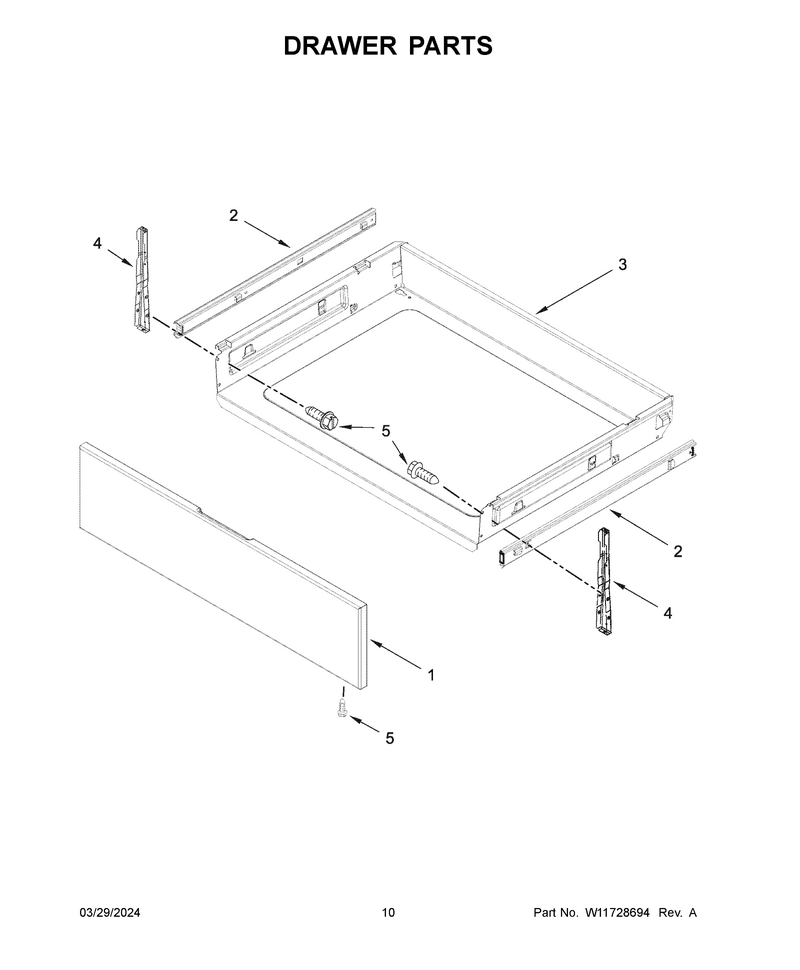

06 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11084311
...
2
Slide-Drwr WPL-WPW10441804
...
2A
Slide-Drwr WPL-WPW10441805
...
3
Drawr-Util WPL-W10813962
...
4
Brkt-Mntg WPL-WPW10318026
...
5
Screw WPL-WP3196557

...
...
NI
Backsplash Assembly (Stainless) WPL-W10655450
