Whirlpool WRX986SIHZ04

Model: WRX986SIHZ04

Save Part Not Listed?
product name

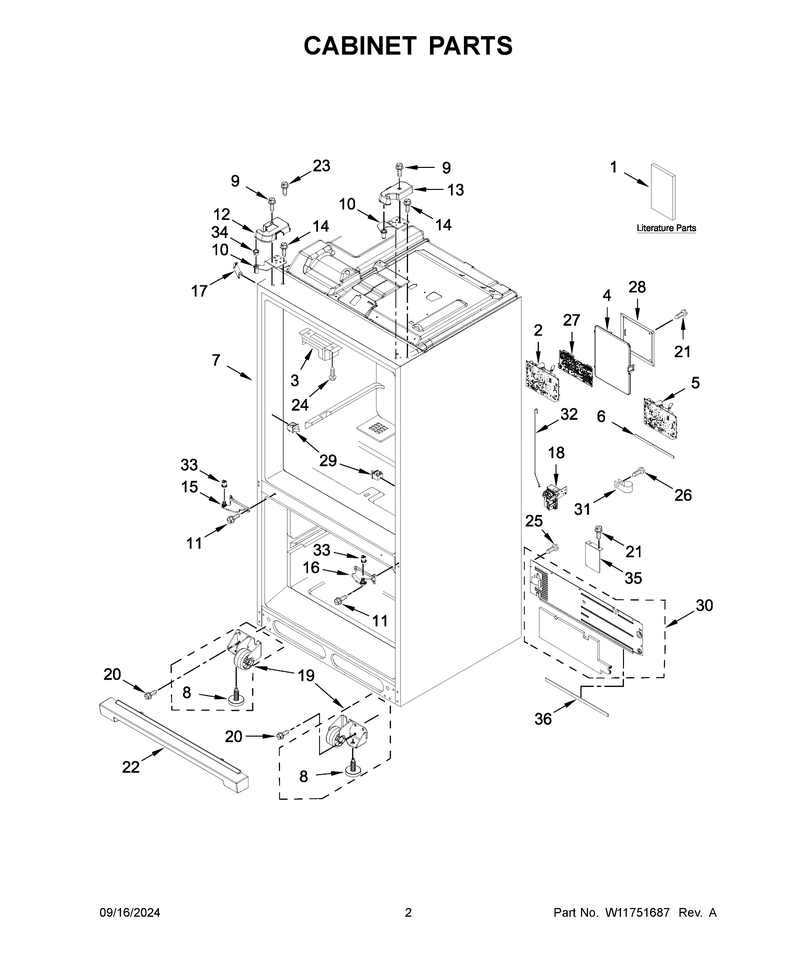

02 - Cabinet Parts

...
...
1
Tech Sheet WPL-W11717560
...
1A
Owners Manual WPL-W11502338
...
1B
Energy Guide WPL-W11695868
...
2
Cntrl-Elec WPL-W10830278
...
3
Block-Piv WPL-WPW10344432
...
4
Lid, Hv WPL-W10277839
...
5
Board, Control WPL-W11701692
...
6
Gasket, Hv Box WPL-W10415341
...
7
Cabinet (Not A Servicable Part) WPL---
...
8
Leveler WPL-WPW10141622
...
9
Screw WPL-WP8281196
...
10
Hinge-Door WPL-W11592405
...
10A
Hinge-Door WPL-W11592404
...
11
Screw WPL-W11573362
...
12
Cover WPL-WPW10471618
...
13
Cover WPL-WPW10407158
...
14
Screw WPL-W11126052
...
15
Hinge-Door WPL-W10878115
...
16
Hinge-Door WPL-W11240748
...
17
Filler WPL-WP12587703AP
...
18
Valve WPL-W11482025
...
19
Roller-Cab WPL-WPW10515763
...
19A
Roller-Cab WPL-WPW10515762
...
20
Screw (8) WPL-67006564
...
21
Screw WPL-W11686675
...
22
Grille-Frt WPL-WPW10637671
...
23
Screw WPL-W11214483
...
24
Screw WPL-W10854958
...
25
Screw WPL-WPW10141645
...
26
Screw (3) WPL-67006425
...
27
Cntrl-Elec WPL-W10830288
...
28
Cover, Hv Control Box WPL-W10754591
...
29
Switch WPL-W11396033
...
30
Cover-Back WPL-W11482027
...
31
Clamp WPL-W11456069
...
32
Tube-Water WPL-W11482381
...
33
Cam-Door WPL-WPW10505294
...
34
Retainer, Door WPL-W10212137
...
35
Cover, Roller WPL-W10336736
...
36
Gasket WPL-W11534848

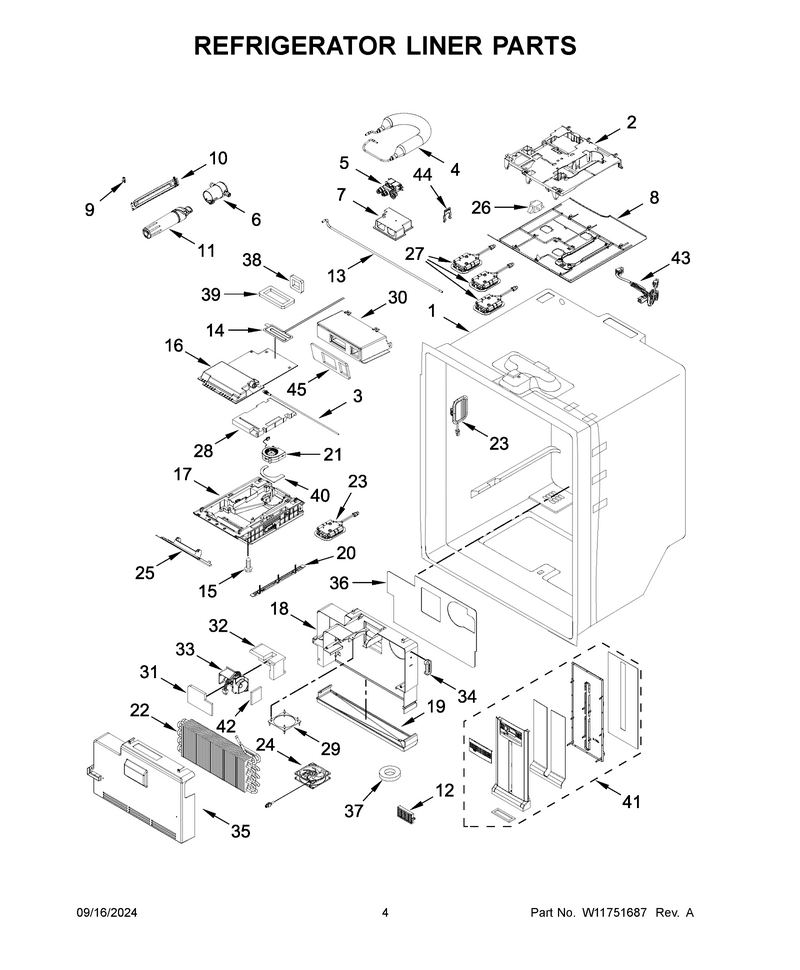

03 - Refrigerator Liner Parts

...
...
NI
Wire Assembly, Ice Box WPL-W11298842
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Housing WPL-W11482035
...
3
Tube-Water WPL-W11686799
...
4
Reservoir WPL-W11482382
...
5
Valve WPL-W11482383
...
6
Housing WPL-W11482384
...
7
Enclosure, Water Valve WPL-W11391457
...
8
Cover WPL-W11190820
...
9
Latch WPL-WP2223877
...
10
Cover-Filt WPL-WPW10277949
...
11
Filter WPL-EDR2RXD1
...
12
Antibacterial Filter WPL-W10311524
...
13
Tube-Water WPL-W11686800
...
14
Heater WPL-W11087201
...
15
Screw WPL-WP67006908
...
16
Cover WPL-WPW10598013
...
17
Box-Ice WPL-W11605504
...
18
Housing WPL-W11435997
...
19
Pan-Drip WPL-W11457241
...
20
Trim, Icebox WPL-W10505516
...
21
Fan WPL-W10846539
...
22
Evaporator WPL-W11578026
...
22A
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
22B
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
23
Module WPL-W11483116
...
24
Motor-Evap WPL-W11087438
...
25
Heater WPL-W11637688
...
26
Switch WPL-W11384469
...
27
Module WPL-W11484840
...
28
Insulation WPL-WPW10280983
...
29
Support WPL-WPW10389152
...
30
Adapter WPL-WPW10635022
...
31
Retainer WPL-W11225849
...
32
Support WPL-W11230117
...
33
Control WPL-WPW10248595
...
34
Cover WPL-W11238397
...
35
Cover-Evap WPL-W11188493
...
36
Gasket, Evaporator Enclosure WPL-W10465948
...
37
Gasket WPL-W11568592
...
38
Gasket WPL-WPW10320706
...
39
Gasket WPL-WPW10280988
...
40
Gasket WPL-WPW10392172
...
41
Air-Tower WPL-W11157939
...
42
Gasket, Damper WPL-W10470981
...
43
Wire Assembly, Jumper WPL-W11369503
...
44
Ring WPL-W11678575
...
45
Gasket WPL-W11747986

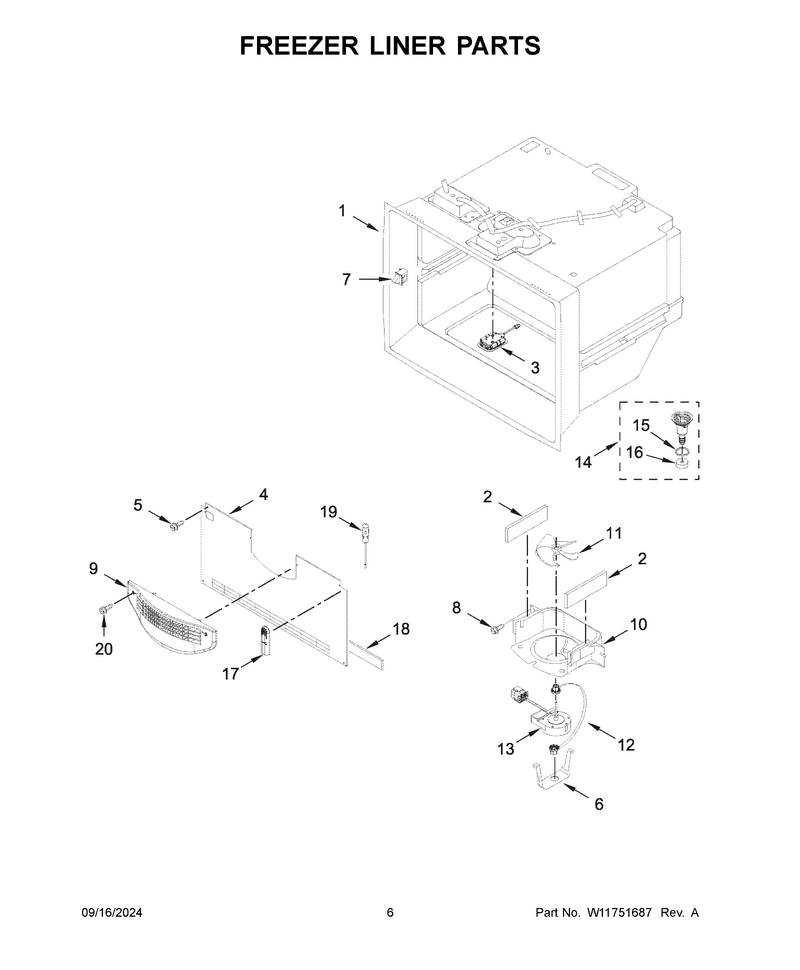

04 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL---
...
2
Gasket WPL-W10856123
...
3
Module WPL-W11483116
...
4
Cover, Evaporator (Freezer) WPL-W11408170
...
5
Screw (3) WPL-67006425
...
6
Clip WPL-W11712696
...
7
Switch WPL-W11384469
...
8
Screw WPL-WP98165
...
9
Grille WPL-W10871842
...
10
Shroud WPL-WPW10363507
...
11
Blade- Fan WPL-WP67006337
...
12
Grommet- F WPL-W11676465
...
13
Motor-Evap WPL-W11603851
...
14
Assembly, Drain Funnel WPL-W10503218
...
15
Seal- O Ri WPL-WPM0500703
...
16
Gasket- Dr WPL-WPB8381501
...
17
Cover WPL-W11661208
...
18
Gasket, Evaporator Cover WPL-W10668165
...
19
Thermistor WPL-W11724692
...
20
Screw WPL-WP8281136

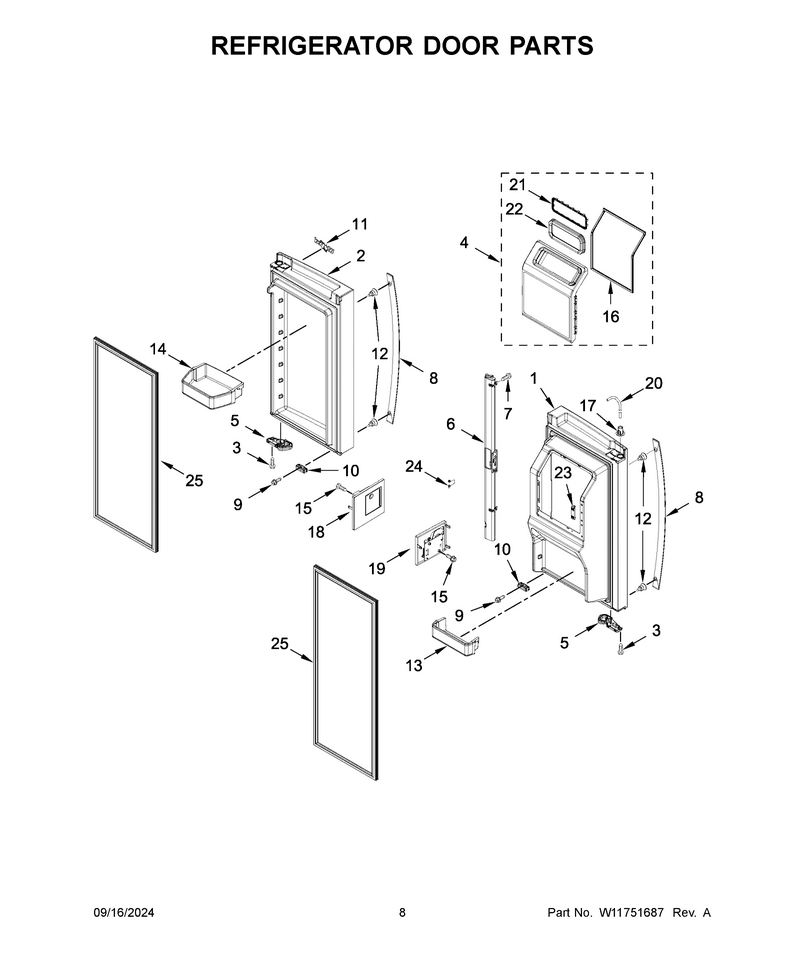

05 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W11518696
...
2
Dor-Fip WPL-W11435357
...
3
Screw WPL-WPW10238319
...
4
Door, Ice WPL-W11261139
...
5
Closer WPL-W10904595
...
5A
Closer WPL-W11212164
...
6
Rail-Mulln WPL-W11025614
...
7
Screw WPL-W11311945
...
8
Handle WPL-W11045129
...
9
Screw WPL-WP98165
...
10
Bumper-Dor WPL-W11573367
...
11
Nameplate WPL-W11223753
...
12
Screw WPL-W11449276
...
13
Trivet WPL-W10846358
...
14
Bin-Cntlvr WPL-WPW10674770
...
15
Screw, 6-19 X .250 WPL-2006254
...
16
Gasket WPL-W11624997
...
17
Clip, Tube WPL-W11315302
...
18
Board And Cover Assembly, Emitter WPL-W11554030
...
19
Board And Cover Assembly, Receiver WPL-W11554032
...
20
Tube-Water WPL-WPW10499015
...
21
Retainer WPL-WPW10400825
...
22
Gasket WPL-W11504379
...
23
Vent WPL-W11684620
...
24
Spring WPL-WP2198635
...
25
Gasket-Fip WPL-W10846057

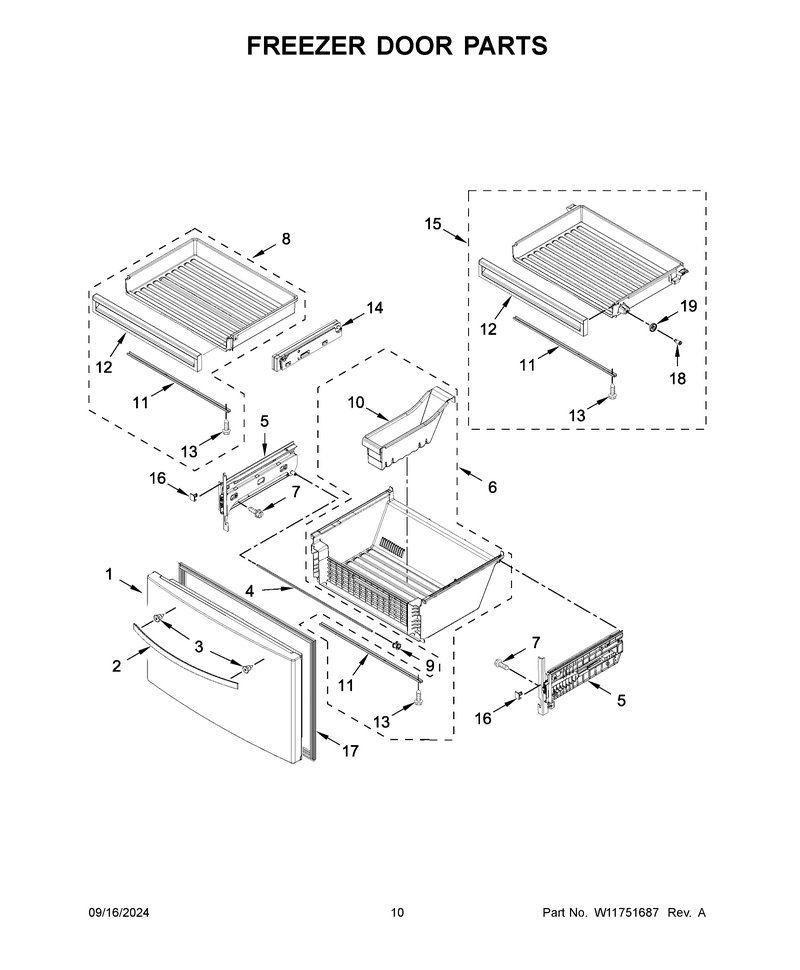

06 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11435360
...
2
Handle WPL-W11045125
...
3
Screw WPL-W11449276
...
4
Shaft WPL-WPW10503522
...
5
Bracket WPL-W11668671
...
5A
Bracket WPL-W11668671
...
6
Bin, Lower WPL-W10650427
...
7
Screw WPL-WP67006908
...
8
Bin-Freezr WPL-WPW10493169
...
9
Clip WPL-W10852685
...
10
Divider, Lower WPL-W10507444
...
11
Support WPL-W11677723
...
12
Front-Pan WPL-W11175811
...
13
Screw WPL-WP489443
...
14
Bracket WPL-W10850332
...
14A
Bracket WPL-W10858092
...
15
Bin-Freezr WPL-W10858802
...
16
Stop-Pan WPL-WPW10485096
...
16A
Stop-Pan WPL-WPW10485089
...
17
Gasket-Fip WPL-W10407216
...
18
Axle WPL-W11573594
...
19
Roller WPL-W11578839

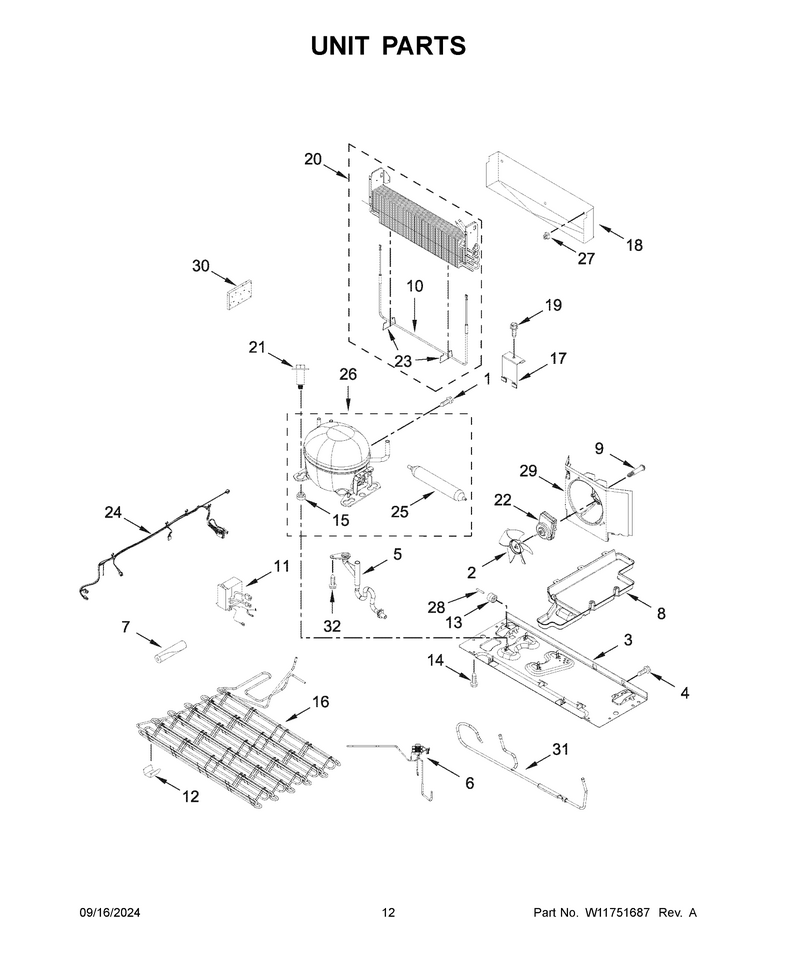

07 - Unit Parts

...
...
NI
Refrigerant Charge 53 Grams (R600a) WPL---
...
1
Screw WPL-WPW10141625
...
2
Blade-Fan WPL-WP2188935
...
3
Baseplate, Compressor WPL-W11411853
...
4
Screw (3) WPL-67006425
...
5
Extension WPL-W11745620
...
6
Assembly, 3 Way Valve (Also Order The Following Lokring Parts) WPL-W11596064
...
6A
3 Nk Ms 00 (3-Way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) WPL-W11506625
...
6B
3 Nk Ms 00 (3-Way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) WPL-W11506625
...
6C
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
7
Sleeve WPL-W11751592
...
8
Tray-Evap WPL-W11225840
...
9
Screw WPL-W10829281
...
10
Heater WPL-W11575359
...
11
Invrtr-Box WPL-W11747983
...
12
Clip WPL-W10683556
...
13
Roller WPL-WP67005149
...
14
Screw WPL-12992101
...
15
Grommet WPL-WPW10169124
...
16
Condenser WPL-W11751993
...
16A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
16B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
17
Bracket, Valve WPL-W10391376
...
18
Tray, Drip WPL-W11408656
...
19
Screw WPL-WPW10141645
...
20
Evap Repar WPL-W11598434
...
20A
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
20B
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
21
Screw WPL-W11417341
...
22
Motor-Cond WPL-W11127829
...
23
Clip, Heater WPL-W11380964
...
24
Harns-Wire WPL-W11679643
...
25
Drier-Tube WPL-W11109499
...
25A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
25B
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
26
Compressor WPL-W11751358
...
26A
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
26B
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
26C
6 Nk Ms 00 (Charging Tube To Compressor) WPL-W11506621
...
26D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
27
Clip, Evaporator WPL-10623002
...
28
Axle, Roller (2) WPL-67006434
...
29
Shroud WPL-WPW10406719
...
30
Insulation WPL-W11553819
...
31
Tube WPL-W11747984
...
32
Screw WPL-W10141518

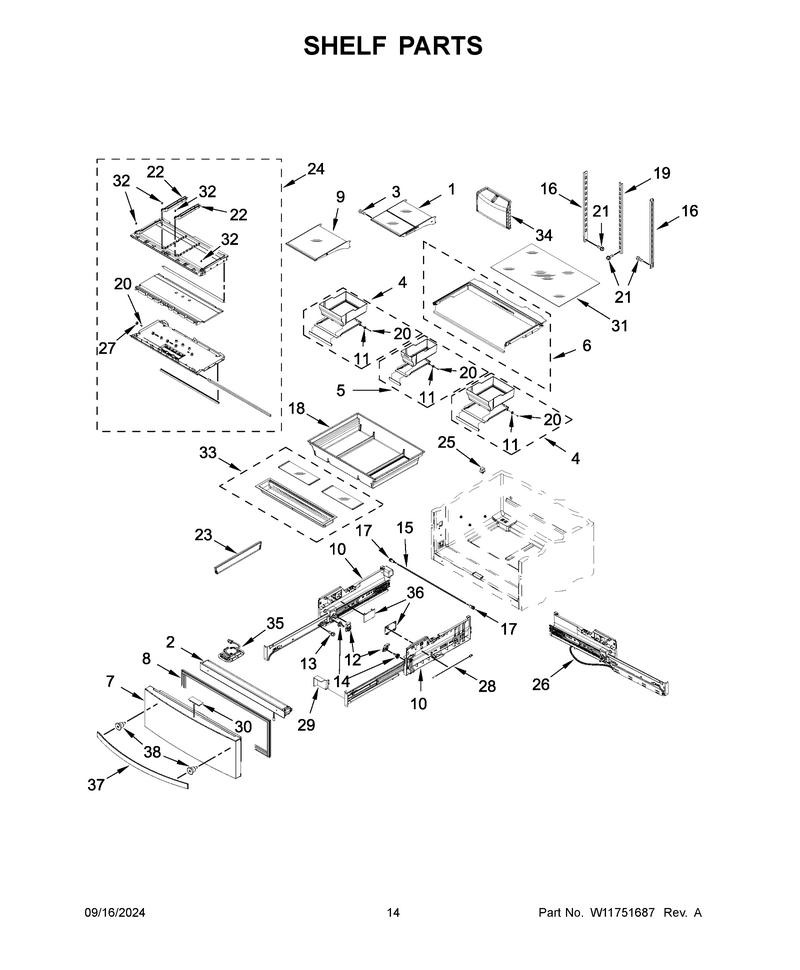

08 - Shelf Parts

...
...
1
Shelf-Glas WPL-WPW10709175
...
2
Rail-Mulln WPL-W11483111
...
3
Screw WPL-W10421495
...
4
Pan-Crispr WPL-W10839369
...
5
Crisper, Small WPL-W11507281
...
6
Frame WPL-W11127833
...
7
Dor-Fip WPL-W11435361
...
8
Gasket-Fip WPL-W10622446
...
9
Shelf-Glas WPL-WPW10709163
...
10
Adapter, Pantry (Left Hand) WPL-W11215629
...
10A
Adapter, Pantry (Right Hand) WPL-W11093718
...
11
Roller WPL-W10788795
...
12
Cover, Gear (Left Hand) WPL-W10284709
...
12A
Cover, Gear (Right Hand) WPL-W10294414
...
13
Screw WPL-12991702
...
14
Gear, Spur WPL-W10277360
...
15
Shaft, Rack WPL-W10802341
...
16
Ladder WPL-W11690684
...
17
Collar WPL-WPW10277361
...
18
Pan-Utilty WPL-WPW10530656
...
19
Ladder WPL-W11690685
...
20
Screw WPL-67006692
...
21
Screw WPL-W10423560
...
22
Guide, Crisper WPL-W10530296
...
23
Divider, Large Pantry WPL-W10772797
...
24
Assembly, Floor (Includes Heater) WPL-W10782690
...
25
Switch WPL-W11384469
...
26
Harns-Wire WPL-W11170612
...
27
Roller WPL-W10788795
...
28
Thermistor WPL-W11168403
...
29
Cover, Connector WPL-W10518378
...
30
Cntrl-Elec WPL-WPW10503833
...
31
Shelf-Glas WPL-W11038526
...
32
Pad, Glide WPL-12702901
...
33
Bin WPL-W10858273
...
34
Assembly, Produce Preserver WPL-W10826105
...
35
Module WPL-W11483116
...
36
Cover, Side Adapter WPL-W10518036
...
37
Handle WPL-W11045125
...
38
Screw WPL-W11449276

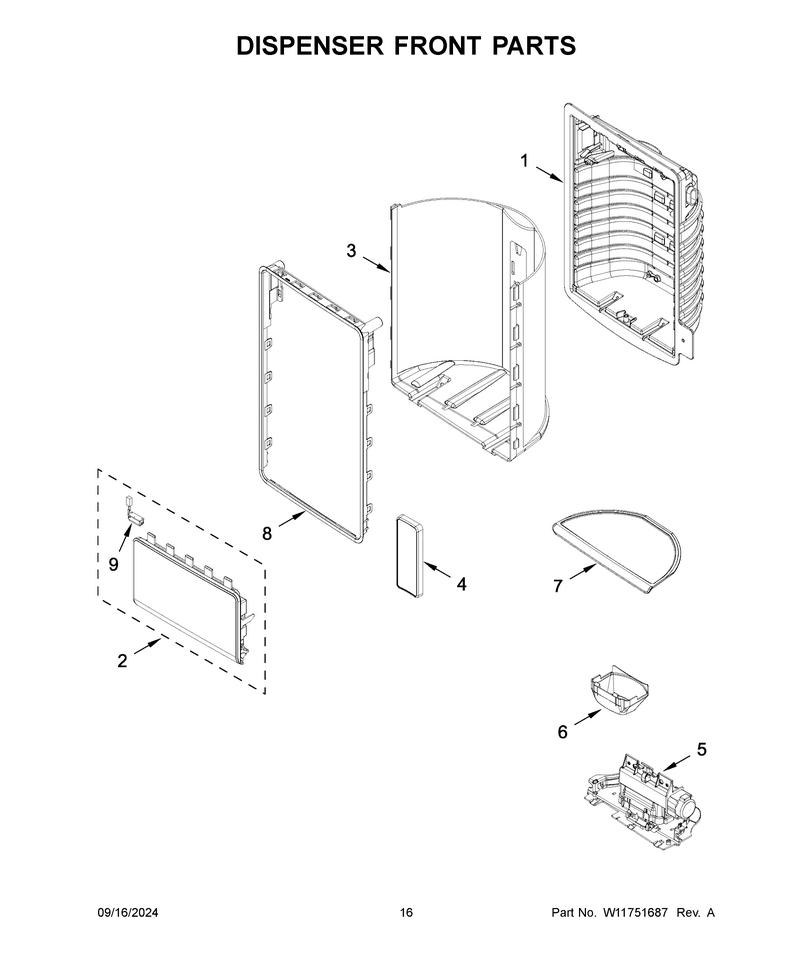

09 - Dispenser Front Parts

...
...
1
Housing, Dispenser (Not Serviced) WPL---
...
2
Panel-Ui WPL-W11753077
...
3
Wall, Dispenser False (Grey) WPL-W10819058
...
4
Pad WPL-W10853387
...
5
Door-Ice WPL-WPW10577864
...
6
Guide-Ice WPL-WPW10435760
...
7
Tray-Drip WPL-W11448765
...
8
Trim WPL-WPW10402180
...
9
Light WPL-W11290115

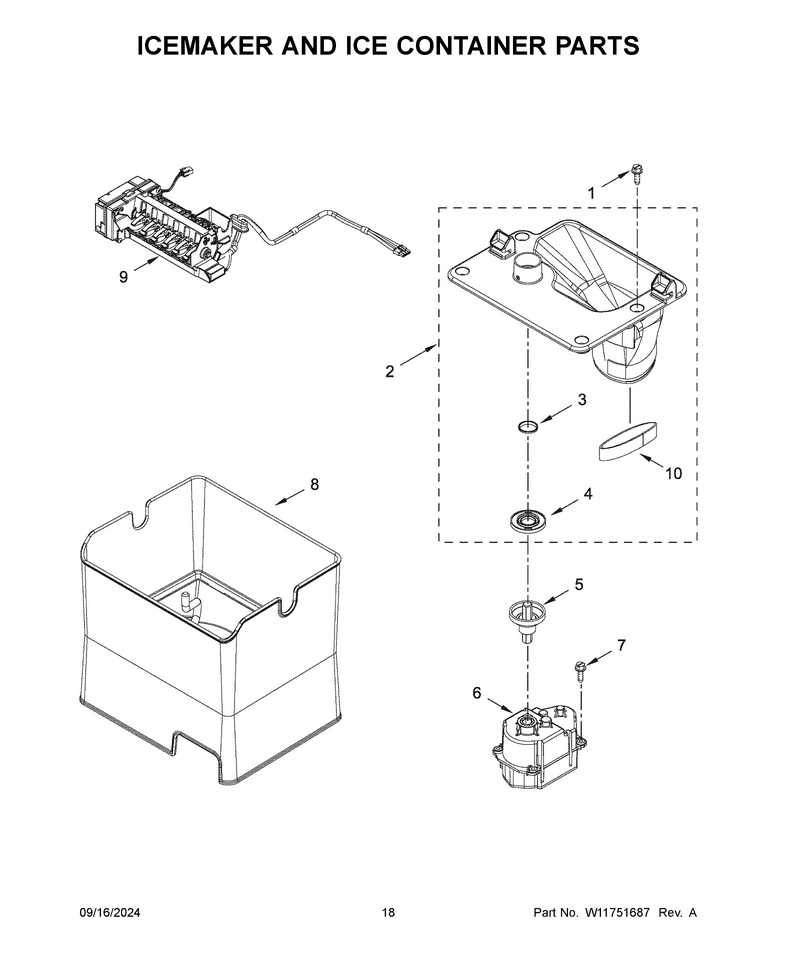

10 - Icemaker And Ice Container Parts

...
...
1
Screw WPL-WPW10272364
...
2
Plate WPL-W10837274
...
3
Seal WPL-WP2198628
...
4
Clip WPL-W10847834
...
5
Shaft WPL-W11509548
...
6
Motor WPL-W10822606
...
7
Screw WPL-WP8281163
...
8
Ice-Contnr WPL-WPW10347093
...
9
Icemaker WPL-W11658802
...
10
Seal WPL-WPW10291905

...
...
NI
Miscellaneous, Kit, Water Inlet WPL-8003RP
