Whirlpool WRTX5328PW01

Model: WRTX5328PW01

Save Part Not Listed?
product name

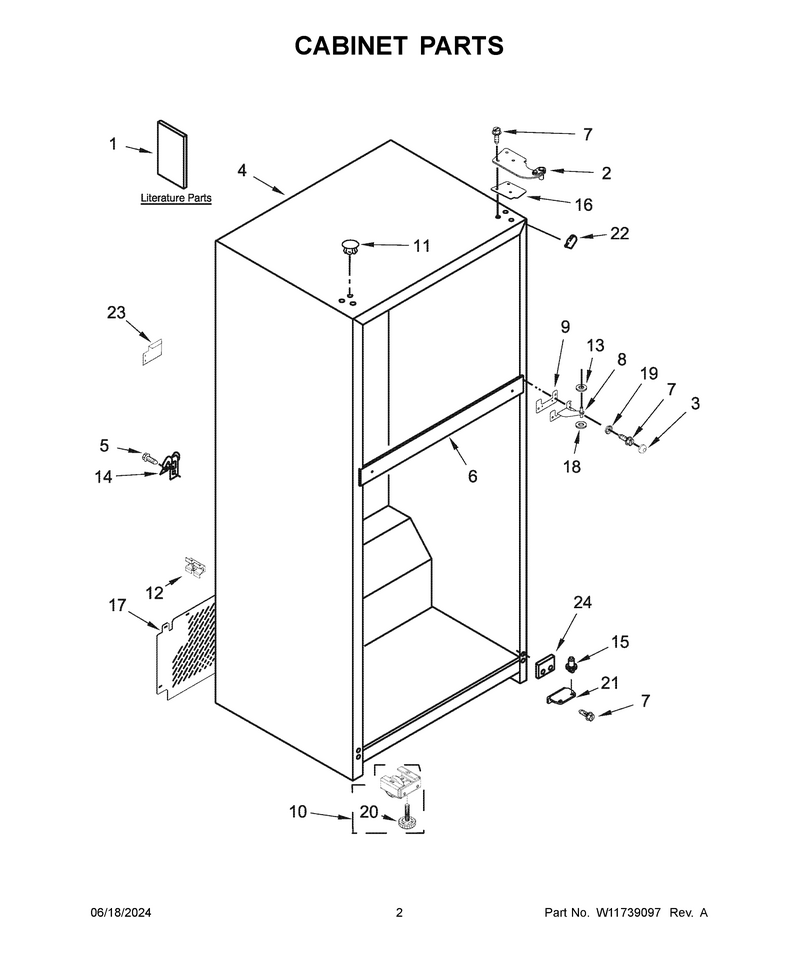

02 - Cabinet Parts

...
...
1
Tech Sheet WPL-W11618689
...
1A
Use And Care Guide WPL-W11507956
...
1B
Energy Guide WPL-W11670081
...
2
Hinge-Door WPL-W11714879
...
3
Cap-Screw WPL-W10846529
...
3A
Cap-Screw WPL-W10853677
...
3B
Cap-Screw WPL-W10849198
...
4
Cabinet (Not Serviced) WPL---
...
5
Screw WPL-WP489442
...
6
Rail, Center (Not Serviced) WPL---
...
7
Screw WPL-WP489497
...
8
Hinge-Door WPL-WP2166037
...
9
Shim, Hinge Center (White) WPL-2166043
...
9A
Shim, Hinge (Center) (Black) WPL-2215385
...
10
Roller-Cab WPL-WPW10142530
...
11
Button-Plg WPL-WPW10520304
...
11A
Button-Plg WPL-WPW10520305
...
11B
Button-Plg WPL-WPW10520307
...
12
Spacer, Back WPL-W11416450
...
13
Washer WPL-WP489467
...
14
Clamp, Plastic WPL-W11234470
...
15
Hinge-Pin WPL-W11026307
...
16
Hinge-Door WPL-W11714879
...
17
Cover-Unit WPL-W11729399
...
18
Washer WPL-WP487576
...
19
Washer WPL-W10847959
...
20
Screw WPL-WPW10133299
...
21
Hinge WPL-WP2325482
...
22
Filler WPL-W10859322
...
22A
Filler WPL-W11500943
...
22B
Filler WPL-W11573591
...
23
Cover WPL-W11528668
...
24
Shim WPL-WP2201567

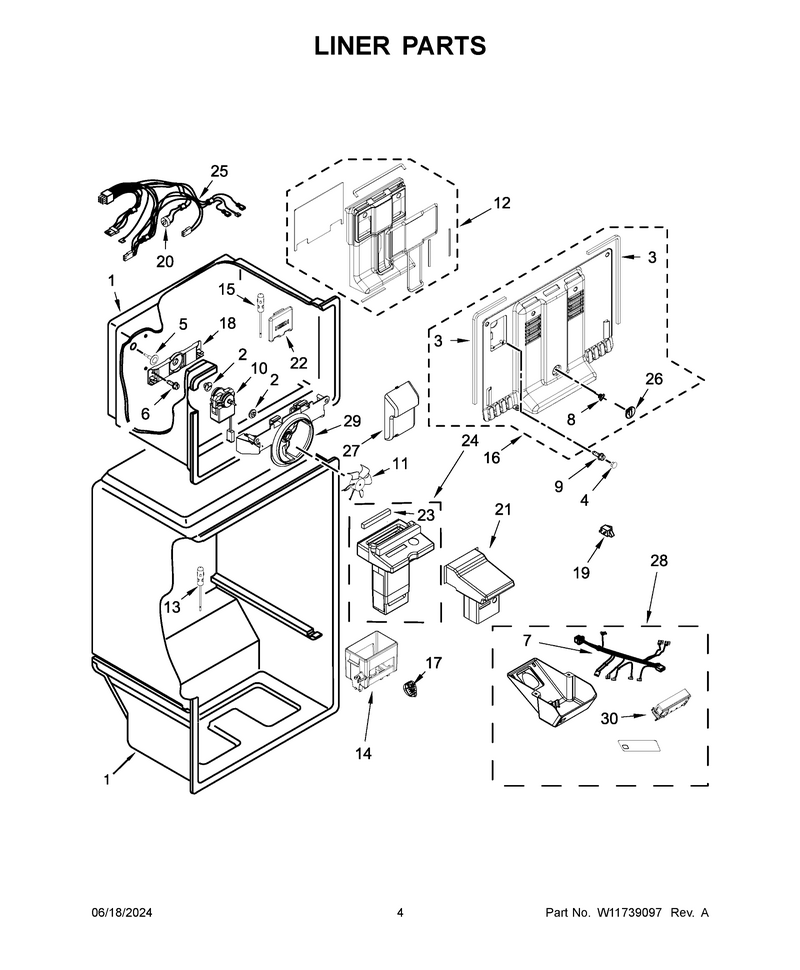

03 - Liner Parts

...
...
1
Liner (Not Serviced) WPL---
...
2
Grommet WPL-WP2264462
...
3
Gasket, Evaporator Cover WPL-W10579698
...
4
Cover WPL-W10854527
...
5
Button-Plg WPL-WP941839
...
6
Screw WPL-WP488163
...
7
Wire Assembly, Control Box WPL-W11203361
...
8
Baffle, Air Manual WPL-W10169456
...
9
Screw WPL-W11544659
...
10
Motor-Evap WPL-WP2315539
...
11
Blade-Fan WPL-WP2163777
...
12
Duct-Air WPL-W11666272
...
13
Thermistor WPL-W11724692
...
14
Cover, Air Diffuser WPL-W10570480
...
15
Thermistor WPL-WPW10384183
...
16
Cover-Evap WPL-W11634632
...
17
Bulb-Light WPL-W11502762
...
18
Bracket, Evaporator Fan Rear WPL-2254454
...
19
Switch WPL-W11727836
...
20
Bi-Metal Defrost (Not Serviced) WPL---
...
21
Duct-Air WPL-W11208347
...
22
Housing, Thermistor WPL-2321148
...
23
Gasket, Air Diffuser WPL-W10702120
...
24
Assembly, Air Diffuser WPL-W11603929
...
25
Harns-Wire WPL-W11609822
...
26
Damper-Air WPL-W11026417
...
27
Cover WPL-W11562261
...
28
Panel-Ui WPL-W11747508
...
29
Orifice WPL-W10850162
...
30
Control, Electronic WPL-W11625595

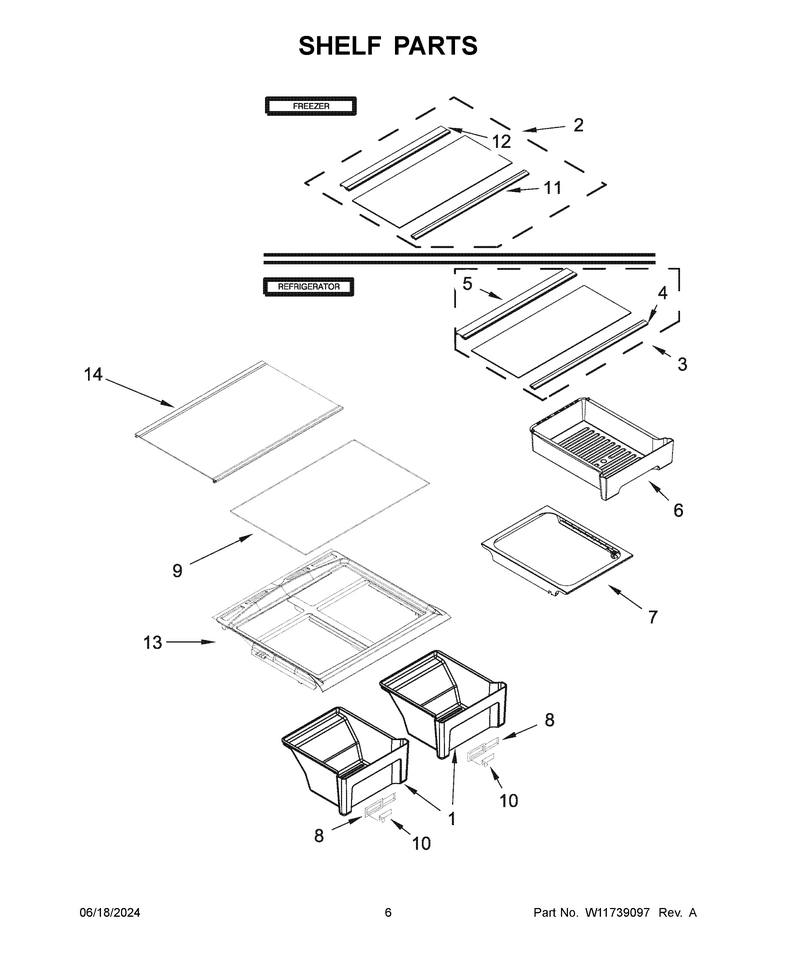

04 - Shelf Parts

...
...
1
Pan-Crispr WPL-WP2256704
...
2
Shelf-Glas WPL-W11105826
...
3
Shelf-Glas WPL-W11669621
...
4
Trim Shelf, Front WPL-W11596624
...
5
Trim Shelf, Rear WPL-W10804343
...
6
Pan-Meat WPL-W11256433
...
7
Holder WPL-W11679644
...
8
Body-Cntrl WPL-WP2212446
...
9
Shelf-Glas WPL-WP2262441
...
10
Slide WPL-WP2176222
...
11
Trim, Shelf Front WPL-W10847166
...
12
Trim, Shelf Rear WPL-W10847182
...
13
Cover WPL-WP2222031
...
14
Shelf-Glas WPL-W11669622

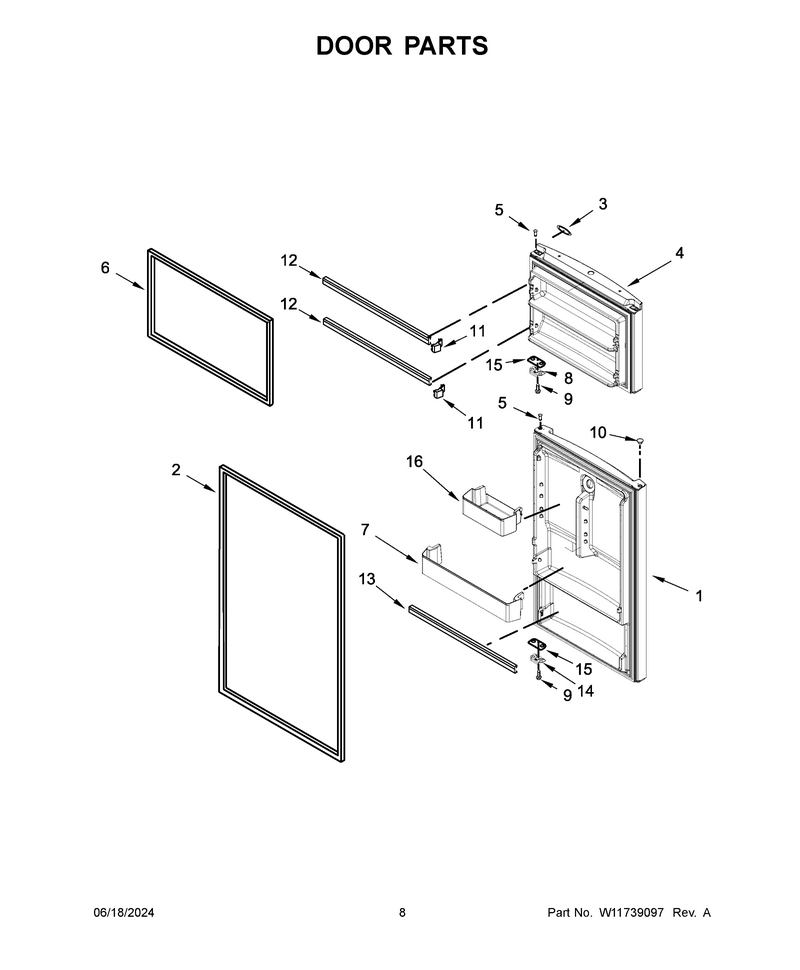

05 - Door Parts

...
...
1
Dor-Fip WPL-W11645694
...
1A
Dor-Fip WPL-W11645693
...
1B
Dor-Fip WPL-W11645695
...
2
Gasket-Fip WPL-2319266W
...
2A
Gasket-Fip WPL-2319266B
...
2B
Gasket, Door (Grey) WPL-W10244874
...
3
Nameplate WPL-W11178521
...
4
Dor-Fip WPL-LW10852088
...
4A
Dor-Fip WPL-LW10803963
...
4B
Dor-Fip WPL-LW10803960
...
5
Thimble WPL-W11759045
...
5A
Thimble WPL-W11189115
...
5B
Thimble WPL-W11676573
...
6
Gasket-Fip WPL-WP2319263W
...
6A
Gasket-Fip WPL-WP2319263B
...
6B
Gasket-Fip WPL-W11661186
...
7
Trivet WPL-W11230940
...
8
Bracket WPL-W11745278
...
9
Screw WPL-WP488921
...
10
Button-Plg WPL-WP2212648
...
10A
Button-Plg WPL-WP2212651
...
11
Endcap WPL-WP2156003
...
12
Trim, Door Shelf WPL-W10245587
...
13
Trim-Door WPL-W11669624
...
14
Bracket, Door Stop WPL-W10492012
...
15
Shim WPL-WP2258681W
...
16
Bin WPL-W11190821

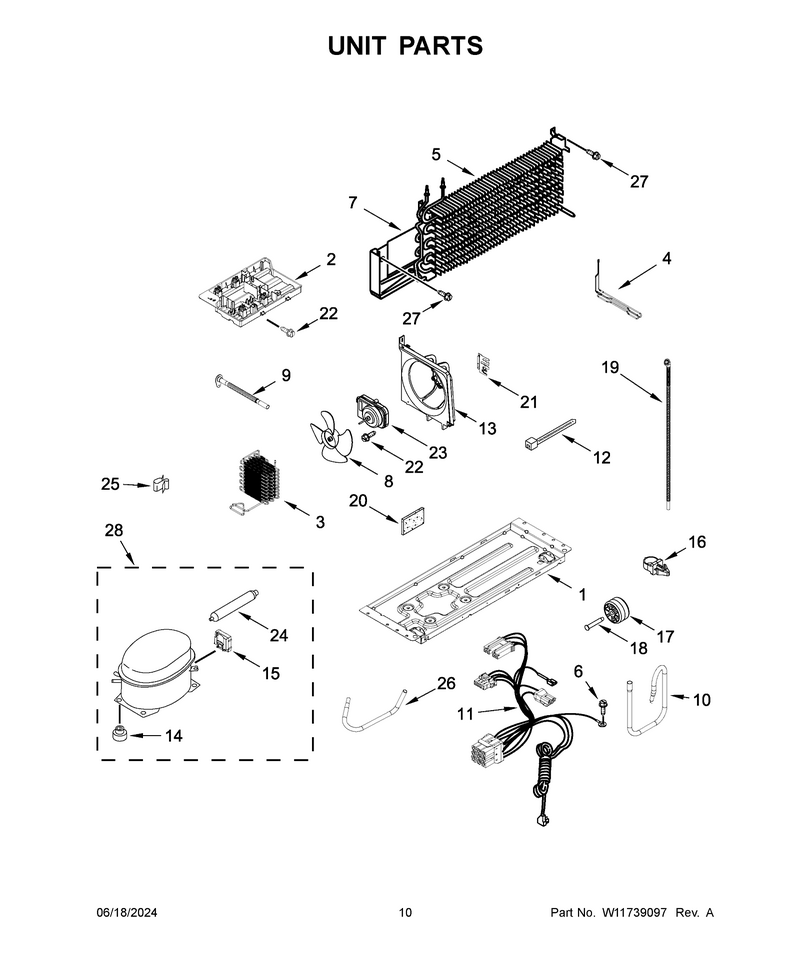

06 - Unit Parts

...
...
NI
Refrigerant Charge 48 Grams (R600a) WPL---
...
1
Support Plate, Compressor WPL-W11620973
...
2
Tray, Evaporator WPL-W10565417
...
3
Condenser WPL-W11722672
...
3A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
3B
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
4
Heater WPL-W11579349
...
5
Evaporator WPL-W11579351
...
5A
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
5B
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
6
Screw WPL-8533919
...
7
Shield, Heat WPL-W10570572
...
8
Blade-Fan WPL-W11204896
...
9
Extension, Drain Tube WPL-W10582029
...
10
Tube, Suction WPL-W11605566
...
11
Harness, Unit WPL-W11580969
...
12
Tie-Wire WPL-WPW10339879
...
13
Baffle-Air WPL-WPW10570380
...
14
Grommet WPL-WPW10169124
...
15
Inverter WPL-W11606921
...
16
Clip, Harness WPL-2219077
...
17
Roller-Cab WPL-WPW10475495
...
18
Rivet WPL-WP2264756
...
19
Tube, Drain WPL-W10286976
...
20
Insulation WPL-W11553819
...
21
Bracket, Evaporator WPL-W11340313
...
22
Screw WPL-WPW10171469
...
23
Motor-Cond WPL-W11613295
...
24
Drier-Tube WPL-W11109499
...
24A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
24B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
25
Clip WPL-W11501419
...
26
Tube, Process WPL-W11675935
...
27
Screw WPL-WP489442
...
28
Compressor WPL-W11557671
...
28A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
28B
7/6 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504430
...
28C
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619

...
...
NI
Icemaker WPL-W11729596
