product name

Whirlpool WRT318FZDB10

Model: WRT318FZDB10

Save Part Not Listed?
product name

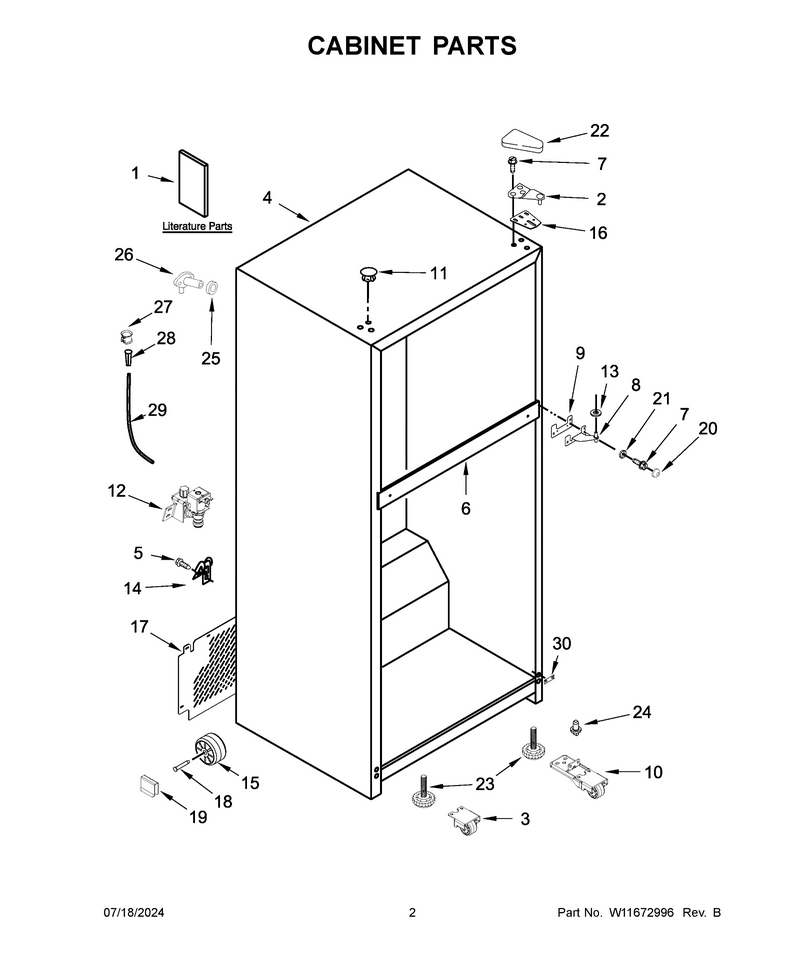

02 - Cabinet Parts

...
...
1
Tech Sheet WPL-W11511780
...
1A
Use And Care Guide WPL-W11507956
...
1B
Energy Guide WPL-W11110662
...
2
Hinge-Door WPL-WP2261963
...
3
Roller-Cab WPL-W11256723
...
4
Cabinet (Not Serviced) WPL---
...
5
Screw WPL-WP489442
...
6
Rail, Center (Not Serviced) WPL---
...
7
Screw WPL-WP489497
...
8
Hinge-Door WPL-WP2254618
...
9
Shim WPL-WP2183852
...
10
Roller-Cab WPL-W11096015
...
11
Button-Plg WPL-WPW10520304
...
11A
Button-Plg WPL-WPW10520305
...
11B
Button-Plg WPL-WPW10520307
...
12
Valve-Inlt WPL-WPW10279909
...
13
Washer WPL-WP489467
...
14
Clamp, Plastic WPL-W11234470
...
15
Roller-Cab WPL-WPW10475495
...
16
Shim WPL-W11169703
...
17
Cover-Unit WPL-W11476772
...
18
Axle WPL-W11594405
...
19
Pin-Hitch WPL-WP2174706
...
20
Cap-Screw WPL-W10846529
...
20A
Cap-Screw WPL-W10853677
...
20B
Cap-Screw WPL-W10849198
...
21
Washer WPL-W10847959
...
22
Cover WPL-WP2213360
...
22A
Cover WPL-WP2213363
...
22B
Cover WPL-W10853622
...
23
Leveler WPL-W10854419
...
24
Hinge-Pin WPL-W11026307
...
25
Gasket WPL-WP1106508
...
26
Fitting WPL-W11292468
...
27
Clamp WPL-W10861184
...
28
Insert, Tube WPL-4387491
...
29
Tube-Water WPL-W10823511
...
30
Shim-Hinge WPL-W11528669

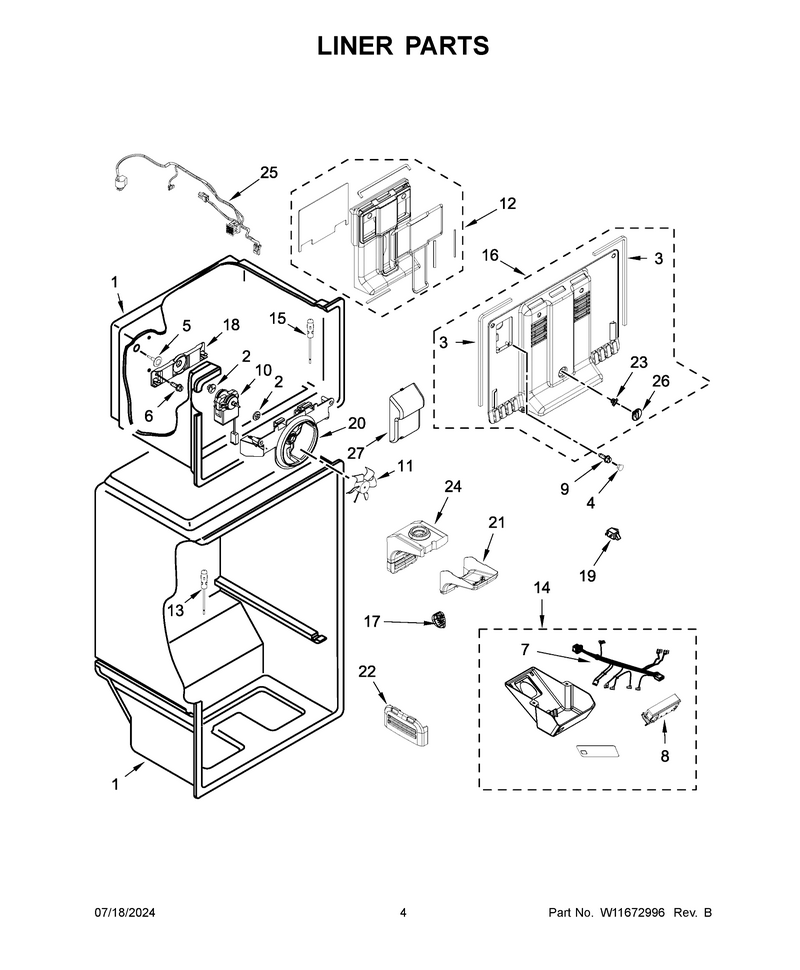

03 - Liner Parts

...
...
1
Liner (Not Serviced) WPL---
...
2
Grommet WPL-WP2264462
...
3
Gasket WPL-W10849448
...
4
Cover WPL-W10854527
...
5
Button-Plg WPL-WP941839
...
6
Screw WPL-WP488163
...
7
Harns-Wire WPL-W11436564
...
8
Cntrl-Elec WPL-W11562260
...
9
Screw WPL-W11544659
...
10
Motor-Evap WPL-WP2315539
...
11
Blade-Fan WPL-WP2163777
...
12
Duct-Air WPL-W10919804
...
13
Thermistor WPL-W11438736
...
14
Panel-Ui WPL-W11666427
...
15
Thermistor WPL-WPW10384183
...
16
Cover-Evap WPL-W11562262
...
17
Bulb-Light WPL-W11577968
...
18
Bracket, Evaporator Fan Rear WPL-2254454
...
19
Switch WPL-W11727836
...
20
Orifice WPL-W10850162
...
21
Cover WPL-W11256504
...
22
Cup, Air Diffuser WPL-W10638176
...
23
Control WPL-W11244470
...
24
Diffuser WPL-W10861170
...
25
Harns-Wire WPL-W11562214
...
26
Damper-Air WPL-W11026417
...
27
Cover WPL-W11562261

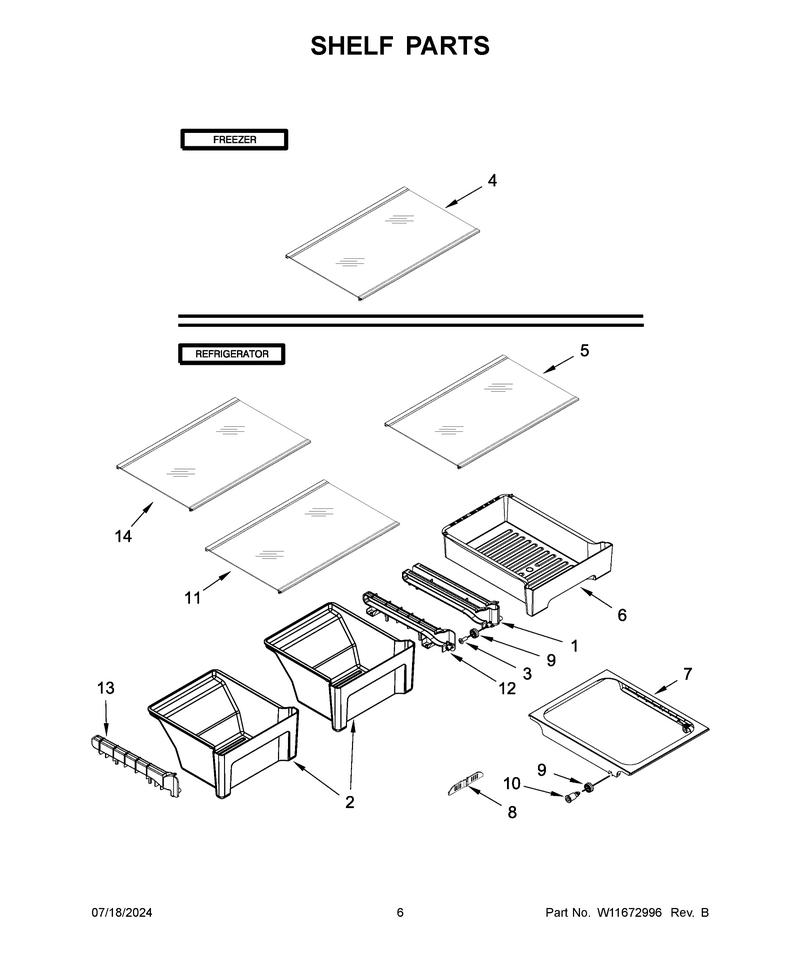

04 - Shelf Parts

...
...
1
Track WPL-W11595235
...
2
Pan-Crispr WPL-W10860753
...
3
Screw WPL-WP3400065
...
4
Shelf-Glas WPL-W11674479
...
5
Shelf-Glas WPL-WPW10628707
...
6
Pan-Meat WPL-W10861806
...
7
Holder WPL-W10861519
...
8
Slide WPL-W11590562
...
9
Roller WPL-W11164152
...
10
Axle WPL-W11175807
...
11
Shelf-Glas WPL-W11674475
...
12
Track WPL-W11595233
...
13
Track WPL-W11595232
...
14
Shelf-Glas WPL-W11674478

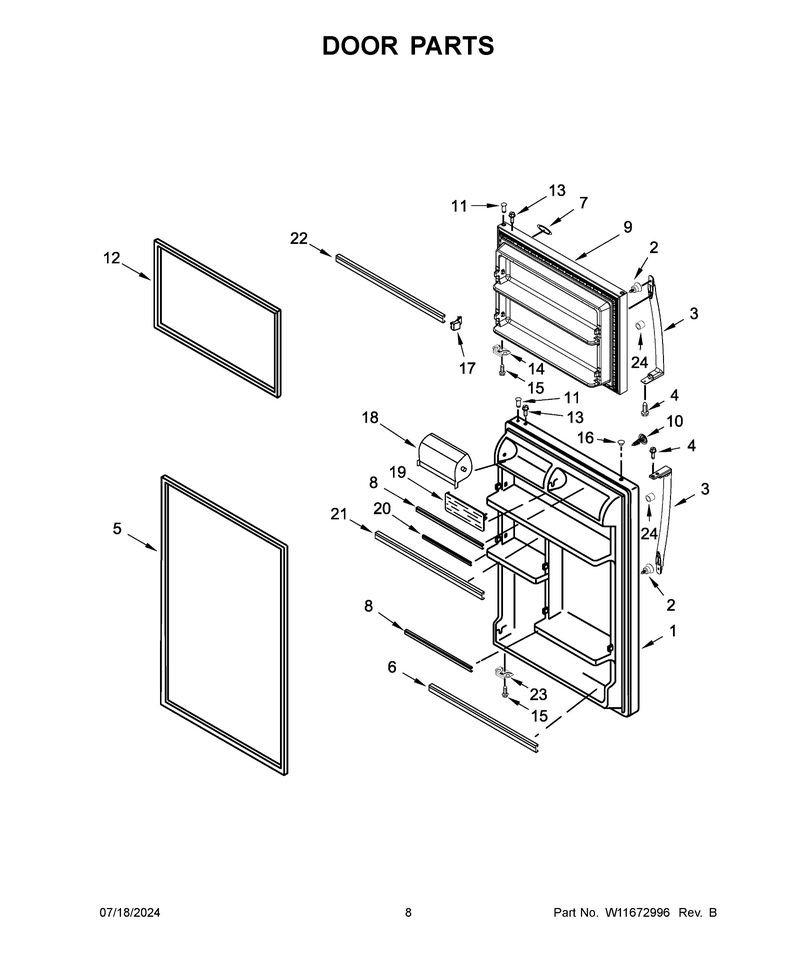

05 - Door Parts

...
...
NI
Miscellaneous, Door Reversal Kit Stainless Model WPL-W10676240
...
1
Dor-Fip WPL-LW10636410
...
1A
Dor-Fip WPL-LW10668874
...
1B
Dor-Fip WPL-W11575716
...
2
Screw WPL-WPW10170540
...
3
Handle WPL-WPW10672333
...
3A
Handle WPL-WPW10672334
...
3B
Handle WPL-W10806512
...
4
Screw WPL-WP489357
...
5
Gasket-Dor WPL-W11720866
...
5A
Gasket-Dor WPL-W11240749
...
5B
Gasket, Door (Grey) WPL-W11030683
...
6
Trim-Door WPL-W11097831
...
7
Nameplate WPL-W11178521
...
8
Trim-Door WPL-W11129820
...
9
Dor-Fip WPL-LW10636409
...
9A
Dor-Fip WPL-LW10668875
...
9B
Dor-Fip WPL-LW10638683
...
10
Plug-Hndle WPL-W10830984
...
10A
Plug-Hndle WPL-W10830983
...
10B
Plug-Hndle WPL-W10830982
...
11
Thimble WPL-WP2183003
...
12
Gasket-Dor WPL-W10861499
...
12A
Gasket-Dor WPL-W11229610
...
12B
Gasket-Dor WPL-W11574983
...
13
Screw WPL-WP8281206
...
14
Bracket WPL-W11745278
...
15
Screw WPL-WP488921
...
16
Button-Plg WPL-WP2212648
...
16A
Button-Plg WPL-WP2212651
...
16B
Button-Plg WPL-WP2254517
...
17
Endcap WPL-WP2156003
...
18
Door-Comp WPL-WP2218113
...
19
Door-Shelf WPL-WP2188234
...
20
Trim-Door WPL-W11106290
...
21
Trim-Door WPL-W11170805
...
22
Trim-Door WPL-W11126055
...
23
Bracket WPL-W11402852
...
24
Bushing WPL-WPW10511911

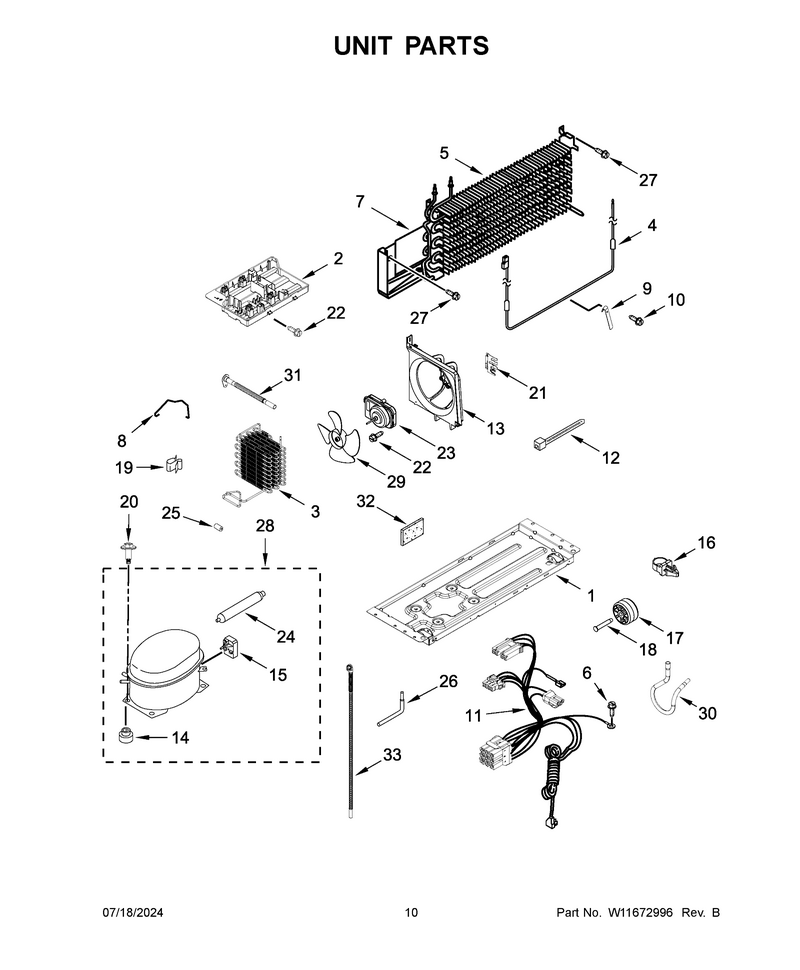

06 - Unit Parts

...
...
NI
Refrigerant Charge 50 Grams (R600a) WPL---
...
1
Support Plate, Compressor WPL-W10624648
...
2
Tray, Evaporator WPL-W10633582
...
3
Condenser WPL-W11512423
...
3A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
3B
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
4
Heater WPL-W11562215
...
5
Evaporator WPL-W11562258
...
5A
(8/7 Nr Al 00) (Suction Line To Evaporator) WPL-W11504419
...
5B
4/2 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504449
...
6
Screw WPL-WP489128
...
7
Shield WPL-W11562216
...
8
Clip WPL-W11567497
...
9
Heat-Probe WPL-W11611126
...
10
Screw WPL-WP489478
...
11
Harns-Wire WPL-W11611445
...
12
Tie-Wire WPL-WPW10339879
...
13
Baffle-Air WPL-W11736795
...
14
Grommet WPL-W11678963
...
15
Start-Dev WPL-W11547180
...
16
Clip, Harness WPL-2219077
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Clip WPL-W10812039
...
20
Screw WPL-W11417341
...
21
Bracket, Evaporator WPL-W11340313
...
22
Screw WPL-W10829281
...
23
Motor-Cond WPL-W11127829
...
24
Drier-Tube WPL-W11109499
...
24A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
24B
4/2 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504449
...
25
Grommet WPL-W10852725
...
26
Tube WPL-W11661102
...
27
Screw WPL-WP489442
...
28
Compressor WPL-W11582579
...
28A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
28D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
29
Blade-Fan WPL-W11193484
...
30
Tube WPL-W11562211
...
31
Extension, Drain Tube WPL-W11383479
...
32
Insulation WPL-W11553819
...
33
Tube, Drain WPL-W10633573

...
...
NI
Icemaker WPL-W11729596
