Whirlpool WRT311FZDT05

Model: WRT311FZDT05

Save Part Not Listed?
product name

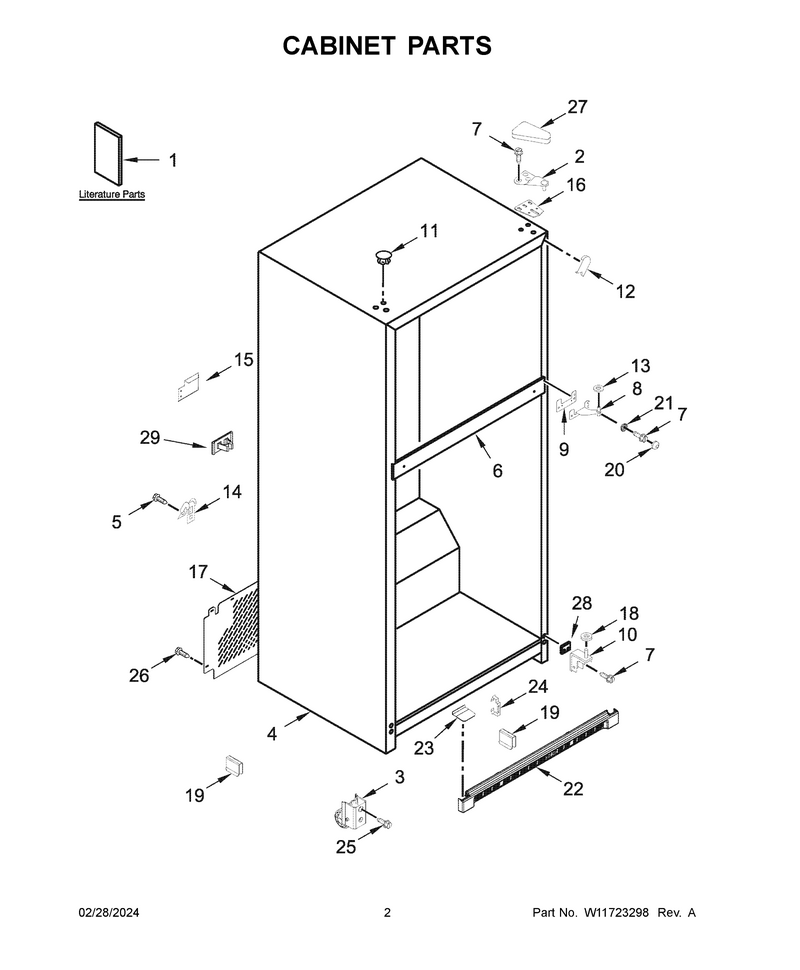

02 - Cabinet Parts

...
...
1
Tech Sheet WPL-W11511784
...
1A
Use And Care Guide WPL-W11507956
...
1B
Energy Guide WPL-W11644016
...
2
Hinge-Door WPL-WP2261963
...
3
Roller-Cab WPL-W10849386
...
4
Cabinet (Not Serviced) WPL---
...
5
Screw WPL-WP489442
...
6
Rail, Center (Not Serviced) WPL---
...
7
Screw WPL-WP489497
...
8
Hinge-Door WPL-WP2254618
...
9
Shim WPL-WP2183852
...
10
Hinge-Door WPL-WP2254473
...
11
Button-Plg WPL-WPW10520304
...
11A
Button-Plg WPL-WPW10520305
...
11B
Button-Plg WPL-WPW10520306
...
11C
Button-Plg WPL-WPW10520307
...
12
Filler, Wrapper (White) WPL-W11219639
...
12A
Filler, Wrapper (Black) WPL-W11219641
...
12B
Filler, Wrapper (Biscuit) WPL-W11219640
...
12C
Filler, Wrapper (Grey) WPL-W11219642
...
13
Washer WPL-WP489467
...
14
Clamp, Plastic WPL-W11234470
...
15
Cover WPL-W11528668
...
16
Shim WPL-W11169703
...
17
Cover, Unit WPL-W11307290
...
18
Washer WPL-WP487576
...
19
Pin-Hitch WPL-WP2174706
...
20
Cap-Screw WPL-W10846529
...
20A
Cap-Screw WPL-W10853677
...
20B
Cap, Dome (Biscuit) WPL-W10679138
...
20C
Cap-Screw WPL-W10849198
...
21
Washer WPL-W10847959
...
22
Grille WPL-W10839426
...
22A
Grille WPL-W10860799
...
22B
Grille (Biscuit) WPL-W10592143
...
22C
Grille WPL-W10860791
...
23
Cover, Toe Grille (White) WPL-W10600071
...
23A
Cover, Toe Grille (Black) WPL-W10468609
...
23B
Cover, Toe Grille (Biscuit) WPL-W10468610
...
23C
Cover, Toe Grille (Grey) WPL-W10468611
...
24
Clip, Grille WPL-2254385
...
25
Screw (6) WPL-3400524
...
26
Screw WPL-WP488729
...
27
Cover WPL-WP2213360
...
27A
Cover WPL-WP2213363
...
27B
Cover, Top Hinge (Biscuit) WPL-2213364
...
27C
Cover WPL-W10853622
...
28
Shim WPL-WP2201567
...
29
Clip WPL-W11501419

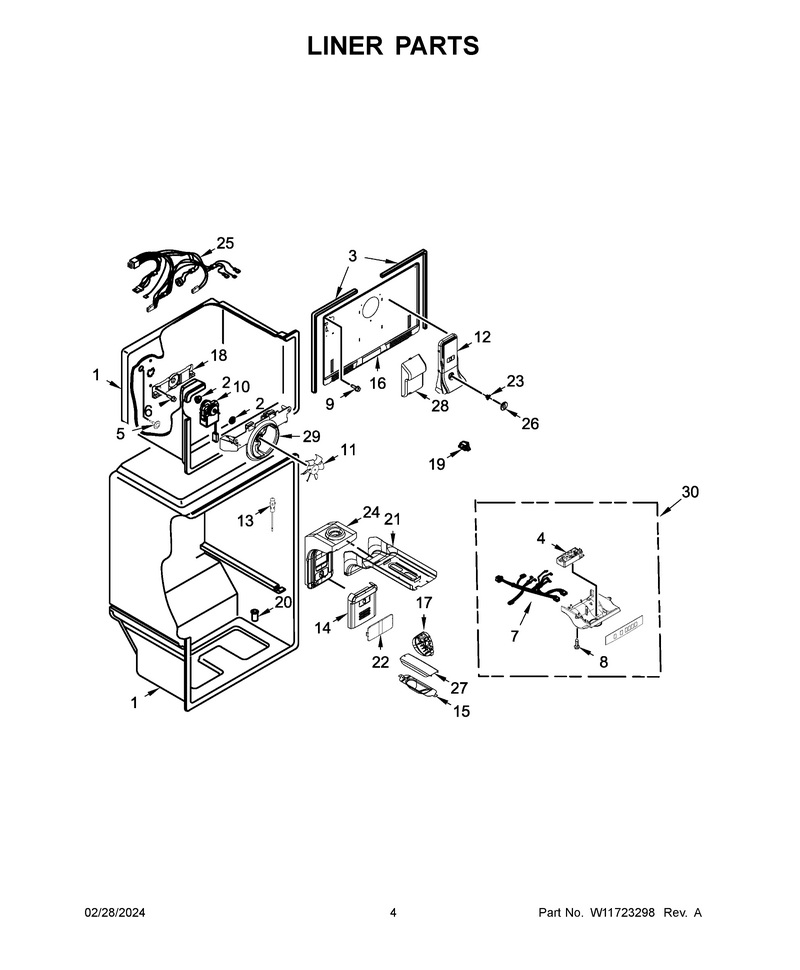

03 - Liner Parts

...
...
1
Liner (Not Serviced) WPL---
...
2
Grommet WPL-WP2264462
...
3
Gasket WPL-WP2254360
...
4
Cntrl-Elec WPL-W11613574
...
5
Button-Plg WPL-WP941839
...
6
Screw WPL-WP488163
...
7
Harns-Wire WPL-W11441783
...
8
Screw WPL-WP489174
...
9
Screw WPL-WPW10142283
...
10
Motor-Evap WPL-WP2315539
...
11
Blade-Fan WPL-WP2163777
...
12
Air-Tower WPL-W11126274
...
13
Thermistor WPL-WPW10384183
...
14
Cup, Air Diffuser WPL-W10609502
...
15
Shield, Light WPL-W10300161
...
16
Cover, Evaporator WPL-W11515911
...
17
Bulb-Light WPL-W11577968
...
18
Bracket, Evaporator Fan Rear WPL-2254454
...
19
Switch WPL-W11727836
...
20
Releas-Vac WPL-WP2210509
...
21
Cover WPL-WPW10305175
...
22
Cup, Screw WPL-W10336009
...
23
Control WPL-W11206112
...
24
Diffuser WPL-W11188815
...
25
Harns-Wire WPL-W11618502
...
26
Damper-Air WPL-W11026417
...
27
Cover WPL-WPW10348614
...
28
Cover WPL-W11562261
...
29
Orifice WPL-W10850162
...
30
Contrl-Box WPL-W11594670

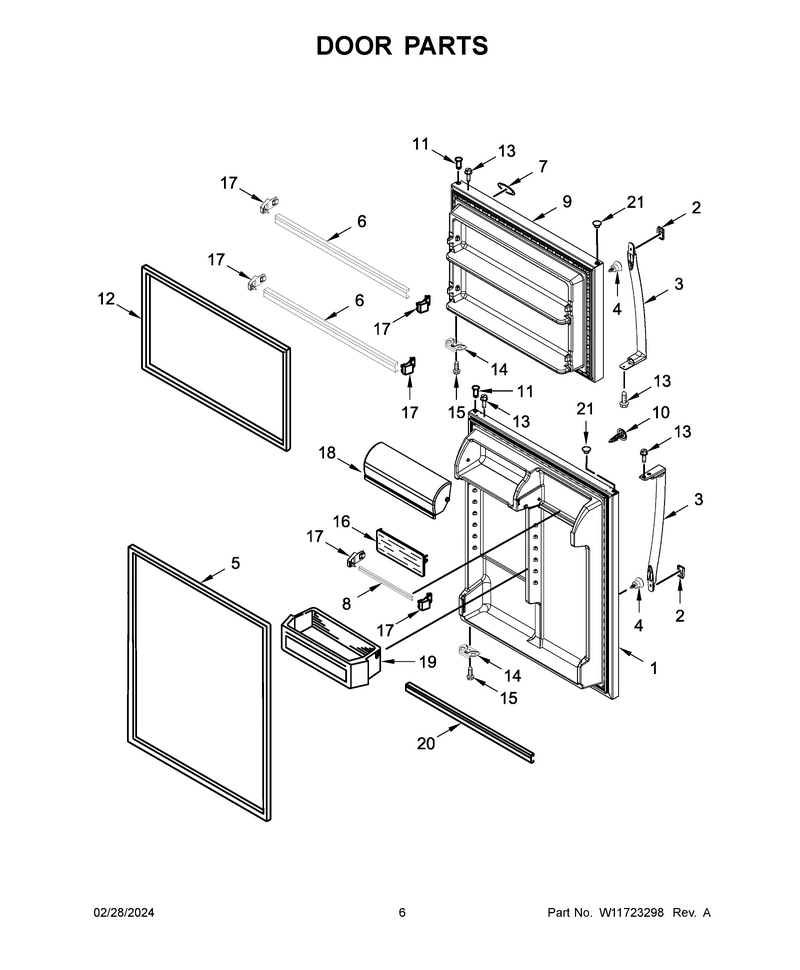

04 - Door Parts

...
...
NI
Miscellaneous, Door Reversal Kit Stainless Model WPL-W10676240
...
1
Dor-Fip WPL-W11023679
...
1A
Dor-Fip WPL-W11023687
...
1B
Dor-Fip WPL-W11023688
...
1C
Dor-Fip WPL-LW10642551
...
2
Cover WPL-WPW10672338
...
2A
Cover WPL-W10838316
...
2B
Handle, Trim (Biscuit) WPL-W10672341
...
2C
Endcap-Hdl WPL-W11519504
...
3
Handle WPL-WPW10672333
...
3A
Handle WPL-WPW10672334
...
3B
Handle WPL-W10859918
...
3C
Handle WPL-W10806512
...
4
Screw WPL-WP489357
...
5
Gasket-Fip WPL-W10860480
...
5A
Door Gasket, Magnetic (Black) WPL-2177311
...
5B
Door Gasket, Magnetic (Mist Beige) WPL-2159061
...
5C
Gasket-Fip WPL-W10249195
...
6
Trim-Door WPL-W11596065
...
7
Nameplate WPL-W11178521
...
8
Trim-Door WPL-W11678258
...
9
Dor-Fip WPL-W11023679
...
9A
Dor-Fip WPL-W11023687
...
9B
Dor-Fip WPL-W11023688
...
9C
Dor-Fip WPL-LW10642554
...
10
Plug-Hndle WPL-W10830984
...
10A
Plug-Hndle WPL-W10830983
...
10B
Plug-Hndle WPL-W10830981
...
10C
Plug-Hndle WPL-W10830982
...
11
Thimble WPL-WP2314293
...
12
Gasket-Fip WPL-W10741118
...
12A
Door Gasket, Magnetic (Black) WPL-2177310
...
12B
Door Gasket, Magnetic (Mist Beige) WPL-2159060
...
12C
Gasket-Fip WPL-W10249196
...
13
Screw WPL-WP8281206
...
14
Bracket WPL-W11745278
...
15
Screw WPL-WP681249
...
16
Door-Shelf WPL-WP2188236
...
17
Endcap WPL-WP2156003
...
18
Door-Comp WPL-W11617783
...
19
Bin-Cntlvr WPL-W10803530
...
20
Trim-Door WPL-W11606660
...
21
Button-Plg WPL-WP2212648
...
21A
Button-Plg WPL-WP2212651
...
21B
Button-Plg WPL-WP2212649
...
21C
Button-Plg WPL-WP2254517

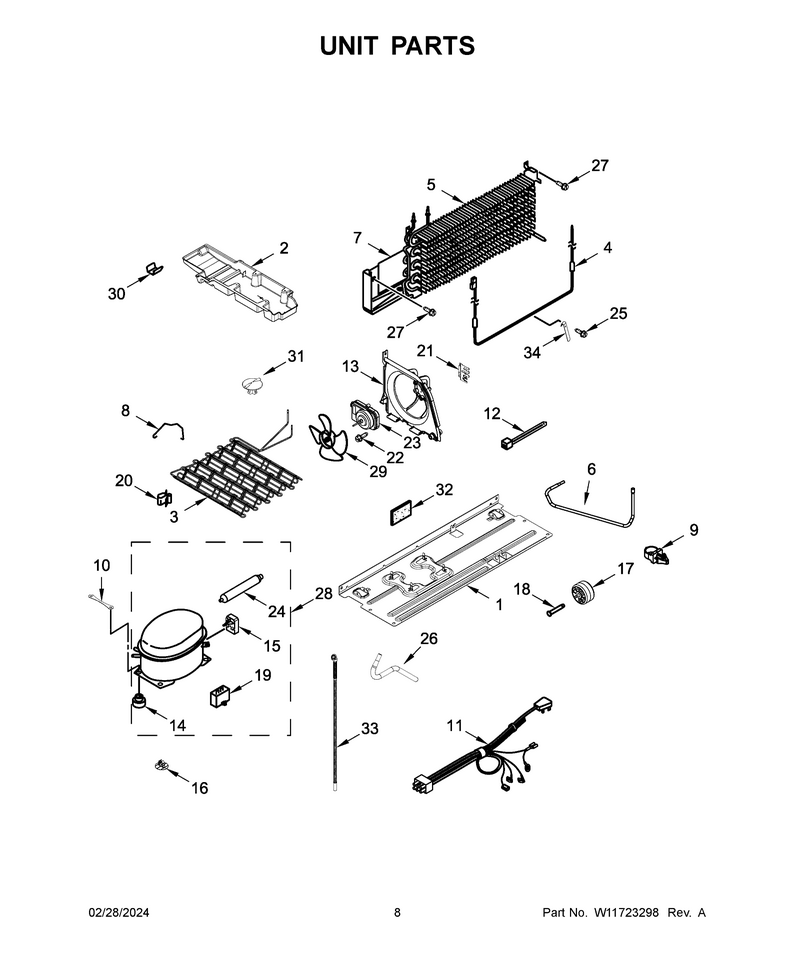

05 - Unit Parts

...
...
NI
Refrigerant Charge 47 Grams (R600a) WPL---
...
1
Baseplate WPL-W11396825
...
2
Pan-Drip WPL-W10890667
...
3
Condenser (Also Order The Following Lokring Parts) WPL-W10609393
...
3A
7/4.5 Nr Ms 00 (High Side To Condenser) WPL-W11578570
...
3B
4 Nk Ms 00 (Suction Line To Condenser) WPL-W11506624
...
4
Heater WPL-W11562215
...
5
Evaporator WPL-W11578004
...
5A
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
5B
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
6
Tube WPL-W11741026
...
7
Shield WPL-W11562216
...
8
Clip WPL-W11577799
...
9
Clip, Harness WPL-2219077
...
10
Strap, Compressor WPL-W10236396
...
11
Harns-Wire WPL-W11625681
...
12
Tie-Wire WPL-WPW10339879
...
13
Baffle-Air WPL-W11605794
...
14
Grommet WPL-W11678963
...
15
Start-Dev WPL-W11547180
...
16
Clip, Bottom Cover WPL-W10815861
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Capacitor WPL-WPW10662129
...
20
Clip WPL-W10812039
...
21
Bracket, Evaporator WPL-W11340313
...
22
Screw WPL-W10829281
...
23
Motor-Cond WPL-W11127829
...
24
Drier-Tube WPL-W11109499
...
24A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
24B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
25
Screw WPL-WP489478
...
26
Tube WPL-W11661102
...
27
Screw WPL-WP489442
...
28
Compressor WPL-W11580057
...
28A
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
28B
7/4.5 Nr Ms 00 (High Side To Condenser) WPL-W11578570
...
28C
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
29
Blade-Fan WPL-W11193484
...
30
Clip WPL-W10683556
...
31
Releas-Vac WPL-WP2210509
...
32
Insulation WPL-W11553819
...
33
Tube, Drain WPL-W11577795
...
34
Heat-Probe WPL-W11611126

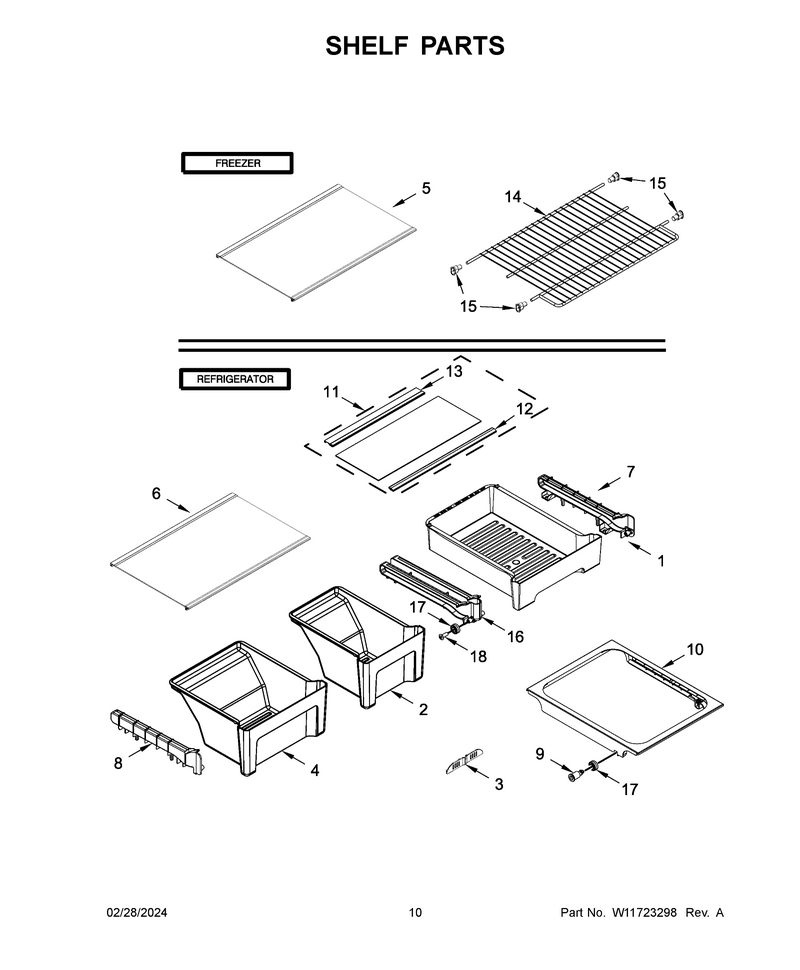

06 - Shelf Parts

...
...
1
Pan-Meat WPL-W10861806
...
2
Pan-Crispr WPL-W11190823
...
3
Slide WPL-W11590562
...
4
Pan-Crispr WPL-W10860122
...
5
Shelf-Glas WPL-W11736735
...
6
Shelf-Glas WPL-W11736734
...
7
Track WPL-W11051442
...
8
Track WPL-W11025586
...
9
Axle WPL-W11175807
...
10
Holder WPL-W10861519
...
11
Shelf-Glas WPL-WPW10691487
...
12
Trim, Shelf Front WPL-W10691528
...
13
Trim, Shelf Rear WPL-W10691529
...
14
Shelf, Wire WPL-W10477093
...
15
Cup WPL-WPW10130299
...
16
Track WPL-W11652044
...
17
Roller WPL-W11164152
...
18
Screw WPL-WP3400065

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
