product name

Whirlpool WRS588FIHV04

Model: WRS588FIHV04

Save Part Not Listed?
product name

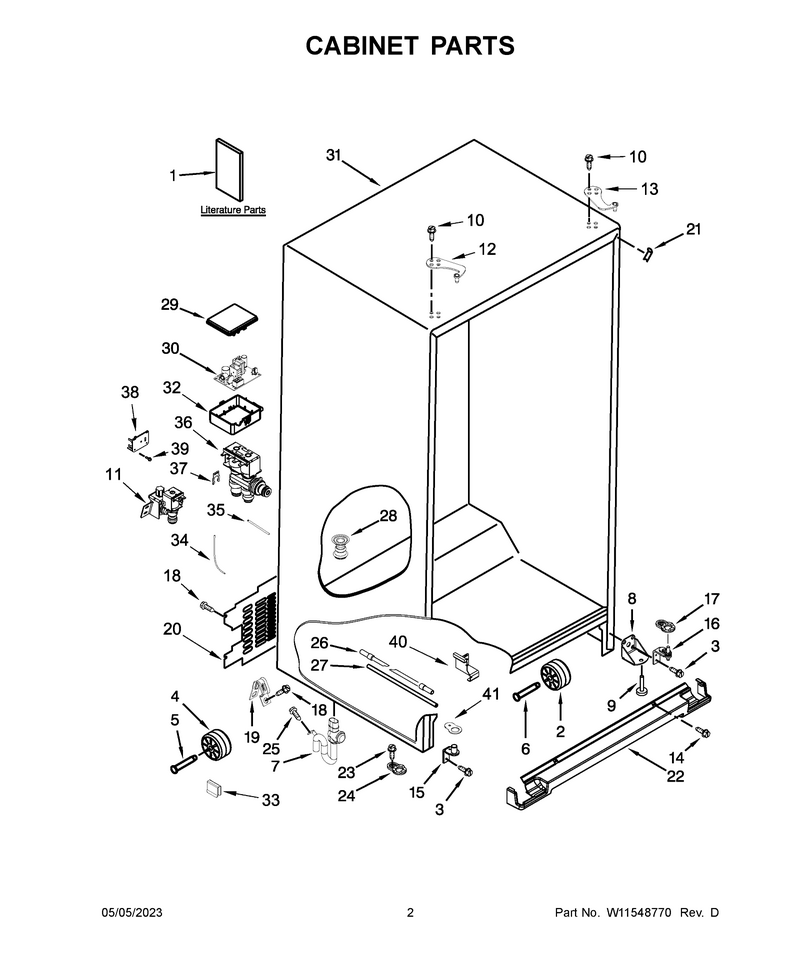

02 - Cabinet Parts

...
...
1
Use & Care Guide WPL-W11484052
...
1A
Tech Sheet WPL-W11575236
...
1B
Energy Guide WPL-W11387630
...
2
Roller-Cab WPL-WPW10475495
...
3
Screw WPL-WPW10297485
...
4
Roller WPL-WP67005149
...
5
Axle, Roller (2) WPL-67006434
...
6
Rivet WPL-W11208384
...
7
Tube, Drain WPL-W11293072
...
8
Bracket WPL-W11266052
...
9
Leveler WPL-WPW10141622
...
10
Assembly, Precooler Formed WPL-SCREW
...
11
Valve-Inlt WPL-W11512399
...
12
Hinge, Top (Freezer) (White) WPL-W10901051
...
12A
Hinge, Top (Freezer) (Black) WPL-W10901052
...
12B
Hinge-Door WPL-W11590581
...
13
Hinge-Door WPL-W11573587
...
13A
Hinge-Door WPL-W11568758
...
13B
Hinge-Door WPL-W11409290
...
14
Screw WPL-WPW10142283
...
14A
Screw WPL-WP98008545
...
14B
Screw WPL-WPW10308489
...
15
Hinge-Door WPL-W11293373
...
15A
Hinge-Door WPL-W11269265
...
15B
Hinge-Door WPL-W11293374
...
16
Hinge-Door WPL-W11320488
...
16A
Hinge-Door WPL-W11311416
...
16B
Hinge-Door WPL-W11292872
...
17
Cam-Door WPL-W11311685
...
17A
Cam-Door WPL-W11311686
...
17B
Cam-Door WPL-W11311687
...
18
Screw WPL-WPW10141645
...
19
Clamp, Plastic WPL-W11234470
...
20
Cover, Unit WPL-W11453073
...
21
Cover, Corner (White) WPL-12587703W
...
21A
Cover, Corner (Blk) WPL-67003485
...
21B
Filler WPL-WP12587703AP
...
22
Grille WPL-WPW10713160
...
22A
Grille WPL-WPW10713158
...
22B
Grille WPL-WPW10713153
...
23
Screw WPL-WP489483
...
24
Cam-Door WPL-W10876198
...
24A
Closer, Door (Freezer) (Black) WPL-W10770895
...
24B
Cam-Door WPL-W10876191
...
25
Screw WPL-WP489464
...
26
Tube-Water WPL-WPW10279882
...
27
Tube-Water WPL-WPW10279884
...
28
Fitting, Drain WPL-W10370680
...
29
Cover WPL-W11226688
...
30
Cntrl-Elec WPL-W11595219
...
31
Following Parts Not Illustrated WPL-N/P
...
32
Contrl-Box WPL-WPW10247993
...
33
Clip WPL-W11545866
...
34
Tube-Water WPL-WPW10238092
...
35
Tube-Water WPL-WPW10279831
...
36
Valve-Inlt WPL-WPW10341320
...
37
Ring WPL-W11678575
...
37A
Ring WPL-W11676611
...
38
Bracket WPL-W10847867
...
39
Screw WPL-WPW10141625
...
40
Assembly, Bracket WPL-W10499011
...
41
Shim, Cam Closer WPL-W10709916

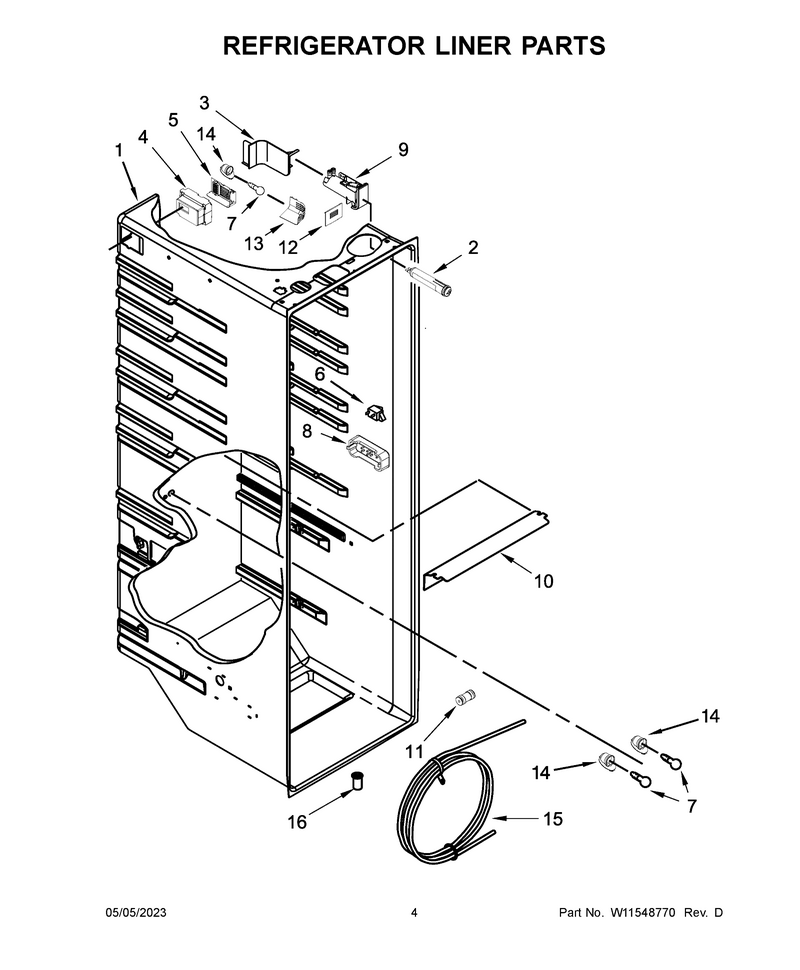

03 - Refrigerator Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Filter WPL-EDR1RXD1
...
3
Cover-Filt WPL-W11501035
...
4
Diffuser WPL-W11236851
...
5
Support WPL-WPW10457601
...
6
Switch WPL-W11384469
...
7
Bulb-Light WPL-W11216993
...
8
Cover WPL-WPW10425252
...
9
Housing WPL-WPW10394053
...
10
Lens-Light WPL-WPW10269099
...
11
Connector WPL-WPW10271543
...
12
Cover WPL-WPW10457603
...
13
Cover, Light WPL-W10893232
...
14
Capacitor (Service) WPL-4387478
...
15
Reservoir WPL-W11613294
...
16
Releas-Vac WPL-WP2210509

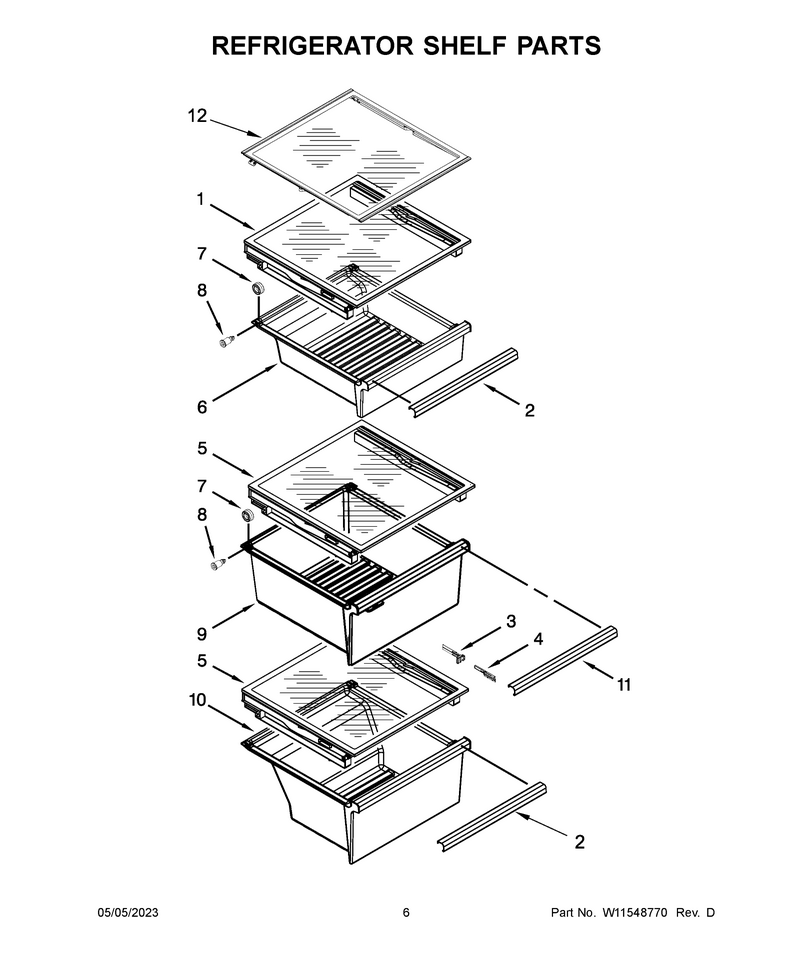

04 - Refrigerator Shelf Parts

...
...
1
Cover WPL-WPW10463648
...
2
Trim-Pan WPL-W11214888
...
3
Slide WPL-W11746089
...
4
Body-Cntrl WPL-WPW10282880
...
5
Cover WPL-WPW10463650
...
6
Pan-Snack WPL-W11629711
...
7
Roller WPL-W11164152
...
8
Axle WPL-W11175807
...
9
Pan-Crispr WPL-WPW10278653
...
10
Pan-Meat WPL-WPW10256774
...
11
Trim-Pan WPL-W11214890
...
12
Shelf-Glas WPL-W11130214

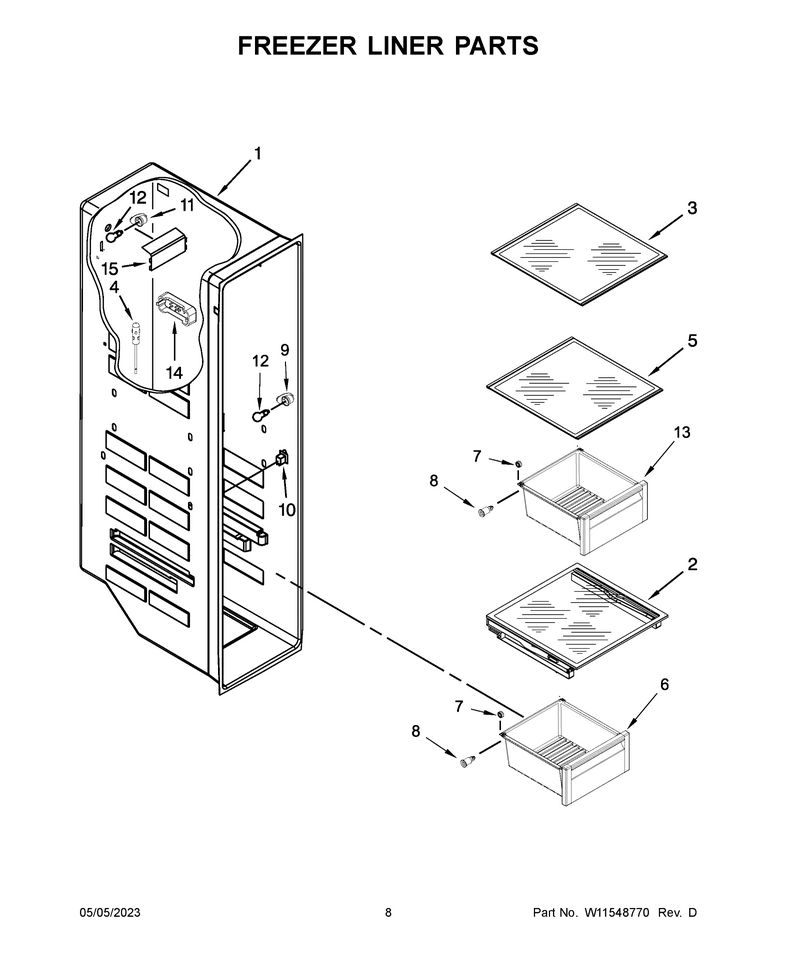

05 - Freezer Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Cover WPL-W11130204
...
3
Shelf-Glas WPL-W11130205
...
4
Thermistor WPL-W11724692
...
5
Shelf-Glas WPL-W11130212
...
6
Bin-Freezr WPL-WPW10322649
...
7
Roller WPL-W11164152
...
8
Axle WPL-W11175807
...
9
Socket WPL-W11606038
...
10
Switch WPL-W11396033
...
11
Capacitor (Service) WPL-4387478
...
12
Bulb-Light WPL-W11216993
...
13
Bin-Freezr WPL-WPW10322653
...
14
Cover WPL-WPW10425252
...
15
Lens-Light WPL-W11130215

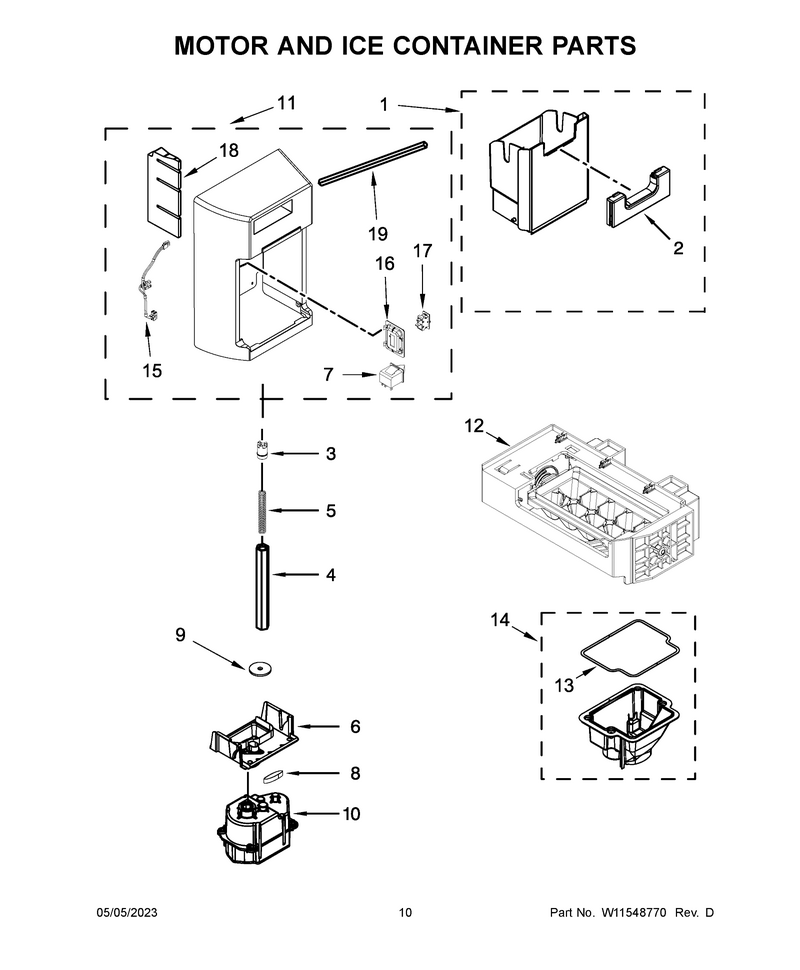

06 - Motor And Ice Container Parts

...
...
1
Ice-Contnr WPL-W11347840
...
2
Latch-Bin WPL-W11652042
...
3
Coupling WPL-WP2220458
...
4
Shaft WPL-WPW10258544
...
5
Spring WPL-W10852956
...
6
Chute WPL-W11573761
...
7
Switch WPL-W11123943
...
8
Seal WPL-WPW10291905
...
9
Washer WPL-WP2305382
...
10
Motor WPL-W11202789
...
11
Cover-Frnt WPL-W11558186
...
12
Icemaker WPL-W10873791
...
13
Gasket WPL-W10166854
...
14
Bracket WPL-W11678273
...
15
Wire-Jumpr WPL-W11684619
...
16
Plate, Switch WPL-W11341247
...
17
Switch WPL-W11469740
...
18
Filler, Eps Icemaker Cover WPL-W10749467
...
19
Gasket WPL-WPW10400435

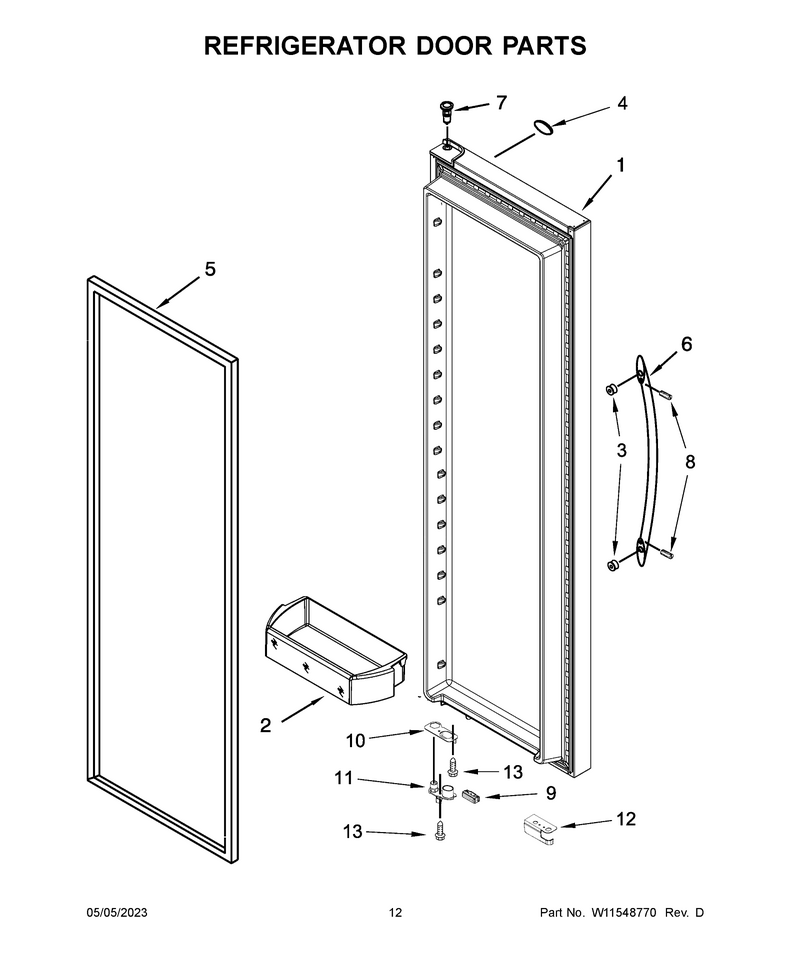

07 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-LW11038913
...
1A
Dor-Fip WPL-LW11038911
...
1B
Dor-Fip WPL-LW11038910
...
1C
Dor-Fip WPL-LW11037738
...
2
Bin-Cntlvr WPL-WPW10710203
...
3
Screw WPL-WPW10661886
...
4
Nameplate WPL-W11223753
...
5
Gasket-Fip WPL-WPW10247884
...
5A
Gasket-Fip WPL-WPW10249912
...
5B
Gasket-Fip WPL-W10355582
...
6
Handle WPL-W11432251
...
6A
Handle WPL-W11450221
...
6B
Handle WPL-W11450223
...
6C
Handle WPL-W11542651
...
7
Thimble WPL-WP2182181
...
8
Screw WPL-W11366418
...
9
Bumper-Dor WPL-W11687672
...
9A
Bumper, Door (Black) WPL-W10407187
...
9B
Bumper-Dor WPL-W11573367
...
10
Bracket WPL-W11037957
...
11
Cam-Door WPL-WPW10248015
...
11A
Cam-Door WPL-W11607100
...
11B
Cam-Door WPL-WPW10257206
...
12
Cover, Door Stop (White) WPL-W10632059
...
12A
Cover, Door Stop (Black) WPL-W10632060
...
12B
Cover-Wire WPL-WPW10632062
...
13
Screw WPL-WPW10296816

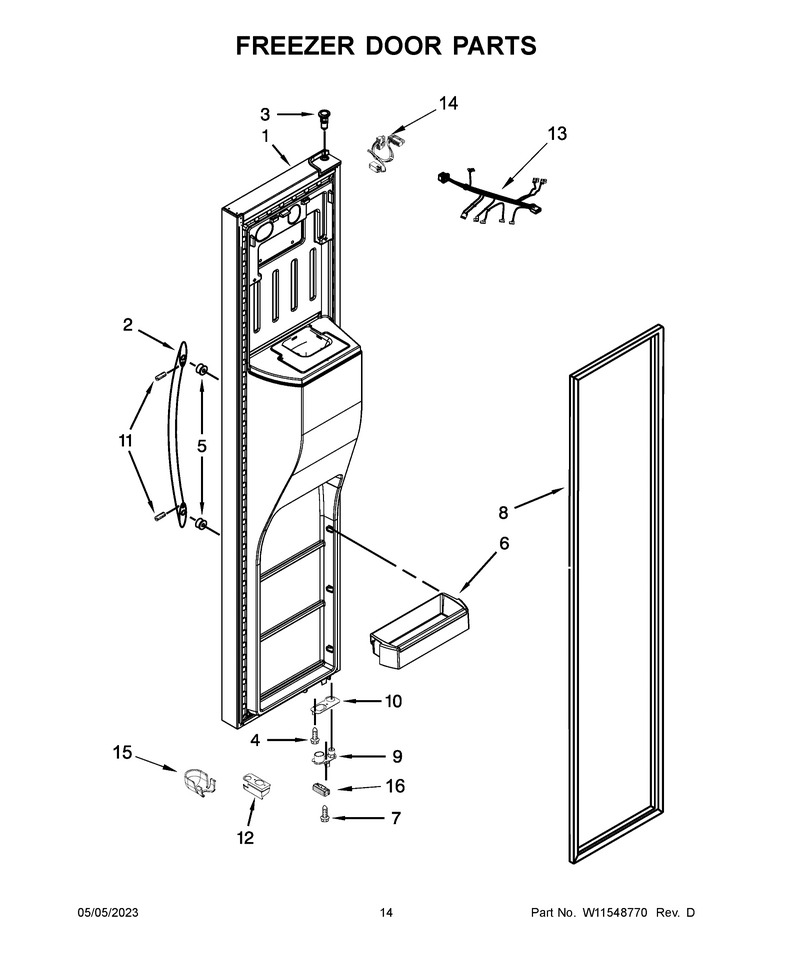

08 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11566701
...
1A
Dor-Fip WPL-W11566702
...
1B
Dor-Fip WPL-W11566703
...
1C
Dor-Fip WPL-W11566705
...
2
Handle WPL-W11432251
...
2A
Handle WPL-W11450221
...
2B
Handle WPL-W11450223
...
3
Thimble WPL-WP2182181
...
4
Screw WPL-WPW10296804
...
5
Screw WPL-WPW10661886
...
6
Bin-Cntlvr WPL-WPW10430639
...
7
Screw WPL-WPW10296816
...
8
Gasket-Fip WPL-WPW10247885
...
8A
Gasket-Fip WPL-WPW10249913
...
8B
Gasket-Fip WPL-WPW10355585
...
9
Cam-Door WPL-WPW10248015
...
9A
Cam-Door WPL-W11607100
...
9B
Cam-Door WPL-WPW10257206
...
10
Bumper-Dor WPL-W11687672
...
10A
Bumper, Door (Black) WPL-W10407187
...
10B
Bumper-Dor WPL-W11573367
...
11
Screw WPL-W11366418
...
12
Cover, Door Stop (White) WPL-W10632059
...
12A
Cover, Door Stop (Black) WPL-W10632060
...
12B
Cover-Wire WPL-WPW10632062
...
13
Harns-Wire WPL-W11678253
...
14
Cover, Wire WPL-W10323148
...
15
Wire-Jumpr WPL-W11293361

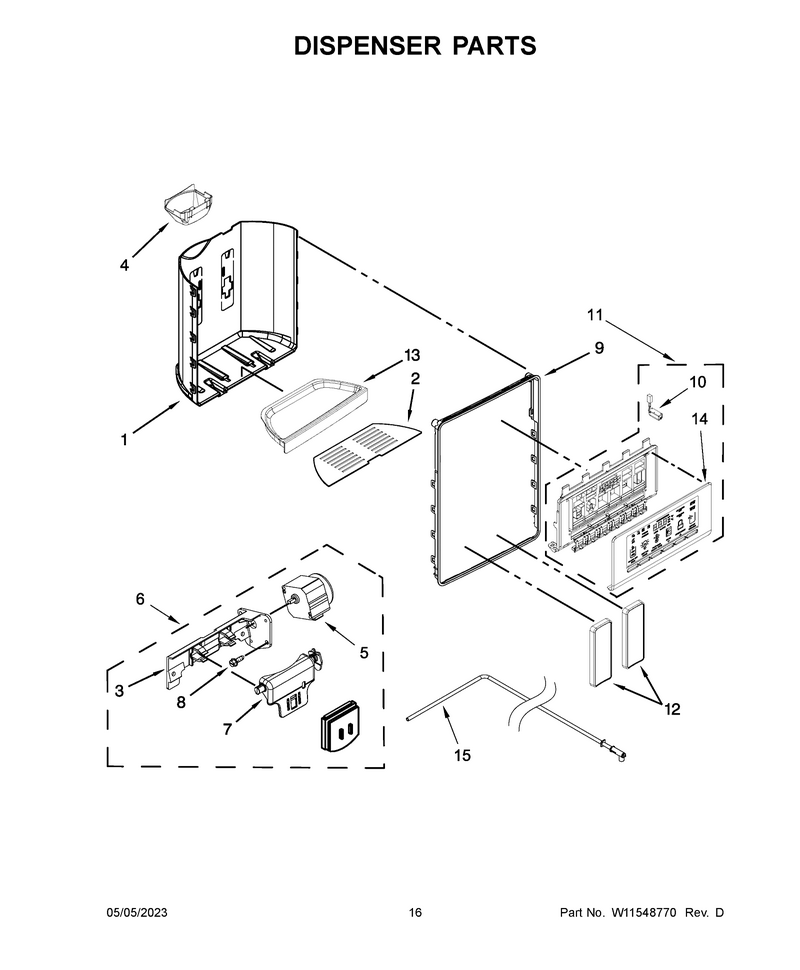

09 - Dispenser Parts

...
...
1
Dispenser, False Wall (White) WPL-W10254254
...
1A
Dispenser, False Wall (Black) WPL-W10254255
...
1B
Dispenser, False Wall (Satina) WPL-W10276226
...
2
Grille WPL-WPW10276209
...
3
Bracket, Ice Door WPL-W10174827
...
4
Guide-Ice WPL-WPW10435760
...
5
Motor WPL-WPW10205978
...
6
Door-Ice WPL-W11098702
...
7
Support WPL-WPW10346124
...
8
Screw WPL-WP4449745
...
9
Ring, Trim (White) WPL-W10276265
...
9A
Ring, Trim (Black) WPL-W10335549
...
9B
Ring, Trim (Chromium Frost) WPL-W11087882
...
10
Light WPL-W11290115
...
11
Cntrl-Elec WPL-W11566894
...
12
Pad, Ice And Water (White) WPL-W10370583
...
12A
Pad, Ice And Water (Black) WPL-W10370577
...
12B
Pad WPL-W11624941
...
13
Tray, Housing (White) WPL-W10254258
...
13A
Tray, Housing (Black) WPL-W10254259
...
13B
Tray, Housing (Satina) WPL-W10276225
...
14
Cover, Front (Black) WPL-W10458867
...
15
Tube-Water WPL-W11567542

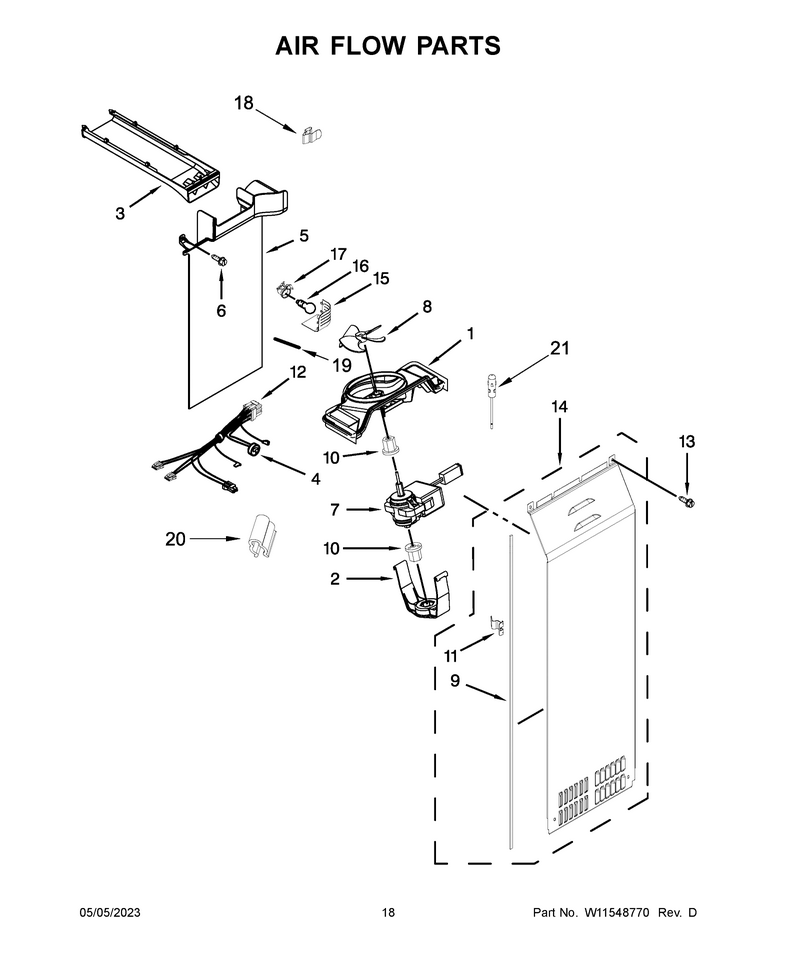

10 - Air Flow Parts

...
...
1
Scroll, Fan WPL-W10251462
...
2
Blade-Fan WPL-8201663
...
3
Duct, Upper Air WPL-W11040868
...
4
Following Parts Not Illustrated WPL-N/P
...
5
Duct-Air WPL-W11746091
...
6
Screw WPL-WP489478
...
7
Motor-Evap WPL-W11396715
...
8
Blade-Fan WPL-WP2169142
...
9
Gasket, Evaporator Cover WPL-W10240370
...
10
Grommet WPL-W11669856
...
11
Clip WPL-W11232019
...
12
Harns-Wire WPL-W11566892
...
13
Screw WPL-WP693995
...
14
Cover-Evap WPL-WPW10388269
...
15
Cover, Light WPL-W10260382
...
16
Bulb-Light WPL-W11216993
...
17
Capacitor (Service) WPL-4387478
...
18
Clip, Air Duct WPL-W10331728
...
19
Foam WPL-W11205489
...
20
Clip WPL-W11546684
...
21
Thermistor WPL-WPW10384183

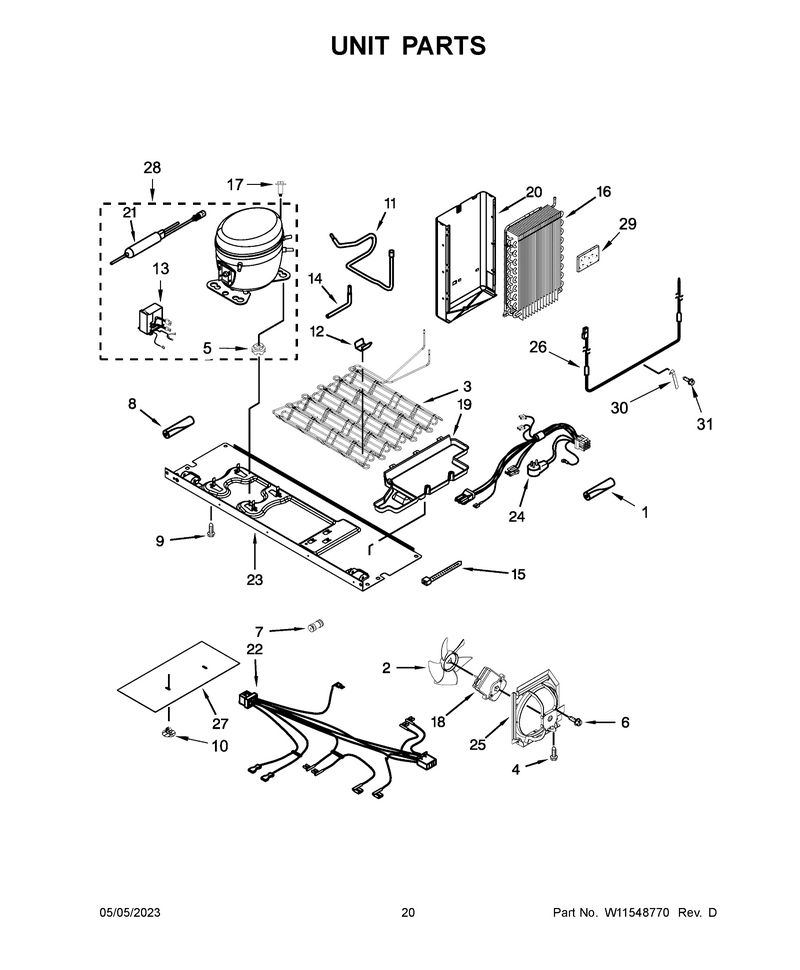

11 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Sleeve WPL-W11505165
...
2
Blade-Fan WPL-W11458267
...
3
Condenser WPL-W11673437
...
3A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
3B
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
4
Screw WPL-W10142255
...
5
Grommet WPL-WPW10169124
...
6
Screw WPL-WPW10171469
...
7
Fitting WPL-WPW10277958
...
8
Sleeve WPL-W11751592
...
9
Screw (6) WPL-3400524
...
10
Clip, Bottom Cover WPL-W10815861
...
11
Tube, Suction WPL-W11505003
...
12
Clip WPL-W10683556
...
13
Invrtr-Box WPL-W11567494
...
14
Tube WPL-W11558176
...
15
Tie-Wire WPL-WPW10339879
...
16
Evaporator WPL-W11566897
...
16A
5/1.8 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504448
...
16B
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
17
Screw WPL-W11417341
...
18
Motor-Cond WPL-W11127829
...
19
Tray-Evap WPL-W11298166
...
20
Heat Shield WPL-W11400742
...
21
Drier-Tube WPL-W11109499
...
21A
6/4 Nr Ms 00 (Heat Loop To Drier) WPL-W11504433
...
21B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
22
Harns-Wire WPL-W11700341
...
23
Baseplate WPL-W10680691
...
24
Cord-Power WPL-WPW10242407
...
25
Baffle-Air WPL-WPW10251467
...
26
Heater WPL-W11567493
...
27
Cover, Condenser (Bottom) WPL-W10278140
...
28
Compressor WPL-W11557671
...
28A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
29
Insulation WPL-W11553819
...
30
Heat Probe WPL-W11553297
...
31
Screw WPL-WP489478

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
