product name

Whirlpool WRS335SDHW07

Model: WRS335SDHW07

Save Part Not Listed?
product name

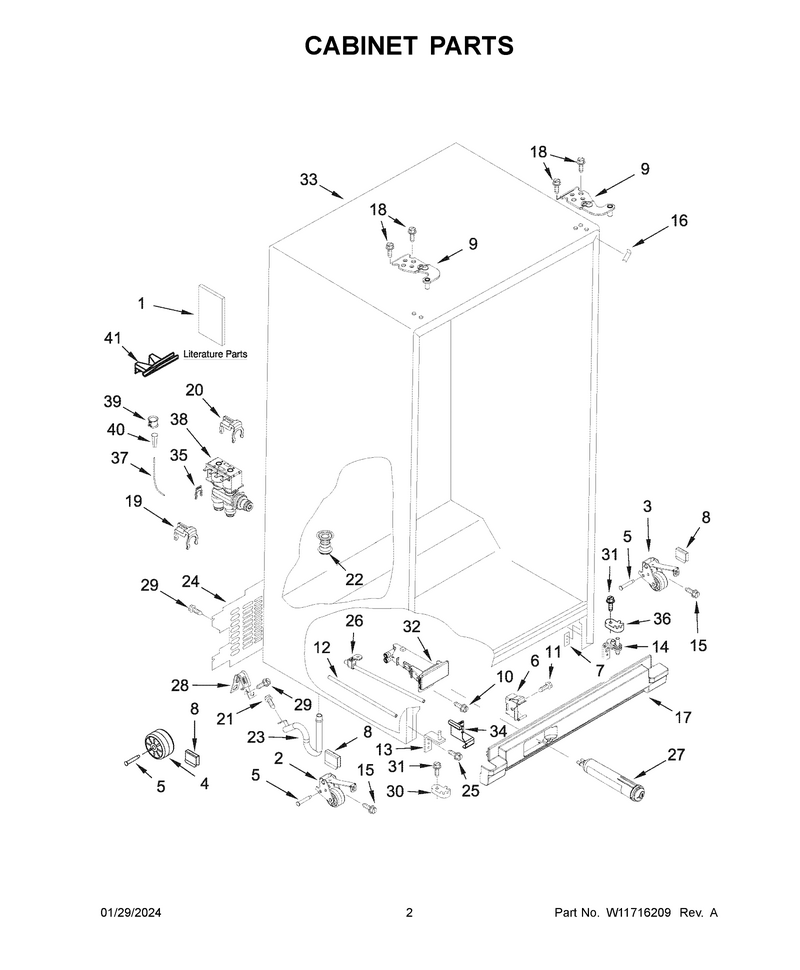

02 - Cabinet Parts

...
...
1
Use & Care Guide WPL-W11484052
...
1A
Tech Sheet WPL-W11641234
...
1B
Energy Guide WPL-W11647259
...
2
Roller-Cab WPL-WPW10304660
...
3
Roller-Cab WPL-WPW10304659
...
4
Roller-Cab WPL-WPW10475495
...
5
Axle WPL-W11594405
...
6
Clip WPL-WP2155013
...
7
Plate, Screw (Refrigerator) WPL-W11036715
...
7A
Plate, Screw (Freezer) WPL-W10904380
...
8
Axle WPL-W11594405
...
9
Hinge-Door WPL-W11505709
...
9A
Hinge-Door WPL-W11505710
...
10
Screw WPL-WP489500
...
11
Screw WPL-WP489128
...
12
Tube-Water WPL-W11162036
...
13
Hinge-Door WPL-W11687636
...
14
Hinge-Door WPL-W11399415
...
15
Screw WPL-W11544561
...
16
Filler, Wrapper (White) WPL-W11219639
...
16A
Filler, Wrapper (Black) WPL-W11219641
...
16B
Filler, Wrapper (Grey) WPL-W11219642
...
17
Grille WPL-W11282545
...
17A
Grille WPL-W11282546
...
17B
Grille WPL-W11282544
...
18
Assembly, Precooler Formed WPL-SCREW
...
19
Connector, Double Lock WPL-W11091654
...
20
Double Lock Ring WPL-W11252188
...
21
Screw WPL-WP489464
...
22
Fitting WPL-W11566763
...
23
Trivet WPL-W11512417
...
24
Assembly, Cover WPL-W11613261
...
25
Screw WPL-WP489497
...
26
Tube-Water WPL-W11162040
...
27
Filter WPL-EDR1RXD1
...
28
Clamp, Plastic WPL-W11234470
...
29
Screw WPL-WPW10141645
...
30
Cam-Door WPL-W11679635
...
31
Screw WPL-WP489483
...
32
Housing WPL-W11162041
...
32A
Housing WPL-W11172791
...
32B
Housing WPL-W11162042
...
33
Cabinet (Not A Servicable Part) WPL---
...
34
Assembly, Bracket WPL-W10897565
...
35
Ring WPL-W11676611
...
35A
Ring WPL-W11678575
...
36
Cam-Door WPL-W11398787
...
37
Tube-Water WPL-W10823511
...
38
Valve WPL-W11645245
...
39
Clamp WPL-W10861184
...
40
Insert, Tube WPL-4387491
...
41
Chute WPL-W11645360

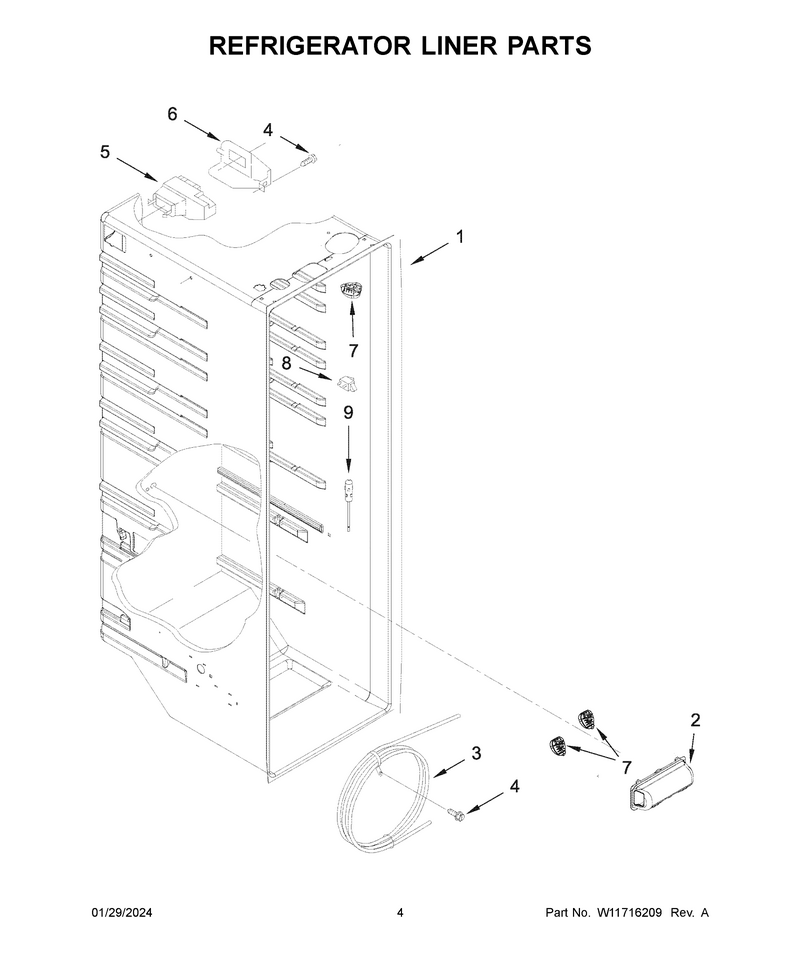

03 - Refrigerator Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Lens-Light WPL-W11239891
...
3
Reservoir WPL-W11566768
...
4
Screw WPL-W10141518
...
5
Diffuser WPL-W11645127
...
6
Cover, Air Diffuser WPL-W11048608
...
7
Module WPL-W11602886
...
8
Switch WPL-W11384469
...
9
Thermistor WPL-WPW10384183

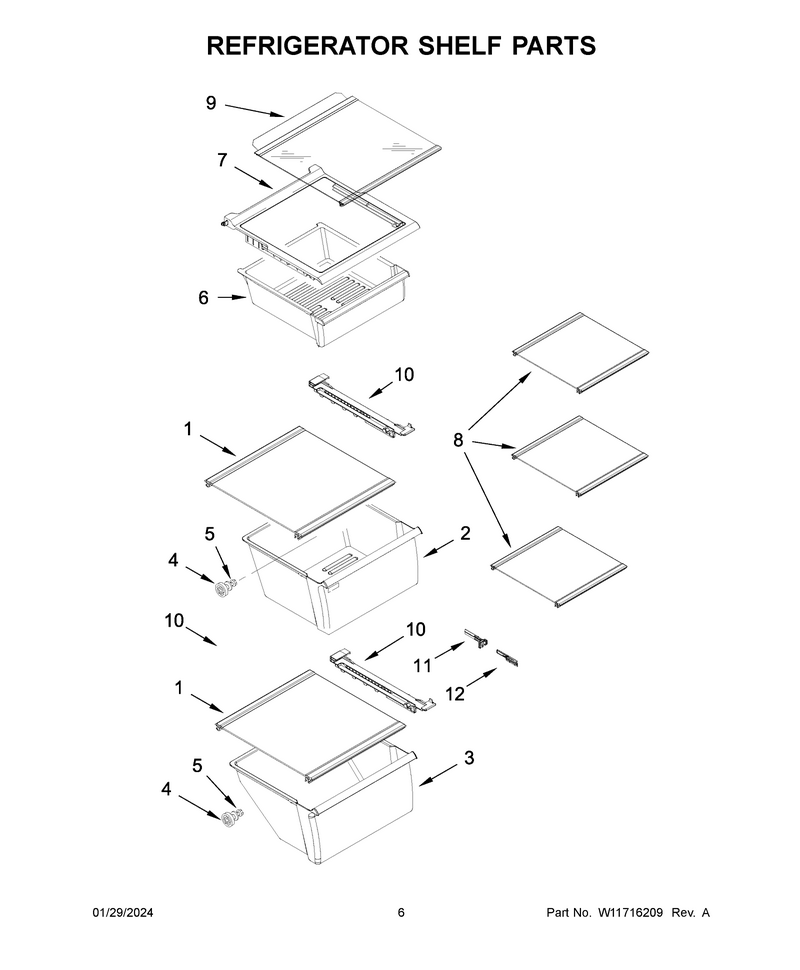

04 - Refrigerator Shelf Parts

...
...
1
Shelf-Glas WPL-W11688707
...
2
Cover WPL-W11162443
...
3
Pan-Meat WPL-W11162446
...
4
Stud-Shelf WPL-W11223328
...
5
Screw WPL-WP3-24004-109
...
6
Pan-Snack WPL-W11162448
...
7
Holder WPL-W11371713
...
8
Shelf-Glas WPL-W11188040
...
9
Shelf-Glas WPL-W11449889
...
10
Track WPL-W11688711
...
10A
Track WPL-W11688708
...
11
Slide WPL-W11746089
...
12
Body-Cntrl WPL-WPW10282880

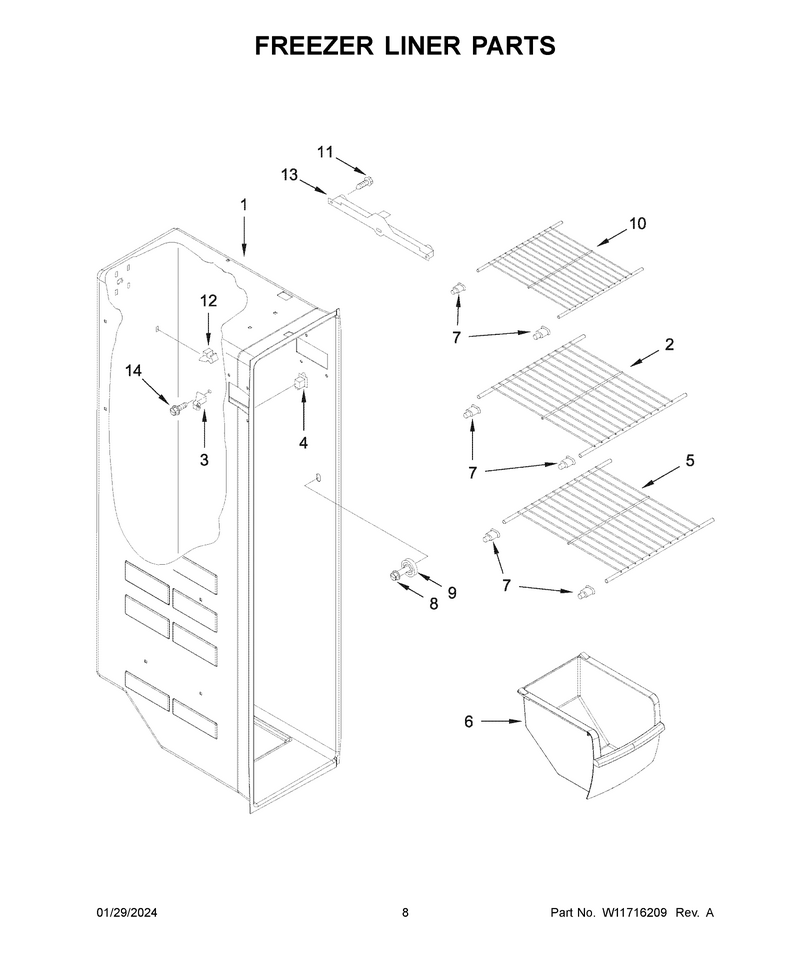

05 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL---
...
2
Shelf-Wire WPL-WPW10318947
...
3
Stud-Shelf WPL-4388405
...
4
Switch WPL-W11396033
...
5
Shelf-Wire WPL-WPW10318948
...
6
Bin-Freezr WPL-W11577967
...
7
Cup WPL-WPW10130299
...
8
Screw WPL-WP3-24004-109
...
9
Stud-Shelf WPL-W11223328
...
10
Shelf-Wire WPL-WPW10318961
...
11
Screw, 8-18 X 1.38 WPL-718257
...
12
Clip-Air, Duct WPL-2215823
...
13
Slide, Ice Container (Left) WPL-W10845585
...
13A
Slide, Ice Container (Right) WPL-W10845583
...
14
Screw 8-18 X 5/8 WPL-W10142289

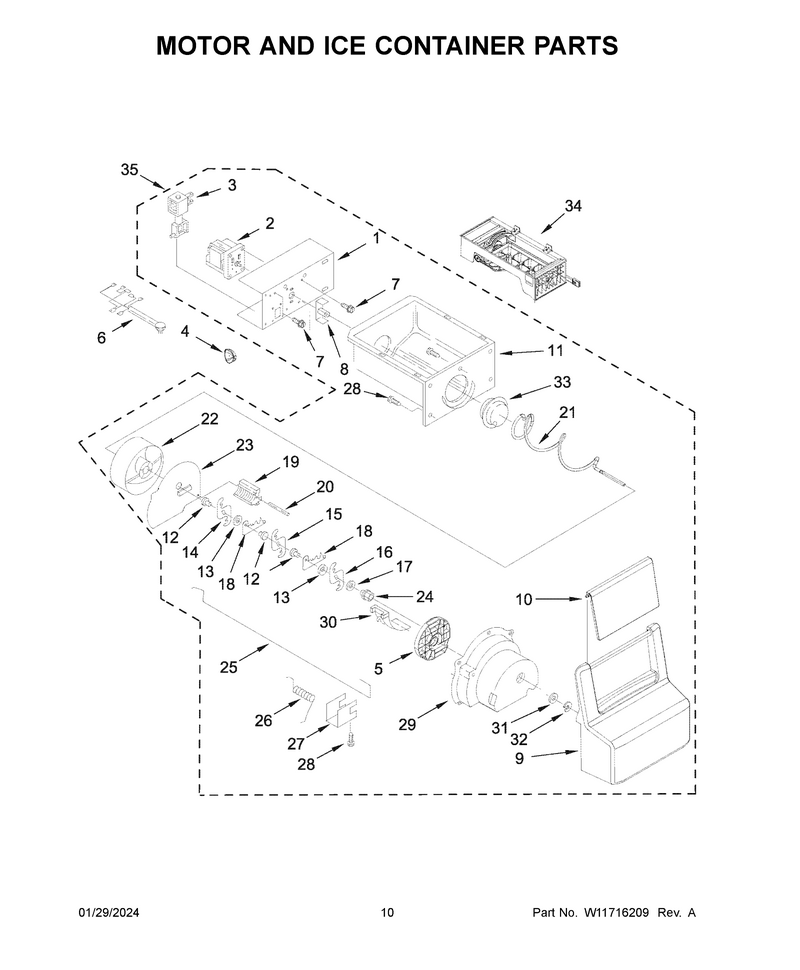

06 - Motor And Ice Container Parts

...
...
1
Bracket WPL-W11715972
...
2
Motor WPL-W11671282
...
3
Solenoid WPL-WP2152713
...
4
Module WPL-W11602886
...
5
Spacer - Crusher Housing WPL-W10138206
...
6
Harns-Disp WPL-W11676779
...
7
Screw WPL-WP489399
...
8
Coupling WPL-WPW10169511
...
9
Cover, Ice Container Front WPL-W11427433
...
10
Door-Ice WPL-W11661892
...
11
Container WPL-WPW10670845
...
12
Spacer, Step WPL-W11032812
...
13
Spacer, Flat WPL-W11032808
...
14
Blade, Rotary A WPL-W10278731
...
15
Blade, Rotary B WPL-W10278732
...
16
Blade, Rotary C WPL-W10278733
...
17
Washer, Plain Upper Cam WPL-489234
...
18
Blade, Fixed WPL-W10181990
...
19
Block-Blad WPL-W10138203
...
20
Pin, Roll WPL-489229
...
21
Auger-Ice WPL-WPW10295082
...
22
Drum WPL-4388736
...
23
Baffle WPL-W10852691
...
24
Bearing WPL-WP1119018
...
25
Arm-Contrl WPL-W11596045
...
26
Spring, Return WPL-1119020
...
27
Clip, Retainer (Dispenser Rod) WPL-1119021
...
28
Screw WPL-WP488787
...
29
Housing WPL-WPW10185018
...
30
Deflector WPL-WP1119017
...
31
Washer, Plain Upper Cam WPL-489234
...
32
Ring-E WPL-WP489236
...
33
Coupling WPL-W10749708
...
34
Icemaker WPL-W11700250
...
35
Ice-Contnr WPL-WPW10558423

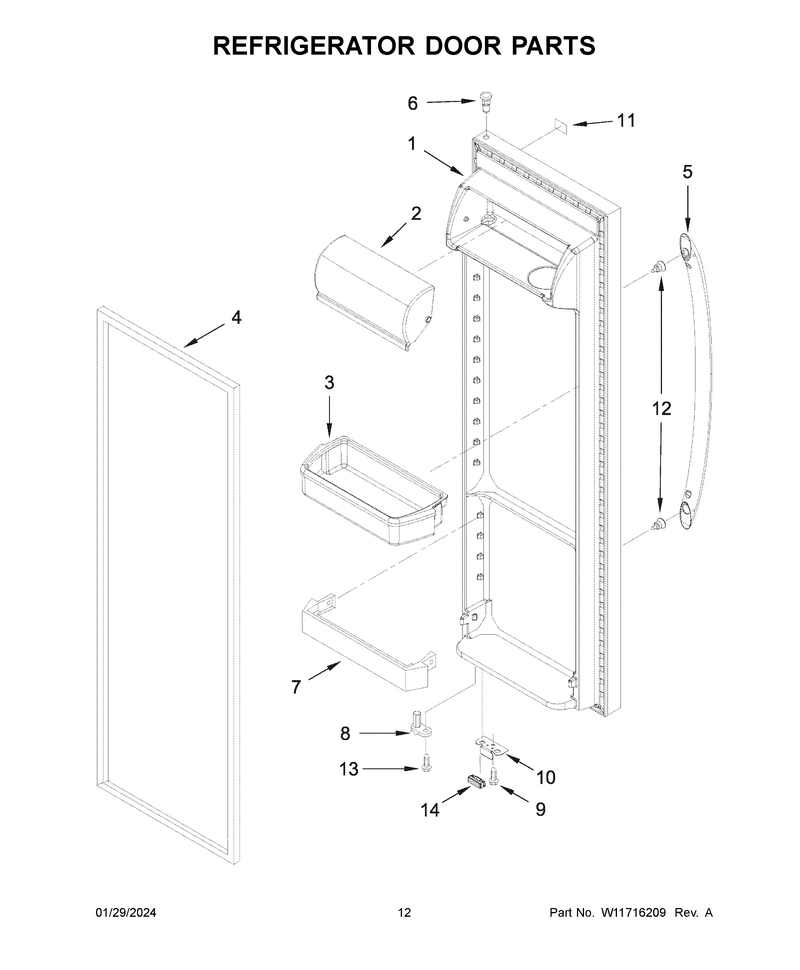

07 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-LW10912118
...
1A
Dor-Fip WPL-LW10912126
...
1B
Dor-Fip WPL-LW10912075
...
2
Door-Comp WPL-WP2256101
...
3
Bin-Cntlvr WPL-W11239961
...
4
Door Gasket, Magnetic (Service) (Mist Beige) WPL-2159075
...
4A
Door Gasket, Magnetic (Service) (Black) WPL-2159083
...
4B
Gasket-Fip WPL-WPW10136734
...
5
Handle WPL-W11432251
...
5A
Handle WPL-W11450221
...
5B
Handle WPL-W11123099
...
6
Thimble WPL-WP2182181
...
7
Trim-Door WPL-WP2309941
...
8
Cam-Door WPL-W11397972
...
9
Screw WPL-WPW10296816
...
10
Bracket WPL-W11557261
...
11
Nameplate WPL-W11223753
...
12
Screw WPL-WPW10661886
...
13
Screw WPL-WPW10296804
...
14
Bumper-Dor WPL-W11687672
...
14A
Bumper, Door (Black) WPL-W10407187
...
14B
Bumper-Dor WPL-W11573367

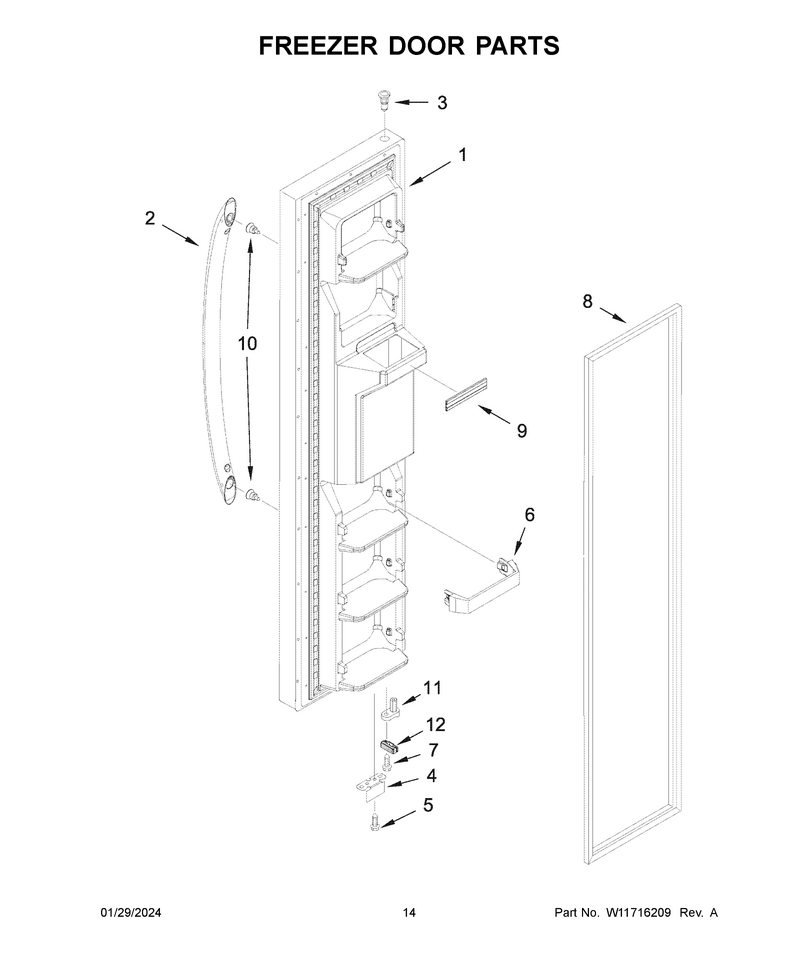

08 - Freezer Door Parts

...
...
1
Dor-Fip WPL-LW11026363
...
1A
Dor-Fip WPL-LW11026364
...
1B
Dor-Fip WPL-LW10904379
...
2
Handle WPL-W11432251
...
2A
Handle WPL-W11450221
...
2B
Handle WPL-W11123099
...
3
Thimble WPL-WP2182181
...
4
Bracket WPL-W11557261
...
5
Screw WPL-WPW10296816
...
6
Trim-Door WPL-WP2309718
...
7
Screw WPL-WPW10296804
...
8
Door Gasket, Magnetic (Service) (Mist Beige) WPL-2159074
...
8A
Door Gasket, Magnetic (Service) (Black) WPL-2159082
...
8B
Gasket-Fip WPL-W10136735
...
9
Trim-Door WPL-WPW10307490
...
10
Screw WPL-WPW10661886
...
11
Cam-Door WPL-W11661926
...
12
Bumper-Dor WPL-W11687672
...
12A
Bumper, Door (Black) WPL-W10407187
...
12B
Bumper-Dor WPL-W11573367

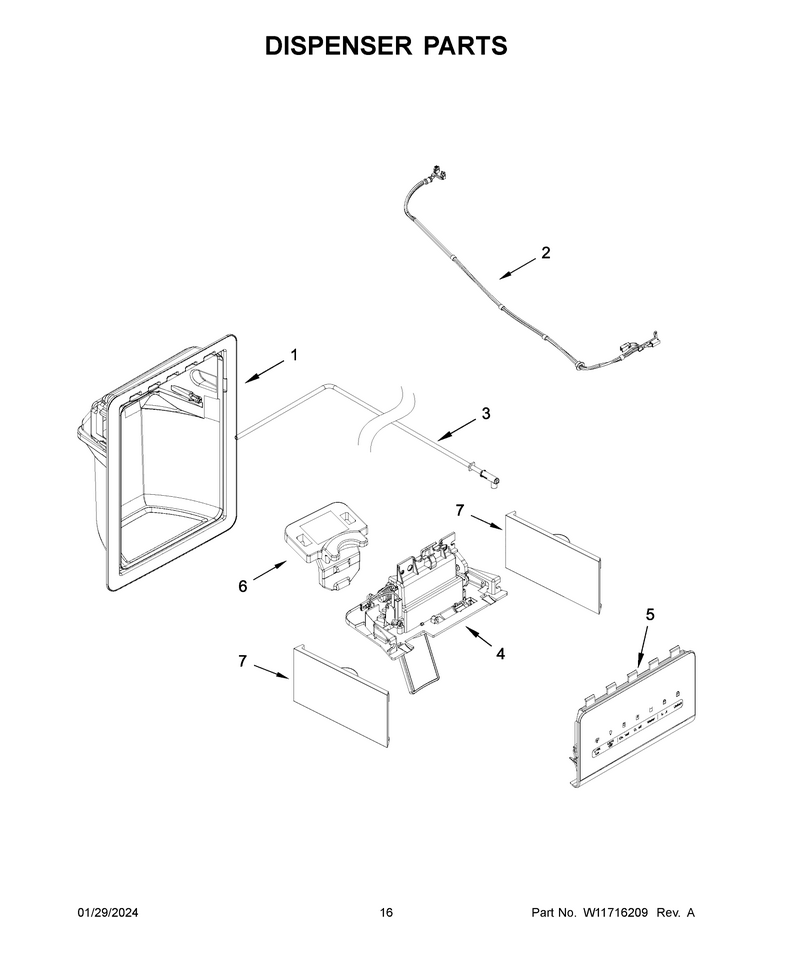

09 - Dispenser Parts

...
...
1
Housing, Dispenser (Not Serviced) WPL---
...
2
Harness, Wire WPL-W10913117
...
3
Fitting WPL-W11163765
...
4
Door-Ice WPL-W11678834
...
4A
Door-Ice WPL-W11678833
...
4B
Door-Ice WPL-W11678832
...
5
Cntrl-Elec WPL-W11518204
...
6
Retainer WPL-W11397167
...
7
Cover WPL-W11311797
...
7A
Cover WPL-W11311798
...
7B
Cover WPL-W11311799
...
7C
Cover WPL-W11311800

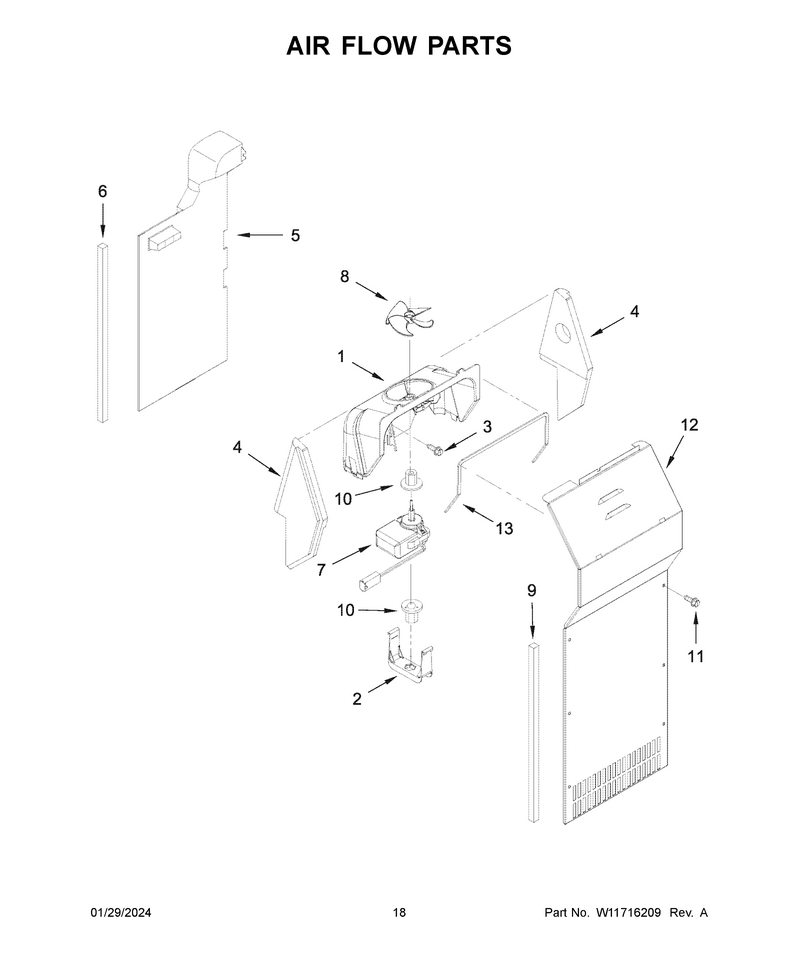

10 - Air Flow Parts

...
...
1
Fan-Scroll WPL-W11263195
...
2
Retainer WPL-W11700295
...
3
Screw WPL-WP489478
...
4
Support Kit (Contains Right And Left) WPL-4388358
...
4A
Support Kit (Contains Right And Left) WPL-4388358
...
5
Duct, Freezer Air WPL-W11427505
...
6
Gasket WPL-4388500
...
7
Motor-Evap WPL-WP2315549
...
8
Blade-Fan WPL-WP2169142
...
9
Gasket WPL-WP2304241
...
10
Grommet WPL-WP2176759
...
11
Screw WPL-WP693995
...
12
Cover-Evap WPL-WPW10463013
...
13
Gasket WPL-WP2155789

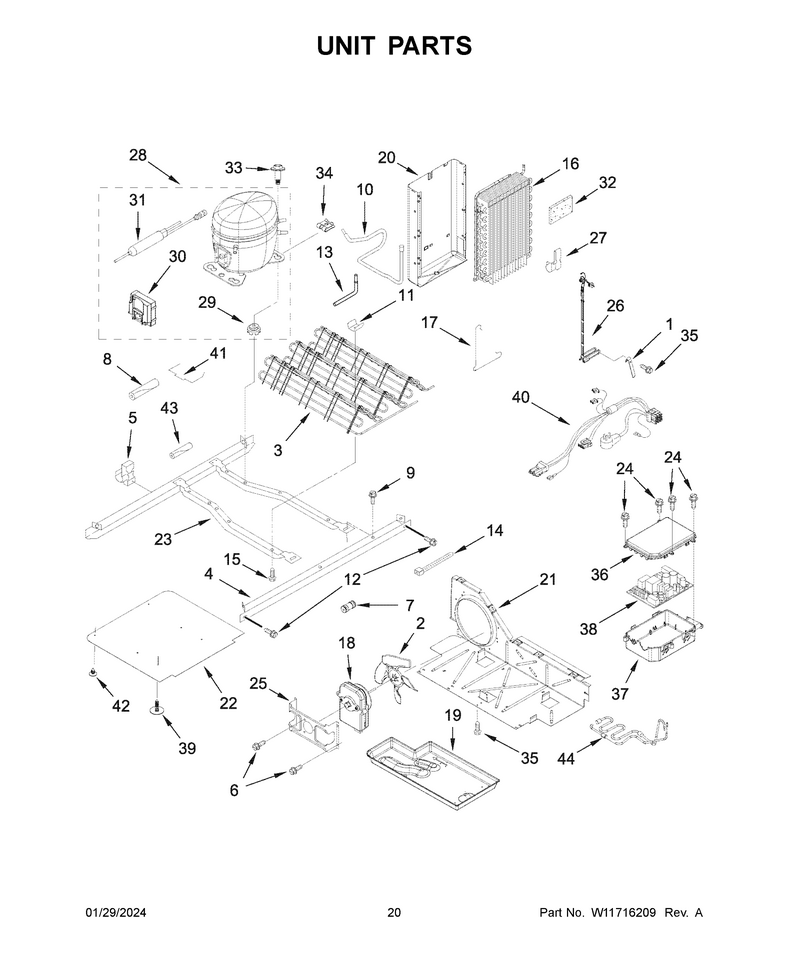

11 - Unit Parts

...
...
NI
Refrigerant Charge 68 Grams (R600a) WPL---
...
1
Heat-Probe WPL-W11611126
...
2
Blade-Fan WPL-W11458267
...
3
Condenser WPL-W11632924
...
3A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
3B
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
4
Rail, Unit Mounting WPL-W10900442
...
5
Clip WPL-W10812039
...
6
Screw WPL-WP8533993
...
7
Fitting WPL-WP2300868
...
8
Sleeve WPL-W11751592
...
9
Screw WPL-WP489427
...
10
Tube WPL-W11547179
...
11
Clip WPL-W10683556
...
12
Bolt WPL-489340
...
13
Tube WPL-W11558176
...
14
Tie-Wire WPL-WPW10339879
...
15
Screw WPL-W11544659
...
16
Evaporator WPL-W11546692
...
16A
5/1.8 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504448
...
16B
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
17
Clip WPL-WP2161324
...
18
Motor-Cond WPL-W11578915
...
19
Tray-Evap WPL-W11678304
...
20
Assembly, Heat Shield And Drain Pan WPL-W11400740
...
21
Baffle, Air WPL-W10896764
...
22
Assembly, Unit Cover (Bottom) WPL-W10897560
...
23
Frame, Unit Mounting (Includes Unit Mounting Rail) WPL-W10900446
...
24
Screw WPL-WPW10171469
...
25
Bracket WPL-WP2181929
...
26
Heater WPL-W11650661
...
27
Clip WPL-W11623163
...
28
Compressor WPL-W11557671
...
28A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
29
Grommet WPL-WPW10169124
...
30
Invrtr-Box WPL-W11546982
...
31
Drier-Tube WPL-W11109499
...
31A
6/4 Nr Ms 00 (Heat Loop To Drier) WPL-W11504433
...
31B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
32
Insulation WPL-W11553819
...
33
Screw WPL-W11417341
...
34
Clip, Retaining WPL-W10697017
...
35
Screw WPL-WP489464
...
36
Cover, Electronic Control WPL-W10313215
...
37
Box, Control WPL-2323186
...
38
Cntrl-Elec WPL-W11558182
...
39
Clip WPL-489396
...
40
Harns-Wire WPL-W11609465
...
41
Tie-Wire WPL-WPW10339879
...
42
Clip, Pine Tree WPL-8282566
...
43
Sleeve WPL-W11751592
...
44
Tube WPL-W11678305

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
