product name

Whirlpool WRS321SDHB10

Model: WRS321SDHB10

Save Part Not Listed?
product name

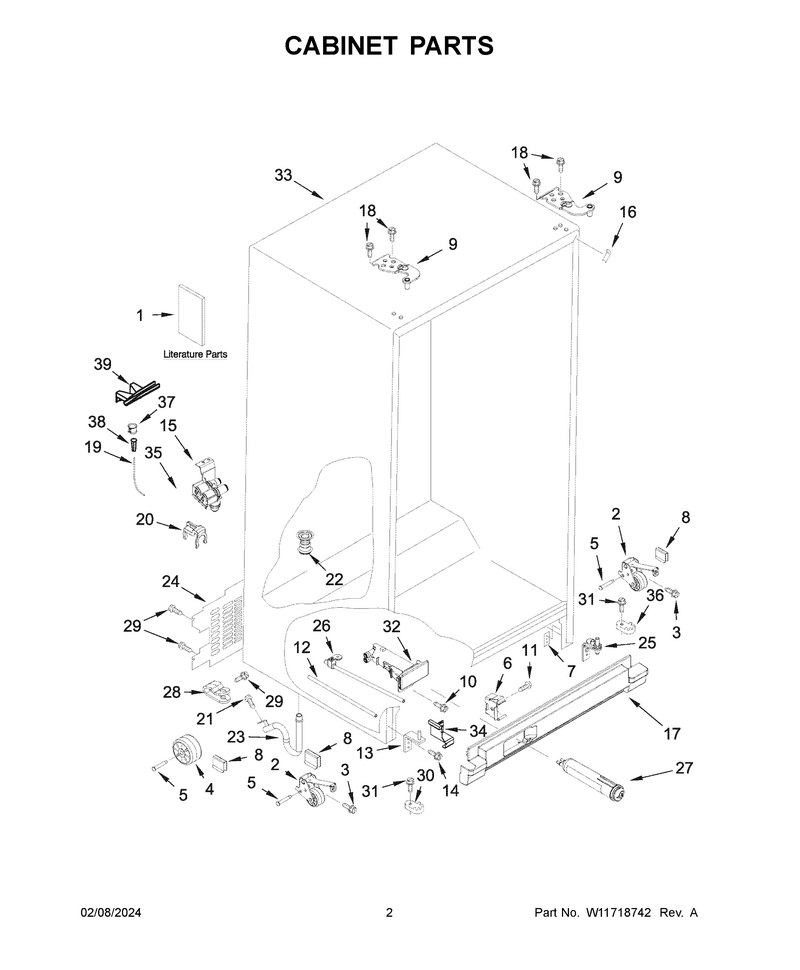

02 - Cabinet Parts

...
...
1
Use & Care Guide WPL-W11484052
...
1A
Tech Sheet (English) WPL-W11641238
...
1B
Tech Sheet (French) WPL-W11641243
...
1C
Energy Guide WPL-W11647250
...
2
Roller-Cab WPL-WPW10304660
...
2A
Roller-Cab WPL-WPW10304659
...
3
Screw WPL-W11544561
...
4
Roller-Cab WPL-WPW10475495
...
5
Axle WPL-W11594405
...
6
Clip WPL-WP2155013
...
7
Plate, Screw (Refrigerator) WPL-W11036715
...
7A
Plate, Screw (Freezer) WPL-W10904380
...
8
Axle WPL-W11594405
...
9
Hinge-Door WPL-W11505709
...
9A
Hinge-Door WPL-W11505710
...
10
Screw WPL-WP489500
...
11
Screw WPL-WP489128
...
12
Tube-Water WPL-W11162036
...
13
Hinge-Door WPL-W11687636
...
14
Screw WPL-WP489497
...
15
Valve WPL-W11645245
...
16
Filler, Wrapper (White) WPL-W11219639
...
16A
Filler, Wrapper (Black) WPL-W11219641
...
17
Grille WPL-W11282549
...
17A
Grille WPL-W11282556
...
18
Assembly, Precooler Formed WPL-SCREW
...
19
Tube-Water WPL-W10823511
...
20
Connector, Double Lock WPL-W11091654
...
21
Screw WPL-WP489464
...
22
Fitting WPL-W11566763
...
23
Trivet WPL-W11512417
...
24
Cover, Unit WPL-W11613262
...
25
Hinge-Door WPL-W11399415
...
26
Tube-Water WPL-W11162040
...
27
Filter WPL-EDR1RXD1
...
28
Clamp, Plastic WPL-W11234470
...
29
Screw WPL-WPW10141645
...
30
Cam-Door WPL-W11679635
...
31
Screw WPL-WP489483
...
32
Housing WPL-W11162041
...
32A
Housing WPL-W11172791
...
33
Cabinet (Not A Servicable Part) WPL---
...
34
Assembly, Bracket WPL-W10897565
...
35
Ring WPL-W11676611
...
35A
Ring WPL-W11678575
...
36
Cam-Door WPL-W11398787
...
37
Clamp WPL-W10861184
...
38
Insert, Tube WPL-4387491
...
39
Chute WPL-W11645360

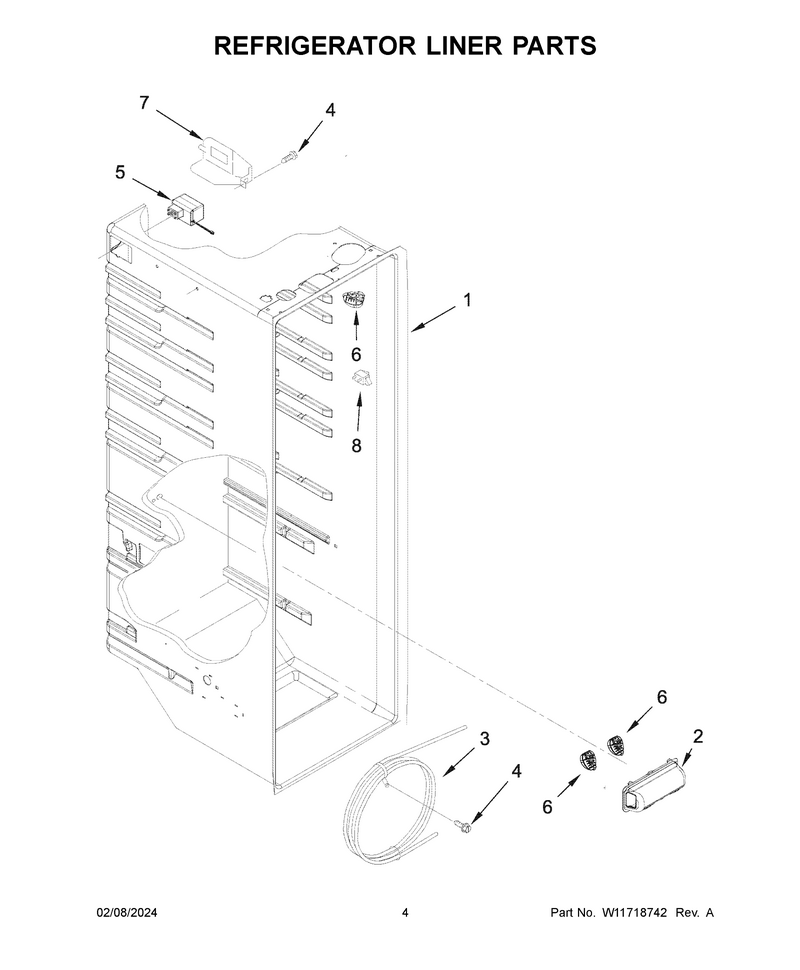

03 - Refrigerator Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Lens-Light WPL-W11239891
...
3
Reservoir WPL-W11579182
...
4
Screw WPL-W10141518
...
5
Diffuser WPL-W11645127
...
6
Module WPL-W11602886
...
7
Cover, Air Diffuser WPL-W11048608
...
8
Switch WPL-W11384469

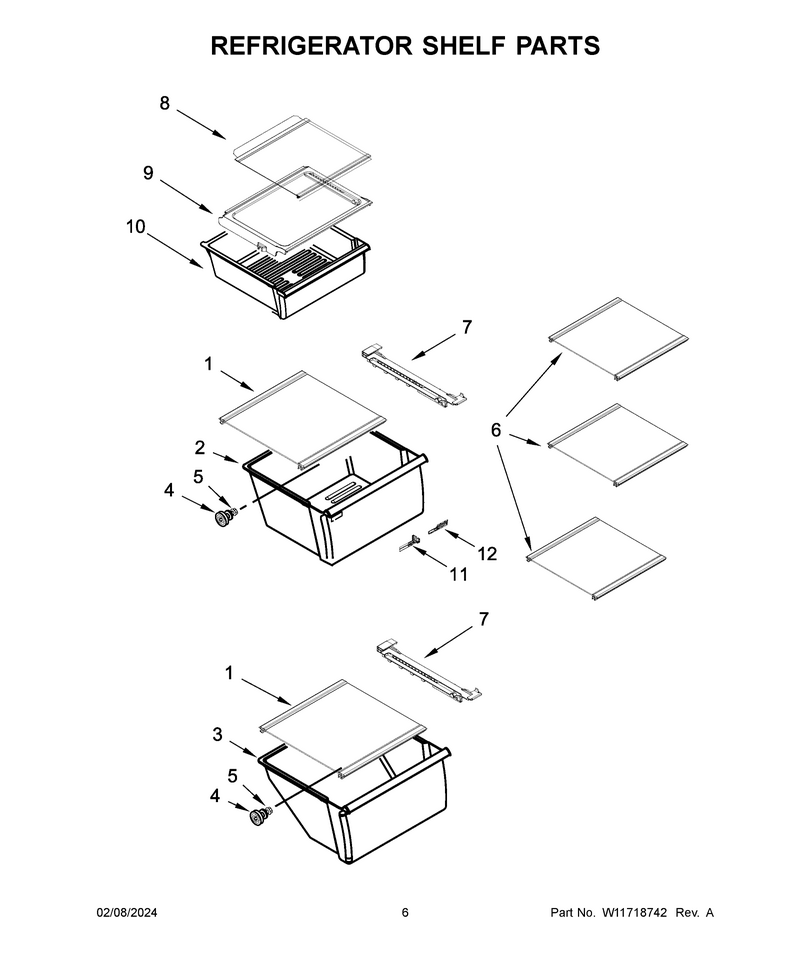

04 - Refrigerator Shelf Parts

...
...
1
Shelf-Glas WPL-W11688707
...
2
Cover WPL-W11162443
...
3
Pan-Meat WPL-W11162446
...
4
Stud-Shelf WPL-W11223328
...
5
Screw WPL-WP3-24004-109
...
6
Shelf-Glas WPL-W11188040
...
7
Track WPL-W11688711
...
7A
Track WPL-W11688708
...
8
Shelf-Glas WPL-W11449889
...
9
Holder WPL-W11371713
...
10
Pan-Snack WPL-W11162448
...
11
Slide WPL-W11746089
...
12
Body-Cntrl WPL-WPW10282880

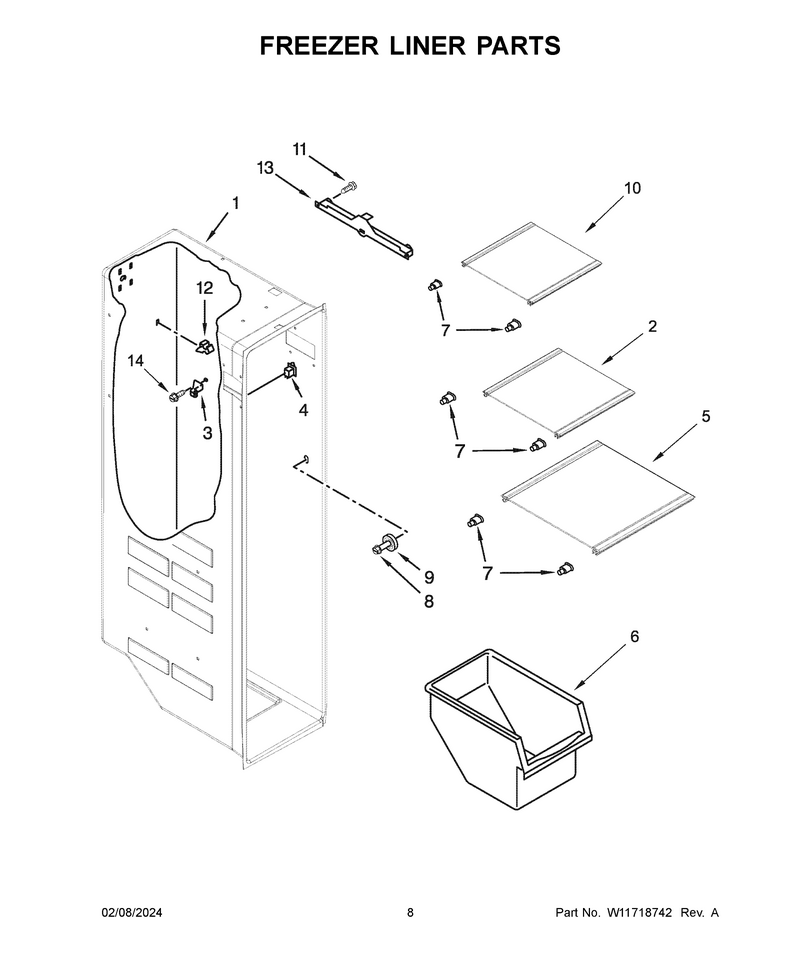

05 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL---
...
2
Shelf-Glas WPL-W11194631
...
3
Stud-Shelf WPL-4388405
...
4
Switch WPL-W11396033
...
5
Shelf-Glas WPL-W11546979
...
6
Bin-Freezr WPL-WP2309758
...
7
Cup WPL-WPW10130299
...
8
Screw WPL-WP3-24004-109
...
9
Stud-Shelf WPL-W11223328
...
10
Shelf-Glas WPL-W11194634
...
11
Screw, 8-18 X 1.38 WPL-718257
...
12
Clip-Air, Duct WPL-2215823
...
13
Slide, Ice Container (Left) WPL-W10845585
...
13A
Slide, Ice Container (Right) WPL-W10845583
...
14
Screw 8-18 X 5/8 WPL-W10142289

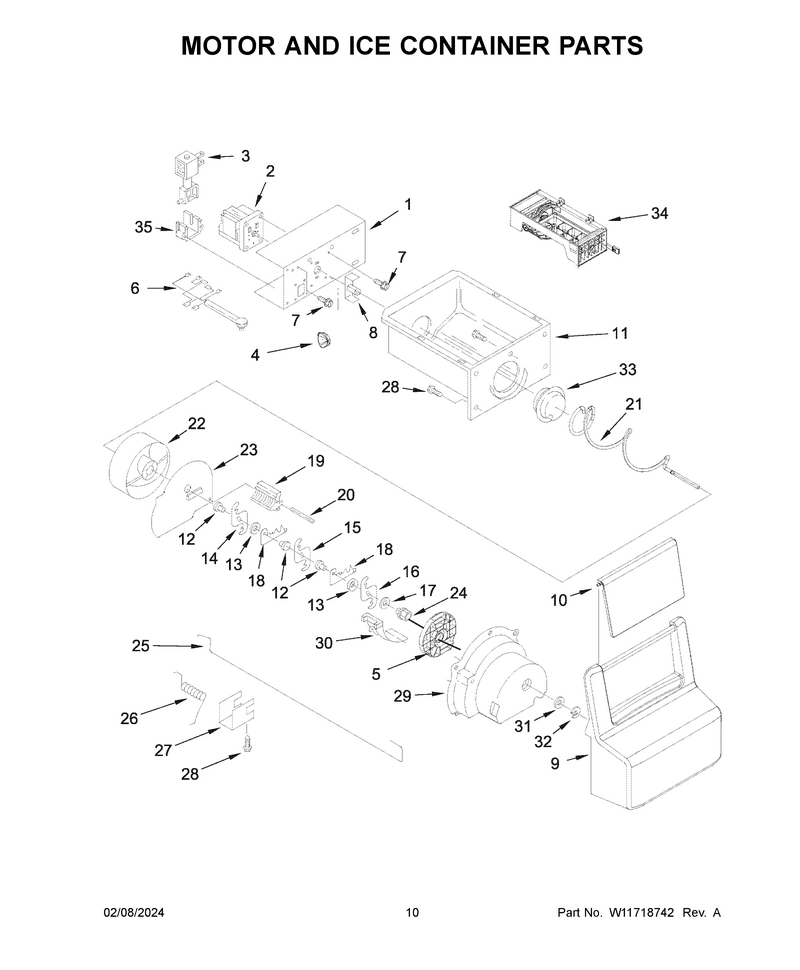

06 - Motor And Ice Container Parts

...
...
1
Bracket, Motor WPL-W11307588
...
2
Motor WPL-W11671282
...
3
Solenoid WPL-WP2152713
...
4
Module WPL-W11602886
...
5
Spacer - Crusher Housing WPL-W10138206
...
6
Harns-Disp WPL-W11676779
...
7
Screw WPL-WP489399
...
8
Coupling WPL-WPW10169511
...
9
Cover, Ice Container Front WPL-W10189274
...
10
Door-Ice WPL-W11690902
...
11
Container WPL-W10850492
...
12
Spacer, Step WPL-W11032812
...
13
Spacer, Flat WPL-W11032808
...
14
Blade, Rotary A WPL-W10278731
...
15
Blade, Rotary B WPL-W10278732
...
16
Blade, Rotary C WPL-W10278733
...
17
Washer, Plain Upper Cam WPL-489234
...
18
Blade, Fixed WPL-W10181990
...
19
Block-Blad WPL-W10138203
...
20
Pin, Roll WPL-489229
...
21
Auger-Ice WPL-WPW10295082
...
22
Drum WPL-4388736
...
23
Baffle WPL-W10852691
...
24
Bearing WPL-WP1119018
...
25
Arm-Contrl WPL-W11596045
...
26
Spring, Return WPL-1119020
...
27
Clip, Retainer (Dispenser Rod) WPL-1119021
...
28
Screw WPL-WP488787
...
29
Housing WPL-WPW10185018
...
30
Deflector WPL-WP1119017
...
31
Washer, Plain Upper Cam WPL-489234
...
32
Ring-E WPL-WP489236
...
33
Coupling WPL-W10749708
...
34
Icemaker WPL-W11700250
...
35
Guide WPL-W10850503
...
100
Ice-Contnr WPL-WPW10558424

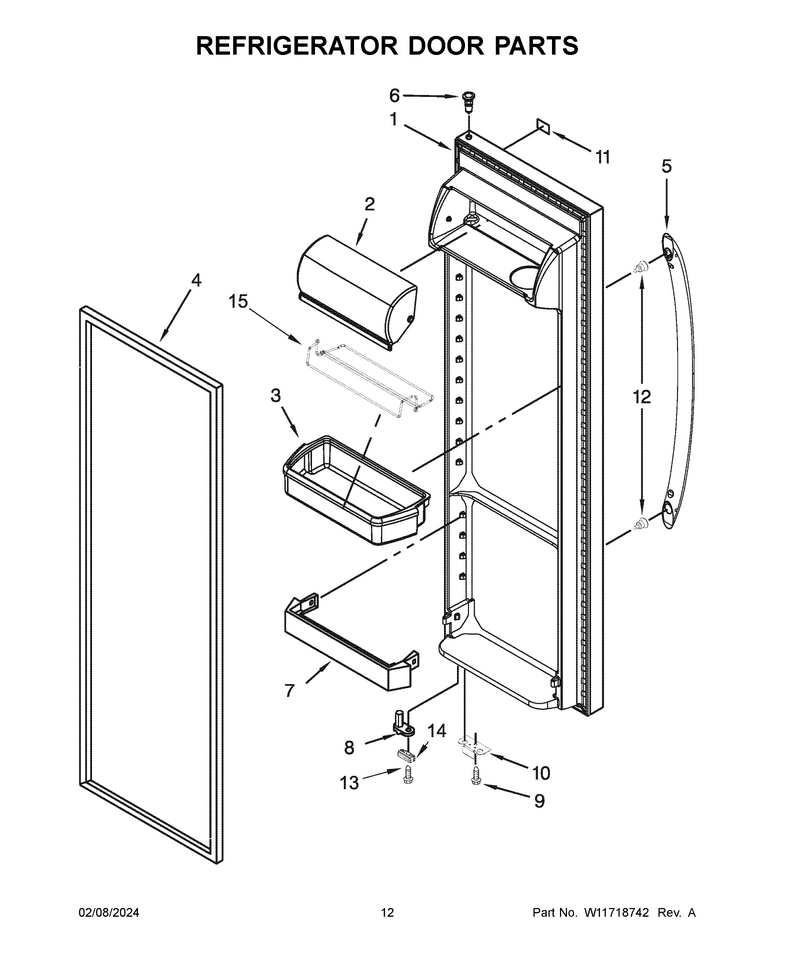

07 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-LW10912366
...
1A
Dor-Fip WPL-LW10912374
...
1B
Dor-Fip WPL-LW10912381
...
2
Door-Comp WPL-WP2256101
...
3
Bin-Cntlvr WPL-W11239961
...
4
Door Gasket, Magnetic (Service) (Mist Beige) WPL-2159073
...
4A
Door Gasket, Magnetic WPL-2159081
...
5
Handle WPL-W11432251
...
5A
Handle WPL-W11450221
...
5B
Handle WPL-W11450223
...
6
Thimble WPL-WP2182181
...
7
Trim-Door WPL-WP2309941
...
8
Cam-Door WPL-W11397972
...
9
Screw WPL-WPW10296816
...
10
Bracket WPL-W11557261
...
11
Nameplate WPL-W11223753
...
12
Screw WPL-WPW10661886
...
13
Screw WPL-WPW10142283
...
13A
Screw WPL-WP98008545
...
14
Bumper-Dor WPL-W11687672
...
14A
Bumper, Door (Black) WPL-W10407187
...
15
Rack, Can WPL-W11517647

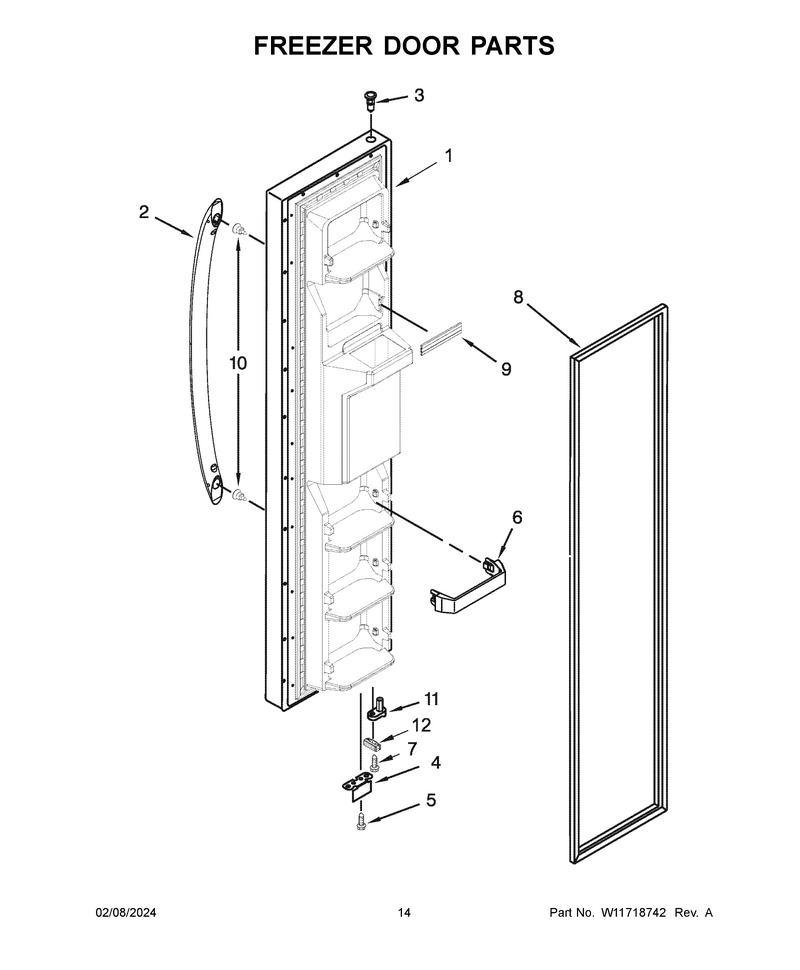

08 - Freezer Door Parts

...
...
1
Dor-Fip WPL-LW11026357
...
1A
Dor-Fip WPL-LW11026356
...
1B
Dor-Fip WPL-LW11026359
...
2
Handle WPL-W11432251
...
2A
Handle WPL-W11450221
...
2B
Handle WPL-W11450223
...
3
Thimble WPL-WP2182181
...
4
Bracket WPL-W11557261
...
5
Screw WPL-WPW10296816
...
6
Trim-Door WPL-WP2309717
...
7
Screw WPL-WPW10296804
...
8
Door, Gasket Magnetic WPL-2159072
...
8A
Door, Gasket Magnetic WPL-2159080
...
9
Trim-Door WPL-WPW10307490
...
10
Screw WPL-WPW10661886
...
11
Cam-Door WPL-W11661926
...
12
Bumper-Dor WPL-W11687672
...
12A
Bumper, Door (Black) WPL-W10407187

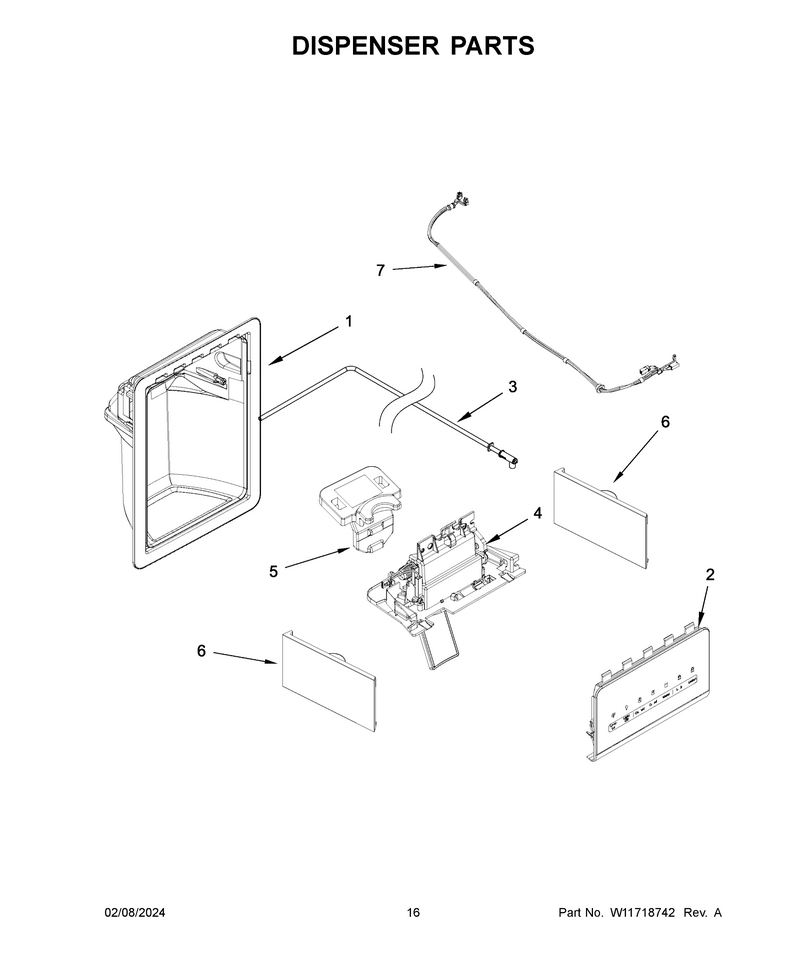

09 - Dispenser Parts

...
...
1
Housing, Dispenser (Not Serviced) WPL---
...
2
Cntrl-Elec WPL-W11518204
...
3
Fitting WPL-W11163765
...
4
Door-Ice WPL-W11678834
...
4A
Door-Ice WPL-W11678833
...
5
Retainer WPL-W11397167
...
6
Cover WPL-W11311797
...
6A
Cover WPL-W11311798
...
6B
Cover WPL-W11311799
...
6C
Cover WPL-W11311800
...
7
Harness, Wire WPL-W10913117

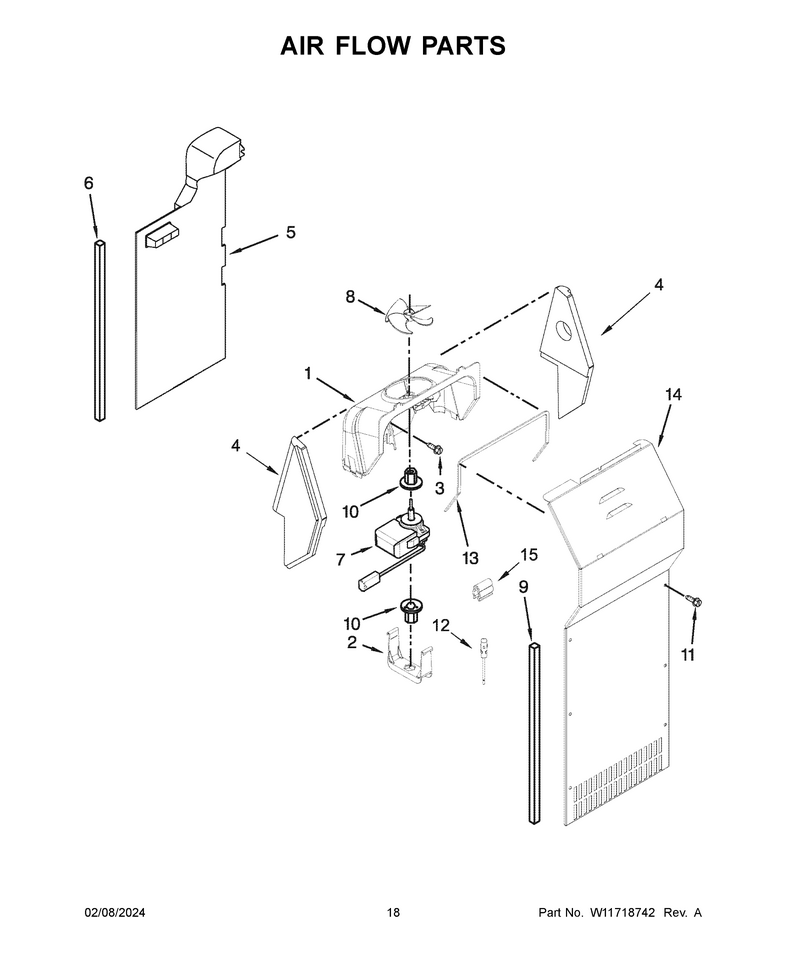

10 - Air Flow Parts

...
...
1
Fan-Scroll WPL-W11254898
...
2
Retainer WPL-W11700295
...
3
Screw WPL-WP489478
...
4
Support Kit (Contains Right And Left) WPL-4388358
...
4A
Support Kit (Contains Right And Left) WPL-4388358
...
5
Duct, Freezer Air WPL-W11099844
...
6
Gasket WPL-4388500
...
7
Motor-Evap WPL-W11559968
...
8
Blade-Fan WPL-WP2169142
...
9
Gasket WPL-WP2304241
...
10
Grommet WPL-WP2176759
...
11
Screw WPL-WP693995
...
12
Thermistor WPL-WPW10384183
...
13
Gasket WPL-WP2155789
...
14
Cover-Evap WPL-W11429207
...
15
Clip WPL-W11546684

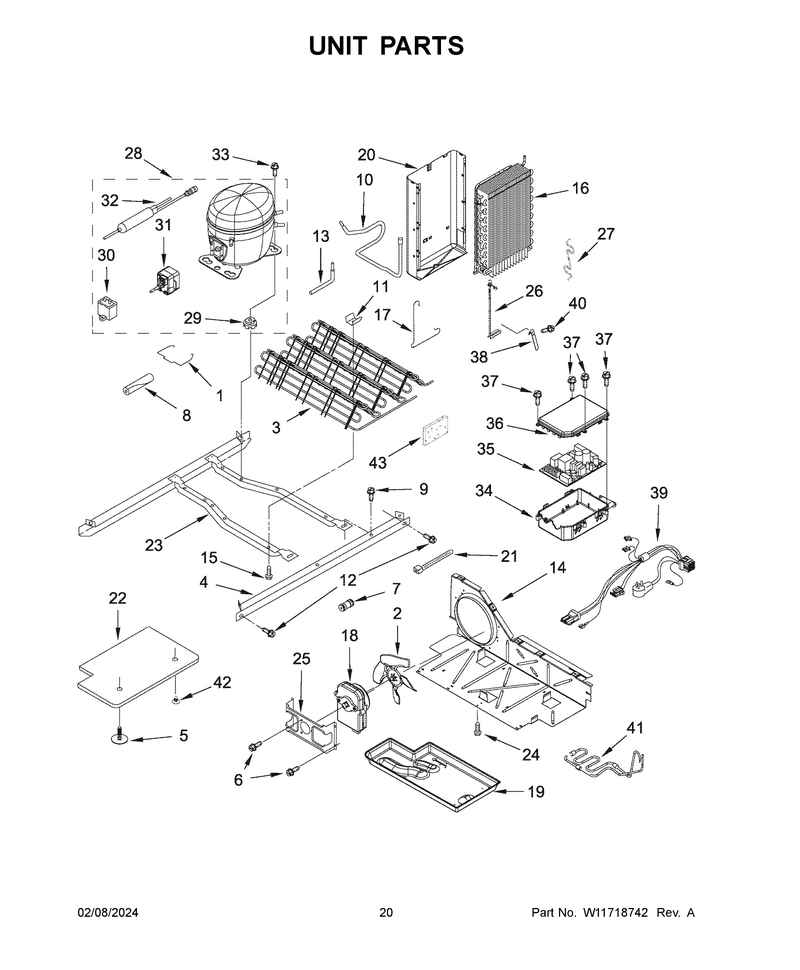

11 - Unit Parts

...
...
NI
Refrigerant Charge 64 Grams (R600a) WPL---
...
1
Clip WPL-W11577799
...
2
Blade-Fan WPL-W11458267
...
3
Condenser WPL-W11632924
...
3A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
3B
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
4
Rail, Unit Mounting WPL-W10905882
...
5
Clip WPL-489396
...
6
Screw WPL-WP8533993
...
7
Fitting WPL-WP2300868
...
8
Sleeve WPL-W11751592
...
9
Screw WPL-WP489427
...
10
Tube, Suction WPL-W11506458
...
11
Clip WPL-W10683556
...
12
Bolt WPL-489340
...
13
Tube WPL-W10858105
...
14
Baffle, Air WPL-W10896764
...
15
Screw WPL-W11544659
...
16
Evaporator WPL-W11546605
...
16A
4/2 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504449
...
16B
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
17
Clip WPL-WP2161324
...
18
Motor-Cond WPL-W11578915
...
19
Tray-Evap WPL-W11678304
...
20
Shield WPL-W11546608
...
21
Tie-Wire WPL-WPW10339879
...
22
Assembly, Unit Cover (Bottom) WPL-W10905940
...
23
Frame, Unit Mounting (Includes Unit Mounting Rail) WPL-W10905880
...
24
Screw WPL-WP489464
...
25
Bracket WPL-WP2181929
...
26
Heater WPL-W11650660
...
27
Clip, Defrost Heater WPL-W11603144
...
28
Compressor WPL-W11580057
...
28A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
29
Grommet WPL-W11678963
...
30
Capacitor WPL-WPW10662129
...
31
Start-Dev WPL-W11547180
...
32
Drier-Tube WPL-W11109499
...
32A
6/4 Nr Ms 00 (Heat Loop To Drier) WPL-W11504433
...
32B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
33
Screw WPL-W11661574
...
34
Box, Control WPL-2323186
...
35
Cntrl-Elec WPL-W11742389
...
36
Cover, Electronic Control WPL-W10313215
...
37
Screw WPL-WP489478
...
38
Heat-Probe WPL-W11611126
...
39
Harns-Wire WPL-W11565110
...
40
Screw WPL-WPW10171469
...
41
Tube WPL-W11678305
...
42
Clip, Pine Tree WPL-8282566
...
43
Insulation WPL-W11553819

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
