Whirlpool WRS312SNHM07

Model: WRS312SNHM07

Save Part Not Listed?
product name

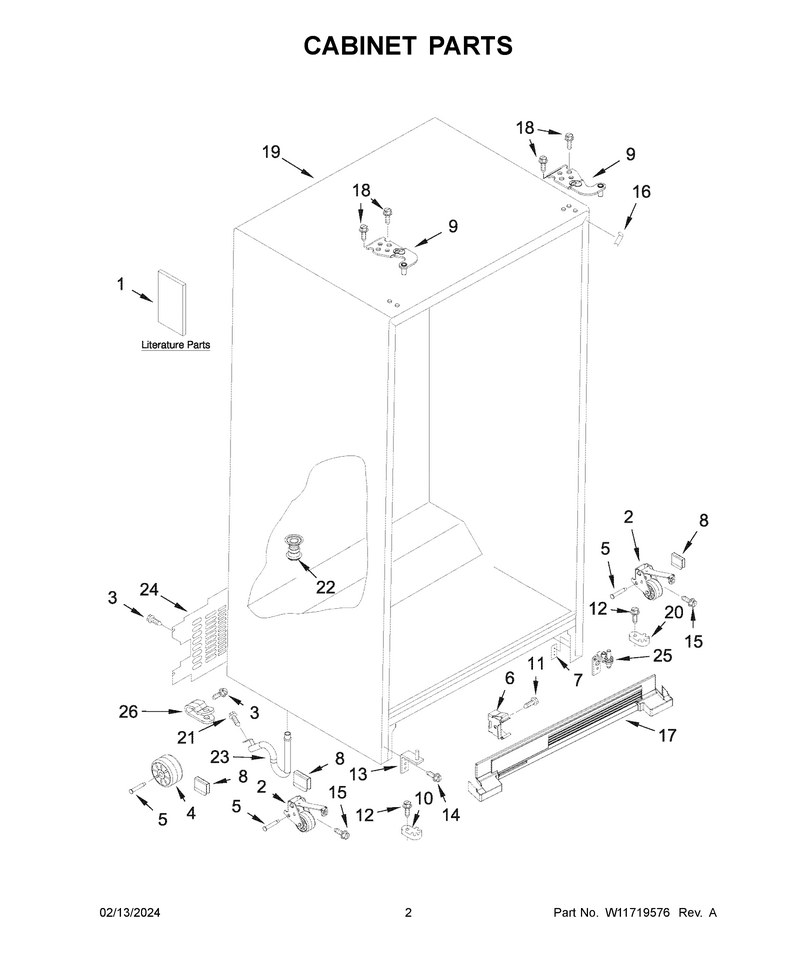

02 - Cabinet Parts

...
...
1
Use & Care Guide WPL-W11484052
...
1A
Tech Sheet (English) WPL-W11641236
...
1B
Tech Sheet (French) WPL-W11641242
...
1C
Energy Guide WPL-W11647248
...
2
Roller-Cab WPL-WPW10304660
...
2A
Roller-Cab WPL-WPW10304659
...
3
Screw WPL-WPW10141645
...
4
Roller-Cab WPL-WPW10475495
...
5
Axle WPL-W11594405
...
6
Clip WPL-WP2155013
...
7
Plate, Screw (Refrigerator) WPL-W11036715
...
7A
Plate, Screw (Freezer) WPL-W10904380
...
8
Axle WPL-W11594405
...
9
Hinge-Door WPL-W11505709
...
9A
Hinge-Door WPL-W11505710
...
10
Cam-Door WPL-W11679635
...
11
Screw WPL-WPW10308489
...
12
Screw WPL-WP489483
...
13
Hinge-Door WPL-W11687636
...
14
Screw WPL-WP489497
...
15
Screw WPL-W11544561
...
16
Filler, Wrapper (Grey) WPL-W11219642
...
17
Grille WPL-W11282565
...
18
Assembly, Precooler Formed WPL-SCREW
...
19
Cabinet (Not A Servicable Part) WPL---
...
20
Cam-Door WPL-W11398787
...
21
Screw WPL-WP489464
...
22
Fitting WPL-W11566763
...
23
Trivet WPL-W11512417
...
24
Cover, Unit WPL-W11613262
...
25
Hinge-Door WPL-W11399415
...
26
Clamp, Plastic WPL-W11234470

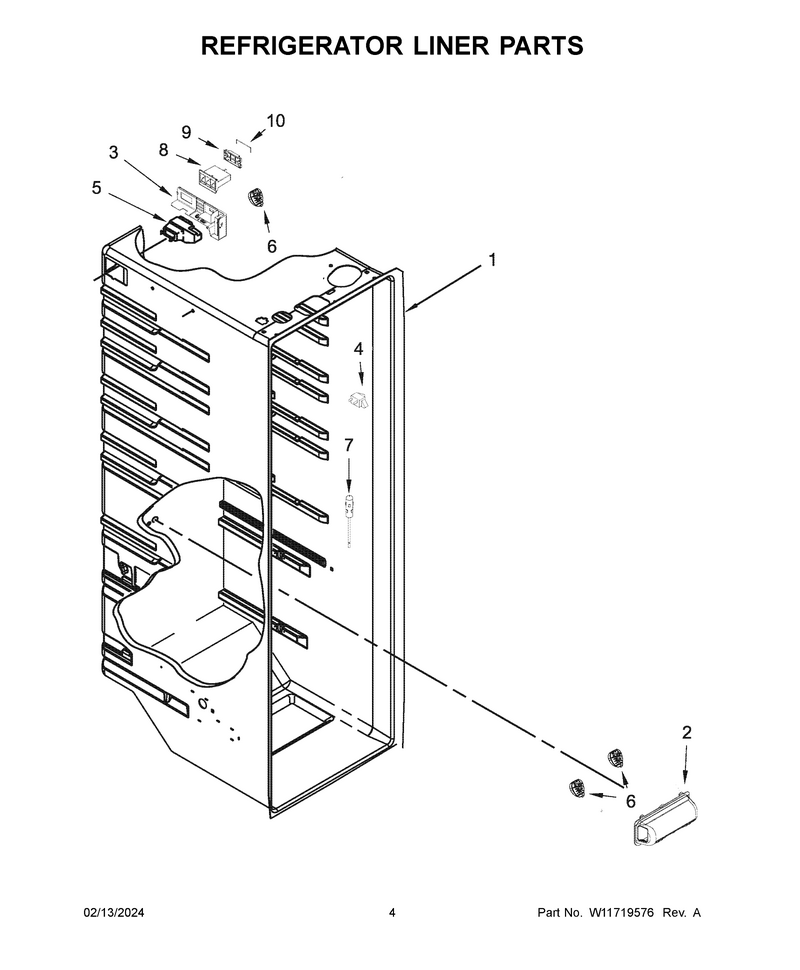

03 - Refrigerator Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Lens-Light WPL-W11239891
...
3
Cntrl-Elec WPL-W11572056
...
4
Switch WPL-W11384469
...
5
Diffuser WPL-W11380595
...
6
Module WPL-W11602886
...
7
Thermistor WPL-WPW10384183
...
8
Slider, Housing WPL-W10901825
...
9
Slider WPL-W10901827
...
10
Connecting Rod WPL-W10901826

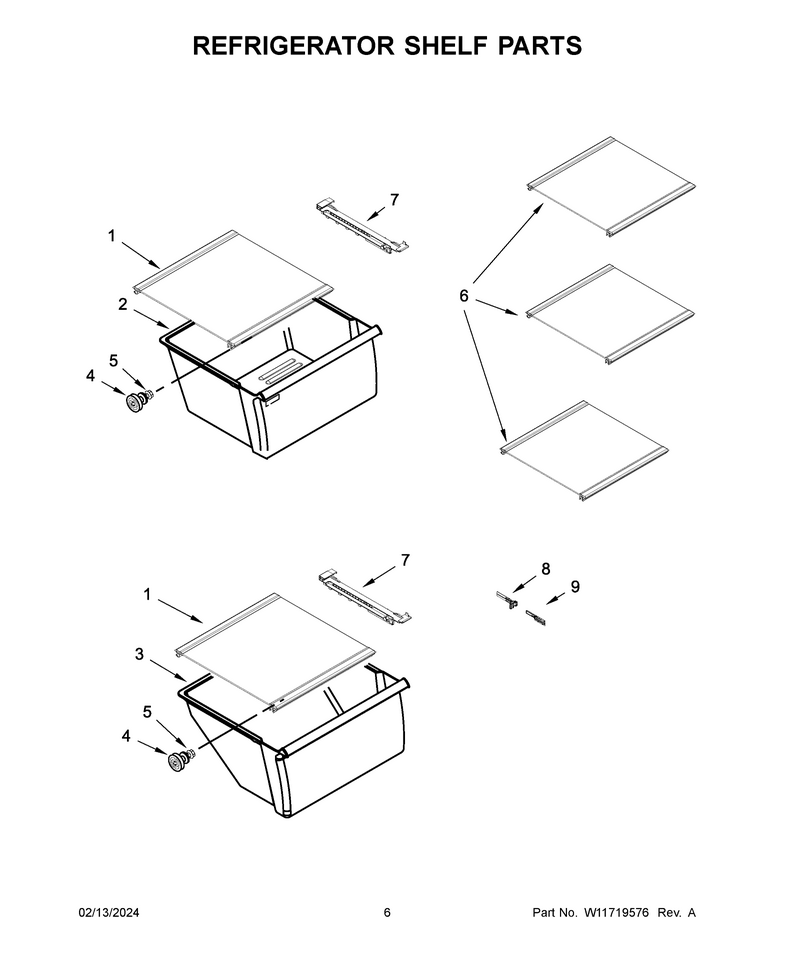

04 - Refrigerator Shelf Parts

...
...
1
Shelf-Glas WPL-W11688707
...
2
Cover WPL-W11162443
...
3
Pan-Meat WPL-W11162446
...
4
Stud-Shelf WPL-W11223328
...
5
Screw WPL-WP3-24004-109
...
6
Shelf-Glas WPL-W11188040
...
7
Track WPL-W11688711
...
7A
Track WPL-W11688708
...
8
Slide WPL-W11746089
...
9
Body-Cntrl WPL-WPW10282880

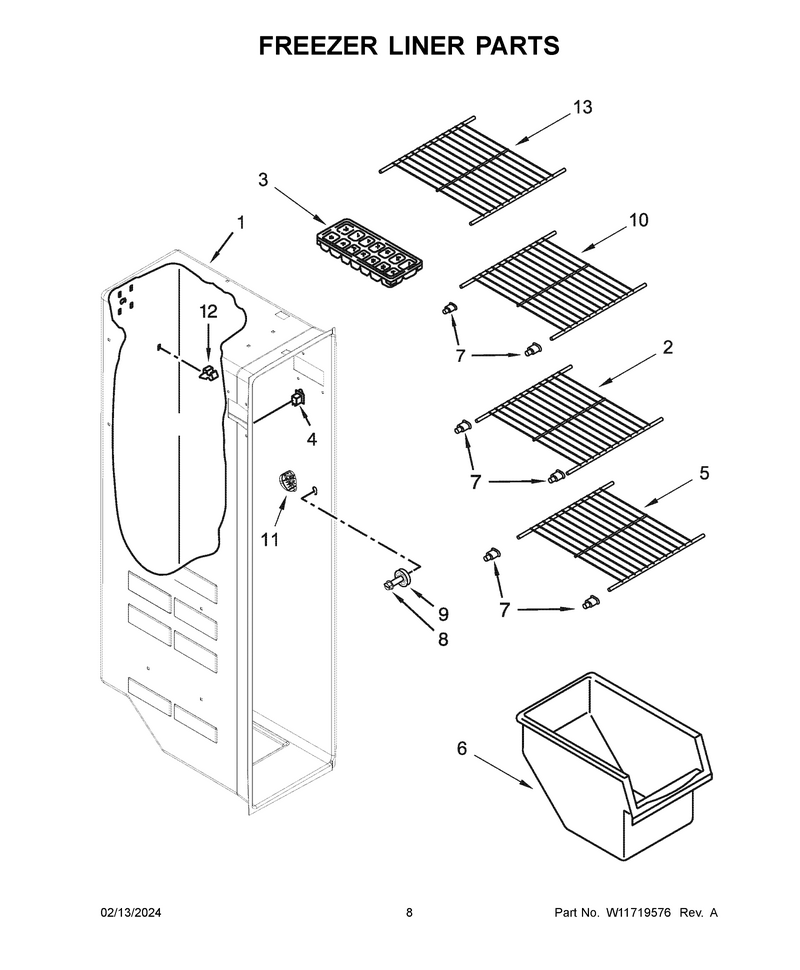

05 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL---
...
2
Shelf-Wire WPL-WPW10318953
...
3
Tray WPL-WP841180A
...
4
Switch WPL-W11384469
...
5
Shelf-Wire WPL-WPW10318952
...
6
Bin-Freezr WPL-WP2309758
...
7
Cup WPL-WPW10130299
...
8
Screw WPL-WP3-24004-109
...
9
Stud-Shelf WPL-W11223328
...
10
Shelf-Wire WPL-WPW10318960
...
11
Module WPL-W11602886
...
12
Clip-Air, Duct WPL-2215823
...
13
Shelf-Wire WPL-WPW10318949

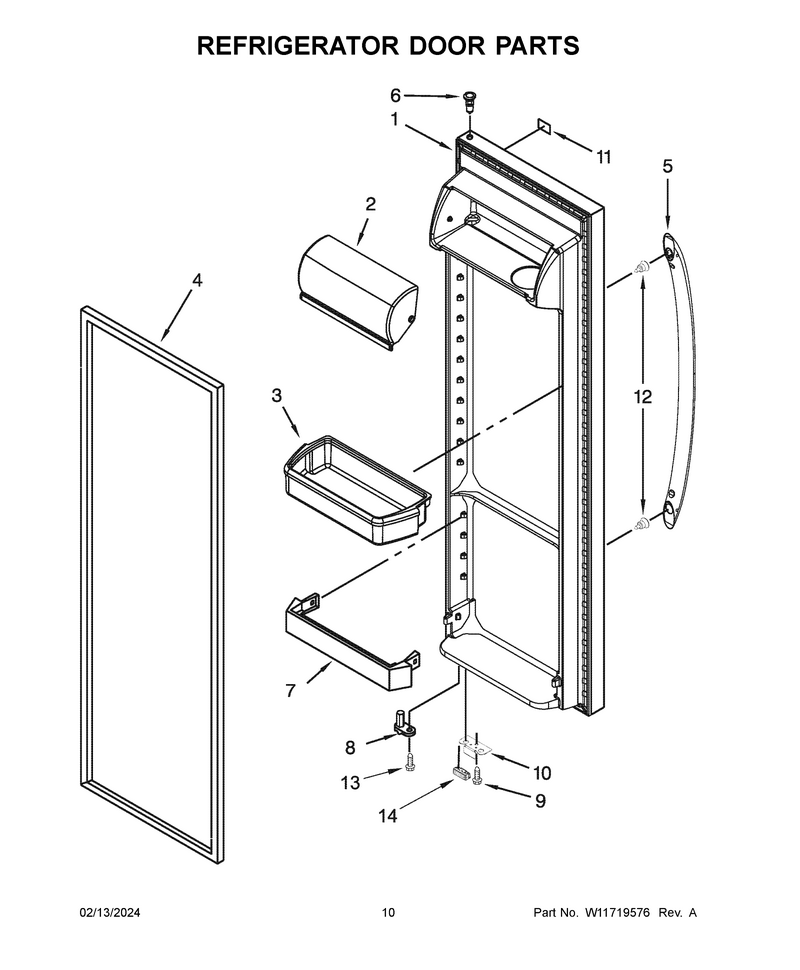

06 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-LW11259517
...
2
Door-Comp WPL-WP2256101
...
3
Bin-Cntlvr WPL-W11239961
...
4
Gasket-Fip WPL-W10136732
...
5
Handle WPL-W11542651
...
6
Thimble WPL-WP2182181
...
7
Trim-Door WPL-WP2309941
...
8
Cam-Door WPL-W11397972
...
9
Screw WPL-WPW10296816
...
10
Bracket WPL-W11557261
...
11
Nameplate WPL-W11223753
...
12
Screw WPL-WPW10661886
...
13
Screw WPL-WPW10296804
...
14
Bumper-Dor WPL-W11573367

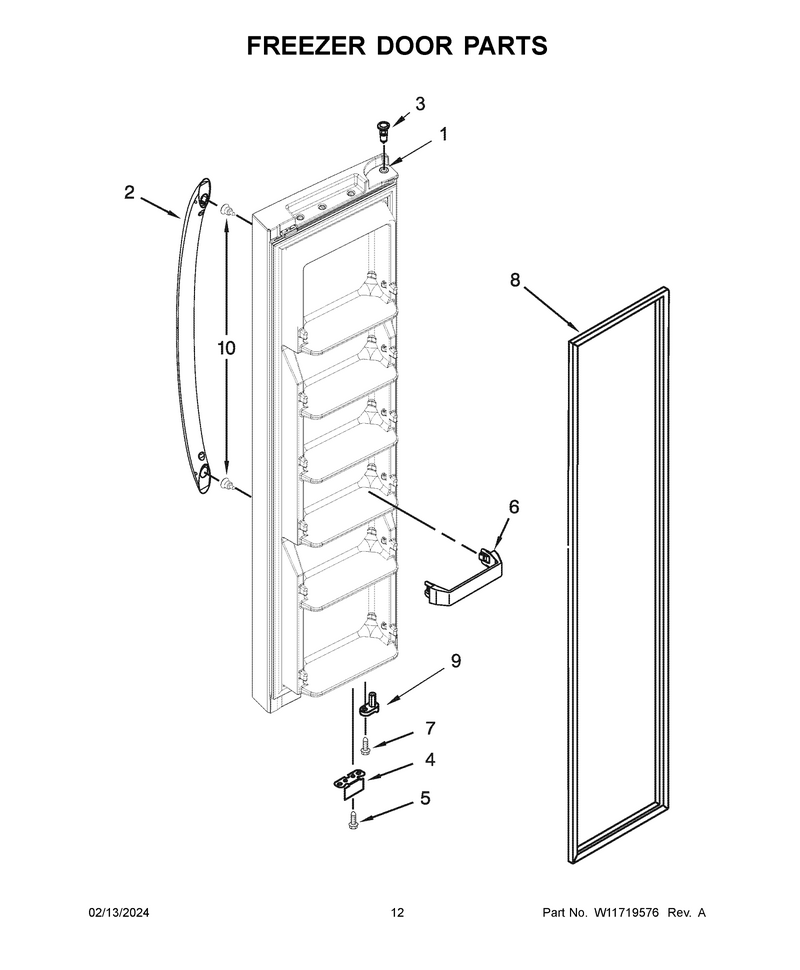

07 - Freezer Door Parts

...
...
1
Dor-Fip WPL-LW11258471
...
2
Handle WPL-W11542651
...
3
Thimble WPL-WP2182181
...
4
Bracket WPL-W11557261
...
5
Screw WPL-WPW10296804
...
6
Trim-Door WPL-WP2309717
...
7
Screw WPL-WPW10308489
...
8
Gasket-Fip WPL-W10136733
...
9
Cam-Door WPL-W11661926
...
10
Screw WPL-WPW10661886

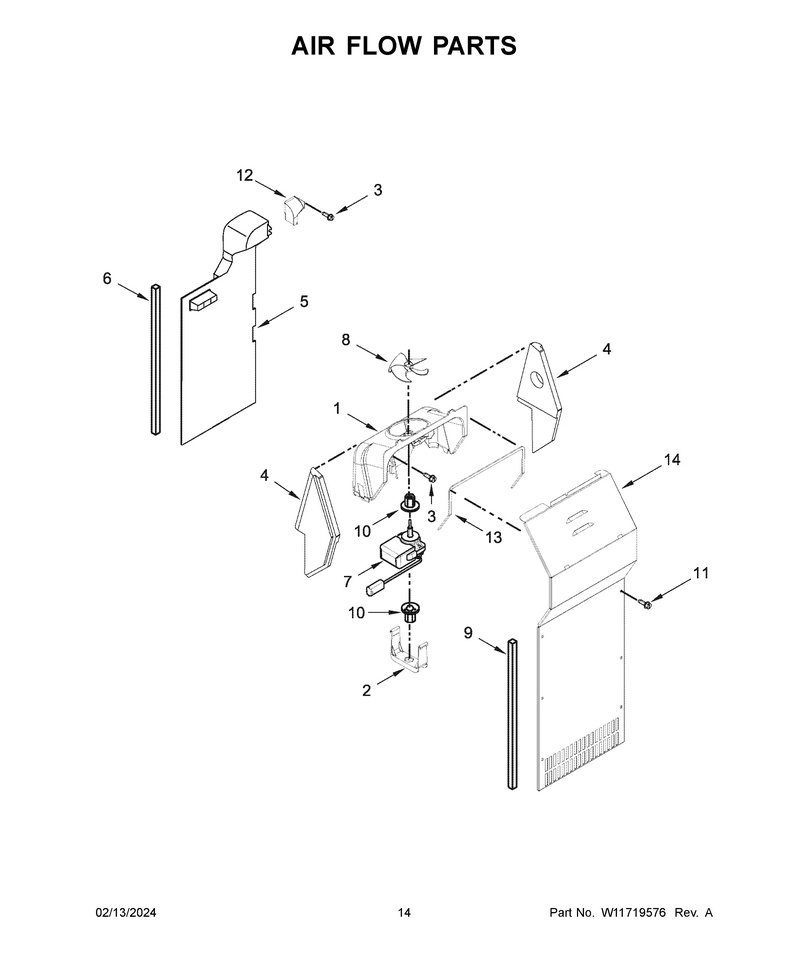

08 - Air Flow Parts

...
...
1
Fan-Scroll WPL-W11254898
...
2
Retainer WPL-W11700295
...
3
Screw WPL-WP489478
...
4
Support Kit (Contains Right And Left) WPL-4388358
...
4A
Support Kit (Contains Right And Left) WPL-4388358
...
5
Duct-Air WPL-W11503180
...
6
Gasket WPL-4388500
...
7
Motor-Evap WPL-WP2315549
...
8
Blade-Fan WPL-WP2169142
...
9
Gasket WPL-WP2304241
...
10
Grommet WPL-WP2176759
...
11
Screw WPL-WP693995
...
12
Scoop, Air Assembly WPL-W10803597
...
13
Gasket WPL-WP2155789
...
14
Cover-Evap WPL-W11429207

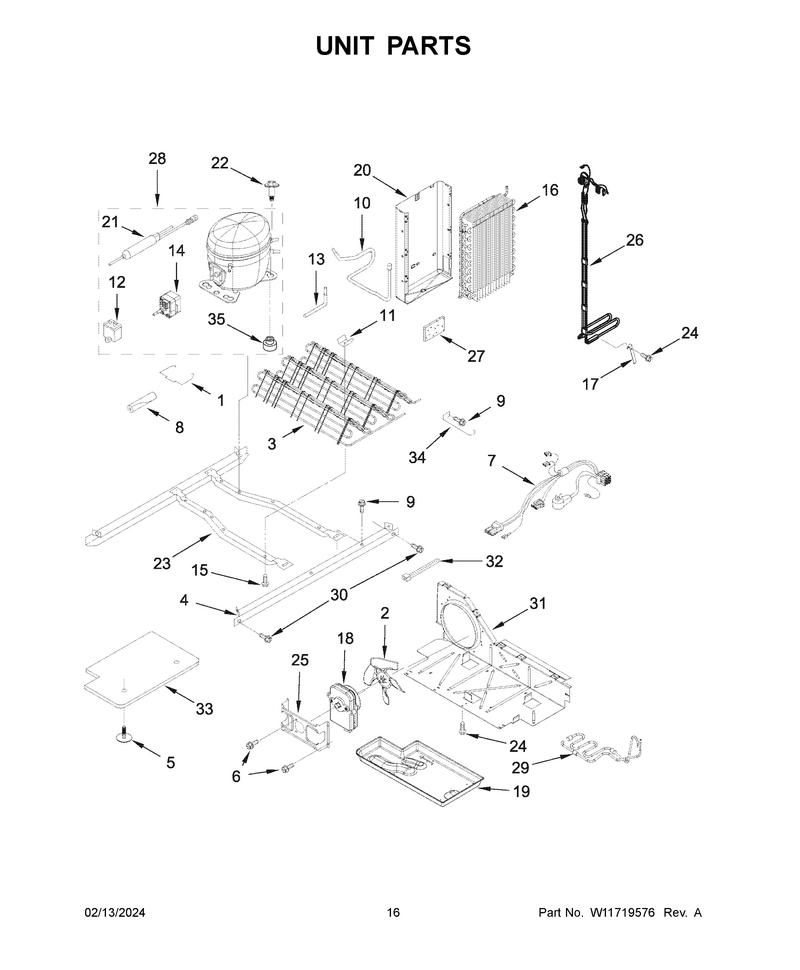

09 - Unit Parts

...
...
NI
Refrigerant Charge 64 Grams (R600a) WPL---
...
1
Clip WPL-W11577799
...
2
Blade-Fan WPL-W11458267
...
3
Condenser WPL-W11632924
...
3A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
3B
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
4
Rail, Unit Mounting WPL-W10905882
...
5
Clip WPL-489396
...
6
Screw WPL-WP8533993
...
7
Harns-Wire WPL-W11673314
...
8
Sleeve WPL-W11751592
...
9
Screw WPL-WP489427
...
10
Tube, Suction WPL-W11506458
...
11
Clip WPL-W10683556
...
12
Capacitor WPL-WPW10662129
...
13
Tube WPL-W10858105
...
14
Start-Dev WPL-W11547180
...
15
Screw WPL-W11544659
...
16
Evaporator WPL-W11546605
...
16A
4/2 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504449
...
16B
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
17
Heat-Probe WPL-W11611126
...
18
Motor-Cond WPL-W11578915
...
19
Tray-Evap WPL-W11678304
...
20
Shield WPL-W11546608
...
21
Drier-Tube WPL-W11109499
...
21A
6/4 Nr Ms 00 (Heat Loop To Drier) WPL-W11504433
...
21B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
22
Screw WPL-W11417341
...
23
Frame, Unit Mounting (Includes Unit Mounting Rail) WPL-W10905880
...
24
Screw WPL-WP489464
...
25
Bracket WPL-WP2181929
...
26
Heater WPL-W11650659
...
27
Insulation WPL-W11553819
...
28
Compressor WPL-W11580057
...
28A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
29
Tube WPL-W11678305
...
30
Bolt WPL-489340
...
31
Baffle, Air WPL-W10896764
...
32
Tie-Wire WPL-WPW10339879
...
33
Assembly, Unit Cover (Bottom) WPL-W10905883
...
34
Guard, Fan WPL-1105612
...
35
Grommet WPL-W11678963

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
