Whirlpool WRMF3636RZ00

Model: WRMF3636RZ00

Save Part Not Listed?
product name

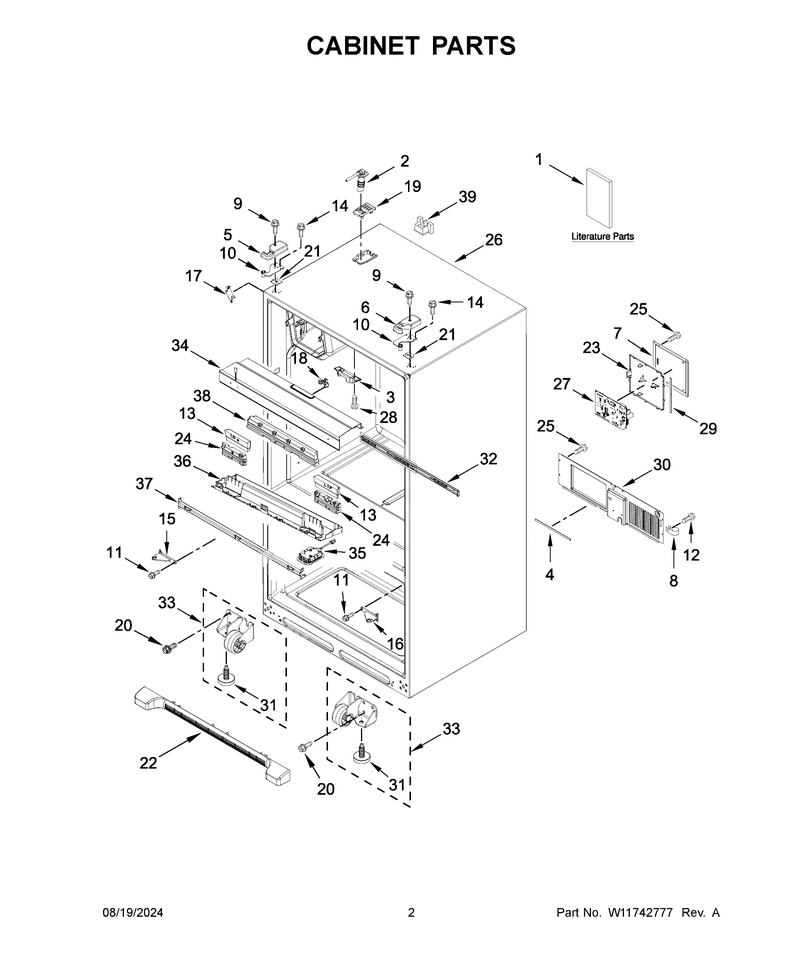

02 - Cabinet Parts

...
...
1
Tech Sheet WPL-W11665549
...
1A
Owners Manual WPL-W11608713
...
1B
Energy Guide WPL-W11730573
...
2
Tube-Water WPL-W11415785
...
3
Block- Piv WPL-WP67003405
...
4
Gasket WPL-W11534848
...
5
Cover WPL-WPW10337648
...
6
Cover WPL-WPW10191117
...
7
Cover, Control Box WPL-12961602
...
8
Clamp WPL-W11456069
...
9
Screw WPL-WP8281196
...
10
Hinge-Door WPL-W11592375
...
10A
Hinge-Door WPL-W11592374
...
11
Screw WPL-W11573362
...
12
Screw (3) WPL-67006425
...
13
Insulation WPL-W11697528
...
14
Screw WPL-WP489349
...
15
Hinge-Door WPL-W11642008
...
16
Hinge-Door WPL-W11642010
...
17
Filler WPL-WP12587703AP
...
18
Knob, Vent Slide WPL-W10827867
...
19
Cover, Fill Tube (Apollo Grey) WPL-W10191141
...
20
Screw (8) WPL-67006564
...
21
Shim, Hinge (Left Hand) WPL-12999501
...
21A
Shim, Hinge (Right Hand) WPL-12999502
...
22
Grille WPL-WPW10534155
...
23
Lid, Hv Control Box WPL-W10296541
...
24
Insulation WPL-W11686794
...
25
Screw WPL-W11686675
...
26
Cabinet (Not A Servicable Part) WPL---
...
27
Cntrl-Elec WPL-W11556912
...
28
Screw WPL-W11693756
...
29
Gasket, Control Box WPL-W10914798
...
30
Cover-Back WPL-WPW10270394
...
31
Leveler WPL-WPW10141622
...
32
Slide, Mullion Vent WPL-W10367522
...
33
Roller-Cab WPL-WPW10515763
...
33A
Roller-Cab WPL-WPW10515762
...
34
Rail-Mulln WPL-W11749489
...
35
Module WPL-W11483116
...
36
Housing WPL-W10877249
...
37
Brace, Mullion WPL-W10492234
...
38
Mullion, Secondary WPL-W10311721
...
39
Block WPL-W11686793

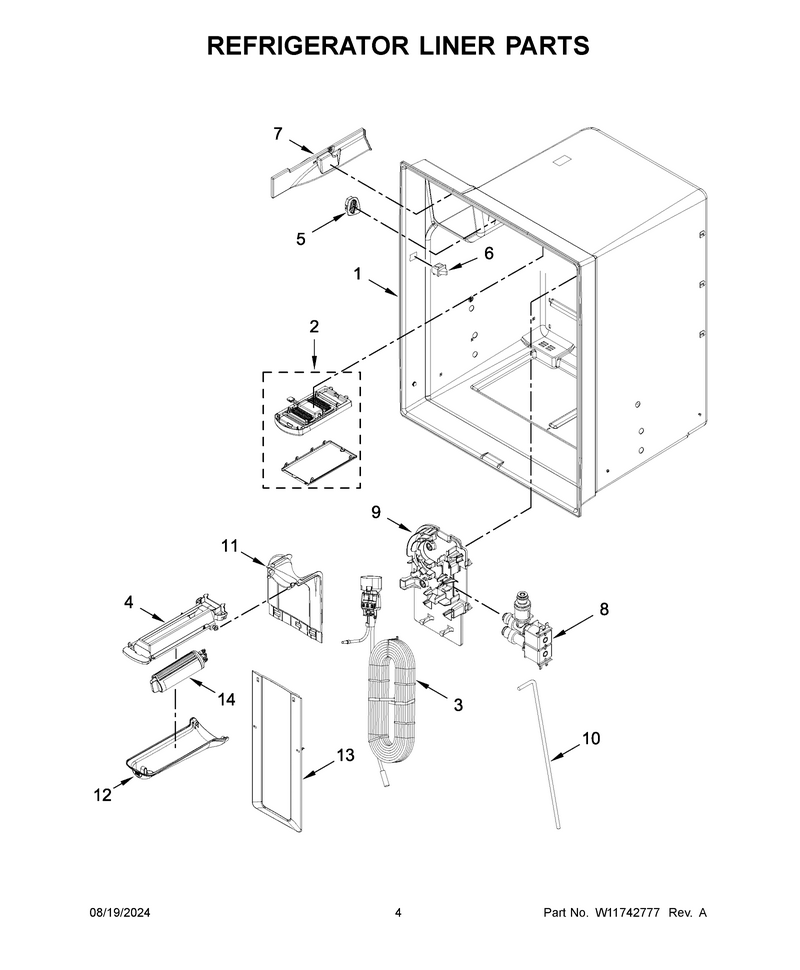

03 - Refrigerator Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Module WPL-W11527432
...
3
Reservoir WPL-W11706229
...
4
Bracket WPL-W11706281
...
5
Assembly, Air Grille WPL-W10555984
...
6
Switch WPL-W11396033
...
7
Cover WPL-WPW10309869
...
8
Valve WPL-W11548535
...
9
Bracket WPL-WPW10334463
...
10
Tube-Water WPL-W11666461
...
11
Cover WPL-W11706278
...
12
Cover-Filt WPL-W11706279
...
13
Cover, Lower Water Tank WPL-W11565236
...
14
Filter WPL-EDRARXD1

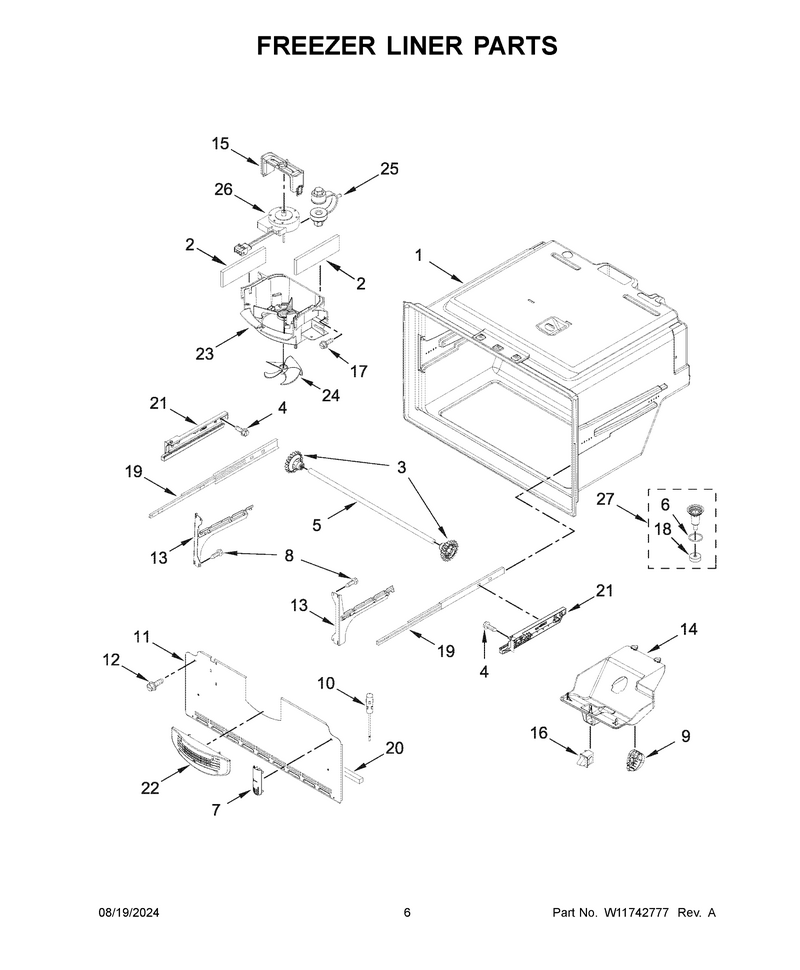

04 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL---
...
2
Gasket WPL-W10856123
...
3
Gear WPL-12002497
...
4
Screw WPL-WP489474
...
5
Shaft WPL-W11028221
...
6
Seal- O Ri WPL-WPM0500703
...
7
Cover- Fz WPL-WP67003924
...
8
Screw WPL-WP98165
...
9
Module WPL-W11602886
...
10
Thermistor WPL-W10316760
...
11
Cover, Evaporator WPL-W10308421
...
12
Screw (3) WPL-67006425
...
13
Bracket WPL-WPW10330991
...
13A
Bracket WPL-WPW10330993
...
14
Housing WPL-W11434460
...
15
Clip WPL-W11712696
...
16
Switch WPL-W11445850
...
17
Screw WPL-WP98165
...
18
Gasket- Dr WPL-WPB8381501
...
19
Slide WPL-W11658402
...
20
Gasket WPL-W11159728
...
21
Bracket WPL-WPW10284682
...
21A
Bracket WPL-WPW10284683
...
22
Grille WPL-W11176847
...
23
Shroud- Ev WPL-W11700329
...
24
Blade- Fan WPL-WP67006337
...
25
Grommet WPL-W11249950
...
26
Motor-Evap WPL-W11661931
...
27
Funnel WPL-W10815413

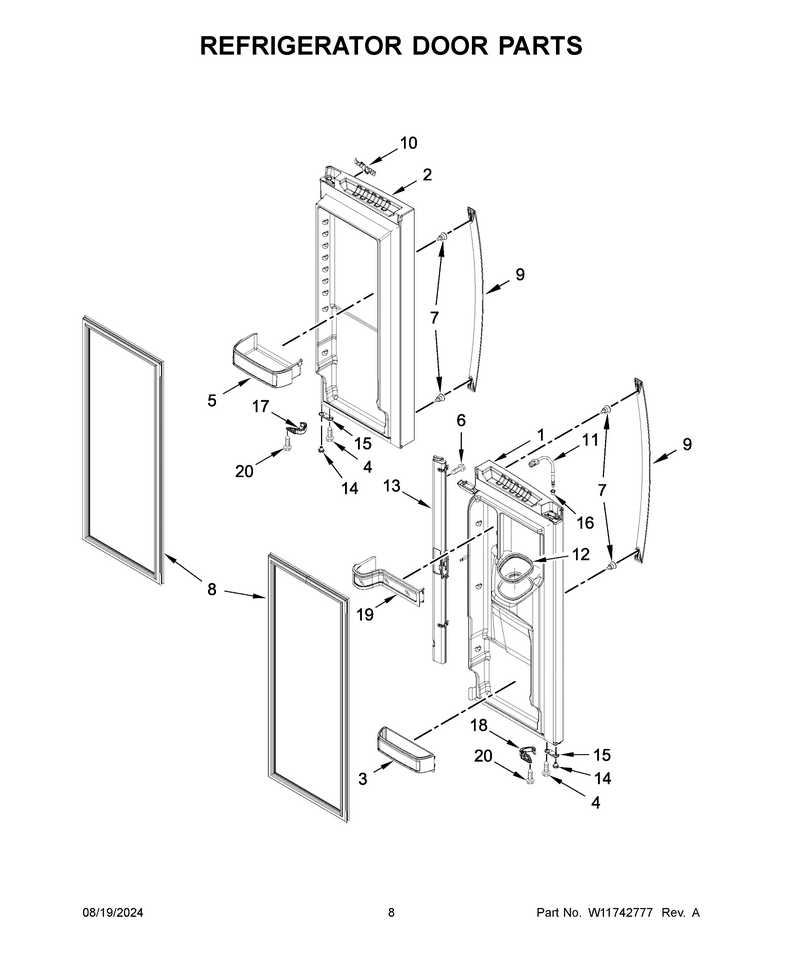

05 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W11435353
...
2
Dor-Fip WPL-W11435352
...
3
Bin-Cntlvr WPL-W11749338
...
4
Screw WPL-WP98165
...
5
Bin-Cntlvr WPL-W11749336
...
6
Screw WPL-W11311945
...
7
Screw WPL-W11449276
...
8
Gasket, Door (Grey) WPL-W10830274
...
9
Handle WPL-W11045129
...
10
Nameplate WPL-W11223753
...
11
Tube-Water WPL-W11677733
...
12
Seal WPL-WPW10287601
...
13
Rail-Mulln WPL-WPW10311757
...
14
Closer WPL-WP12028505AP
...
15
Stop-Door WPL-W11703060
...
16
Clip, Bushing WPL-12996601
...
17
Closer WPL-W10918010
...
18
Closer WPL-W10918008
...
19
Bin-Cntlvr WPL-W11749487
...
20
Screw WPL-WP67006908

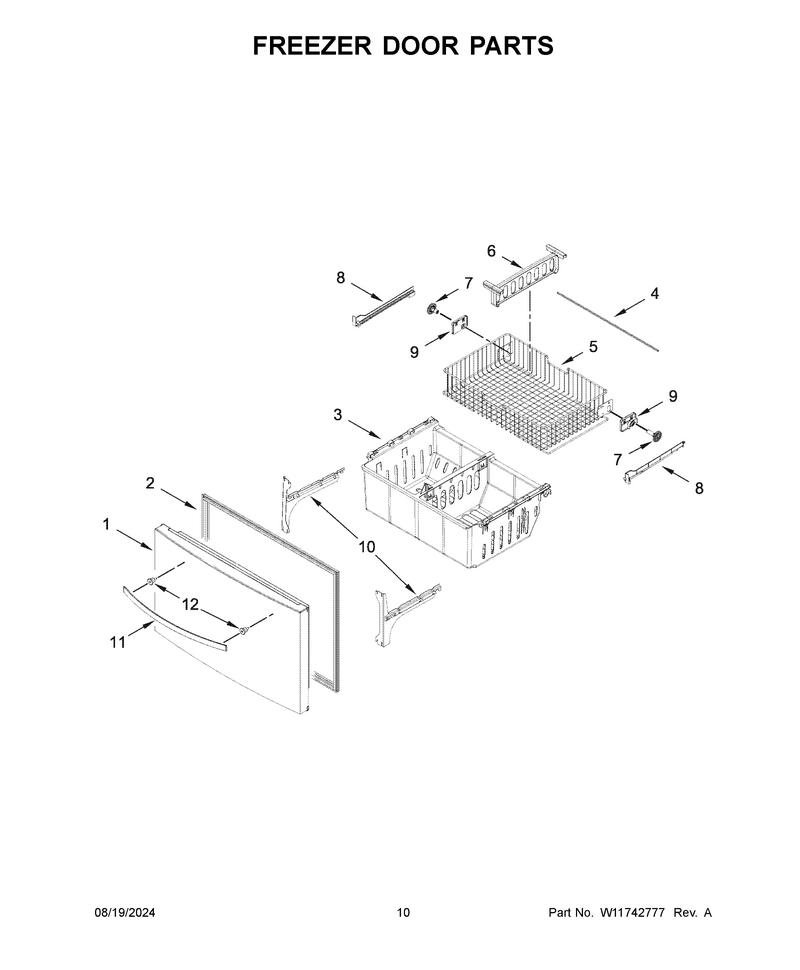

06 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11435351
...
2
Gasket-Fip WPL-WPW10714545
...
3
Bin-Freezr WPL-WPW10293682
...
4
Shaft WPL-W11173556
...
5
Basket-Fzr WPL-W11218042
...
6
Divider, Upper Basket WPL-W10146439
...
7
Gear WPL-WPW10474716
...
7A
Gear WPL-WPW10474715
...
8
Rail WPL-W11489993
...
8A
Rail WPL-W11489994
...
9
Mount, Gear (Left Hand) WPL-W10348259
...
9A
Mount, Gear (Right Hand) WPL-W10348260
...
10
Bracket WPL-WPW10330991
...
10A
Bracket WPL-WPW10330993
...
11
Handle WPL-W11045125
...
12
Screw WPL-W11449276

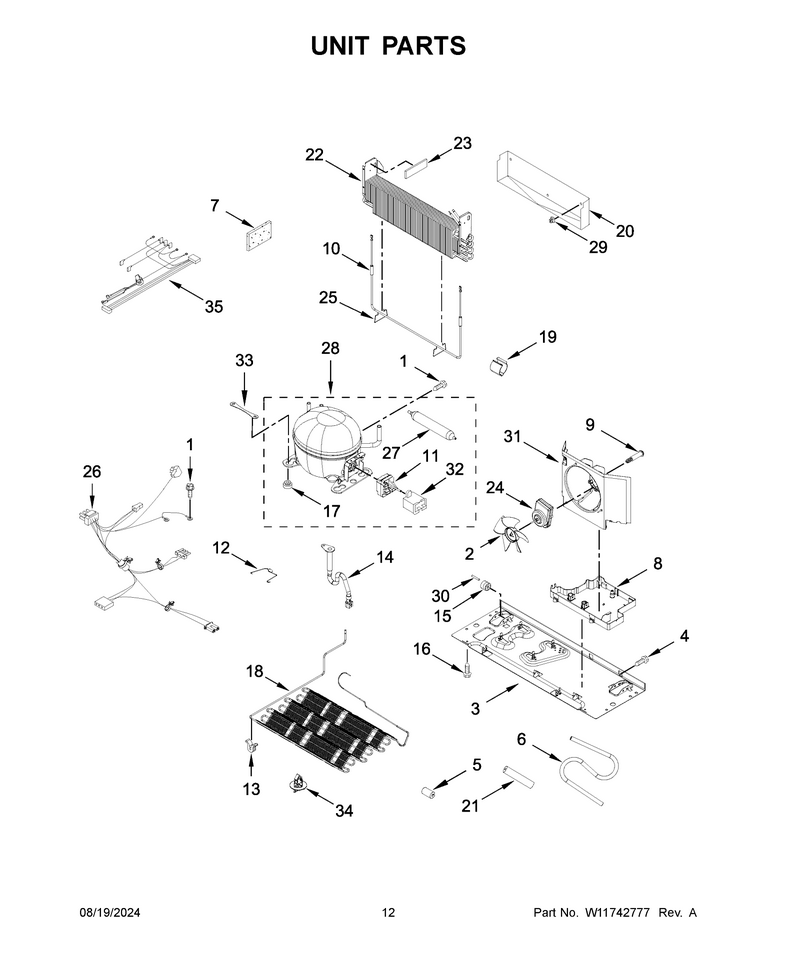

07 - Unit Parts

...
...
NI
Refrigerant Charge 51 Grams (R600a) WPL---
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727651
...
4
Screw (3) WPL-67006425
...
5
Grommet WPL-W10852725
...
6
Tube WPL-W11689475
...
7
Insulation WPL-W11553819
...
8
Pan-Drip WPL-WPW10655368
...
9
Screw WPL-W10829281
...
10
Heater WPL-W11547652
...
11
Start-Dev WPL-W11524472
...
12
Clip WPL-W11689467
...
13
Grommet WPL-WPW10137529
...
14
Tube-Drain WPL-W10619951
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-W11733334
...
18A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
18B
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
19
Clip, Drier WPL-W10281329
...
20
Tray-Drip WPL-W11547653
...
21
Sleeve WPL-W11751592
...
22
Evaporator WPL-W11550396
...
22A
8/2 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504423
...
22B
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
23
Gasket WPL-W11451451
...
24
Motor-Cond WPL-W11613295
...
25
Clip, Heater WPL-W11380964
...
26
Harns-Wire WPL-W11666013
...
27
Drier-Tube WPL-W11109499
...
27A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
27B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
28
Compressor WPL-W11686820
...
28A
8.5/6 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504416
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
6 Nk Ms 00 (Charging Tube To Compressor) WPL-W11506621
...
28D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Capacitor WPL-WPW10350564
...
33
Strap, Compressor WPL-W10236396
...
34
Clip, Condenser WPL-W10815863
...
35
Harns-Wire WPL-W11548536

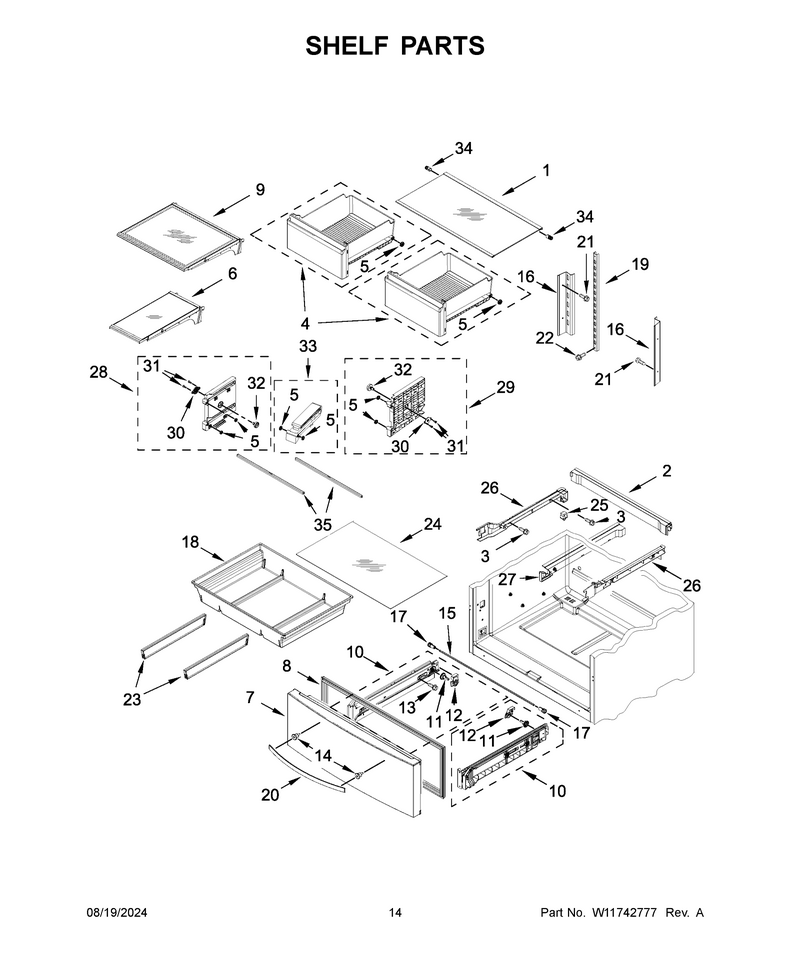

08 - Shelf Parts

...
...
1
Shelf-Glas WPL-W11749297
...
2
Rail, Rear Pantry WPL-W10331298
...
3
Screw WPL-WP98165
...
4
Pan-Crispr WPL-W11749296
...
5
Roller WPL-W11748380
...
6
Shelf-Cant WPL-W11749335
...
7
Dor-Fip WPL-W11435354
...
8
Gasket-Fip WPL-WPW10443326
...
9
Shelf-Glas WPL-W11749333
...
10
Adapter, Pantry (Left Hand) WPL-W11093713
...
10A
Adapter, Pantry (Right Hand) WPL-W11093714
...
11
Gear, Spur WPL-W10277360
...
12
Cover, Gear (Left Hand) WPL-W10284709
...
12A
Cover, Gear (Right Hand) WPL-W10294414
...
13
Screw WPL-WPW10272364
...
14
Screw WPL-W11449276
...
15
Shaft, Rack WPL-W10802341
...
16
Ladder, Side (Left Hand) WPL-W10251968
...
16A
Ladder, Side (Right Hand) WPL-W10251965
...
17
Collar WPL-WPW10277361
...
18
Pan-Utilty WPL-W11483068
...
19
Ladder, Center WPL-W10273464
...
20
Handle WPL-W11045125
...
21
Screw (3) WPL-67006425
...
22
Screw WPL-WP67006415
...
23
Divider, Pantry WPL-W11340457
...
24
Shelf-Glas WPL-WPW10296571
...
25
Switch WPL-W11291138
...
26
Rail, Pantry (Left Hand) WPL-W10311723
...
26A
Rail WPL-W11715934
...
27
Cover, Pantry Rail (Left Hand) WPL-W10311725
...
28
Endcap WPL-W11749298
...
29
Endcap WPL-W11749300
...
30
Flange, Side Support WPL-W10840918
...
31
Screw WPL-W10847999
...
32
Knob, Side Support WPL-W10840922
...
33
Support WPL-W11749331
...
34
Support WPL-W11748383
...
35
Brace, Crisper Support WPL-W11700717

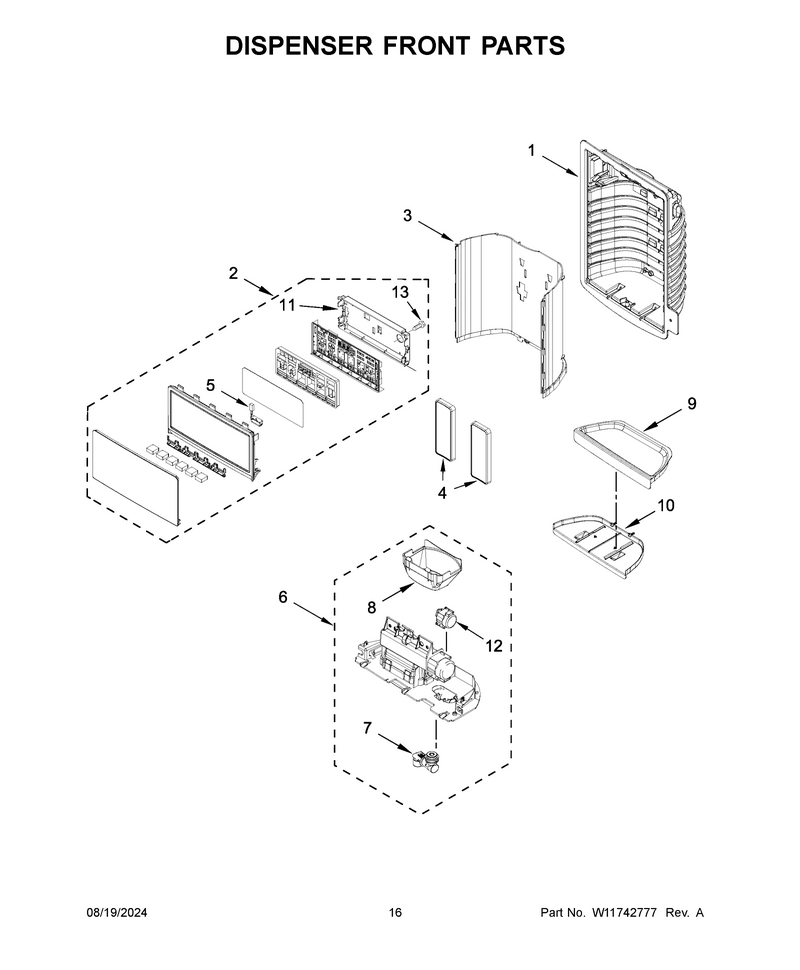

09 - Dispenser Front Parts

...
...
1
Housing, Dispenser (Not Serviced) WPL---
...
2
Panel-Ui WPL-W11642011
...
3
Wall, Dispenser False (Nickel) WPL-W11045978
...
4
Pad WPL-WPW10353848
...
5
Light WPL-W11290115
...
6
Separator WPL-WPW10353552
...
7
Spigot WPL-W11227371
...
8
Guide-Ice WPL-WPW10435760
...
9
Tray-Drip WPL-W11192301
...
10
Tray-Drip WPL-WPW10267863
...
11
Cover, Board WPL-W10254277
...
12
Motor WPL-WPW10205979
...
13
Screw, 6-19 X .250 WPL-2006254

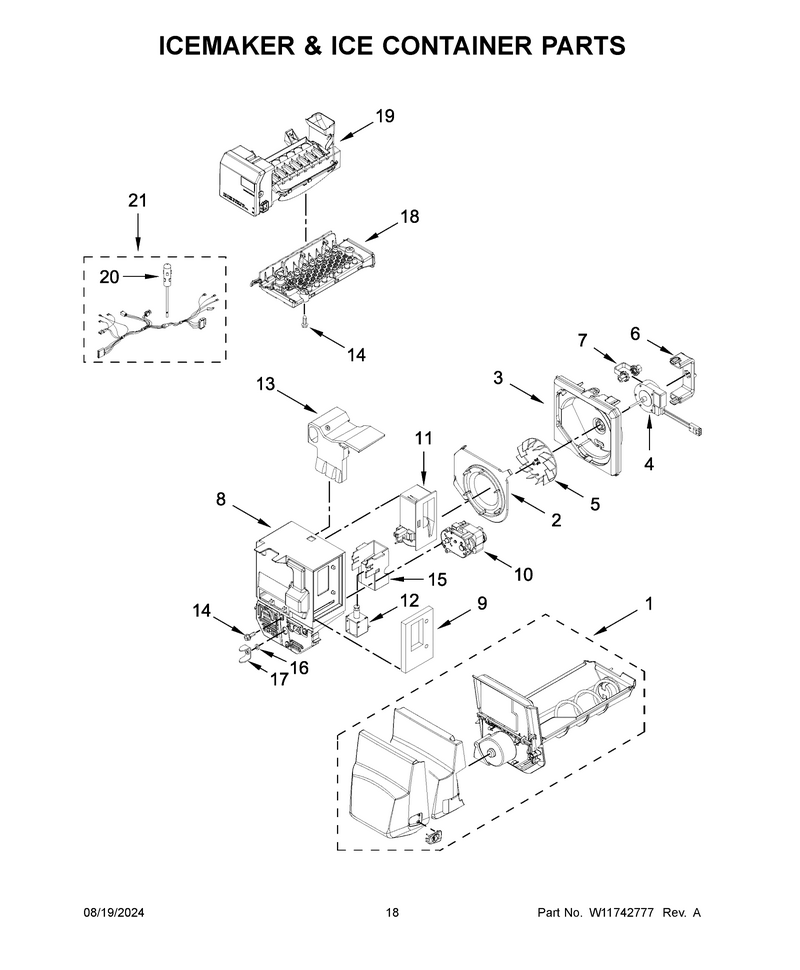

10 - Icemaker & Ice Container Parts

...
...
1
Ice-Contnr WPL-W11185686
...
2
Inlet, Blower WPL-W10121282
...
3
Scroll, Blower WPL-W10309863
...
4
Motor-Evap WPL-W11529245
...
5
Wheel WPL-WPW10123444K
...
6
Clip, Fan Motor WPL-W10165970
...
7
Grommet, Fan Motor WPL-W10151687
...
8
Divider WPL-WPW10309864
...
9
Gasket WPL-WP67006341
...
10
Motor WPL-W11671282
...
11
Control WPL-WPW10196393
...
12
Solenoid WPL-WPW10309866
...
13
Insert WPL-W11676504
...
14
Screw (3) WPL-67006425
...
15
Bracket, Solenoid WPL-W10346971
...
16
Spacer WPL-W11378860
...
17
Impeller WPL-WP63052-2
...
18
Air-Baffle WPL-W11548539
...
19
Icemaker WPL-W11692161
...
20
Thermistor WPL-W10316760
...
21
Harns-Wire WPL-W11548538

...
...
NI
Miscellaneous, Kit, Water Inlet WPL-8003RP
