Whirlpool WRFC2036RW00

Model: WRFC2036RW00

Save Part Not Listed?
product name

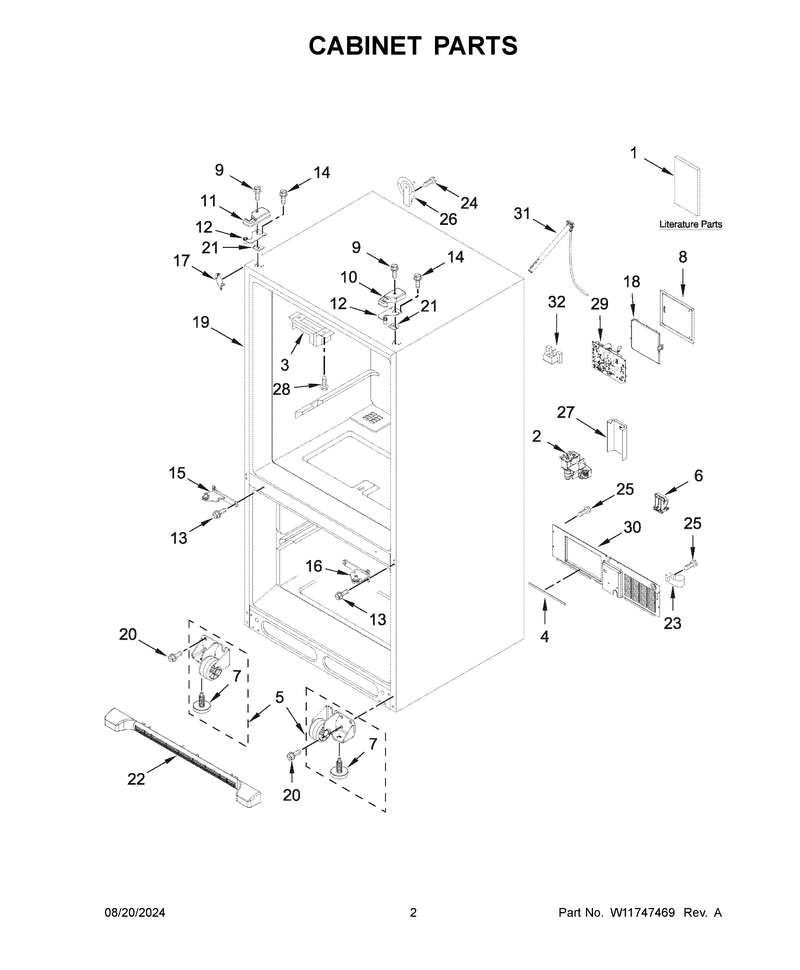

02 - Cabinet Parts

...
...
1
Owners Manual WPL-W11580822
...
1A
Tech Sheet WPL-W11665552
...
1B
Energy Guide WPL-W11730575
...
2
Valve WPL-W11524655
...
3
Block- Piv WPL-WP67003405
...
4
Gasket WPL-W11534848
...
5
Roller-Cab WPL-WPW10515763
...
5A
Roller-Cab WPL-WPW10515762
...
6
Sweep, Dual Tube WPL-W10528513
...
7
Leveler WPL-WPW10141622
...
8
Cover, Control Box WPL-12961602
...
9
Screw WPL-WP8281196
...
10
Cover, Right Hinge (White) WPL-67005958
...
11
Cover WPL-WPW10337634
...
12
Hinge-Door WPL-W11592375
...
12A
Hinge-Door WPL-W11592374
...
13
Screw WPL-W11573362
...
14
Screw WPL-WP489349
...
15
Hinge-Door WPL-W11642008
...
16
Hinge-Door WPL-W11642010
...
17
Cover, Corner (White) WPL-12587703W
...
18
Cover WPL-W11226688
...
19
Cabinet (Not A Serviceable Part) WPL---
...
20
Screw (8) WPL-67006564
...
21
Shim, Hinge (Left Hand) WPL-12999501
...
21A
Shim, Hinge (Right Hand) WPL-12999502
...
22
Grille-Frt WPL-WPW10534154
...
23
Clamp WPL-W11456069
...
24
Screw WPL-WP98165
...
25
Screw WPL-W11686675
...
26
Cover, Water Line WPL-12726003
...
27
Guard, Dual Water Valve WPL-W10208593
...
28
Screw WPL-W11693756
...
29
Cntrl-Elec WPL-WPW10317076
...
30
Cover-Back WPL-WPW10211855
...
31
Tube-Water WPL-W11181718
...
32
Block WPL-W11686793

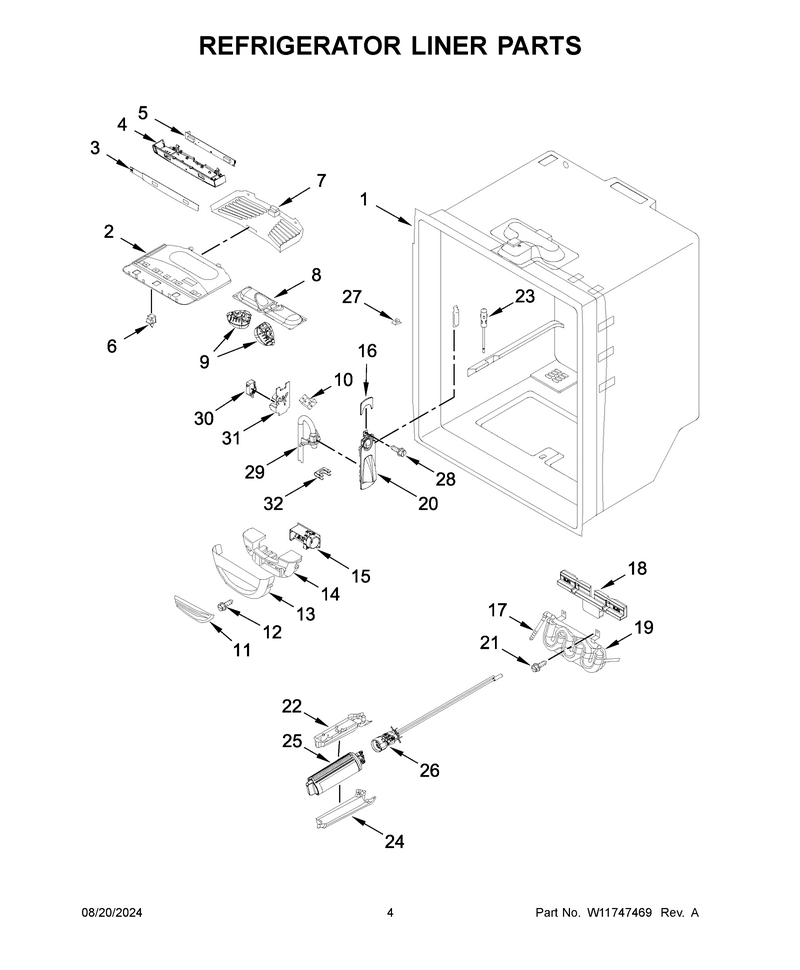

03 - Refrigerator Liner Parts

...
...
NI
Harns-Wire WPL-W11642013
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Module, Light WPL-W10464764
...
3
Overlay WPL-W11712701
...
4
Housing WPL-W11416469
...
5
Cntrl-Elec WPL-W11642241
...
6
Switch WPL-W11384469
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-W10443023
...
9
Module WPL-W11602886
...
10
Seal-Foam WPL-W11527411
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-W11750607
...
15
Control WPL-WPW10594329
...
16
Cover WPL-W11519867
...
17
Fitting WPL-WP2300868
...
18
Insulation WPL-W11695235
...
19
Reservoir WPL-W11229977
...
20
Cover WPL-W11519867
...
21
Screw WPL-WP67006415
...
22
Cover-Back WPL-W11706224
...
23
Thermistor WPL-W11690896
...
24
Cover-Filt WPL-W11706225
...
25
Filter WPL-EDRARXD1
...
26
Reservoir WPL-W11706228
...
27
Clip WPL-W10819546
...
28
Screw WPL-W10854958
...
29
Guide WPL-W11677725
...
30
Switch WPL-W11527839
...
31
Plate WPL-W11515355
...
32
Clip, Waterline WPL-67002816

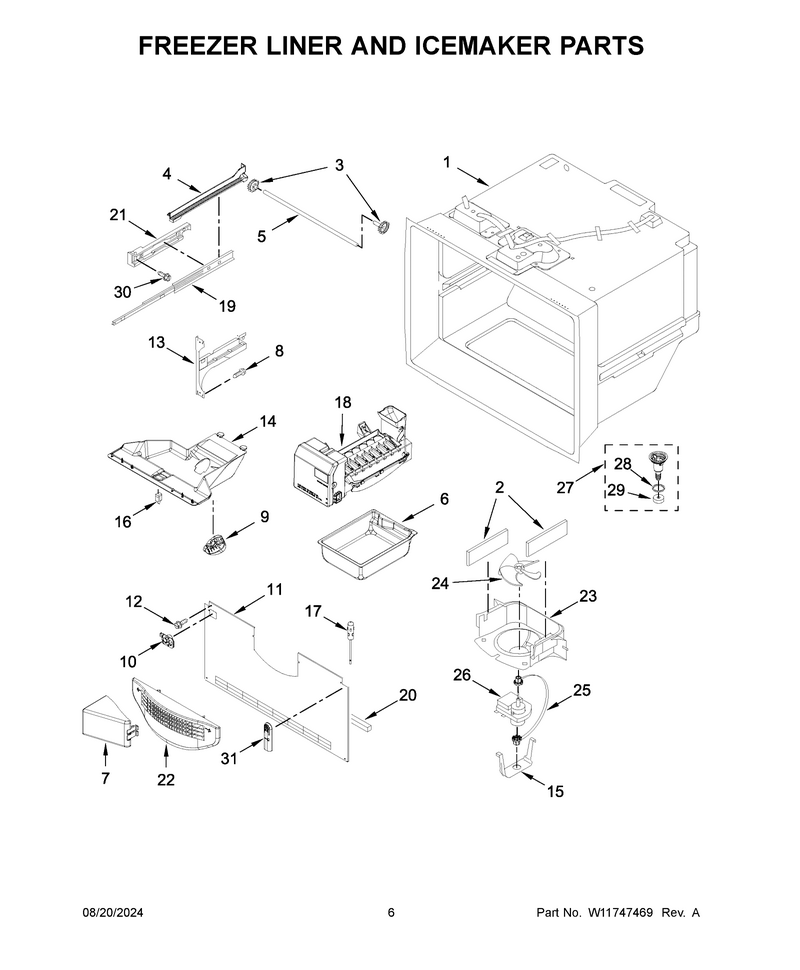

04 - Freezer Liner And Icemaker Parts

...
...
1
Liner (Not A Seviceable Part) WPL---
...
2
Gasket WPL-W10856123
...
3
Gear WPL-12002497
...
4
Rack, Side (Left Hand) WPL-W10516605
...
4A
Rack, Side (Right Hand) WPL-W10516604
...
5
Shaft WPL-W11028221
...
6
Pan-Ice WPL-WPW10171529
...
7
Diverter, Air WPL-W10157765
...
8
Screw WPL-WP98165
...
9
Module WPL-W11602886
...
10
Guide, Fill Tube WPL-W11341630
...
11
Cover-Evap WPL-W11727809
...
12
Screw (3) WPL-67006425
...
13
Bracket WPL-WPW10330994
...
13A
Bracket WPL-WPW10330995
...
14
Housing WPL-WPW10277025
...
15
Clip, Evaporator Motor WPL-13058002
...
16
Switch WPL-W11396033
...
17
Thermistor WPL-W10316760
...
18
Icemaker WPL-W11692144
...
19
Slide WPL-W11658403
...
20
Gasket WPL-W11159728
...
21
Bracket WPL-WPW10284692
...
21A
Bracket WPL-WPW10284693
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Grommet WPL-W11690160
...
26
Motor-Evap WPL-W11024089
...
27
Funnel WPL-W10815413
...
28
Seal- O Ri WPL-WPM0500703
...
29
Gasket- Dr WPL-WPB8381501
...
30
Screw WPL-WP489474
...
31
Cover- Fz WPL-WP67003924

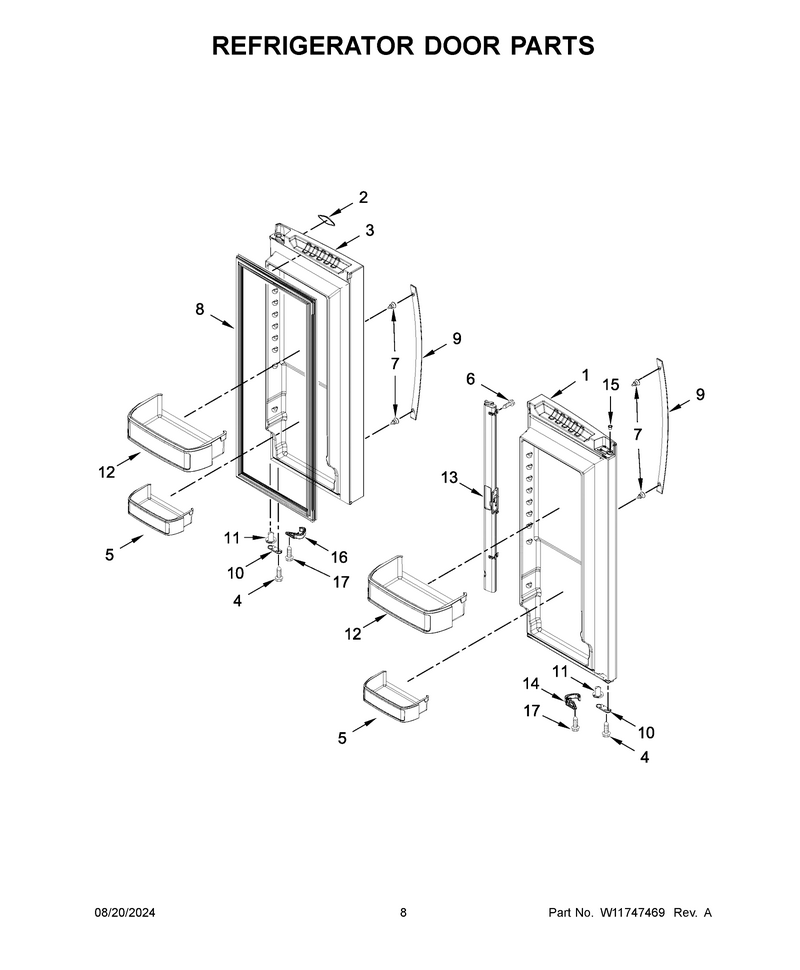

05 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W11661561
...
2
Nameplate WPL-W11223753
...
3
Dor-Fip Wh WPL-13107887WQ
...
4
Screw WPL-WP98165
...
5
Bin-Cntlvr WPL-W11749491
...
6
Screw WPL-W11311945
...
7
Screw WPL-W11449276
...
8
Gasket, Door (White) WPL-W10830189
...
9
Handle WPL-W11127179
...
10
Stop, Door (White) WPL-12968202W
...
11
Closer WPL-WP67003638
...
12
Bin-Cntlvr WPL-W11749492
...
13
Rail-Mulln WPL-WP12722803W
...
14
Closer WPL-W10918118
...
15
Clip, Bushing WPL-12996601
...
16
Closer WPL-W10918120
...
17
Screw WPL-WP67006908

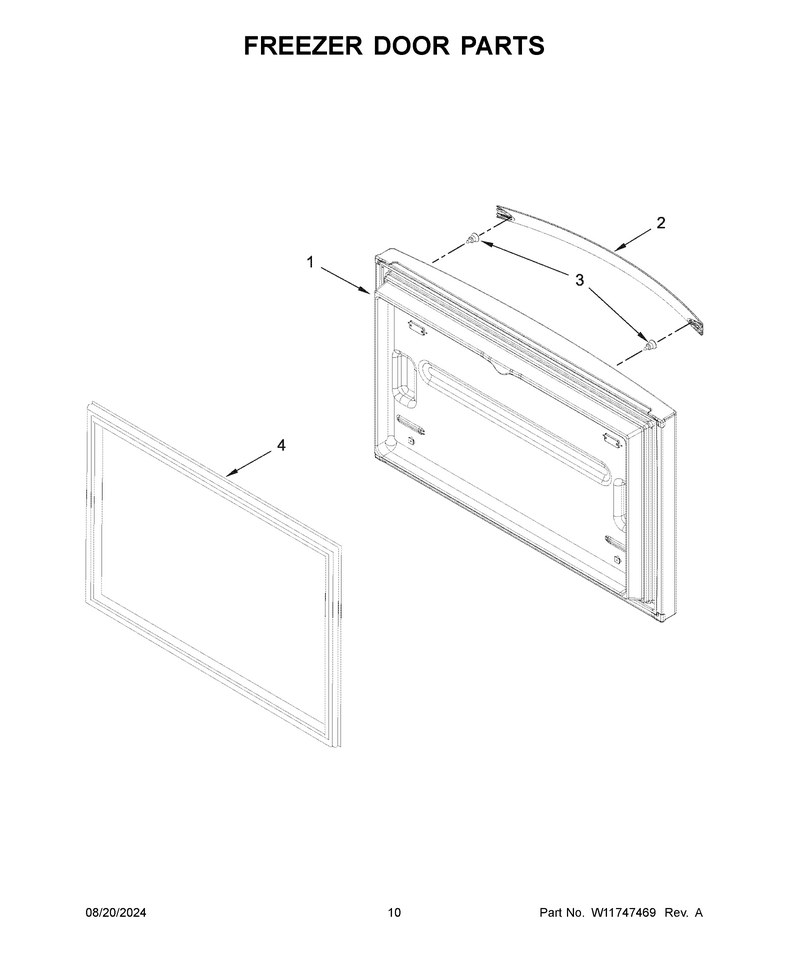

06 - Freezer Door Parts

...
...
1
Dor-Fip Wh WPL-12977879WQ
...
2
Handle WPL-W11127178
...
3
Screw WPL-W11449276
...
4
Gasket, Door (White) WPL-W10443319

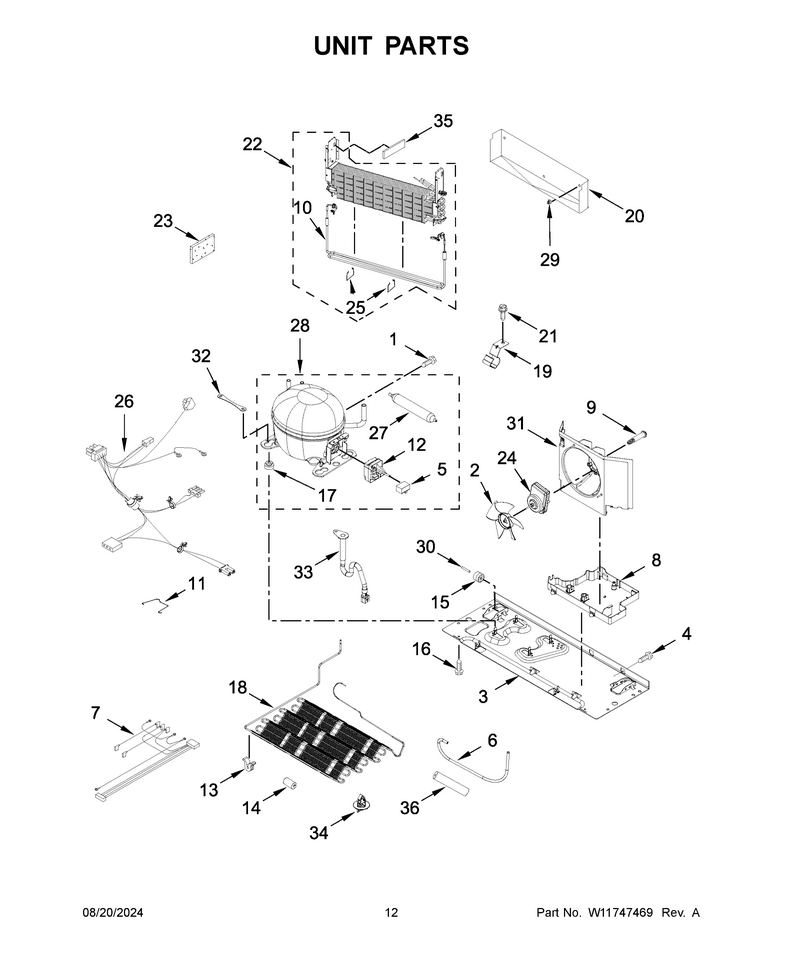

07 - Unit Parts

...
...
NI
Refrigerant Charge 51 Grams (R600a) WPL---
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727651
...
4
Screw (3) WPL-67006425
...
5
Capacitor WPL-WPW10350564
...
6
Tube WPL-W11689475
...
7
Harns-Wire WPL-W11708428
...
8
Pan-Drip WPL-WPW10655368
...
9
Screw WPL-W10829281
...
10
Heater WPL-W11547652
...
11
Clip WPL-W11689467
...
12
Start-Dev WPL-W11524472
...
13
Grommet WPL-WPW10137529
...
14
Grommet WPL-W10852725
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-W11733334
...
18A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
18B
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
19
Clip, Drier WPL-W10281329
...
20
Tray-Drip WPL-W11547653
...
21
Screw WPL-WP33001882
...
22
Evap Repar WPL-W11598433
...
22A
8/2 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504423
...
22B
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
23
Insulation WPL-W11553819
...
24
Motor-Cond WPL-W11613295
...
25
Clip, Heater WPL-W11380964
...
26
Harns-Wire WPL-W11752088
...
27
Drier-Tube WPL-W11109499
...
27A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
27B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
28
Compressor WPL-W11686820
...
28A
8.5/6 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504416
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
6 Nk Ms 00 (Charging Tube To Compressor) WPL-W11506621
...
28D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Strap, Compressor WPL-W10236396
...
33
Tube-Drain WPL-W10619951
...
34
Clip, Condenser WPL-W10815863
...
35
Gasket WPL-W11451451
...
36
Sleeve WPL-W11751592

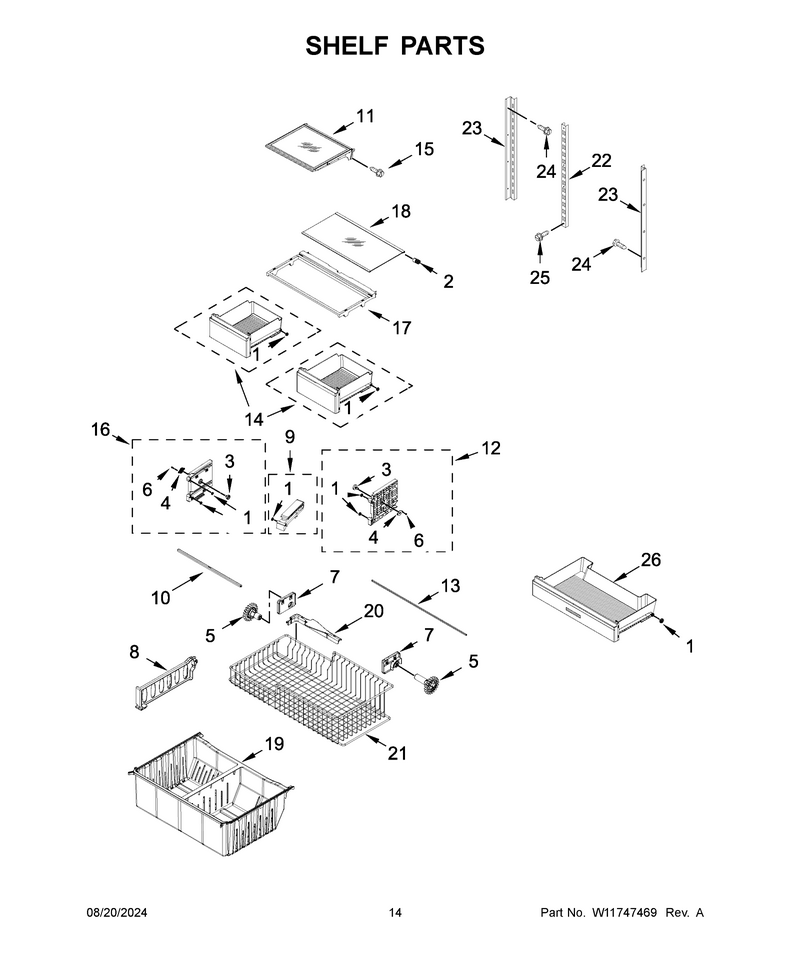

08 - Shelf Parts

...
...
1
Roller WPL-W11748380
...
2
Support WPL-W11748383
...
3
Knob, Side Support WPL-W10840922
...
4
Flange, Side Support WPL-W10840918
...
5
Gear WPL-WPW10474716
...
5A
Gear WPL-WPW10474715
...
6
Screw WPL-W10847999
...
7
Mount, Gear (Left Hand) WPL-W10348259
...
7A
Mount, Gear (Right Hand) WPL-W10348260
...
8
Divider, Basket (Upper) WPL-W10241046
...
9
Support WPL-W11748465
...
10
Brace, Crisper Support WPL-W11700717
...
11
Shelf-Glas WPL-W11750332
...
12
Endcap WPL-W11748463
...
13
Shaft WPL-W11173556
...
14
Pan-Crispr WPL-W11750333
...
15
Screw WPL-WP98165
...
16
Endcap WPL-W11748456
...
17
Frame WPL-W11749295
...
18
Shelf-Glas WPL-W11750334
...
19
Bin-Freezr WPL-W11125514
...
20
Lift, Bail Arm WPL-W10149389
...
21
Basket-Fzr WPL-W11268538
...
22
Ladder, Center WPL-W10273463
...
23
Ladder WPL-WPW10569182
...
24
Screw (3) WPL-67006425
...
25
Screw WPL-W10215666
...
26
Pan-Utilty WPL-W11750335

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
