Whirlpool WRFA60SMHZ03

Model: WRFA60SMHZ03

Save Part Not Listed?
product name

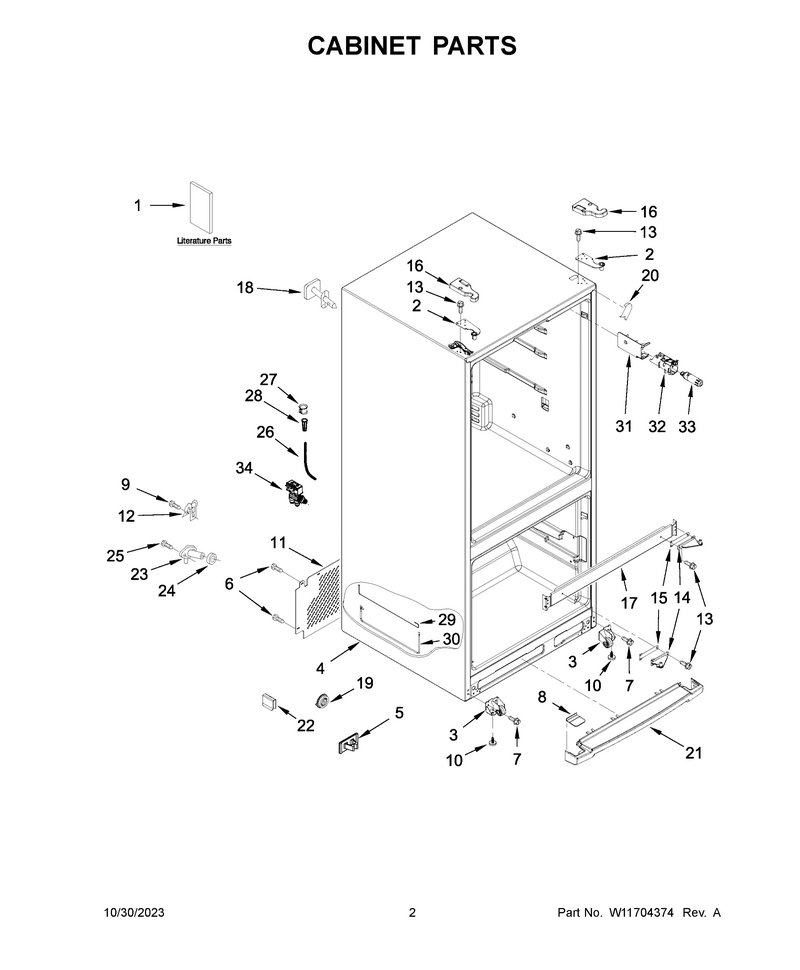

02 - Cabinet Parts

...
...
1
Tech Sheet WPL-W11603263
...
1A
Energy Guide WPL-W11647961
...
1B
Use And Care Guide WPL-W11512269
...
1C
Icemaker Service Sheet WPL-2225623
...
2
Hinge, Top (Left Hand) WPL-W10546298
...
2A
Hinge-Door WPL-W11573371
...
3
Roller-Cab WPL-WPW10359256
...
3A
Roller-Cab WPL-WPW10359255
...
4
Cabinet (Not A Serviceable Part) WPL---
...
5
Clip WPL-W11501419
...
6
Screw WPL-WP488729
...
7
Screw WPL-WP489497
...
8
Endcap-Grl WPL-WPW10353932
...
9
Screw WPL-WP489442
...
10
Leveler WPL-WPW10141622
...
11
Cover-Unit WPL-W11700600
...
12
Clamp, Plastic WPL-W11234470
...
13
Screw WPL-WP489497
...
14
Hinge, Center (Left Hand) WPL-W10770878
...
14A
Hinge-Door WPL-W11417064
...
15
Shim WPL-WPW10450363
...
16
Cover, Hinge (Left Hand (Grey)) WPL-W10465768
...
16A
Cover, Hinge (Right Hand (Grey)) WPL-W10465767
...
17
Rail, Center (Not Serviced) WPL---
...
18
Fitting, Water Tube (Not Serviced) WPL---
...
19
Drum, Toe Grille WPL-W10331226
...
20
Filler, Wrapper (Grey) WPL-W11219642
...
21
Grille WPL-WPW10353935
...
22
Pin-Hitch WPL-WP2174706
...
23
Fitting WPL-W11292468
...
24
Gasket WPL-WP1106508
...
25
Screw WPL-WP489478
...
26
Tube-Water WPL-WPW10496649
...
27
Clamp WPL-W10861184
...
28
Insert, Tube WPL-4387491
...
29
Tube, Filter Inlet WPL-W10449880
...
30
Tube-Water WPL-WPW10449611
...
31
Cover-Filt WPL-WPW10306392
...
32
Housing, Water Filter WPL-W10817400
...
33
Filter WPL-EDR1RXD1
...
34
Valve-Inlt WPL-WPW10279909

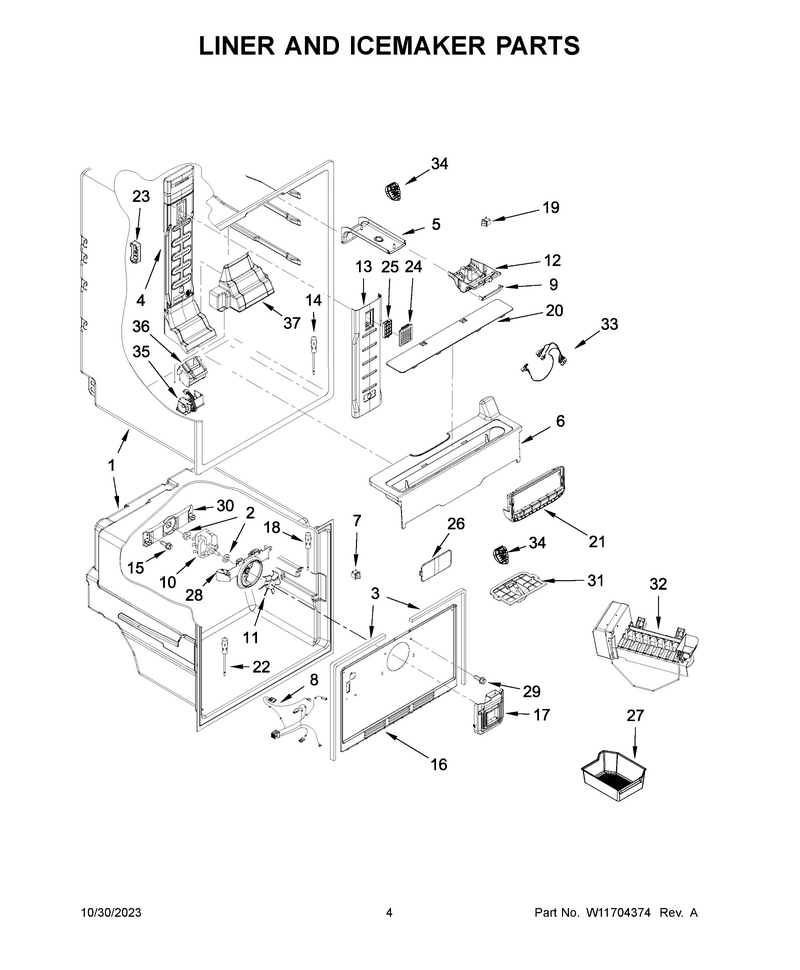

03 - Liner And Icemaker Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Grommet WPL-WP2264462
...
3
Gasket WPL-W10849448
...
4
Assembly, Multiflow WPL-W11508229
...
5
Housing, Light WPL-W11516524
...
6
Container, Water Reservoir WPL-W10798439
...
7
Switch WPL-W11384469
...
8
Harns-Wire WPL-W11609466
...
9
Cover, Control Housing WPL-W10360550
...
10
Motor-Evap WPL-WPW10464673
...
11
Blade-Fan WPL-WP2163777
...
12
Housing WPL-WPW10435577
...
13
Cover WPL-WPW10356895
...
14
Thermistor WPL-W11724692
...
15
Screw WPL-WP488163
...
16
Cover, Evaporator WPL-W10300900
...
17
Air-Tower WPL-W11227949
...
18
Thermistor WPL-WPW10384183
...
19
Switch WPL-W11396033
...
20
Cover, Water Reservoir WPL-W10413160
...
21
Cntrl-Elec WPL-W11655737
...
22
Thermistor WPL-W11724692
...
23
Cover WPL-WPW10425252
...
24
Grille WPL-WPW10330850
...
25
Antibacterial Filter WPL-W10311524
...
26
Cup, Screw WPL-W10336009
...
27
Pan-Ice WPL-W11628660
...
28
Orifice WPL-W10850162
...
29
Screw WPL-WP489478
...
30
Bracket, Evaporator Fan Rear WPL-2254454
...
31
Housing, Light WPL-W11516521
...
32
Icemaker WPL-W11592795
...
33
Harns-Wire WPL-W11618501
...
34
Module WPL-W11602886
...
35
Damper WPL-W11087463
...
36
Cover WPL-W11133099
...
37
Housing WPL-WPW10314204

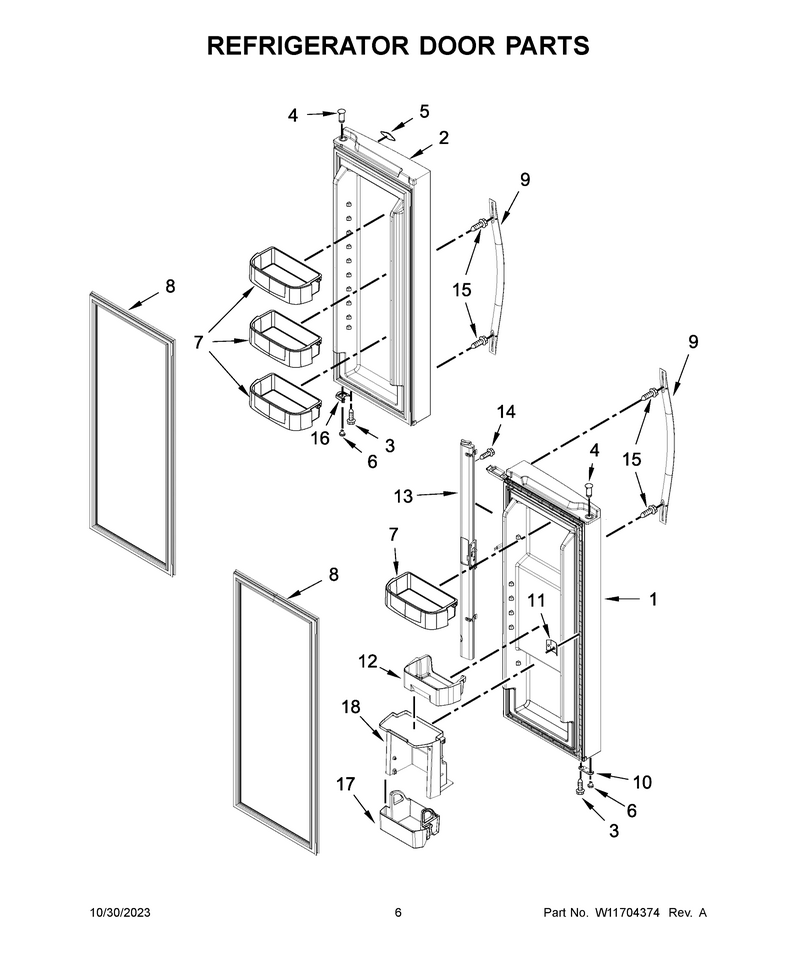

04 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-LW10858415
...
2
Dor-Fip WPL-LW10858417
...
3
Screw WPL-WP681249
...
4
Thimble WPL-W11544568
...
5
Nameplate WPL-W11178521
...
6
Cam-Door WPL-WPW10470155
...
7
Bin-Cntlvr WPL-WPW10308869
...
8
Gasket-Fip WPL-WPW10460580
...
9
Handle WPL-W11416489
...
10
Bracket WPL-W11745278
...
11
Plate WPL-WP939101
...
12
Bin-Cntlvr WPL-WPW10326335
...
13
Rail-Mulln WPL-WPW10624450
...
14
Screw WPL-W10854958
...
15
Screw WPL-WPW10661886
...
16
Bracket WPL-WPW10397055
...
17
Bin-Cntlvr WPL-W11106787
...
18
Container WPL-WPW10317224

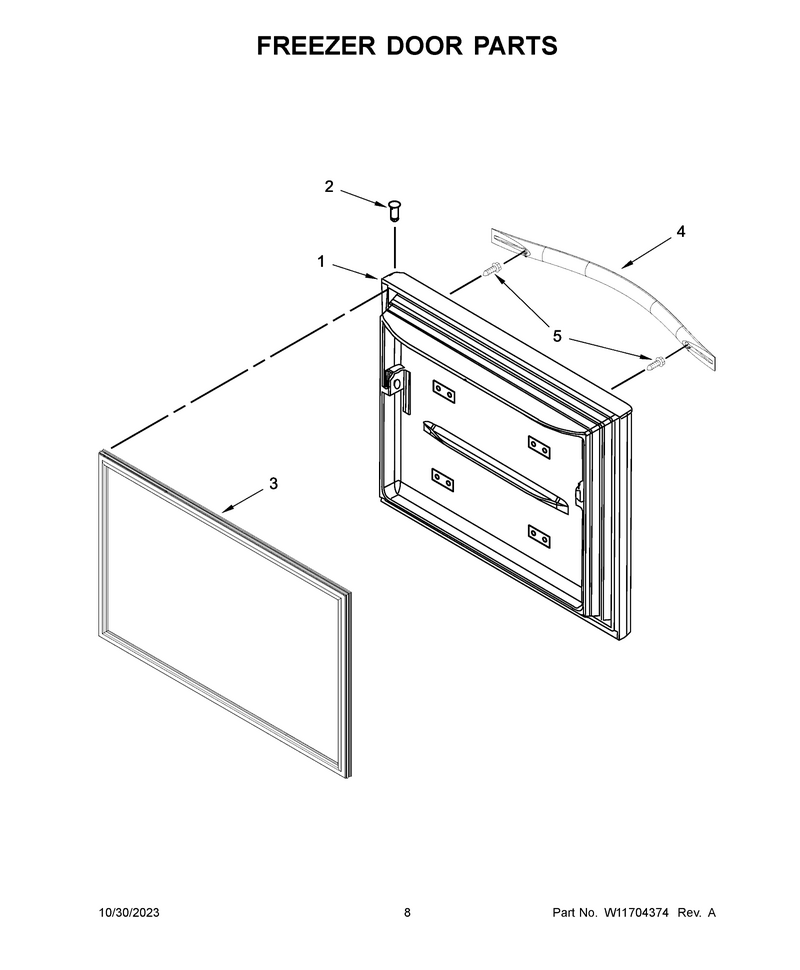

05 - Freezer Door Parts

...
...
1
Dor-Fip WPL-LW10858419
...
2
Thimble WPL-W11544568
...
3
Gasket-Fip WPL-W10836785
...
4
Handle WPL-W11221930
...
5
Screw WPL-WPW10661886

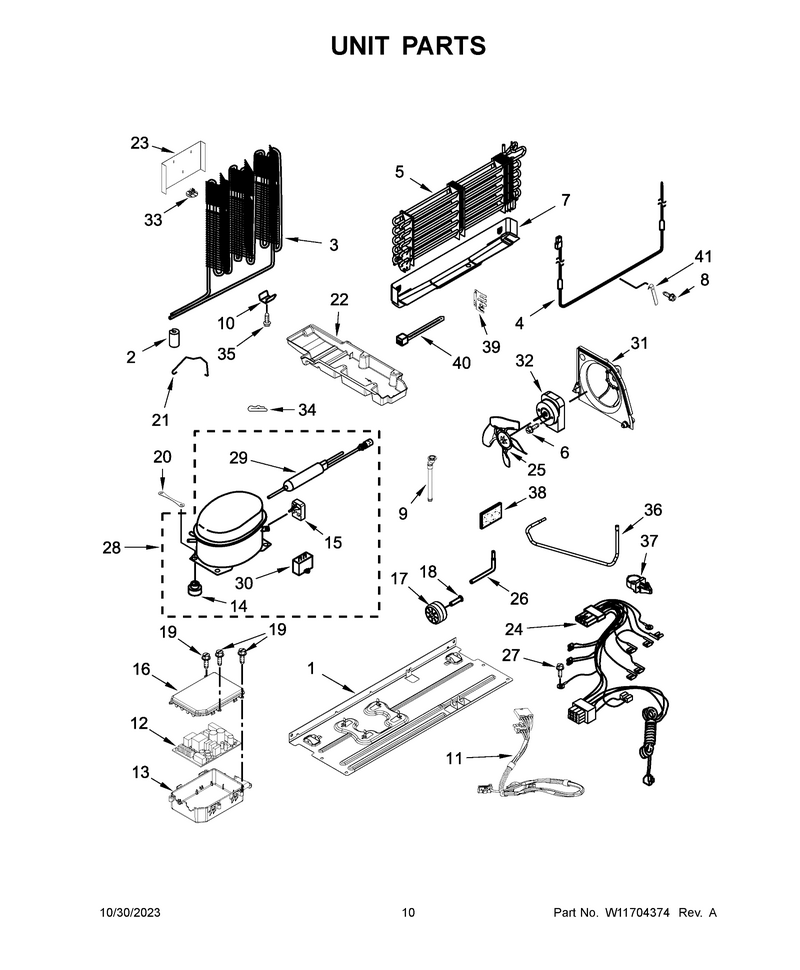

06 - Unit Parts

...
...
NI
Refrigerant Charge 43 Grams (R600a) WPL---
...
1
Baseplate WPL-W10300116
...
2
Grommet WPL-W10852725
...
3
Condenser WPL-WPW10342567
...
3A
7/4.5 Nr Ms 00 (High Side To Condenser) WPL-W11578570
...
3B
4 Nk Ms 00 (Suction Line To Condenser) WPL-W11506624
...
4
Heater WPL-W11562215
...
5
Evaporator WPL-W11611030
...
5A
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
5B
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
6
Screw WPL-W11501418
...
7
Shield WPL-W11562216
...
8
Screw WPL-WP489478
...
9
Tube-Drain WPL-W11284510
...
10
Clip WPL-W10683556
...
11
Harns-Wire WPL-W11632351
...
12
Cntrl-Elec WPL-W11035836
...
13
Box, Control WPL-2323186
...
14
Grommet WPL-WPW10169124
...
15
Start-Dev WPL-W11561262
...
16
Cover, Electronic Control WPL-W10313215
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Screw WPL-WPW10171469
...
20
Strap, Compressor WPL-W10236396
...
21
Clip WPL-W11658620
...
22
Pan-Drip WPL-W10890667
...
23
Cover, Condenser Bottom WPL-W10349514
...
24
Assembly, Unit Wire Harness WPL-W11432778
...
25
Blade-Fan WPL-W11193484
...
26
Tube, Process WPL-W11565815
...
27
Screw WPL-WP489128
...
28
Compressor WPL-W11740253
...
28A
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
28B
7/4.5 Nr Ms 00 (High Side To Condenser) WPL-W11578570
...
28C
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
29
Drier-Tube WPL-W11109499
...
29A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
29B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
30
Capacitor WPL-WPW10662129
...
31
Baffle-Air WPL-W11605794
...
32
Motor-Cond WPL-W11563806
...
33
Clip, Bottom Cover WPL-W10815861
...
34
Clip WPL-W11501419
...
35
Screw WPL-W11544659
...
36
Tube, Suction WPL-W11567980
...
37
Clip, Harness WPL-2219077
...
38
Insulation WPL-W11553819
...
39
Bracket, Evaporator WPL-W11466555
...
40
Tie-Wire WPL-WPW10339879
...
41
Heat-Probe WPL-W11611126

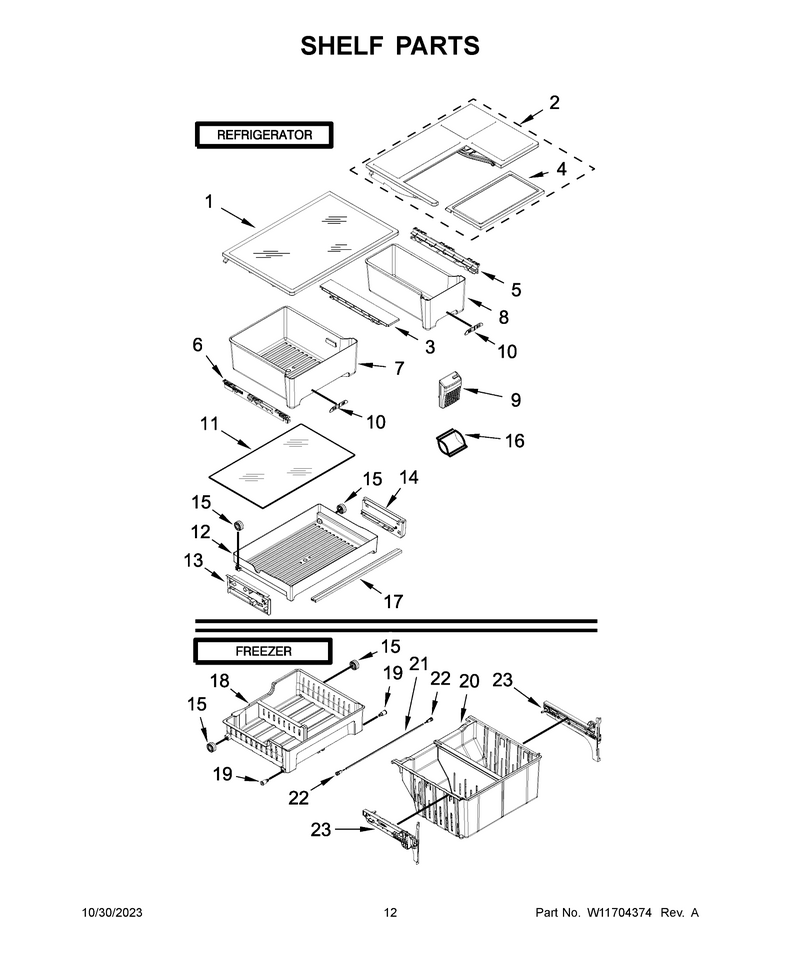

07 - Shelf Parts

...
...
1
Shelf-Glas WPL-WPW10486290
...
2
Shelf-Cant WPL-WPW10502933
...
3
Track WPL-WPW10468557
...
4
Shelf-Glas WPL-WPW10313893
...
5
Track WPL-WPW10468556
...
6
Track WPL-WPW10468555
...
7
Pan-Crispr WPL-WPW10370327
...
8
Pan-Crispr WPL-WPW10317184
...
9
Housing WPL-W11605789
...
10
Slide WPL-W11590562
...
11
Shelf-Glas WPL-WPW10513681
...
12
Pan-Meat WPL-WPW10397907
...
13
Rail WPL-W11581314
...
14
Rail WPL-W11581257
...
15
Roller WPL-W11164152
...
16
Pro Prserv WPL-W10346771A
...
17
Support WPL-W11241829
...
18
Basket-Fzr WPL-WPW10555437
...
19
Axle WPL-W11175807
...
20
Basket-Fzr WPL-WPW10317289
...
21
Shaft, Rack WPL-W10802342
...
22
Collar WPL-WPW10277361
...
23
Slide WPL-WPW10397636
...
23A
Slide WPL-WPW10397635

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
