Whirlpool WRF560SEHZ05

Model: WRF560SEHZ05

Save Part Not Listed?
product name

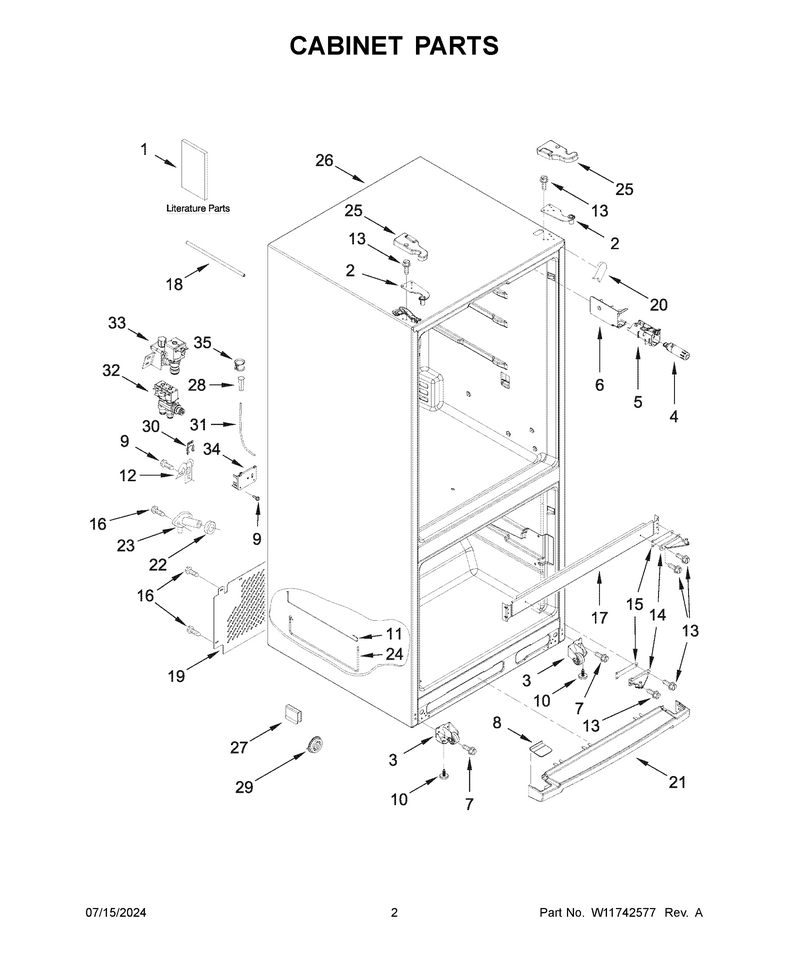

02 - Cabinet Parts

...
...
1
Energy Guide WPL-W11647961
...
1A
Use And Care Guide WPL-W11512269
...
2
Hinge, Top (Left Hand) WPL-W10546298
...
2A
Hinge-Door WPL-W11573371
...
3
Roller-Cab WPL-WPW10359256
...
3A
Roller-Cab WPL-WPW10359255
...
4
Filter WPL-EDR1RXD1
...
5
Housing WPL-W10844267
...
6
Cover-Filt WPL-WPW10306392
...
7
Screw WPL-WP489497
...
8
Endcap-Grl WPL-WPW10353932
...
9
Screw WPL-WP489442
...
10
Leveler WPL-WPW10141622
...
11
Tube-Water WPL-W11195038
...
12
Clamp, Plastic WPL-W11234470
...
13
Screw WPL-WP489497
...
14
Hinge, Center (Left Hand) WPL-W10770878
...
14A
Hinge-Door WPL-W11417064
...
15
Shim WPL-WPW10450363
...
16
Screw WPL-WP488729
...
17
Rail, Center (Not Serviced) WPL---
...
18
Tube-Water WPL-W11615170
...
19
Cover-Unit WPL-W11700600
...
20
Filler, Wrapper (Grey) WPL-W11219642
...
21
Grille WPL-WPW10353935
...
22
Gasket WPL-WP1106508
...
23
Fitting WPL-W11292468
...
24
Reservoir WPL-W10801011
...
25
Cover, Hinge (Left Hand (Grey)) WPL-W10465768
...
25A
Cover, Hinge (Right Hand (Grey)) WPL-W10465767
...
26
Cabinet (Not A Serviceable Part) WPL---
...
27
Pin-Hitch WPL-WP2174706
...
28
Insert, Tube WPL-4387491
...
29
Drum, Toe Grille WPL-W10331226
...
30
Ring WPL-W11676611
...
30A
Ring WPL-W11678575
...
31
Tube-Water WPL-W11680400
...
32
Valve-Inlt WPL-WPW10279866
...
33
Valve-Inlt WPL-WPW10238100
...
34
Bracket WPL-W10847867
...
35
Clamp WPL-W10861184

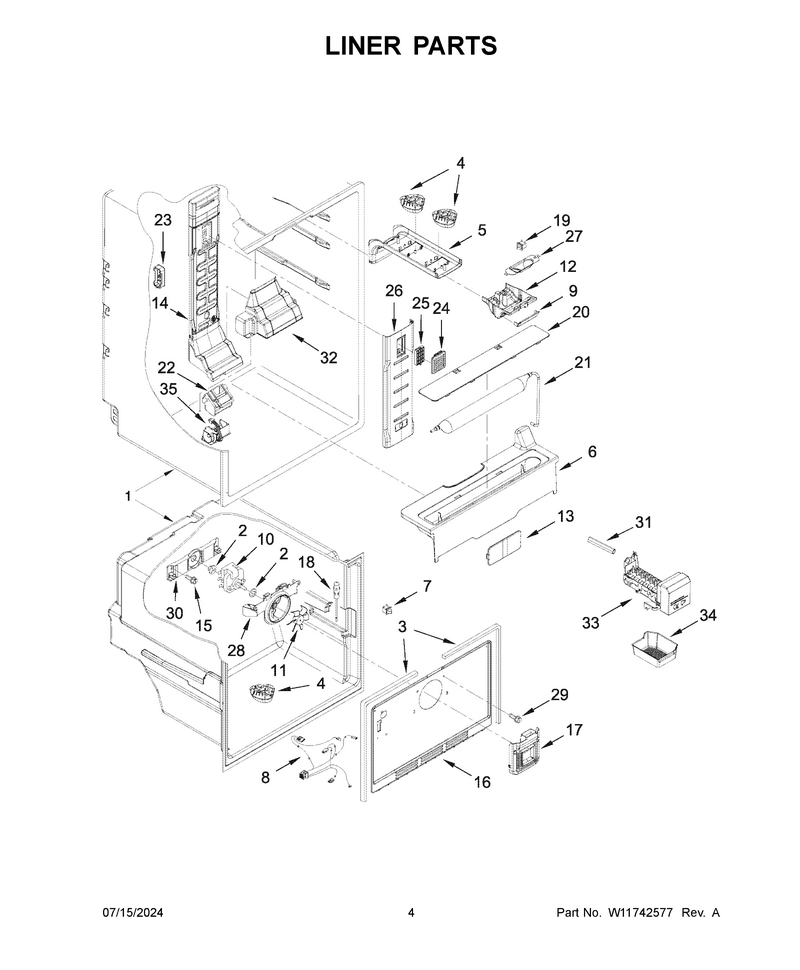

03 - Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Grommet WPL-WP2264462
...
3
Gasket WPL-W10849448
...
4
Module WPL-W11602886
...
5
Housing, Light WPL-W11516524
...
6
Container, Water Reservoir WPL-W10798439
...
7
Switch WPL-W11396033
...
8
Harns-Wire WPL-W11609466
...
9
Cover, Control Housing WPL-W10459385
...
10
Motor-Evap WPL-WPW10464673
...
11
Blade-Fan WPL-WP2163777
...
12
Housing WPL-WPW10453580
...
13
Cup, Screw WPL-W10336009
...
14
Assembly, Multiflow WPL-W11508229
...
15
Screw WPL-WP488163
...
16
Cover, Evaporator WPL-W10300900
...
17
Air-Tower WPL-W11227949
...
18
Thermistor WPL-WPW10384183
...
19
Switch WPL-W11384469
...
20
Cover, Water Reservoir WPL-W10413160
...
21
Reservoir WPL-W10801011
...
22
Cover WPL-W11133099
...
23
Cover WPL-WPW10425252
...
24
Grille WPL-WPW10330850
...
25
Antibacterial Filter WPL-W10311524
...
26
Cover WPL-WPW10356895
...
27
Shield WPL-W11562216
...
28
Orifice WPL-W10850162
...
29
Screw WPL-WP489478
...
30
Bracket, Evaporator Fan Rear WPL-2254454
...
31
Tube-Water WPL-WPW10496649
...
32
Housing WPL-WPW10314204
...
33
Icemaker WPL-W11592795
...
34
Pan-Ice WPL-W11628660
...
35
Damper WPL-W11087463

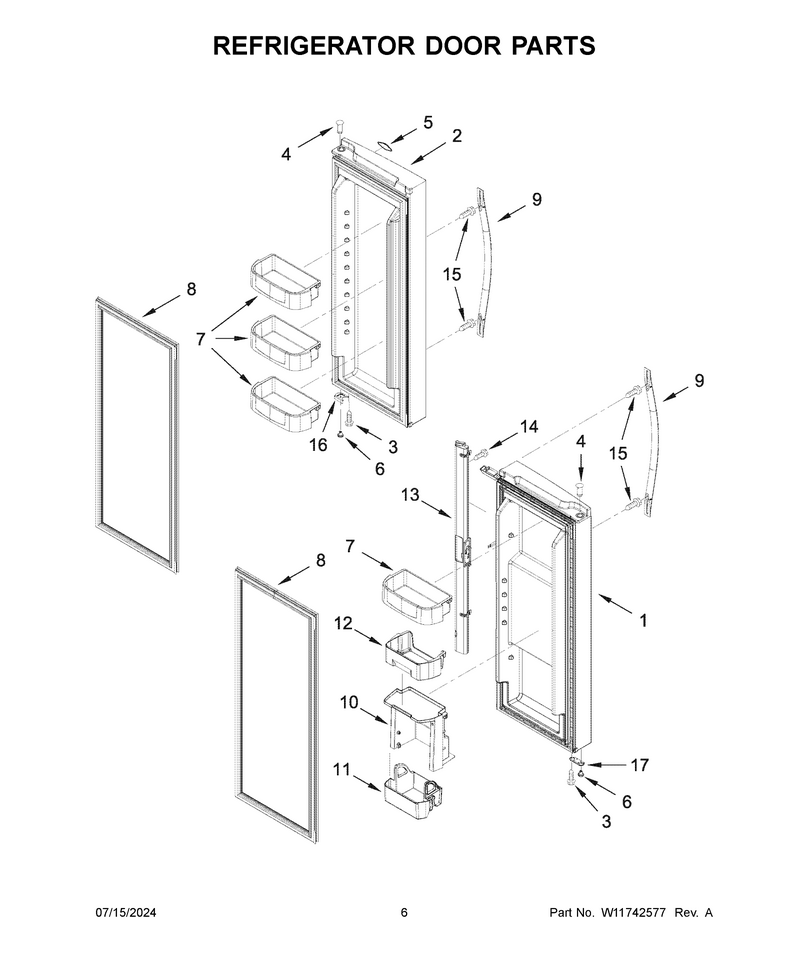

04 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W11623349
...
2
Dor-Fip WPL-LW10858417
...
3
Screw WPL-WP681249
...
4
Thimble WPL-W11544568
...
5
Nameplate WPL-W11178521
...
6
Cam-Door WPL-WPW10470155
...
7
Bin-Cntlvr WPL-WPW10308869
...
8
Gasket-Fip WPL-WPW10460580
...
9
Handle WPL-W11123099
...
10
Container WPL-WPW10317224
...
11
Bin-Cntlvr WPL-W11106787
...
12
Bin-Cntlvr WPL-WPW10326335
...
13
Rail-Mulln WPL-WPW10624450
...
14
Screw WPL-W10854958
...
15
Screw WPL-WPW10661886
...
16
Bracket WPL-WPW10397055
...
17
Bracket WPL-W11745278

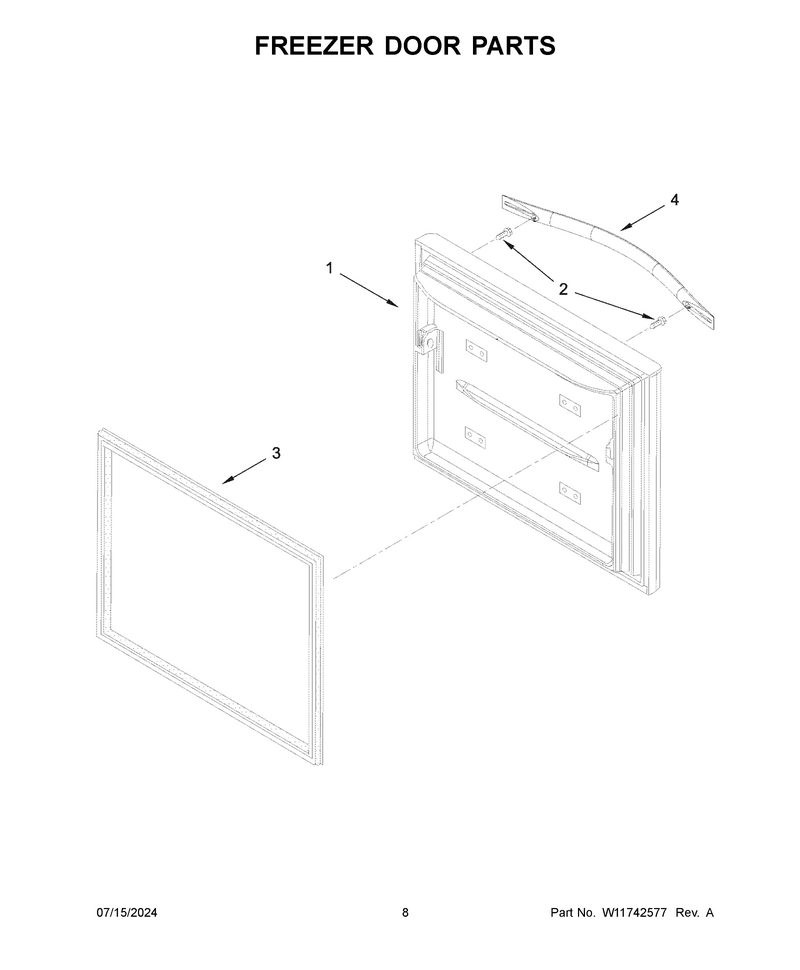

05 - Freezer Door Parts

...
...
1
Dor-Fip WPL-LW10858419
...
2
Screw WPL-WPW10661886
...
3
Gasket-Fip WPL-W10836785
...
4
Handle WPL-W11199711

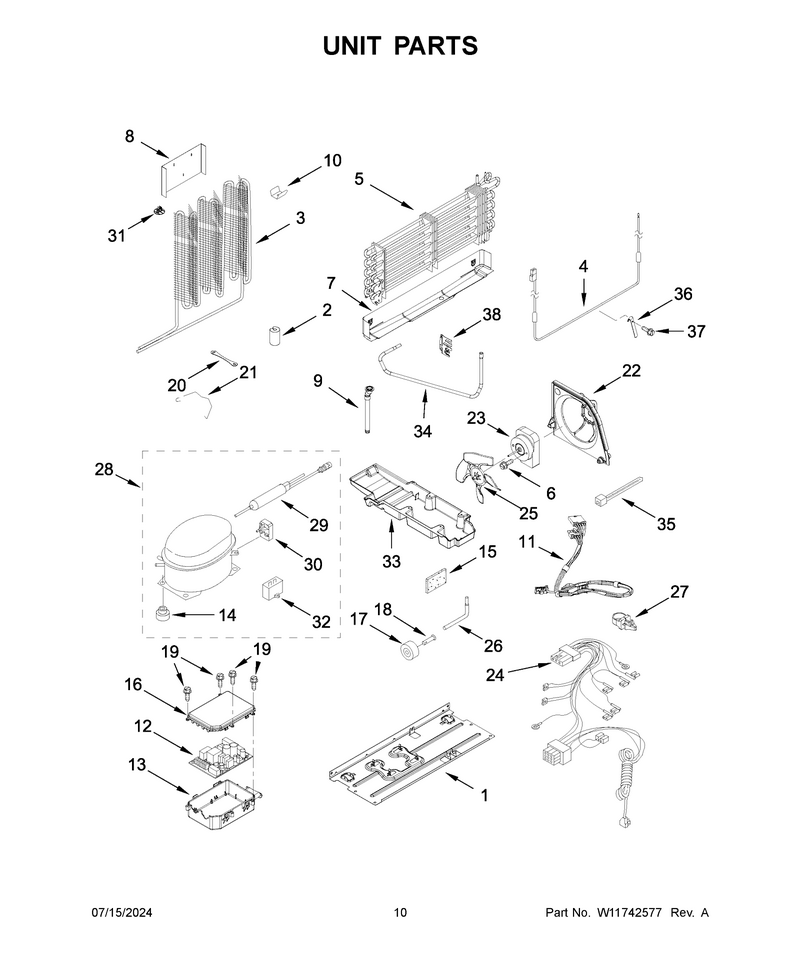

06 - Unit Parts

...
...
NI
Refrigerant Charge 43 Grams (R600a) WPL---
...
1
Baseplate WPL-W10300116
...
2
Grommet WPL-W10852725
...
3
Condenser WPL-WPW10342567
...
3A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
3B
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
4
Heater WPL-W11562215
...
5
Evaporator WPL-W11625643
...
5A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
5B
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
6
Screw WPL-W11501418
...
7
Shield WPL-W11562216
...
8
Cover, Condenser Bottom WPL-W10349514
...
9
Tube-Drain WPL-W11284510
...
10
Clip WPL-W10683556
...
11
Harns-Wire WPL-W11632351
...
12
Cntrl-Elec WPL-W11035836
...
13
Box, Control WPL-2323186
...
14
Grommet WPL-W11678963
...
15
Insulation WPL-W11553819
...
16
Cover, Electronic Control WPL-W10313215
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Screw WPL-WPW10171469
...
20
Strap, Compressor WPL-W10236396
...
21
Clip WPL-W11577799
...
22
Baffle-Air WPL-W11605794
...
23
Motor-Cond WPL-W11563806
...
24
Harns-Wire WPL-W11700601
...
25
Blade-Fan WPL-W11193484
...
26
Tube WPL-W11661102
...
27
Clip, Harness WPL-2219077
...
28
Compressor WPL-W11580057
...
28A
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
28B
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
28C
(8 Nav) WPL-W11506638
...
29
Drier-Tube WPL-W11109499
...
29A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
29B
5/1.8 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504448
...
30
Start-Dev WPL-W11547180
...
31
Clip, Bottom Cover WPL-W10815861
...
32
Capacitor WPL-WPW10662129
...
33
Pan-Drip WPL-W10890667
...
34
Tube WPL-W11741026
...
35
Tie-Wire WPL-WPW10339879
...
36
Heat-Probe WPL-W11611126
...
37
Screw WPL-WP489478
...
38
Bracket, Evaporator WPL-W11466555

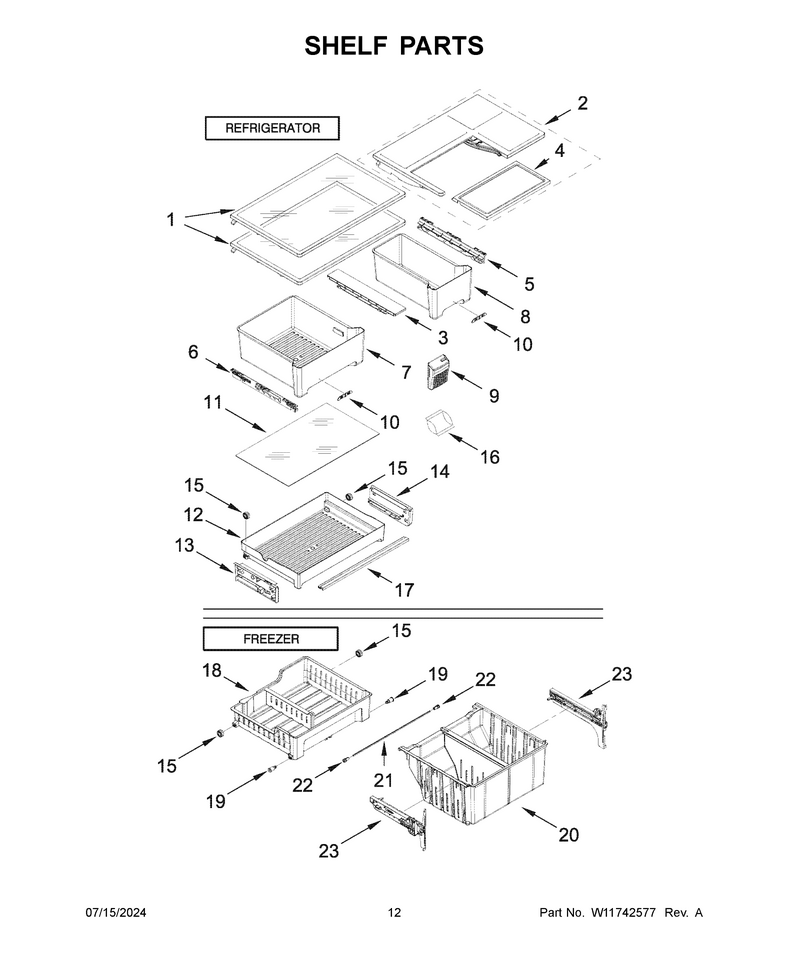

07 - Shelf Parts

...
...
1
Shelf-Glas WPL-WPW10486290
...
2
Shelf-Cant WPL-WPW10502933
...
3
Track WPL-WPW10468557
...
4
Shelf-Glas WPL-WPW10313893
...
5
Track WPL-WPW10468556
...
6
Track WPL-WPW10468555
...
7
Pan-Crispr WPL-WPW10370327
...
8
Pan-Crispr WPL-WPW10317184
...
9
Housing WPL-W11605789
...
10
Slide WPL-W11590562
...
11
Shelf-Glas WPL-WPW10513681
...
12
Pan-Meat WPL-WPW10397907
...
13
Rail WPL-W11581314
...
14
Rail WPL-W11581257
...
15
Roller WPL-W11164152
...
16
Pro Prserv WPL-W10346771A
...
17
Support WPL-W11241829
...
18
Basket-Fzr WPL-WPW10555437
...
19
Axle WPL-W11175807
...
20
Basket-Fzr WPL-WPW10317289
...
21
Shaft, Rack WPL-W10802342
...
22
Collar WPL-WPW10277361
...
23
Slide WPL-WPW10397636
...
23A
Slide WPL-WPW10397635

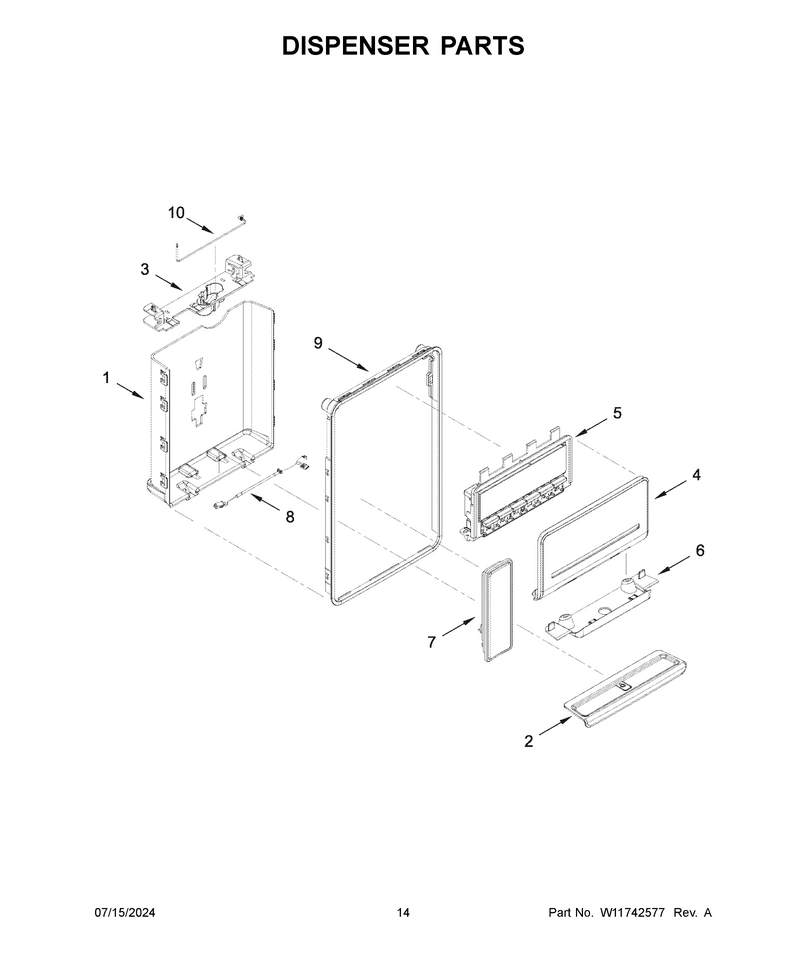

08 - Dispenser Parts

...
...
1
Housing, Dispenser (Not Serviced) WPL---
...
2
Tray-Drip WPL-WPW10356019
...
3
Separator WPL-W11616802
...
4
Fascia, Sparsh (Silver Mirror) WPL-W10435575
...
5
Cntrl-Elec WPL-W11655738
...
6
Cover, Separator (Chromium Frost) WPL-W10356029
...
7
Pad WPL-W11715936
...
8
Assembly, Dispenser Wire WPL-W10735841
...
9
Ring, Trim WPL-W10356017
...
10
Tube-Water WPL-W11615170

...
...
NI
Sealer WPL-WP503695
