Whirlpool WRB322DMBM00

Model: WRB322DMBM00

Save Part Not Listed?
product name

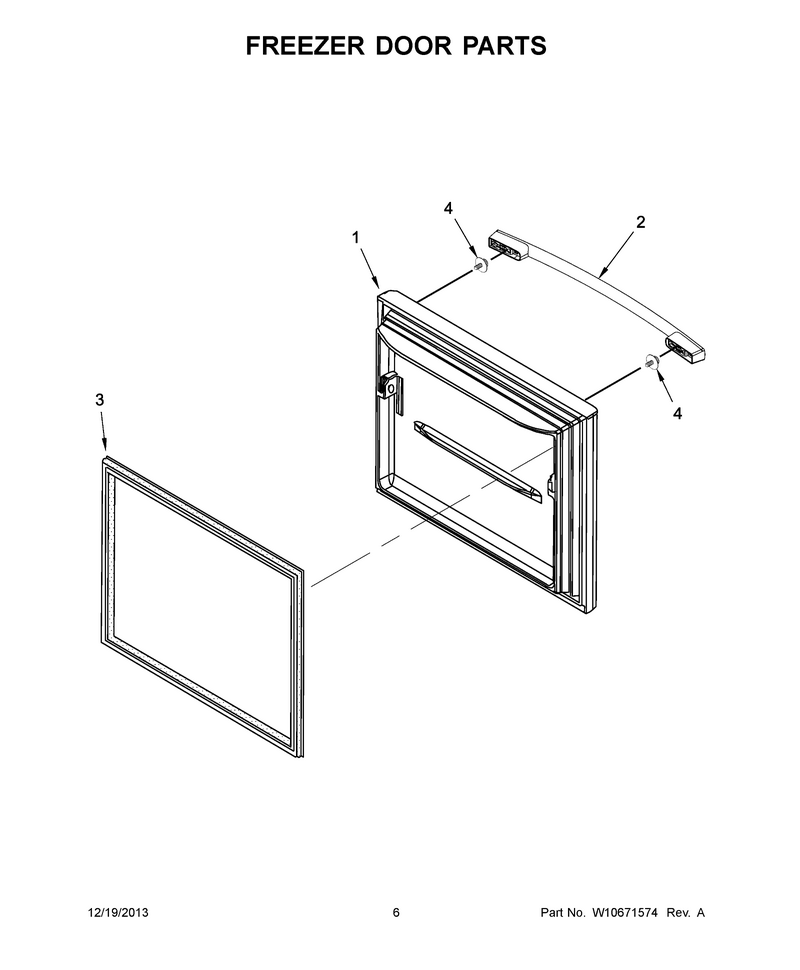

04 - Freezer Door Parts

...
...
1
Dor-Fip Ss WPL-13109217SQ
...
2
Handle WPL-W10830136
...
3
Gasket-Fip WPL-WPW10436250
...
4
Screw WPL-WPW10661886

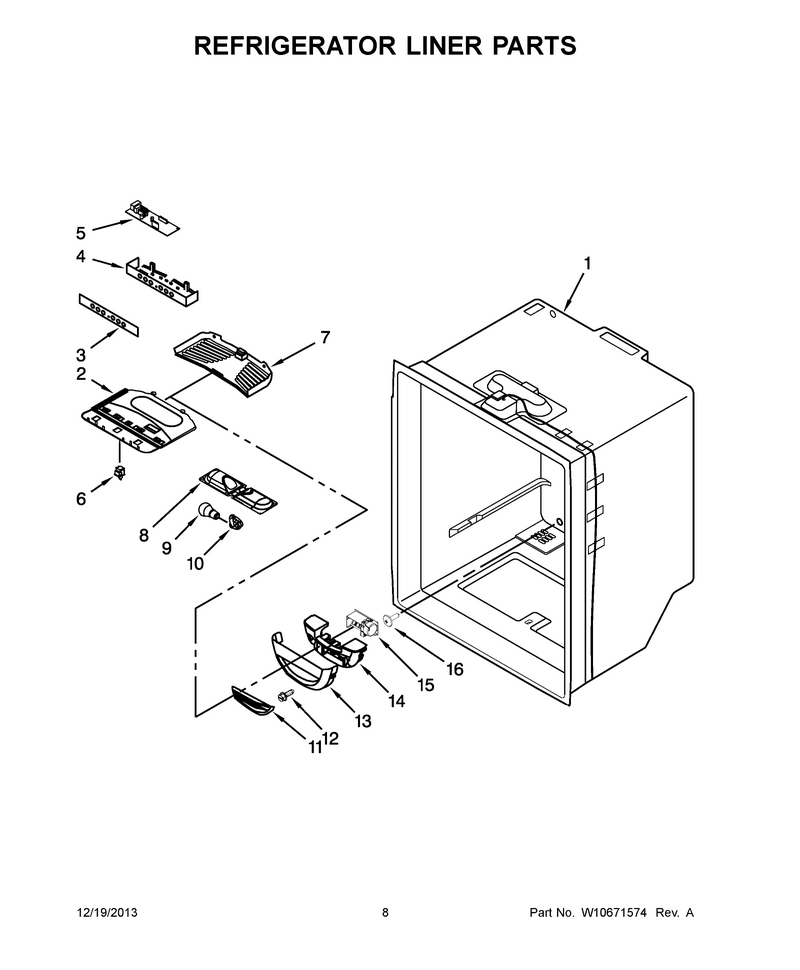

05 - Refrigerator Liner Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Liner (Not A Serviceable Part) WPL-N/P
...
2
Module, Light WPL-W10464757
...
3
Overlay WPL-W10593588
...
4
Housing WPL-WPW10464769
...
5
Cntrl-Elec WPL-WPW10503278
...
6
Switch WPL-W11384469
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-W10443023
...
9
Bulb-Light WPL-W11338583
...
10
Socket WPL-W11447232
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-WP13012402
...
15
Control WPL-WPW10594330
...
16
Plug, Button (White) WPL-M0310343

...
...
NI
Paint, Bulk (1 Qt. White) WPL-799344

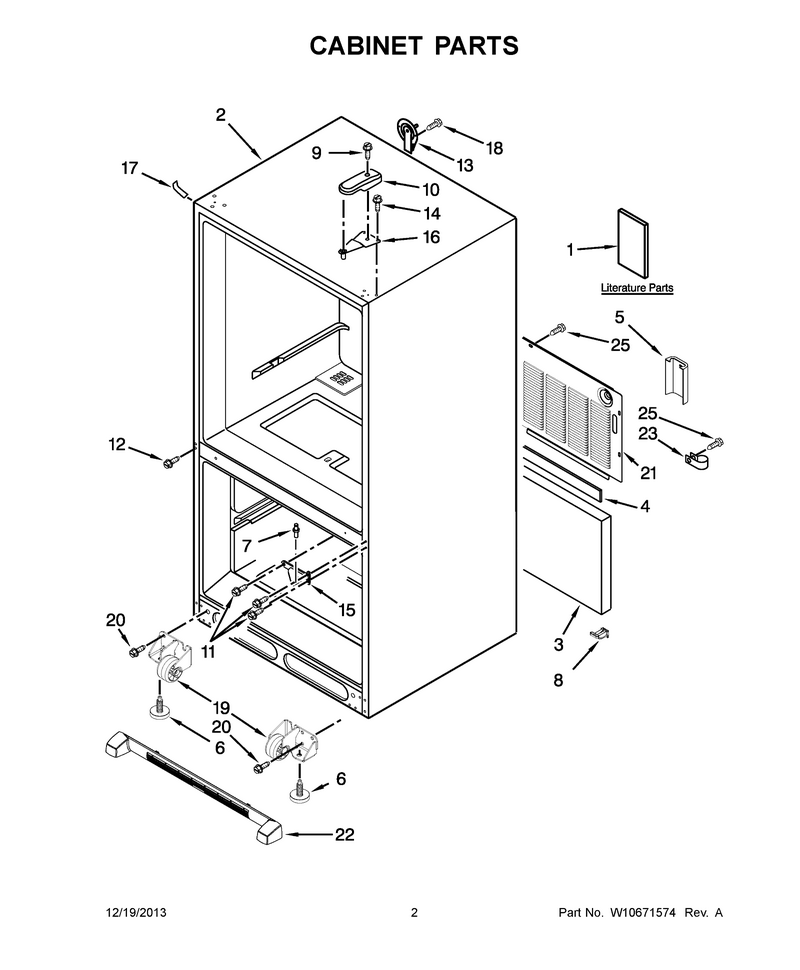

02 - Cabinet Parts

...
...
1
Energy Guide WPL-W10640092
...
2
Cabinet (Not A Servicable Part) WPL-N/P
...
3
Insulation WPL-W11706807
...
4
Gasket WPL-B5759655
...
5
Cover, Valve WPL-W10208592
...
6
Leveler WPL-WPW10141622
...
7
Pin WPL-WP67006642
...
8
Guide, Waterline WPL-W10485986
...
9
Screw WPL-WP8281196
...
10
Cover, Top Hinge (Blk) WPL-67001012
...
11
Screw WPL-WP489349
...
12
Screw WPL-WP98165
...
13
Cover, Water Line WPL-12726003
...
14
Screw WPL-WP489349
...
15
Hinge-Door WPL-WP12607104ED
...
16
Hinge-Door WPL-WP12566606ED
...
17
Filler WPL-WP12587703AP
...
18
Screw WPL-WP98165
...
19
Roller-Cab WPL-WPW10515762
...
20
Screw (8) WPL-67006564
...
21
Cover-Back WPL-WPW10210979
...
22
Grille-Frt WPL-WPW10534162
...
23
Clamp WPL-W11456069
...
25
Screw (3) WPL-67006425

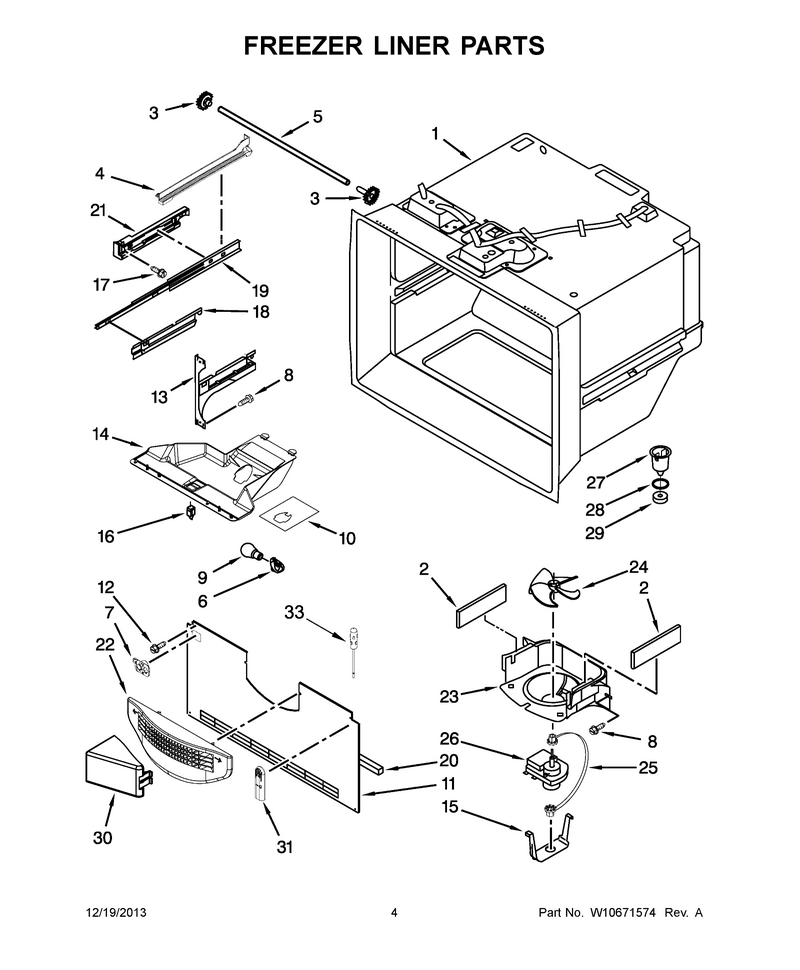

03 - Freezer Liner Parts

...
...
1
Liner (Not A Seviceable Part) WPL-N/P
...
2
Gasket WPL-W10856123
...
3
Gear WPL-12002497
...
4
Rail WPL-W11489993
...
5
Shaft WPL-W11715937
...
6
Socket WPL-W11447232
...
7
Guide, Fill Tube WPL-W11448709
...
8
Screw WPL-WP98165
...
9
Bulb-Light WPL-W11338583
...
10
Shield WPL-W11469652
...
11
Cover, Evaporator WPL-W10308415
...
12
Screw WPL-WP489349
...
13
Bracket WPL-WPW10330993
...
14
Housing WPL-WPW10277025
...
15
Clip, Evaporator Motor WPL-13058002
...
16
Switch WPL-W11396033
...
17
Screw WPL-WP489474
...
18
Bracket WPL-WPW10280608
...
19
Slide WPL-W11658402
...
20
Gasket WPL-W11159742
...
21
Bracket WPL-WPW10284685
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Grommet WPL-W11690160
...
26
Motor-Evap WPL-W11024089
...
27
Funnel, Drain WPL-W10585187
...
28
Seal- O Ri WPL-WPM0500703
...
29
Gasket- Dr WPL-WPB8381501
...
30
Diverter, Air WPL-W10157765
...
31
Cover- Fz WPL-WP67003924
...
33
Thermistor Kit WPL-12002355

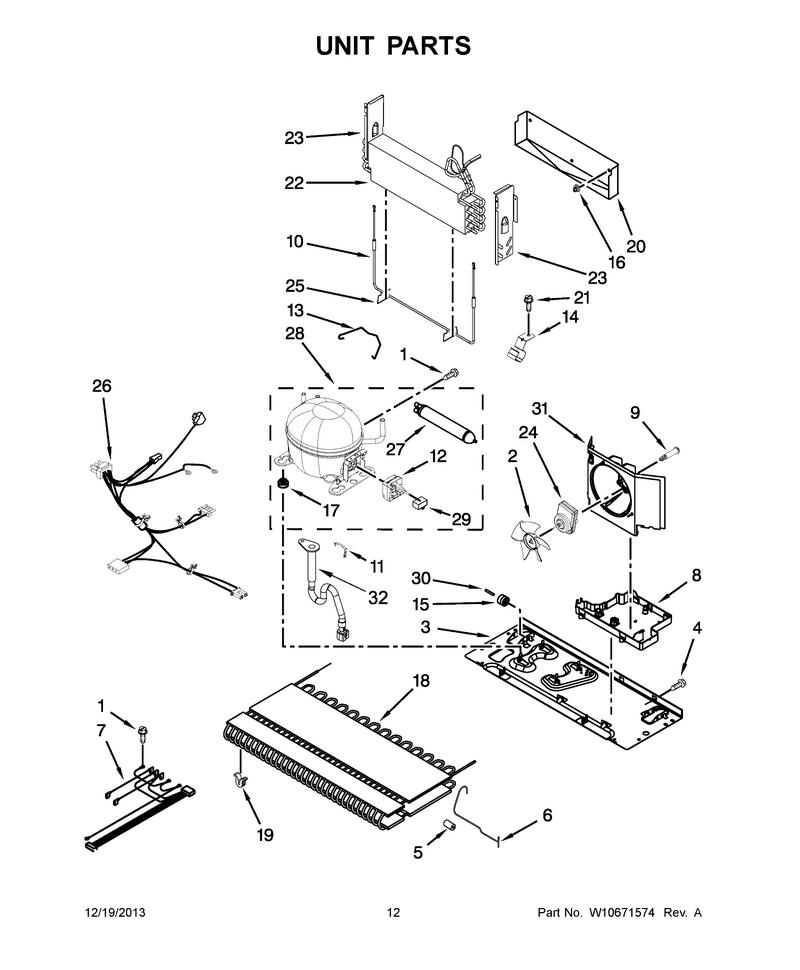

07 - Unit Parts

...
...
NI
Refrigerant Charge (5.0oz. (R-134a)) WPL-N/P
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Basepan WPL-W10480110
...
4
Screw (3) WPL-67006425
...
5
Grommet WPL-W10852725
...
6
Tube WPL-WPW10233570
...
7
Harns-Wire WPL-WPW10290745
...
8
Pan-Drip WPL-WPW10655367
...
9
Screw WPL-W10829281
...
10
Heater WPL-WP12729128
...
11
Clip WPL-W11661170
...
12
Start-Dev WPL-WPW10448874
...
13
Strap, Compressor WPL-W10236396
...
14
Clip, Drier WPL-W10281329
...
15
Roller WPL-WP67005149
...
16
Clip, Evaporator WPL-10623002
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-WPW10346420
...
19
Grommet WPL-WPW10137529
...
20
Tray-Drip WPL-WPW10292802
...
21
Screw WPL-WP33001882
...
22
Evaporator WPL-W11459354
...
23
Dam (Right Hand) WPL-12225702
...
24
Motor-Cond WPL-W11613295
...
25
Clip WPL-W11673433
...
26
Harns-Wire WPL-WPW10679216
...
27
Drier-Uv WPL-WPW10143759
...
28
Compressor WPL-W10233960
...
29
Capacitor WPL-WPW10350564
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Tube-Drain WPL-W10619951

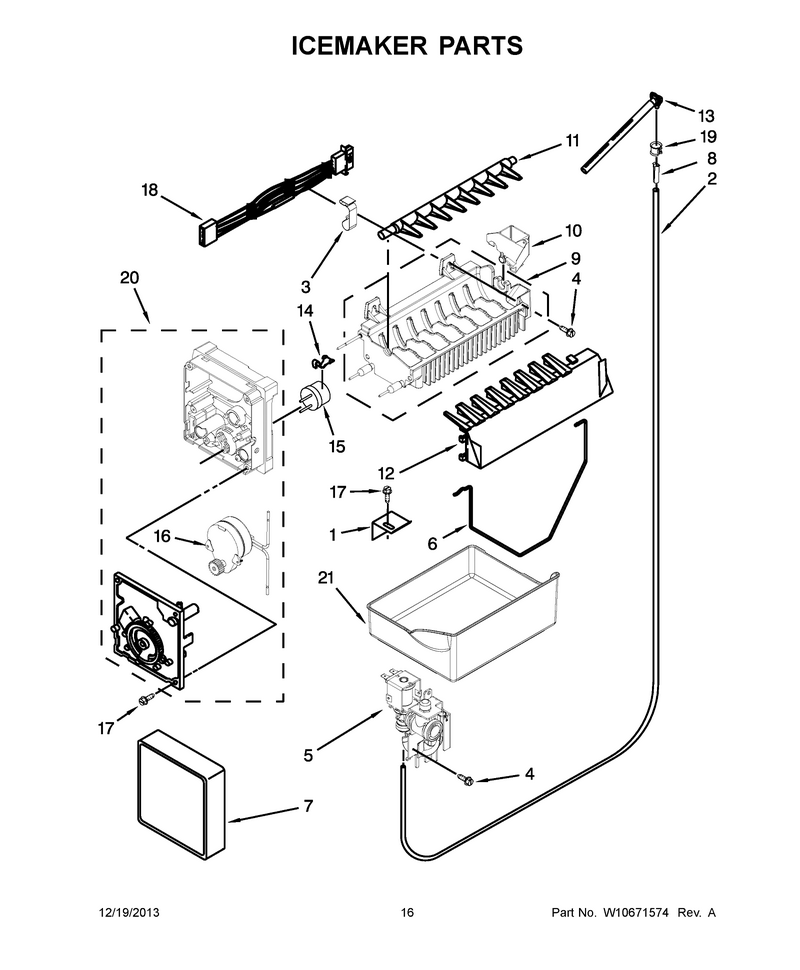

09 - Icemaker Parts

...
...
1
Bracket WPL-WP2256087
...
2
Tube-Water WPL-W11120581
...
3
Clamp, Wire WPL-10526701
...
4
Screw WPL-8533917
...
5
Valve WPL-WPW10498976
...
6
Arm-Shut WPL-W11559683
...
7
Cover, Front WPL-W10377174
...
8
Insert- Pl WPL-WPA3223101
...
9
Mold-Ice WPL-WPW10300025
...
10
Cup, Water Fill WPL-W10410073
...
11
Ejector, Arm WPL-W10318914
...
12
Arm-Stripr WPL-WPW10122563
...
13
Tube-Water WPL-W11176463
...
14
Clip WPL-WP628379
...
15
Bimetl-Def WPL-WP627985
...
16
Motor (Not Available Order Item 20) WPL-N/P
...
17
Screw WPL-WP489464
...
18
Harns-Wire WPL-WPW10458985
...
19
Clip- Spee WPL-WPM0114003
...
20
Motor-Modl WPL-WPW10281342
...
21
Pan-Ice WPL-WPW10171529
...
100
Icemaker WPL-W10884390

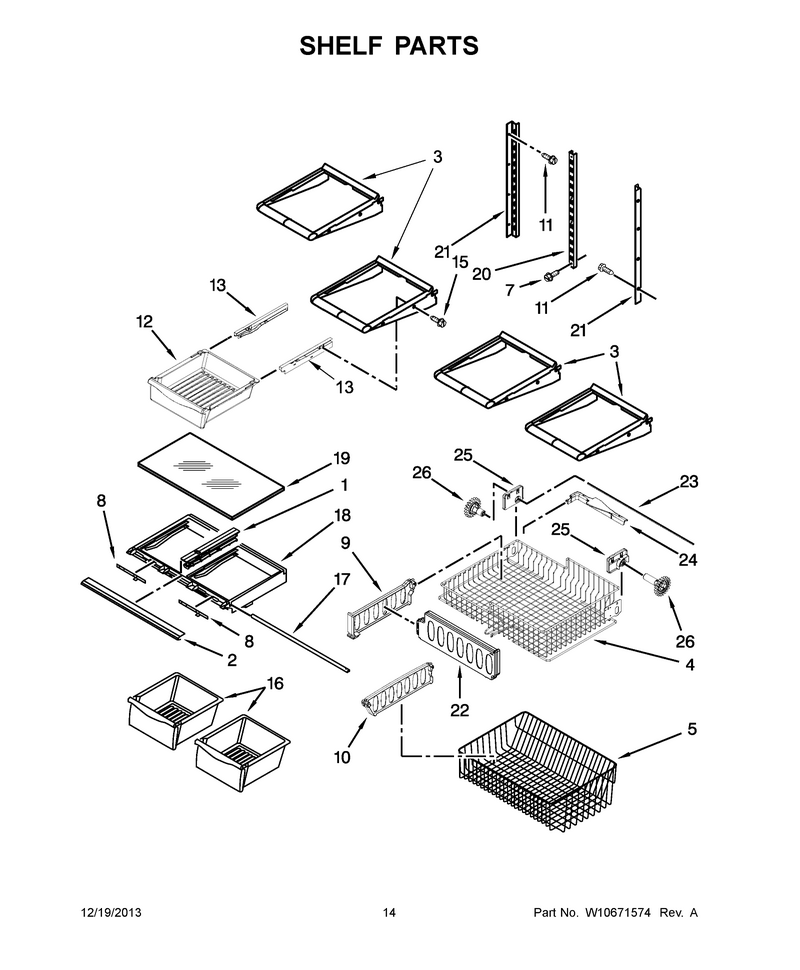

08 - Shelf Parts

...
...
1
Rail-Centr WPL-WPW10671238
...
2
Trim-Shelf WPL-WPW10231482
...
3
Shelf-Glas WPL-W11402523
...
4
Basket, Upper WPL-W10348238
...
5
Basket-Fzr WPL-WPW10503183
...
7
Screw WPL-W10215666
...
8
Slide WPL-WP67005864
...
9
Divider, Basket (Upper) WPL-W10241046
...
10
Divider WPL-W10847995
...
11
Screw (3) WPL-67006425
...
12
Pan- Deli WPL-WP67001314
...
13
Glide Lt WPL-WP67001054
...
15
Screw WPL-W11233072
...
16
Pan-Crispr WPL-WP67002633
...
17
Brace- Cri WPL-WP12227303WD
...
18
Frame WPL-WPW10568041
...
19
Glass- Cri WPL-WP67006878
...
20
Ladder, Center WPL-W10273463
...
21
Ladder, Side WPL-W10251969
...
22
Divider, Upper WPL-W10311695
...
23
Shaft, Rack WPL-W10802339
...
24
Lift, Bail Arm WPL-W10149389
...
25
Mount, Gear (Left Hand) WPL-W10348259
...
26
Gear WPL-WPW10474716

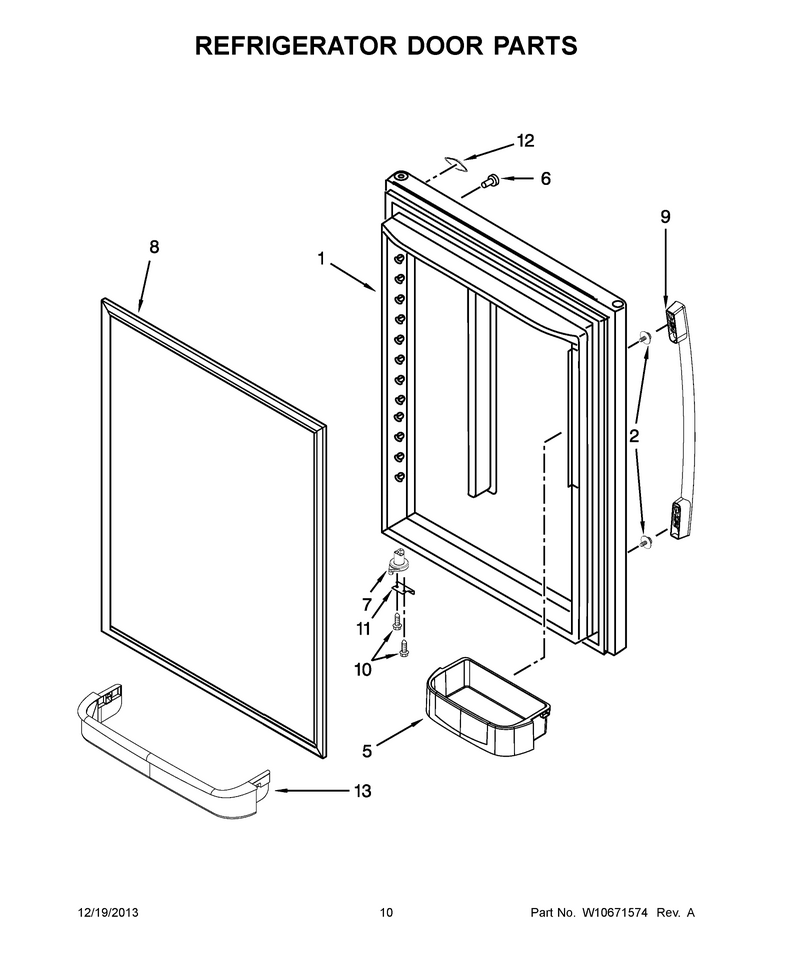

06 - Refrigerator Door Parts

...
...
1
Dor-Fip Wh WPL-13109401WQ
...
2
Screw WPL-WPW10661886
...
5
Bin-Cntlvr WPL-WPW10371194
...
6
Button- Pl WPL-WP67001130
...
7
Closer WPL-WP67003638
...
8
Door Gasket, Magnetic (White) WPL-W10443313
...
9
Handle WPL-W11459378
...
10
Screw WPL-WP98165
...
11
Stop-Door WPL-W11708403
...
12
Nameplate WPL-WPW10391355
...
13
Retainer, Ref Door WPL-67001019
