product name

Whirlpool WOEC7027PZ00

Model: WOEC7027PZ00

Save Part Not Listed?
product name

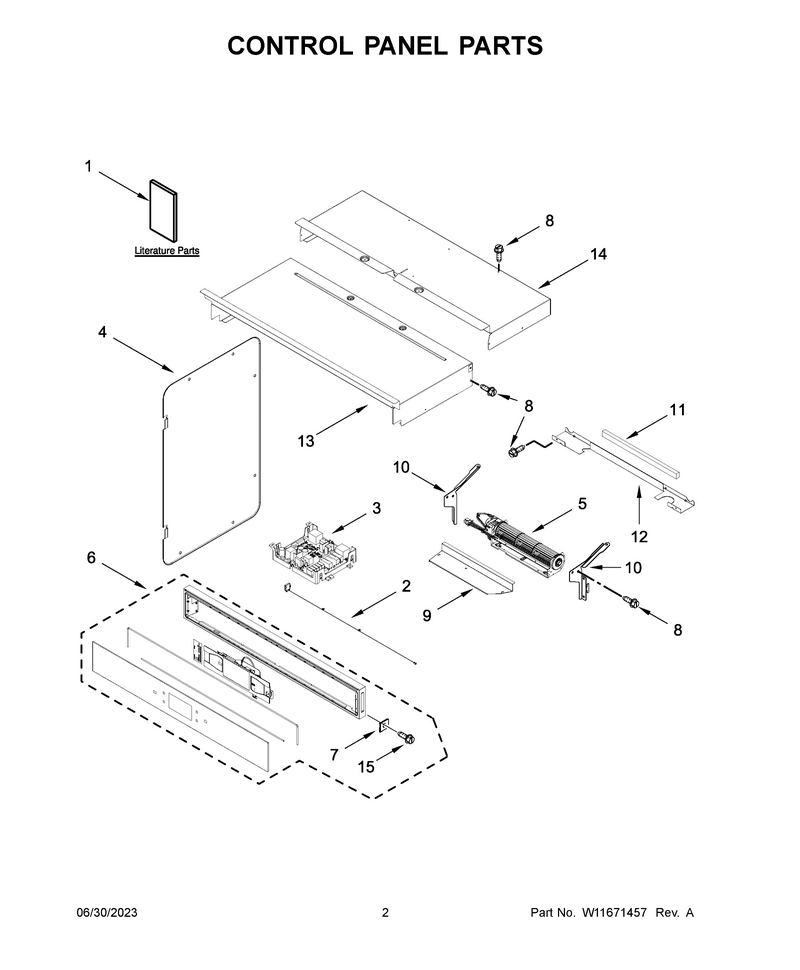

02 - Control Panel Parts

...
...
NI
Hardware WPL-W11602626
...
1
Owner's Manual WPL-W11555307
...
1A
Quick Start Guide WPL-W11553919
...
1B
Tech Sheet WPL-W11623559
...
2
Antenna WPL-W11537624
...
3
Cntrl-Elec WPL-W11261165
...
4
Chassis, Combo Side WPL-W10655467
...
5
Blower WPL-W11598119
...
6
Console WPL-W11670528
...
7
Nut WPL-WP4450118
...
8
Screw WPL-WP90767
...
9
Cover, Combo Blower WPL-W10681157
...
10
Bracket, Blower (Left) WPL-W10655463
...
10A
Bracket, Blower (Right) WPL-W10655462
...
11
Seal-Foam WPL-W10491987
...
12
Divider, Chassis Back WPL-W11166802
...
13
Chassis, Cover Top Front 27 In WPL-W10318159
...
14
Chassis, Cover Top Back 27 In Wifi WPL-W11037652
...
15
Screw WPL-W11602625

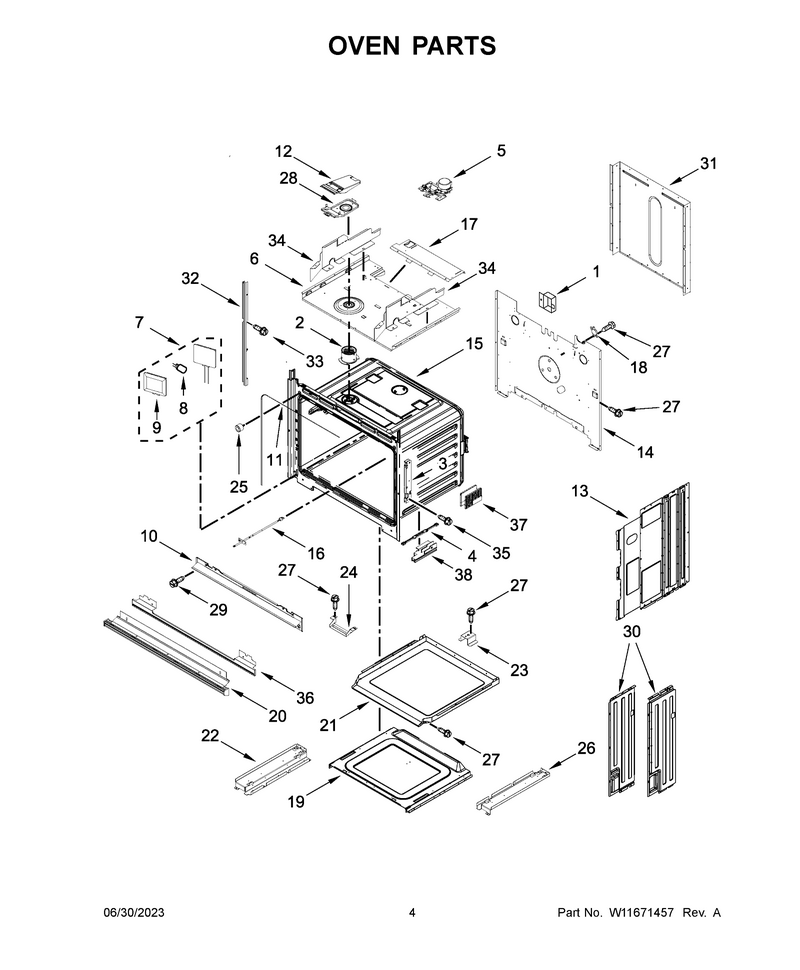

03 - Oven Parts

...
...
NI
Insulation, Back WPL-W11244475
...
1
Cover, Connector WPL-8285593
...
2
Tube-Vent WPL-W11240525
...
3
Hinge-Recv WPL-W11712405
...
3A
Hinge-Recv WPL-W11712406
...
4
Spacer WPL-W11598152
...
5
Latch-Door WPL-W11686858
...
6
Top, Chassis WPL-W11244456
...
7
Light-Oven WPL-W11292252
...
8
Bulb-Light WPL-WPW10472384
...
9
Light-Oven WPL-WPW10519866
...
10
Vent, 27 In Combo Center WPL-W11518348
...
11
Gasket, Cavity WPL-W11608109
...
12
Cover, Vent Exhaust WPL-W11256424
...
13
Side, Chassis WPL-W11165274
...
14
Following Parts Not Illustrated WPL-N/P
...
15
Following Parts Not Illustrated WPL-N/P
...
16
Thrmst-Fix WPL-W11598120
...
17
Deflector, Blower WPL-W10904163
...
18
Thrmst-Fix WPL-WP4449751
...
19
Covr-Acess WPL-W11598139
...
20
Vent-Oven WPL-W11658445
...
21
Duct, Bottom Chassis WPL-W11244446
...
22
Support, Base (Left) WPL-W10283020
...
23
Support, Air Channel WPL-W11135135
...
24
Brkt-Suprt WPL-W11731183
...
25
Bumper WPL-W11598125
...
26
Support, Base (Right) WPL-W10283021
...
27
Screw WPL-WP90767
...
28
Base, Vent Exhaust WPL-W11256423
...
29
Screw WPL-WPY706189
...
30
Cover-Side WPL-W11598150
...
30A
Cover-Side WPL-W11598151
...
31
Duct, Lower Chassis Back WPL-W11134657
...
32
Sidetrim, Bended (Black (Left)) WPL-W11235457
...
32A
Sidetrim, Bended (Black (Right)) WPL-W11235458
...
33
Screw WPL-W11602623
...
34
Deflector, Chassis (Left) WPL-W11186391
...
34A
Deflector, Chassis (Right) WPL-W11186398
...
35
Screw WPL-WPW10254050
...
36
Trim WPL-W11649128
...
37
Foot-Level WPL-W11598170
...
38
Foot-Level WPL-W11598169
...
38A
Foot-Level WPL-W11598168

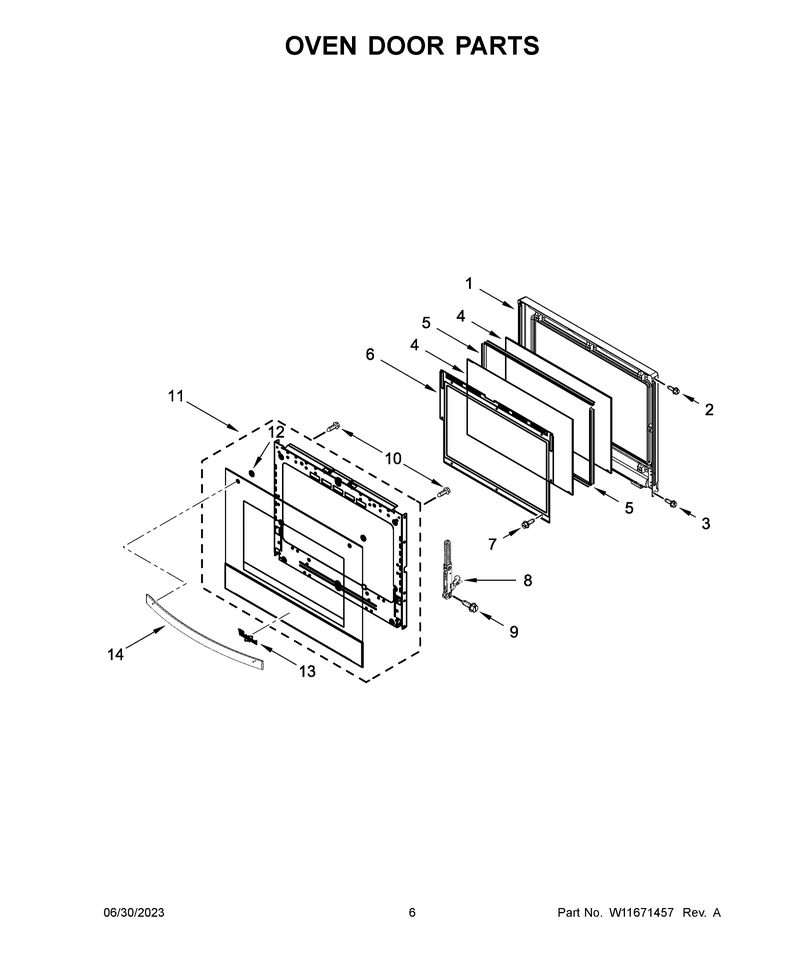

04 - Oven Door Parts

...
...
1
Frame-Glas WPL-W11598186
...
2
Screw (8abx3/8-Blk) WPL-74003975
...
3
Screw WPL-WPY706189
...
4
Glass-Door WPL-WPW10284902
...
5
Brkt-Mntg WPL-W11598187
...
6
Retainer WPL-W11598188
...
7
Screw WPL-WP90767
...
8
Hinge, Door (Left) WPL-W11634520
...
8A
Hinge, Door (Right) WPL-W11634521
...
9
Screw WPL-WP3196183
...
10
Screw WPL-W11602624
...
11
Glass-Door WPL-W11654067
...
12
Washer WPL-W11676355
...
13
Nameplate WPL-W11178521
...
14
Hndle-Door WPL-W11648757

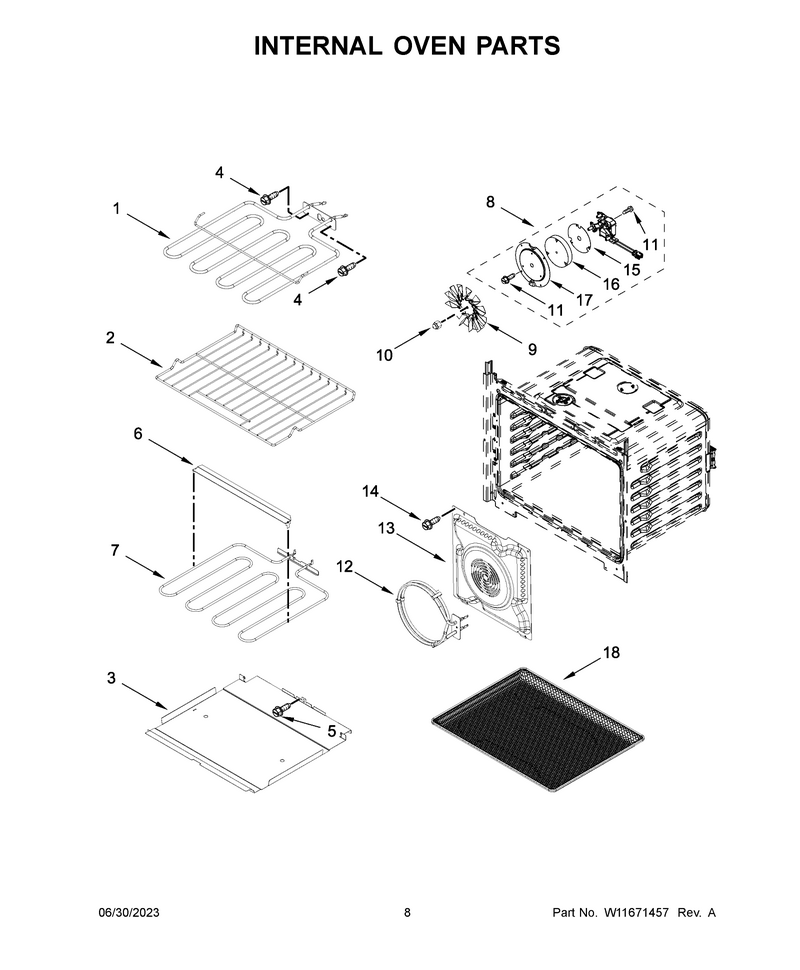

05 - Internal Oven Parts

...
...
1
Elmnt-Brol WPL-W11617232
...
2
Rack-Oven WPL-WPW10317431
...
3
Tray, Hidden Bake WPL-W10318198
...
4
Screw WPL-WP7101P434-60
...
5
Screw WPL-WP90767
...
6
Crossbar, Hidden Bake Tray WPL-W10282957
...
7
Elmnt-Bake WPL-W11545804
...
8
Motor-Fan WPL-W11617227
...
9
Fan-Convct WPL-W11548753
...
10
Nut WPL-W11548755
...
11
Screw WPL-W10850807
...
12
Element WPL-WPW10260248
...
13
Baffle, Convection WPL-W10359278
...
14
Screw WPL-WP74003976
...
15
Cover WPL-W11602629
...
16
Insulation WPL-W11706806
...
17
Cover WPL-W11617229
...
18
Accessory Parts, Basket, Air Fry WPL-W11692811

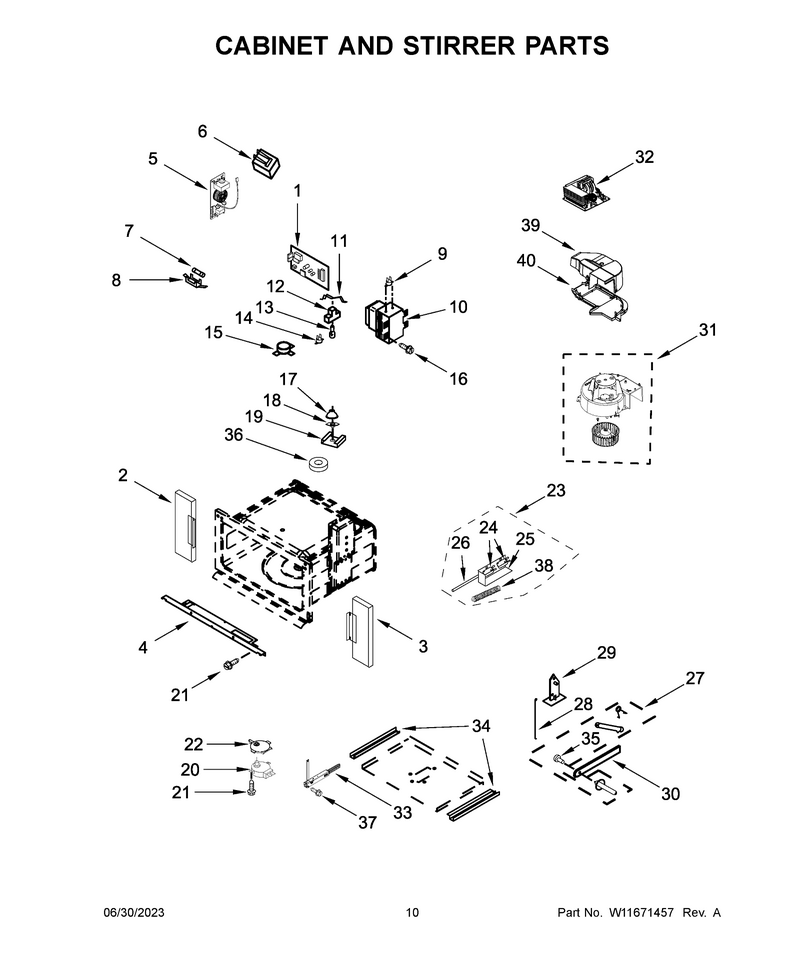

06 - Cabinet And Stirrer Parts

...
...
1
Cntrl-Elec WPL-W11325603
...
2
Trim, Side (Left) WPL-461967017511
...
3
Trim, Side (Right) WPL-W11044584
...
4
Vent, Top WPL-W11334717
...
5
Water Filter WPL-FILTER
...
6
Transformr WPL-W11238401
...
7
Fuse WPL-W11188752
...
8
Holder, Fuse WPL-W10245194
...
9
Sensor WPL-W11233913
...
10
Magnetron WPL-W11578959
...
11
Spring, Lamp WPL-W10465869
...
12
Housng-Lmp WPL-WPW10490593
...
13
Lmp-Basles WPL-W10886919
...
14
Thrmst-Fix WPL-W11568584
...
15
Sensor WPL-W11699906
...
16
Screw WPL-461967825971
...
17
Reflector WPL-423107022541
...
18
Lens-Lamp WPL-W11193483
...
19
Clip, Spring WPL-W11440819
...
20
Motor-Turn WPL-W10911403
...
21
Screw WPL-461967825321
...
22
Covr-Motor WPL-W11676353
...
23
Interlock WPL-W11033422
...
24
Switch, Micro V15t16-Cz200 WPL-W10211972
...
25
Interlock WPL-W11214928
...
26
Rod-Rel WPL-WPW10120235
...
27
Arm WPL-WPW10128850
...
28
Spring WPL-W11700292
...
29
Support WPL-W11684510
...
30
Arm WPL-W11607070
...
31
Motor-Fan WPL-W11344874
...
32
Inverter WPL-W11578579
...
33
Hinge-Door WPL-W11648763
...
34
Support, Bottom WPL-8205707
...
35
Arm WPL-WPW10128850
...
36
Sealing, Lamp WPL-W10769147
...
37
Screw WPL-W11690594
...
38
Spring WPL-W11715912
...
39
Housing WPL-W11646907
...
40
Housing WPL-W11646906

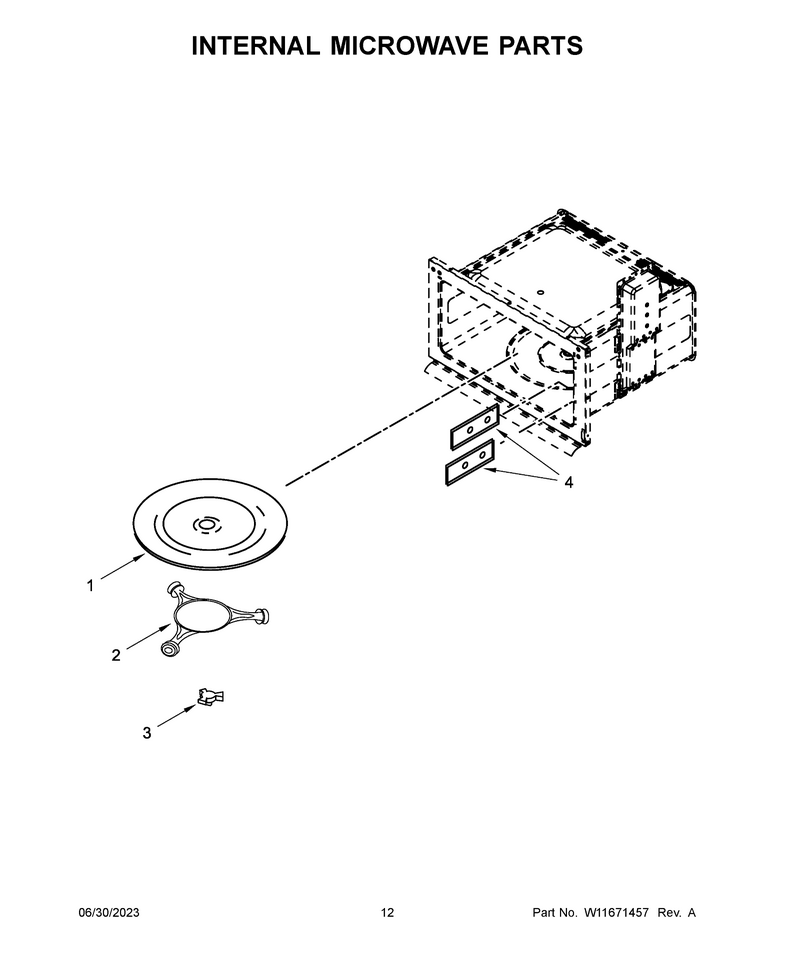

07 - Internal Microwave Parts

...
...
1
Tray-Cook WPL-W11460385
...
2
Ring-Turn WPL-W11110134
...
3
Shaft-Turn WPL-W11179756
...
4
Cover-Plt WPL-W10915651

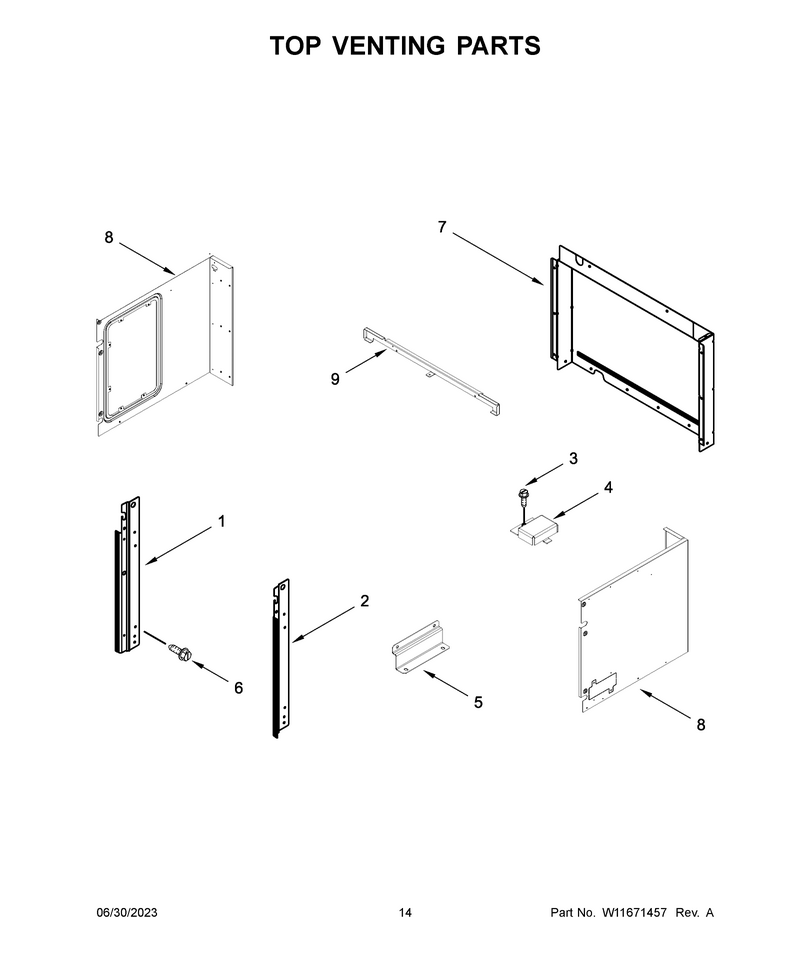

08 - Top Venting Parts

...
...
1
Siderail, Combo (Left) WPL-W11627410
...
2
Siderail, Combo (Right) WPL-W11627411
...
3
Screw WPL-WP90767
...
4
Cover, Connector WPL-8285593
...
5
Side, Bracket WPL-W10283025
...
6
Screw WPL-WP98008545
...
7
Cover, Combo Chassis Back Duct WPL-W11171004
...
8
Side, Combo Chassis (Left) WPL-W11171909
...
8A
Side, Combo Chassis (Right) WPL-W11171919
...
9
Support, Crossbar WPL-W10283023

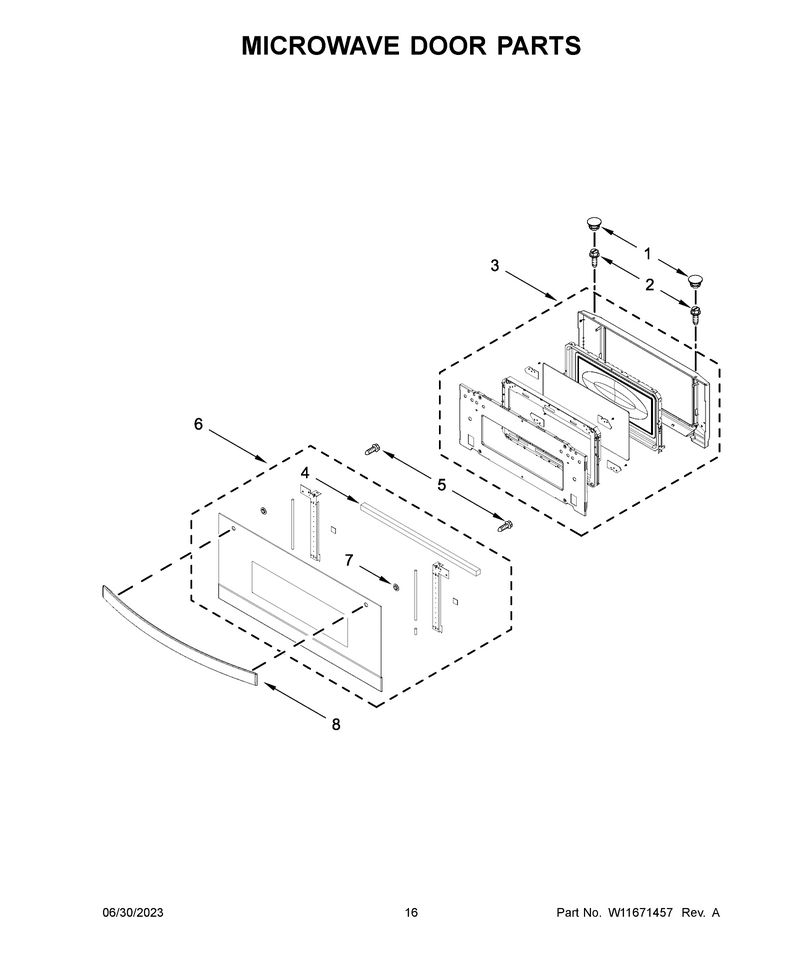

09 - Microwave Door Parts

...
...
1
Cap, Screw WPL-8304588BL
...
2
Screw WPL-W11233072
...
3
Inner Door Assembly WPL-W11639552
...
4
Foam, Door Handle WPL-W10359769
...
5
Screw WPL-W11602624
...
6
Glass-Door WPL-W11654092
...
7
Washer WPL-W11676355
...
8
Hndle-Door WPL-W11648757

...
...
NI
Accessory Parts, Assembly, Bottom Vent (Stainless) WPL-W11369891
