Whirlpool WOEC5030LZ00

Model: WOEC5030LZ00

Save Part Not Listed?
product name

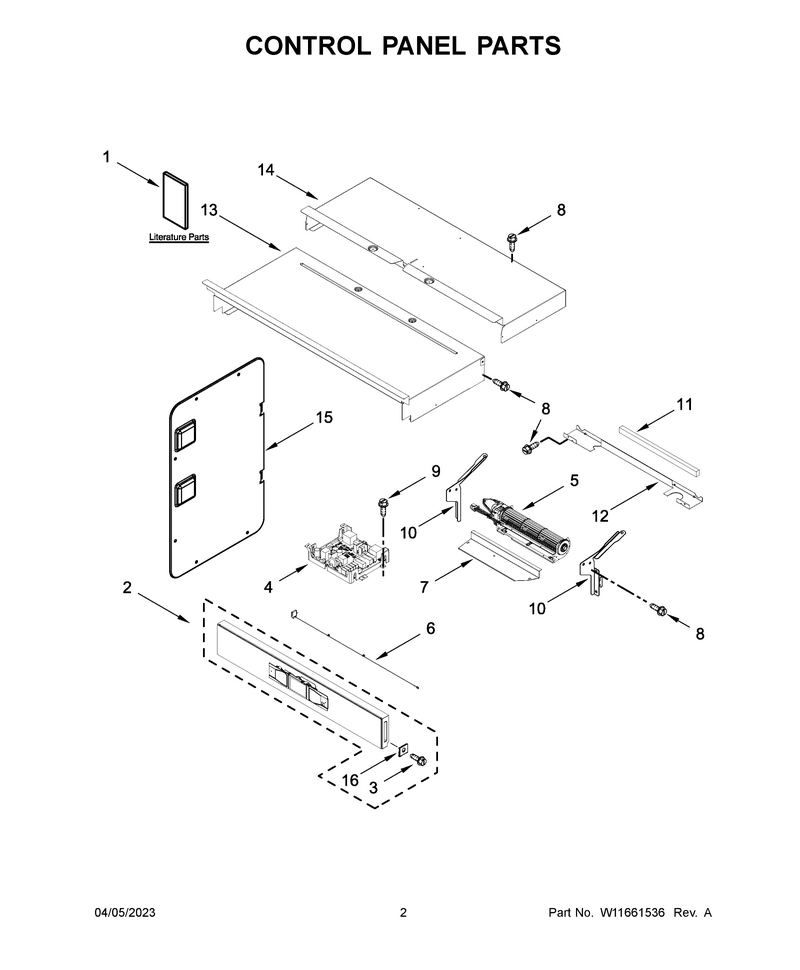

02 - Control Panel Parts

...
...
NI
Hardware WPL-W11602626
...
1
Owner's Manual WPL-W11555307
...
1A
Quick Start Guide WPL-W11553919
...
1B
Tech Sheet WPL-W11601393
...
2
Console WPL-W11659269
...
2A
Console WPL-W11659270
...
3
Screw WPL-W11602625
...
4
Cntrl-Elec WPL-W11649350
...
5
Blower WPL-W11598119
...
6
Antenna WPL-W11537624
...
7
Cover, Combo Blower WPL-W10681157
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP7101P434-60
...
10
Bracket, Blower (Left) WPL-W10655463
...
10A
Bracket, Blower (Right) WPL-W10655462
...
11
Seal-Foam WPL-W10491987
...
12
Divider, Chassis Back WPL-W11166802
...
13
Chassis, Cover Top Front 30 In WPL-W10318158
...
14
Cover, Top Back 30 In Chassis WPL-W10588732
...
15
Chassis, Combo Side WPL-W10655467
...
16
Nut WPL-WP4450118

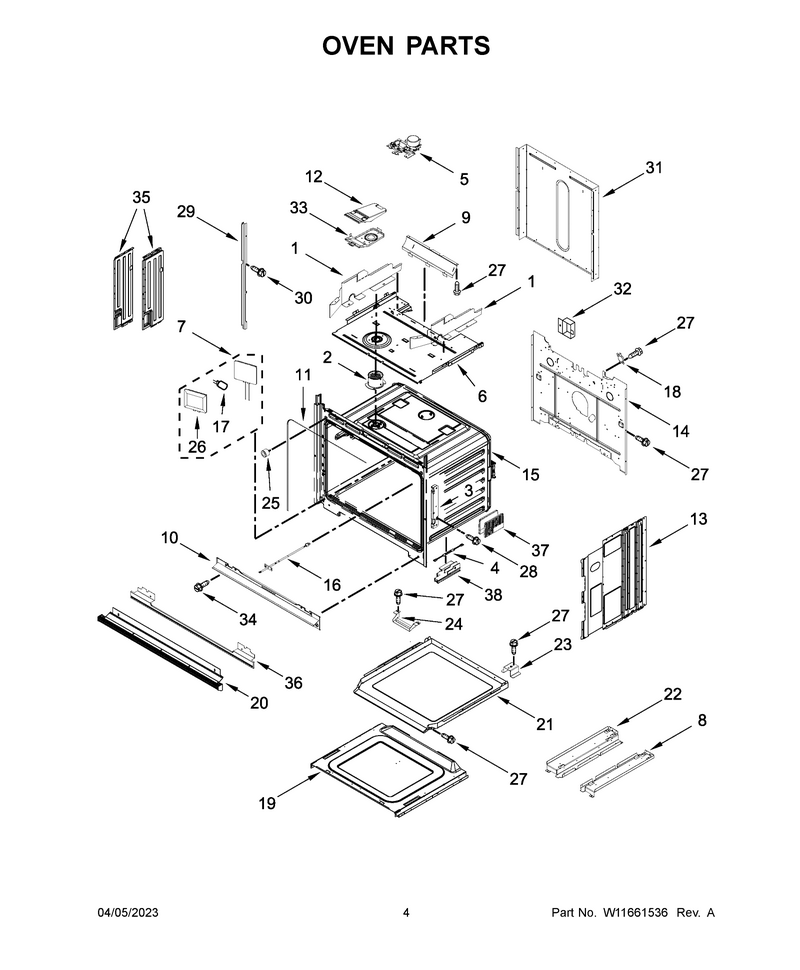

03 - Oven Parts

...
...
NI
Insulation WPL-W11688564
...
1
Deflector, Chassis (Left) WPL-W11186391
...
1A
Deflector, Chassis (Right) WPL-W11186398
...
2
Tube-Vent WPL-W11240525
...
3
Hinge-Recv WPL-W11712405
...
3A
Hinge-Recv WPL-W11712406
...
4
Spacer WPL-W11598152
...
5
Latch-Door WPL-W11686858
...
6
Top, Chassis WPL-W11168071
...
7
Light-Oven WPL-W11292252
...
8
Support, Base (Right) WPL-W10283021
...
9
Deflector, Blower WPL-W10904163
...
10
Vent-Oven WPL-W11715953
...
11
Gasket-Ovn WPL-W11676903
...
12
Cover, Vent Exhaust WPL-W11256424
...
13
Side, Chassis WPL-W11165274
...
14
Back, Chassis WPL-W11223327
...
15
Following Parts Not Illustrated WPL-N/P
...
16
Thrmst-Fix WPL-W11598120
...
17
Bulb-Light WPL-WPW10472384
...
18
Thrmst-Fix WPL-WP4449751
...
19
Covr-Acess WPL-W11598115
...
20
Bottom Vent Assembly (Black) WPL-W11467336
...
20A
Vent-Oven WPL-W11648980
...
21
Duct, Bottom Chassis WPL-W11244446
...
22
Support, Base (Left) WPL-W10283020
...
23
Support, Air Channel WPL-W11135135
...
24
Brkt-Suprt WPL-W11731183
...
25
Bumper WPL-W11598125
...
26
Light-Oven WPL-WPW10519866
...
27
Screw WPL-WP90767
...
28
Screw WPL-WPW10254050
...
29
Sidetrim, Bended (Black (Left)) WPL-W11235457
...
29A
Sidetrim, Bended (Black (Right)) WPL-W11235458
...
30
Screw WPL-W11602623
...
31
Duct, Lower Chassis Back WPL-W11134657
...
32
Cover, Connector WPL-8285593
...
33
Base, Vent Exhaust WPL-W11256423
...
34
Screw WPL-WPY706189
...
35
Cover-Side WPL-W11598150
...
35A
Cover-Side WPL-W11598151
...
36
Trim WPL-W11714646
...
37
Foot-Level WPL-W11598170
...
38
Foot-Level WPL-W11598169
...
38A
Foot-Level WPL-W11598168

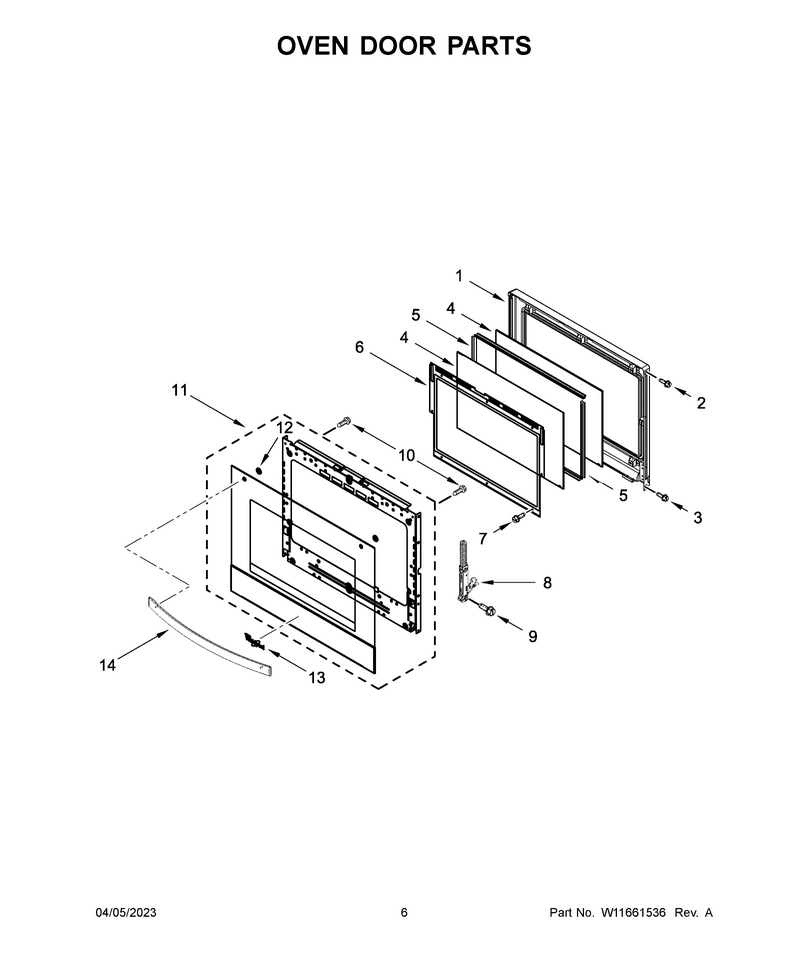

04 - Oven Door Parts

...
...
1
Frame-Glas WPL-W11617223
...
2
Screw (8abx3/8-Blk) WPL-74003975
...
3
Screw WPL-W11617225
...
4
Glass-Door WPL-WPW10618107
...
5
Spacer WPL-W11736671
...
6
Retainer WPL-W11598182
...
7
Screw WPL-WP90767
...
8
Hinge-Door WPL-W11598229
...
8A
Hinge-Door WPL-W11598230
...
9
Screw WPL-WP3196183
...
10
Screw WPL-W11602624
...
11
Glass-Door WPL-W11654062
...
11A
Glass-Door WPL-W11654064
...
11B
Glass-Door WPL-W11654056
...
12
Washer WPL-W11676355
...
13
Nameplate WPL-W11178521
...
14
Hndle-Door WPL-W11648760
...
14A
Hndle-Door WPL-W11675407
...
14B
Hndle-Door WPL-W11648756

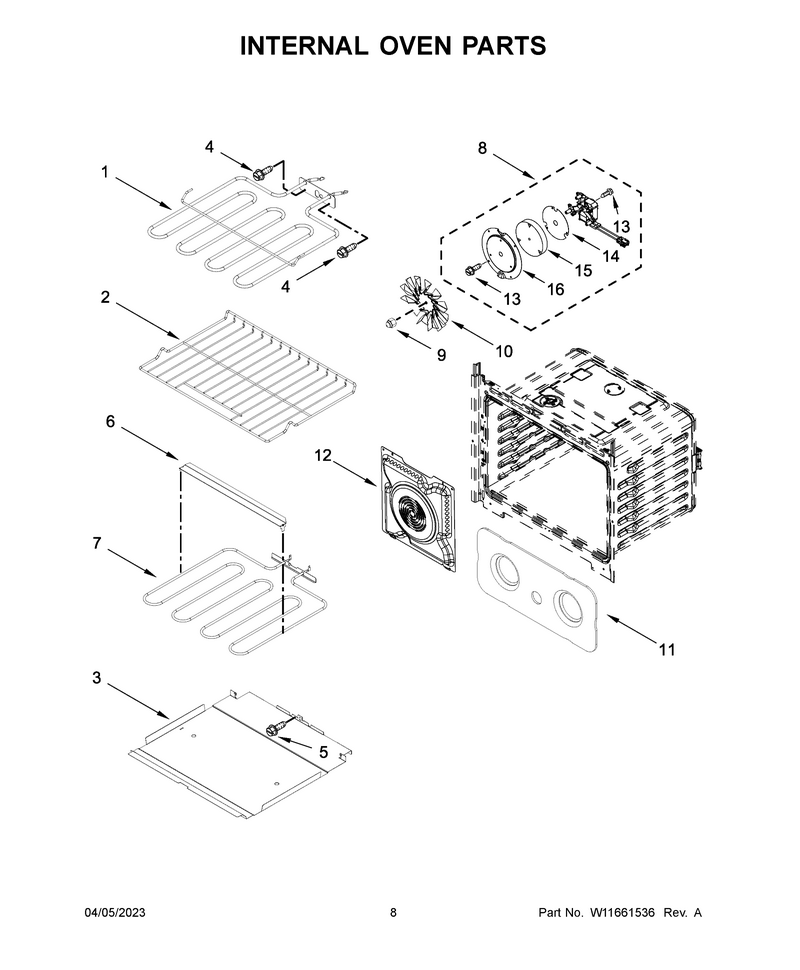

05 - Internal Oven Parts

...
...
1
Elmnt-Brol WPL-W11617232
...
2
Rack-Oven WPL-W11218798
...
3
Tray, Hidden Bake WPL-W10318198
...
4
Screw WPL-WP7101P434-60
...
5
Screw WPL-WP90767
...
6
Crossbar, Hidden Bake Tray WPL-W10282957
...
7
Elmnt-Bake WPL-W11545804
...
8
Motor-Fan WPL-W11617227
...
9
Nut WPL-W11548755
...
10
Fan-Convct WPL-W11548753
...
11
Plate, Ring Element WPL-W11489860
...
12
Baffle, Convection WPL-W10359278
...
13
Screw WPL-W10850807
...
14
Cover WPL-W11602629
...
15
Insulation WPL-W11706806
...
16
Cover WPL-W11617229

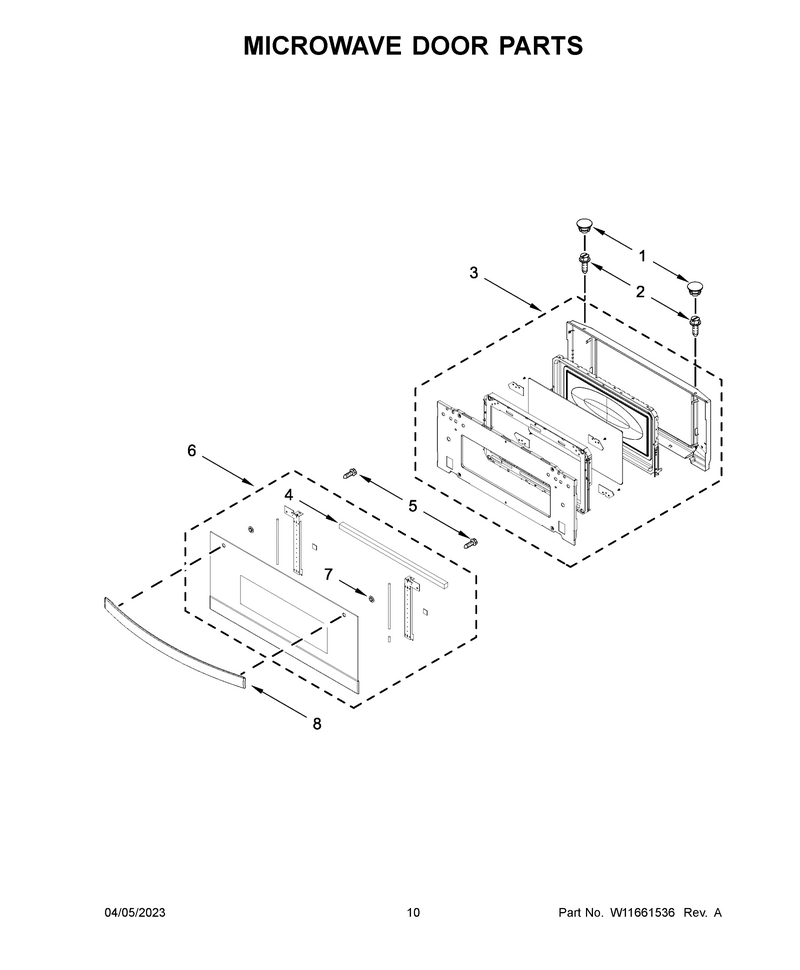

06 - Microwave Door Parts

...
...
1
Cap, Screw WPL-8304588BL
...
2
Screw WPL-W11233072
...
3
Door/mw WPL-W11684570
...
4
Foam, Door Handle WPL-W10359769
...
5
Screw WPL-W11602624
...
6
Glass-Door WPL-W11654089
...
6A
Glass-Door WPL-W11654090
...
6B
Glass-Door WPL-W11654087
...
7
Washer WPL-W11676355
...
8
Hndle-Door WPL-W11648760
...
8A
Hndle-Door WPL-W11675407
...
8B
Hndle-Door WPL-W11648756

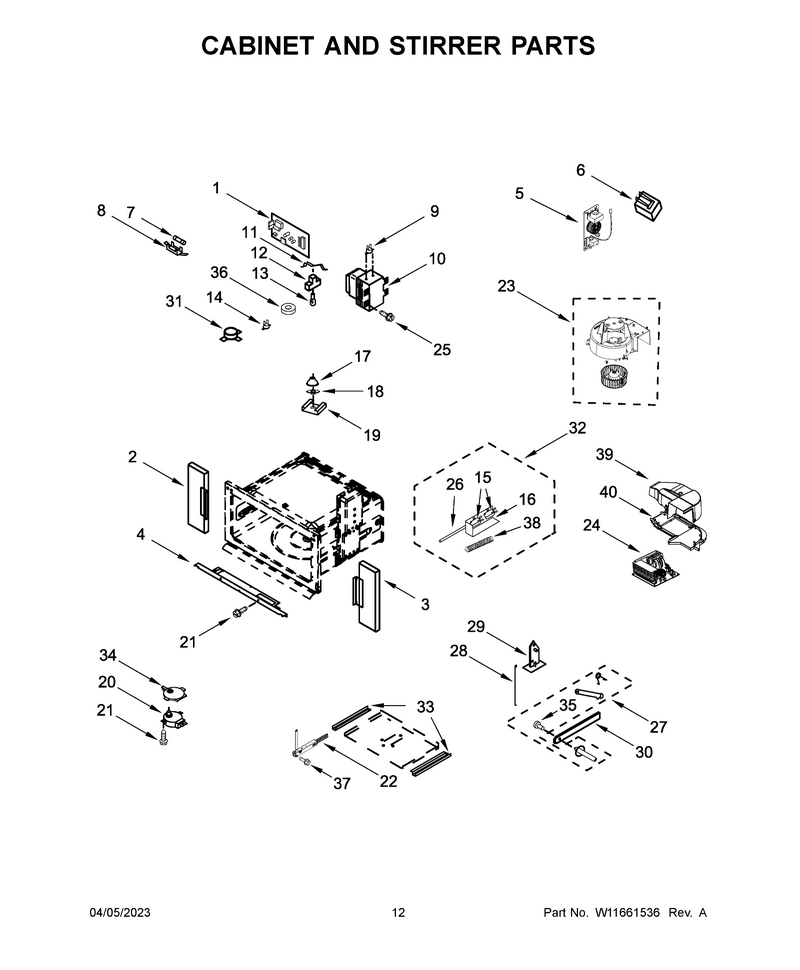

07 - Cabinet And Stirrer Parts

...
...
1
Cntrl-Elec WPL-W11325603
...
2
Trim, Side Left WPL-W10486208
...
3
Trim WPL-W10510106
...
4
Vent, Top Microwave WPL-W11334716
...
5
Water Filter WPL-FILTER
...
6
Transformr WPL-W11238401
...
7
Fuse WPL-W11188752
...
8
Holder, Fuse WPL-W10245194
...
9
Sensor WPL-W11233913
...
10
Magnetron WPL-W11578959
...
11
Spring, Lamp WPL-W10465869
...
12
Housng-Lmp WPL-WPW10490593
...
13
Lmp-Basles WPL-W10886919
...
14
Thrmst-Fix WPL-W11568584
...
15
Switch, Micro V15t16-Cz200 WPL-W10211972
...
16
Interlock WPL-W11214928
...
17
Reflector WPL-423107022541
...
18
Lens-Lamp WPL-W11193483
...
19
Clip, Spring WPL-W11440819
...
20
Motor-Turn WPL-W10911403
...
21
Screw WPL-461967825321
...
22
Hinge-Door WPL-W11598235
...
23
Motor-Fan WPL-W11344874
...
24
Inverter WPL-W11578579
...
25
Screw WPL-461967825971
...
26
Rod-Rel WPL-WPW10120235
...
27
Arm WPL-WPW10128850
...
28
Spring WPL-W11700292
...
29
Support WPL-W11684510
...
30
Arm WPL-W11607070
...
31
Sensor WPL-W11699906
...
32
Interlock WPL-W11033422
...
33
Support, Bottom WPL-8205707
...
34
Covr-Motor WPL-W11676353
...
35
Arm WPL-WPW10128850
...
36
Sealing, Lamp WPL-W10769147
...
37
Screw WPL-W11690594
...
38
Spring WPL-W11715912
...
39
Housing WPL-W11646907
...
40
Housing WPL-W11646906

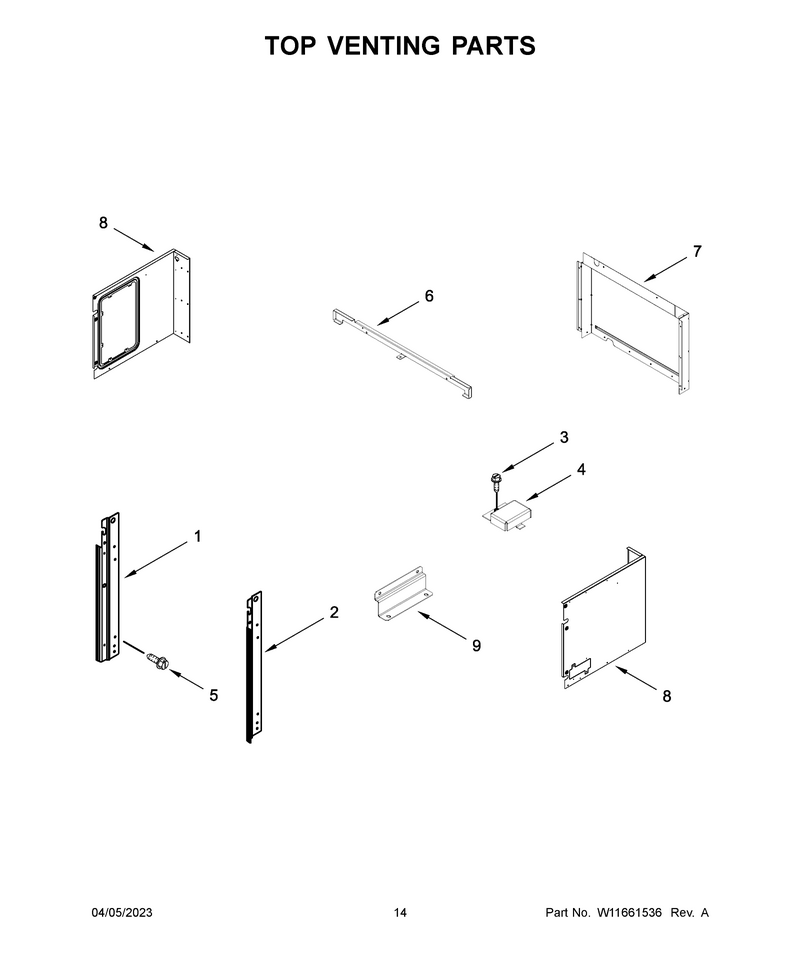

08 - Top Venting Parts

...
...
1
Siderail, Combo (Left) WPL-W11627410
...
2
Siderail, Combo (Right) WPL-W11627411
...
3
Screw WPL-WP90767
...
4
Cover, Connector WPL-8285593
...
5
Screw WPL-WP98008545
...
6
Support, Crossbar WPL-W10283022
...
7
Cover, Combo Chassis Back Duct WPL-W11171004
...
8
Side, Combo Chassis (Left) WPL-W11171909
...
8A
Side, Combo Chassis (Right) WPL-W11171919
...
9
Side, Bracket WPL-W10283024

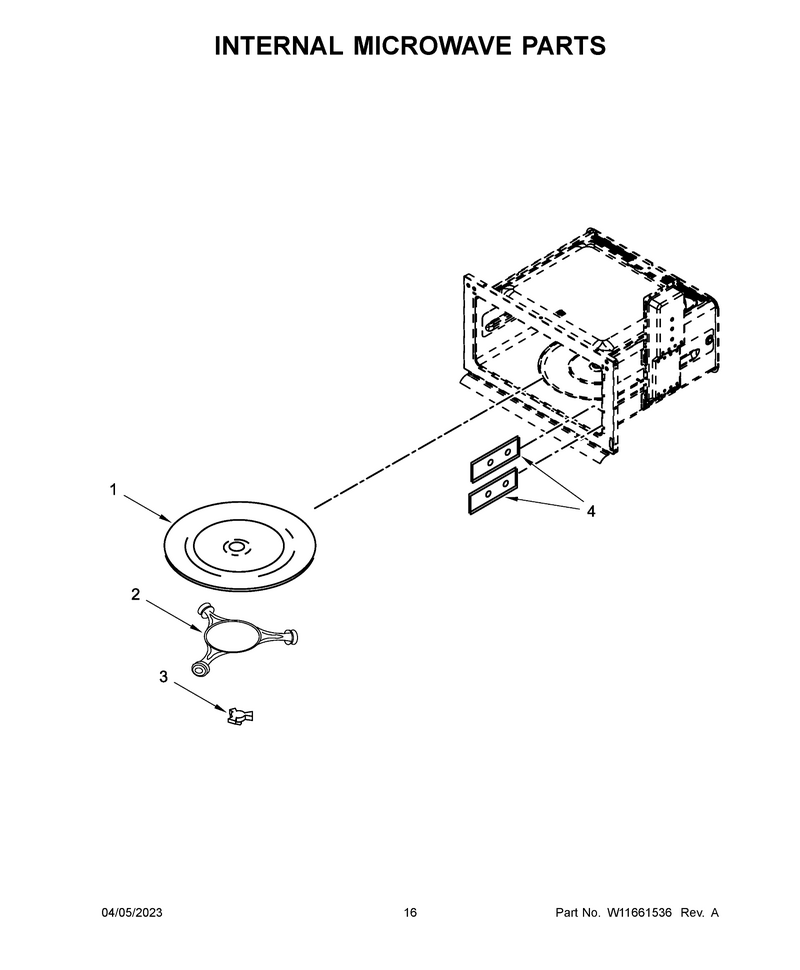

09 - Internal Microwave Parts

...
...
1
Tray-Cook WPL-W11460385
...
2
Ring-Turn WPL-W11110134
...
3
Shaft-Turn WPL-W11179756
...
4
Cover-Plt WPL-W10915651

...
...
NI
Accessories, Trim, Bottom Vent (Stainless) WPL-W11570321
