Whirlpool WMMS3330RZ00

Model: WMMS3330RZ00

Save Part Not Listed?
product name

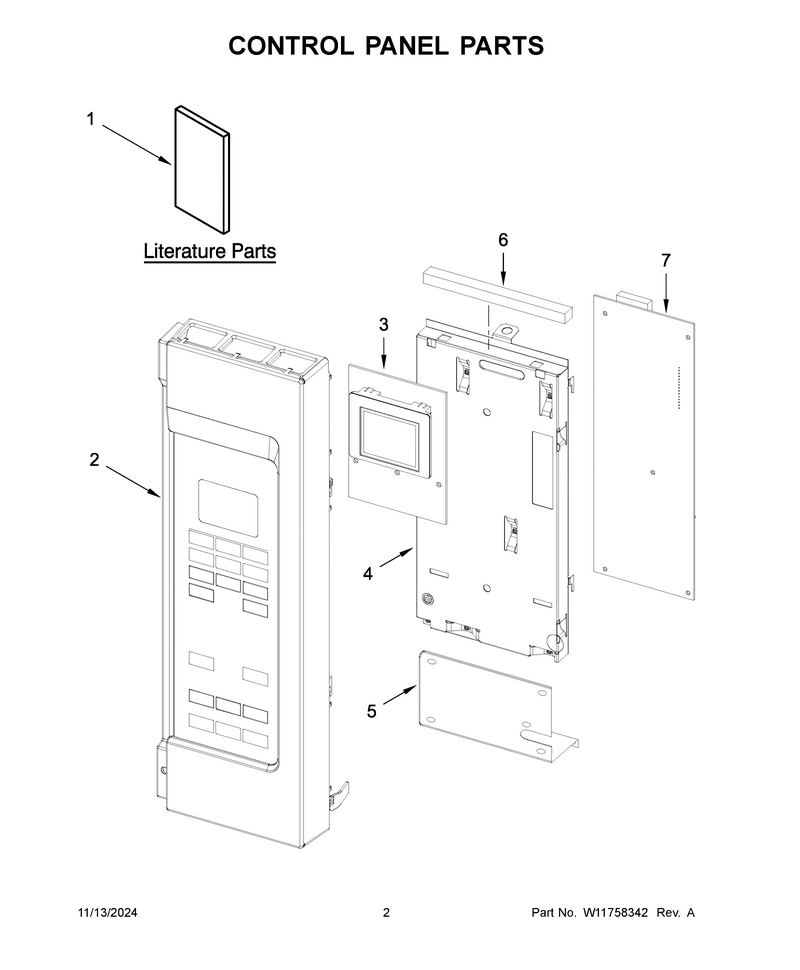

02 - Control Panel Parts

...
...
1
Manual, Owner's WPL-W11698718
...
1B
Sheet, Tech WPL-W11709342
...
1A
Guide, Quick Reference WPL-W11709976
...
2
Assembly, Control Panel (White) WPL-W11722789
...
2A
Assembly, Control Panel (Black) WPL-W11722788
...
2B
Assembly, Control Panel (Biscuit) WPL-W11722784
...
2C
Assembly, Control Panel (Stainless) WPL-W11752350
...
2D
Assembly, Control Panel (Black Stainless) WPL-W11752351
...
3
Cntrl-Elec WPL-W11752391
...
4
Brkt-Cntrl WPL-W11753212
...
5
Panel WPL-W11752396
...
6
Seal-Foam WPL-W11685342
...
7
Cntrl-Elec WPL-W11752393

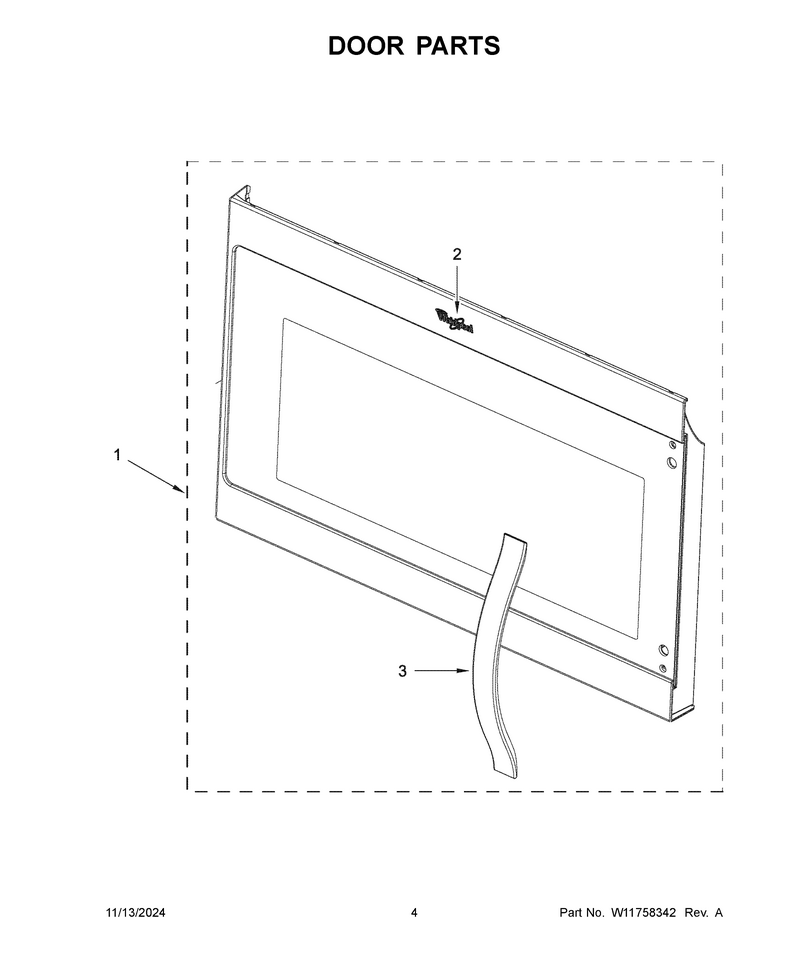

03 - Door Parts

...
...
1
Door, Complete (White) WPL-W11752346
...
1A
Door, Complete (Black) WPL-W11752345
...
1B
Door, Complete (Biscuit) WPL-W11752354
...
1C
Door, Complete (Stainless) WPL-W11752352
...
1D
Door, Complete (Black Stainless) WPL-W11752353
...
2
Badge WPL-W11128002
...
3
Handle (White) WPL-W11713312
...
3D
Handle (Black Stainless) WPL-W11713313
...
3C
Hndle-Door WPL-W11752383
...
3B
Hndle-Door WPL-W11752400
...
3A
Handle (Black) WPL-W11717604

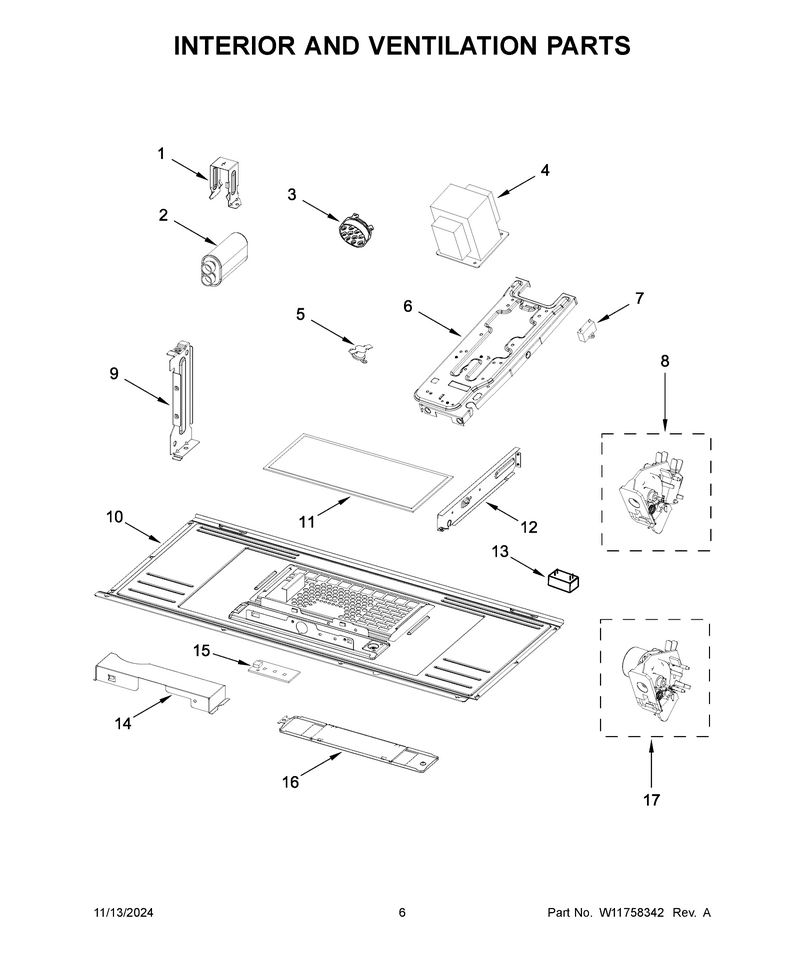

04 - Interior And Ventilation Parts

...
...
1
Bracket, Capacitor WPL-W10532063
...
2
Capactr-Mg WPL-W11678970
...
3
Sensor, Humidity WPL-W10557536
...
4
Transformr WPL-W11545872
...
5
Thrmst-Fix WPL-W11574181
...
6
Chassis WPL-W11520831
...
7
Capacitor, Hood Motor WPL-W11405830
...
8
Interlock WPL-W11551558
...
9
Bracket, Top Cavity WPL-W10313275
...
10
Plate, Bottom WPL-W11450485
...
11
Filter WPL-W10208631A
...
12
Support, Ntc WPL-W11521327
...
13
Resistor, Cement WPL-W11259892
...
14
Nameplate WPL-W11752390
...
15
Light WPL-W11443139
...
16
Assembly, Lamp Glass And Holder WPL-W10240330
...
17
Interlock WPL-W11752355

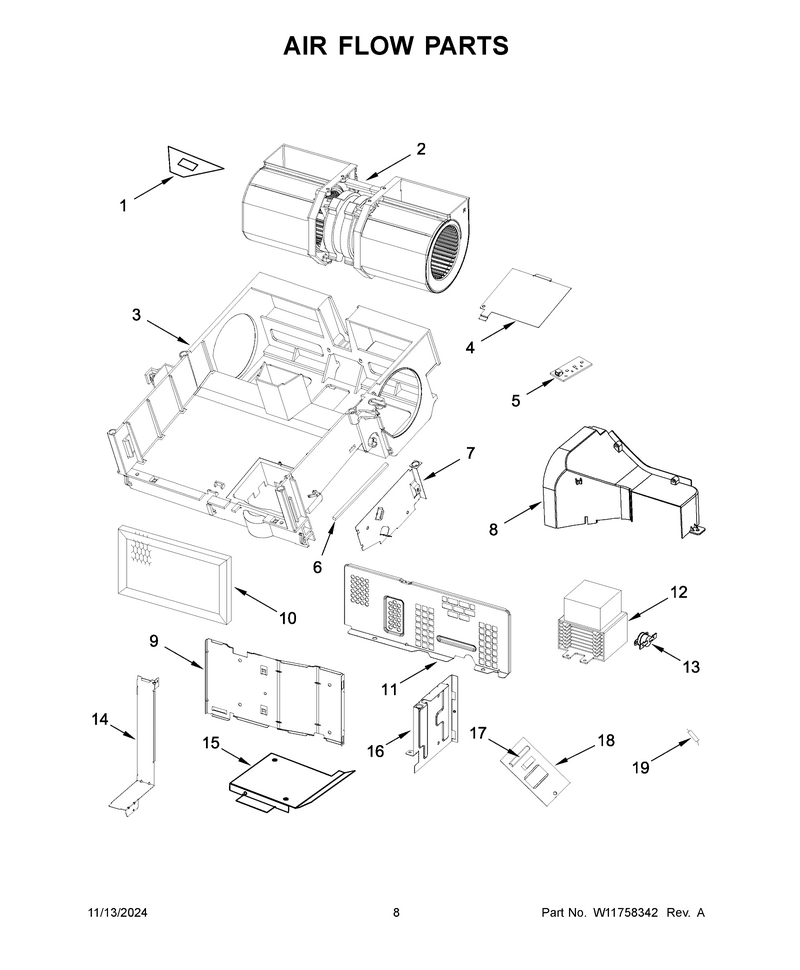

05 - Air Flow Parts

...
...
1
Socket, Motor Wire WPL-W10810142
...
2
Motor-Fan WPL-W11441128
...
3
Baseplate, Air Guide WPL-W10828030
...
4
Covr-Light WPL-W11752401
...
5
Light WPL-W11443139
...
6
Seal, Cooling WPL-W10571179
...
7
Cover, Right Duct WPL-W11293488
...
8
Deflector, Air WPL-W10471570
...
9
Plate, Air Guide Sealing WPL-W10827799
...
10
Filter WPL-W10892387
...
11
Shield, Finger WPL-W11520832
...
12
Magnetron WPL-W10754299
...
13
Thermostat, Magnetron WPL-W10832024
...
14
Cover, Airguide Inlet WPL-W10828038
...
15
Guide, Air WPL-W10845672
...
16
Plate, Right Sealing WPL-W10828079
...
17
Fuse-Thrml WPL-W11707984
...
18
Filter WPL-WPW10531156
...
19
Diode WPL-W11256462

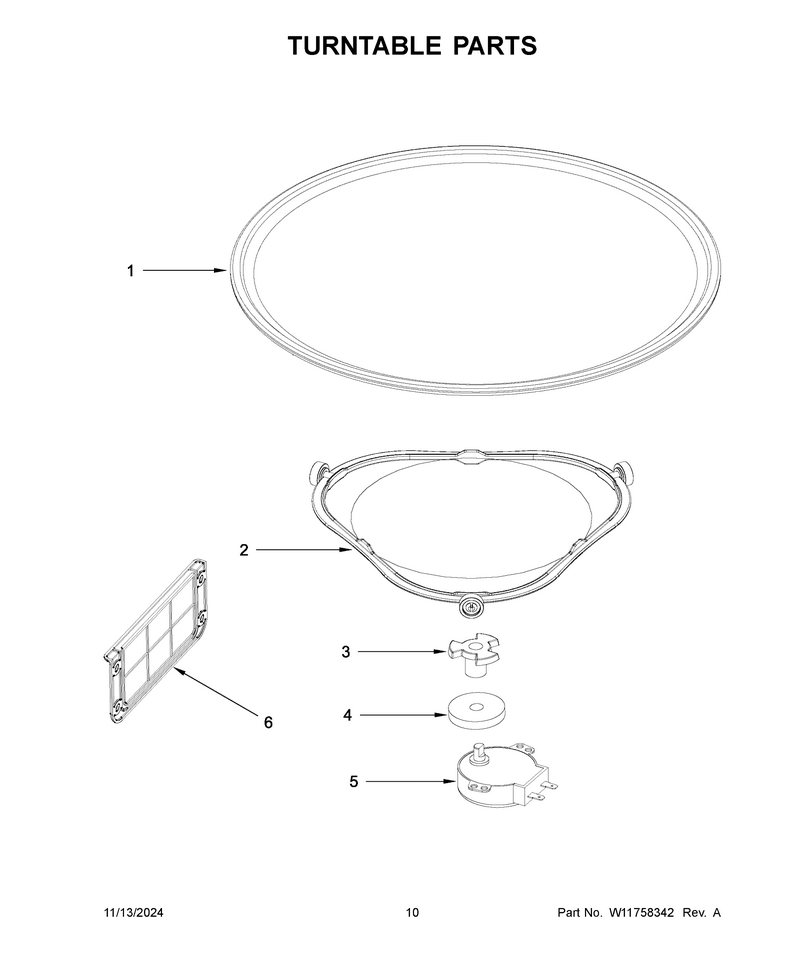

06 - Turntable Parts

...
...
NI
Cover, Waveguide WPL-W11238817

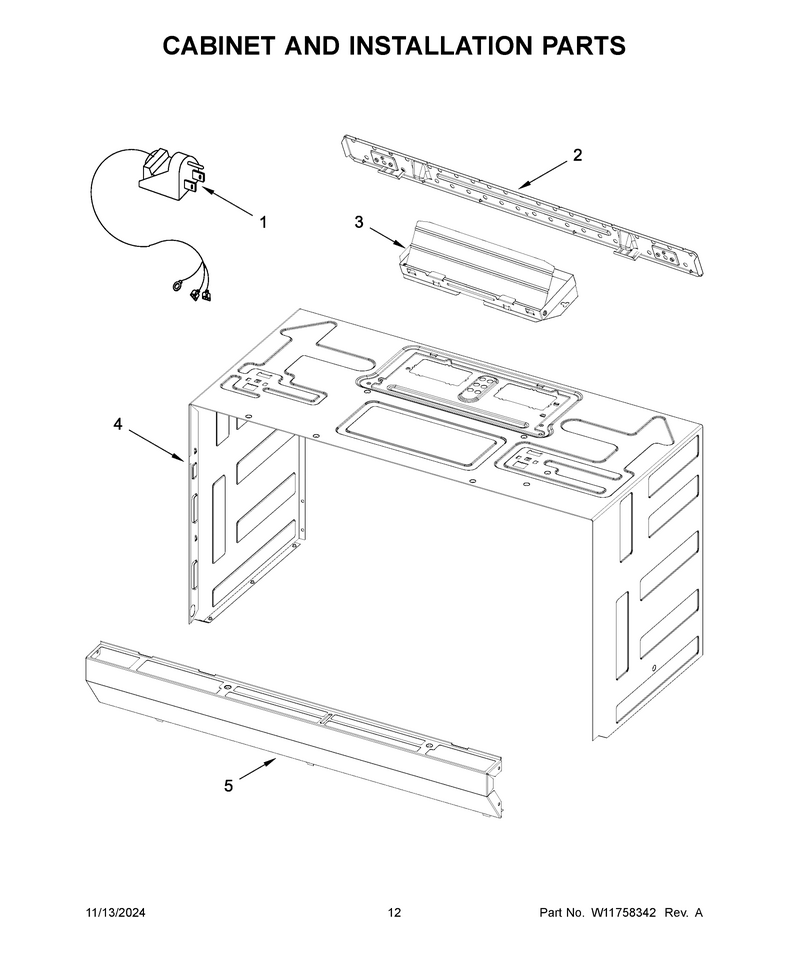

07 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer WPL-W11301790
...
1
Cord, Power WPL-W10708076
...
2
Plate, Mounting WPL-W11025649
...
3
Damper WPL-W10843943
...
4
Case, Outer (White) WPL-W11446917
...
4A
Case, Outer (Black) WPL-W11446916
...
4B
Case, Outer (Biscuit) WPL-W11446918
...
5
Grille, Vent (White) WPL-W11648232
...
5A
Grille, Vent (Black) WPL-W11648231
...
5B
Grille, Vent (Biscuit) WPL-W10845638
