Whirlpool WMMS3130RB00

Model: WMMS3130RB00

Save Part Not Listed?
product name

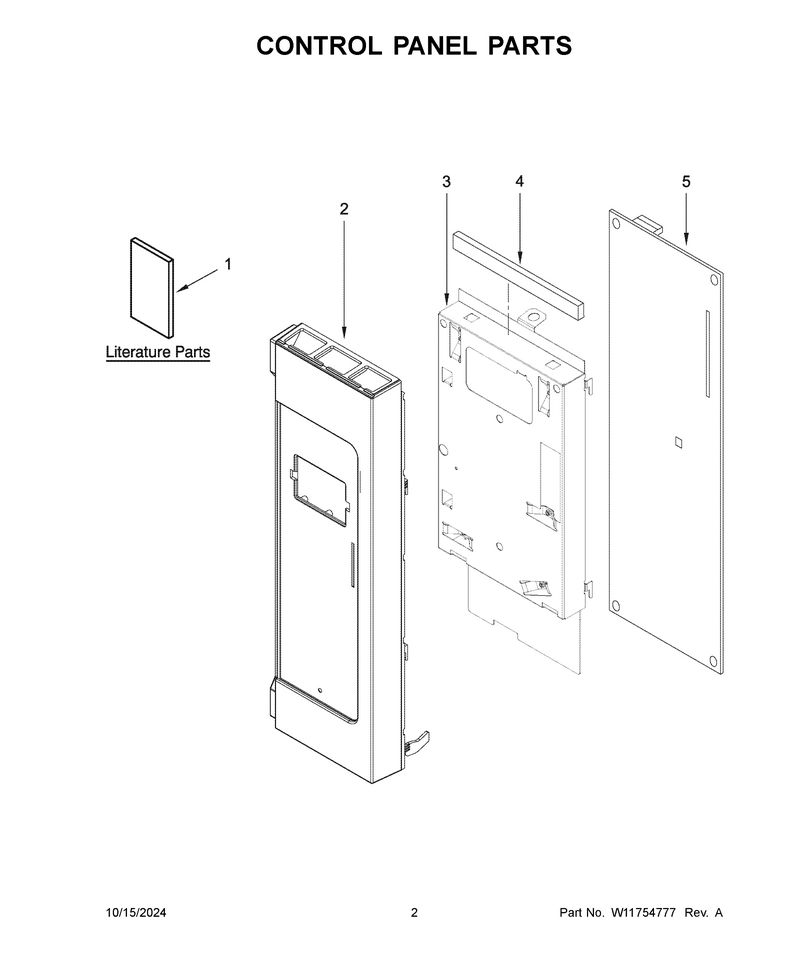

02 - Control Panel Parts

...
...
1
Manual, Owner's WPL-W11698718
...
1B
Sheet, Tech WPL-W11698722
...
1A
Guide, Quick Reference WPL-W11698720
...
2
Panl-Cntrl WPL-W11752341
...
2B
Panl-Cntrl WPL-W11752338
...
2A
Panl-Cntrl WPL-W11752340
...
3
Brkt-Cntrl WPL-W11752382
...
4
Seal-Foam WPL-W11685342
...
5
Cntrl-Elec WPL-W11752427

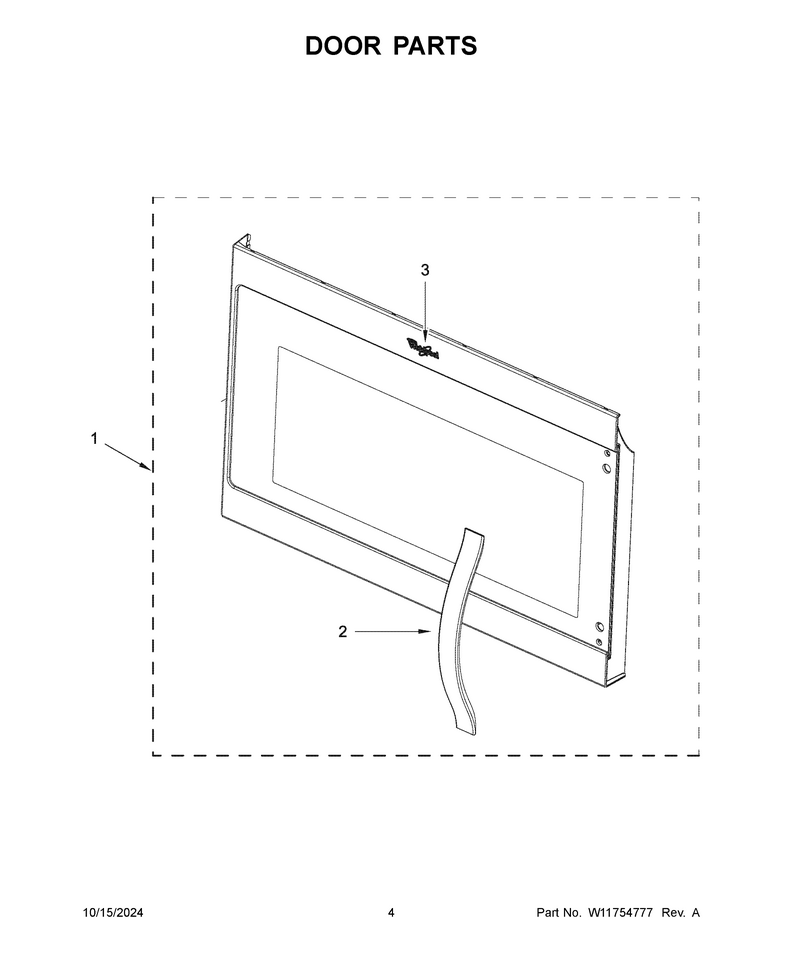

03 - Door Parts

...
...
1
Door, Complete (White) WPL-W11752346
...
1A
Door, Complete (Black) WPL-W11752345
...
1B
Door/mw WPL-W11752342
...
2
Handle (White) WPL-W11713312
...
2A
Handle (Black) WPL-W11717604
...
2B
Hndle-Door WPL-W11752383
...
3
Badge WPL-W11128002

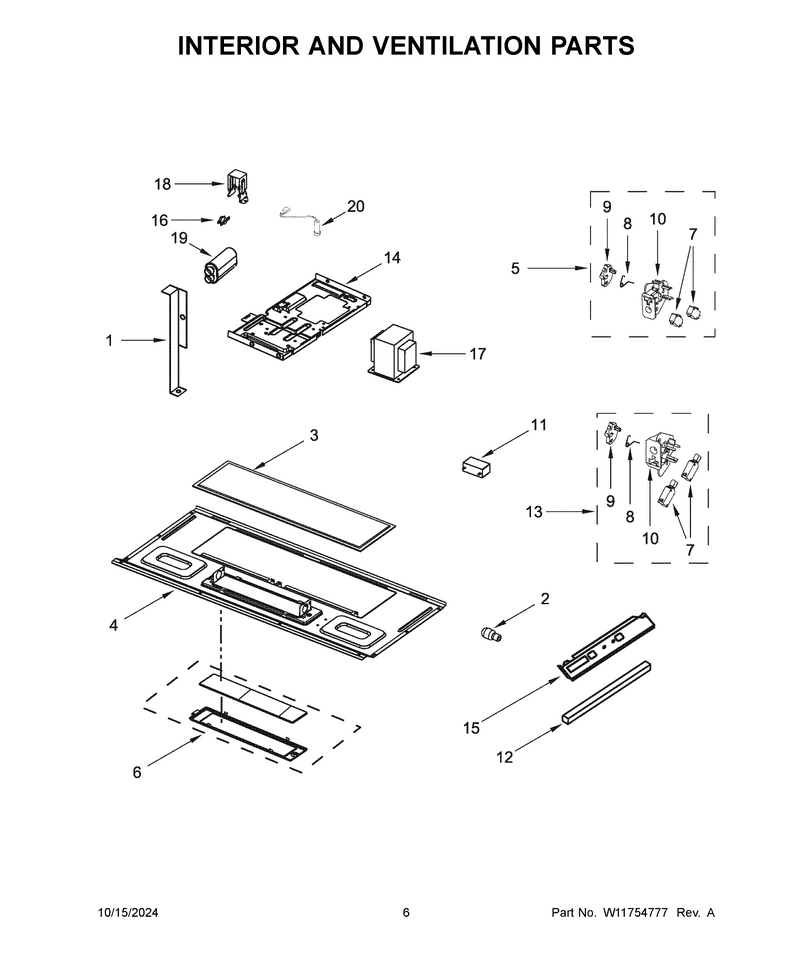

04 - Interior And Ventilation Parts

...
...
1
Bracket, Top Cavity WPL-W10313275
...
2
Lamp, Halogen WPL-W11520384
...
3
Filter WPL-W10208631A
...
4
Plate, Bottom WPL-W11450485
...
5
Interlock WPL-W11551558
...
6
Assembly, Lamp Glass And Holder WPL-W10240330
...
7
Switches, Interlock (Not Serviced, Order Interlock Assemblies) WPL---
...
8
Spring, Interlock WPL-W10604374
...
9
Plate, Cam WPL-W10562613
...
10
Interlock WPL-WP8206419
...
10A
Interlock WPL-WPW10156813
...
11
Capacitor, Hood Motor WPL-W11405832
...
12
Seal, Cooling WPL-W10571179
...
13
Interlock WPL-W11551761
...
14
Chassis WPL-W11520831
...
15
Support, Ntc WPL-W11521327
...
16
Thrmst-Fix WPL-W11574181
...
17
Transformr WPL-W11545871
...
18
Bracket, Capacitor WPL-W10532063
...
19
Capactr-Mg WPL-WPW10574736
...
20
Diode WPL-W11256462

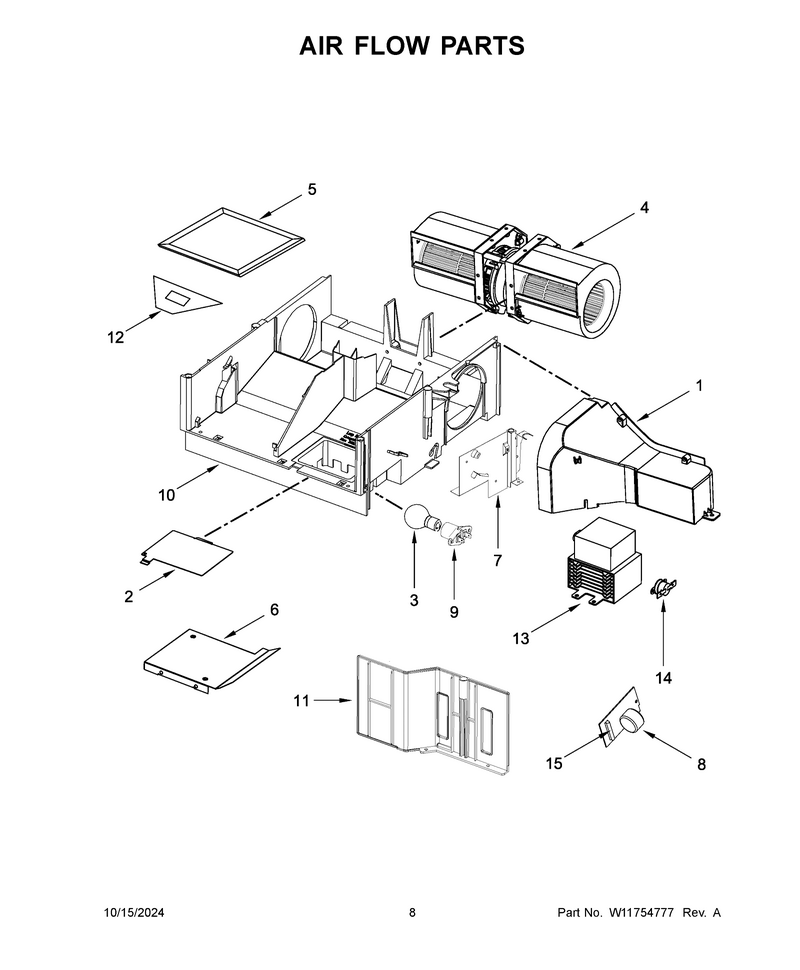

05 - Air Flow Parts

...
...
1
Deflector, Air WPL-W10471570
...
2
Cover, Lamp WPL-8206382
...
3
Lamp-Asm WPL-W11574182
...
4
Motor-Fan WPL-W11441128
...
5
Filter WPL-W10892387
...
6
Guide, Air WPL-W10138797
...
7
Cover, Right Duct WPL-W11293488
...
8
Filter, Noise WPL-W10422269
...
9
Housng-Lmp WPL-WPW10210878
...
10
Baseplate, Air Guide WPL-W10828030
...
11
Shield, Finger WPL-W11520832
...
12
Socket, Motor Wire WPL-W10810142
...
13
Magnetron WPL-W11495561
...
14
Thermostat, Magnetron WPL-W10832024
...
15
Fuse-Thrml WPL-W11707984

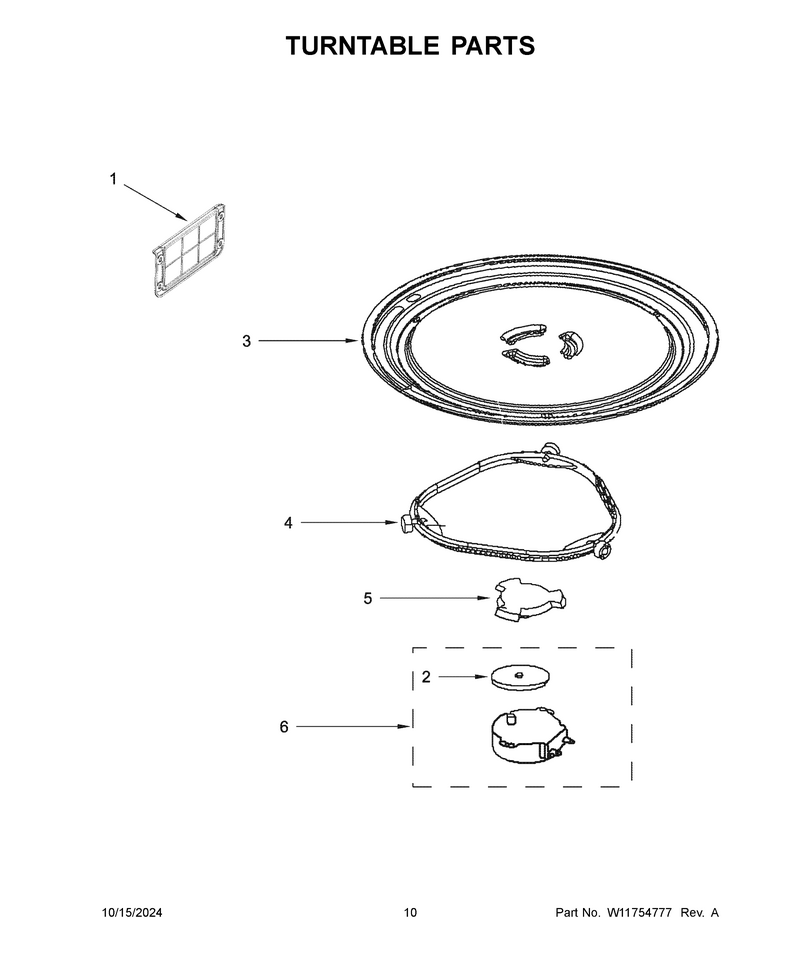

06 - Turntable Parts

...
...
1
Cover, Waveguide WPL-W11238817
...
2
Seal, Waterproof WPL-8184109
...
3
Tray-Cook WPL-W11685581
...
4
Ring-Turn WPL-W11252182
...
5
Support WPL-W11245707
...
6
Motor, Turntable WPL-W10642989

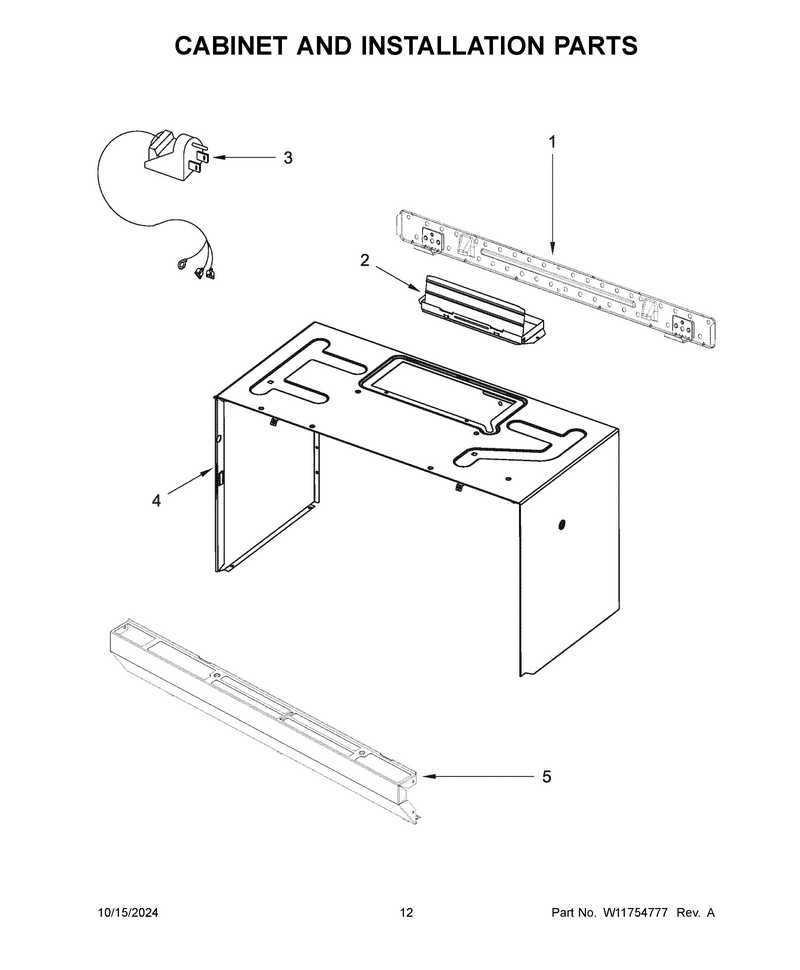

07 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer WPL-W11301790
...
1
Plate, Mounting WPL-W11025649
...
2
Damper WPL-W10843943
...
3
Cord, Power WPL-W10708076
...
4
Case, Outer (White) WPL-W11446917
...
4A
Case, Outer (Black) WPL-W11446916
...
5
Grille, Vent (White) WPL-W11648232
...
5A
Grille, Vent (Black) WPL-W11648231
