product name

Whirlpool WMML5530RV00

Model: WMML5530RV00

Save Part Not Listed?
product name

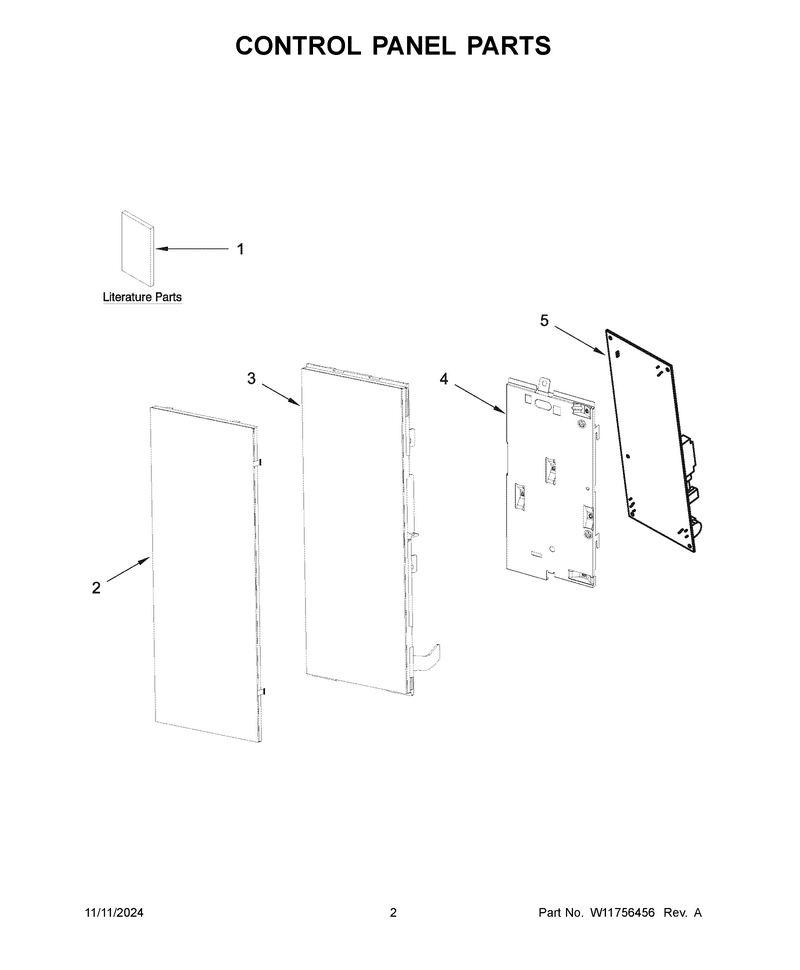

02 - Control Panel Parts

...
...
1
Manual, Owner's WPL-W11702685
...
1B
Sheet, Tech WPL-W11702695
...
1A
Guide, Quick Start WPL-W11702687
...
2
Cover, Console WPL-W11691793
...
3
Housing WPL-W11745179
...
4
Plate WPL-W11745177
...
5
Cntrl-Elec WPL-W11745062

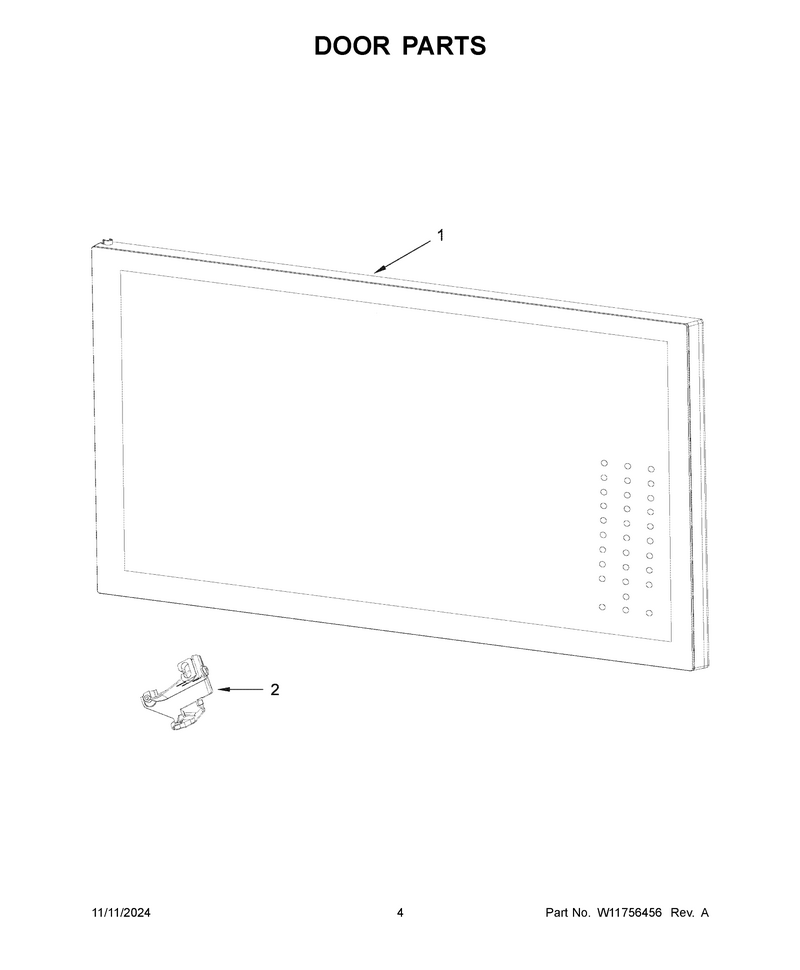

03 - Door Parts

...
...
1
Door, Complete (White) WPL-W11742972
...
1A
Door, Complete (Black) WPL-W11742969
...
1B
Door, Complete (Stainless) WPL-W11742973
...
1C
Door, Complete (Black Stainless) WPL-W11742975
...
2
Holdr-Wire WPL-W11745224

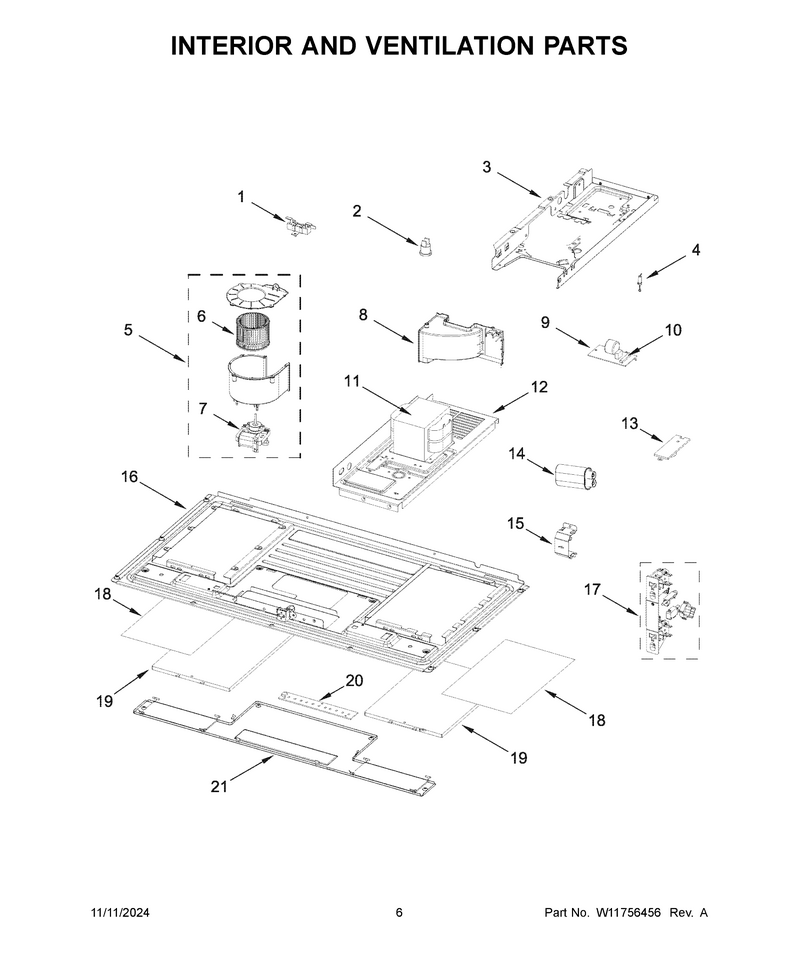

04 - Interior And Ventilation Parts

...
...
1
Resistor, Cement WPL-W11259893
...
2
Thermostat, Cavity WPL-W11378281
...
3
Plate, Chassis WPL-W11440761
...
4
Diode WPL-W11256462
...
5
Motor-Fan WPL-W11662648
...
6
Wheel, Cooling Fan WPL-W11088354
...
7
Motor-Fan WPL-W11443154
...
8
Air Guide, Magnetron WPL-W11088358
...
9
Filter WPL-W11455475
...
10
Fuse-Thrml WPL-W11707984
...
11
Transformr WPL-W11745058
...
12
Chassis, Transformer WPL-W11164809
...
13
Thermistor, Pcba WPL-W10536989
...
14
Capactr-Mg WPL-W11213318
...
15
Bracket, Capacitor WPL-W11095808
...
16
Base WPL-W11745219
...
17
Interlock WPL-W11743211
...
18
Filter WPL-W11745046
...
19
Filter WPL-W11745049
...
20
Light WPL-W11745228
...
21
Assembly, Glass Holder WPL-W11742966

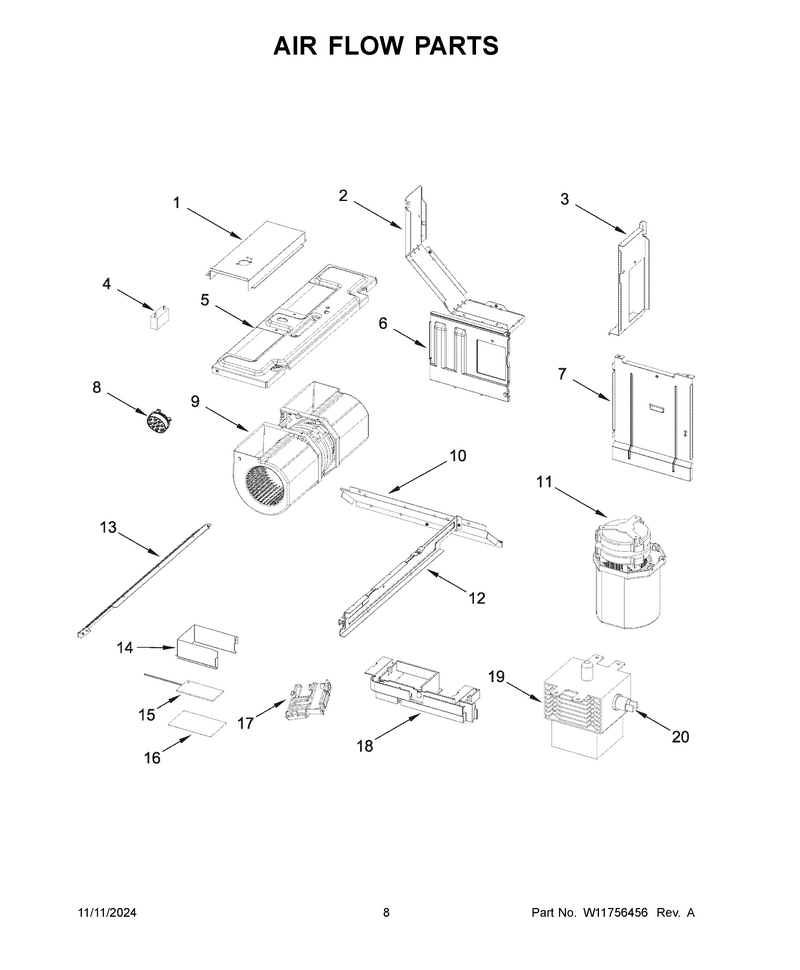

05 - Air Flow Parts

...
...
1
Outlet, Cavity (Back) WPL-W11095818
...
2
Air Deflector, Right WPL-W11095827
...
3
Outlet Deflector, Right WPL-W11095824
...
4
Capacitor, Hood Motor WPL-W11405832
...
5
Chassis, Fan WPL-W11086272
...
6
Deflctr-Ar WPL-W11745059
...
7
Hood Deflector, Right WPL-W11095804
...
8
Sensor, Humidity WPL-W10557536
...
9
Motor-Fan WPL-W11712433
...
10
Hood Deflector, Back WPL-W11096432
...
11
Motor-Fan WPL-W11213353
...
12
Divider, Air WPL-W11095814
...
13
Air Guide, Left WPL-W11095830
...
14
Housing, Cavity Lighting WPL-W11086300
...
15
Light WPL-W11443139
...
16
Foil, Lamp WPL-W11186948
...
17
Base, Cavity Lighting WPL-W11098921
...
18
Holder, Wire WPL-W11099491
...
19
Magnetron WPL-W11402082
...
20
Thrmst-Fix WPL-W11443128

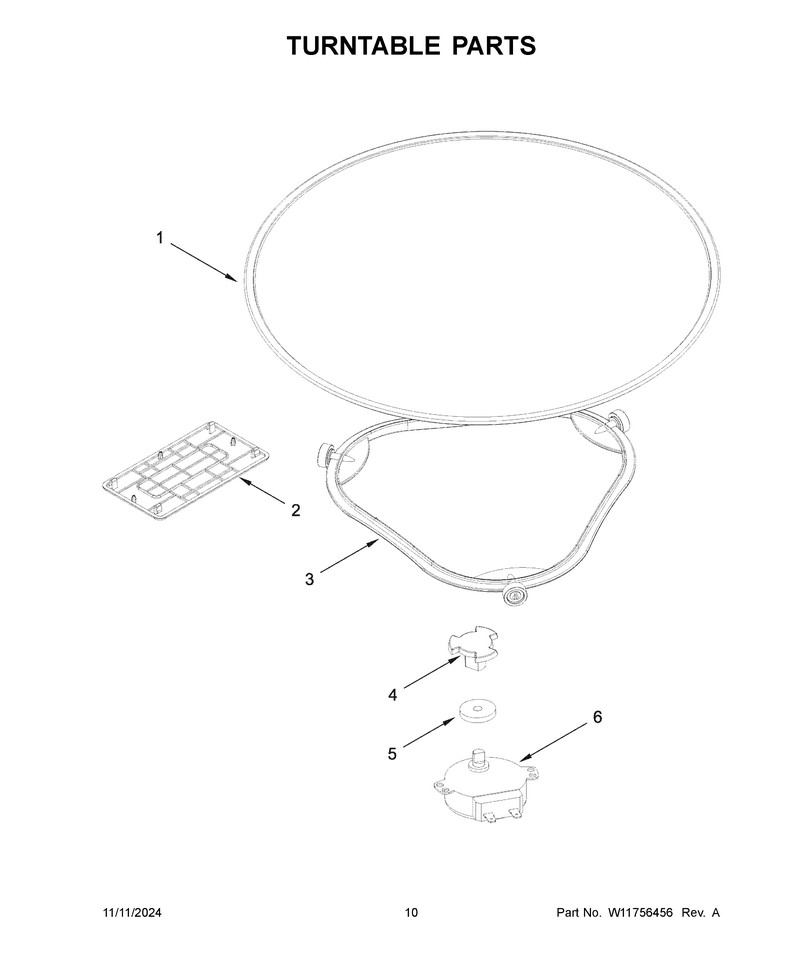

06 - Turntable Parts

...
...
1
Tray-Cook WPL-W11443145
...
2
Cover, Waveguide WPL-W11421280
...
3
Ring-Turn WPL-W11443144
...
4
Support WPL-W11452278
...
5
Seal, Waterproof WPL-8184109
...
6
Motor-Turn WPL-WPW10466420

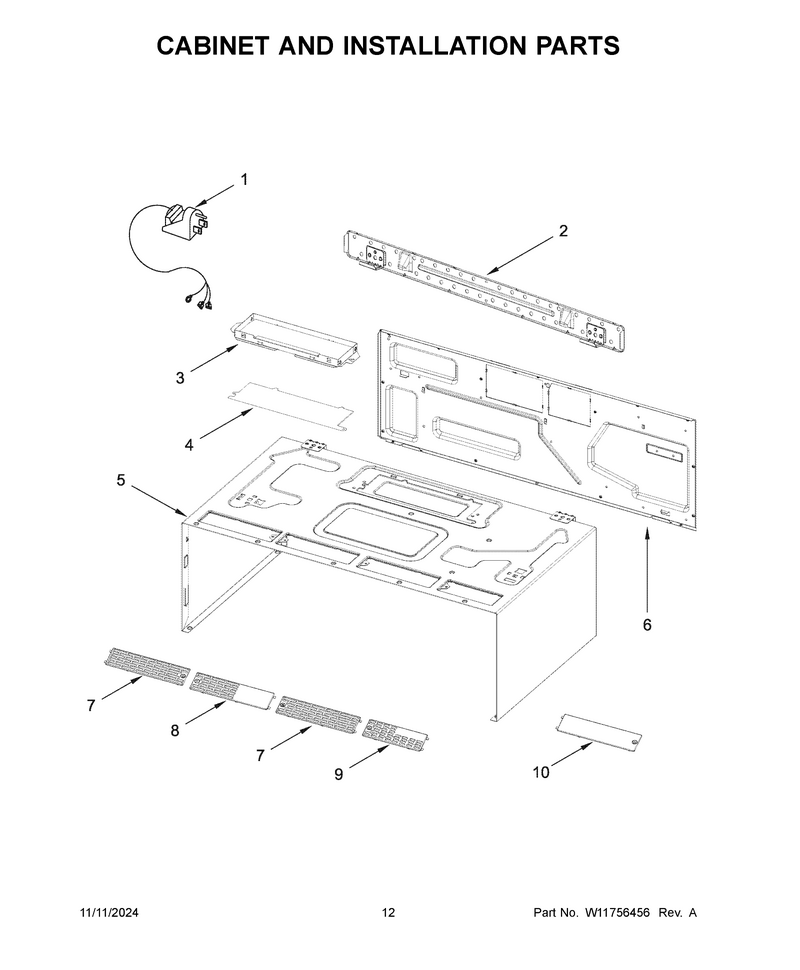

07 - Cabinet And Installation Parts

...
...
NI
Harns-Wire WPL-W11707572
...
1
Cord, Power WPL-W11187358
...
2
Plate, Mounting WPL-W11025649
...
3
Damper WPL-W10843943
...
4
Cover, Exhaust (White) WPL-W11165209
...
4A
Cover, Exhaust (Black) WPL-W11127064
...
5
Case, Outer (White) WPL-W11475334
...
5A
Case, Outer (Black) WPL-W11475330
...
6
Backplate, Oven WPL-W11360416
...
7
Grille, Vent (Long) (Stainless) WPL-W11086309
...
8
Grille, Vent (Light Access) (Stainless) WPL-W11095781
...
9
Grille, Vent (Short) (Stainless) WPL-W11086310
...
10
Grill-Vent WPL-W11397086
