Whirlpool WML75011HW11

Model: WML75011HW11

Save Part Not Listed?
product name

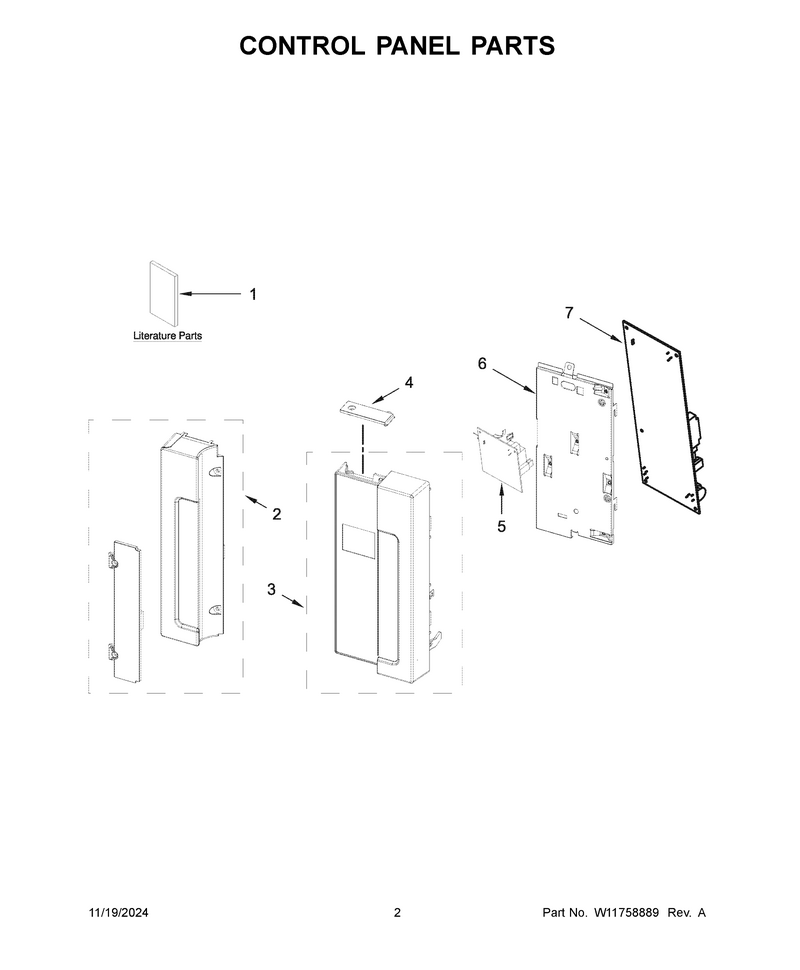

02 - Control Panel Parts

...
...
1
Installation Instructions WPL-W11199606
...
1B
Tech Sheet WPL-W11398326
...
1A
Use And Care Guide WPL-W11236923
...
2
Control Panel, Left (White) WPL-W11219784
...
2C
Control Panel, Left (Black Stainless) WPL-W11220416
...
2A
Control Panel, Left (Black) WPL-W11220414
...
2B
Control Panel, Left (Stainless) WPL-W11220415
...
3
Control Panel, Right (White) WPL-W11206892
...
3A
Control Panel, Right (Black) WPL-W11206894
...
3B
Control Panel, Right (Stainless) WPL-W11206891
...
3C
Control Panel, Right (Black Stainless) WPL-W11206895
...
4
Cover, Top (White) WPL-W11109987
...
4A
Cover, Top (Black) WPL-W11083285
...
5
Cntrl-Elec WPL-W11482052
...
6
Backer, Control WPL-W11083284
...
7
Pcba, Appliance Control Unit WPL-W11416373

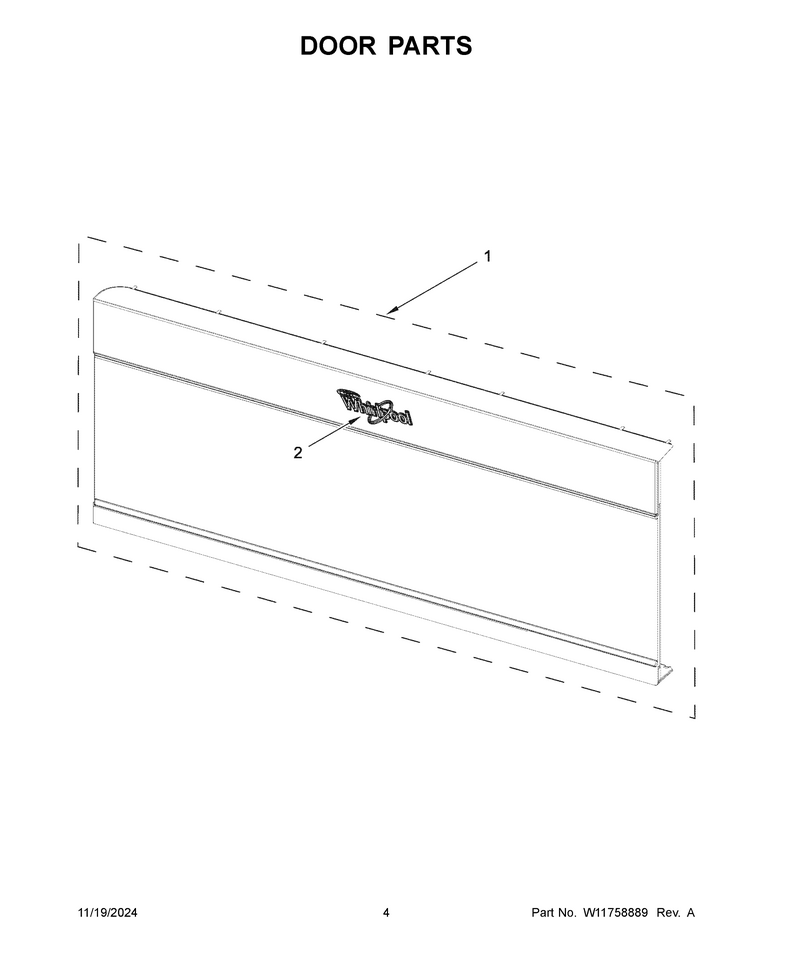

03 - Door Parts

...
...
1
Door, Complete (White) WPL-W11206886
...
1A
Door, Complete (Black) WPL-W11206887
...
1B
Door, Complete (Stainless) WPL-W11206888
...
1C
Door, Complete (Black Stainless) WPL-W11206889
...
2
Nameplate WPL-W11178521

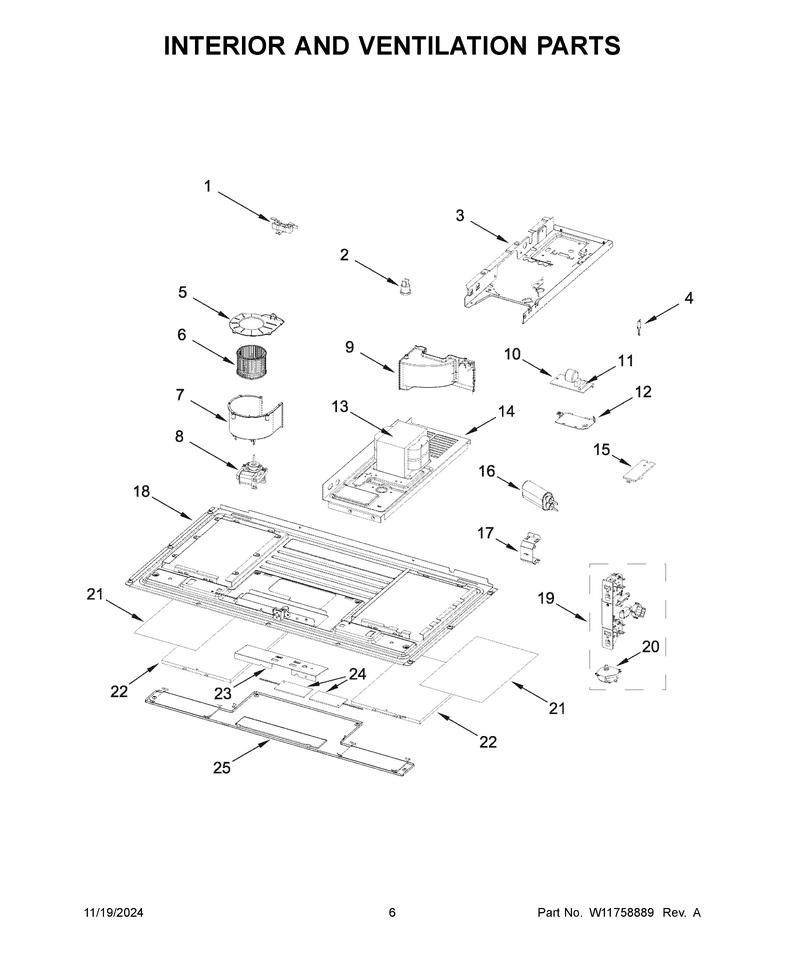

04 - Interior And Ventilation Parts

...
...
1
Resistor, Cement WPL-W11259893
...
2
Thermostat, Cavity WPL-W11509005
...
3
Plate, Chassis WPL-W11440761
...
4
Diode WPL-W11256462
...
5
Cover-Fan WPL-W11752349
...
6
Wheel, Cooling Fan WPL-W11088354
...
7
Housing WPL-W11213349
...
8
Motor-Fan WPL-W11443154
...
9
Air Guide, Magnetron WPL-W11088358
...
10
Filter WPL-WPW10531156
...
11
Fuse-Thrml WPL-W11707984
...
12
Bracket, Noise Filter WPL-W10313274
...
13
Transformr WPL-W11745058
...
14
Chassis, Transformer WPL-W11164809
...
15
Thermistor, Pcba WPL-W10536989
...
16
Capactr-Mg WPL-W10850446
...
17
Bracket, Capacitor WPL-W11095808
...
18
Plate, Bottom WPL-W11159942
...
19
Interlock WPL-W11497298
...
20
Motor-Turn WPL-W11545873
...
21
Filter WPL-W11322423
...
22
Filter WPL-W11213913
...
23
Reflector, Lamp WPL-W11086295
...
24
Light WPL-W11443139
...
25
Assembly, Glass Holder WPL-W11206153

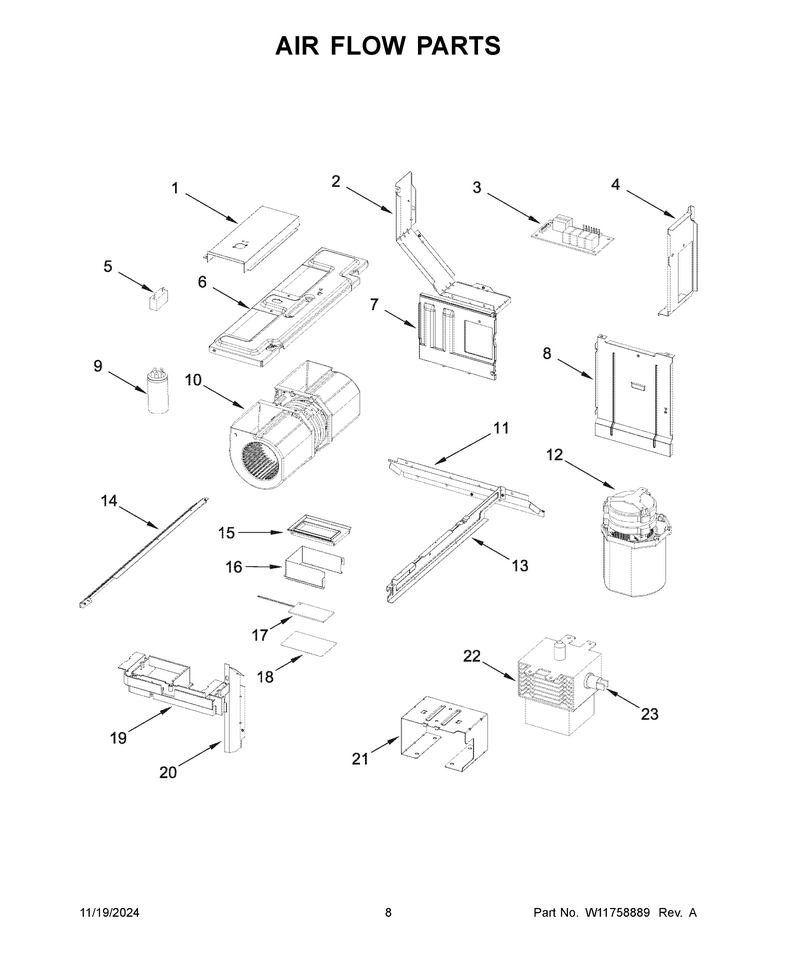

05 - Air Flow Parts

...
...
1
Outlet, Cavity (Back) WPL-W11095818
...
2
Air Deflector, Right WPL-W11095827
...
3
Pcba, Hood Control WPL-W11133802
...
4
Outlet Deflector, Right WPL-W11095824
...
5
Capacitor, Hood Motor WPL-W11405832
...
6
Chassis, Fan WPL-W11086272
...
7
Deflector, Cooling Fan WPL-W11095794
...
8
Hood Deflector, Right WPL-W11095804
...
9
Sensor, Humidity WPL-W10557536
...
10
Motor-Fan WPL-W11712433
...
11
Hood Deflector, Back WPL-W11096432
...
12
Motor-Fan WPL-W11213353
...
13
Divider, Air WPL-W11095814
...
14
Air Guide, Left WPL-W11095830
...
15
Seal, Lighting WPL-W11405836
...
16
Housing, Cavity Lighting WPL-W11086300
...
17
Light WPL-W11443139
...
18
Foil, Lamp WPL-W11186948
...
19
Holder, Wire WPL-W11099491
...
20
Channel, Hood Back WPL-W11095828
...
21
Housing WPL-W11518459
...
22
Magnetron WPL-W11402082
...
23
Thermostat, Magnetron WPL-W11509004

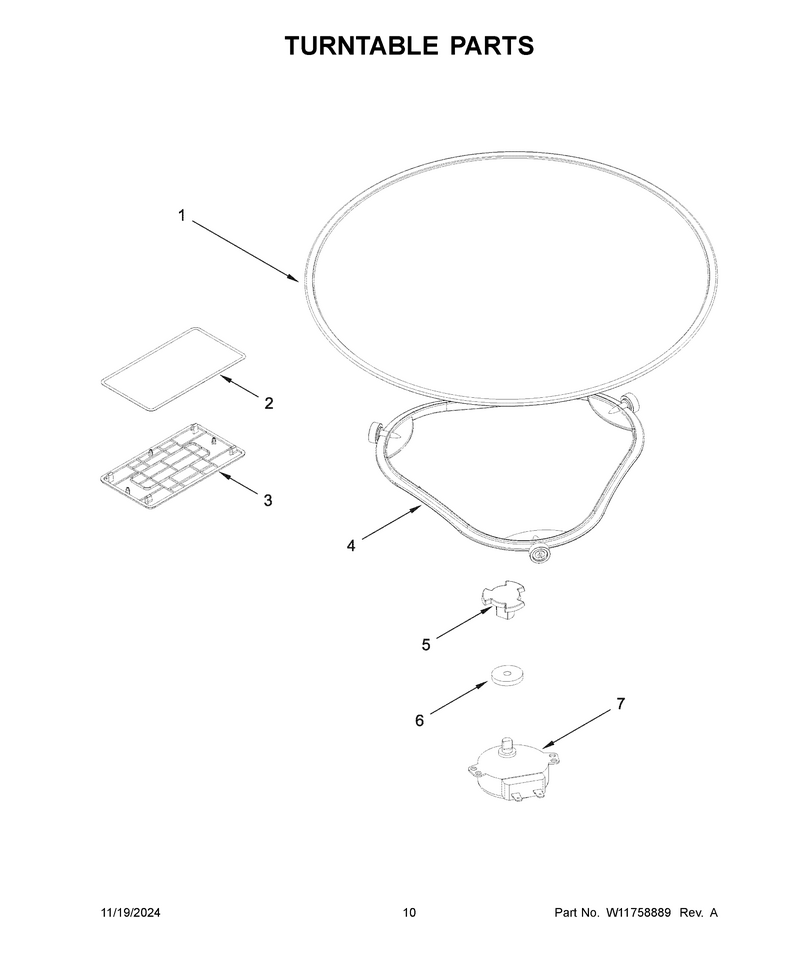

06 - Turntable Parts

...
...
1
Tray-Cook WPL-W11443145
...
2
Seal, Waveguide WPL-W11126541
...
3
Cover, Waveguide WPL-W11421280
...
4
Ring-Turn WPL-W11443144
...
5
Support WPL-W11452278
...
6
Seal, Waterproof WPL-W11096347
...
7
Motor-Turn WPL-WPW10466420

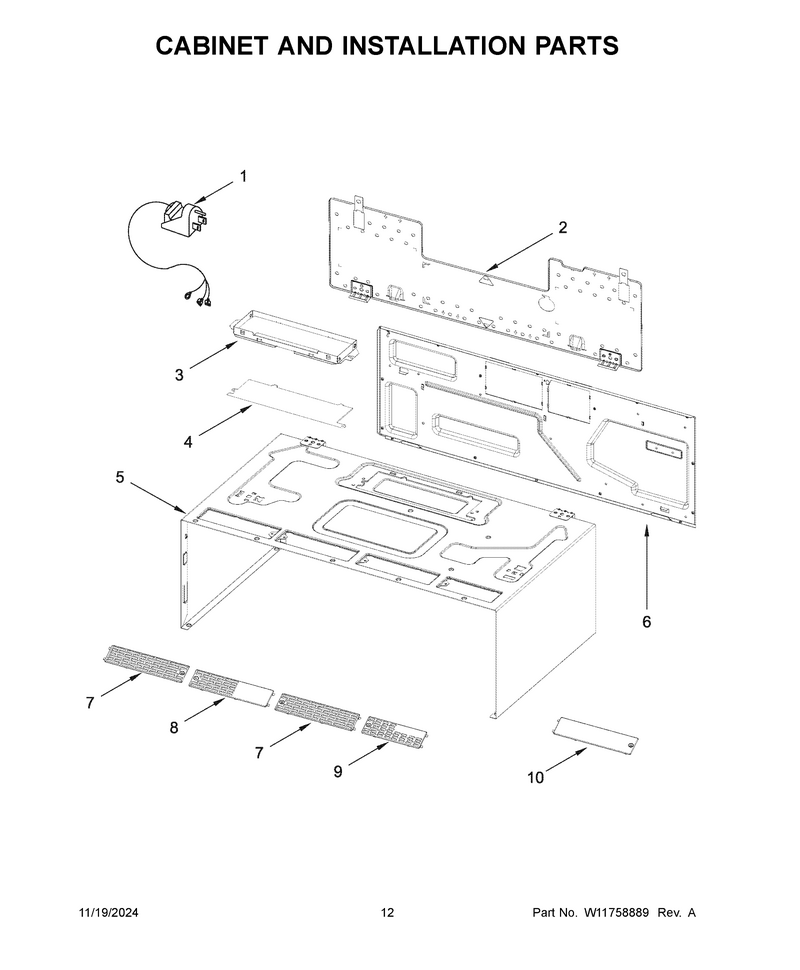

07 - Cabinet And Installation Parts

...
...
NI
Harness, Door Motor Signal WPL-W11479911
...
1
Cord, Power WPL-W11187358
...
2
Plate-Mtng WPL-W11368557
...
3
Damper WPL-W10843943
...
4
Cover, Exhaust (White) WPL-W11165209
...
4B
Cover, Exhaust (Stainless) WPL-W11165564
...
4A
Cover, Exhaust (Black) WPL-W11127064
...
5
Case, Outer (White) WPL-W11446922
...
5A
Case, Outer (Black) WPL-W11446923
...
5B
Wraper-Cab WPL-W11493413
...
5C
Case, Outer (Black Stainless) WPL-W11446949
...
6
Backplate, Oven WPL-W11360416
...
7
Grille, Vent (Long) (Stainless) WPL-W11086309
...
8
Grille, Vent (Light Access) (Stainless) WPL-W11095781
...
9
Grille, Vent (Short) (Stainless) WPL-W11086310
...
10
Grill-Vent WPL-W11397086
