Whirlpool WML35011KS00

Model: WML35011KS00

Save Part Not Listed?
product name

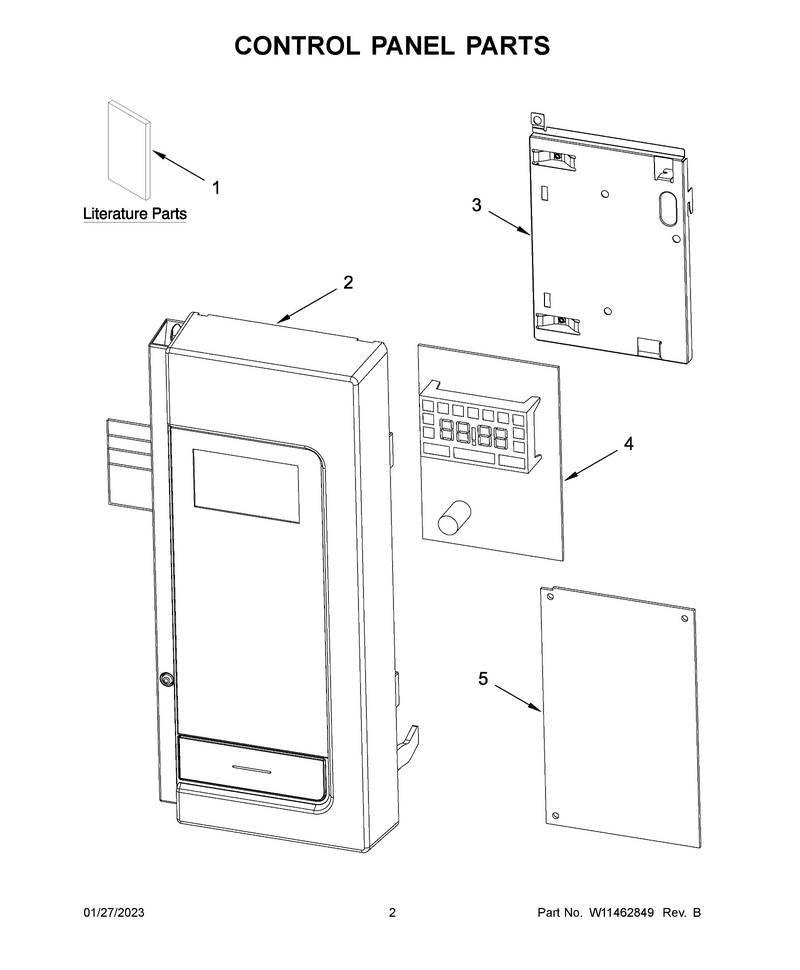

02 - Control Panel Parts

...
...
1
Installation Instructions WPL-W11417679
...
1B
Tech Sheet WPL-W11332389
...
1A
Use And Care Guide WPL-W11332391
...
2
Panel, Control (White) WPL-W11439342
...
2B
Panel, Control (Stainless) WPL-W11439350
...
2A
Panel, Control (Black) WPL-W11439343
...
3
Backer, Control WPL-W11336127
...
4
Cntrl-Elec WPL-W11443136
...
5
Cntrl-Elec WPL-W11443138

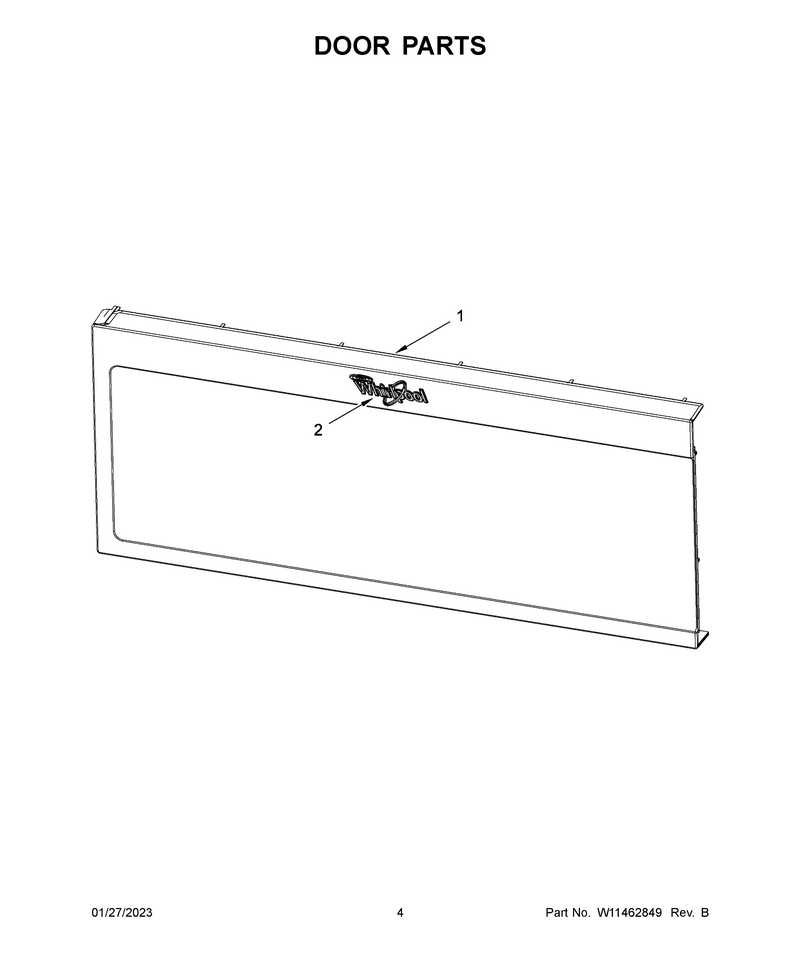

03 - Door Parts

...
...
1
Door, Complete (White) WPL-W11439353
...
1A
Door, Complete (Black) WPL-W11439354
...
1B
Door, Complete (Stainless) WPL-W11439355
...
2
Nameplate WPL-W11178521

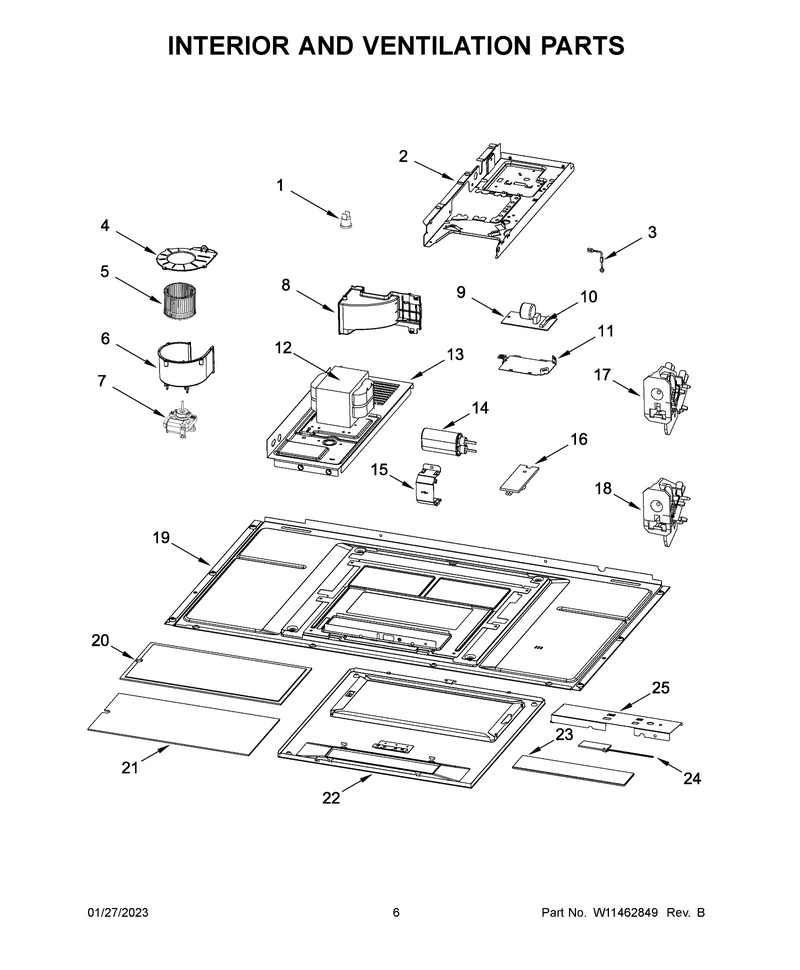

04 - Interior And Ventilation Parts

...
...
1
Thermostat, Cavity WPL-W11378281
...
2
Plate, Chassis WPL-W11440761
...
3
Diode WPL-W11256462
...
4
Cover-Fan WPL-W11752349
...
5
Wheel, Cooling Fan WPL-W11088354
...
6
Housing WPL-W11213349
...
7
Motor-Fan WPL-W11443135
...
8
Air Guide, Magnetron WPL-W11088358
...
9
Filter WPL-WPW10531156
...
10
Fuse-Thrml WPL-W11707984
...
11
Bracket, Noise Filter WPL-W10313274
...
12
Transformr WPL-W11628655
...
13
Chassis, Transformer WPL-W11164809
...
14
Capactr-Mg WPL-W11213318
...
15
Bracket, Capacitor WPL-W11095808
...
16
Thermistor, Pcba WPL-W10536989
...
17
Interlock WPL-W11551558
...
18
Interlock WPL-W11443129
...
19
Plate, Bottom WPL-W11404327
...
20
Filter WPL-W11383755
...
21
Filter WPL-W11443141
...
22
Base WPL-W11443140
...
23
Glass-Lamp WPL-WPW10210875
...
24
Light WPL-W11443139
...
25
Reflector, Lamp WPL-W11086295

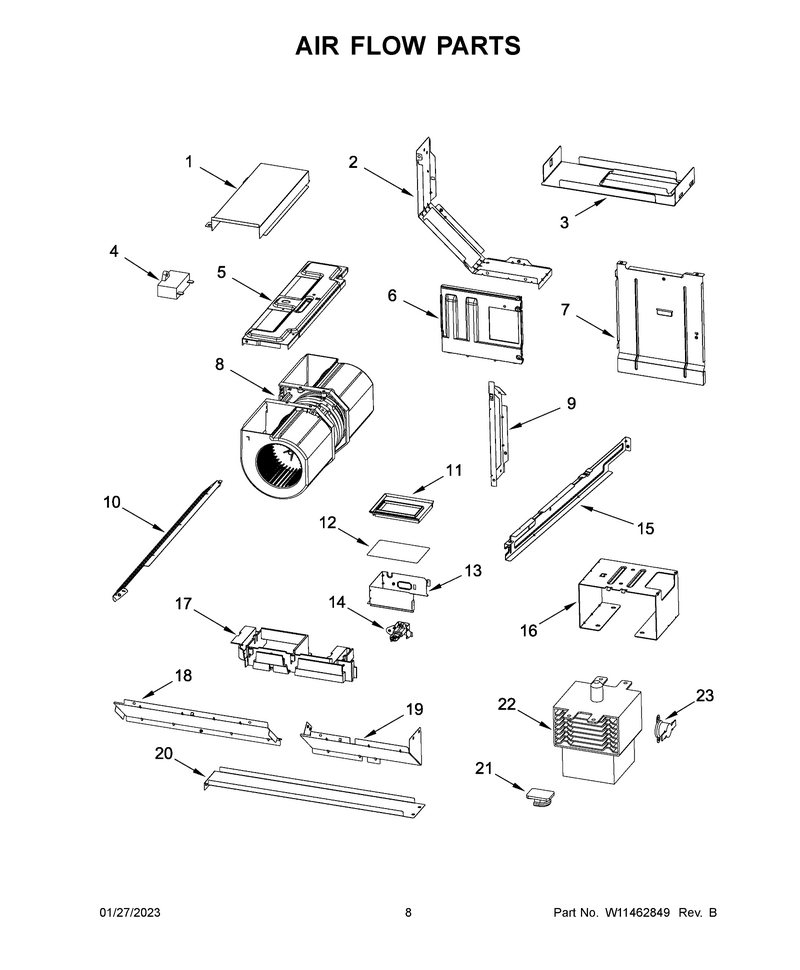

05 - Air Flow Parts

...
...
1
Outlet, Cavity (Back) WPL-W11108230
...
2
Air Deflector, Right WPL-W11332408
...
3
Seal, Waterproof WPL-W11096347
...
4
Capacitor, Motor WPL-W11405831
...
5
Chassis, Fan WPL-W11086272
...
6
Deflector, Cooling Fan WPL-W11095794
...
7
Hood Deflector, Right WPL-W11095804
...
8
Motor, Hood (400 Cfm) WPL-W11373008
...
9
Hood Deflector, Left WPL-W11333183
...
10
Air Guide, Left WPL-W11095830
...
11
Seal, Lighting WPL-W11178702
...
12
Foil, Lamp WPL-W11186948
...
13
Housing, Cavity Lighting WPL-W11086300
...
14
Lamp, Halogen WPL-W10709921
...
15
Divider, Air WPL-W11329307
...
16
Housing, Tranformer WPL-W11323215
...
17
Holder, Wire WPL-W11099491
...
18
Channel, Hood Back WPL-W11095828
...
19
Air Guide, Right WPL-W11320082
...
20
Air Guide, Bottom WPL-W11320075
...
21
Seal, Rubber WPL-W11126543
...
22
Magnetron WPL-W11652048
...
23
Thrmst-Fix WPL-W11443128

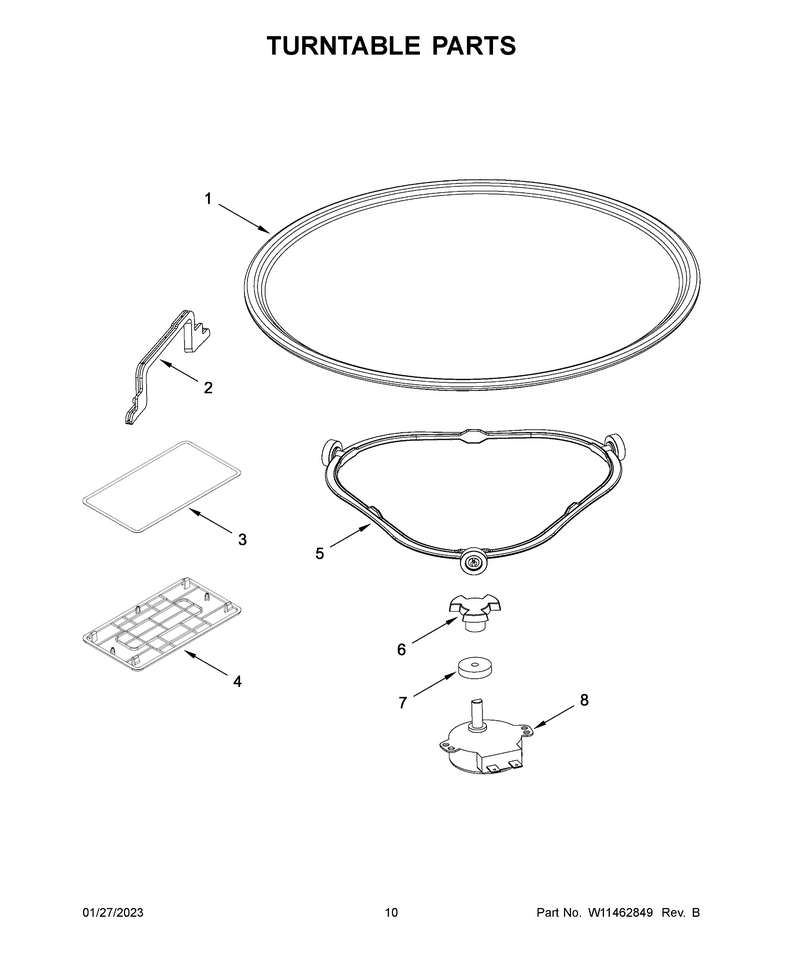

06 - Turntable Parts

...
...
1
Tray-Cook WPL-W11443145
...
2
Seal, Waveguide WPL-W11126541
...
3
Cover, Waveguide (Mica) WPL-W11182993
...
4
Cover, Waveguide WPL-W10533497
...
5
Ring-Turn WPL-W11443144
...
6
Support WPL-W11452278
...
7
Seal, Waterproof WPL-8184109
...
8
Motor-Turn WPL-WPW10466420

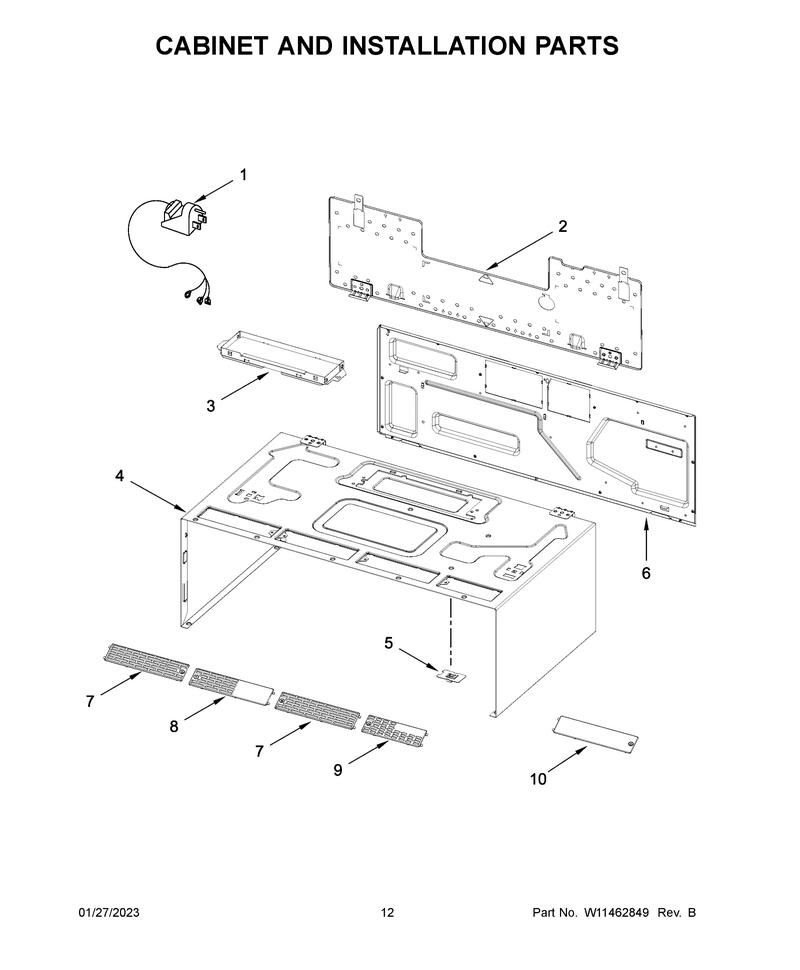

07 - Cabinet And Installation Parts

...
...
NI
Holder, Lamp WPL-W11306551
...
1
Cord, Power WPL-W11187358
...
2
Plate-Mtng WPL-W11368557
...
3
Damper WPL-W10843943
...
4A
Case, Outer (Black) WPL-W11475330
...
4
Case, Outer (White) WPL-W11475334
...
5
Assembly, Mounting Nut WPL-W11122643
...
6
Backplate, Oven WPL-W11360416
...
7
Grille, Vent (Inner Right) (Stainless) WPL-W11086309
...
7A
Grille, Vent (Inner Right) (Stainless) WPL-W11086309
...
8
Grille, Vent (Light Access) (White) WPL-W11164786
...
8A
Grille, Vent (Light Access) (Stainless) WPL-W11095781
...
9
Grille, Vent (Short) (White) WPL-W11164816
...
9A
Grille, Vent (Short) (Black) WPL-W11163562
...
10
Grill-Vent WPL-W11397086
...
10A
Grill-Vent WPL-W11397086
