product name

Whirlpool WMHA9019HN3

Model: WMHA9019HN3

Save Part Not Listed?
product name

02 - Control Panel Parts

...
...
1
Installation Instructions WPL-W11121433
...
1B
Tech Sheet WPL-W11268404
...
1A
Use And Care Guide WPL-W11037926
...
2
Cntrl-Elec WPL-W11493411

03 - Door And Wifi Parts

...
...
1
Door/mw WPL-W11186019
...
1A
Door/mw WPL-W11186013
...
1B
Door/mw WPL-W11186017
...
2
Stopper, Door WPL-W10643448
...
3
Cover, Antenna WPL-W11095741
...
4
Assembly, Wifi Antenna WPL-W11084740
...
5
Housing, Antenna WPL-W11095740

04 - Interior And Ventilation Parts

...
...
1
Chassis WPL-W11042336
...
2
Lamp, Halogen WPL-W10709921
...
3
Bracket, Smart Pop WPL-W10525853
...
4
Filter, Grease WPL-W10535950
...
5
Plate, Bottom WPL-W10571126
...
6
Assembly, Lamp Glass And Holder WPL-W10240330
...
7
Spacer, Smart Pop WPL-W10510237
...
8
Following Parts Not Illustrated WPL-N/P
...
9
Interlock WPL-W11197766
...
10
Insulation, Side WPL-W10571453
...
11
Deflector, Air WPL-W10533107
...
12
Actuator WPL-W10458325
...
13
Holder, Ntc WPL-W10533480
...
14
Capacitor, Motor WPL-W11405831
...
15
Thermistor, Pcba WPL-W10536989
...
16
Tube, Smart Pop Sound WPL-W10510235
...
17
Terminal, Smart Pop WPL-W10510234
...
18
Resistor, Cement WPL-W11259891
...
19
Cover, Cooling Fan WPL-W10533502
...
20
Bracket, Cavity WPL-W10540718
...
21
Thermostat WPL-W11051821
...
22
Housing, Cooling Fan WPL-W10533501
...
23
Transformer, High Voltage WPL-W11465624
...
24
Bracket, Capacitor WPL-W10633730
...
25
Capacitor, High Voltage WPL-W10561770
...
26
Diode WPL-W11256462
...
27
Terminal, Pcba Smart Pop WPL-W10510233
...
28
Cover, Thermostat WPL-W10259248
...
29
Thermostat, Convection WPL-W11268275
...
30
Clip WPL-8206223
...
31
Cntrl-Elec WPL-W11416049
...
32
Air Guide, Magnetron WPL-W10631701
...
33
Motor-Fan WPL-W11230994
...
34
Wheel, Cooling Fan WPL-W10533503
...
35
Valve, Door WPL-W10533486

05 - Air Flow Parts

...
...
1
Deflector, Air WPL-W10631698
...
2
Cover, Lamp WPL-8206382
...
3
Sensor, Humidity WPL-W10557536
...
4
Bulb-Light WPL-8206232A
...
5
Plate, Air Guide WPL-W10533487
...
6
Motor-Fan WPL-W11613599
...
7
Housing, Damper WPL-W10712444
...
8
Filter WPL-8206230A
...
9
Seal, Foam WPL-W10571180
...
10
Thrmst-Fix WPL-W11661583
...
11
Sensor, Convection WPL-W10557537
...
12
Housng-Lmp WPL-WPW10210878
...
13
Baseplate, Air Guide WPL-W11382018
...
14
Cover, Right Duct WPL-W11293488
...
15
Filter WPL-WPW10531156
...
16
Socket, Motor Wire WPL-W10810142
...
17
Outlet, Cavity (Back) WPL-W10533112
...
18
Magnetron WPL-W11230995
...
19
Duct, Cavity (Rear) WPL-W10533483
...
20
Duct, Cavity (Front) WPL-W10570209
...
21
Shield, Finger (Includes Seal) WPL-W10629803
...
22
Glass, Lamp WPL-W10531724
...
23
Assembly, Air Guide Grill WPL-W10758886
...
24
Fuse-Thrml WPL-W11707984
...
25
Thrmst-Fix WPL-W11553234

06 - Turntable Parts

...
...
1
Covr-Inlet WPL-W11662373
...
2
Hook, Microwave (Left Front And Right Front) WPL-W10740485
...
3
Accessories, Steamer, Microwave WPL-8205262RB
...
4
Tray-Cook WPL-W11402532
...
5
Ring, Turntable WPL-W10679313
...
6
Driver, Turntable WPL-W10337248
...
7
Motor-Turn WPL-WPW10466420
...
8
Rack WPL-W10860255
...
9
Seal, Waterproof WPL-8184109
...
10
Rack, Convection WPL-W10440082
...
11
Seal, Turntable Block WPL-W10568148
...
12
Hook, Microwave (Left Rear & Right Rear) WPL-W10573936

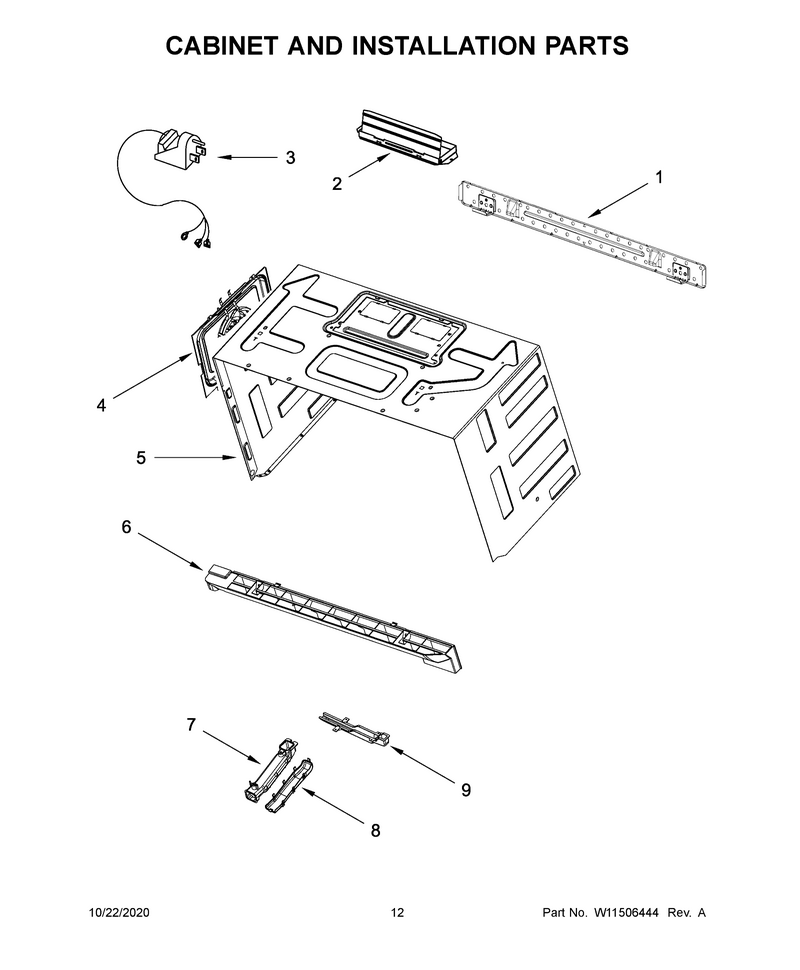

07 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Cable, Door Control WPL-W10902490
...
1
Plate, Mounting WPL-W11025649
...
2
Damper WPL-W10843943
...
3
Cord, Power WPL-W10708076
...
4
Chamber WPL-WPW10571554
...
5
Wraper-Cab WPL-W11662678
...
6
Grille, Vent (Black) WPL-W10701701
...
7
Duct, Cooling (Upper) WPL-W10740434
...
8
Duct, Cooling (Bottom) WPL-W10533489
...
9
Air Duct, Turntable Motor WPL-W10570212
