product name

Whirlpool WMH32519HV6

Model: WMH32519HV6

Save Part Not Listed?
product name

02 - Control Panel Parts

...
...
1
Installation Instructions WPL-W11401886
...
1C
Tech Sheet WPL-W11279376
...
1A
Guide, Use And Care WPL-W10918342
...
1B
Guide, Quick Reference WPL-W11265252
...
2A
Panl-Cntrl WPL-W11184553
...
2
Panl-Cntrl WPL-W11184551
...
3
Backer, Control WPL-W10833366
...
4
Seal, Control WPL-W10833531
...
5
Cntrl-Elec WPL-W11342846
...
6
Cntrl-Elec WPL-W11333816

03 - Door Parts

...
...
1
Complete Door (Stainless) WPL-W11173823
...
1A
Complete Door (Black Stainless) WPL-W11179903
...
2
Handle (Stainless) WPL-W11102990
...
2A
Handle (Black Stainless) WPL-W11305126
...
3
Spacer, Handle WPL-W10840544
...
4
Nameplate WPL-W11178521

04 - Interior And Ventilation Parts

...
...
1
Bracket, Top Cavity WPL-W10313275
...
2
Bulb-Light WPL-8206232A
...
3
Holder, Lamp WPL-W10210871
...
4
Filter WPL-W10208631A
...
5
Plate, Bottom WPL-W10245196
...
6
Interlock WPL-W11551558
...
7
Assembly, Lamp Glass And Holder WPL-W10240330
...
8
Following Parts Not Illustrated WPL-N/P
...
9
Spring, Interlock WPL-W10156812
...
10
Plate, Cam WPL-W10562613
...
11
Interlock WPL-WP8206419
...
11A
Interlock WPL-WPW10156813
...
12
Capacitor, Hood Motor WPL-W11405832
...
13
Thermistor WPL-W10163422
...
14
Seal, Cooling WPL-W10571179
...
15
Cover-Side WPL-W11302941
...
16
Interlock WPL-W11551761
...
17
Chassis WPL-W10827115
...
18
Support, Ntc WPL-W10904020
...
19
Thermostat, Cavity WPL-W11224856
...
20
Transformr WPL-W11493408
...
21
Bracket, Capacitor WPL-W10532063
...
22
Capactr-Mg WPL-W11678970
...
23
Diode WPL-W11256462

05 - Air Flow Parts

...
...
1
Deflector, Air WPL-W10471570
...
2
Cover, Lamp WPL-8206382
...
3
Bulb-Light WPL-8206232A
...
4
Plate, Waterproof WPL-W11381953
...
5
Motor-Fan WPL-W11441128
...
6
Plate, Air Guide Sealing WPL-W10827799
...
7
Filter WPL-W10892387
...
8
Guide, Air WPL-W10845672
...
9
Plate, Right Sealing WPL-W10828079
...
10
Filter WPL-WPW10531156
...
11
Housng-Lmp WPL-WPW10210878
...
12
Baseplate, Air Guide WPL-W10828030
...
13
Shield, Finger WPL-W10342991
...
14
Socket, Motor Wire WPL-W10810142
...
15
Magnetron WPL-WPW10693025
...
16
Thermostat, Magnetron WPL-W11224803
...
17
Cover, Airguide Inlet WPL-W10828038
...
18
Sensor WPL-W11590866
...
19
Fuse-Thrml WPL-W11707984

06 - Turntable Parts

...
...
1
Cover, Waveguide WPL-W10313272
...
2
Seal, Waterproof WPL-8184109
...
3
Tray-Cook WPL-W11367904
...
4
Ring-Turn WPL-W11252182
...
5
Support WPL-W11245707
...
6
Motor, Turntable WPL-W10642989
...
7
Rack WPL-W10803366
...
8
Support WPL-W10840759
...
9
Support WPL-W10840794
...
10
Support WPL-W10840795

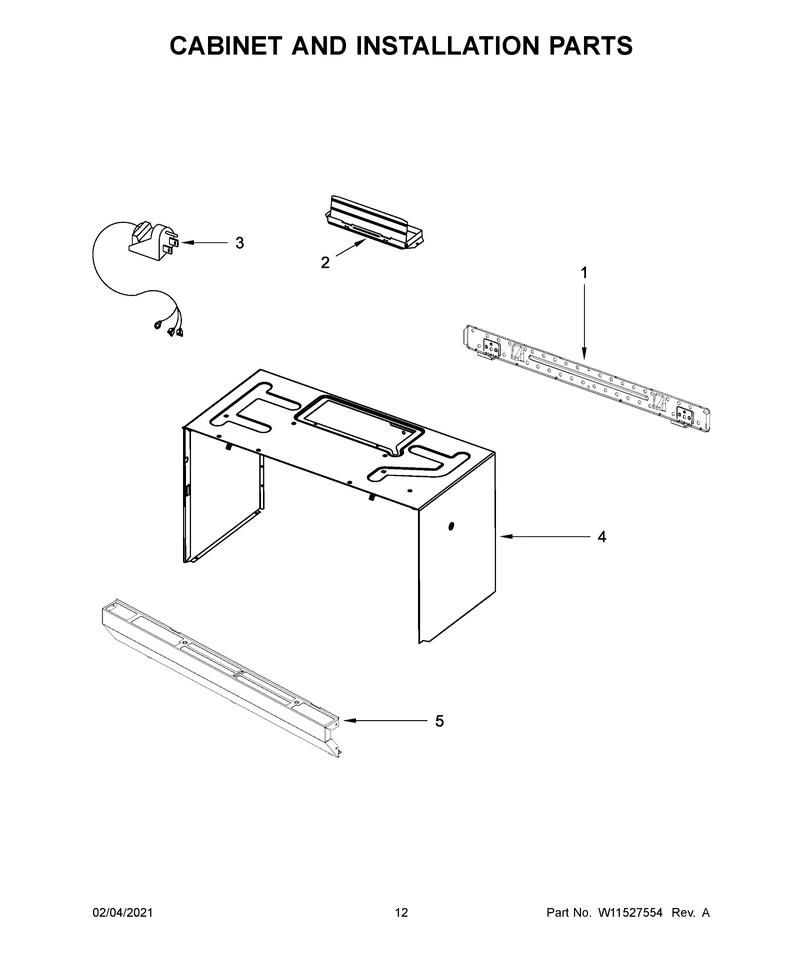

07 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Harness, Humidity Sensor WPL-W11638850
...
1
Plate, Mounting WPL-W11025649
...
2
Damper WPL-W10843943
...
3
Cord, Power WPL-W10708076
...
4
Case, Outer (Black) WPL-W11446916
...
5
Grille, Vent (Black) WPL-W10845643
