Whirlpool WMH32519HT08

Model: WMH32519HT08

Save Part Not Listed?
product name

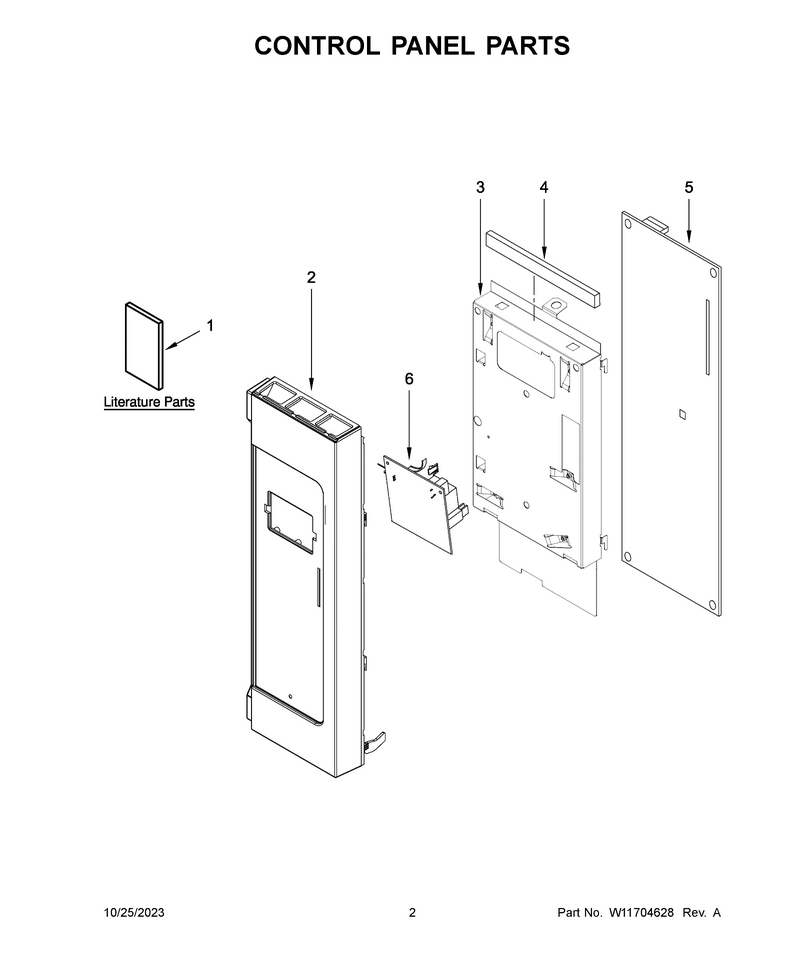

02 - Control Panel Parts

...
...
1
Instructions, Installation WPL-W11496338
...
1C
Sheet, Tech WPL-W11521900
...
1A
Guide, Use And Care WPL-W10918342
...
1B
Guide, Quick Reference WPL-W11265252
...
2A
Panl-Cntrl WPL-W11256449
...
2B
Panl-Cntrl WPL-W11256451
...
2
Panl-Cntrl WPL-W11256450
...
3
Backer, Control WPL-W10833366
...
4
Seal-Foam WPL-W11685342
...
5
Cntrl-Elec WPL-W11342846
...
6
Cntrl-Elec WPL-W11333816

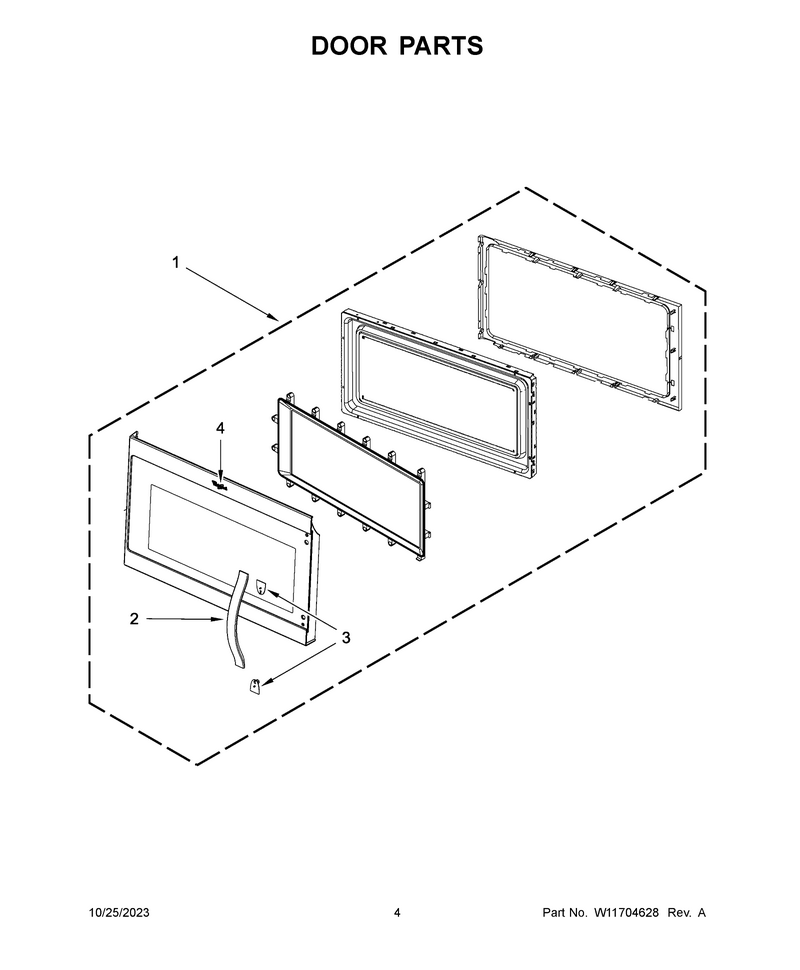

03 - Door Parts

...
...
1A
Complete Door (Black) WPL-W11247223
...
1B
Complete Door (Biscuit) WPL-W11247375
...
1
Complete Door (White) WPL-W11247220
...
2
Handle (White) WPL-W11305129
...
2A
Handle (Black) WPL-W11305127
...
2B
Handle (Biscuit) WPL-W11322772
...
3
Spacer, Handle WPL-W10840544
...
4
Nameplate WPL-W11178521

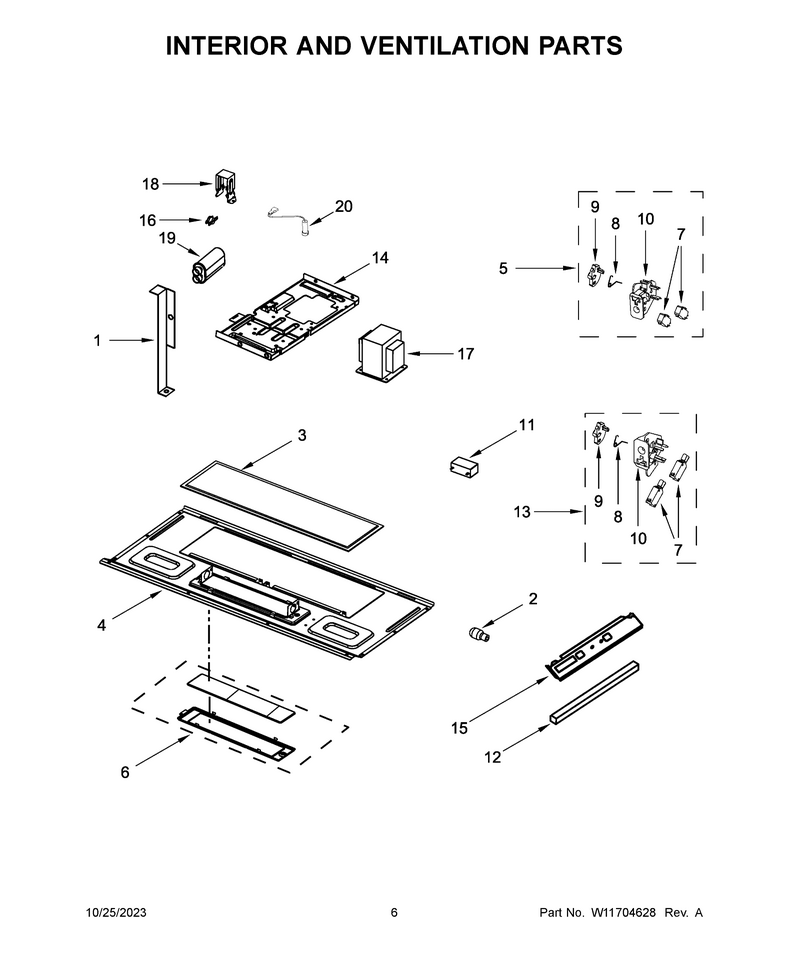

04 - Interior And Ventilation Parts

...
...
1
Bracket, Top Cavity WPL-W10313275
...
2
Lamp, Halogen WPL-W11520384
...
3
Filter WPL-W10208631A
...
4
Plate, Bottom WPL-W11450485
...
5
Interlock WPL-W11551558
...
6
Assembly, Lamp Glass And Holder WPL-W10240330
...
7
Switches, Interlock (Not Serviced, Order Interlock Assemblies) WPL---
...
8
Spring, Interlock WPL-W10156812
...
9
Plate, Cam WPL-W10562613
...
10
Interlock WPL-WP8206419
...
10A
Interlock WPL-WPW10156813
...
11
Capacitor, Hood Motor WPL-W11405830
...
12
Seal, Cooling WPL-W10571179
...
13
Interlock WPL-W11551761
...
14
Chassis WPL-W11520831
...
15
Support, Ntc WPL-W11521327
...
16
Thrmst-Fix WPL-W11574181
...
17
Transformr WPL-W11493408
...
18
Bracket, Capacitor WPL-W10532063
...
19
Capactr-Mg WPL-W11678970
...
20
Diode WPL-W11256462

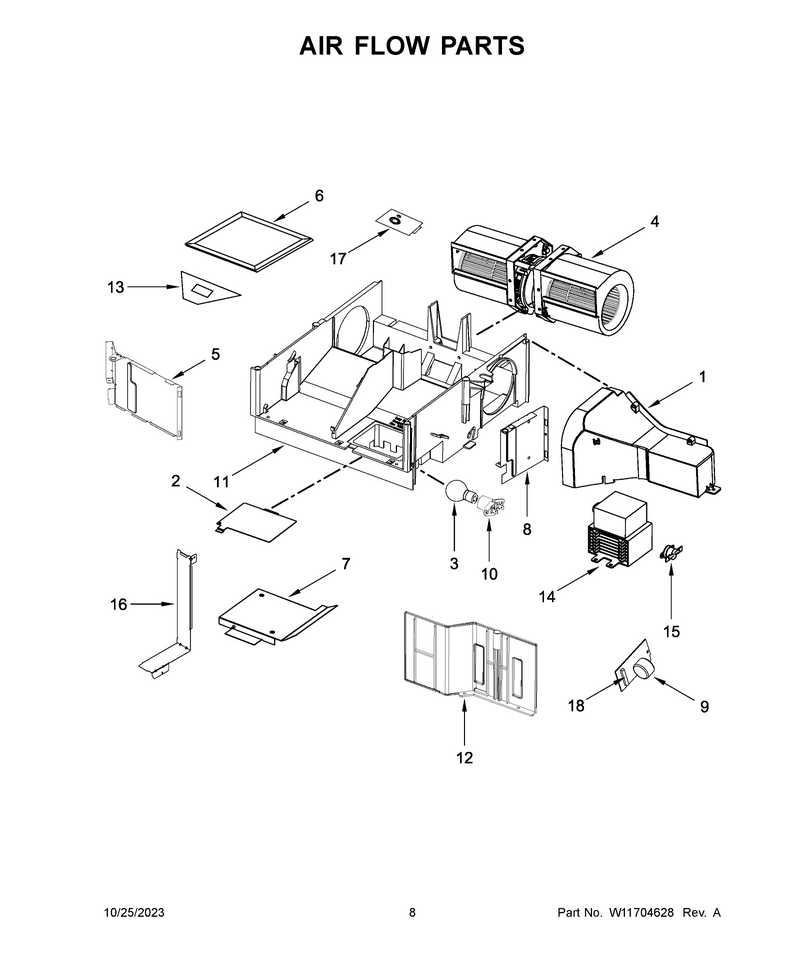

05 - Air Flow Parts

...
...
1
Deflector, Air WPL-W10471570
...
2
Cover, Lamp WPL-8206382
...
3
Lamp-Asm WPL-W11574182
...
4
Motor-Fan WPL-W11441128
...
5
Plate, Air Guide Sealing WPL-W10827799
...
6
Filter WPL-W10892387
...
7
Guide, Air WPL-W10845672
...
8
Plate, Right Sealing WPL-W10828079
...
9
Filter WPL-WPW10531156
...
10
Housng-Lmp WPL-WPW10210878
...
11
Baseplate, Air Guide WPL-W10828030
...
12
Shield, Finger WPL-W11520832
...
13
Socket, Motor Wire WPL-W10810142
...
14
Magnetron WPL-W10754299
...
15
Thermostat, Magnetron WPL-W10832024
...
16
Cover, Airguide Inlet WPL-W10828038
...
17
Sensor WPL-W11590866
...
18
Fuse-Thrml WPL-W11707984

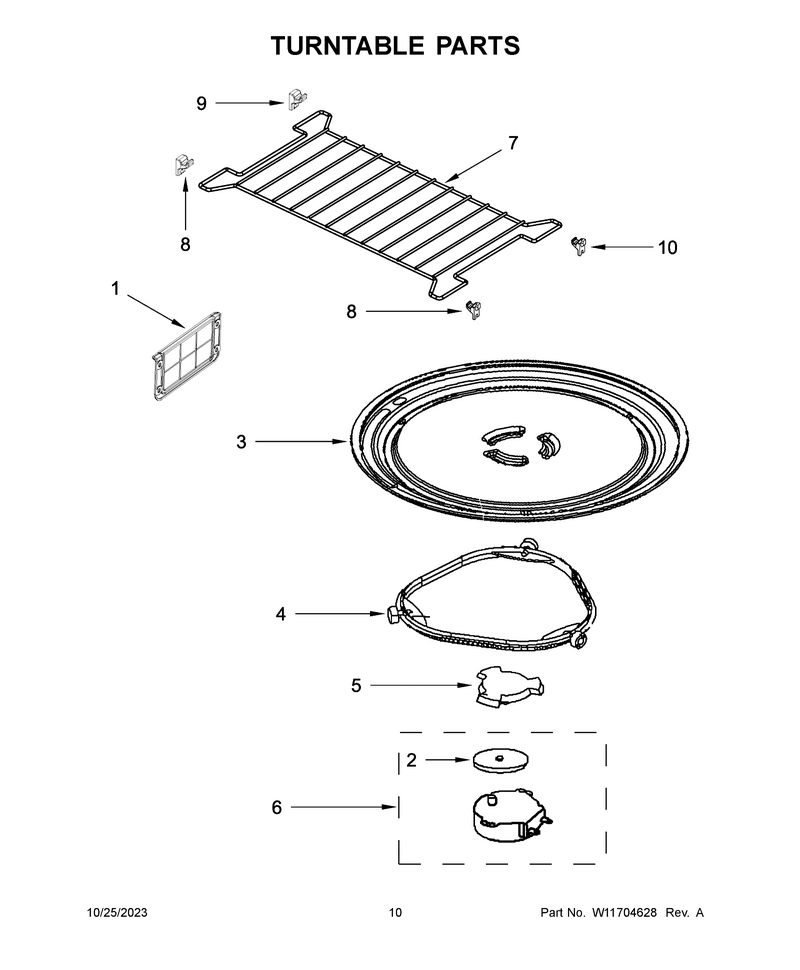

06 - Turntable Parts

...
...
1
Cover, Waveguide WPL-W10313272
...
2
Seal, Waterproof WPL-8184109
...
3
Tray-Cook WPL-W11367904
...
4
Ring-Turn WPL-W11252182
...
5
Support WPL-W11245707
...
6
Motor, Turntable WPL-W10642989
...
7
Rack WPL-W10803366
...
8
Support WPL-W10840759
...
9
Support WPL-W10840794
...
10
Support WPL-W10840795

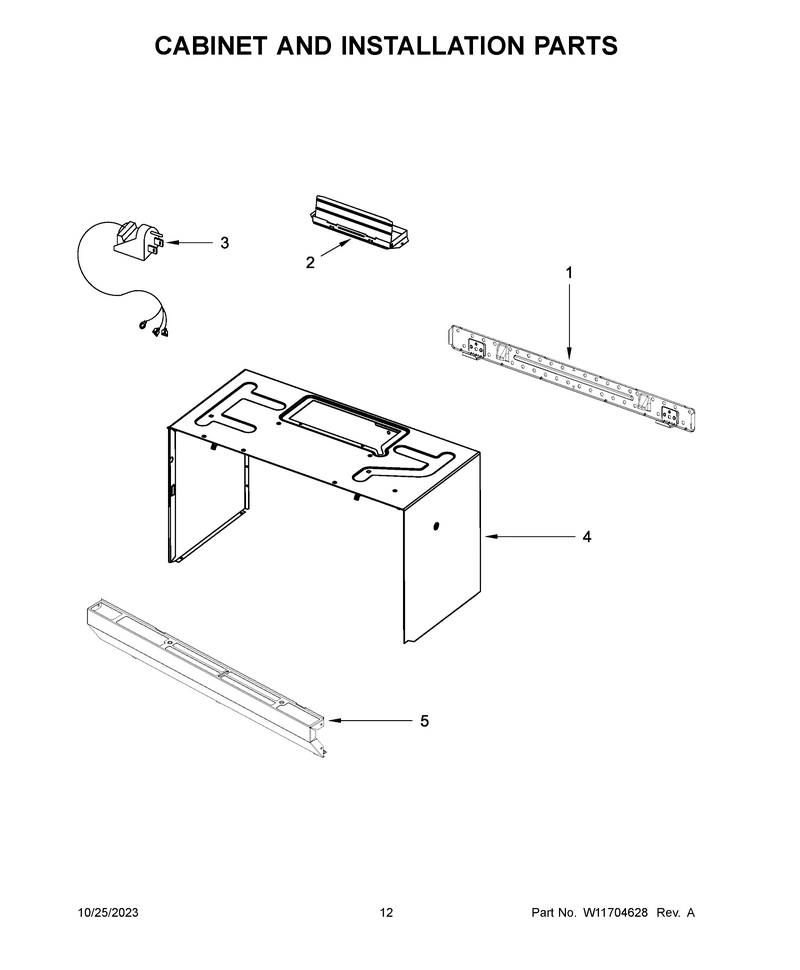

07 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Harness, Humidity Sensor WPL-W11638850
...
1
Plate, Mounting WPL-W11025649
...
2
Damper WPL-W10843943
...
3
Cord, Power WPL-W10708076
...
4
Case, Outer (White) WPL-W11446917
...
4A
Case, Outer (Black) WPL-W11446916
...
4B
Case, Outer (Biscuit) WPL-W11446918
...
5
Grille, Vent (White) WPL-W10845642
...
5A
Grille, Vent (Black) WPL-W10845643
...
5B
Grille, Vent (Biscuit) WPL-W10845638
