Whirlpool WGD9371YW1

Model: WGD9371YW1

Save Part Not Listed?
product name

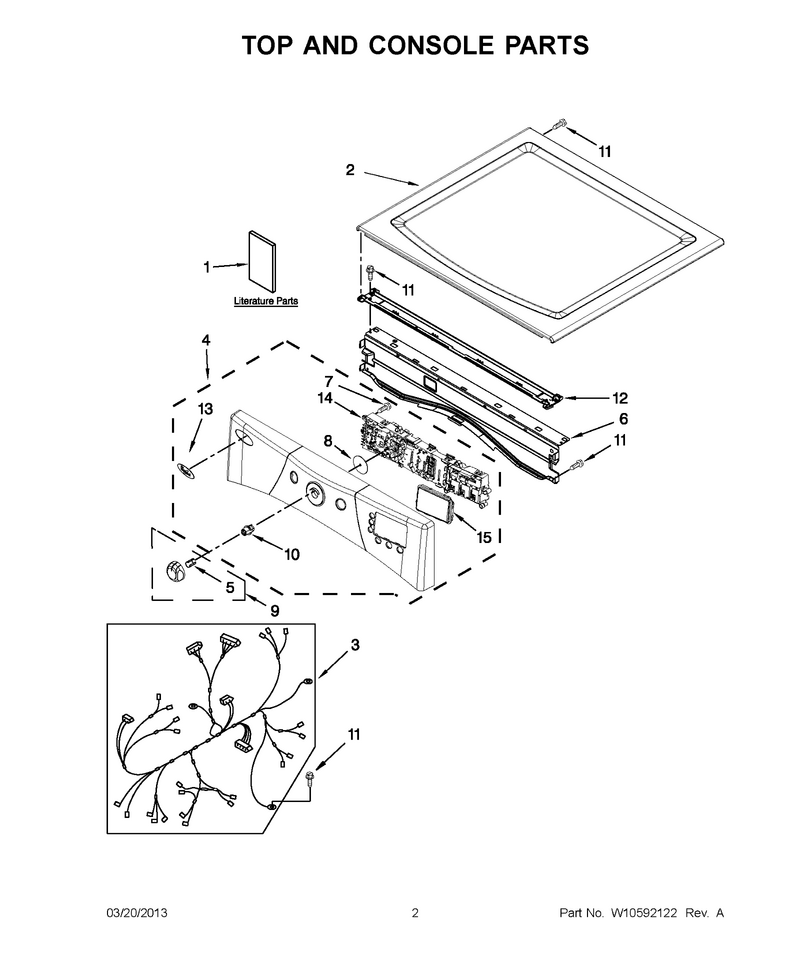

01 - Top And Console Parts

...
...
1
Tech Sheet WPL-W10443109
...
2
Top WPL-WPW10336080
...
3
Harness, Wiring WPL-W10555105
...
4
Console WPL-W10755980
...
5
Clip WPL-WP8536939
...
6
Bracket WPL-WP8565237
...
7
Screw WPL-W10006580
...
8
Seal, User Interface WPL-W10645577
...
9
Knob WPL-WPW10251394
...
10
Bushing, Shaft Knob WPL-W10381093
...
11
Screw WPL-WP488729
...
12
Channel WPL-WPW10266747
...
13
Badge WPL-W10338425
...
14
Cntrl-Elec WPL-WPW10387234
...
15
Window, Led Display WPL-W10368266

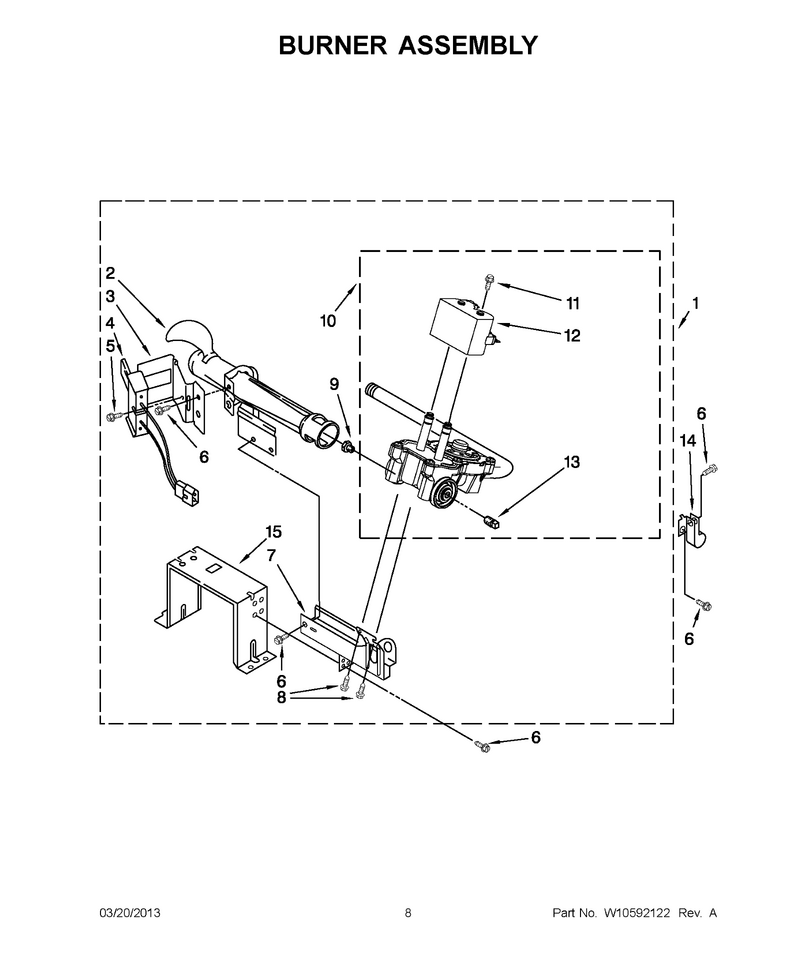

04 - Burner Assembly

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Burner-Gas WPL-280119
...
2
Burner WPL-WP693140
...
3
Bracket WPL-WP694298
...
4
Ignitor WPL-279311
...
5
Screw WPL-WPW10366705
...
6
Screw WPL-WP681414
...
7
Base, Burner WPL-3389871
...
8
Screw WPL-WP693995
...
9
Orifce-Gas WPL-WP15418
...
10
Valve-Gas WPL-WPW10118347
...
11
Screw WPL-326049536
...
12
Coil-Valve WPL-WPW10328463
...
13
Pipe Plug WPL-W10295523
...
14
Bracket, Gas Pipe WPL-3978776
...
15
Bracket WPL-3389888

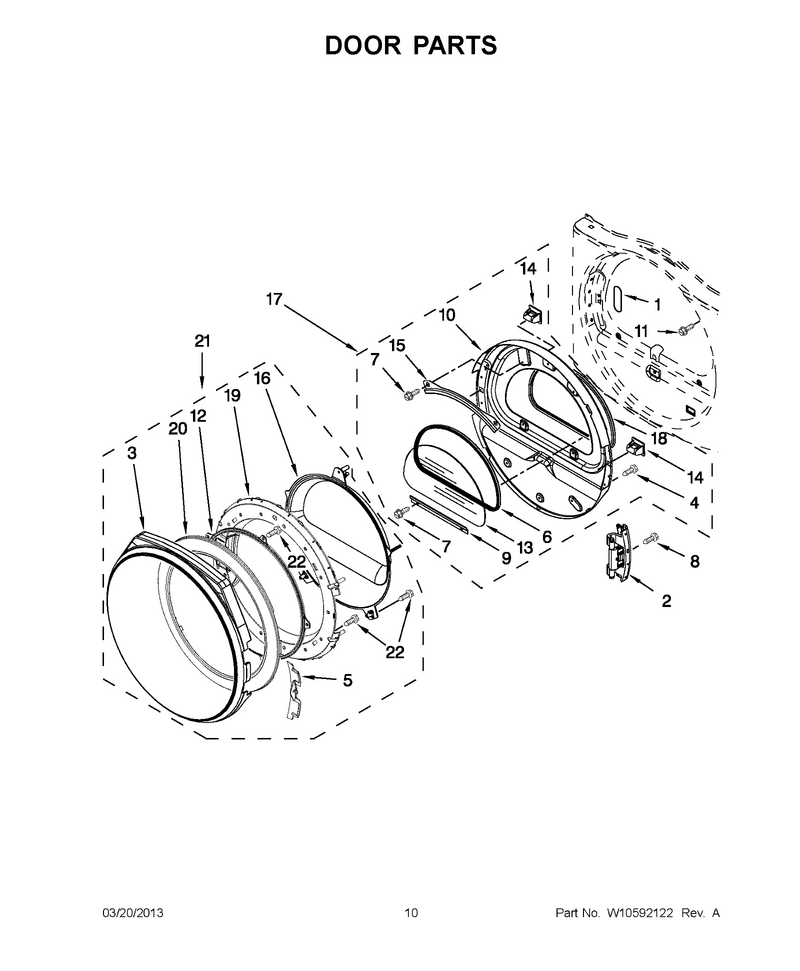

05 - Door Parts

...
...
1
Label WPL-WPW10256915
...
2
Hinge WPL-WPW10304672
...
3
Trim, Door Ring Outer (White) WPL-W10215757
...
4
Screw WPL-W11116979
...
5
Cover, Door Hinge (White) WPL-W10215766
...
6
Seal WPL-W11706993
...
7
Screw WPL-WP3373329
...
8
Screw WPL-WPW10159996
...
9
Retainer WPL-W10822054
...
10
Door WPL-W11690171
...
11
Screw WPL-WP355515
...
12
Screen, Door (Not Servicable, Order Item 21) WPL-N/P
...
13
Window WPL-WPW10286878
...
14
Latch WPL-279570
...
15
Retainer, Window (Upper) WPL-8519356
...
16
Door, Intermediate Stationary WPL-W10215764
...
17
Assembly, Inner Door WPL-W10564641
...
18
Seal-Door WPL-WPW10163915
...
19
Door, Intermediate Rotational WPL-W10431338
...
20
Trim-Door Inner Ring (Not Servicable, Order Item 21) WPL-N/P
...
21
Door Assembly Outer (Silver) WPL-W10371562
...
22
Screw WPL-W10850046

...
...
NI
Paint, Bulk (1 Qt. White) WPL-799344

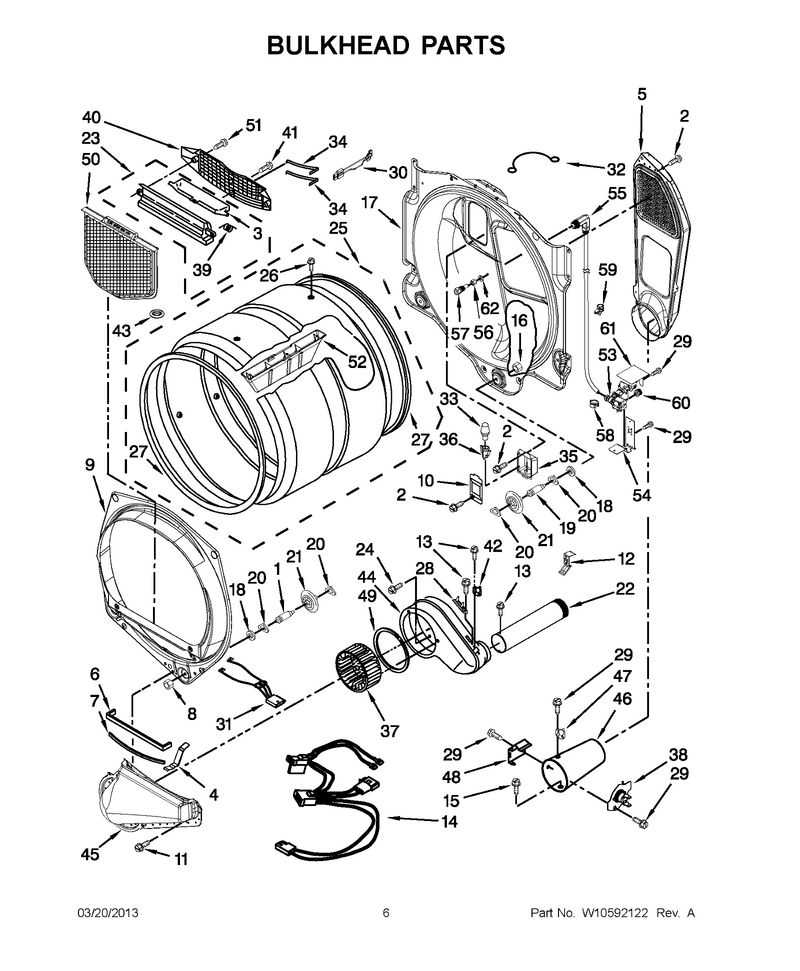

03 - Bulkhead Parts

...
...
1
Shaft WPL-WPW10359271
...
2
Screw WPL-WP488729
...
3
Door WPL-W11222846
...
4
Clip WPL-WP8066208
...
5
Duct-Air WPL-WPW10293765
...
6
Seal WPL-WP697813
...
7
Seal WPL-WP697813
...
8
Nut WPL-WPW10080210
...
9
Bulkhead, Front WPL-8565061
...
10
Lens WPL-W11226088
...
11
Screw WPL-W11693756
...
12
Clip WPL-W11684573
...
13
Screw WPL-WP90767
...
14
Harns-Wire WPL-WP3401850
...
15
Screw WPL-WP693995
...
16
Nut WPL-WPW10080190
...
17
Bulkhead, Rear WPL-W10133857
...
18
Washer WPL-W11236646
...
19
Shaft WPL-WPW10359272
...
20
Ring WPL-WPW10512946
...
21
Support WPL-WPW10314173
...
22
Pipe-Exhst WPL-WP8563728
...
23
Grill-Out WPL-W11219327
...
24
Screw WPL-WP489463
...
25
Assembly, Drum (Complete) WPL-W10865330
...
26
Screw WPL-W10853898
...
27
Seal WPL-280114
...
28
Fuse-Thrml WPL-WP3392519
...
29
Screw WPL-WP90767
...
30
Harness, Moisture Sensor WPL-W10110975
...
31
Harns-Wire WPL-WP3406653
...
32
Wire WPL-WP3401707
...
33
Bulb-Light WPL-WP22002263
...
34
Electrode WPL-WP3387223
...
35
Bracket, Drum Light WPL-8578825
...
36
Socket WPL-W11222979
...
37
Wheel WPL-WPW10349492
...
38
Cutoff-Tml WPL-WP8573713
...
39
Spring WPL-WP3394986
...
40
Grill-Out WPL-W11086603
...
41
Screw WPL-WP488729
...
42
Thermistor WPL-WP8577274
...
43
Cap, Plug WPL-W10665050
...
44
Housing WPL-W10888146
...
45
Duct-Lint WPL-WPW10128606
...
46
Funnel WPL-WP8573824
...
47
Thrmst-Fix WPL-WP3391912
...
48
Sensor WPL-WP338906
...
49
Seal WPL-WP697770
...
50
Screen WPL-W10120998
...
51
Screw WPL-WP3387230
...
52
Baffle-Drm WPL-W10852390
...
53
Valve, Water Inlet WPL-W10353542
...
54
Bracket, Valve WPL-W10346730
...
55
Nozzle & Hose Assembly WPL-W10410317
...
56
Nut, Brass WPL-W10044628
...
57
Nozzle WPL-WPW10277503
...
58
Clip, Push To Connect WPL-W10281871
...
59
Tie-Wire WPL-WP3391018
...
60
Coupler WPL-W10859554
...
61
Cover, Inlet Valve WPL-W10184825
...
62
Washer, Nozzle WPL-W10044579

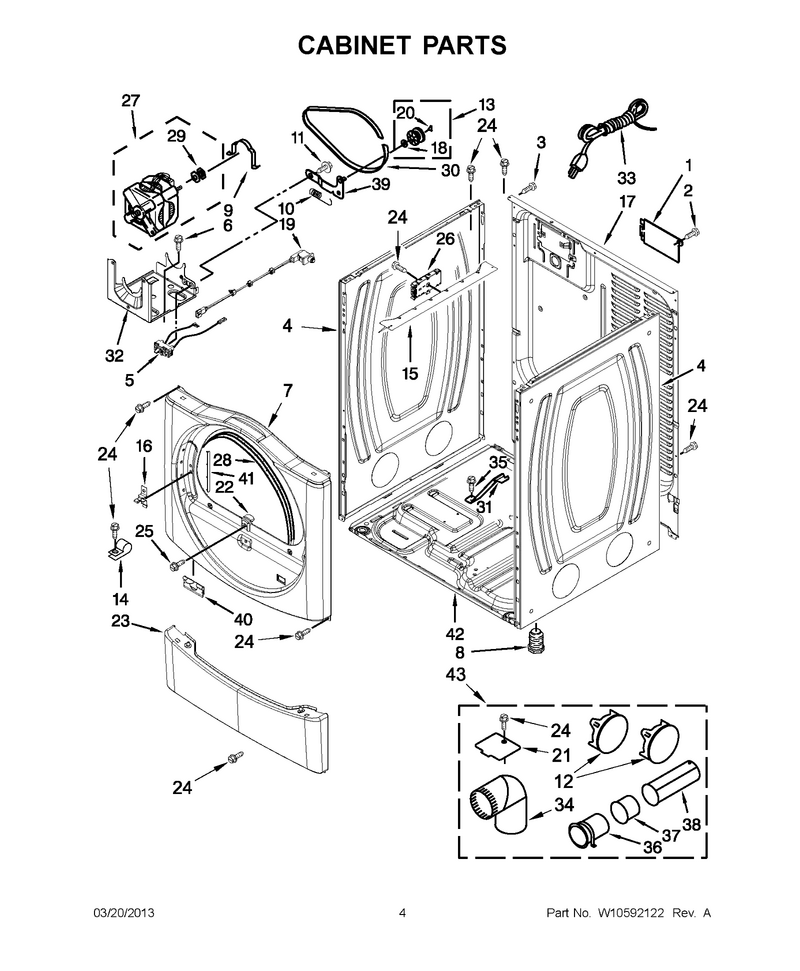

02 - Cabinet Parts

...
...
NI
Feet-Lvlng WPL-49621
...
1
Cover WPL-W10819767
...
2
Screw WPL-WP90767
...
3
Screw WPL-W10850756
...
4
Panel, Side (White) WPL-W10542714
...
5
Switch WPL-W10847984
...
6
Screw WPL-WP681414
...
7
Panel, Front (Includes Toe Panel Clip) (Silver) WPL-W10551276
...
8
Feet-Lvlng WPL-49621
...
9
Clamp WPL-WPW10121316
...
10
Spring WPL-WPW10446781
...
11
Screw WPL-WP3389420
...
12
Plug WPL-WPW10404617
...
13
Pulley-Idr WPL-279640
...
14
Bracket, Gas Pipe WPL-3978776
...
15
Bracket WPL-WP8563727
...
16
Strike WPL-WP8565122
...
17
Panel, Rear WPL-W10281297
...
18
Washer WPL-WPW10121334
...
19
Switch-Dor WPL-WPW10350910
...
20
Washer WPL-WPW10121334
...
21
Cover WPL-WPW10354249
...
22
Ramp, Door WPL-8565083
...
23
Panel, Toe (Silver) WPL-W10251210
...
24
Screw WPL-WP488729
...
25
Screw WPL-WP308685
...
26
Cntrl-Elec WPL-WPW10450082
...
27
Motor-Drve WPL-279787
...
28
Seal WPL-WP3387242
...
29
Pulley-Mtr WPL-W10837625
...
30
Belt WPL-661570V
...
31
Bracket, Burner WPL-W10181903
...
32
Bracket WPL-W11481730
...
33
Cord-Power WPL-W11222083
...
34
Elbow WPL-WPW10416072
...
35
Screw WPL-WP693995
...
36
Pipe-Exhst WPL-WP8563747
...
37
Pipe-Exhst WPL-WPW10331278
...
38
Pipe-Exhst WPL-WP8563749
...
39
Bracket WPL-W10837240
...
40
Clip WPL-W11295573
...
41
Label-Hinge Hole (White) WPL-W10085210
...
42
Base WPL-W11215531
...
43
Dryer Exhaust Kit (For Side & Bottom Venting) (Midnight Grey) WPL-W10331132
