Whirlpool WFW5720RU0

Model: WFW5720RU0

Save Part Not Listed?
product name

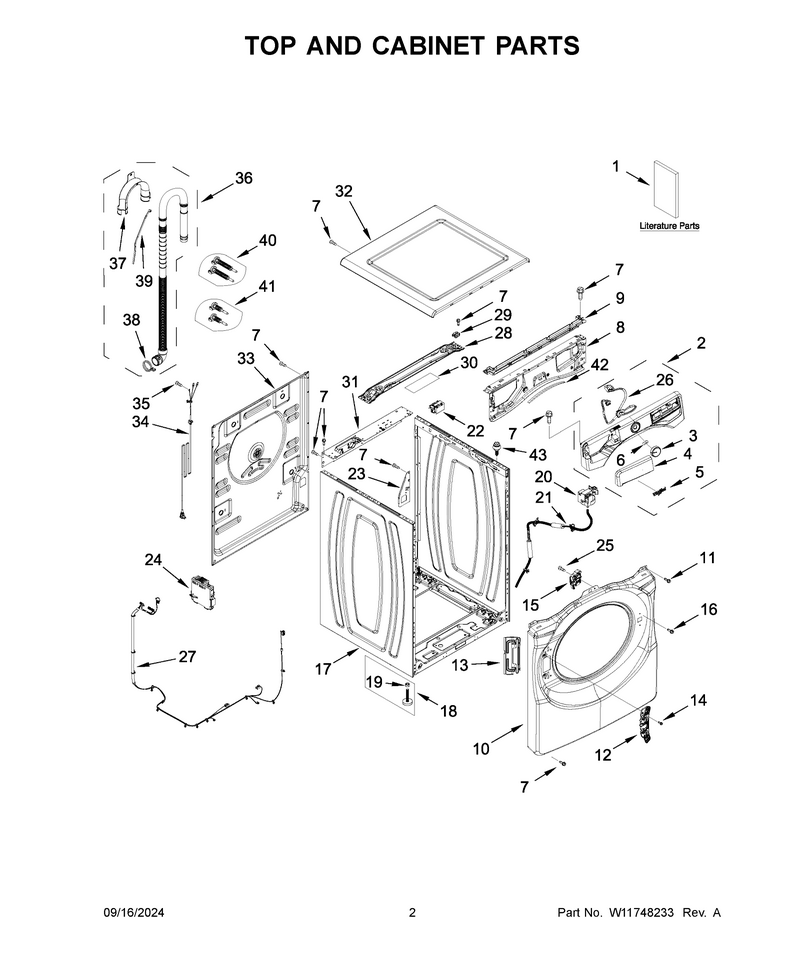

02 - Top And Cabinet Parts

...
...
1
Owner's Manual WPL-W11355369
...
1A
Quick Start Guide WPL-W11712042
...
1B
Energy Guide WPL-W11737328
...
2
Console WPL-W11748942
...
3
Assembly, Knob WPL-W11709754
...
4
Handle, Drawer (Black) WPL-W11709741
...
5
Nameplate WPL-W11223753
...
6
Clip WPL-WP8536939
...
7
Screw WPL-W11568617
...
8
Bracket WPL-W11314678
...
9
Channel WPL-W11458348
...
10
Panel WPL-W11748896
...
11
Screw WPL-W11573574
...
12
Hinge Assembly WPL-W11668720
...
13
Bracket WPL-W11747862
...
14
Screw WPL-W11661566
...
15
Latch WPL-W11733849
...
16
Screw WPL-WP8540282
...
17
Cabinet (Black) WPL-W11353000
...
18
Foot WPL-W11675697
...
19
Nut WPL-W11675698
...
20
Switch-Wl WPL-W11316246
...
21
Hose WPL-W11456953
...
22

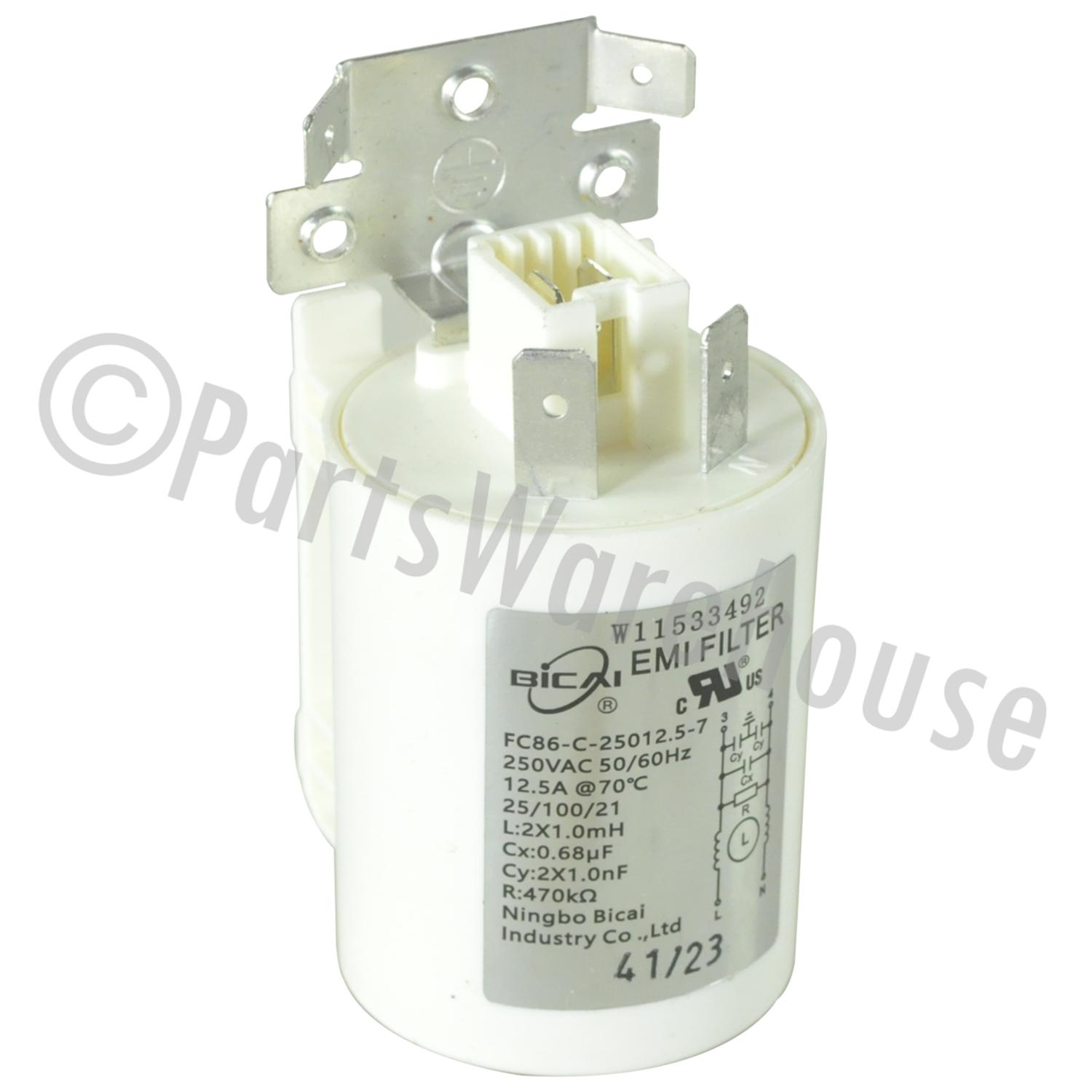

Filter WPL-W11689659
...
23
Bracket WPL-W11316769
...
24
Cntrl-Elec WPL-W11747036
...
25
Screw WPL-W10306501
...
26
Harness, Hmi WPL-W11719455
...
27
Harness, Main WPL-W11722227
...
28
Brace, Top WPL-W10467484
...
29
Retainer, Spring WPL-W10245452
...
30
Bracket WPL-W11314674
...
31
Bracket, Rear WPL-W11353016
...
32
Top WPL-W11328714
...
33
Panel WPL-W11491750
...
34
Cord-Power WPL-W11316254
...
35
Screw WPL-W10846509
...
36
Hose WPL-W11551765
...
37
Retainer WPL-WPW10280024
...
38
Clamp WPL-WP356138
...
39
Tie-Wire WPL-WPW10339879
...
40
Bolt WPL-W11316631
...
41
Bolt WPL-W11316629
...
42
Protector WPL-W11316770
...
43
Screw And Bushing Assembly WPL-W10208380

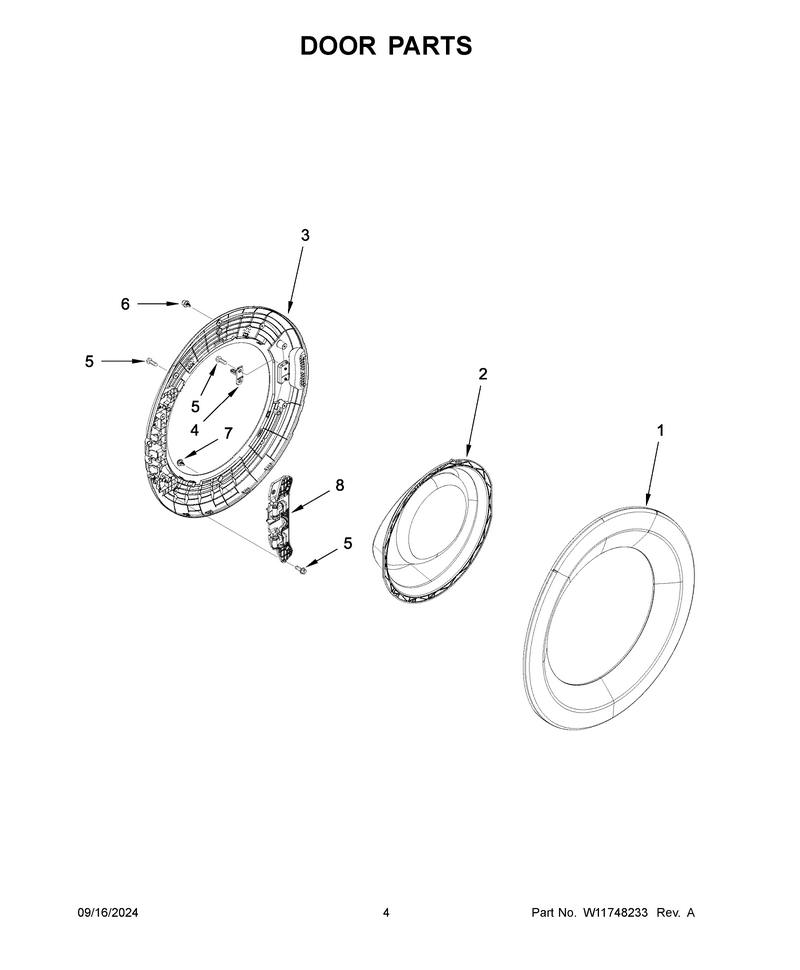

03 - Door Parts

...
...
1
Outer Door (Black) WPL-W11711315
...
2
Door-Glass WPL-W11316777
...
3
Door-Inner WPL-W11703964
...
4
Strike WPL-W11316914
...
5
Screw WPL-WP8534022
...
6
Bumper, Door (Upper) WPL-W11230200
...
7
Bumper WPL-W11310051
...
8
Hinge Assembly WPL-W11668720

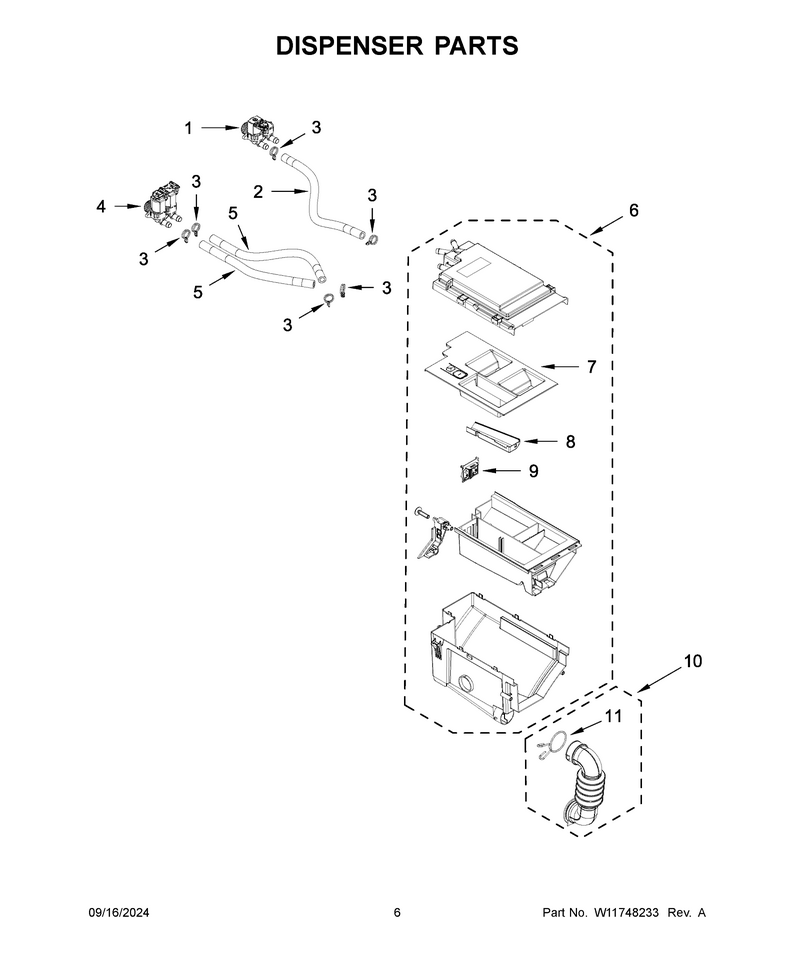

04 - Dispenser Parts

...
...
1
Valve WPL-W11688994
...
2
Hose WPL-W11316257
...
3
Clamp WPL-WP596669
...
4
Valve WPL-W11688995
...
5
Hose WPL-W11316599
...
6
Drawer WPL-W11747094
...
7
Siphon, Bleach/softener WPL-W11706489
...
8
Cover WPL-W11316375
...
9
Divider WPL-W11316603
...
10
Hose WPL-W11316604
...
11
Clamp, Hose WPL-W10239910

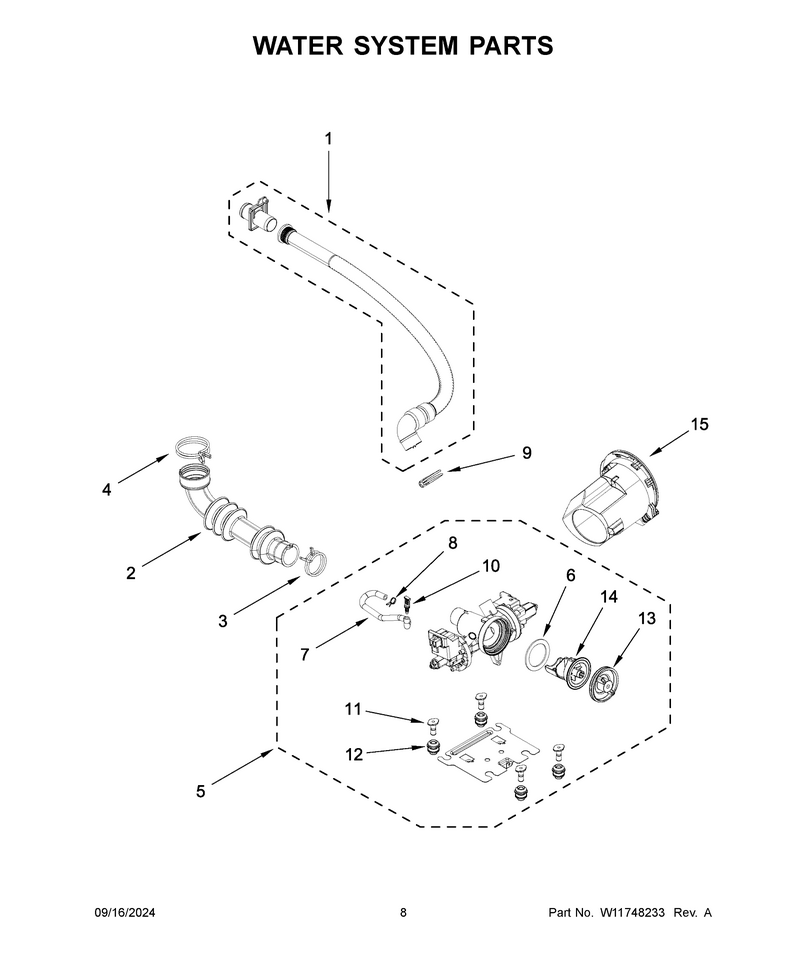

05 - Water System Parts

...
...
1
Hose WPL-W11549455
...
2
Hose WPL-W11314666
...
3
Clamp WPL-WP616099
...
4
Clamp, Vent Hose WPL-W10273034
...
5
Pump-Water WPL-W11747098
...
6
Seal WPL-W11316613
...
7
Hose, Drain (Pump) WPL-W11718104
...
8
Clamp WPL-W11316666
...
9
Clamp WPL-WP356138
...
10
Plug, Drain (Pump) WPL-W11741590
...
11
Pin WPL-W11316664
...
12
Grommet WPL-W11316663
...
13
Cap WPL-W11316610
...
14
Filter WPL-W11458347
...
15
Assembly, Drain Pump Housing WPL-W11710520

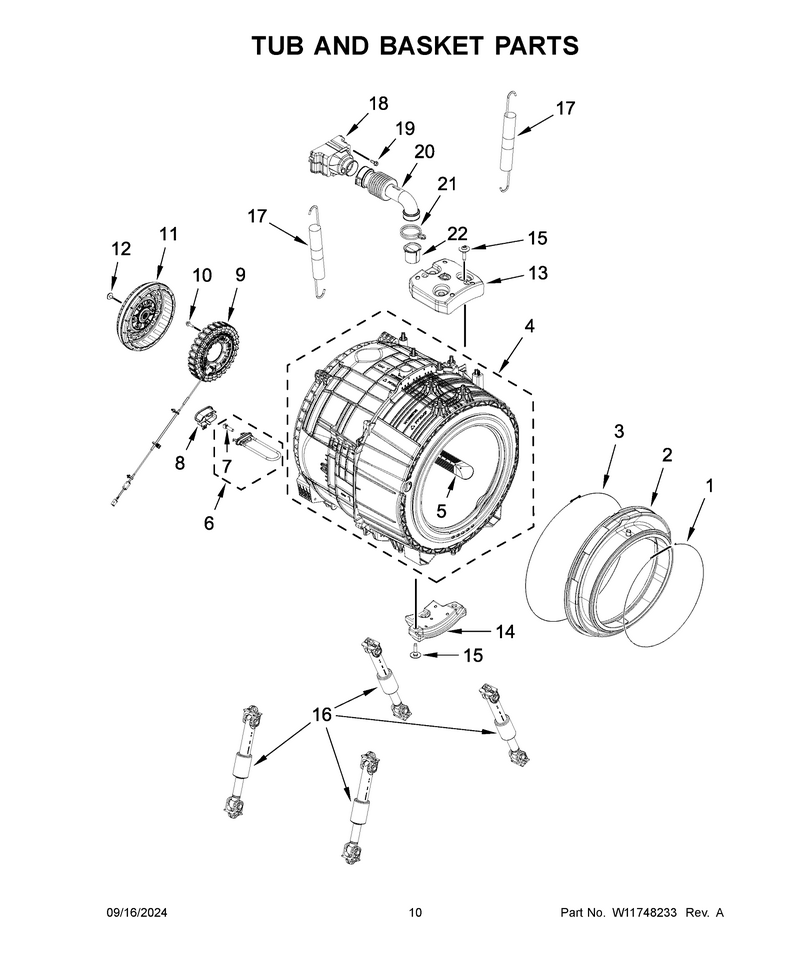

06 - Tub And Basket Parts

...
...
1
Clamp WPL-W11266654
...
2
Bellow WPL-W11714349
...
3
Clamp WPL-W11314649
...
4
Tub-Outer WPL-W11460604
...
5
Baffle WPL-W11460395
...
6
Heater WPL-W11549460
...
7
Heater WPL-W11314664
...
8
Cover WPL-W11314776
...
9
Stator, Motor WPL-W11708681
...
10
Screw WPL-W11314661
...
11
Rotor WPL-W11314361
...
12
Screw WPL-W11557803
...
13
Counterwgt WPL-W11314650
...
14
Counterwgt WPL-W11607191
...
15
Screw WPL-W11314651
...
16
Shock-Absr WPL-W11316766
...
17
Spring WPL-W11314394
...
18
Housing WPL-W11316248
...
19
Screw WPL-W11230114
...
20
Hose WPL-W11316247
...
21
Clamp WPL-WP371502
...
22
Ventcoupli WPL-W11557921

...
...
NI
Accessory Other, Kit, Stack WPL-W10869845
