Whirlpool WFGS7530RZ0

Model: WFGS7530RZ0

Save Part Not Listed?
product name

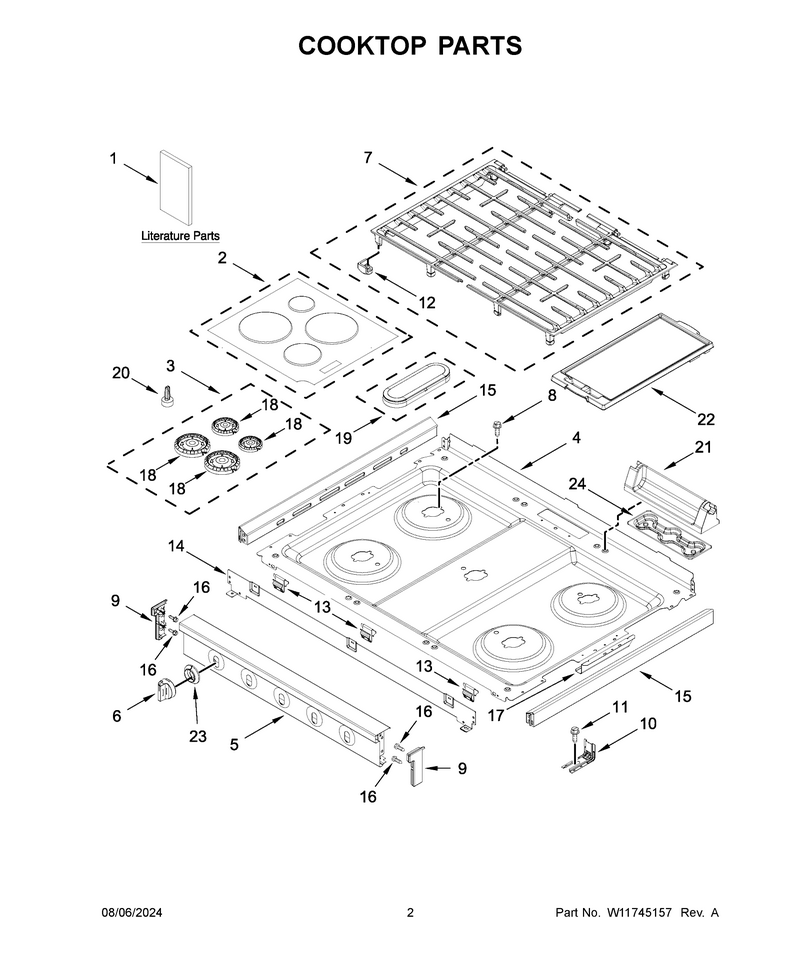

02 - Cooktop Parts

...
...
NI
Clip, Wire WPL-3196896
...
1
Owner's Manual WPL-W11642081
...
1A
Tech Sheet WPL-W11639170
...
1B
Quick Start Guide WPL-W11641568
...
2
Cap-Burner WPL-W11605759
...
3
Burnr-Head WPL-W11671543
...
4
Cooktop WPL-W11730418
...
5
Panl-Mnfld WPL-W11730216
...
5A
Panl-Mnfld WPL-W11730291
...
6
Knob WPL-W11730230
...
6A
Knob WPL-W11730270
...
7
Grate-Kit WPL-W11728633
...
8
Screw WPL-W11241230
...
9
Endcap-Pnl WPL-W11730066
...
9A
Endcap-Pnl WPL-W11730070
...
9B
Endcap-Pnl WPL-W11730268
...
9C
Endcap-Pnl WPL-W11730267
...
10
Anchor-Tip WPL-W11447673
...
11
Anchor-Tip WPL-WP7101P485-60
...
12
Bumper WPL-W11729100
...
13
Clip WPL-W11728827
...
14
Brkt-Suprt WPL-W11750421
...
15
Cooktop Frame (Black) WPL-W11736695
...
16
Screw WPL-W11245710
...
17
Bracket WPL-W11728390
...
18
Burnr-Head WPL-W11531096
...
18A
Burnr-Head WPL-W11531097
...
18B
Burnr-Head WPL-W11531098
...
19
Burnr-Head WPL-W11729926
...
20
Glide-Drwr WPL-W11189172
...
21
Hinge-Cktp WPL-W11728632
...
22
Griddle WPL-W11728634
...
23
Bezel-Knob WPL-W11730210
...
23A
Bezel-Knob WPL-W11730233
...
24
Spacer WPL-W11729925

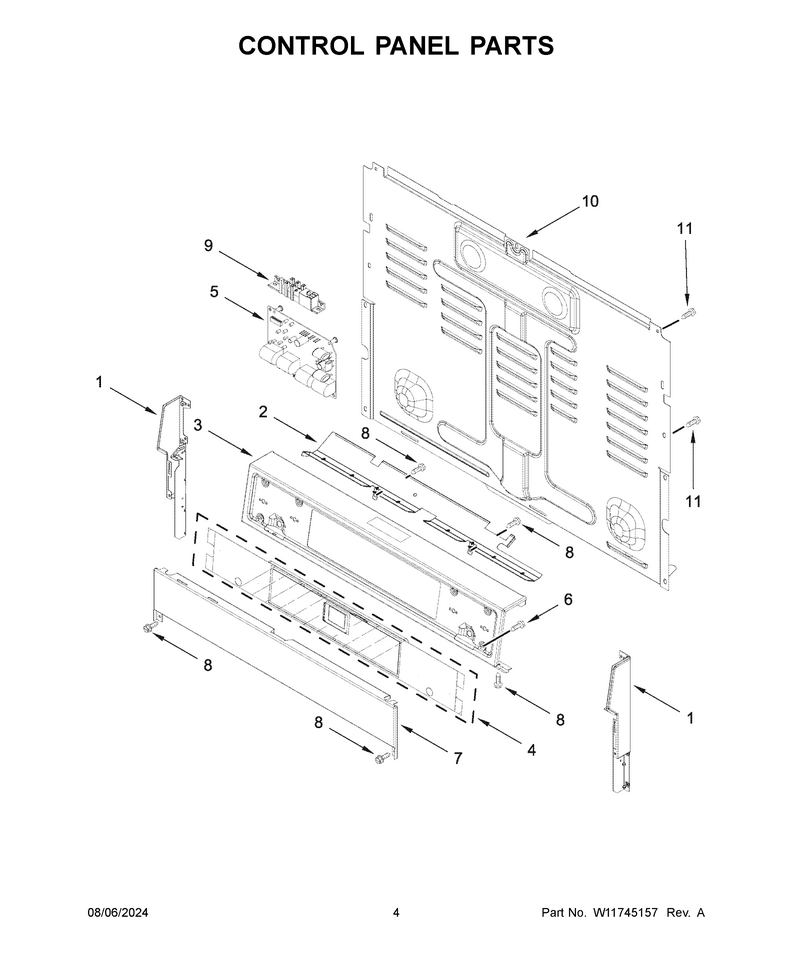

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11728322
...
1A
Endcap-Pnl WPL-W11728320
...
2
Shield-Ht WPL-W11747326
...
3
Panl-Cntrl WPL-W11730061
...
3A
Panl-Cntrl WPL-W11730261
...
4
Cntrl-Elec WPL-W11730273
...
5
Module-Spk WPL-W10898291
...
6
Screw WPL-W10491985
...
7
Trim-Panel WPL-W11730208
...
7A
Trim-Panel WPL-W11730240
...
8
Screw WPL-WP3196557
...
9
Module-Spk WPL-W11703692
...
10
Cover-Rear WPL-W11727014
...
11
Screw WPL-W11233072

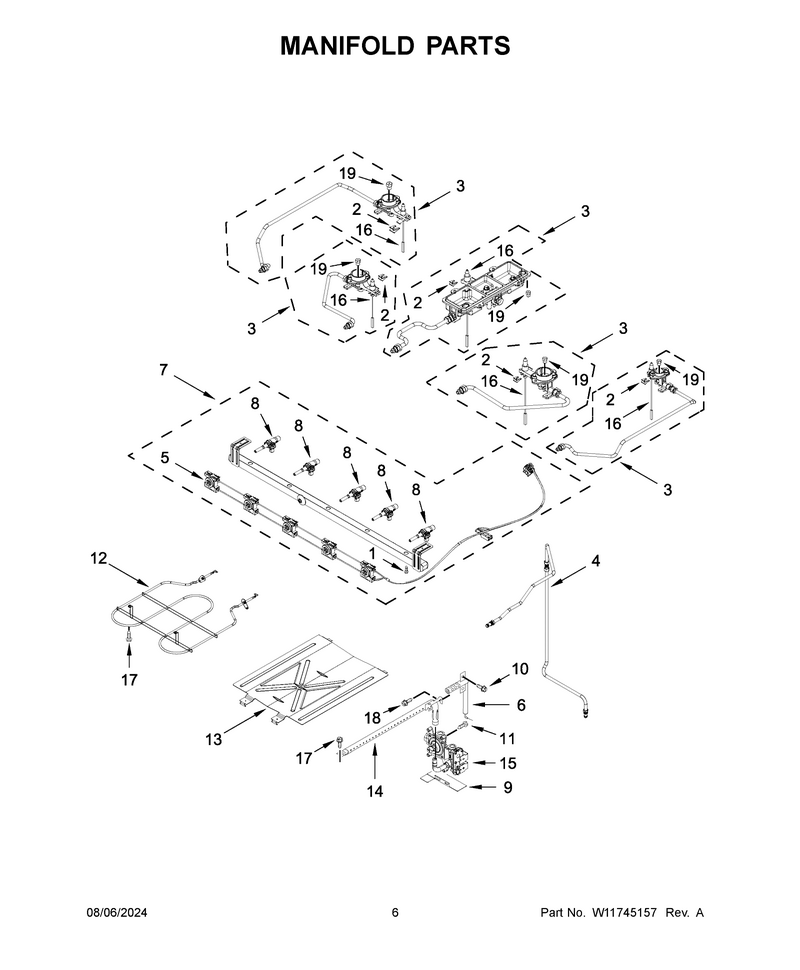

04 - Manifold Parts

...
...
NI
Tie-Wire WPL-WPW10182767
...
1
Screw WPL-W11402213
...
2
Clip WPL-W11684564
...
3
Holder-Orf WPL-W11728581
...
3A
Holder-Orf WPL-W11727171
...
3B
Holder-Orf WPL-W11728388
...
3C
Holder-Orf WPL-W11727169
...
3D
Holder-Orf WPL-W11728582
...
4
Tubing-Gas WPL-W11728389
...
5
Harns-Wire WPL-W11727166
...
6
Igntr-Oven WPL-W11524031
...
7
Manifold WPL-W11727047
...
8
Valve-Brnr WPL-W11728580
...
8A
Valve-Brnr WPL-W11728579
...
8B
Valve-Brnr WPL-W11728578
...
8C
Valve-Brnr WPL-W11727167
...
9
Bracket, Aegis WPL-W10224921
...
10
Screw WPL-W11684507
...
11
Screw WPL-WP3400016
...
12
Element, Broiler WPL-W10714060
...
13
Baffl-Brnr WPL-WPW10184491
...
14
Burnr-Oven WPL-WP9758078
...
15
Valve-Gas WPL-W10898290
...
16
Igntr-Surf WPL-W11453940
...
16A
Igntr-Surf WPL-W11453920
...
16B
Igntr-Surf WPL-W11745758
...
17
Screw WPL-W11233072
...
18
Screw WPL-3196265
...
19
Orifice (18k) (Left Front) Orifice, Not Serviced WPL-W10849722
...
19A
Spud-Orfce WPL-W11677633
...
19B
Orifice (10k) (Center) Orifice, Not Serviced WPL-W10907868

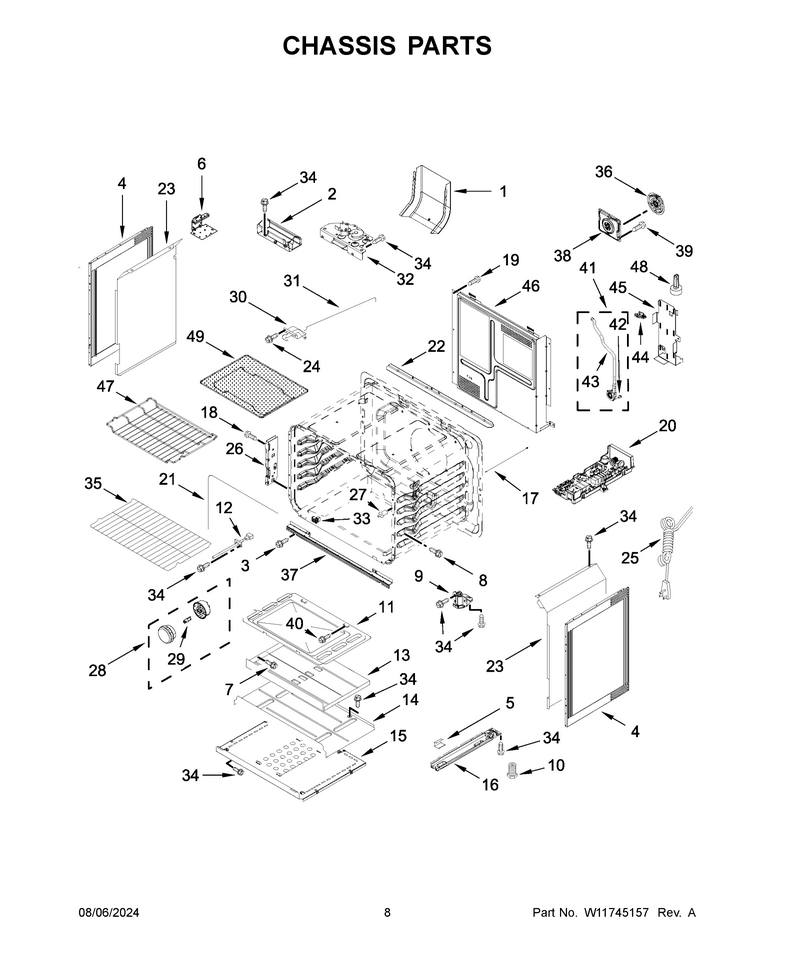

05 - Chassis Parts

...
...
NI
Insulation WPL-W11727016
...
1
Flue-Oven WPL-W11730239
...
2
Shield, Flue WPL-W11279866
...
3
Screw WPL-WPW10067840
...
4
Panel-Side WPL-W11730303
...
5
Clip, Panel WPL-W10137382
...
6
Brkt-Mntg WPL-W11727012
...
7
Screw WPL-W11233072
...
8
Screw WPL-W11169708
...
9
Foot-Level WPL-WPW10341186
...
10
Foot-Level WPL-WPW10058460
...
11
Bottm-Oven WPL-W11730226
...
12
Sensor WPL-W11730224
...
13
Baffle, Burner Oven WPL-8053967
...
14
Shield, Heat WPL-8053969
...
15
Shield-Ht WPL-W11730232
...
16
Rail-Base WPL-WPW10306546
...
16A
Rail-Base WPL-WPW10306546
...
17
Rod, Door Switch WPL-9757239
...
18
Screw WPL-W10777162
...
19
Screw WPL-W11684512
...
20
Cntrl-Elec WPL-W11745759
...
21
Gaskt-Door WPL-W11542153
...
22
Brace, Main Back WPL-W10435470
...
23
Retainer, Insulation (Left) WPL-W11379353
...
23A
Retainer, Insulation (Right) WPL-W11379943
...
24
Screw WPL-W11169708
...
25
Cord-Power WPL-W11730265
...
26
Hinge-Recv WPL-W10647259
...
27
Swtch-Lite WPL-W11620712
...
28
Light-Oven WPL-W11707255
...
29
Bulb-Light WPL-WPW10571723
...
30
Latch-Door WPL-WP9761013
...
31
Rod, Push Latch WPL-W10078370
...
32
Latch-Door WPL-WPW10107820
...
33
Glide-Drwr WPL-W10807823
...
34
Screw WPL-W11233072
...
35
Rack-Oven WPL-W11520287
...
36
Fan-Convct WPL-W11730229
...
37
Bracket, Front Frame WPL-W11464547
...
38
Cover WPL-W11730217
...
39
Screw WPL-W10516115
...
40
Screw WPL-W10379120
...
41
Vent-Exhst WPL-W11729916
...
42
Screw-Torx WPL-WP3368921
...
43
Tube WPL-W11729918
...
44
Clamp WPL-W11729920
...
45
Bracket WPL-W11729919
...
46
Cover-Fan WPL-W11727015
...
47
Rack, Oven (Gull-Wing) WPL-W11607819
...
48
Glide-Drwr WPL-W11189172
...
49
Accessory Parts, Basket, Air Fry WPL-W11692811

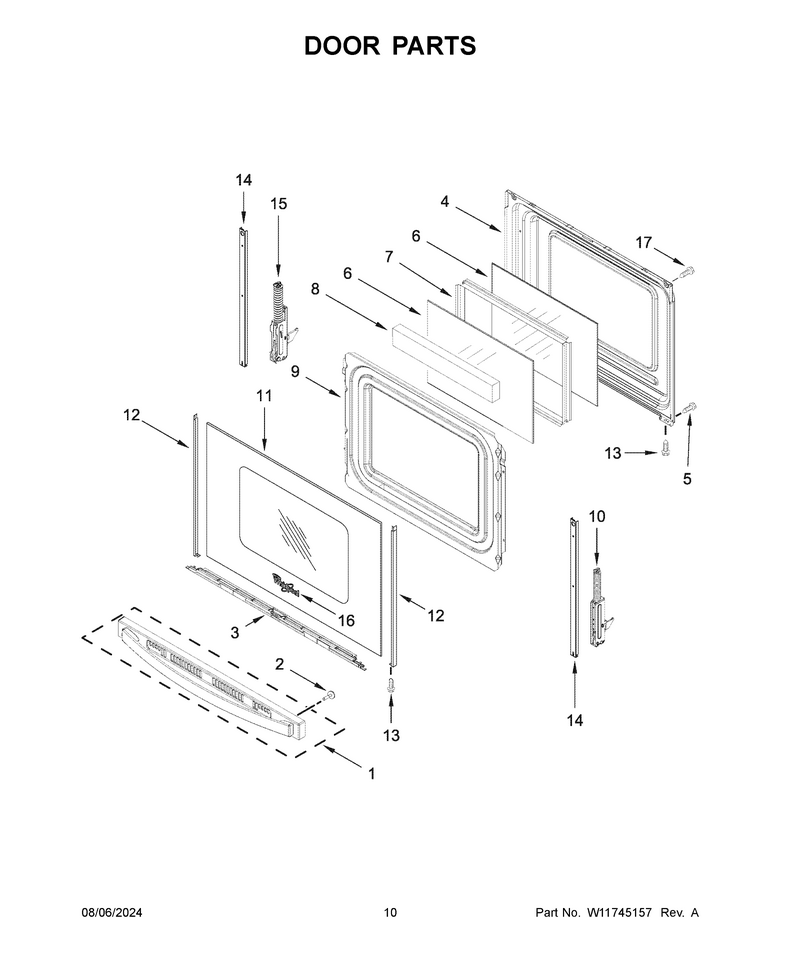

06 - Door Parts

...
...
1
Hndle-Door WPL-W11726508
...
1A
Hndle-Door WPL-W11730234
...
2
Screw WPL-W10896982
...
3
Trim-Door WPL-W11569689
...
4
Liner-Door WPL-WP9761344
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-WP8053948
...
7
Frame-Wndw WPL-WPW10316950
...
8
Insulation WPL-WPW10278991
...
9
Retainer WPL-W11539580
...
10
Hinge-Door WPL-WPW10388635
...
11
Glass-Door WPL-W11741357
...
12
Trim-Door WPL-W10761018
...
12A
Trim-Door WPL-W10761014
...
13
Screw WPL-WP355214
...
14
Brkt-Suprt WPL-W11502236
...
15
Hinge-Door WPL-WPW10440013
...
16
Nameplate WPL-W11178521
...
17
Screw WPL-WPW10200660

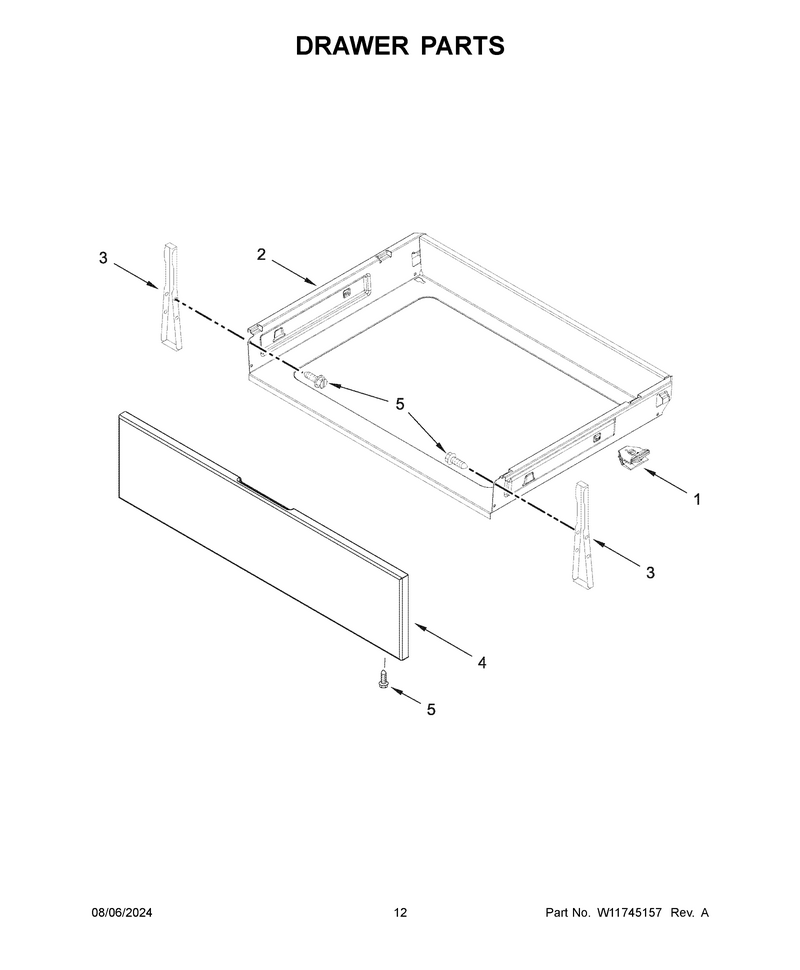

07 - Drawer Parts

...
...
1
Glide-Drwr WPL-W10807828
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-W11759228
...
4
Panel-Drwr WPL-W11165138
...
4A
Panel-Drwr WPL-W11252164
...
5
Screw WPL-WP3196557

...
...
NI
Accessories, Broiler Pan And Grid WPL-4396923
