Whirlpool WFG975H0HZ6

Model: WFG975H0HZ6

Save Part Not Listed?
product name

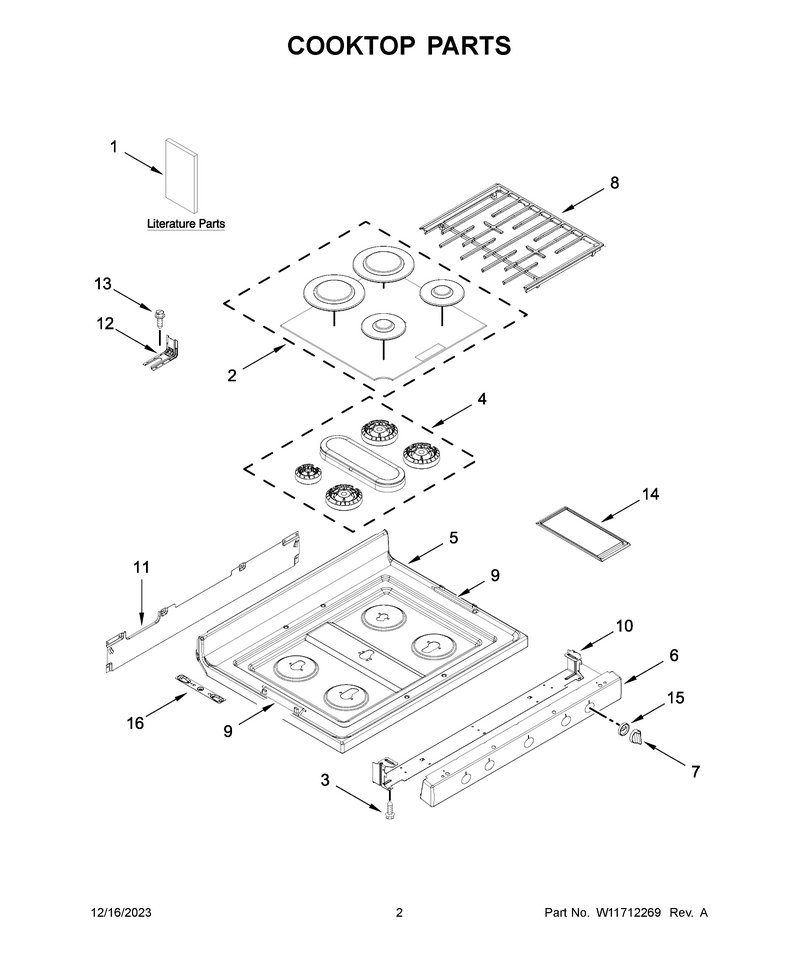

02 - Cooktop Parts

...
...
NI
Clip WPL-W10841090
...
1
Quick Start Guide WPL-W11427473
...
1A
Use And Care Guide WPL-W11448510
...
1B
Tech Sheet WPL-W11565453
...
1C
Internet Connectivity Guide WPL-W11097305
...
2
Cap-Burner WPL-W11605759
...
3
Screw WPL-WPW10067840
...
4
Burnr-Head WPL-W11662402
...
5
Cooktop WPL-W11459372
...
6
Panl-Mnfld WPL-W11174678
...
6A
Panl-Mnfld WPL-W11174694
...
7
Knob WPL-W11174696
...
7A
Knob WPL-W11174697
...
8
Grate-Kit WPL-W11175178
...
9
Hinge, Grate (Not Serviced) WPL---
...
10
Manifold Panel Bracket WPL-W11379946
...
11
Rear Gas Cooktop Bracket WPL-W11379358
...
12
Anchor-Tip WPL-W11447673
...
13
Anchor-Tip WPL-WP7101P485-60
...
14
Griddle, Gas Range WPL-W11123246
...
15
Bezel-Knob WPL-W11175131
...
15A
Bezel-Knob WPL-W11175136
...
16
Grate Hinge Spacer WPL-W10879790

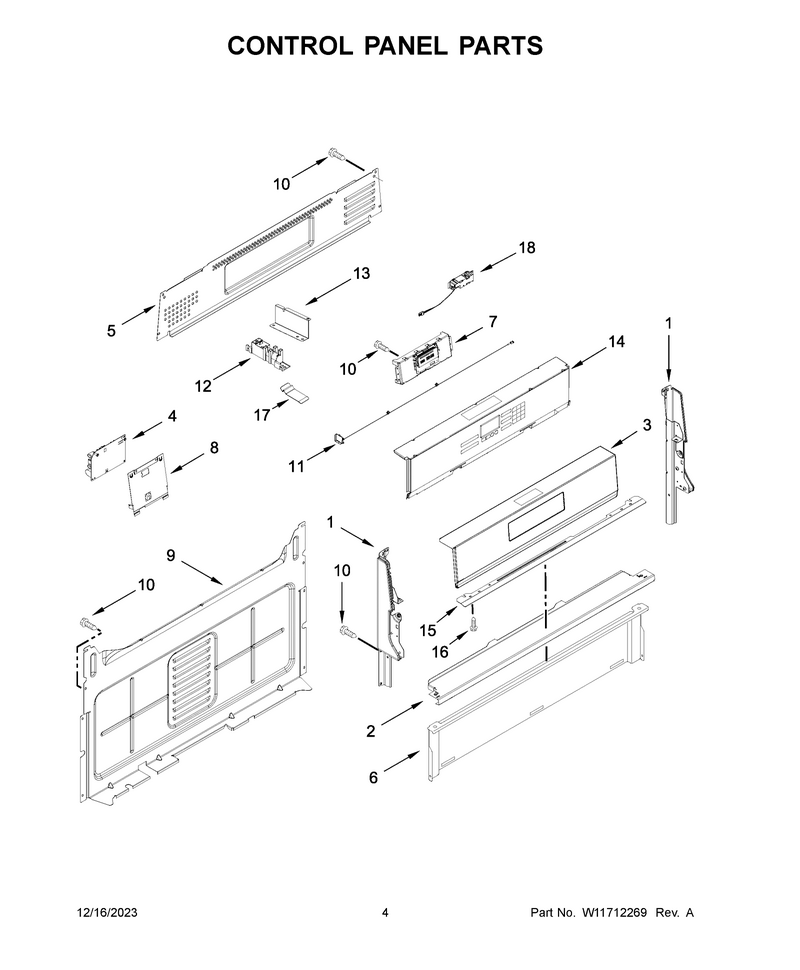

03 - Control Panel Parts

...
...
1
Endcap (Black (Left)) WPL-W11213290
...
1A
Endcap (Black (Right)) WPL-W11213292
...
2
Bracket, Console Mounting WPL-W10516123
...
3
Panl-Cntrl WPL-W11165617
...
3A
Panl-Cntrl WPL-W11165616
...
4
Module-Spk WPL-W11162730
...
5
Cover, Upper WPL-W10198745
...
6
Shield, Heat WPL-W10192841
...
7
Cntrl-Elec WPL-W11620581
...
8
Bracket, Mounting WPL-W10762981
...
9
Cover, Back WPL-W10184251
...
10
Screw WPL-W11233072
...
11
Antenna WPL-W11594266
...
12
Module-Spk WPL-W11703692
...
13
Bracket WPL-W10901176
...
14
Panl-Cntrl WPL-W11280096
...
15
Bracket, Eye Brow (Black) WPL-W11443964
...
16
Screw WPL-WP3196557
...
17
Clip WPL-WPW10551614
...
18
Cntrl-Elec WPL-W11165979

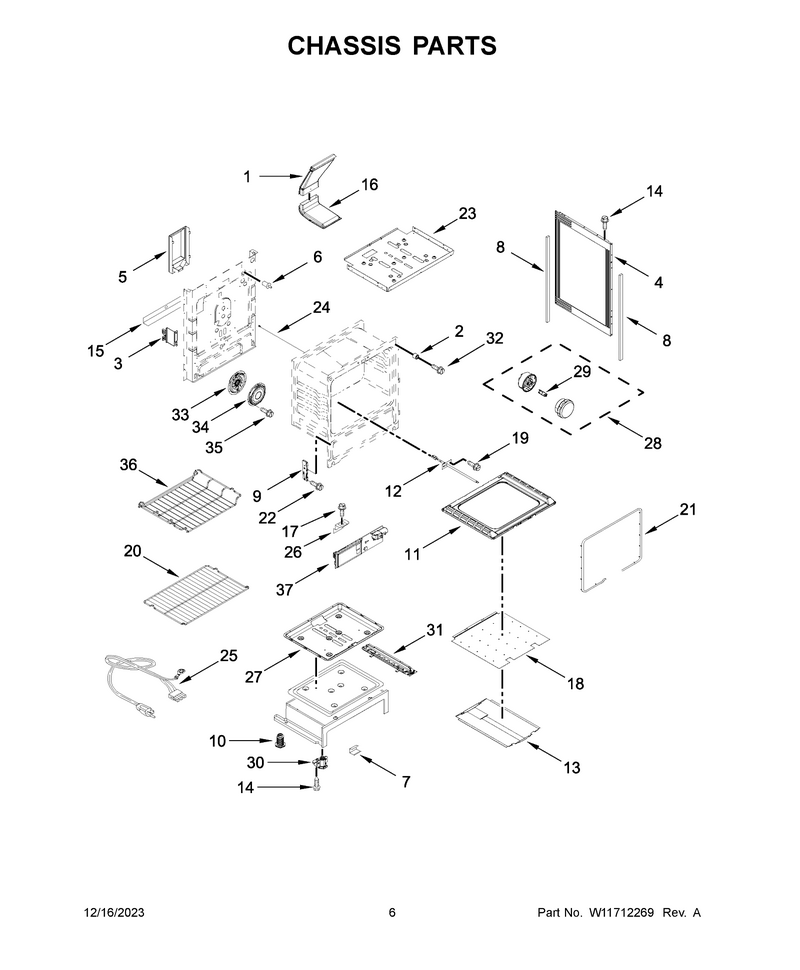

04 - Chassis Parts

...
...
NI
Insulation WPL-W11688362
...
1
Assembly, Flue WPL-W10314347
...
2
Spacer WPL-W10877054
...
3
Bracket, Oven Support WPL-W10273002
...
4
Panel-Side WPL-W11730303
...
5
Cover, Rear Fan WPL-W10158780
...
6
Swtch-Lite WPL-W11620712
...
7
Clip, Panel WPL-W10137382
...
8
Gasket WPL-W11175143
...
9
Hinge-Recv WPL-W10647259
...
10
Foot-Level WPL-WPW10058460
...
11
Bottm-Oven WPL-WPW10211368
...
12
Sensor WPL-W10833885
...
13
Baffle, Bake Burner WPL-3601P356-45
...
14
Screw WPL-W11233072
...
15
Brace, Main Back WPL-W10435470
...
16
Flue-Oven WPL-W11243157
...
17
Screw WPL-W11233072
...
18
Diffuser, Flame WPL-W10323077
...
19
Screw WPL-W11233072
...
20
Rack-Oven WPL-WPW10531060
...
21
Gaskt-Door WPL-W11562931
...
22
Screw WPL-W10777162
...
23
Shield-Ht WPL-WPW10273195
...
24
Rod, Door Switch WPL-W10273192
...
25
Cord-Power WPL-W11582239
...
26
Support, Oven Bottom WPL-W10035900
...
27
Pan, Bake WPL-W11379356
...
28
Light-Oven WPL-W11707255
...
29
Bulb-Light WPL-WPW10571723
...
30
Foot-Level WPL-WPW10341186
...
31
Rail-Base WPL-WPW10306546
...
31A
Rail-Base WPL-WPW10306546
...
32
Screw WPL-WPW10031790
...
33
Fan-Convct WPL-W11043837
...
34
Cover WPL-WPW10346154
...
35
Screw WPL-W11233072
...
36
Rack-Oven WPL-WPW10289145
...
37
Cntrl-Elec WPL-W11111702

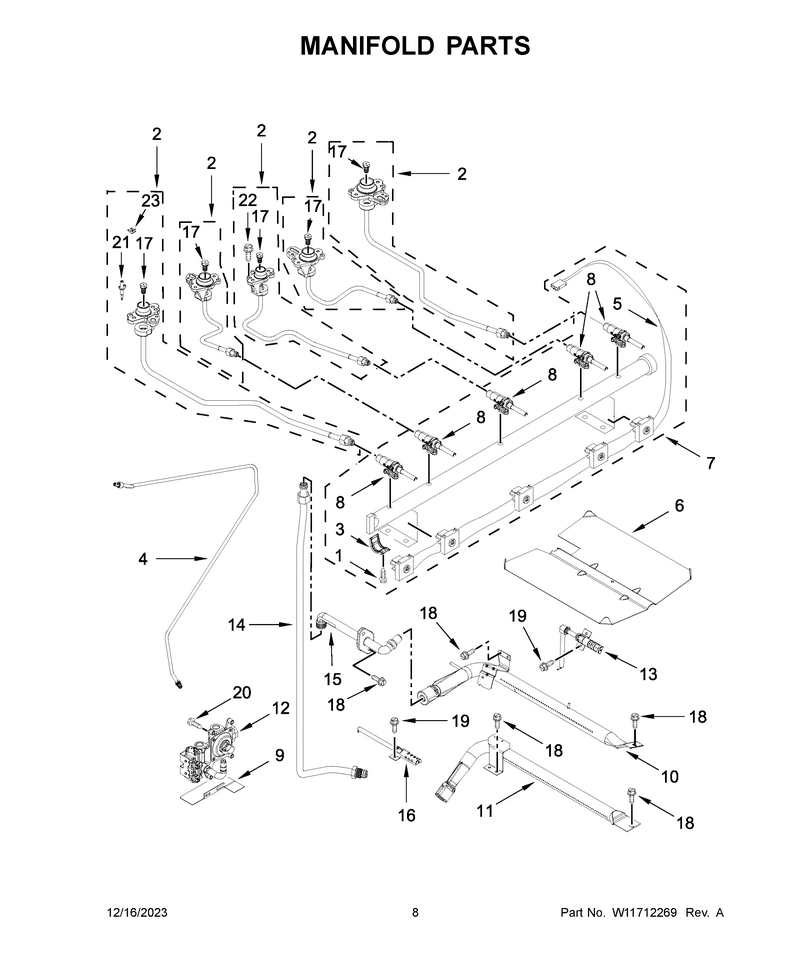

05 - Manifold Parts

...
...
NI
Spud-Orfce WPL-W11087486
...
1
Screw, Valve WPL-W10295997
...
2
Holder-Orf WPL-W11557814
...
2A
Holder-Orf WPL-W11557815
...
2B
Holder-Orf WPL-W11557816
...
2C
Holder-Orf WPL-W11557817
...
2D
Holder-Orf WPL-W11557818
...
3
Bracket, Saddle Valve WPL-W10949105
...
4
Tubing, Main Supply WPL-W10510125
...
5
Harns-Wire WPL-W10906162
...
6
Baffle, Broil Burner WPL-3601P336-45
...
7
Manifold Assembly WPL-W11418925
...
8
Valve-Brnr WPL-W11628784
...
8A
Valve-Brnr WPL-W11699929
...
8B
Valve, Gas (Right Rear) WPL-W11352015
...
9
Bracket, Aegis WPL-W10224921
...
10
Burnr-Brlr WPL-W11676566
...
11
Burnr-Oven WPL-W10764654
...
12
Regulator WPL-W10919226
...
13
Igntr-Oven WPL-WPW10324262
...
14
Tube, Broil Supply (Broiler Fitting To Valve) WPL-W10306050
...
15
Fitting, Broil WPL-W10776437
...
16
Igntr-Oven WPL-WPW10333842
...
17
Orifice (18k) (Left Front) Orifice, Not Serviced WPL-W11485988
...
17A
Orifice (9.5k) (Left Rear) Orifice, Not Serviced WPL-W11485873
...
17B
Orifice WPL-W11700316
...
17C
Orifice WPL-W11712434
...
17D
Orifice (8k) (Center) Orifice, Not Serviced WPL-W11485874
...
18
Screw WPL-W11233072
...
19
Screw WPL-W11684507
...
20
Screw WPL-WP3400016
...
21
Igntr-Surf WPL-W11453940
...
21A
Igntr-Surf WPL-W11453920
...
22
Screw WPL-W11241230
...
23
Clip WPL-W11684564

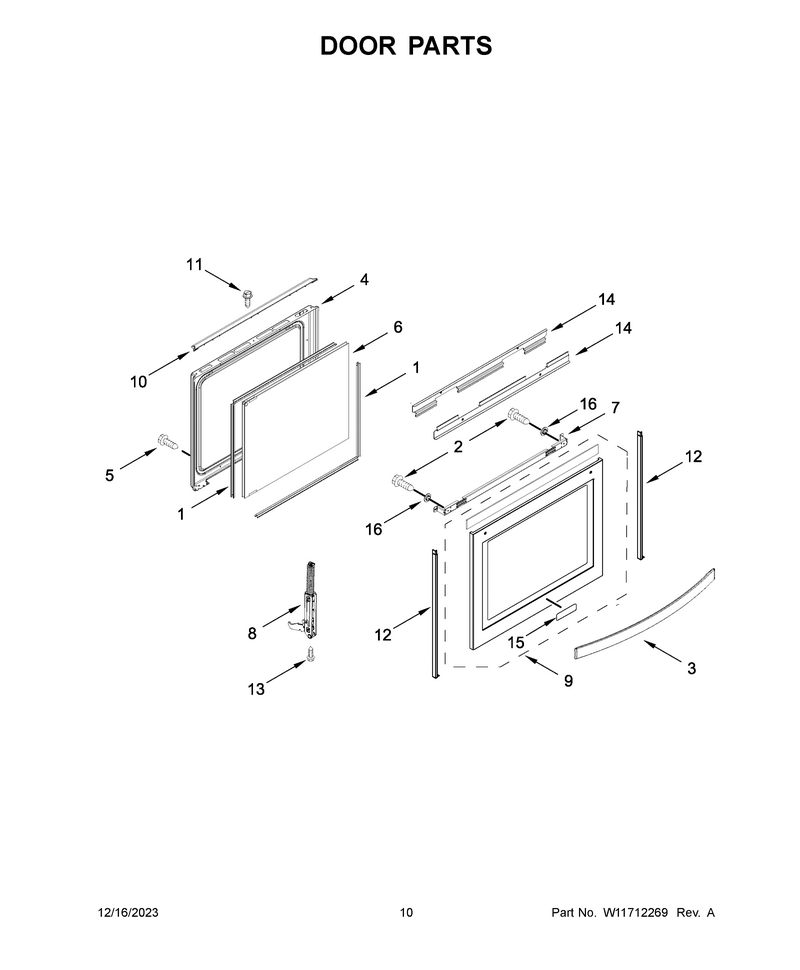

06 - Door Parts

...
...
1
Spacr-Glas WPL-W11673273
...
2
Screw WPL-WP8533988
...
3
Hndle-Door WPL-W11107877
...
3A
Hndle-Door WPL-W11110500
...
4
Liner-Door WPL-W10902192
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11339500
...
7
Bracket, Glass Upper Handle WPL-W10541911
...
8
Hinge-Door WPL-W11162113
...
9
Glass-Door WPL-W11106273
...
9A
Glass Assembly, Outer Door (Black Stainless) WPL---
...
10
Trim-Door WPL-W11182113
...
11
Screw WPL-WP355214
...
12
Support WPL-W11744483
...
13
Screw WPL-W10777162
...
14
Rail, Horizontal Support WPL-W10813140
...
15
Nameplate WPL-W11178521
...
16
Washer WPL-W11676355

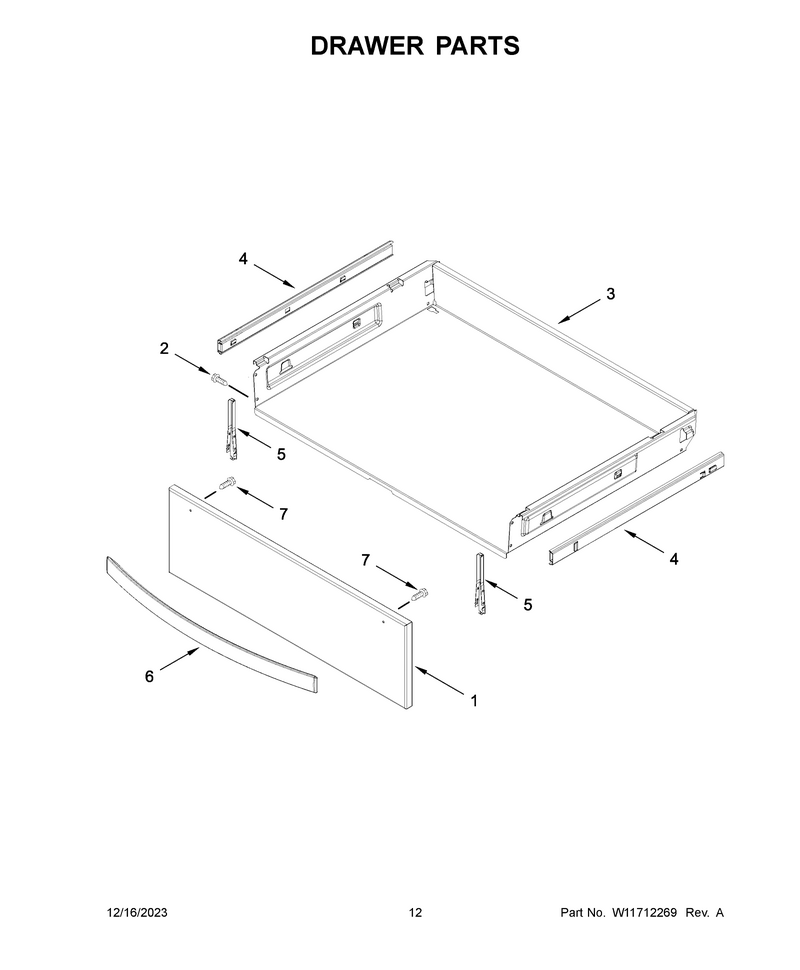

07 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11532675
...
1A
Panel-Drwr WPL-W11114992
...
2
Screw WPL-WP3196557
...
3
Drawr-Util WPL-W10813962
...
4
Slide-Drwr WPL-WPW10441804
...
4A
Slide-Drwr WPL-WPW10441805
...
5
Brkt-Mntg WPL-WPW10318026
...
6
Hndle-Door WPL-W11107877
...
6A
Hndle-Door WPL-W11110500
...
7
Screw WPL-7101P676-60

...
...
NI
Paint, Bulk (1 Qt. White (Uncut)) WPL-799344
