Whirlpool WFG775H0HW6

Model: WFG775H0HW6

Save Part Not Listed?
product name

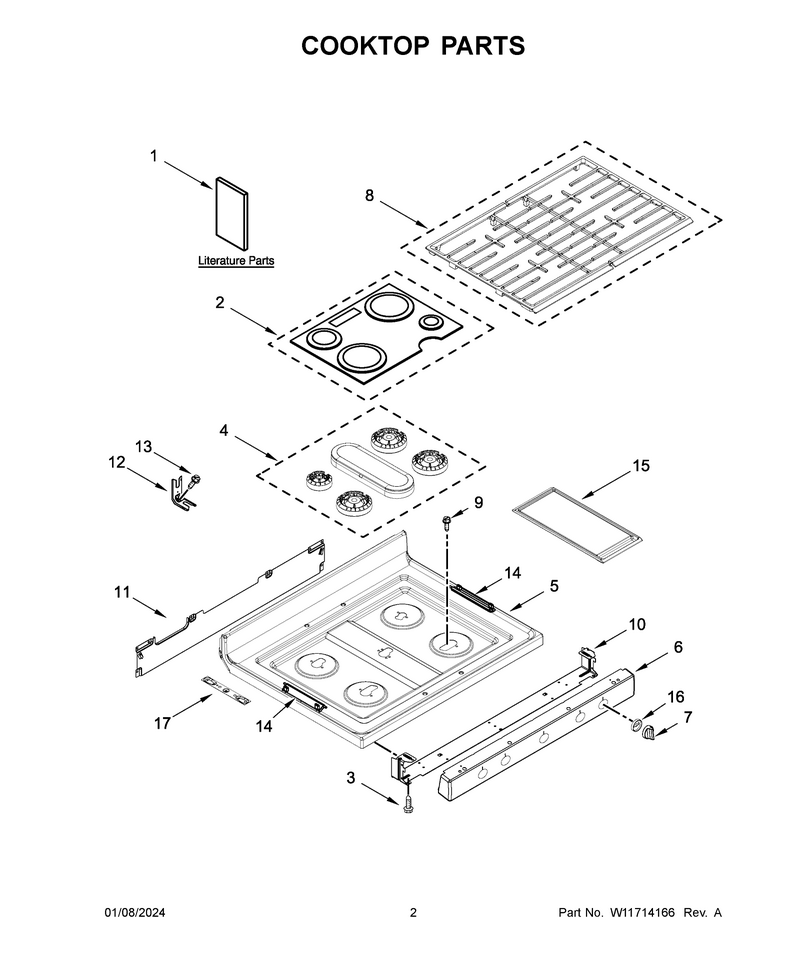

02 - Cooktop Parts

...
...
NI
Screw, Ground WPL-3400964
...
1
Quick Start Guide WPL-W11427474
...
1A
Use And Care Guide WPL-W11448510
...
1B
Tech Sheet WPL-W11565452
...
2
Cap-Burner WPL-W11605759
...
3
Screw WPL-WPW10067840
...
4
Burnr-Head WPL-W11662402
...
5
Cooktop WPL-W11483225
...
6
Panl-Mnfld WPL-W11176799
...
7
Knob WPL-W11176806
...
8
Grate-Kit WPL-W11175178
...
9
Screw WPL-W11241230
...
10
Manifold Panel Bracket WPL-W11379946
...
11
Rear Gas Cooktop Bracket WPL-W11379358
...
12
Anchor-Tip WPL-W11447673
...
13
Anchor-Tip WPL-WP7101P485-60
...
14
Hinge, Grate (Not Serviced) WPL---
...
15
Griddle, Gas Range WPL-W11123246
...
16
Bezel (White) WPL-W10918523
...
17
Grate Hinge Spacer WPL-W10879790

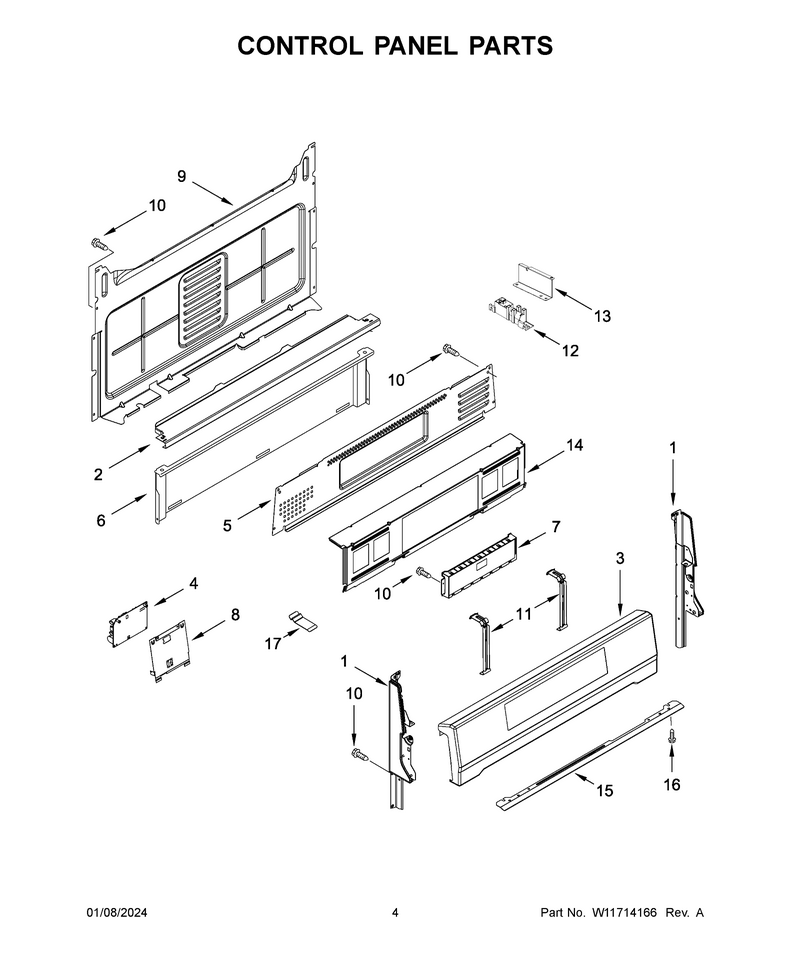

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11259041
...
1a
Endcap-Pnl WPL-W11259700
...
2
Bracket, Console Mounting WPL-W10516123
...
3
Panl-Cntrl WPL-W11177733
...
4
Module-Spk WPL-W11162730
...
5
Cover, Upper WPL-W10198745
...
6
Shield, Heat WPL-W10192841
...
7
Cntrl-Elec WPL-W11620580
...
8
Bracket, Mounting WPL-W10762981
...
9
Cover, Back WPL-W10184251
...
10
Screw WPL-W11233072
...
11
Bracket, Control WPL-W10856361
...
12
Module-Spk WPL-W11703692
...
13
Bracket WPL-W10901176
...
14
Panel, Backer WPL-W10901802
...
15
Bracket, Eye Brow (White) WPL-W11443963
...
16
Screw WPL-WP3196557
...
17
Clip WPL-WPW10551614

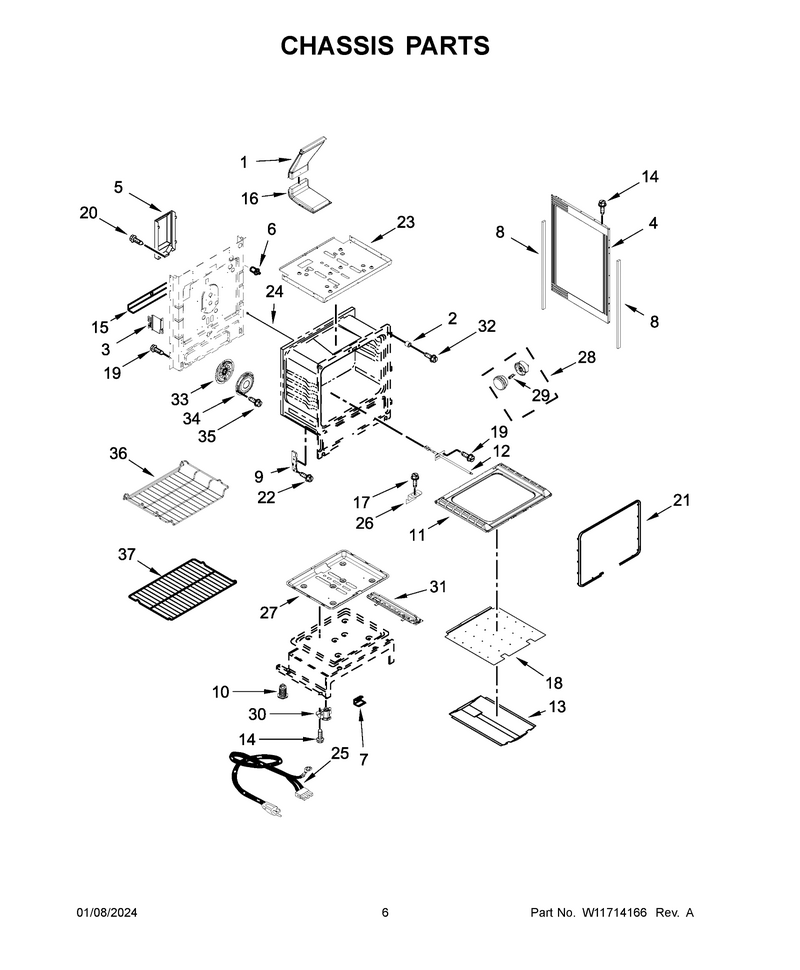

04 - Chassis Parts

...
...
NI
Insulation WPL-W11688362
...
1
Assembly, Flue WPL-W10314347
...
2
Spacer WPL-W10877054
...
3
Bracket, Oven Support WPL-W10273002
...
4
Panel-Side WPL-WPW10575396
...
5
Cover, Rear Fan WPL-W10158780
...
6
Swtch-Lite WPL-W11620712
...
7
Clip, Panel WPL-W10137382
...
8
Gasket WPL-W11175143
...
9
Hinge-Recv WPL-W10647259
...
10
Foot-Level WPL-WPW10058460
...
11
Bottm-Oven WPL-WPW10211368
...
12
Sensor WPL-W10833885
...
13
Baffle, Bake Burner WPL-3601P356-45
...
14
Screw WPL-W11233072
...
15
Brace, Main Back WPL-W10435470
...
16
Flue-Oven WPL-W11243157
...
17
Screw WPL-W11233072
...
18
Diffuser, Flame WPL-W10323077
...
19
Screw WPL-W11233072
...
20
Screw WPL-WP3196175
...
21
Gaskt-Door WPL-W11562931
...
22
Screw WPL-W10777162
...
23
Shield-Ht WPL-WPW10273195
...
24
Rod, Door Switch WPL-W10273192
...
25
Cord-Power WPL-W11582239
...
26
Support, Oven Bottom WPL-W10035900
...
27
Pan, Bake WPL-W11379356
...
28
Light-Oven WPL-W11707255
...
29
Bulb-Light WPL-WPW10571723
...
30
Foot-Level WPL-WPW10341186
...
31
Rail-Base WPL-WPW10306546
...
31A
Rail-Base WPL-WPW10306546
...
32
Screw WPL-W11169708
...
33
Fan-Convct WPL-WPW10389555
...
34
Cover WPL-WPW10346154
...
35
Screw WPL-W11233072
...
36
Rack-Oven WPL-WPW10289145
...
37
Rack-Oven WPL-WPW10531060

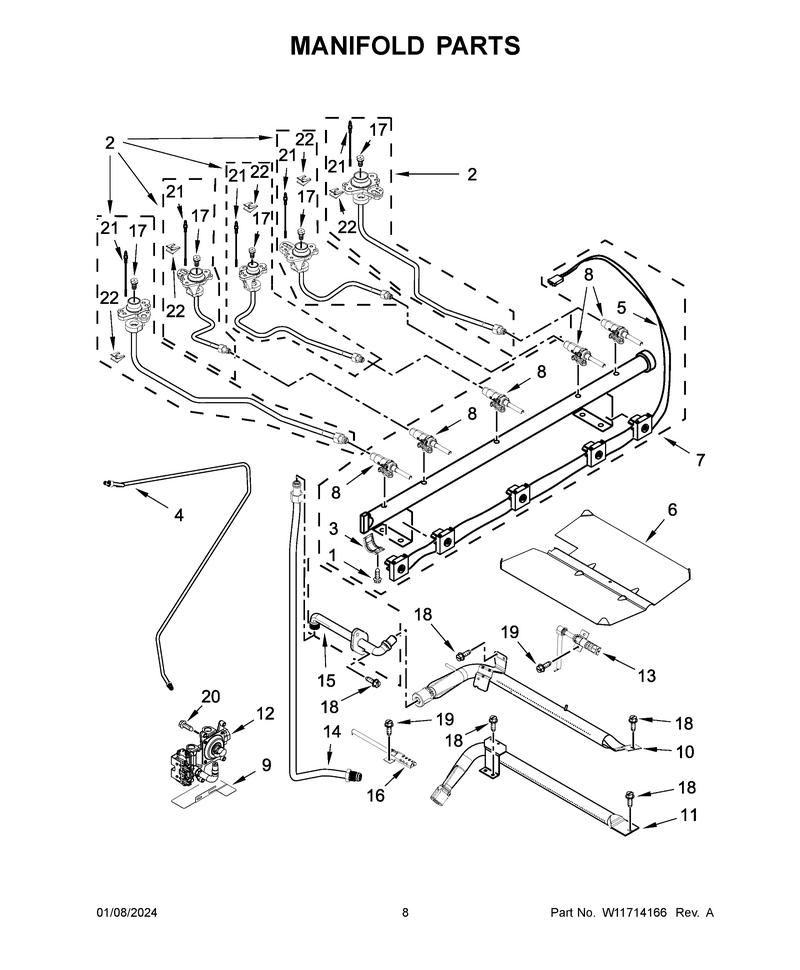

05 - Manifold Parts

...
...
NI
Tie-Wire WPL-WPW10182767
...
1
Screw, Valve WPL-W10295997
...
2
Holder-Orf WPL-W11557814
...
2A
Holder-Orf WPL-W11557815
...
2B
Holder-Orf WPL-W11557816
...
2C
Holder-Orf WPL-W11557817
...
2D
Holder-Orf WPL-W11557818
...
3
Bracket, Saddle Valve WPL-W10949105
...
4
Tubing, Main Supply WPL-W10510125
...
5
Harns-Wire WPL-W10906162
...
6
Baffle, Broil Burner WPL-3601P336-45
...
7
Manifold Assembly WPL-W11418925
...
8
Valve-Brnr WPL-W11628784
...
8A
Valve-Brnr WPL-W11699929
...
8B
Valve, Gas (Right Rear) WPL-W11352015
...
9
Bracket, Aegis WPL-W10224921
...
10
Burnr-Brlr WPL-W11676566
...
11
Burnr-Oven WPL-W10764654
...
12
Regulator WPL-W10919226
...
13
Igntr-Oven WPL-WPW10324262
...
14
Tube, Broil Supply (Broiler Fitting To Valve) WPL-W10306050
...
15
Fitting, Broil WPL-W10776437
...
16
Igntr-Oven WPL-WPW10333842
...
17
Orifice (18k) (Left Front) Orifice, Not Serviced WPL-W11485988
...
17A
Orifice (9.5k) (Left Rear) Orifice, Not Serviced WPL-W11485873
...
17B
Orifice (15k) (Right Front) WPL-W11428753
...
17C
Orifice WPL-W11712434
...
17D
Orifice (8k) (Center) Orifice, Not Serviced WPL-W11485874
...
18
Screw WPL-W11233072
...
19
Screw WPL-W11684507
...
20
Screw WPL-WP3400016
...
21
Igntr-Surf WPL-W11453940
...
21A
Igntr-Surf WPL-W11453920
...
22
Clip WPL-W11684564

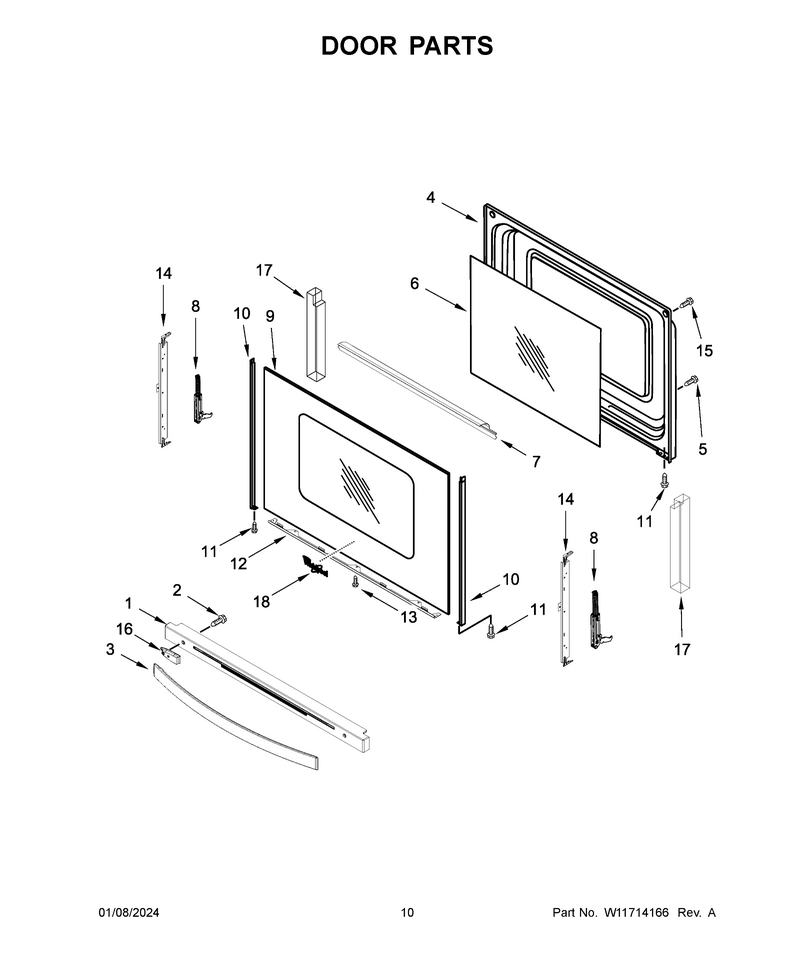

06 - Door Parts

...
...
1
Trim-Vent WPL-W11106937
...
2
Screw WPL-W10896982
...
3
Hndle-Door WPL-W11107407
...
4
Liner-Door WPL-WPW10297318
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-WPW10300487
...
7
Bracket, Glass Liner WPL-W10294853
...
8
Hinge-Door WPL-WPW10440013
...
9
Glass-Door WPL-W11107890
...
10
Trim, Door Side (White) WPL-W10334003
...
11
Screw WPL-WP355214
...
12
Brkt-Glass WPL-WPW10333990
...
13
Screw WPL-W10777162
...
14
Brkt-Suprt WPL-W11116956
...
15
Screw WPL-WPW10317886
...
16
Standoff, Handle (White) WPL-W10917797
...
17
Insulation WPL-W11688565
...
18
Nameplate WPL-W11178521

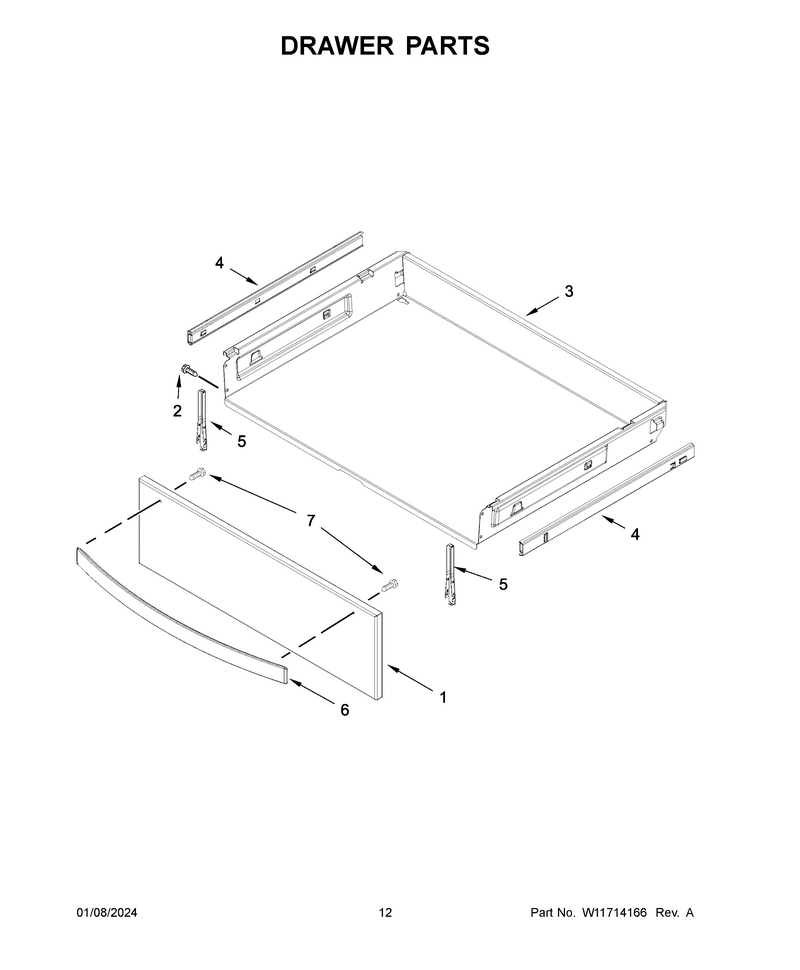

07 - Drawer Parts

...
...
1
Panel, Drawer Front (White) WPL-W11449681
...
2
Screw WPL-WP3196557
...
3
Drawr-Util WPL-W10813962
...
4
Slide-Drwr WPL-WPW10441804
...
4A
Slide-Drwr WPL-WPW10441805
...
5
Brkt-Mntg WPL-WPW10318026
...
6
Hndle-Door WPL-W11107407
...
7
Screw WPL-7101P676-60

...
...
NI
Paint, Bulk (1 Qt. White (Uncut)) WPL-799344
