Whirlpool WFG525S0JZ6

Model: WFG525S0JZ6

Save Part Not Listed?
product name

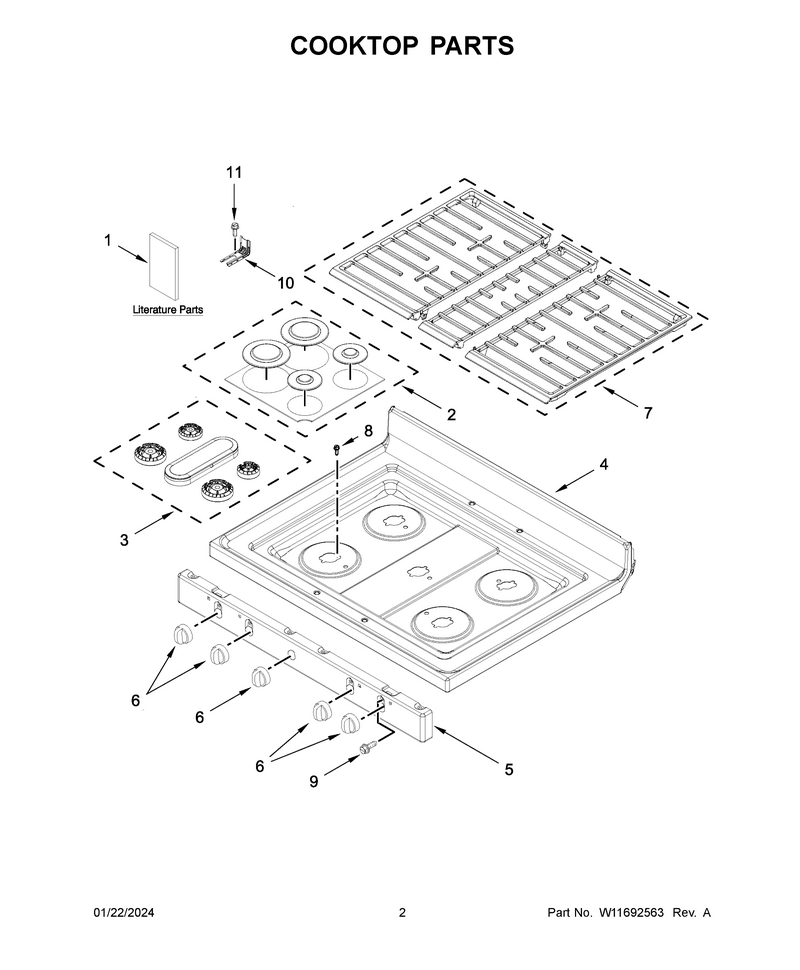

02 - Cooktop Parts

...
...
NI
Clip, Wire WPL-3196896
...
1
Wiring Diagram WPL-W11508882
...
1A
Owner's Manual WPL-W11426600
...
2
Cap-Burner WPL-W11455147
...
3
Burnr-Head WPL-W11662402
...
4
Cooktop WPL-W11454367
...
5
Panl-Mnfld WPL-W11165140
...
5A
Panl-Mnfld WPL-W11165142
...
6
Knob WPL-W11620567
...
6A
Knob WPL-W11620736
...
7
Grate-Kit WPL-W11252165
...
8
Screw WPL-W11241230
...
9
Screw WPL-WP3196557
...
10
Anchor-Tip WPL-W11447673
...
11
Anchor-Tip WPL-WP7101P485-60

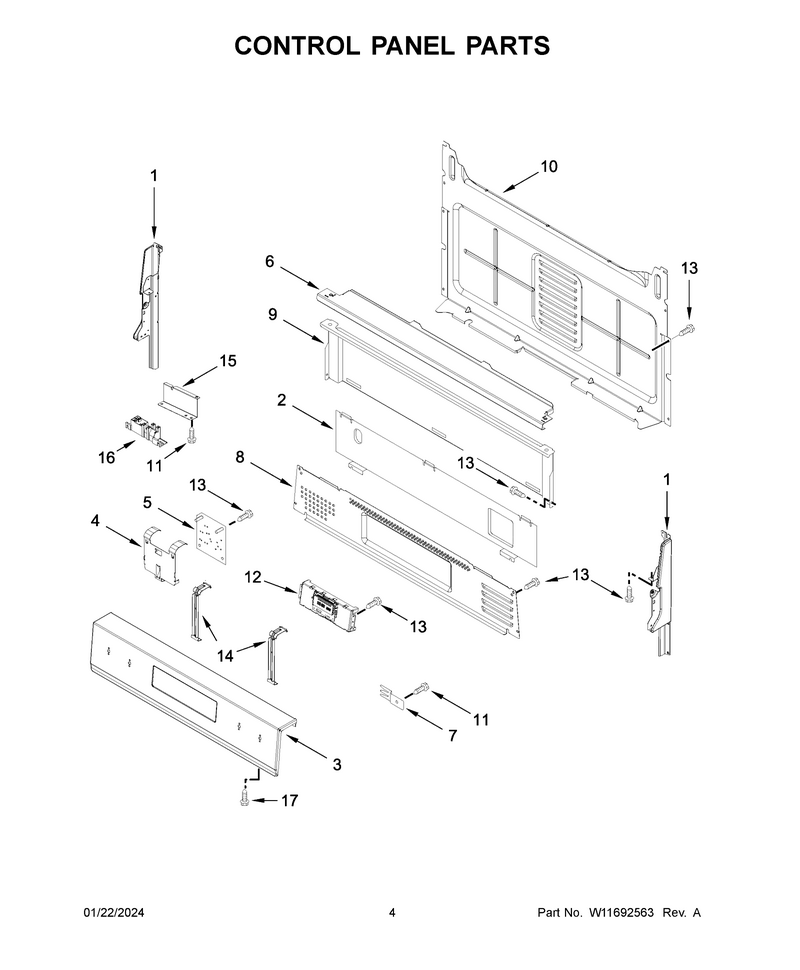

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11219664
...
1A
Endcap-Pnl WPL-W11219665
...
2
Shield, Heat WPL-8053505
...
3
Panl-Cntrl WPL-W11026866
...
3A
Panl-Cntrl WPL-W11165540
...
4
Bracket, Mounting WPL-W10762981
...
5
Module-Spk WPL-W11162730
...
6
Bracket, Console Mounting WPL-W10516123
...
7
Bracket, Rear Cooktop WPL-8523412
...
8
Cover, Upper WPL-W10198745
...
9
Shield, Heat WPL-W10192841
...
10
Cover, Back WPL-W10184370
...
11
Screw WPL-WP3196557
...
12
Cntrl-Elec WPL-W11620559
...
13
Screw WPL-W11233072
...
14
Brkt-Mntg WPL-W11230932
...
15
Bracket WPL-W10901176
...
16
Module-Spk WPL-W11703692
...
17
Screw WPL-WP3196175

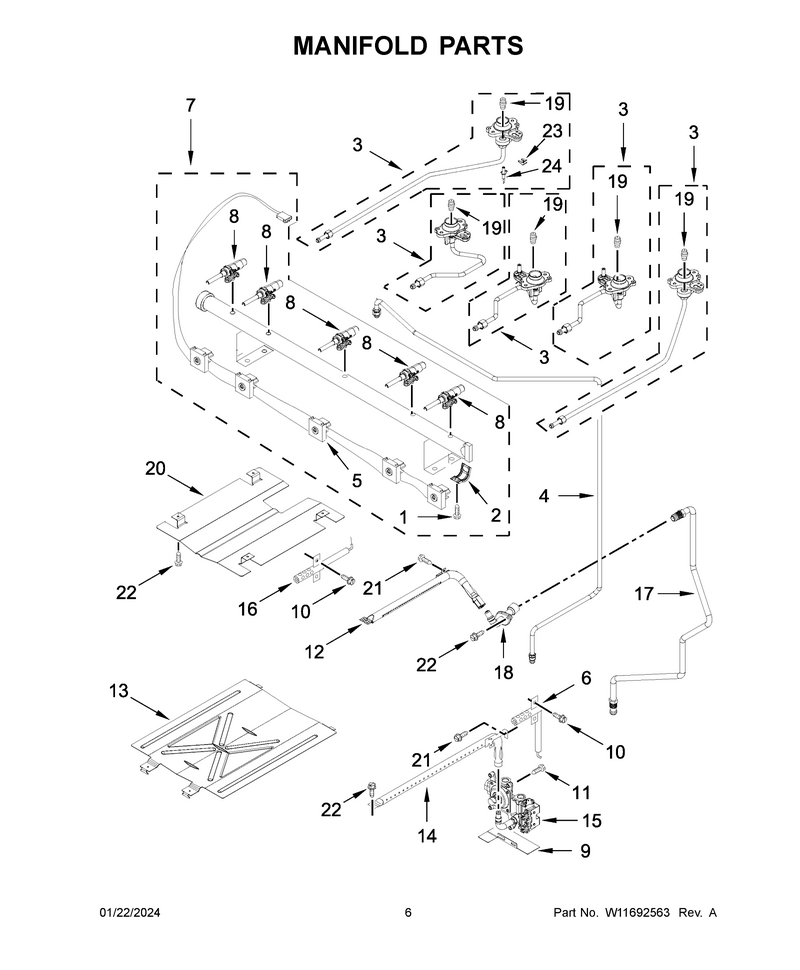

04 - Manifold Parts

...
...
NI
Tie-Wire WPL-WPW10182767
...
1
Screw, Valve WPL-W10295997
...
2
Bracket, Saddle Valve WPL-W10949105
...
3
Holder-Orf WPL-W11562501
...
3A
Holder-Orf WPL-W11557815
...
3B
Holder-Orf WPL-W11557816
...
3C
Holder-Orf WPL-W11557817
...
3D
Holder-Orf WPL-W11557818
...
4
Tubing-Gas WPL-W11680399
...
5
Harns-Wire WPL-W11701336
...
6
Igntr-Oven WPL-W11524031
...
7
Manifold Assembly WPL-W11510000
...
8
Valve-Brnr WPL-W11759109
...
8A
Valve, Gas (Left Rear And Center) WPL-W11509686
...
8B
Valve,gas (Right Rear) WPL-W11509687
...
9
Bracket, Aegis WPL-W10224921
...
10
Screw WPL-W11684507
...
11
Screw WPL-WP3400016
...
12
Burnr-Brlr WPL-WP8054078
...
13
Baffl-Brnr WPL-WPW10184491
...
14
Burnr-Oven WPL-WP9758078
...
15
Valve-Gas WPL-W11449506
...
16
Igntr-Oven WPL-WPW10333842
...
17
Tube, Broiler Supply WPL-W10420040
...
18
Fitting, Broiler WPL-W11435700
...
19
Orifice WPL-W11700316
...
19A
Orifice (9.5k) (Left Rear) Orifice, Not Serviced WPL-W11485873
...
19B
Orifice (15k) (Right Front) WPL-W11428753
...
19C
Orifice WPL-W11712434
...
19D
Orifice (8k) (Center) Orifice, Not Serviced WPL-W11485874
...
20
Spreader, Flame (Broiler) WPL-W10137062
...
21
Screw WPL-3196265
...
22
Screw WPL-W11233072
...
23
Clip WPL-W11684564
...
24
Igntr-Surf WPL-W11453940
...
24A
Igntr-Surf WPL-W11453920

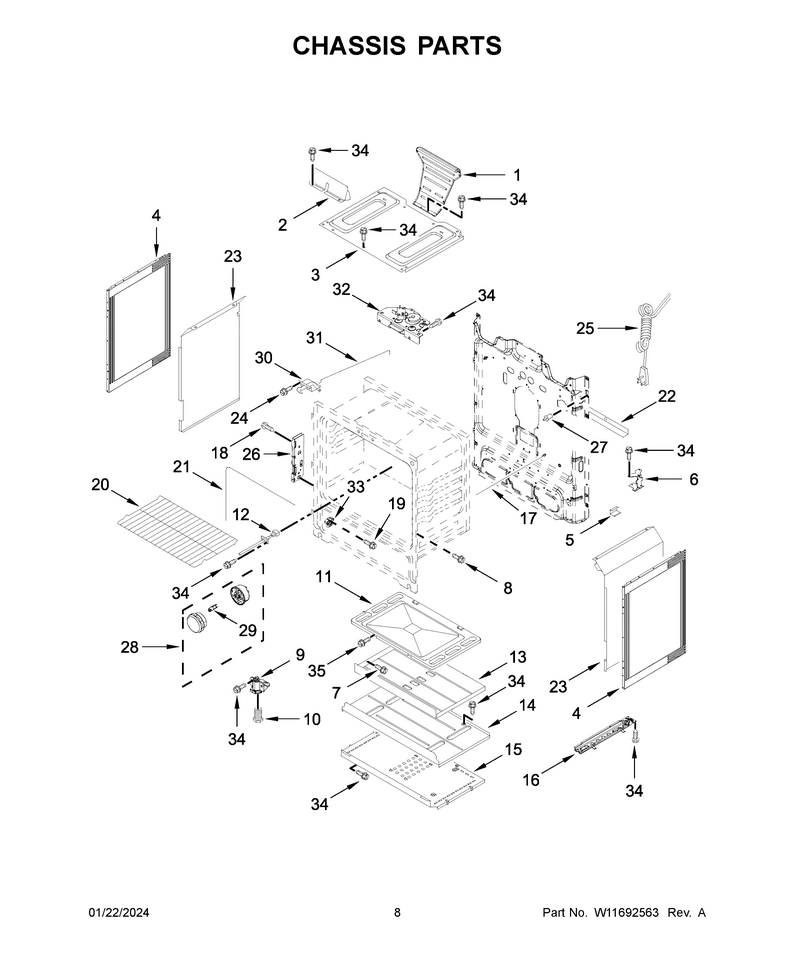

05 - Chassis Parts

...
...
NI
Insulation WPL-W11688737
...
1
Box, Flue WPL-W11457094
...
2
Shield-Ht WPL-WP8272747
...
3
Box-Burner, Gas Sealed WPL-W11379351
...
4
Panel-Side WPL-W11730303
...
5
Clip, Panel WPL-W10137382
...
6
Bracket, Manifold WPL-8523249
...
7
Screw WPL-W11233072
...
8
Screw WPL-W11169708
...
9
Foot-Level WPL-WPW10341186
...
10
Foot-Level WPL-WPW10058460
...
11
Bottm-Oven WPL-WP3195097
...
12
Sensor WPL-W10833885
...
13
Baffle, Burner Oven WPL-8053967
...
14
Shield, Heat WPL-8053969
...
15
Shield, Lower WPL-8053968
...
16
Rail-Base WPL-WPW10306546
...
16A
Rail-Base WPL-WPW10306546
...
17
Rod, Door Switch WPL-9757239
...
18
Screw WPL-W10777162
...
19
Screw WPL-W11684512
...
20
Rack-Oven WPL-W11520287
...
21
Gaskt-Door WPL-W11542153
...
22
Brace, Main Back WPL-W10435470
...
23
Retainer, Insulation (Left) WPL-W11379353
...
23A
Retainer, Insulation (Right) WPL-W11379943
...
24
Screw WPL-W11169708
...
25
Cord-Power WPL-W11582239
...
26
Hinge-Recv WPL-W10647259
...
27
Swtch-Lite WPL-W11620712
...
28
Light-Oven WPL-W11707255
...
29
Bulb-Light WPL-WPW10571723
...
30
Latch-Door WPL-WP9761013
...
31
Rod, Push Latch WPL-W10078370
...
32
Latch-Door WPL-WPW10107820
...
33
Glide-Drwr WPL-W10807823
...
34
Screw WPL-W11233072
...
35
Screw WPL-W10379120

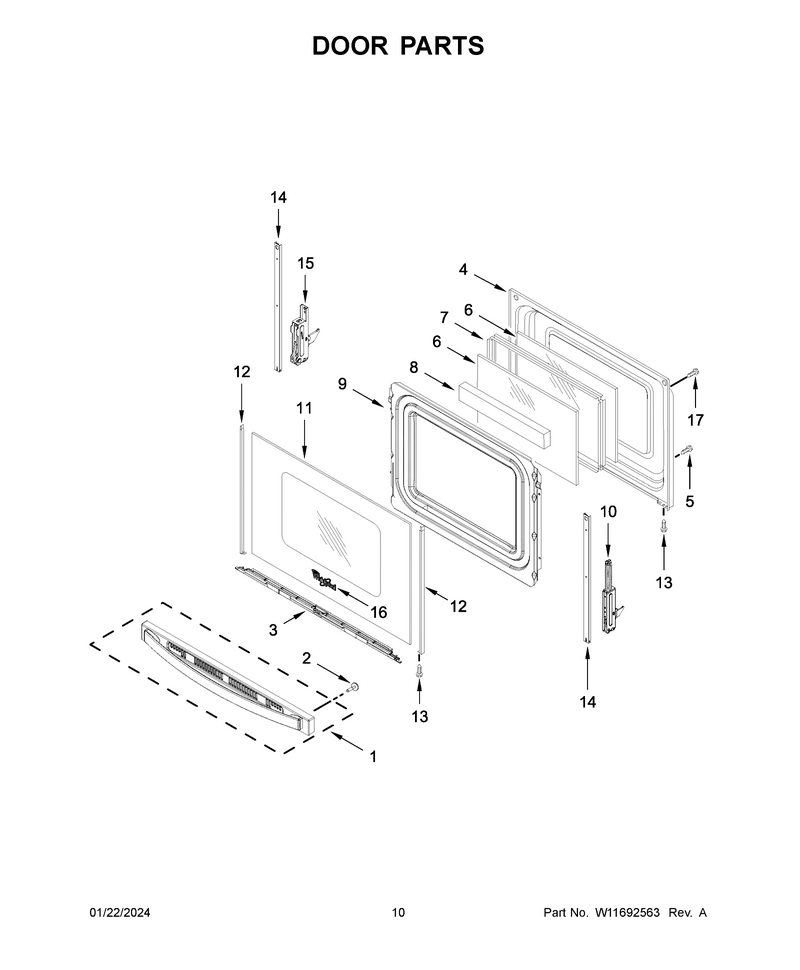

06 - Door Parts

...
...
1
Hndle-Door WPL-W11449263
...
1A
Hndle-Door WPL-W11678969
...
2
Screw WPL-W10831019
...
3
Trim-Door WPL-W11569689
...
4
Liner-Door WPL-WP9761344
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11159620
...
7
Frame-Wndw WPL-WPW10316950
...
8
Insulation WPL-WPW10278991
...
9
Retainer WPL-W11539580
...
10
Hinge-Door WPL-WPW10299224
...
11
Glass-Door WPL-W11702167
...
12
Trim-Door WPL-W10761018
...
12A
Trim-Door WPL-W10761014
...
13
Screw WPL-WP355214
...
14
Brkt-Suprt WPL-W11502236
...
15
Hinge-Door WPL-WPW10299227
...
16
Nameplate WPL-W11178521
...
17
Screw WPL-WPW10200660

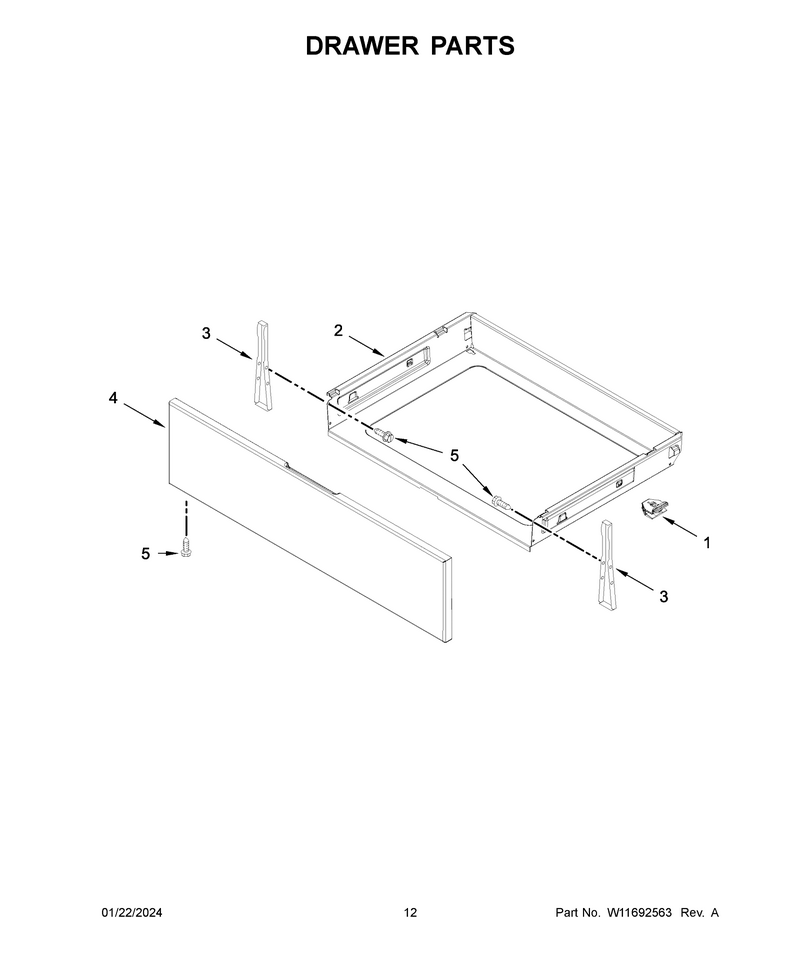

07 - Drawer Parts

...
...
1
Glide-Drwr WPL-W10807828
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-W11759228
...
4
Panel-Drwr WPL-W11252164
...
4A
Panel-Drwr WPL-W11165138
...
5
Screw WPL-WP3196557

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
