Whirlpool WFE775H0HZ5

Model: WFE775H0HZ5

Save Part Not Listed?
product name

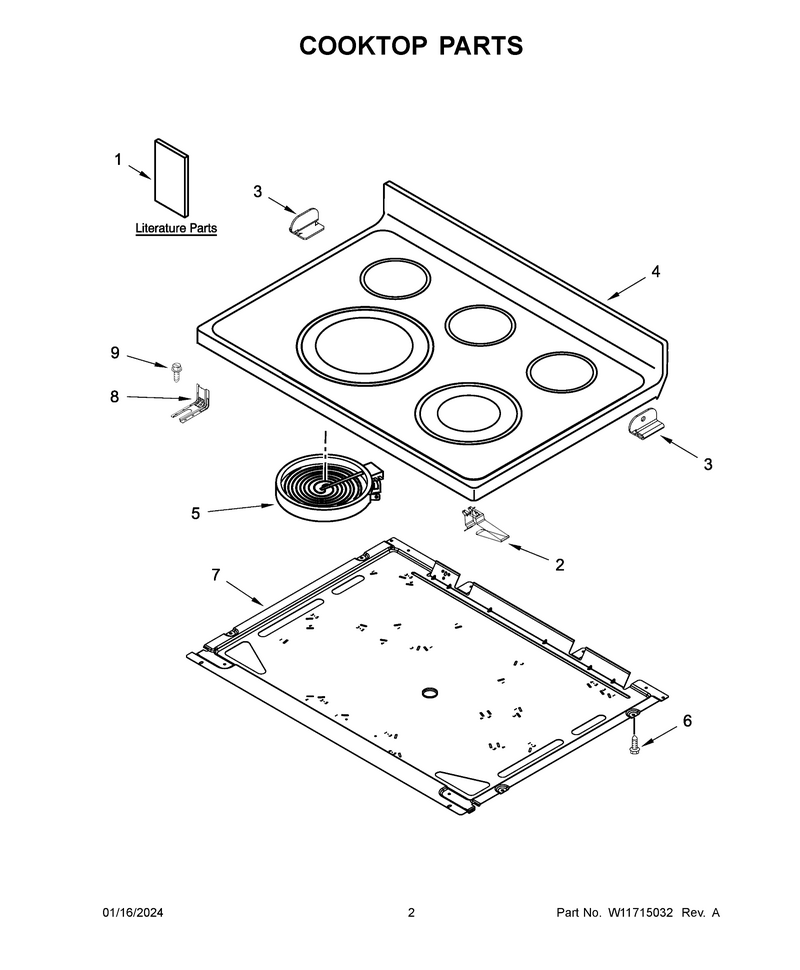

02 - Cooktop Parts

...
...
NI
Harness, Cooktop (Left) WPL-W11176669
...
1
Guide, Quick Start (English And French) WPL-W11435580
...
1A
Owner's Manual WPL-W11509589
...
1B
Tech Sheet WPL-W11326953
...
1C
Wiring Diagram WPL-W11326954
...
2
Spring WPL-W11663556
...
3
Bracket, Cooktop (Left) WPL-W10607641
...
3A
Bracket, Cooktop (Right) WPL-W10607642
...
4
Cooktop WPL-W11129393
...
5
Elmnt-Surf WPL-WPW10342780
...
5A
Elmnt-Surf WPL-W11171119
...
5B
Elmnt-Surf WPL-W11517959
...
5C
Elmnt-Surf WPL-W11041453
...
5D
Elmnt-Surf WPL-W10823727
...
6
Screw WPL-WP3196557
...
7
Pan WPL-W11244088
...
8
Anchor-Tip WPL-W11447673
...
9
Anchor-Tip WPL-WP7101P485-60

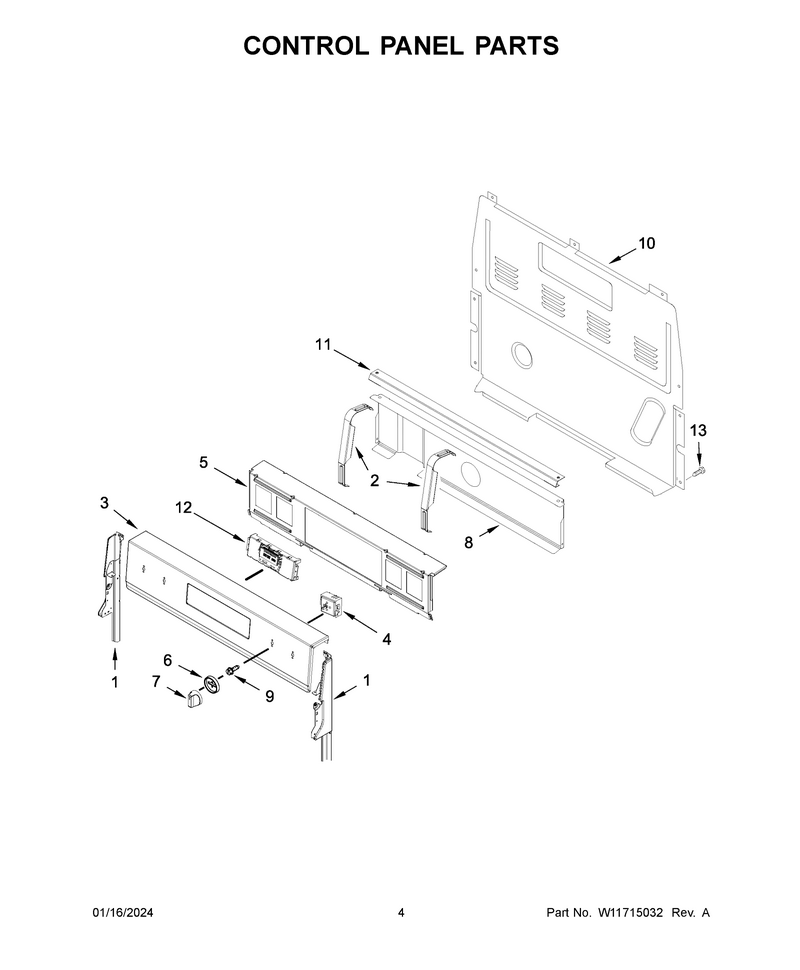

03 - Control Panel Parts

...
...
1
Endcap (Black (Left)) WPL-W11213290
...
1A
Endcap (Black (Right)) WPL-W11213292
...
2
Bracket, Control WPL-W10856361
...
3
Panl-Cntrl WPL-W11106246
...
3A
Panl-Cntrl WPL-W11105825
...
4
Switch-Inf WPL-W10857622
...
4A
Switch-Inf WPL-W10911303
...
4B
Switch-Inf WPL-W10917724
...
5
Panel, Backer WPL-W10901802
...
6
Bezel (Stainless) WPL-W10918419
...
6A
Bezel (Black Stainless) WPL-W10917223
...
7
Knob WPL-W11416802
...
7A
Knob WPL-W11674369
...
8
Shield, Heat WPL-W10134247
...
9
Screw WPL-7101P676-60
...
10
Cover-Rear WPL-WP8272473
...
11
Bracket, Console Mounting WPL-W10525121
...
12
Cntrl-Elec WPL-W11536793
...
13
Screw WPL-W11233072

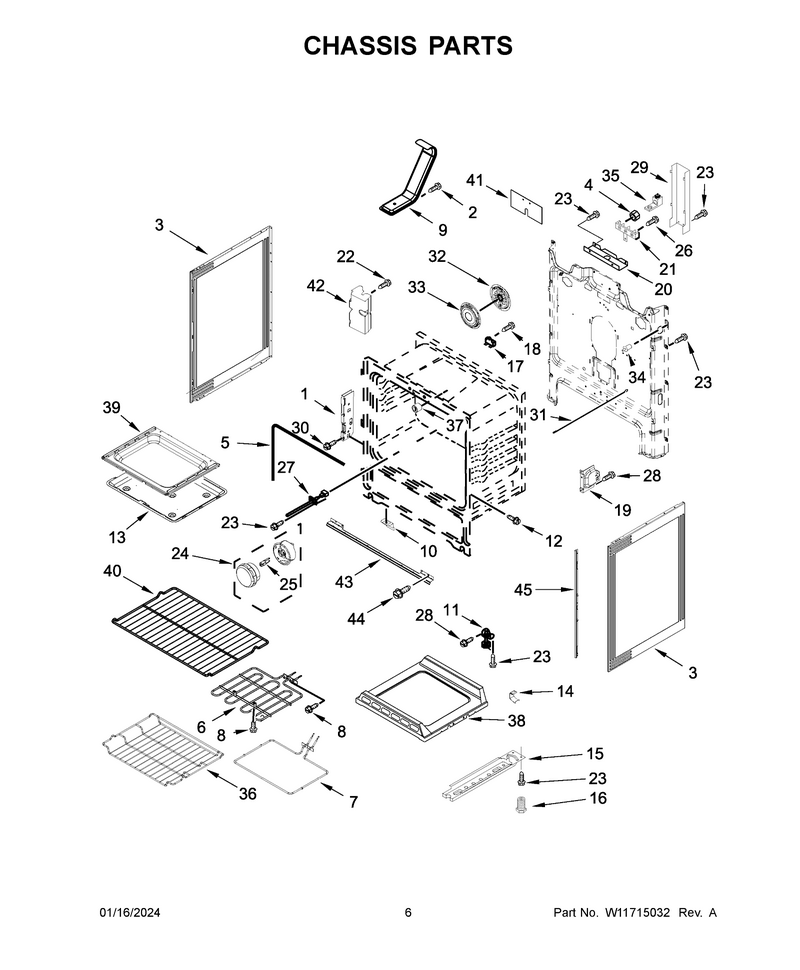

04 - Chassis Parts

...
...
NI
Insulation, Strap WPL-4820F015-59
...
1
Hinge-Recv WPL-W10647259
...
2
Screw WPL-WP3196175
...
3
Panel-Side WPL-W11730303
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11562931
...
6
Elmnt-Brol WPL-W11321472
...
7
Elmnt-Bake WPL-W10779716
...
8
Screw WPL-W11233072
...
9
Tube-Vent WPL-WPW10134285
...
10
Support, Oven Bottom WPL-W10035900
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Bake Pan WPL-W11379357
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Bracket, Oven Support WPL-W10273002
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WPW10245259
...
22
Screw-Torx WPL-W11135756
...
23
Screw WPL-W11233072
...
24
Light-Oven WPL-W11707255
...
25
Bulb-Light WPL-WPW10571723
...
26
Screw WPL-WP3400016
...
27
Sensor WPL-W10833885
...
28
Screw WPL-WP3196557
...
29
Cover-Blck WPL-WPW10326122
...
30
Screw WPL-W10777162
...
31
Rod, Door Switch WPL-W10273192
...
32
Fan-Convct WPL-W11527111
...
33
Cover WPL-WPW10346154
...
34
Swtch-Lite WPL-W11620712
...
35
Connector WPL-WPW10281322
...
36
Rack-Oven WPL-WPW10289145
...
37
Spacer WPL-W10877054
...
38
Shield, Heat WPL-W10726740
...
39
Bottm-Oven WPL-W10777210
...
40
Rack-Oven WPL-WPW10531060
...
41
Shield, Power Cord WPL-W10655441
...
42
Anchor-Tip WPL-W11135752
...
43
Brkt-Suprt WPL-W11686853
...
44
Screw WPL-W11169708
...
45
Rail-Mtg WPL-W11594227

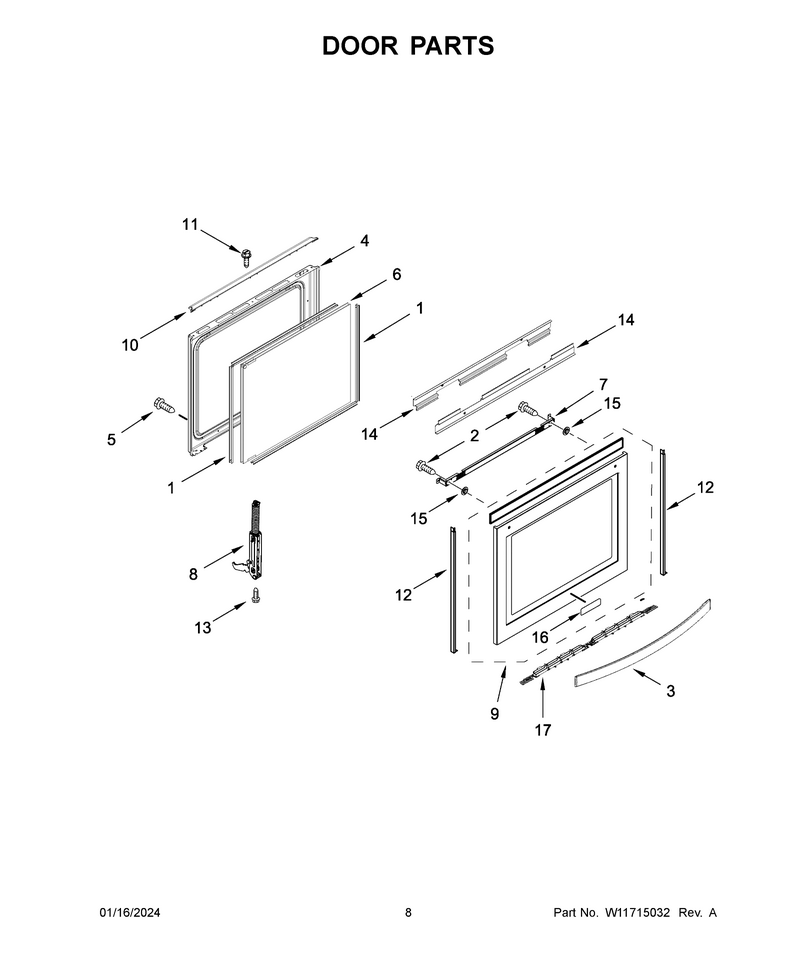

05 - Door Parts

...
...
1
Spacr-Glas WPL-W11673273
...
2
Screw WPL-WP8533988
...
3
Hndle-Door WPL-W11107877
...
3A
Hndle-Door WPL-W11110500
...
4
Liner-Door WPL-W10902192
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11339500
...
7
Bracket, Glass Upper Handle WPL-W10541911
...
8
Hinge-Door WPL-W11162113
...
9
Glass-Door WPL-W11106273
...
9A
Glass Assembly, Outer Door (Black Stainless) WPL---
...
10
Trim-Door WPL-W11182113
...
11
Screw WPL-WP355214
...
12
Support WPL-W11744483
...
13
Screw WPL-W10777162
...
14
Rail, Horizontal Support WPL-W10813140
...
15
Washer WPL-W11676355
...
16
Nameplate WPL-W11178521
...
17
Bottom, Door Cover WPL-W11440161

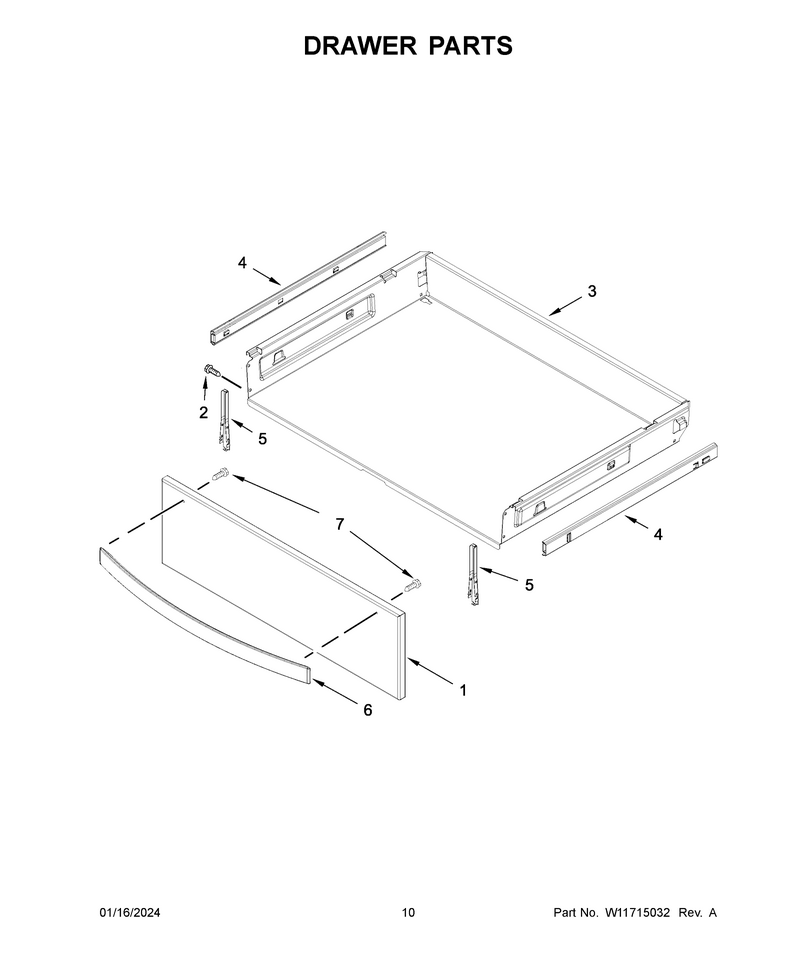

06 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11291078
...
1A
Panel-Drwr WPL-W11182106
...
2
Screw WPL-WP3196557
...
3
Drawr-Util WPL-W10813962
...
4
Slide-Drwr WPL-WPW10441804
...
4A
Slide-Drwr WPL-WPW10441805
...
5
Brkt-Mntg WPL-WPW10318027
...
6
Hndle-Door WPL-W11107877
...
6A
Hndle-Door WPL-W11110500
...
7
Screw WPL-WP3400882

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
