Whirlpool WFE525S0JW4

Model: WFE525S0JW4

Save Part Not Listed?
product name

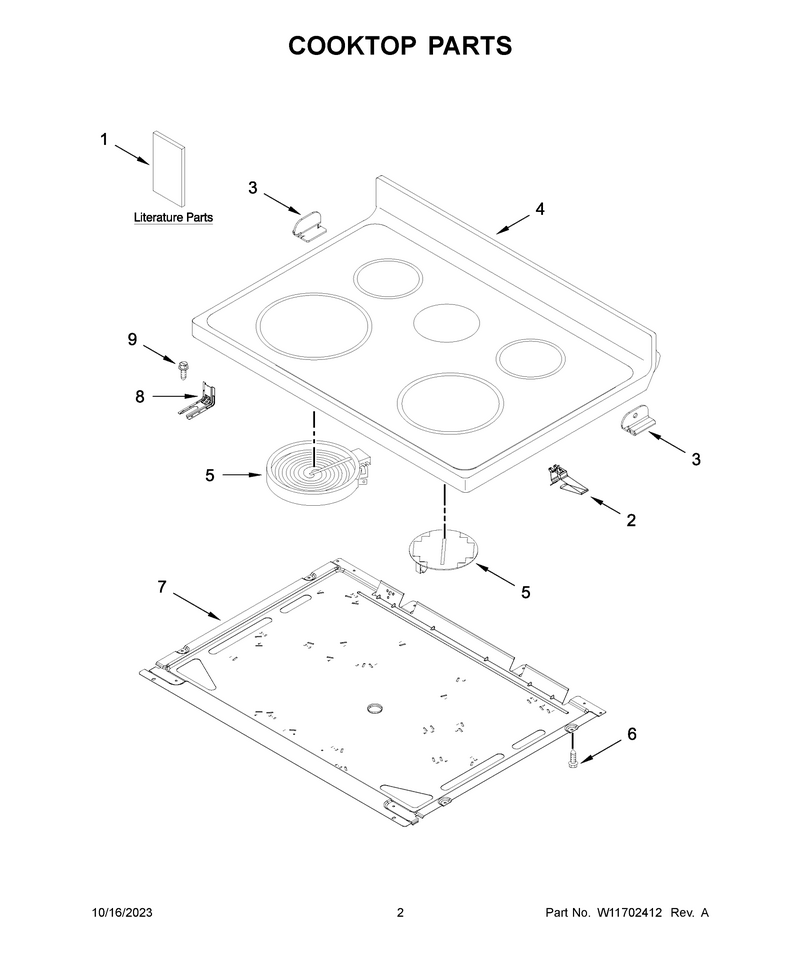

02 - Cooktop Parts

...
...
NI
Harness, Warm Zone WPL-W11598759
...
1
Quick Start Guide WPL-W11435582
...
1A
Owners Manual WPL-W11509617
...
1B
Tech Sheet WPL-W11401737
...
2
Spring WPL-W11663556
...
3
Bracket, Cooktop (Left) WPL-W10607641
...
3A
Bracket, Cooktop (Right) WPL-W10607642
...
4
Cooktop WPL-W11175876
...
4A
Cooktop WPL-W11381329
...
5
Elmnt-Surf WPL-W11517959
...
5A
Elmnt-Surf WPL-W11171119
...
5B
Elmnt-Surf WPL-W11047722
...
5C
Elmnt-Surf WPL-W11706247
...
6
Screw WPL-WP3196557
...
7
Pan WPL-W11244088
...
8
Anchor-Tip WPL-W11447673
...
9
Anchor-Tip WPL-WP7101P485-60

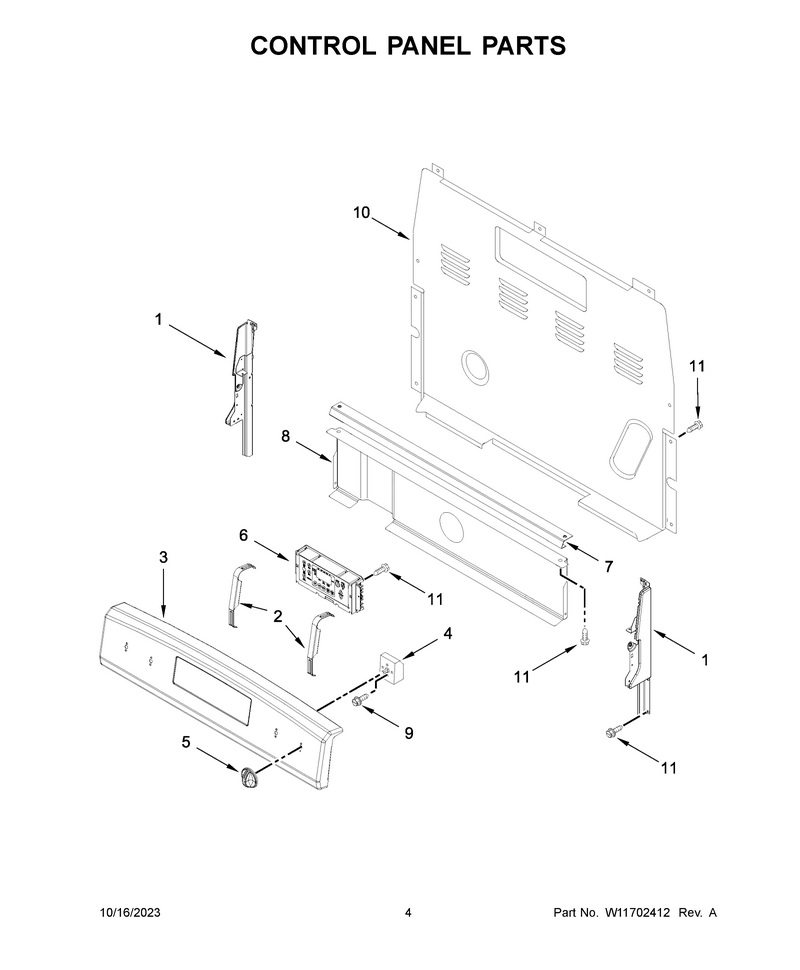

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11219664
...
1A
Endcap-Pnl WPL-W11219665
...
1B
Endcap-Pnl WPL-W11219365
...
1C
Endcap-Pnl WPL-W11219370
...
2
Brkt-Mntg WPL-W11230932
...
3
Panl-Cntrl WPL-W11175523
...
3A
Panl-Cntrl WPL-W11175525
...
4
Switch-Inf WPL-WPW10434452
...
4A
Switch-Inf WPL-WP3149404
...
4B
Switch-Inf WPL-WP3149400
...
5
Knob WPL-W11158169
...
5A
Knob WPL-W11158173
...
6
Cntrl-Elec WPL-W11594188
...
6A
Cntrl-Elec WPL-W11594189
...
7
Bracket, Console Mounting WPL-W10525121
...
8
Shield, Heat WPL-W10134247
...
9
Screw WPL-WP3400882
...
10
Cover-Rear WPL-WP8272473
...
11
Screw WPL-W11233072

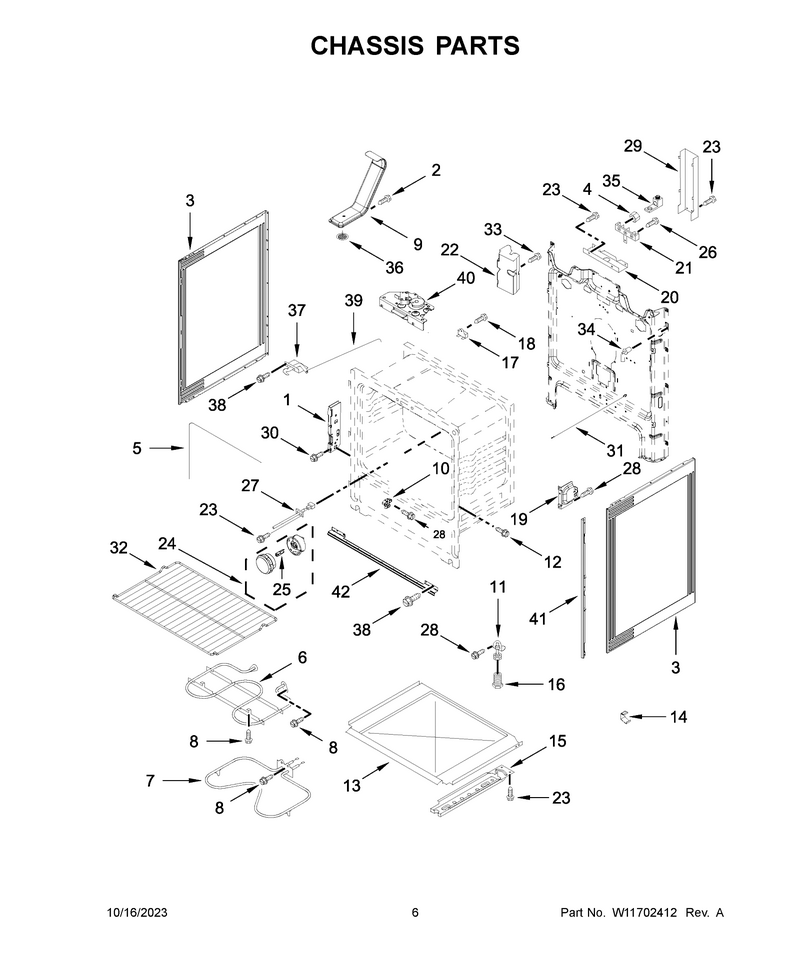

04 - Chassis Parts

...
...
NI
Insulation WPL-W11684918
...
1
Hinge-Recv WPL-W10647259
...
2
Screw WPL-WP3196154
...
3
Panel-Side WPL-W11730303
...
3A
Panel-Side WPL-WPW10575396
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11542153
...
6
Elmnt-Brol WPL-W10856603
...
7
Elmnt-Bake WPL-W11182108
...
8
Screw WPL-WP3196174
...
9
Tube-Vent WPL-WPW10134285
...
10
Glide-Drwr WPL-W10807823
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Retainer WPL-WP8054068
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Clip, Oven Support WPL-W10404688
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WPW10245259
...
22
Anchor-Tip WPL-W11135752
...
23
Screw WPL-W11233072
...
24
Light-Oven WPL-W11707255
...
25
Bulb-Light WPL-WPW10571723
...
26
Screw WPL-WP3400016
...
27
Sensor WPL-WPW10181986
...
28
Screw WPL-WP3196557
...
29
Cover-Blck WPL-WPW10326122
...
30
Screw WPL-W10777162
...
31
Rod, Door Switch WPL-9757239
...
32
Rack-Oven WPL-W11520287
...
33
Screw-Torx WPL-W11135756
...
34
Swtch-Lite WPL-W11620712
...
35
Connector WPL-WPW10281322
...
36
Screen WPL-W11268772
...
37
Latch-Door WPL-WP9761013
...
38
Screw WPL-W11169708
...
39
Rod, Latch WPL-W10078380
...
40
Latch-Door WPL-WPW10107820
...
41
Rail-Mtg WPL-W11594227
...
42
Bracket, Front Frame WPL-W11464547

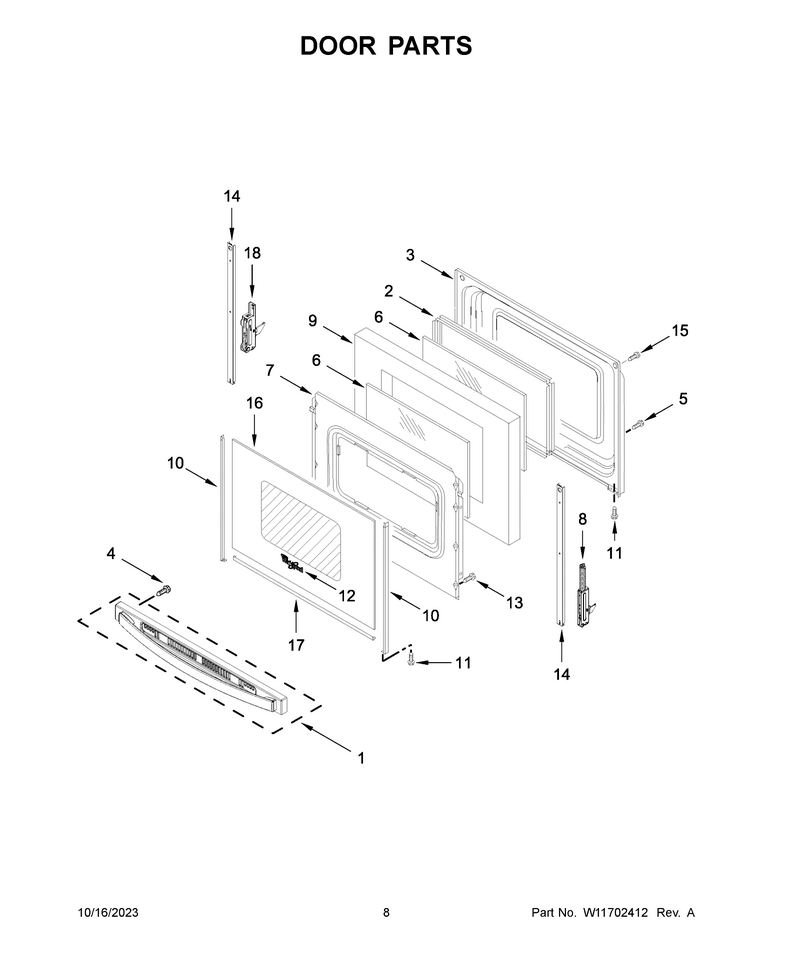

05 - Door Parts

...
...
1
Hndle-Door WPL-W11553213
...
1A
Hndle-Door WPL-W11590861
...
2
Frame-Wndw WPL-WPW10316950
...
3
Liner-Door WPL-WP9761344
...
4
Screw WPL-W10831019
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-WP8053948
...
7
Retainer WPL-W11539580
...
8
Hinge-Door WPL-WPW10299226
...
9
Insulation WPL-WPW10278991
...
10
Trim-Door WPL-W10761018
...
10A
Trim-Door WPL-W10761014
...
10B
Trim-Door WPL-WP8523172
...
10C
Trim-Door WPL-WP8523166
...
11
Screw WPL-WP355214
...
12
Nameplate WPL-W11178521
...
13
Screw WPL-W10777162
...
14
Brkt-Suprt WPL-W11502236
...
15
Screw WPL-WPW10200660
...
16
Glass-Door WPL-W11702167
...
16A
Glass-Door WPL-WPW10409945
...
17
Trim-Door WPL-W11569689
...
17A
Trim-Door WPL-W11594186
...
18
Hinge-Door WPL-WPW10299227

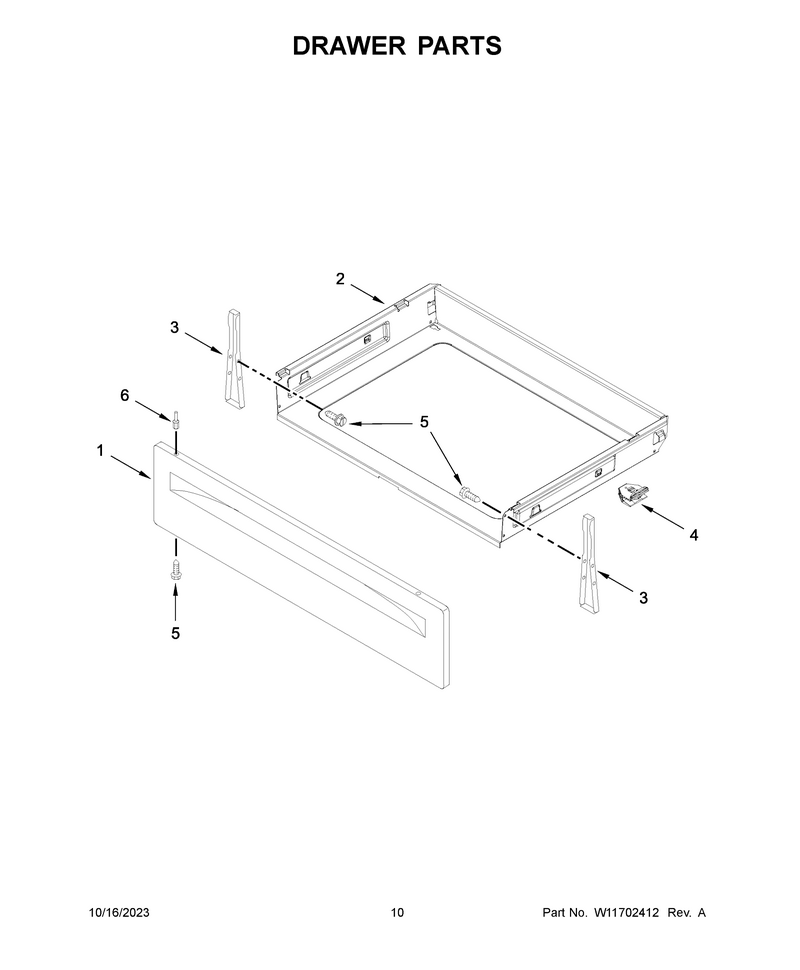

06 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11230488
...
1A
Panel-Drwr WPL-W11219377
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-WPW10462912
...
4
Glide-Drwr WPL-W10807828
...
5
Screw WPL-WP3196175
...
6
Rivet WPL-WP3196813
...
6A
Rivet WPL-WP3196814

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
