Whirlpool WFC315S0JW4

Model: WFC315S0JW4

Save Part Not Listed?
product name

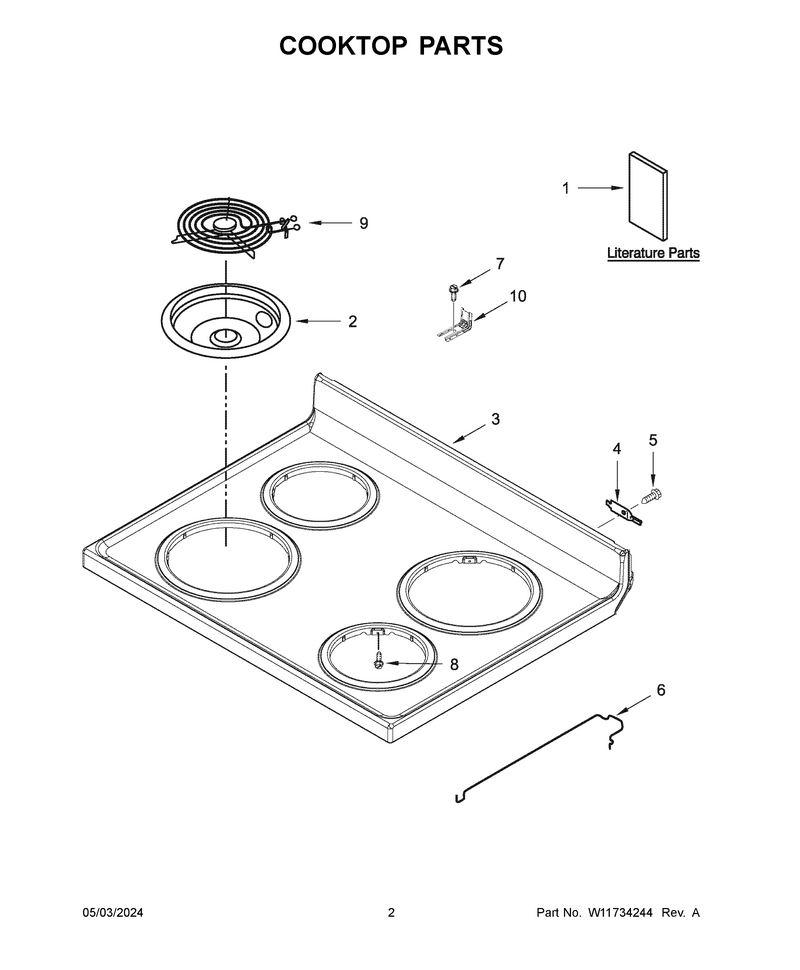

02 - Cooktop Parts

...
...
NI
Harns-Wire WPL-W11396691
...
1
Owners Manual WPL-W11509617
...
1A
Quick Start Guide WPL-W11435582
...
1B
Tech Sheet WPL-W11401727
...
2
Bowl-Drip WPL-WPW10196406
...
2A
Bowl-Drip WPL-WPW10196405
...
3
Cooktop WPL-8195534
...
3A
Cooktop WPL-8195532
...
4
Pin-Cooktp WPL-WP3195060
...
5
Screw WPL-W11233072
...
6
Rod-Cktop WPL-WP3195812
...
7
Anchor-Tip WPL-WP7101P485-60
...
8
Screw WPL-WP3196154
...
9
Elmnt-Surf WPL-W11396792
...
9A
Elmnt-Surf WPL-W11396790
...
10
Anchor-Tip WPL-W11447673

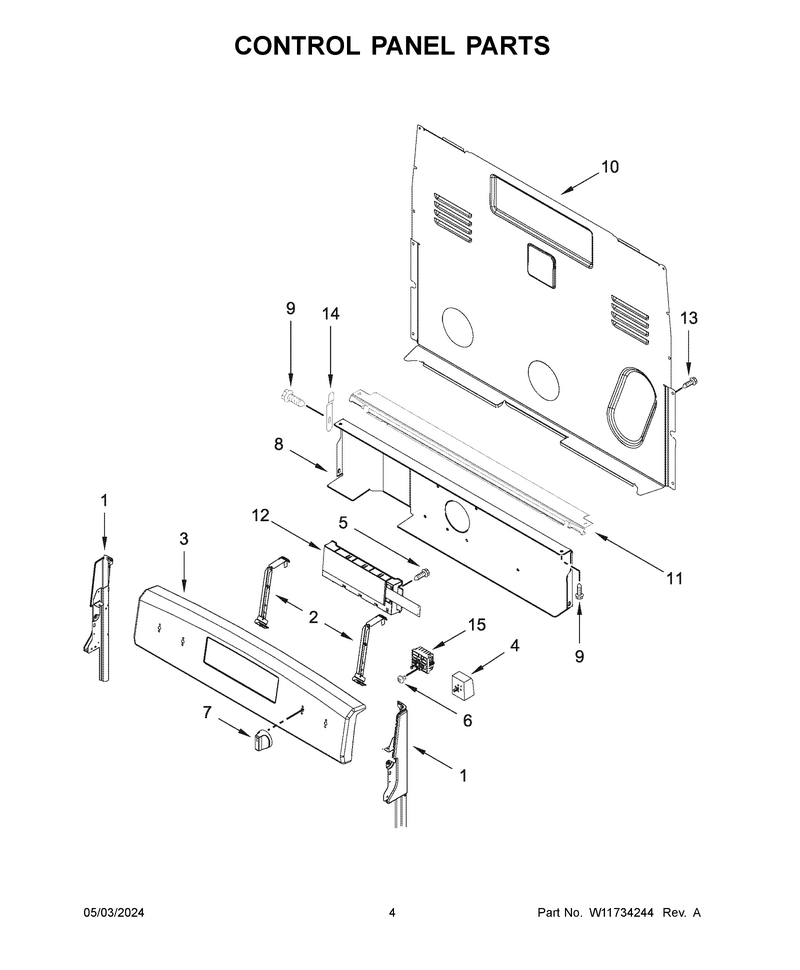

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11219664
...
1A
Endcap-Pnl WPL-W11219365
...
1B
Endcap-Pnl WPL-W11219665
...
1C
Endcap-Pnl WPL-W11219370
...
2
Brkt-Mntg WPL-W11230932
...
3
Panl-Cntrl WPL-W11550179
...
3A
Panl-Cntrl WPL-W11323155
...
4
Switch-Inf WPL-WP3148952
...
5
Screw WPL-WP3196557
...
6
Screw WPL-WP3400882
...
7
Knob WPL-W11158169
...
7A
Knob WPL-W11158173
...
8
Shield, Heat WPL-W10134247
...
9
Screw WPL-WP3196175
...
10
Cover-Rear WPL-WP8272473
...
11
Bracket, Console Mounting WPL-W10525121
...
12
Cntrl-Elec WPL-W11594225
...
12A
Cntrl-Elec WPL-W11594226
...
13
Screw WPL-W11233072
...
14
Clip, Spring WPL-3196200
...
15
Switch-Inf WPL-WP3149400

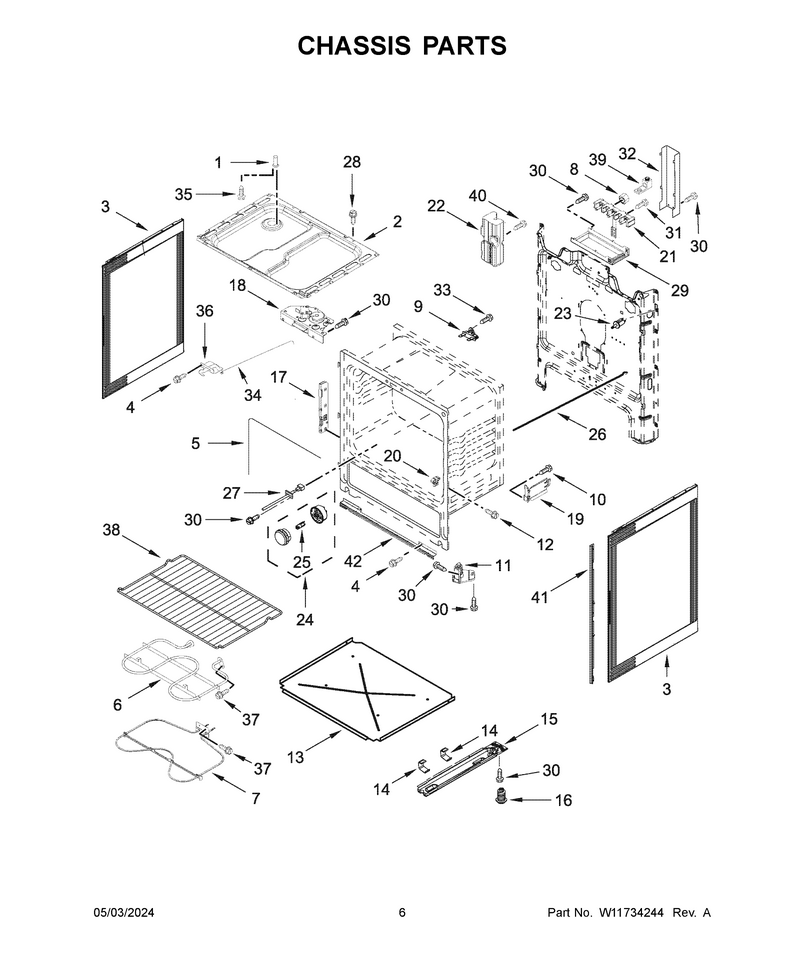

04 - Chassis Parts

...
...
NI
Insulation WPL-W11311894
...
1
Vent Tube WPL-W11222268
...
2
Box-Burner WPL-W11699791
...
3
Panel-Side WPL-W11730303
...
3A
Panel-Side WPL-WPW10575396
...
4
Screw WPL-W11169708
...
5
Gaskt-Door WPL-W11542153
...
6
Elmnt-Brol WPL-W10856603
...
7
Elmnt-Bake WPL-W11182108
...
8
Nut WPL-WP3400029
...
9
Fuse-Thrml WPL-WP3196548
...
10
Screw WPL-WP3196557
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Retainer WPL-WP8054068
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Hinge-Recv WPL-W10647259
...
18
Latch-Door WPL-WPW10107820
...
19
Clip, Oven Support WPL-W10404688
...
20
Glide-Drwr WPL-W10807823
...
21
Block-Term WPL-WPW10245259
...
22
Anchor-Tip WPL-W11135752
...
23
Swtch-Lite WPL-W11620712
...
24
Light-Oven WPL-W11707255
...
25
Bulb-Light WPL-WPW10571723
...
26
Rod, Door Switch WPL-9757239
...
27
Sensor WPL-WPW10181986
...
28
Screw WPL-WP3196175
...
29
Brkt-Srvce WPL-W11728255
...
30
Screw WPL-W11233072
...
31
Screw WPL-WP3400016
...
32
Cover-Blck WPL-WPW10326122
...
33
Screw WPL-3196172
...
34
Rod, Latch WPL-W10078380
...
35
Screw WPL-WP3196567
...
36
Latch-Door WPL-WP9761013
...
37
Screw WPL-WP3196174
...
38
Rack-Oven WPL-W11520287
...
39
Connector WPL-WPW10281322
...
40
Screw-Torx WPL-W11135756
...
41
Rail-Mtg WPL-W11594227
...
42
Bracket, Front Frame WPL-W11464547

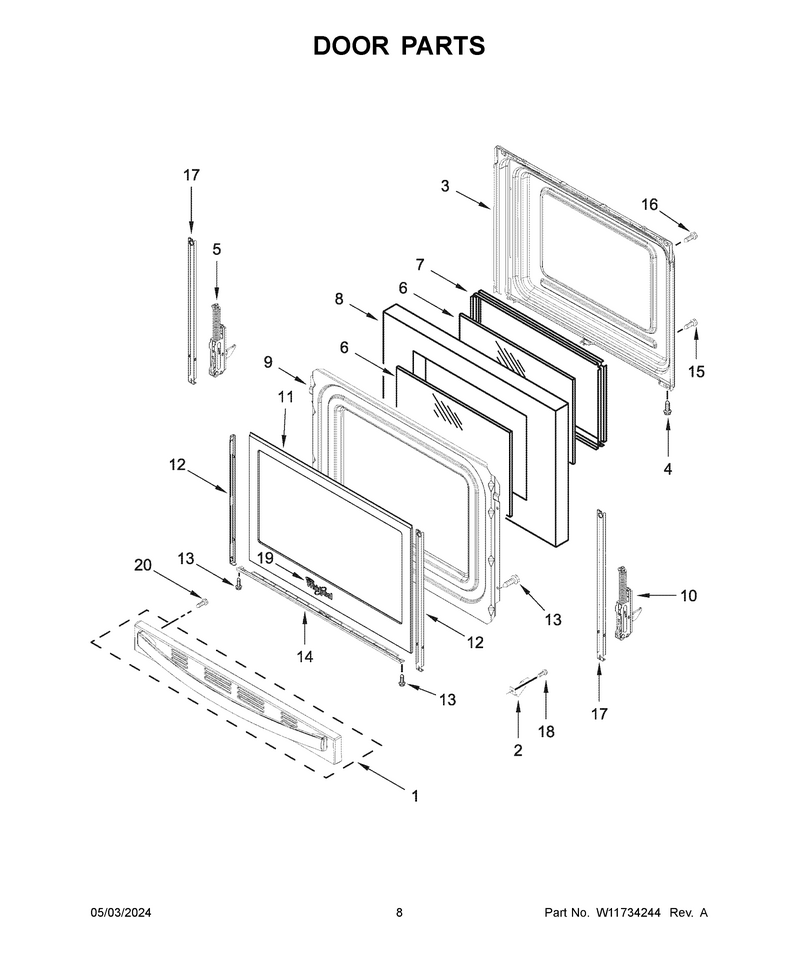

05 - Door Parts

...
...
1
Hndle-Door WPL-W11553213
...
1A
Hndle-Door WPL-W11590861
...
2
Clip, Panel WPL-W10137382
...
3
Liner-Door WPL-WP9761344
...
4
Screw WPL-W10777162
...
5
Hinge-Door WPL-WPW10299227
...
6
Glass-Door WPL-WP8053948
...
7
Frame-Wndw WPL-WPW10316950
...
8
Insulation WPL-WPW10278991
...
9
Retainer WPL-W11539580
...
10
Hinge-Door WPL-WPW10299226
...
11
Glass-Door WPL-WPW10409946
...
11A
Glass-Door WPL-WPW10409945
...
12
Trim-Door WPL-W10761018
...
12A
Trim-Door WPL-WP8523172
...
12B
Trim-Door WPL-W10761014
...
12C
Trim-Door WPL-WP8523166
...
13
Screw WPL-WP355214
...
14
Trim-Door WPL-W11569689
...
14A
Trim-Door WPL-W11594186
...
15
Screw WPL-WPW10031790
...
16
Screw WPL-WPW10200660
...
17
Brkt-Suprt WPL-W11502236
...
18
Screw WPL-WP3196175
...
19
Nameplate WPL-W11178521
...
20
Screw WPL-W10831019

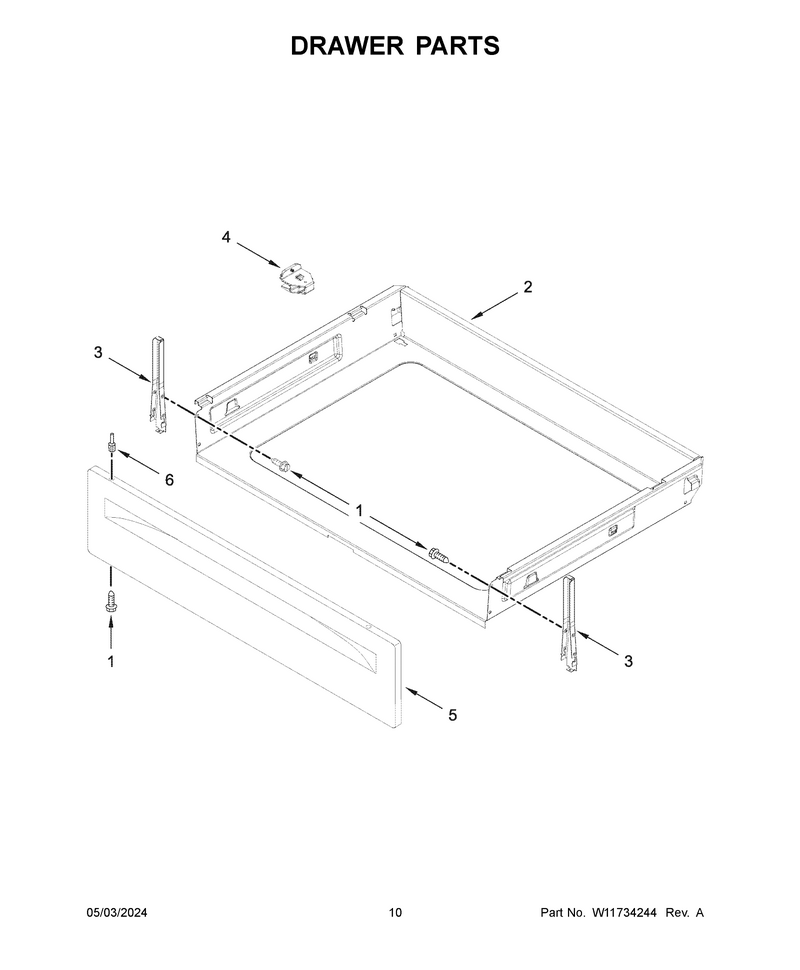

06 - Drawer Parts

...
...
1
Screw WPL-WP3196175
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-WPW10462912
...
4
Glide-Drwr WPL-W10807828
...
5
Panel-Drwr WPL-W11230488
...
5A
Panel-Drwr WPL-W11219377
...
6
Rivet WPL-WP3196813
...
6A
Rivet WPL-WP3196814

...
...
NI
Accessories, Broiler Pan And Grid WPL-4396923
