Whirlpool WEG750H0HB6

Model: WEG750H0HB6

Save Part Not Listed?
product name

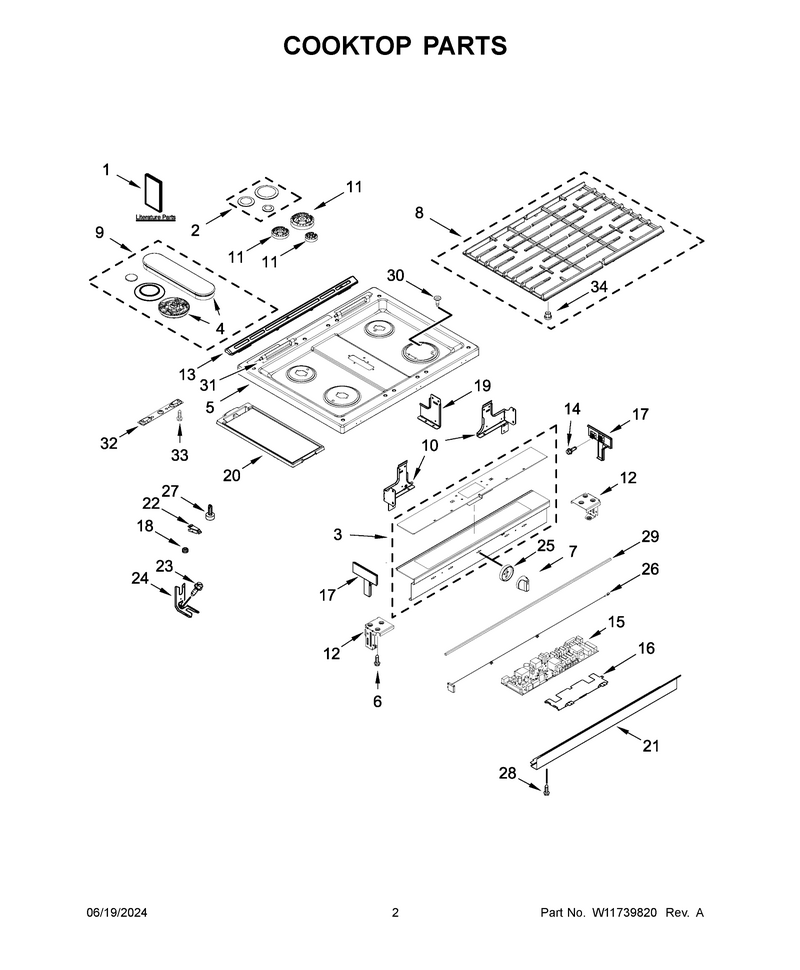

02 - Cooktop Parts

...
...
NI
Clip, Wire WPL-3196896
...
1
Quick Start Guide WPL-W11428052
...
1A
Owners Manual WPL-W11498994
...
1B
Tech Sheet WPL-W11565459
...
2
Cap-Burner WPL-W11605764
...
3
Cntrl-Elec WPL-W11339759
...
3A
Cntrl-Elec WPL-W11339758
...
4
Burnr-Head WPL-W11245289
...
4A
Burnr-Head WPL-W11548764
...
5
Cooktop WPL-W11548508
...
5A
Cooktop WPL-W11620413
...
6
Screw WPL-W10491985
...
7
Knob WPL-W11121968
...
7A
Knob WPL-W11121969
...
8
Grate-Kit WPL-W11548766
...
9
Burnr-Head WPL-W11550541
...
10
Support, Cooktop (Left) WPL-W10867593
...
10A
Support, Cooktop (Right) WPL-W10867592
...
11
Burnr-Head WPL-W11531096
...
11A
Burnr-Head WPL-W11531097
...
11B
Burnr-Head WPL-W11531098
...
12
Base, Console (Left) WPL-W10828159
...
12A
Base, Console (Right) WPL-W10828160
...
13
Trim-Vent WPL-W11256338
...
13A
Trim, Vent (White) WPL-W10577780
...
14
Screw WPL-W11245710
...
15
Cntrl-Elec WPL-W11620582
...
16
Bracket, Control WPL-W10908536
...
17
Endcap (Black (Left)) WPL-W10854354
...
17A
Endcap (White (Left)) WPL-W10854355
...
17B
Endcap (Black (Right)) WPL-W10854358
...
17C
Endcap (White (Right)) WPL-W10854359
...
18
Bumper WPL-W11690600
...
19
Bracket, Console (Center) WPL-W10867600
...
20
Griddle, Gas Range WPL-W11123246
...
21
Console, Lower Panel (Black) WPL-W10899344
...
22
Brace, Corner (Left) WPL-W10162253
...
22A
Brace, Corner (Right) WPL-W10162252
...
23
Anchor-Tip WPL-WP7101P485-60
...
24
Anchor-Tip WPL-W11502257
...
25
Bezel (Black) WPL-W10906019
...
25A
Bezel (White) WPL-W10906018
...
26
Antenna WPL-W11583804
...
27
Glide-Drwr WPL-W11189172
...
28
Screw WPL-W11233072
...
29
Gasket WPL-W10802441
...
30
Screw WPL-W11103318
...
31
Hinge, Grate (Not Serviced) WPL---
...
32
Grate Hinge Spacer WPL-W10879790
...
33
Screw WPL-WPW10132940
...
34
Bumper WPL-W10919249

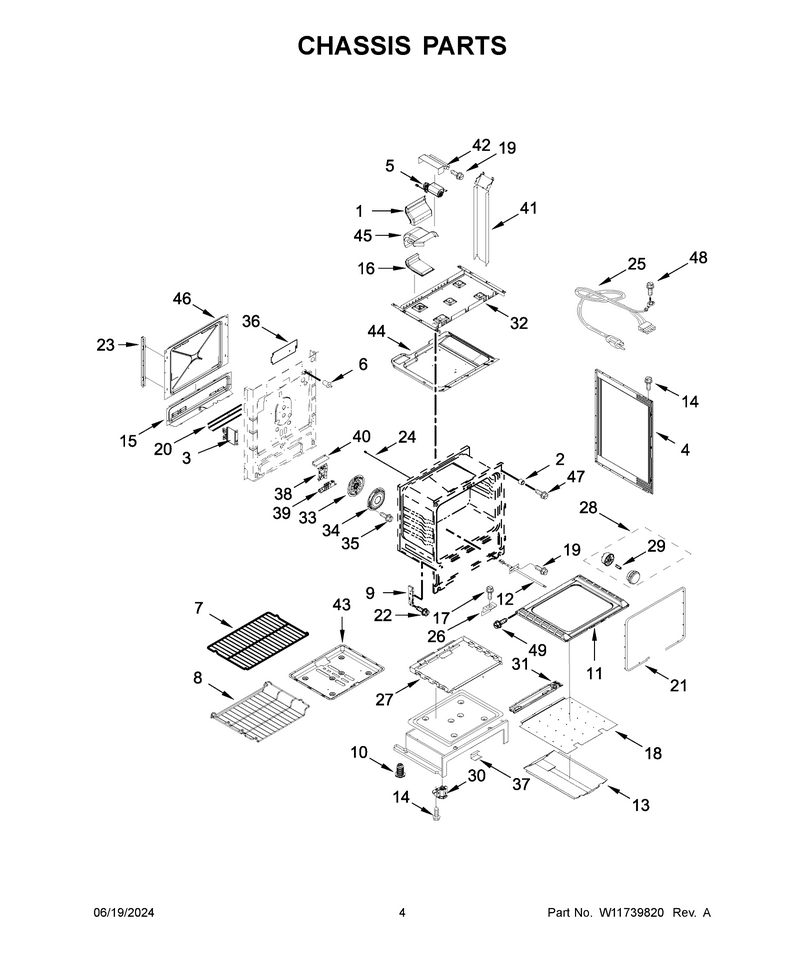

03 - Chassis Parts

...
...
NI
Spud-Orfce WPL-W11087486
...
1
Assembly, Flue WPL-W10614920
...
2
Spacer WPL-W10877054
...
3
Bracket, Oven Support WPL-W10273002
...
4
Panel-Side WPL-W11730303
...
4A
Panel-Side WPL-WPW10575396
...
5
Fan-Blwr WPL-W11620737
...
6
Swtch-Lite WPL-W11620712
...
7
Rack-Oven WPL-WPW10531060
...
8
Rack-Oven WPL-WPW10289145
...
9
Hinge-Recv WPL-W10647259
...
10
Foot-Level WPL-WPW10058460
...
11
Bottm-Oven WPL-WPW10211368
...
12
Sensor WPL-W10833885
...
13
Baffle, Bake Burner WPL-3601P356-45
...
14
Screw WPL-W11233072
...
15
Cover, Wire WPL-W10162249
...
16
Flue-Oven WPL-W11243157
...
17
Screw WPL-W11233072
...
18
Diffuser, Flame WPL-W10323077
...
19
Screw WPL-WP3196557
...
20
Brace, Main Back WPL-W10435470
...
21
Gaskt-Door WPL-W11562931
...
22
Screw WPL-W10777162
...
23
Channel, Rear WPL-W10162241
...
24
Rod, Door Switch WPL-W10273192
...
25
Cord-Power WPL-W11582239
...
26
Support, Oven Bottom WPL-W10035900
...
27
Shield, Bake WPL-W10541959
...
28
Light-Oven WPL-W11707255
...
29
Bulb-Light WPL-WPW10571723
...
30
Foot-Level WPL-WPW10341186
...
31
Rail-Base WPL-WPW10306546
...
31A
Rail-Base WPL-WPW10306546
...
32
Box, Burner WPL-W11216156
...
33
Fan-Convct WPL-W11441001
...
34
Cover WPL-WPW10346154
...
35
Screw WPL-W11233072
...
36
Shield, Wire WPL-W10818358
...
37
Clip, Panel WPL-W10137382
...
38
Module-Spk WPL-W10860916
...
39
Module-Spk WPL-W11703692
...
40
Guard, Splash WPL-W10655451
...
41
Duct, Cooling WPL-W10162254
...
42
Duct, Cover WPL-W10162255
...
43
Pan, Bake WPL-W11379356
...
44
Box, Burner Si WPL-W10289168
...
45
Duct, Cooktop WPL-W10162257
...
46
Cover, Back WPL-W11379355
...
47
Screw WPL-WPW10067840
...
48
Screw WPL-W11244557
...
49
Screw WPL-W10516115

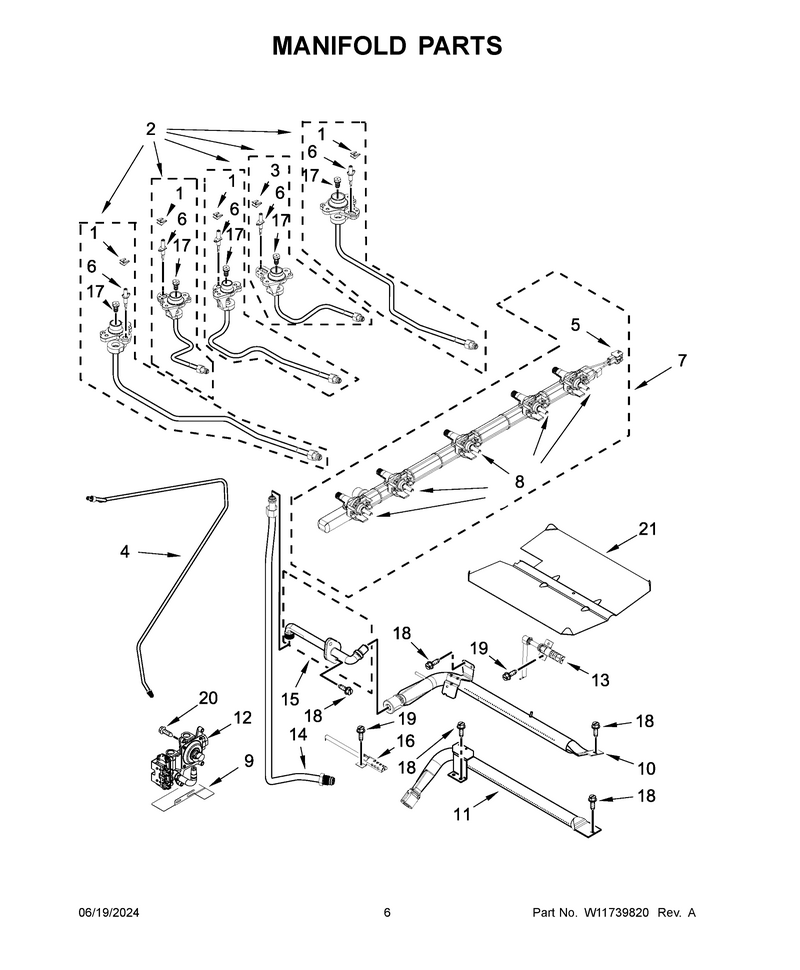

04 - Manifold Parts

...
...
1
Clip WPL-W11684564
...
2
Holder-Orf WPL-W11122530
...
2A
Holder-Orf WPL-W11122534
...
2B
Holder-Orf WPL-W11672515
...
2C
Holder-Orf WPL-W11122547
...
2D
Bckspl-Gls WPL-W11548769
...
3
Clip, Electrode WPL-W11084050
...
4
Tube, Supply WPL-W11107282
...
5
Harness, Spark Switch WPL-W10885903
...
6
Igntr-Surf WPL-W11661929
...
6A
Igntr-Surf WPL-W11643126
...
6B
Electrode, Burner (Right Front) WPL-W11084034
...
6C
Igntr-Surf WPL-W11661897
...
7
Assembly, Manifold WPL-W11504626
...
8
Valve-Brnr WPL-W11550543
...
8A
Valve-Brnr WPL-W11550545
...
8B
Valve-Brnr WPL-W11550546
...
9
Bracket, Aegis WPL-W10224921
...
10
Burnr-Brlr WPL-W11676566
...
11
Burnr-Oven WPL-W10764654
...
12
Regulator WPL-W10861656
...
13
Igntr-Oven WPL-WPW10324262
...
14
Tube, Broil Supply (Broiler Fitting To Valve) WPL-W10306050
...
15
Fitting, Broil Burner WPL-W10583216
...
16
Igntr-Oven WPL-WPW10333842
...
17
Orifice (Left Front) WPL-W10907865
...
17A
Spud-Orfce WPL-W11677633
...
17B
Spud-Orfce WPL-W11209817
...
17C
Orifice (9.5k) (Right Rear) Orifice, Not Serviced WPL-W10849714
...
17D
Orifice (10k) (Center) Orifice, Not Serviced WPL-W10907868
...
18
Screw WPL-W11233072
...
19
Screw WPL-W11684507
...
20
Screw WPL-WP3400016
...
21
Baffle, Broil Burner WPL-3601P336-45

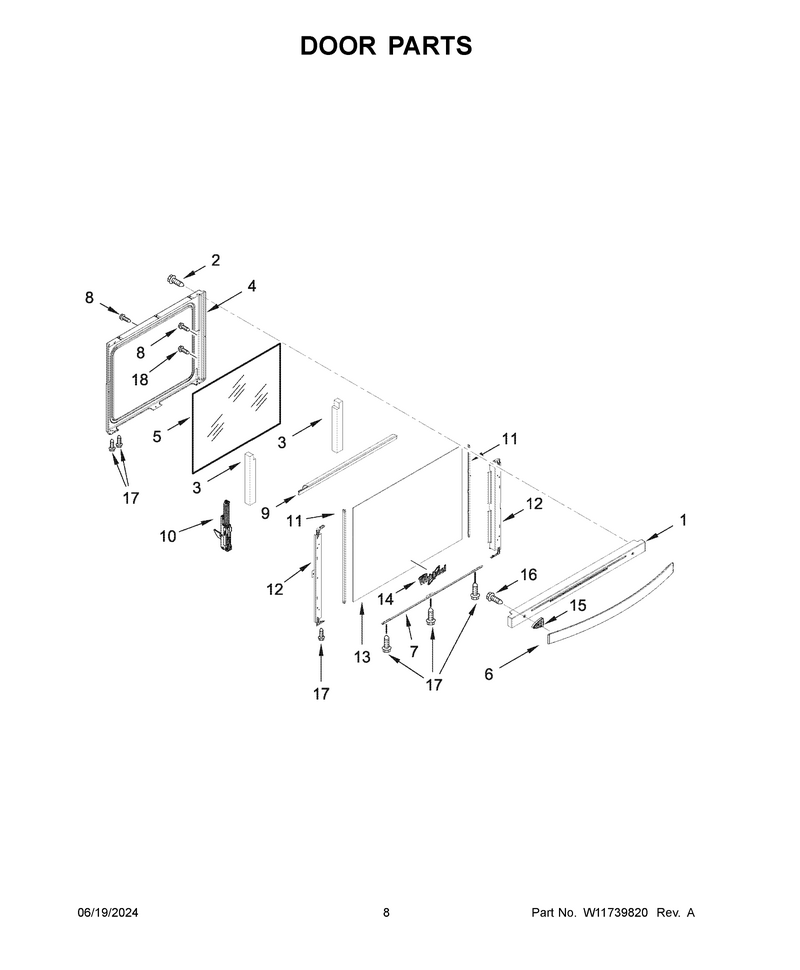

05 - Door Parts

...
...
1
Trim-Vent WPL-W11106938
...
1A
Trim-Vent WPL-W11106937
...
2
Screw WPL-WPW10317886
...
3
Insulation WPL-W11688565
...
4
Liner-Door WPL-WPW10297318
...
5
Glass-Door WPL-WPW10300487
...
6
Hndle-Door WPL-W11107394
...
6A
Hndle-Door WPL-W11107407
...
7
Trim, Door Bottom (Black) WPL-W10334031
...
7A
Brkt-Glass WPL-WPW10333990
...
8
Screw WPL-WPW10031790
...
9
Bracket, Glass Liner WPL-W10294853
...
10
Hinge-Door WPL-WPW10440013
...
11
Trim, Door Side (Black) WPL-W10334004
...
11A
Trim, Door Side (White) WPL-W10334003
...
12
Brkt-Suprt WPL-W11116956
...
13
Glass-Door WPL-W11705268
...
13A
Glass-Door WPL-W11107890
...
14
Nameplate WPL-W11178521
...
15
Standoff, Handle (Black) WPL-W10917796
...
15A
Standoff, Handle (White) WPL-W10917797
...
16
Screw WPL-W10896982
...
17
Screw WPL-WP355214
...
18
Screw WPL-W10777162

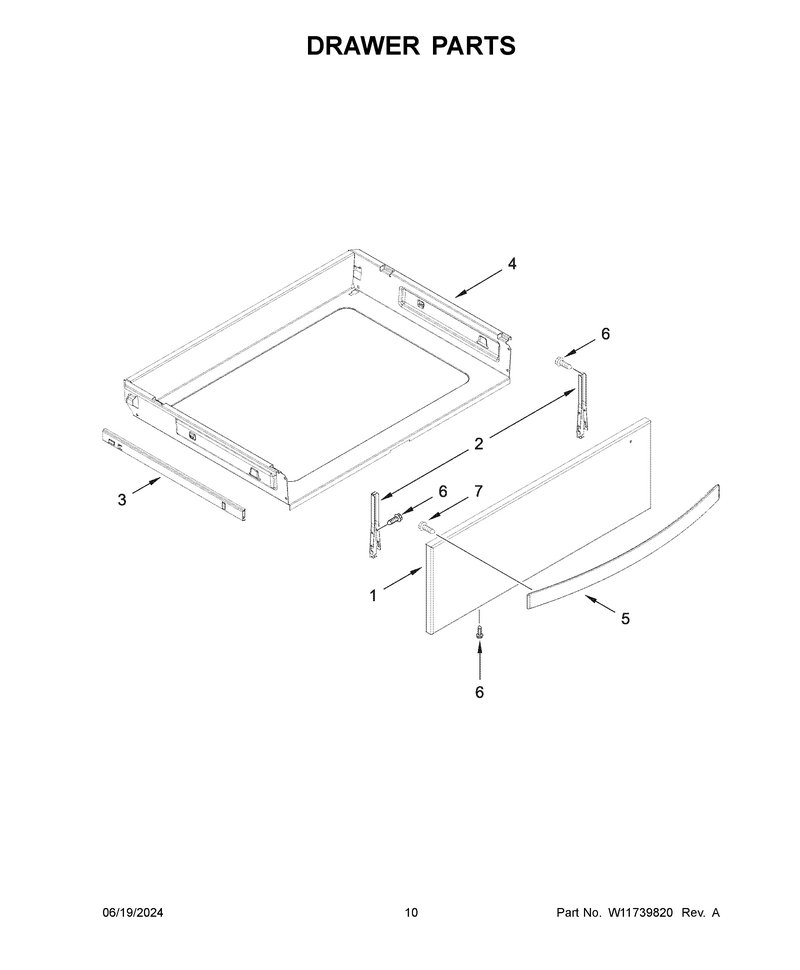

06 - Drawer Parts

...
...
1
Panel, Drawer Front (Black) WPL-W11449686
...
1A
Panel, Drawer Front (White) WPL-W11449681
...
2
Brkt-Mntg WPL-WPW10318026
...
3
Slide-Drwr WPL-WPW10441804
...
3A
Slide-Drwr WPL-WPW10441805
...
4
Drawr-Util WPL-W10813962
...
5
Hndle-Door WPL-W11107394
...
5A
Hndle-Door WPL-W11107407
...
6
Screw WPL-WP3196557
...
7
Screw WPL-7101P676-60

...
...
NI
Backsplash Assembly (Stainless) WPL-W10655450
