Whirlpool WEG745H0LZ5

Model: WEG745H0LZ5

Save Part Not Listed?
product name

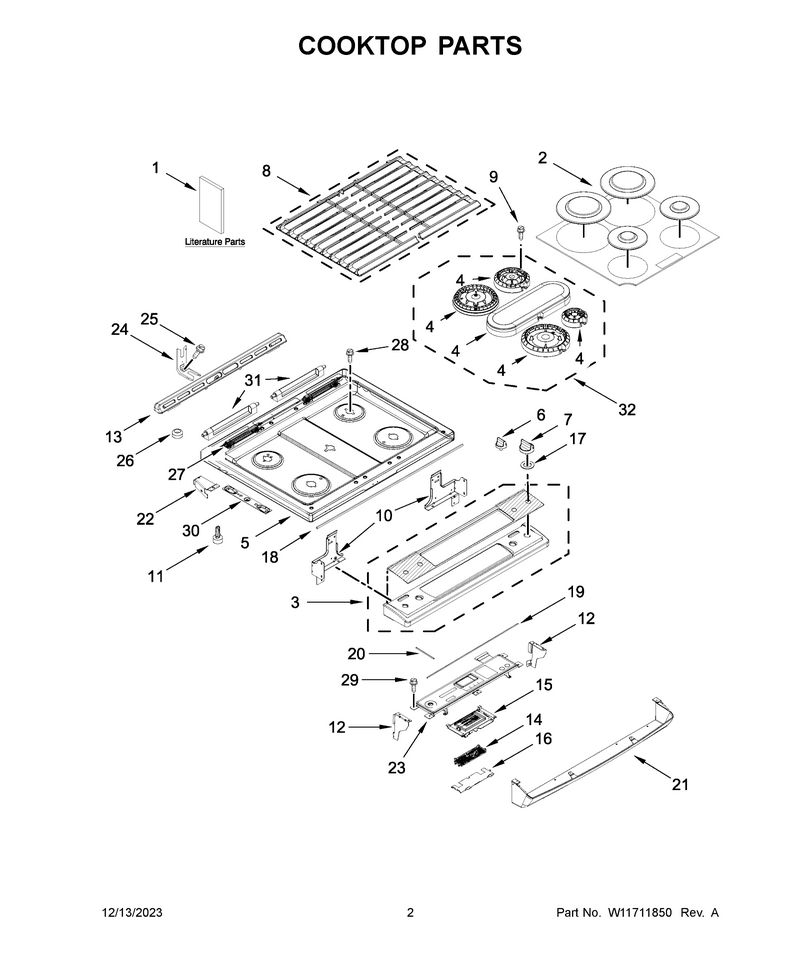

02 - Cooktop Parts

...
...
NI
Venturi WPL-W11123868
...
1
Owners Manual WPL-W11426594
...
1A
Quick Start Guide WPL-W11524751
...
1B
Tech Sheet WPL-W11565458
...
2
Cap-Burner WPL-W11605759
...
3
Panl-Cntrl WPL-W11564647
...
4
Burnr-Head WPL-W11435630
...
4A
Burnr-Head WPL-W11435657
...
4B
Burnr-Head WPL-W11435659
...
4C
Burnr-Head WPL-W11435660
...
5
Cooktop WPL-W11435855
...
6
Knob WPL-W11620681
...
7
Knob WPL-W11687171
...
8
Grate-Kit WPL-W11435675
...
9
Screw WPL-W11241230
...
10
Bracket,support (Left) WPL-W11563529
...
10A
Bracket, Console (Center) WPL-W10598048
...
10B
Bracket, Support (Right) WPL-W11563527
...
11
Glide-Drwr WPL-W11189172
...
12
Bracket, Console (Left) WPL-W10547960
...
12A
Bracket, Console (Right) WPL-W10547961
...
13
Trim-Vent WPL-W11256338
...
14
Cntrl-Elec WPL-W11620680
...
15
Cntrl-Elec WPL-W11122852
...
16
Bracket, Control WPL-W10558372
...
17
Bushing WPL-W11131701
...
18
Gasket WPL-W11620671
...
19
Gasket WPL-W10802457
...
20
Gasket WPL-W11744482
...
21
Brkt-Mntg WPL-W11218703
...
22
Brace, Corner (Left) WPL-W10162253
...
22A
Brace, Corner (Right) WPL-W10162252
...
23
Swtch-Memb WPL-W11564650
...
24
Anchor-Tip WPL-W11502257
...
25
Anchor-Tip WPL-WP7101P485-60
...
26
Bumper WPL-W11690600
...
27
Hinge, Grate (Not Serviced) WPL---
...
28
Screw WPL-3196172
...
29
Screw WPL-W11245710
...
30
Grate Hinge Spacer WPL-W10879790
...
31
Rear, Hinge-Grate WPL-W10826075
...
32
Burnr-Head WPL-W11575584

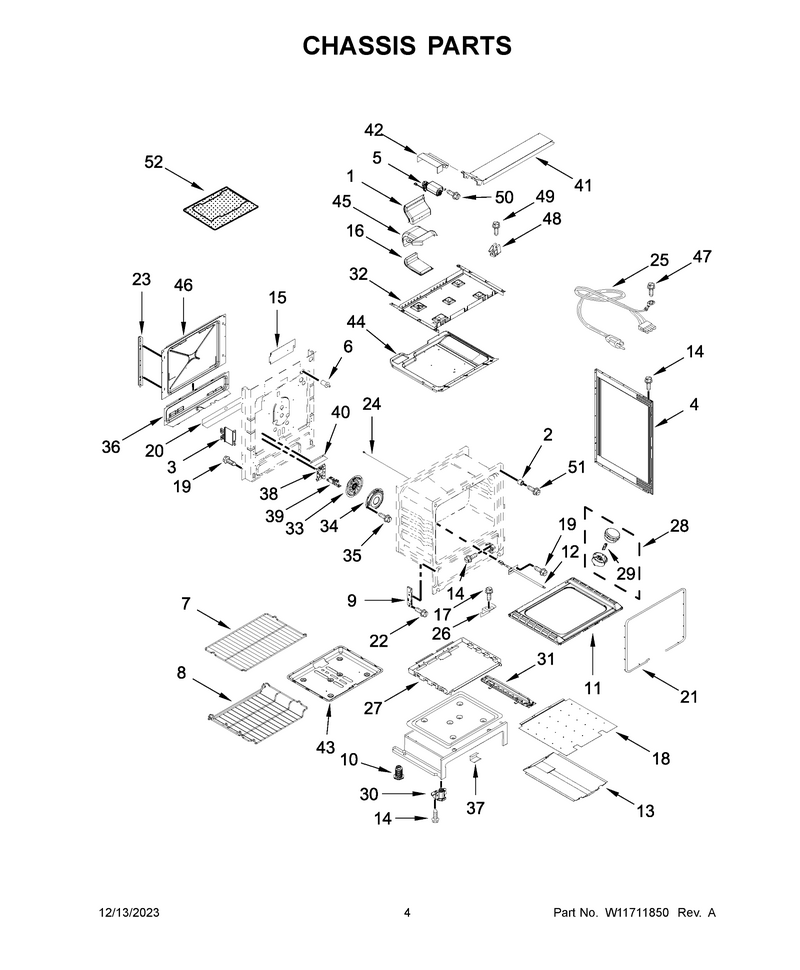

03 - Chassis Parts

...
...
NI
Insulation WPL-W11688363
...
1
Assembly, Flue WPL-W10614920
...
2
Spacer WPL-W10877054
...
3
Bracket, Oven Support WPL-W10273002
...
4
Panel-Side WPL-W11730303
...
5
Fan-Blwr WPL-W11620737
...
6
Swtch-Lite WPL-W11620712
...
7
Rack-Oven WPL-WPW10531060
...
8
Rack-Oven WPL-WPW10289145
...
9
Hinge-Recv WPL-W10647259
...
10
Foot-Level WPL-WPW10058460
...
11
Bottm-Oven WPL-WPW10211368
...
12
Sensor WPL-W10833885
...
13
Baffle, Bake Burner WPL-3601P356-45
...
14
Screw WPL-W11233072
...
15
Shield, Wire WPL-W10818358
...
16
Flue-Oven WPL-W11243157
...
17
Screw WPL-W11233072
...
18
Diffuser, Flame WPL-W10323077
...
19
Screw WPL-W11233072
...
20
Brace, Main Back WPL-W10435470
...
21
Gaskt-Door WPL-W11562931
...
22
Screw WPL-W10777162
...
23
Channel, Rear WPL-W10162241
...
24
Rod, Door Switch WPL-W10273192
...
25
Cord-Power WPL-W11582239
...
26
Support, Oven Bottom WPL-W10035900
...
27
Shield, Bake WPL-W10541959
...
28
Light-Oven WPL-W11707255
...
29
Bulb-Light WPL-WPW10571723
...
30
Foot-Level WPL-WPW10341186
...
31
Rail-Base WPL-WPW10306546
...
31A
Rail-Base WPL-WPW10306546
...
32
Burner, Box Gas WPL-W10558276
...
33
Fan-Convct WPL-W11441001
...
34
Cover WPL-WPW10346154
...
35
Screw WPL-W11233072
...
36
Cover, Wire WPL-W10162249
...
37
Clip, Panel WPL-W10137382
...
38
Module-Spk WPL-W10860916
...
39
Module-Spk WPL-W11703692
...
40
Guard, Splash WPL-W10655451
...
41
Duct, Cooling WPL-W10162254
...
42
Duct, Cover WPL-W10162255
...
43
Pan, Bake WPL-W11379356
...
44
Box, Burner Si WPL-W10289168
...
45
Duct, Cooktop WPL-W10162257
...
46
Cover, Back WPL-W11379354
...
47
Screw WPL-W11244557
...
48
Insert WPL-W11025100
...
49
Screw WPL-W10516115
...
50
Screw WPL-WPW10067840
...
51
Screw WPL-W11169708
...
52
Accessory Parts, Basket, Air Fry WPL-W11692811

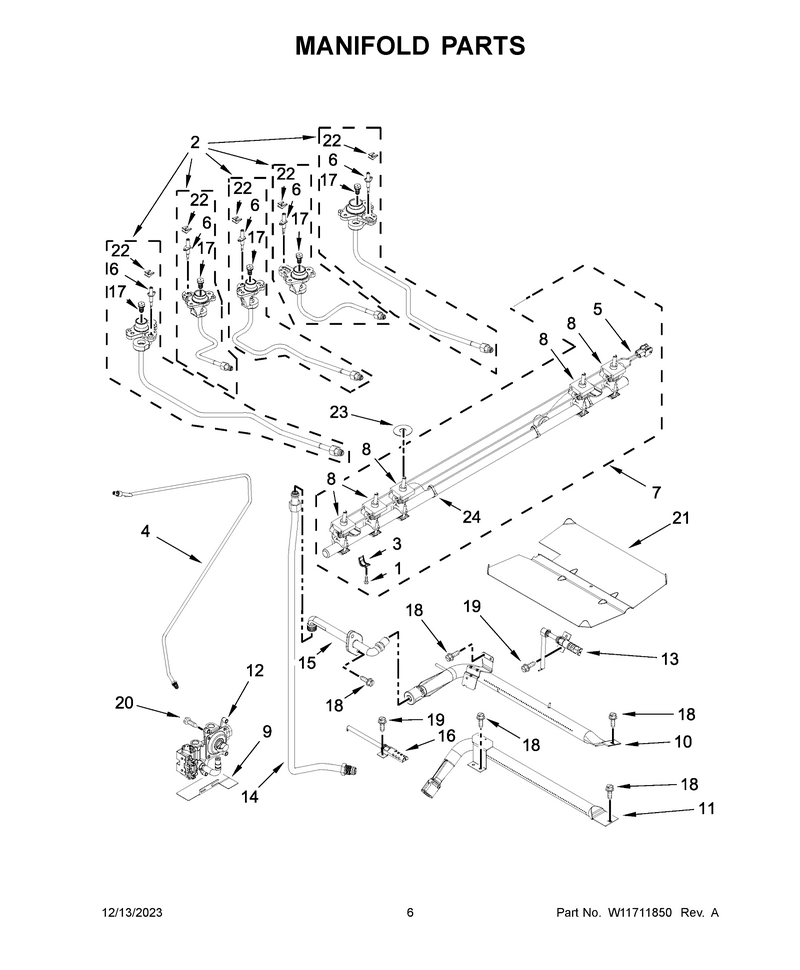

04 - Manifold Parts

...
...
NI
Orifice WPL-W11216991
...
1
Screw WPL-W11577790
...
2
Assembly, Orifice (Left Front) WPL-W11186510
...
2A
Assembly, Orifice (Left Rear) WPL-W11186507
...
2B
Assembly, Orifice (Right Front) WPL-W11186523
...
2C
Assembly, Orifice (Right Rear) WPL-W11186519
...
2D
Assembly, Orifice (Center) WPL-W11186516
...
3
Bracket, Saddle Valve WPL-W10949105
...
4
Tube, Supply WPL-W10552140
...
5
Assembly, Manifold WPL-W11512353
...
6
Igntr-Surf WPL-W11661929
...
6A
Igntr-Surf WPL-W11666003
...
6B
Igntr-Surf WPL-W11643126
...
6C
Igntr-Surf WPL-W11661897
...
7
Assembly, Manifold WPL-W11512353
...
8
Valve-Brnr WPL-W11620675
...
8A
Valve-Brnr WPL-W11620676
...
8B
Valve-Brnr WPL-W11620677
...
9
Bracket, Aegis WPL-W10224921
...
10
Burnr-Brlr WPL-W11676566
...
11
Burnr-Oven WPL-W10764654
...
12
Regulator WPL-W10861656
...
13
Igntr-Oven WPL-WPW10324262
...
14
Tube, Broil Supply (Broiler Fitting To Valve) WPL-W10306050
...
15
Fitting, Broil Burner WPL-W10583216
...
16
Igntr-Oven WPL-WPW10333842
...
17
Orifice (18k) (Left Front) Orifice, Not Serviced WPL-W10849722
...
17A
Spud-Orfce WPL-W11677633
...
17B
Orifice (15k) (Right Front) Orifice, Not Serviced WPL-W10849717
...
17C
Orifice (9.5k) (Right Rear) Orifice, Not Serviced WPL-W10849714
...
17D
Orifice (8k) (Center) WPL-W10849715
...
18
Screw WPL-W11233072
...
19
Screw WPL-W11684507
...
20
Screw WPL-WP3400016
...
21
Baffle, Broil Burner WPL-3601P336-45
...
22
Clip WPL-W11684564
...
23
Seal, Switch Shaft WPL-W11507167
...
24
Tie-Wire WPL-WPW10182767

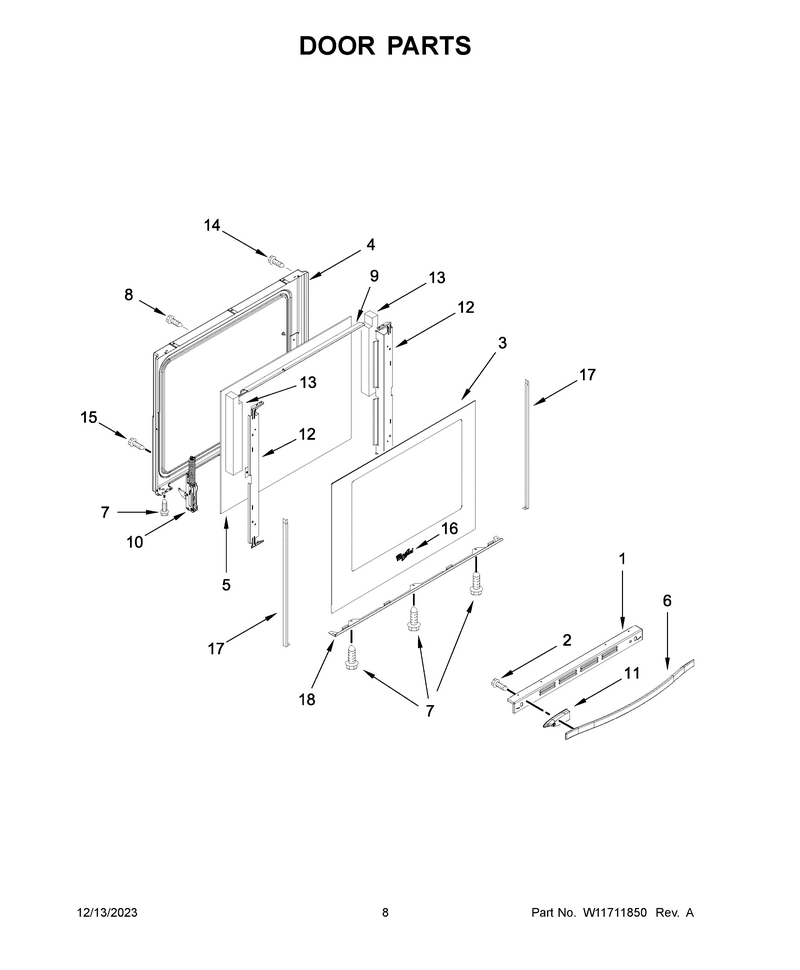

05 - Door Parts

...
...
1
Trim-Vent WPL-W11564642
...
2
Screw WPL-W10896982
...
3
Glass-Door WPL-W11705268
...
4
Liner-Door WPL-WPW10297318
...
5
Glass-Door WPL-WPW10300487
...
6
Hndle-Door WPL-W11107877
...
7
Screw WPL-WP355214
...
8
Screw WPL-WPW10031790
...
9
Bracket, Glass Liner WPL-W10294853
...
10
Hinge-Door WPL-WPW10440013
...
11
Standoff, Handle (Black) WPL-W10917796
...
12
Brkt-Suprt WPL-W11116956
...
13
Insulation WPL-W11688565
...
14
Screw WPL-WPW10317886
...
15
Screw WPL-W10777162
...
16
Nameplate WPL-W11178521
...
17
Trim, Door Side (Black) WPL-W10334004
...
18
Trim, Door Bottom (Black) WPL-W10334031

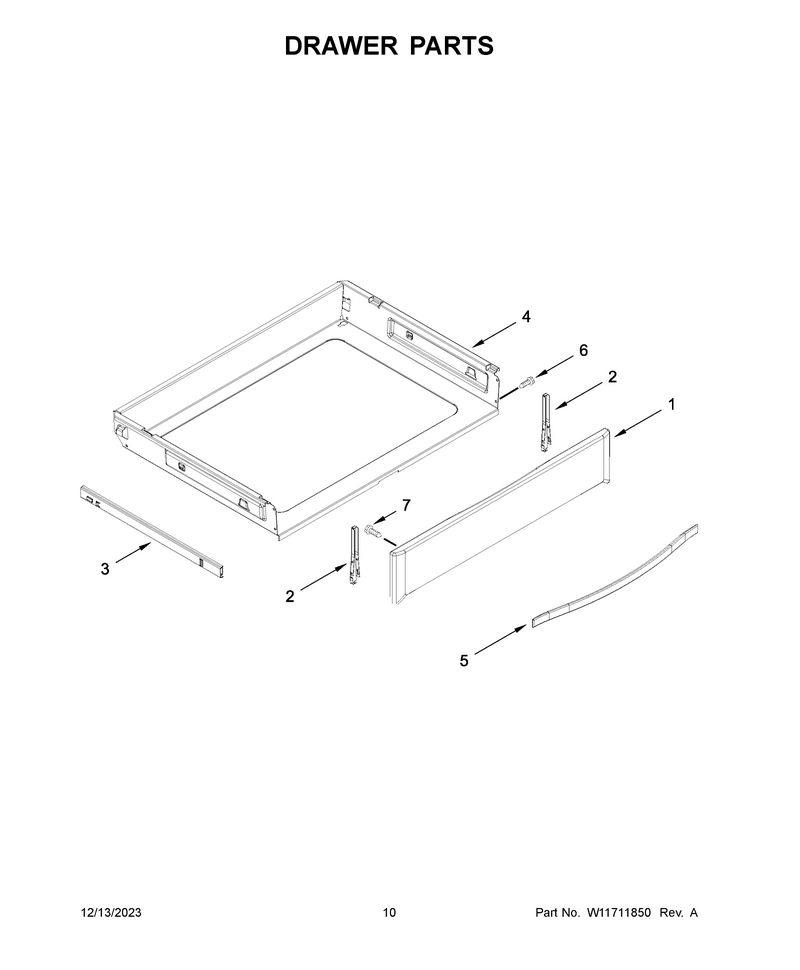

06 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11532675
...
2
Brkt-Mntg WPL-WPW10318026
...
3
Slide-Drwr WPL-WPW10441804
...
3A
Slide-Drwr WPL-WPW10441805
...
4
Drawr-Util WPL-W10813962
...
5
Hndle-Door WPL-W11107877
...
6
Screw WPL-WP3196557
...
7
Screw WPL-7101P676-60

...
...
NI
Backsplash Assembly (Stainless) WPL-W10655450
