Whirlpool WEG515S0LZ4

Model: WEG515S0LZ4

Save Part Not Listed?
product name

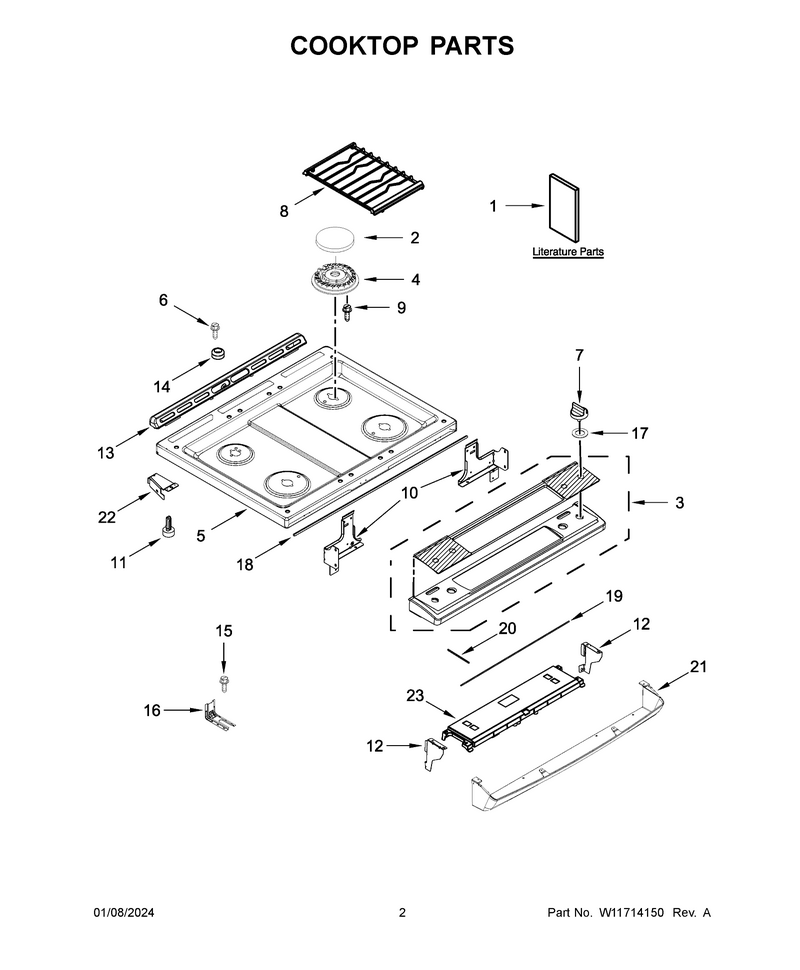

02 - Cooktop Parts

...
...
NI
Clip WPL-W10841090
...
1
Owners Manual WPL-W11426595
...
1A
Sheet, Tech WPL-W10842031
...
1B
Diagram, Wiring WPL-W11508880
...
1C
Quick Start Guide WPL-W11428054
...
2
Cap-Burner WPL-W11173535
...
3
Panl-Cntrl WPL-W11542194
...
3A
Panl-Cntrl WPL-W11542195
...
4
Burnr-Head WPL-W11211506
...
4A
Burnr-Head WPL-W11699919
...
4B
Burnr-Head WPL-W11708326
...
5
Cooktop WPL-W10897891
...
6
Screw WPL-WP3196557
...
7
Knob WPL-W11687171
...
7A
Knob WPL-W11620726
...
8
Grate-Kit WPL-W11384202
...
9
Screw WPL-W11244557
...
10
Support, Cooktop (Left) WPL-W10814303
...
10A
Support, Cooktop (Right) WPL-W10814304
...
10B
Bracket, Console (Center) WPL-W10814305
...
11
Glide-Drwr WPL-W11189172
...
12
Bracket, Console (Left) WPL-W10547960
...
12A
Bracket, Console (Right) WPL-W10547961
...
13
Trim-Vent WPL-W11256338
...
14
Bumper WPL-W11690600
...
15
Anchor-Tip WPL-WP7101P485-60
...
16
Anchor-Tip WPL-W11502257
...
17
Bushing WPL-W11131701
...
18
Gasket WPL-W10802441
...
19
Gasket WPL-W10802457
...
20
Gasket WPL-W11744482
...
21
Panl-Cntrl WPL-W10894124
...
22
Brace, Corner (Left) WPL-W10162253
...
22A
Brace, Corner (Right) WPL-W10162252
...
23
Cntrl-Elec WPL-W11620561

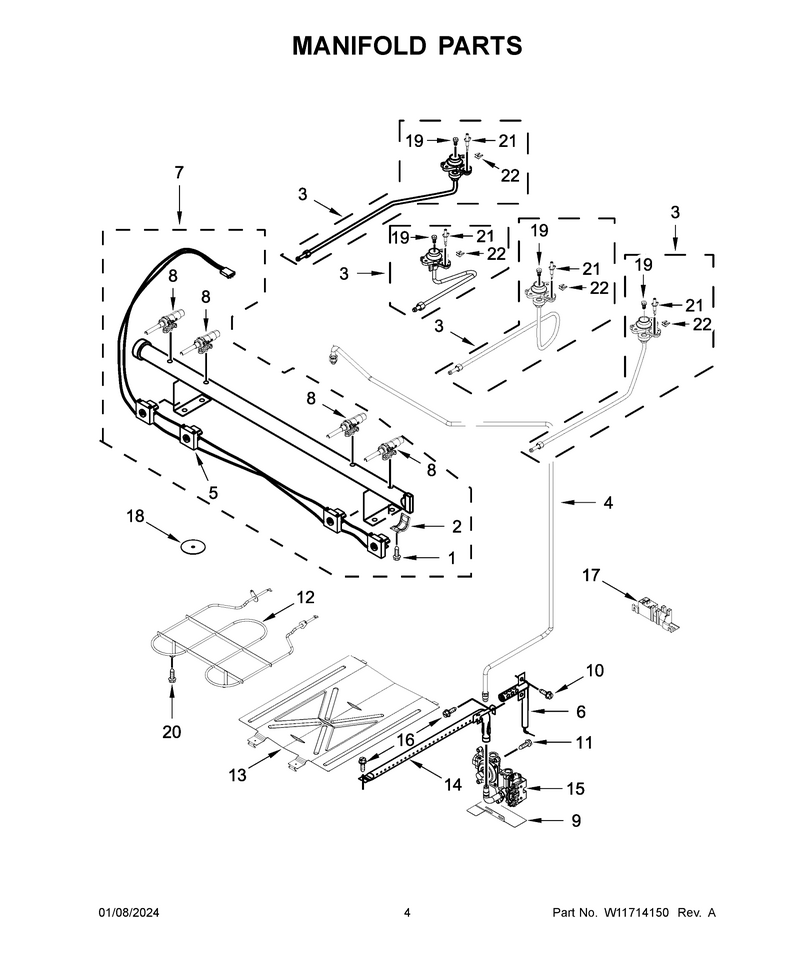

03 - Manifold Parts

...
...
NI
Tie-Wire WPL-WPW10182767
...
1
Screw WPL-W11666001
...
2
Bracket, Saddle Valve WPL-W10949105
...
3
Assembly, Orifice Holder (9.5k) (Left Rear) WPL-W10827780
...
3A
Holder-Orf WPL-W11035644
...
3B
Assembly, Orifice Holder (15k) (Right Front) WPL-W10827777
...
3C
Assembly, Orifice Holder (5k) (Right Rear) WPL-W10827779
...
4
Tubing (Manifold To Regulator) WPL-W10804030
...
5
Harness, Switch WPL-W11537738
...
6
Igntr-Oven WPL-W11524031
...
7
Assembly, Manifold WPL-W11512354
...
8
Valve, Gas (Left Rear) WPL-W11511835
...
8A
Valve, Gas (Left Front And Right Front) WPL-W11511834
...
8B
Valve, Gas (Right Rear) WPL-W11511833
...
9
Bracket, Aegis WPL-W10224921
...
10
Screw WPL-W11684507
...
11
Screw WPL-W11684512
...
12
Element, Broiler WPL-W10714060
...
13
Baffl-Brnr WPL-WPW10184491
...
14
Burnr-Oven WPL-WP9758078
...
15
Valve-Gas WPL-W10898290
...
16
Screw WPL-WP3196557
...
17
Module-Spk WPL-W11693498
...
18
Seal, Switch Shaft WPL-W11507167
...
19
Orifice (15k) (Right Front) Orifice, Not Serviced WPL-W10849717
...
19A
Orifice (9.5k) (Right Rear) Orifice, Not Serviced WPL-W10849714
...
19B
Spud-Orfce WPL-W11677633
...
20
Screw WPL-W11233072
...
21
Igntr-Surf WPL-W11661929
...
21A
Igntr-Surf WPL-W11666003
...
21B
Igntr-Surf WPL-W11643126
...
21C
Igntr-Surf WPL-W11661897
...
22
Clip WPL-W11684564

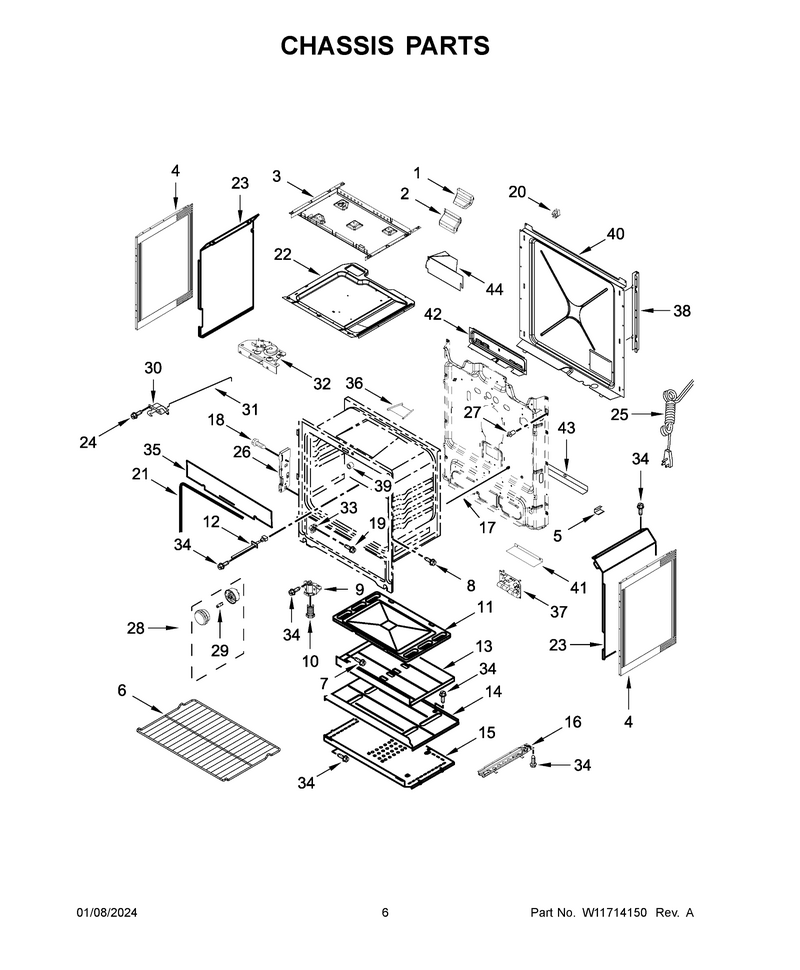

04 - Chassis Parts

...
...
NI
Clip, Wire WPL-3196896
...
1
Adapter, Flue Assembly WPL-W10814257
...
2
Assembly, Flue WPL-W10614920
...
3
Burner, Box Gas WPL-W10558276
...
4
Panel-Side WPL-W11730303
...
5
Clip, Panel WPL-W10137382
...
6
Rack-Oven WPL-W11520287
...
7
Screw WPL-WP3196557
...
8
Screw WPL-WPW10067840
...
9
Foot-Level WPL-WPW10341186
...
10
Foot-Level WPL-WPW10058460
...
11
Bottm-Oven WPL-WP3195097
...
12
Sensor WPL-W10833885
...
13
Baffle, Burner Oven WPL-8053967
...
14
Shield, Heat WPL-8053969
...
15
Shield, Lower WPL-8053968
...
16
Rail-Base WPL-WPW10306546
...
16A
Rail-Base WPL-WPW10306546
...
17
Rod, Door Switch WPL-9757239
...
18
Screw WPL-W10777162
...
19
Screw WPL-W10379120
...
20
Clip-Panel, Ratcheting WPL-W10866583
...
21
Gaskt-Door WPL-W11542153
...
22
Support, Upper Chassis WPL-W10814301
...
23
Retainer, Insulation (Left) WPL-W11379353
...
23A
Retainer, Insulation (Right) WPL-W11379943
...
24
Screw WPL-W11169708
...
25
Cord-Power WPL-W11582239
...
26
Hinge-Recv WPL-W10647259
...
27
Swtch-Lite WPL-W11620712
...
28
Light-Oven WPL-W11707255
...
29
Light Bulb WPL-8009
...
30
Latch-Door WPL-WP9761013
...
31
Rod, Push Latch WPL-W10078370
...
32
Latch-Door WPL-WPW10107820
...
33
Glide-Drwr WPL-W10807823
...
34
Screw WPL-W11233072
...
35
Insulation WPL-W11688573
...
36
Baffle, Upper Chassis WPL-W10853400
...
37
Module-Spk WPL-W10898291
...
38
Channel, Rear WPL-W10162241
...
39
Spacer WPL-W10877054
...
40
Cover, Back WPL-W11379354
...
41
Guard, Splash WPL-W10655451
...
42
Wire, Cover WPL-W10818356
...
43
Brace, Main Back WPL-W10435470
...
44
Shield, Wire WPL-W10818358

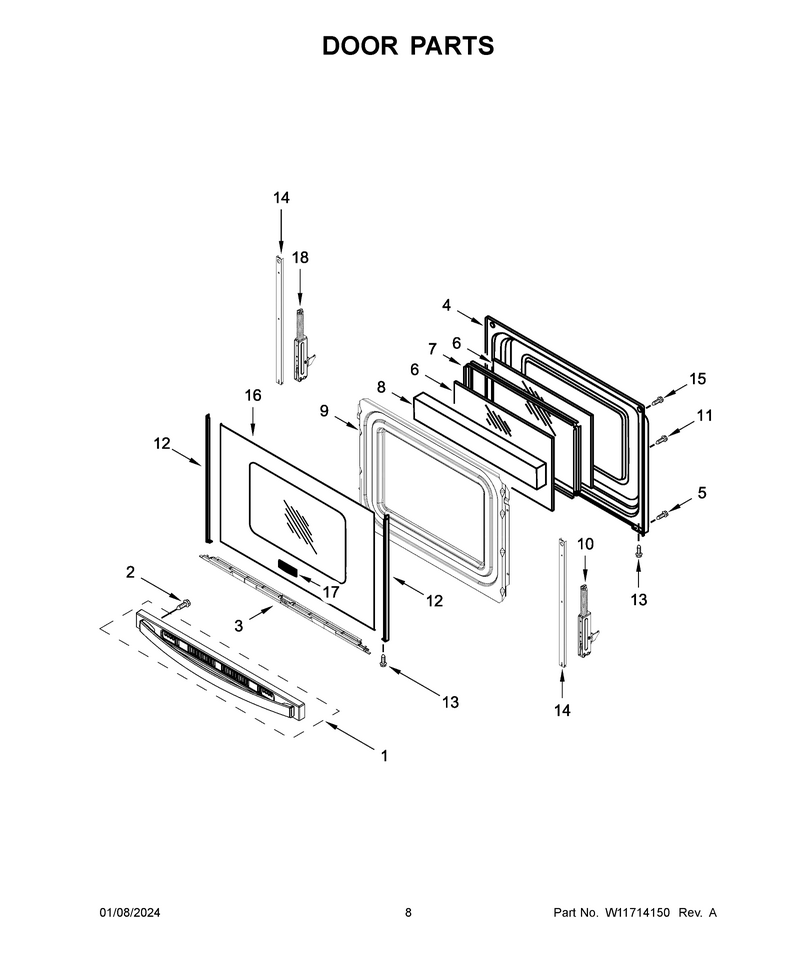

05 - Door Parts

...
...
1
Hndle-Door WPL-W11449263
...
1A
Hndle-Door WPL-W11678969
...
2
Screw WPL-W10831019
...
3
Trim-Door WPL-W11569689
...
4
Liner-Door WPL-WP9761344
...
5
Screw WPL-W10777162
...
6
Glass-Door WPL-WP8053948
...
7
Frame-Wndw WPL-WPW10316950
...
8
Insulation WPL-WPW10278991
...
9
Retainer WPL-W11539580
...
10
Hinge-Door WPL-WPW10388635
...
11
Screw WPL-WPW10031790
...
12
Trim-Door WPL-W10761018
...
12A
Trim-Door WPL-W10761014
...
13
Screw WPL-WP355214
...
14
Brkt-Suprt WPL-W11502236
...
15
Screw WPL-WPW10200660
...
16
Glass-Door WPL-W11702167
...
17
Nameplate WPL-W11178521
...
18
Hinge-Door WPL-WPW10440013

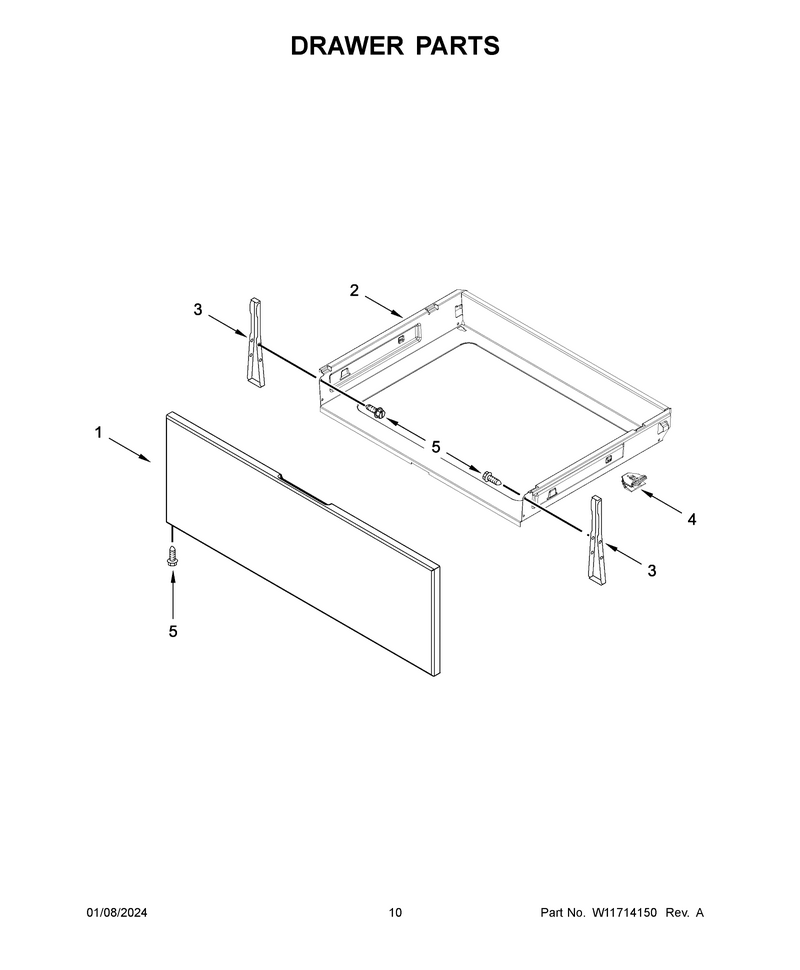

06 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11252164
...
1A
Panel-Drwr WPL-W11165138
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-W11759228
...
4
Glide-Drwr WPL-W10807828
...
5
Screw WPL-W11233072

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
