Whirlpool WEE750H0HV5

Model: WEE750H0HV5

Save Part Not Listed?
product name

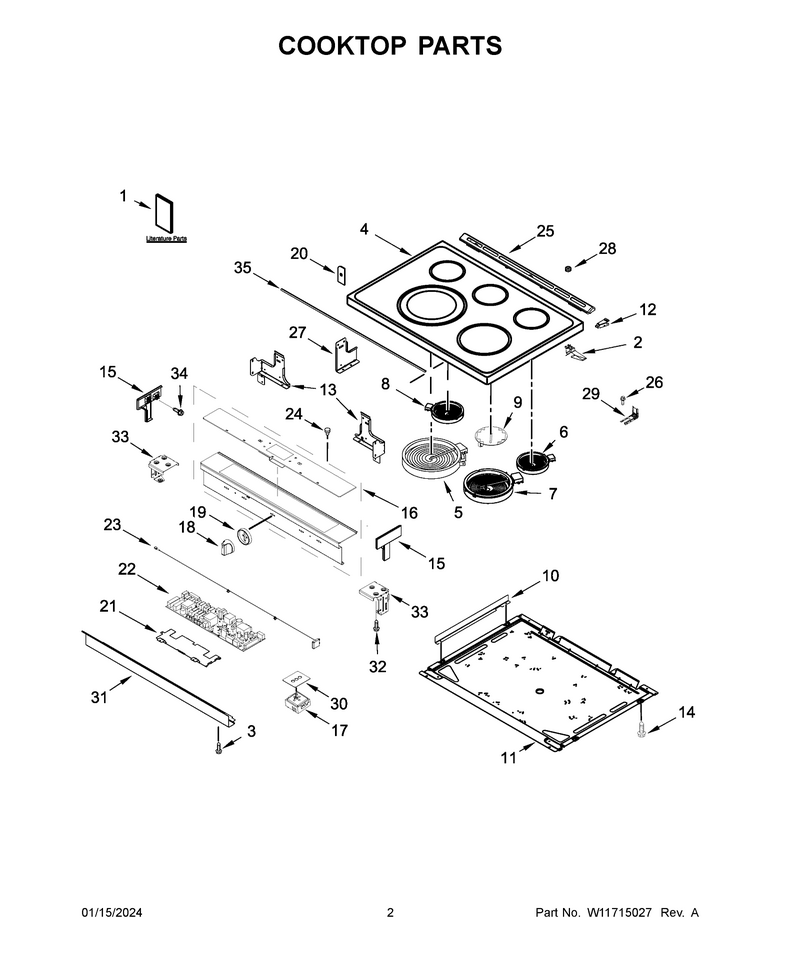

02 - Cooktop Parts

...
...
NI
Clip, Harness WPL-16515
...
1
Quick Start Guide WPL-W11460325
...
1A
Use And Care Guide WPL-W11509615
...
1B
Tech, Sheet WPL-W11335900
...
1C
Internet Connectivity Guide WPL-W11327467
...
2
Spring WPL-W11663556
...
3
Screw WPL-W11233072
...
4
Cooktop WPL-W11112610
...
5
Elmnt-Surf WPL-W11563195
...
6
Elmnt-Surf WPL-W11171119
...
7
Elmnt-Surf WPL-W11517959
...
8
Elmnt-Surf WPL-WPW10342780
...
9
Elmnt-Surf WPL-W11041453
...
10
Bracket, Radiant WPL-W11175271
...
11
Pan, Radiant WPL-W10536275
...
12
Brace, Corner (Left) WPL-W10162253
...
12A
Brace, Corner (Right) WPL-W10162252
...
13
Support, Cooktop (Right) WPL-W10867592
...
13A
Support, Cooktop (Left) WPL-W10867593
...
14
Screw WPL-W11244557
...
15
Endcap (Black Stainless (Left)) WPL-W10913756
...
15A
Endcap (Black Stainless (Right)) WPL-W10913757
...
16
Console, Assembly (Black Stainless) WPL-W11295844
...
17
Switch-Inf WPL-W10857622
...
17A
Switch-Inf WPL-W10911303
...
17B
Switch-Inf WPL-W10917724
...
17C
Switch-Inf WPL-W11129442
...
17D
Switch, Warm Zone (Center) WPL-W10888698
...
18
Knob WPL-W11115543
...
18A
Knob WPL-W11115546
...
18B
Knob WPL-W11116441
...
18C
Knob WPL-W11116443
...
19
Bezel-Swth WPL-W11217548
...
20
Gasket WPL-W10882900
...
21
Bracket, Control WPL-W10908536
...
22
Cntrl-Elec WPL-W11113848
...
23
Antenna WPL-W11583804
...
24
Lens-Light WPL-WP3196068
...
25
Trim-Vent WPL-W11240519
...
26
Anchor-Tip WPL-WP7101P485-60
...
27
Bracket, Console (Center) WPL-W10867600
...
28
Bumper WPL-W11690600
...
29
Anchor-Tip WPL-W11502257
...
30
Gasket- In WPL-WP71002569
...
31
Console, Lower Panel (Black) WPL-W10854346
...
32
Screw WPL-W10491985
...
33
Base, Console (Left) WPL-W10828159
...
33A
Base, Console (Right) WPL-W10828160
...
34
Screw WPL-W11245710
...
35
Gasket WPL-W10802441

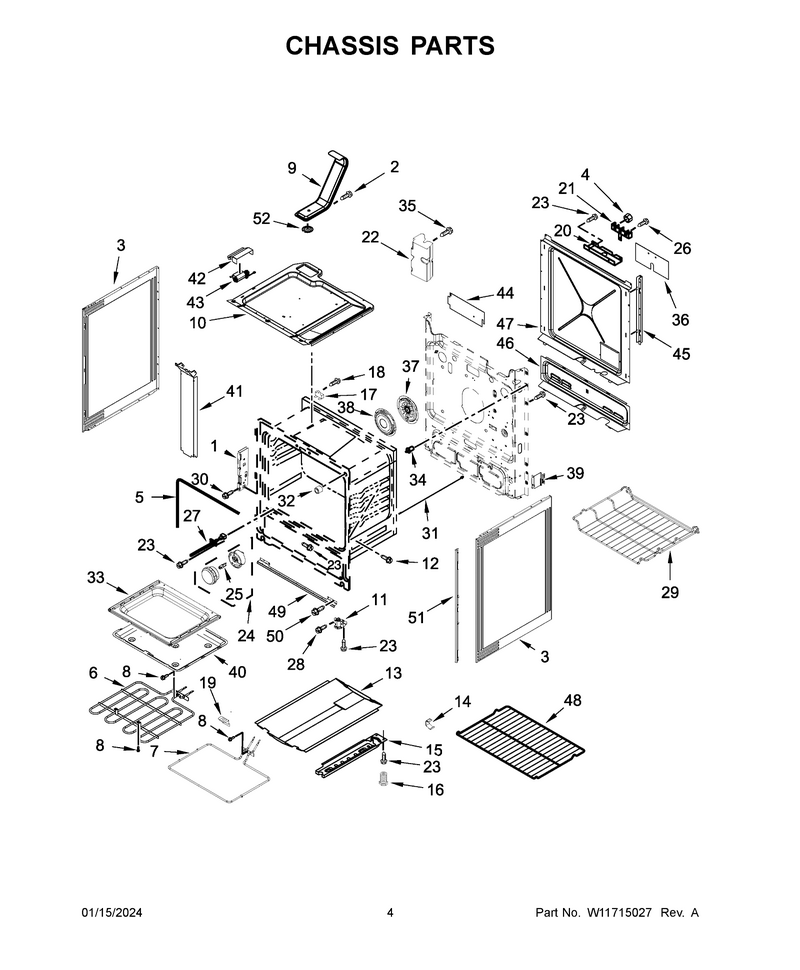

03 - Chassis Parts

...
...
NI
Clip WPL-W10841090
...
1
Hinge-Recv WPL-W10647259
...
2
Screw WPL-W11233072
...
3
Panel-Side WPL-W11730303
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11562931
...
6
Elmnt-Brol WPL-W11321472
...
7
Elmnt-Bake WPL-W10779716
...
8
Screw WPL-W11233072
...
9
Assembly, Flue WPL-W11122085
...
10
Box, Burner Si WPL-W10289168
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Shield, Bake WPL-W10541959
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Support, Oven Bottom WPL-W10035900
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WPW10245259
...
22
Anchor-Tip WPL-W11217187
...
23
Screw WPL-W11233072
...
24
Light-Oven WPL-W11707255
...
25
Bulb-Light WPL-WPW10571723
...
26
Screw WPL-WP3400016
...
27
Sensor WPL-W10833885
...
28
Screw WPL-WP3196557
...
29
Rack-Oven WPL-WPW10289145
...
30
Screw WPL-W10777162
...
31
Rod, Door Switch WPL-W10273192
...
32
Spacer WPL-W10877054
...
33
Bottm-Oven WPL-W10777210
...
34
Swtch-Lite WPL-W11620712
...
35
Screw-Torx WPL-W11135756
...
36
Shield, Power Cord WPL-W10655441
...
37
Fan-Convct WPL-W10903746
...
38
Cover WPL-WPW10346154
...
39
Bracket, Oven Support WPL-W10273002
...
40
Bake Pan WPL-W11379357
...
41
Duct, Cover WPL-W10162255
...
42
Duct, Cooling WPL-W10162254
...
43
Fan-Blwr WPL-W11620737
...
44
Shield, Wire WPL-W11117035
...
45
Channel, Rear WPL-W10162241
...
46
Cover, Wire WPL-W10162248
...
47
Cover, Back WPL-W11379355
...
48
Rack-Oven WPL-WPW10531060
...
49
Brkt-Suprt WPL-W11686853
...
50
Screw WPL-W11169708
...
51
Barrier Rail, Rubber (Front Left) WPL-W11510561
...
51A
Barrier Rail, Rubber (Front Right) WPL-W11510562
...
52
Screen WPL-W11268772

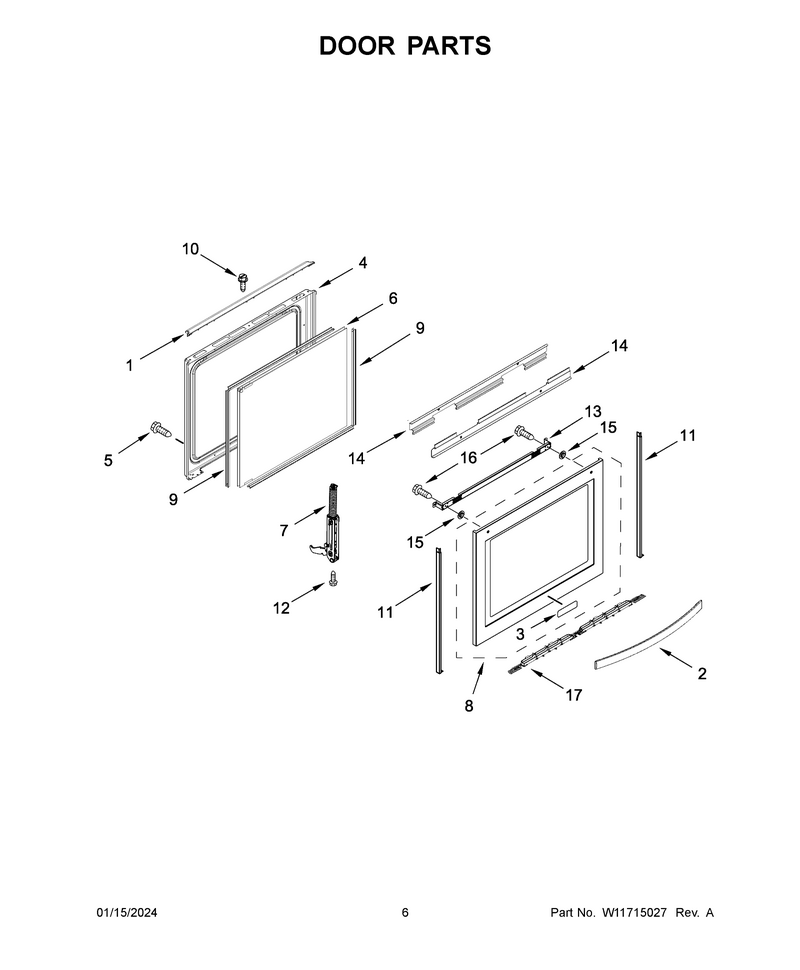

04 - Door Parts

...
...
1
Trim-Door WPL-W11182113
...
2
Hndle-Door WPL-W11110500
...
3
Nameplate WPL-W11178521
...
4
Liner-Door WPL-W10902192
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11339500
...
7
Hinge-Door WPL-W11162113
...
8
Assembly, Outer Door (Black Stainless) WPL---
...
9
Spacr-Glas WPL-W11673273
...
10
Screw WPL-WP355214
...
11
Support WPL-W11744483
...
12
Screw WPL-W10777162
...
13
Bracket, Glass Upper Handle WPL-W10541911
...
14
Rail, Horizontal Support WPL-W10813140
...
15
Washer WPL-W11676355
...
16
Screw WPL-WP8533988
...
17
Bottom, Door Cover WPL-W11440161

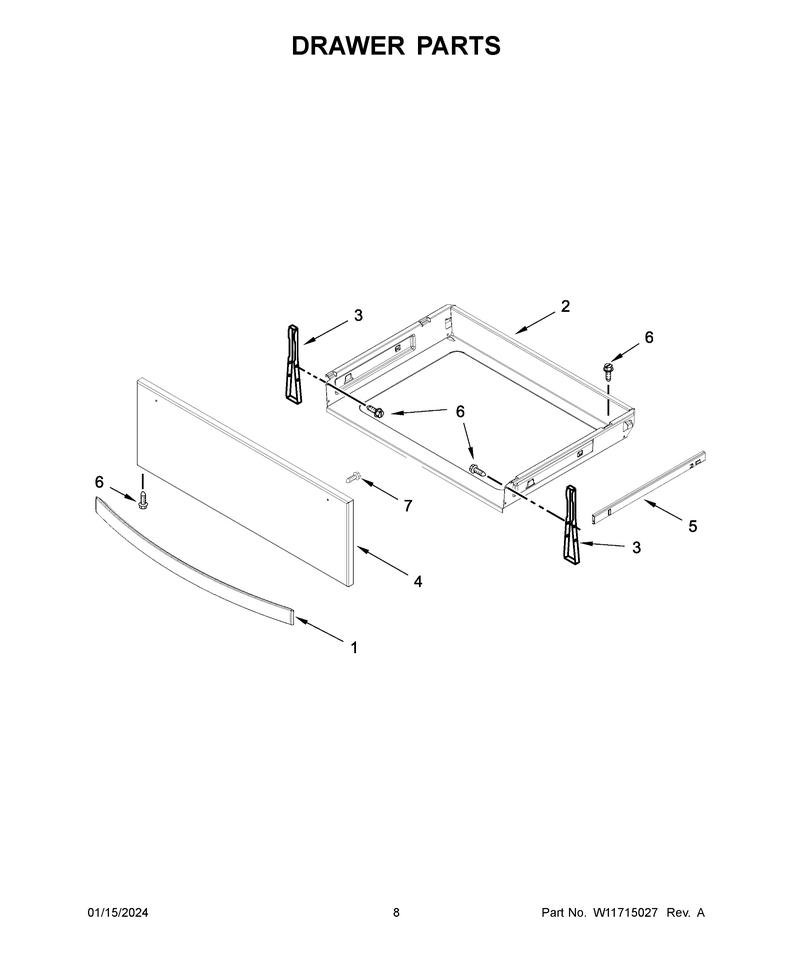

05 - Drawer Parts

...
...
1
Hndle-Door WPL-W11110500
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-WPW10318026
...
4
Panel-Drwr WPL-W11114992
...
5
Slide-Drwr WPL-WPW10441804
...
5A
Slide-Drwr WPL-WPW10441805
...
6
Screw WPL-WP3196557
...
7
Screw WPL-7101P676-60

...
...
NI
Insulation WPL-WPW10208653
