Whirlpool WEE515S0LV3

Model: WEE515S0LV3

Save Part Not Listed?
product name

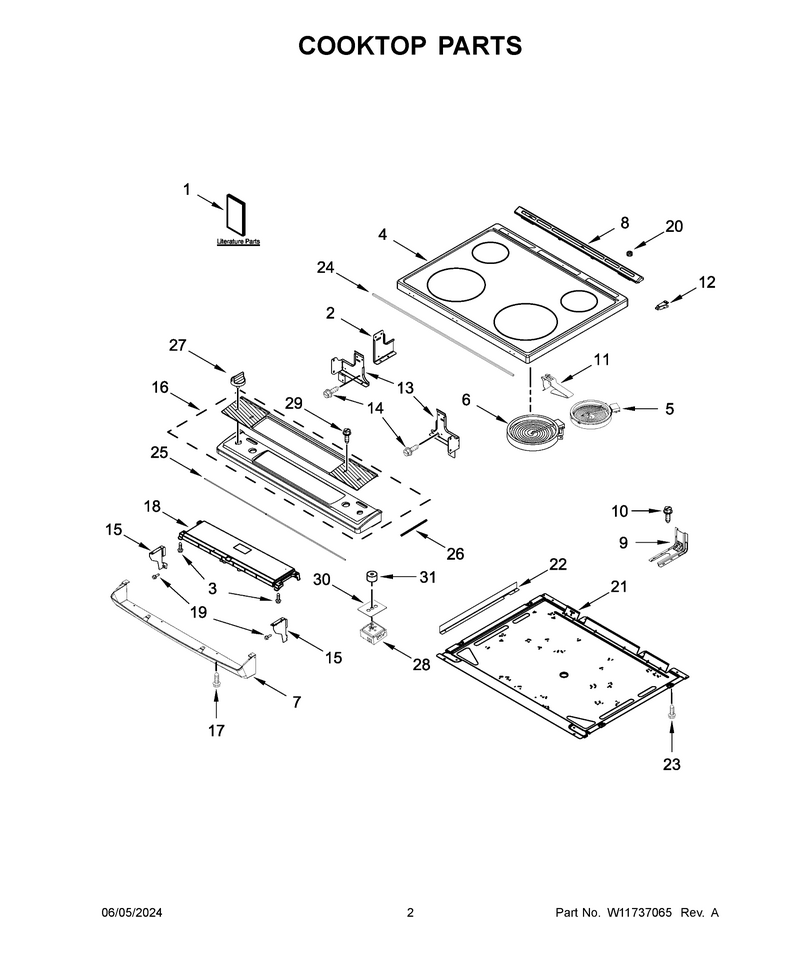

02 - Cooktop Parts

...
...
NI
Harns-Wire WPL-W11314385
...
1
Owners Manual WPL-W11509605
...
1A
Quick Start Guide WPL-W11508915
...
1B
Tech Sheet WPL-W11508781
...
2
Bracket, Console (Center) WPL-W10814305
...
3
Screw WPL-W11245710
...
4
Cooktop WPL-W11541089
...
5
Elmnt-Surf WPL-W11171119
...
6
Elmnt-Surf WPL-W11517959
...
7
Panl-Cntrl WPL-W10894124
...
8
Trim-Vent WPL-W11240519
...
9
Anchor-Tip WPL-W11502257
...
10
Screw, Anti-Tip Kit WPL-7101P485-
...
11
Spring WPL-W11663556
...
12
Brace, Corner (Left) WPL-W10162253
...
12A
Brace, Corner (Right) WPL-W10162252
...
13
Support, Cooktop (Right) WPL-W10814304
...
13A
Support, Cooktop (Left) WPL-W10814303
...
14
Screw WPL-WP3196557
...
15
Bracket, Console (Left) WPL-W10547960
...
15A
Bracket, Console (Right) WPL-W10547961
...
16
Panl-Cntrl WPL-W11542168
...
16A
Panl-Cntrl WPL-W11542189
...
17
Screw WPL-W10516115
...
18
Cntrl-Elec WPL-W11594271
...
19
Screw WPL-W11233072
...
20
Bumper WPL-W11690600
...
21
Pan, Radiant WPL-W10536275
...
22
Bracket, Radiant WPL-W11175271
...
23
Screw WPL-W11244557
...
24
Gasket WPL-W10802441
...
25
Gasket WPL-W10802457
...
26
Gasket WPL-W11744482
...
27
Knob WPL-W11517331
...
27A
Knob WPL-W11674369
...
28
Switch-Inf WPL-W10857622
...
28A
Switch-Inf WPL-W10911303
...
29
Screw WPL-W10674068
...
30
Gasket- In WPL-WP71002569
...
31
Gasket, Switch Stem WPL-W10702912

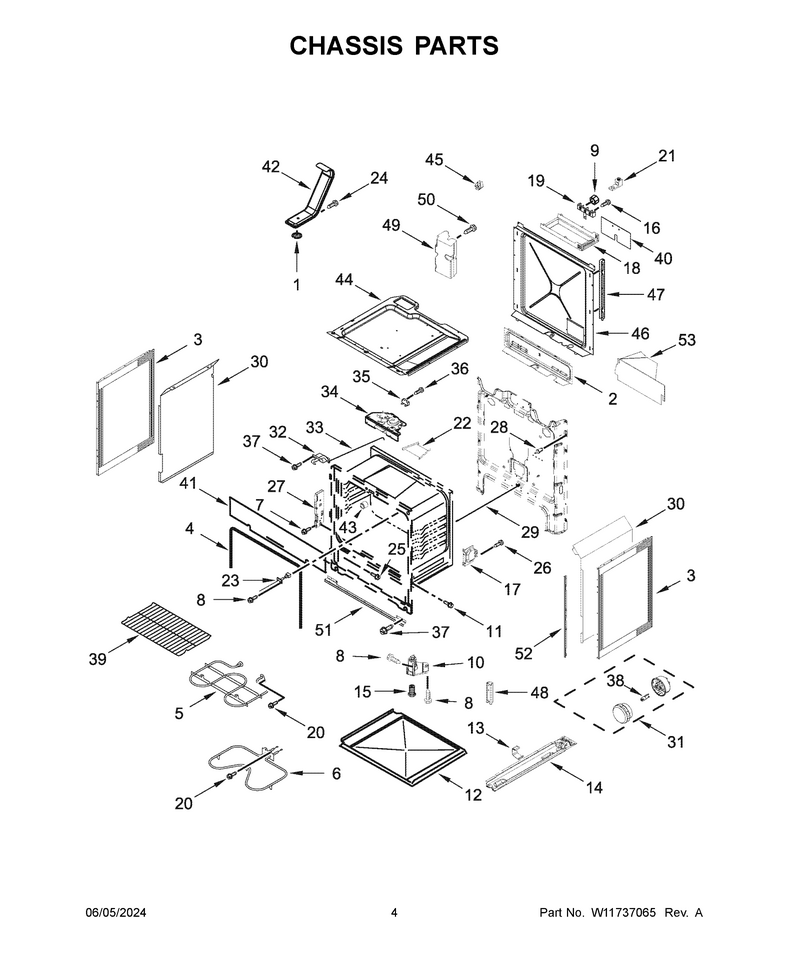

03 - Chassis Parts

...
...
NI
Insulation WPL-W11688416
...
1
Screen WPL-W11268772
...
2
Cover, Wire WPL-W10162248
...
3
Panel-Side WPL-W11730303
...
4
Gaskt-Door WPL-W11542153
...
5
Elmnt-Brol WPL-WPW10583047
...
6
Elmnt-Bake WPL-W11447783
...
7
Screw WPL-W10777162
...
8
Screw WPL-W11233072
...
9
Nut WPL-WP3400029
...
10
Foot-Level WPL-WPW10341186
...
11
Screw WPL-WPW10067840
...
12
Tray, Insulation WPL-W10312471
...
13
Clip, Panel WPL-W10137382
...
14
Rail-Base WPL-WPW10306546
...
14A
Rail-Base WPL-WPW10306546
...
15
Foot-Level WPL-WPW10058460
...
16
Screw WPL-WP355214
...
17
Clip, Oven Support WPL-W10404688
...
18
Brkt-Srvce WPL-W11728255
...
19
Block-Term WPL-WPW10245259
...
20
Screw WPL-WP3196154
...
21
Connector WPL-WPW10281322
...
22
Baffle, Upper Chassis WPL-W10853401
...
23
Sensor WPL-W10833885
...
24
Screw WPL-W11233072
...
25
Screw WPL-W11684512
...
26
Screw WPL-WP3196557
...
27
Hinge-Recv WPL-W10647259
...
28
Swtch-Lite WPL-W11620712
...
29
Rod, Door Switch WPL-9757239
...
30
Retainer, Insulation (Left) WPL-W11379353
...
30A
Retainer, Insulation (Right) WPL-W11379943
...
31
Light-Oven WPL-W11707255
...
32
Latch-Door WPL-WP9761013
...
33
Rod, Push Latch WPL-W10078370
...
34
Latch-Door WPL-WPW10107820
...
35
Fuse-Thrml WPL-WP3196548
...
36
Screw WPL-3196172
...
37
Screw WPL-W11169708
...
38
Bulb-Light WPL-WPW10571723
...
39
Rack-Oven WPL-W11520287
...
40
Shield, Power Cord WPL-W10655441
...
41
Insulation WPL-W11688573
...
42
Assembly, Flue WPL-W11122085
...
43
Spacer WPL-W10877054
...
44
Support, Upper Chassis WPL-W10814301
...
45
Clip-Panel, Ratcheting WPL-W10866583
...
46
Cover, Back WPL-W11379354
...
47
Channel, Rear WPL-W10162241
...
48
Glide-Drwr WPL-W10807823
...
49
Anchor-Tip WPL-W11217187
...
50
Screw-Torx WPL-W11135756
...
51
Bracket, Front Frame WPL-W11464547
...
52
Barrier Rail, Rubber (Front Left) WPL-W11510561
...
52A
Barrier Rail, Rubber (Front Right) WPL-W11510562
...
53
Shield, Wire WPL-W10818358

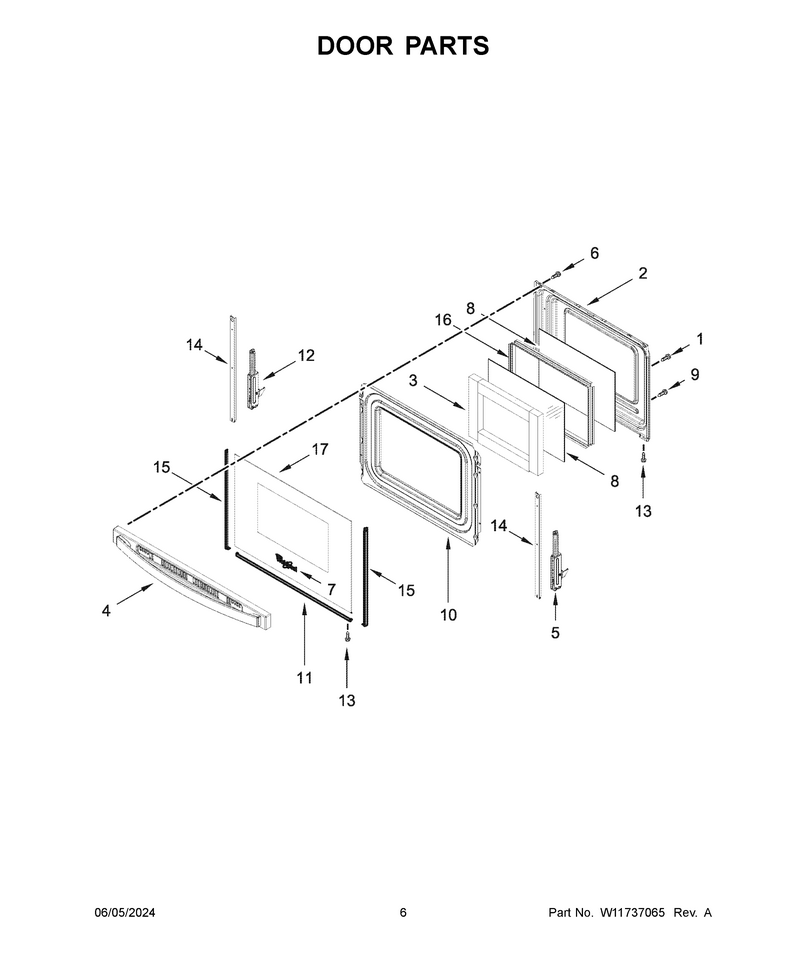

04 - Door Parts

...
...
1
Screw WPL-WPW10031790
...
2
Liner-Door WPL-WP9761344
...
3
Insulation WPL-WPW10278991
...
4
Hndle-Door WPL-W11449263
...
4A
Hndle-Door WPL-W11678969
...
5
Hinge-Door WPL-WPW10388635
...
6
Screw WPL-WPW10200660
...
7
Nameplate WPL-W11178521
...
8
Glass-Door WPL-WP8053948
...
9
Screw WPL-W10777162
...
10
Retainer WPL-W11539580
...
11
Trim-Door WPL-W11569689
...
12
Hinge-Door WPL-WPW10440013
...
13
Screw WPL-WP355214
...
14
Brkt-Suprt WPL-W11502236
...
15
Trim-Door WPL-W10761018
...
15A
Trim-Door WPL-W10761014
...
16
Frame-Wndw WPL-WPW10316950
...
17
Glass-Door WPL-W11702167

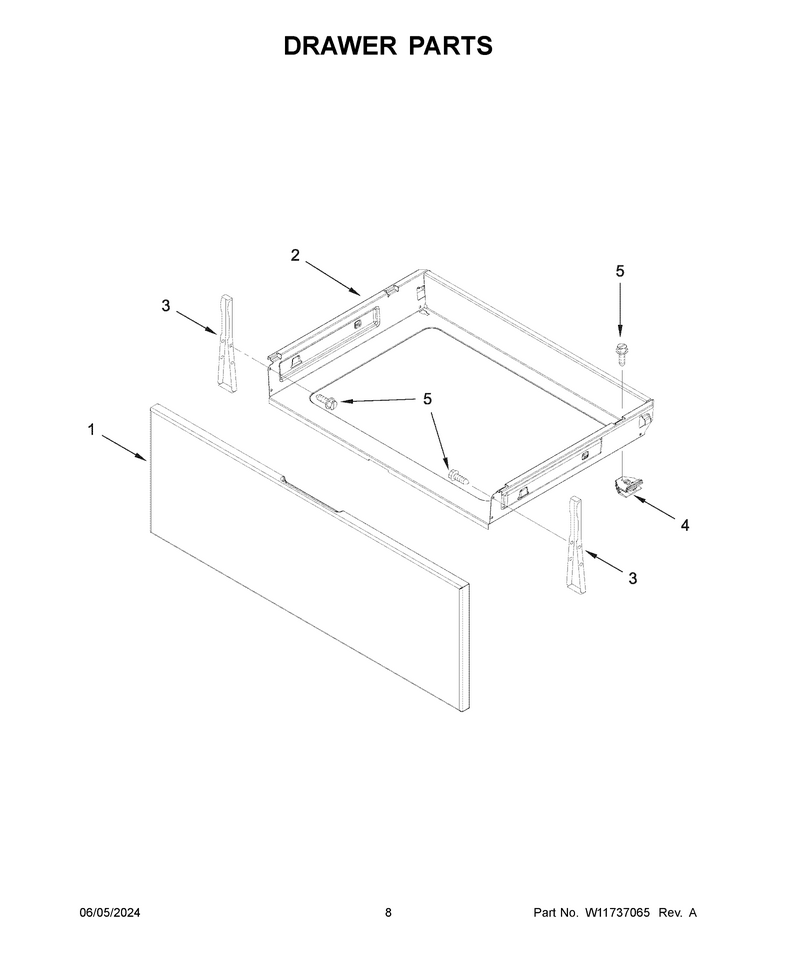

05 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11252164
...
1A
Panel-Drwr WPL-W11165138
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-W11759228
...
4
Glide-Drwr WPL-W10807828
...
5
Screw WPL-WP3196557

...
...
NI
Accessories, Cooktop Cleaning Kit WPL-W11042470
