product name

Whirlpool WED9051YW1

Model: WED9051YW1

Save Part Not Listed?
product name

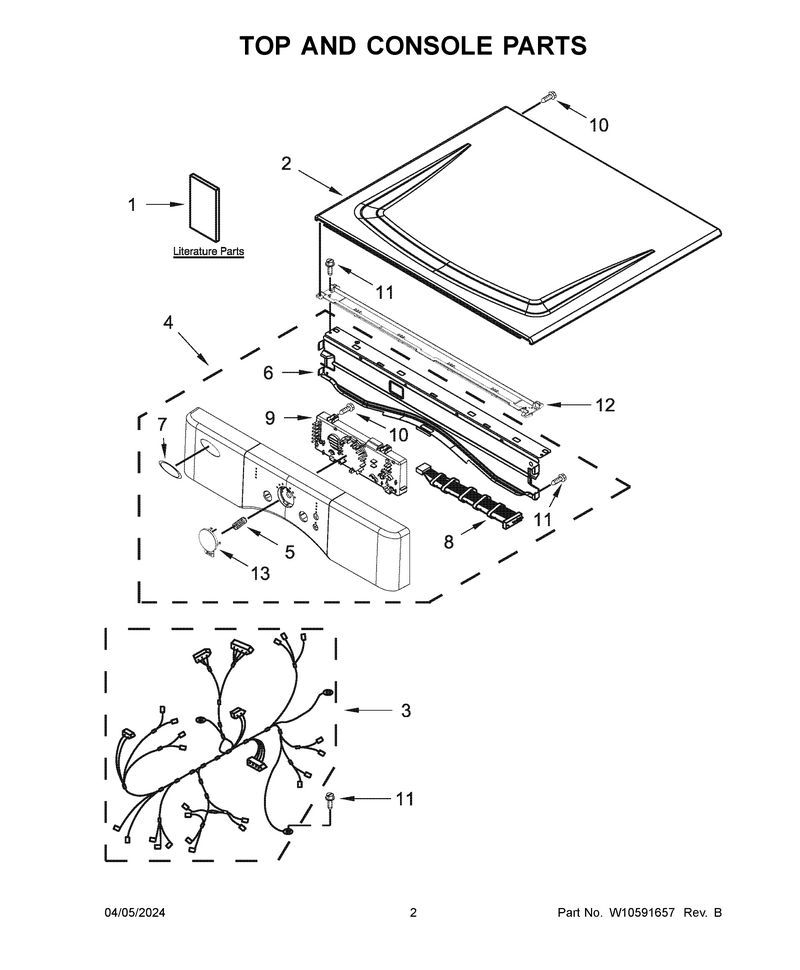

02 - Top And Console Parts

...
...
1
Use & Care Guide WPL-W10296184
...
1A
Tech Sheet WPL-W10443109
...
1B
Installation, Instruction WPL-W10443041
...
2
Top WPL-WPW10336080
...
3
Harness, Main WPL-W10555104
...
4
Console WPL-WPW10444970
...
5
Spring, Button WPL-W10215807
...
6
Bracket WPL-WP8565237
...
7
Badge WPL-W10117943
...
8
Cable, User Interface WPL-W10259049
...
9
Cntrl-Elec WPL-WPW10444971
...
10
Screw WPL-W10006580
...
11
Screw WPL-WP488729
...
12
Channel WPL-WPW10266747
...
13
Button, Cycle WPL-W10212800

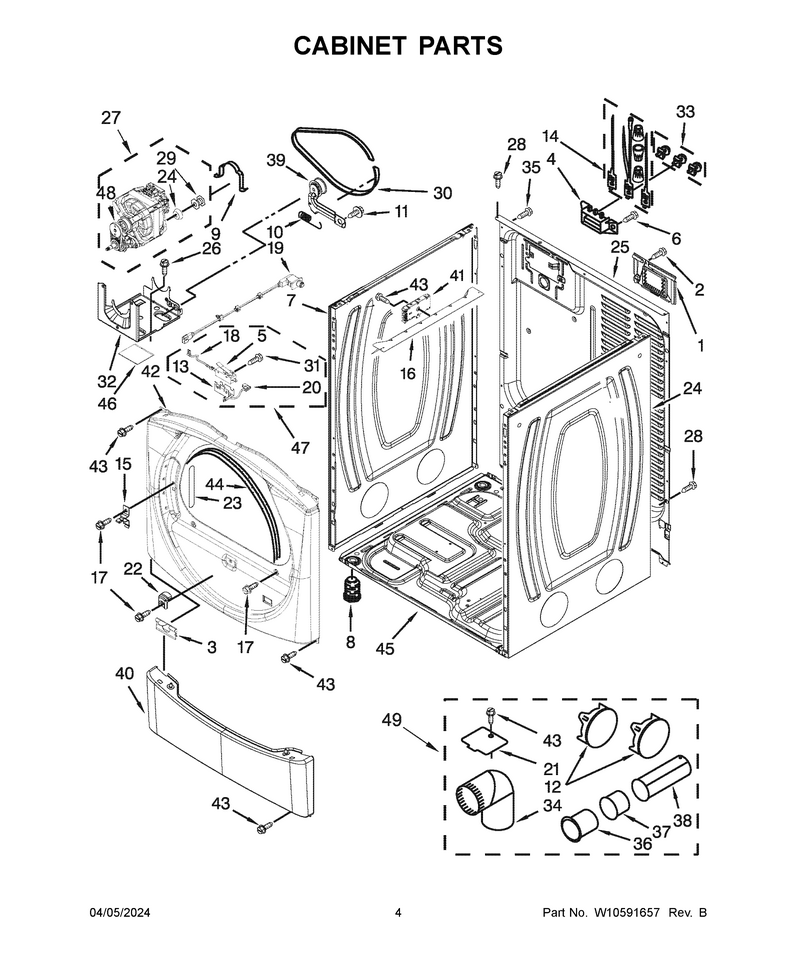

03 - Cabinet Parts

...
...
NI
Feet-Lvlng WPL-49621
...
1
Cover-Term WPL-WPW10119283
...
2
Screw WPL-WP90767
...
3
Clip WPL-W11295573
...
4
Block-Term WPL-WP3397659
...
5
Switch-Plg WPL-WP8564010
...
6
Screw WPL-WP693995
...
7
Panel, Side (White) WPL-W10542714
...
8
Feet-Lvlng WPL-49621
...
9
Clamp WPL-WP660658
...
10
Spring WPL-WPW10446781
...
11
Screw WPL-WP3389420
...
12
Plug WPL-WPW10404617
...
13
Bracket, Switch WPL-8564011
...
14
Terminal, Brass And Tinned (Includes Terminal Block Screw Kit) WPL-279318
...
15
Strike WPL-WP8565122
...
16
Bracket WPL-WP8563727
...
17
Screw WPL-WP308685
...
18
Wire, Belt Switch WPL-W10167613
...
19
Switch-Dor WPL-WPW10350910
...
20
Wire, Motor To Belt Switch WPL-8539892
...
21
Cover WPL-WPW10354249
...
22
Ramp, Door WPL-8565083
...
23
Plug, Hinge Hole (White) WPL-W10085210
...
24
Rstrnr-Blt WPL-WP3393657
...
25
Panel, Rear WPL-8565059
...
26
Screw WPL-WP681414
...
27
Motor-Drve WPL-W11234001
...
28
Screw WPL-WP308685
...
29
Pulley-Mtr WPL-WP8066184
...
30
Belt WPL-WPW10131172
...
31
Screw WPL-W10002600
...
32
Base WPL-W11676491
...
33
Screw Kit, Terminal Block WPL-279393
...
34
Elbow WPL-WPW10416072
...
35
Screw WPL-W10850756
...
36
Pipe-Exhst WPL-WP8563747
...
37
Pipe-Exhst WPL-WPW10331278
...
38
Pipe-Exhst WPL-WP8563749
...
39
Pulley-Idr WPL-WPW10344192
...
40
Toepnl WPL-WP8540621
...
41
Cntrl-Elec WPL-WPW10450081
...
42
Panel WPL-W10874444
...
43
Screw WPL-WP488729
...
44
Seal WPL-WP3387242
...
45
Base WPL-W11215531
...
46
Pad WPL-W11113654
...
47
Switch WPL-W11247665
...
48
Belt WPL-WP3405160
...
49
Vent Kit WPL-W10470674

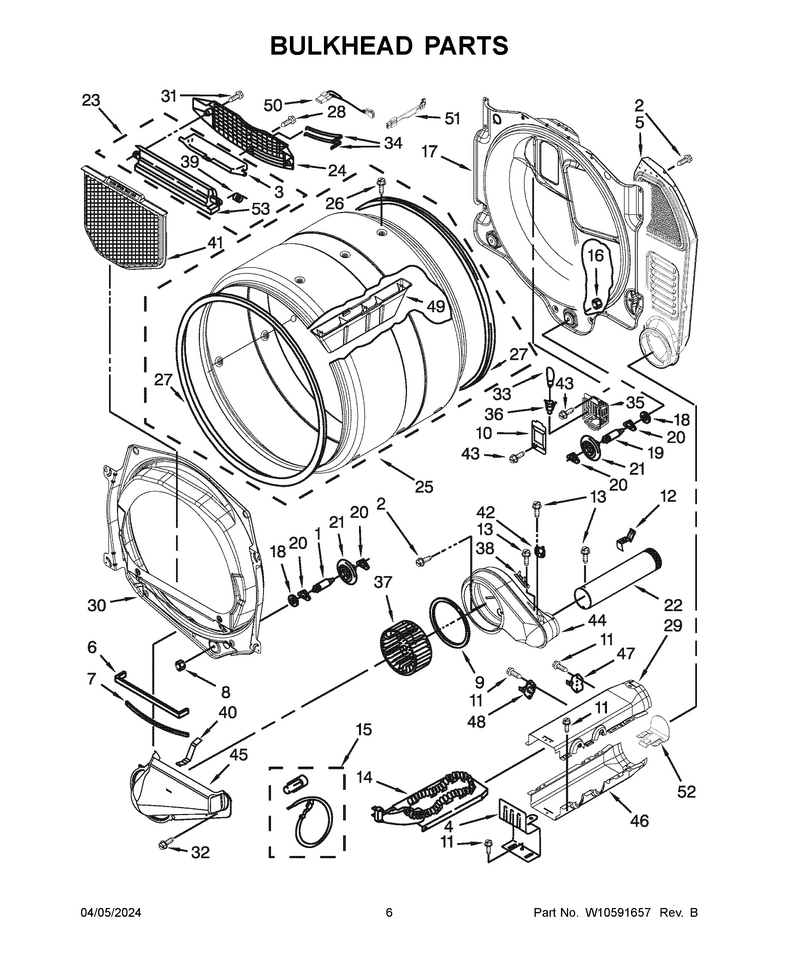

04 - Bulkhead Parts

...
...
1
Shaft WPL-WPW10359272
...
2
Screw WPL-WP488729
...
3
Door WPL-W11222846
...
4
Bracket, Heater Box WPL-8066099
...
5
Duct-Air WPL-WP3387911
...
6
Seal WPL-WP697813
...
7
Seal WPL-WP697813
...
8
Nut WPL-WPW10080210
...
9
Seal WPL-WP697770
...
10
Lens WPL-W11226088
...
11
Screw WPL-WP693995
...
12
Clip WPL-W11684573
...
13
Screw WPL-WP90767
...
14
Heater Element WPL-W10131182
...
15
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
16
Nut WPL-WPW10080190
...
17
Bulkhead WPL-WPW10080170
...
18
Washer WPL-W11236646
...
19
Shaft WPL-WPW10359271
...
20
Ring WPL-WPW10512946
...
21
Support WPL-WPW10314173
...
22
Pipe-Exhst WPL-WP8563728
...
23
Grill-Out WPL-W11219327
...
24
Grill-Out WPL-W11086603
...
25
Assembly, Drum (Complete) WPL-W10865330
...
26
Screw WPL-W10853898
...
27
Seal WPL-280114
...
28
Screw WPL-WP488729
...
29
Box WPL-WP8544769
...
30
Bulkhead, Front WPL-8565061
...
31
Screw WPL-WP3387230
...
32
Screw WPL-WP489463
...
33
Bulb-Light WPL-WP22002263
...
34
Electrode WPL-WP3387223
...
35
Bracket, Drum Light WPL-8578825
...
36
Socket WPL-W11222979
...
37
Wheel WPL-WPW10349492
...
38
Fuse-Thrml WPL-WP3392519
...
39
Spring WPL-WP3394986
...
40
Clip WPL-WP8066208
...
41
Screen WPL-W10120998
...
42
Thermistor WPL-WP8577274
...
43
Screw WPL-W11693756
...
44
Housing WPL-W10888146
...
45
Duct-Lint WPL-WPW10128606
...
46
Box WPL-WP8544770
...
47
Kit, Thermal Cut-Off (Includes Thermostat) WPL-279973
...
48
Thrmst-Fix WPL-WP3391914
...
49
Baffle-Drm WPL-W10852390
...
50
Harness, Moisture Sensor WPL-W10110975
...
51
Harns-Wire WPL-WP3406653
...
52
Flange, Heater Box WPL-8544776
...
53
Housng-Out WPL-W11129408

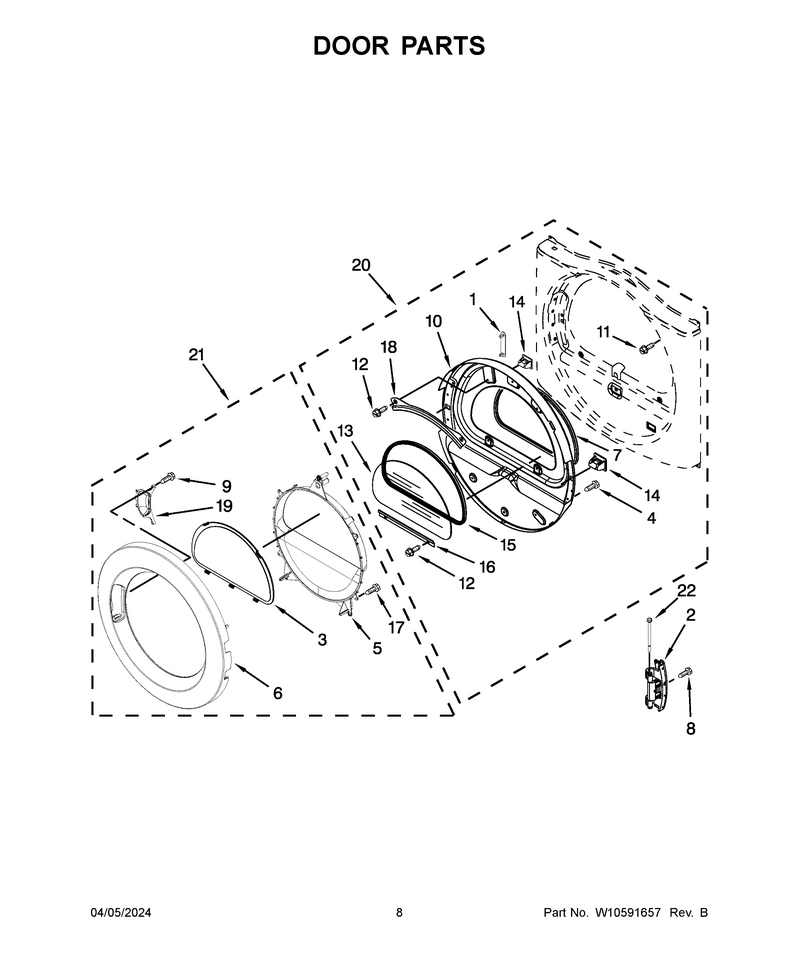

05 - Door Parts

...
...
1
Label WPL-WPW10256915
...
2
Hinge WPL-WPW10304672
...
3
Screen, Door (Not Serviceable Order Item 21) WPL---
...
4
Screw WPL-W11116979
...
5
Door, Intermediate Stationary WPL-W10283424
...
6
Door, Outer Ring WPL-W10215742
...
7
Seal-Door WPL-WPW10163915
...
8
Screw WPL-WPW10159996
...
9
Screw WPL-W10850046
...
10
Door WPL-W11690171
...
11
Screw WPL-WP355515
...
12
Screw WPL-WP3373329
...
13
Window WPL-WPW10286878
...
14
Latch WPL-279570
...
15
Seal WPL-W11706993
...
16
Retainer WPL-W10822054
...
17
Screw WPL-WP3373329
...
18
Retainer, Window (Upper) WPL-8519356
...
19
Handle, Door WPL-W10215754
...
20
Assembly, Inner Door WPL-W10564641
...
21
Door, Outer (White) WPL-W10215753
...
22
Screw WPL-8565087

...
...
NI
Power Cord, 6', 30 Amp, 4 Wire, Dryer Cord WPL-PT600L
