Whirlpool WED7120HC2

Model: WED7120HC2

Save Part Not Listed?
product name

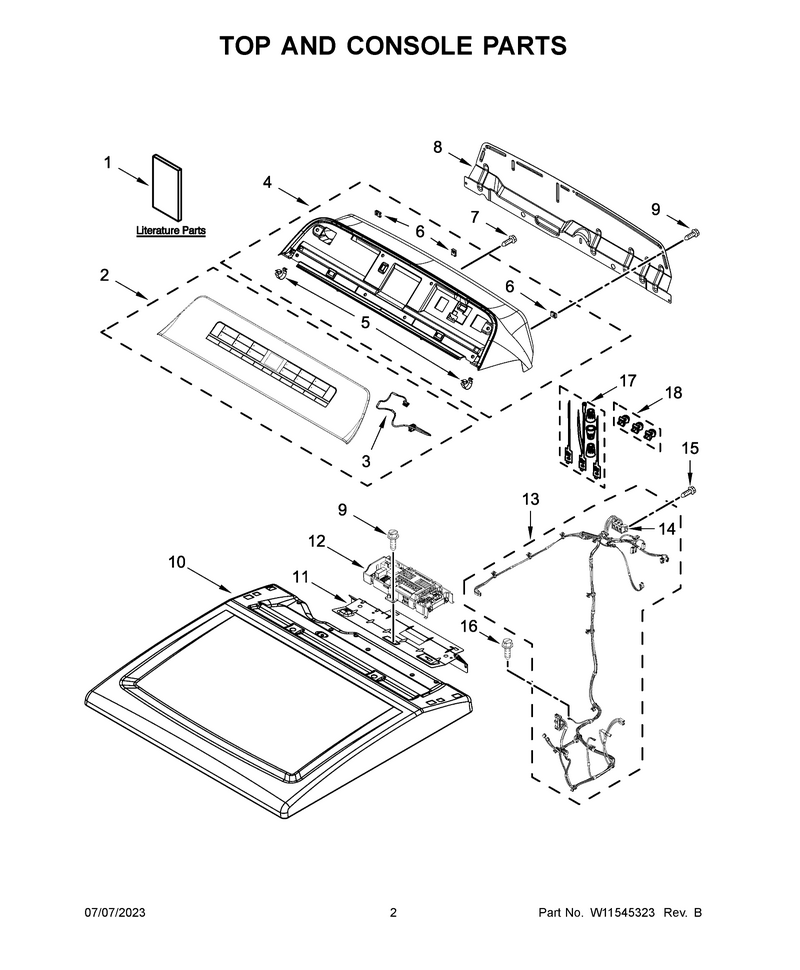

02 - Top And Console Parts

...
...
1
Installation Instructions WPL-W11555818
...
1A
Quick Start Guide WPL-W11550670
...
2
Panel-Ui WPL-W11626080
...
3
Harness, User Interface (Hmi) WPL-W11164312
...
4
Console WPL-W11401363
...
4A
Console WPL-W11401366
...
5
Clip WPL-WP8312709
...
6
Nut WPL-W11213336
...
7
Screw WPL-WP9740848
...
8
Panel, Rear Console WPL-W11433112
...
9
Screw WPL-WP488729
...
10
Top WPL-W11641121
...
10A
Top WPL-W11641122
...
11
Bracket, Electronic Control WPL-W11431865
...
12
Cntrl-Elec WPL-W11618916
...
13
Harns-Wire WPL-W11700548
...
14
Block-Term WPL-WP3397659
...
15
Screw WPL-WP308685
...
16
Screw WPL-W10850756
...
17
Terminal, Brass And Tinned (Includes Terminal Block Screw Kit) WPL-279318
...
18
Screw Kit, Terminal Block WPL-279393

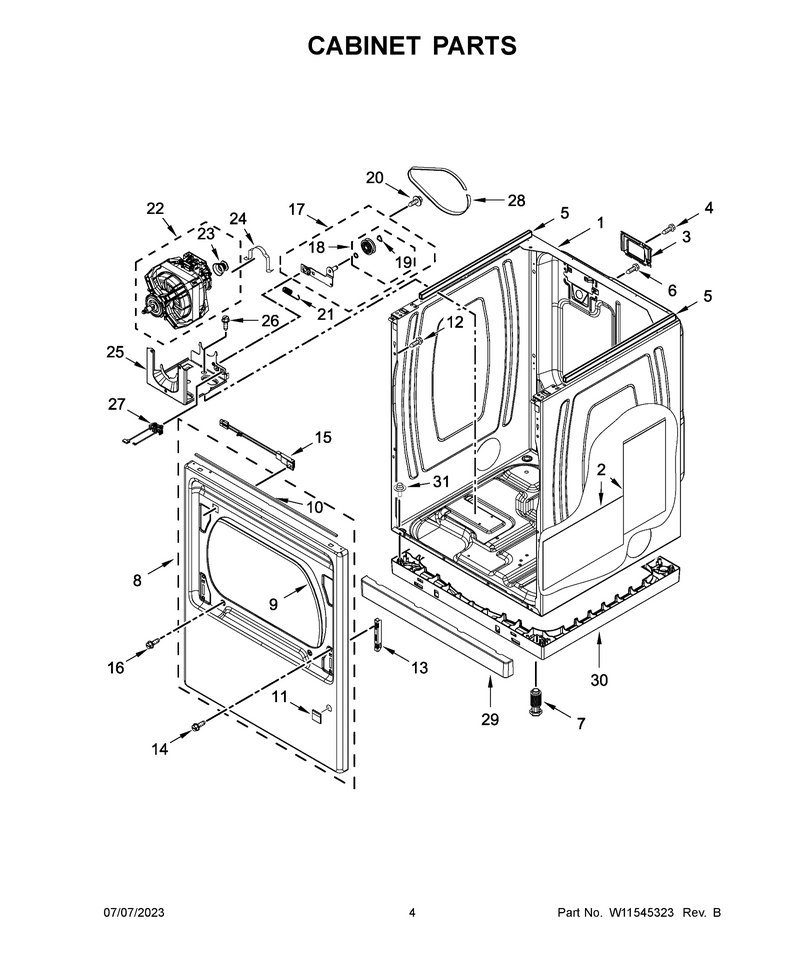

03 - Cabinet Parts

...
...
1
Cabinet WPL-W11417441
...
1A
Cabinet WPL-W11417445
...
2
Pad WPL-W11690850
...
3
Cover WPL-W11662367
...
4
Screw WPL-WP3390631
...
5
Seal WPL-W11352071
...
6
Screw WPL-W11693756
...
7
Feet-Lvlng WPL-W11444912
...
8
Plug WPL-W11402947
...
8A
Plug WPL-W11402953
...
9
Seal WPL-WP3387242
...
10
Seal WPL-W11406199
...
11
Plug WPL-W10811916
...
11A
Plug WPL-W11406198
...
12
Screw WPL-W10891954
...
13
Hinge WPL-W11568982
...
14
Screw WPL-W10916641
...
15
Switch-Dor WPL-W11551763
...
16
Screw WPL-WP308685
...
17
Bracket WPL-W10837240
...
18
Pulley-Idr WPL-279640
...
19
Ring WPL-WPW10512946
...
20
Screw WPL-WP3389420
...
21
Spring WPL-WPW10446781
...
22
Motor-Drve WPL-W11549461
...
23
Pulley-Mtr WPL-W10837625
...
24
Clamp WPL-WPW10121316
...
25
Bracket WPL-W11481730
...
26
Screw WPL-WP681414
...
27
Switch WPL-W10847984
...
28
Belt WPL-W11667280
...
29
Skirt WPL-W11551367
...
29A
Skirt WPL-W11628809
...
30
Riser WPL-W11551643
...
31
Screw W/washer WPL-W11182898

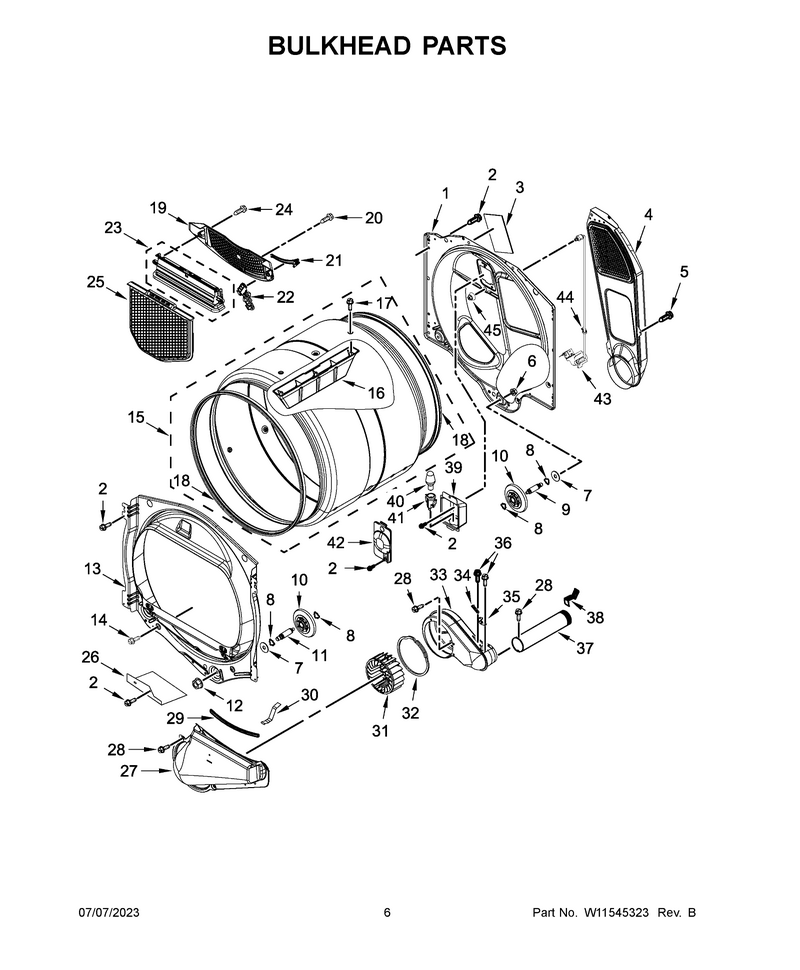

04 - Bulkhead Parts

...
...
NI
Accessory Parts, Inlet Hose, 5 Ft (Cold Water) WPL-W10782875
...
1
Bulkhead, Rear WPL-W11162465
...
2
Screw WPL-WP488729
...
3
Pad WPL-W11409002
...
4
Duct-Air WPL-W11677720
...
5
Screw WPL-WP90767
...
6
Nut WPL-WPW10080190
...
7
Washer WPL-W11236646
...
8
Ring WPL-WPW10512946
...
9
Shaft WPL-WPW10359272
...
10
Support WPL-WPW10314173
...
11
Shaft WPL-WPW10359271
...
12
Nut WPL-WPW10080210
...
13
Bulkhead, Front WPL-W11162467
...
14
Screw WPL-WP308685
...
15
Assembly, Drum WPL-W10545923
...
16
Baffle-Drm WPL-WPW10113136
...
17
Screw WPL-W10853898
...
18
Seal WPL-280114
...
19
Grill-Out WPL-W11086603
...
20
Screw WPL-WP488729
...
21
Electrode WPL-WP3387223
...
22
Harns-Wire WPL-WPW10298258
...
23
Housng-Out WPL-W11129408
...
24
Screw WPL-WP3387230
...
25
Screen WPL-W10120998
...
26
Shield, Blower WPL-W11257251
...
27
Duct-Lint WPL-WPW10128606
...
28
Screw WPL-WP489463
...
29
Seal WPL-WP697813
...
30
Clip WPL-WP8066208
...
31
Wheel WPL-WP697772
...
32
Seal WPL-W11596046
...
33
Housing WPL-W10888146
...
34
Fuse-Thrml WPL-W10909685
...
35
Thermistor WPL-W11683629
...
36
Screw WPL-WP693995
...
37
Pipe-Exhst WPL-279936
...
38
Clip WPL-W11684573
...
39
Bracket, Drum Light WPL-3977373
...
40
Bulb-Light WPL-WP22002263
...
41
Socket WPL-W11222979
...
42
Lens WPL-W11226088
...
43
Valve WPL-W11611436
...
44
Tie-Wire WPL-WP3391018
...
45
Nozzle WPL-W11230609

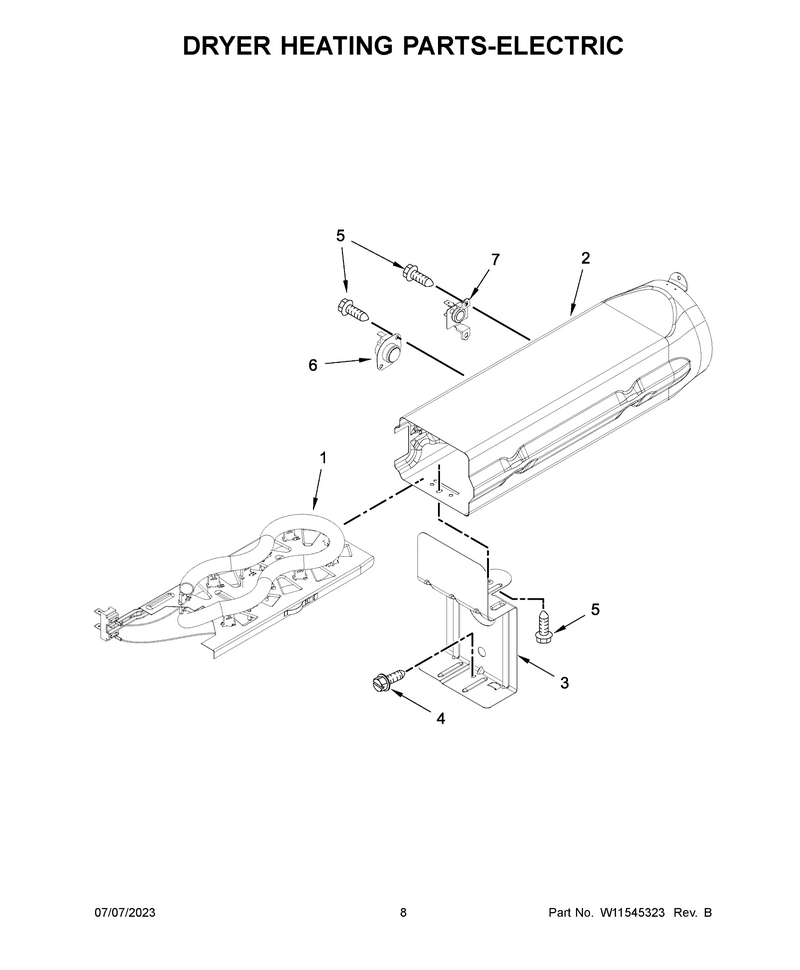

05 - Dryer Heating Parts-Electric

...
...
1
Element WPL-WP3387747
...
2
Box WPL-W10802681
...
3
Bracket, Heater Box WPL-8066099
...
4
Screw WPL-WP693995
...
5
Screw WPL-WP90767
...
6
Thrmst-Fix WPL-WP8557403
...
7
Kit, Thermal Cut-Off (Includes Thermostat) WPL-280148

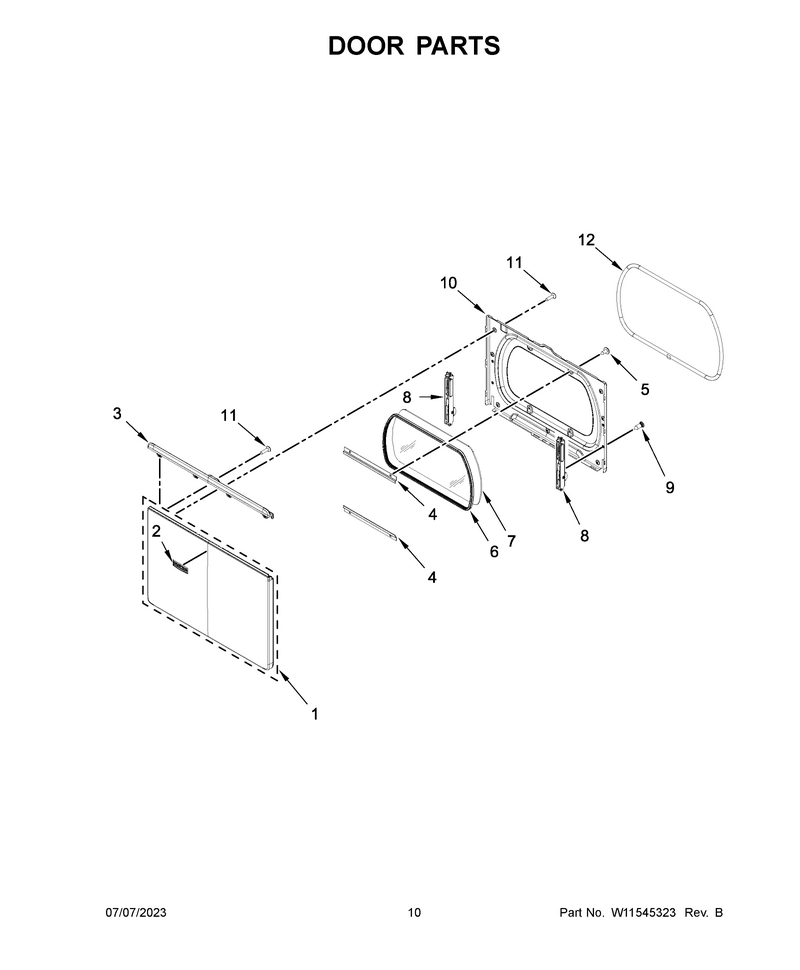

06 - Door Parts

...
...
1
Assembly, Outer Door WPL-W11187709
...
2
Nameplate WPL-W11223753
...
3
Handle, Door WPL-W11186771
...
4
Retainer WPL-W10822054
...
5
Screw WPL-WP3373329
...
6
Seal WPL-W11676508
...
7
Glass-Door WPL-W11434304
...
8
Hinge WPL-W11551301
...
9
Screw WPL-WP488627
...
10
Door WPL-W11679613
...
10A
Assembly, Inner Door (Chrome Shadow) WPL-W11176947
...
11
Screw WPL-W10850046
...
12
Seal-Door WPL-W11596131

...
...
NI
Accessory Parts, Dryer Vent - Cap (External Venting, 4" W Opening, Heavy-Duty Rigid Metal & 10 1/2" L Pipe With Back Dra WPL-4396007RW
