Whirlpool WED6720RU0

Model: WED6720RU0

Save Part Not Listed?
product name

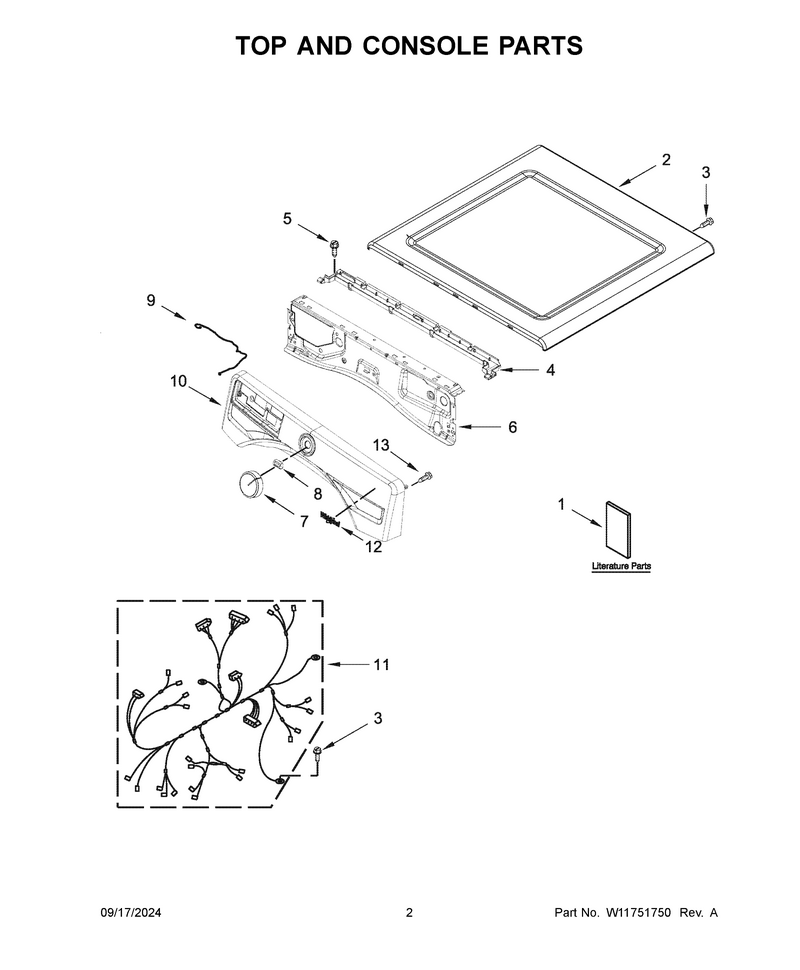

02 - Top And Console Parts

...
...
1
Owners Manual WPL-W11685596
...
1A
Tech Sheet WPL-W11708031
...
1B
Quick Start Guide WPL-W11708007
...
2
Top WPL-W11315730
...
3
Screw WPL-WP488729
...
4
Bracket WPL-W11310027
...
5
Screw WPL-W11686675
...
6
Bracket, Console WPL-W11480682
...
7
Assembly, Knob WPL-W11709754
...
8
Clip WPL-WP8536939
...
9
Harness, Acu To Hmi WPL-W11719384
...
10
Console WPL-W11752186
...
11
Harns-Wire WPL-W11690849
...
12
Nameplate WPL-W11223753
...
13
Screw WPL-WP9740848

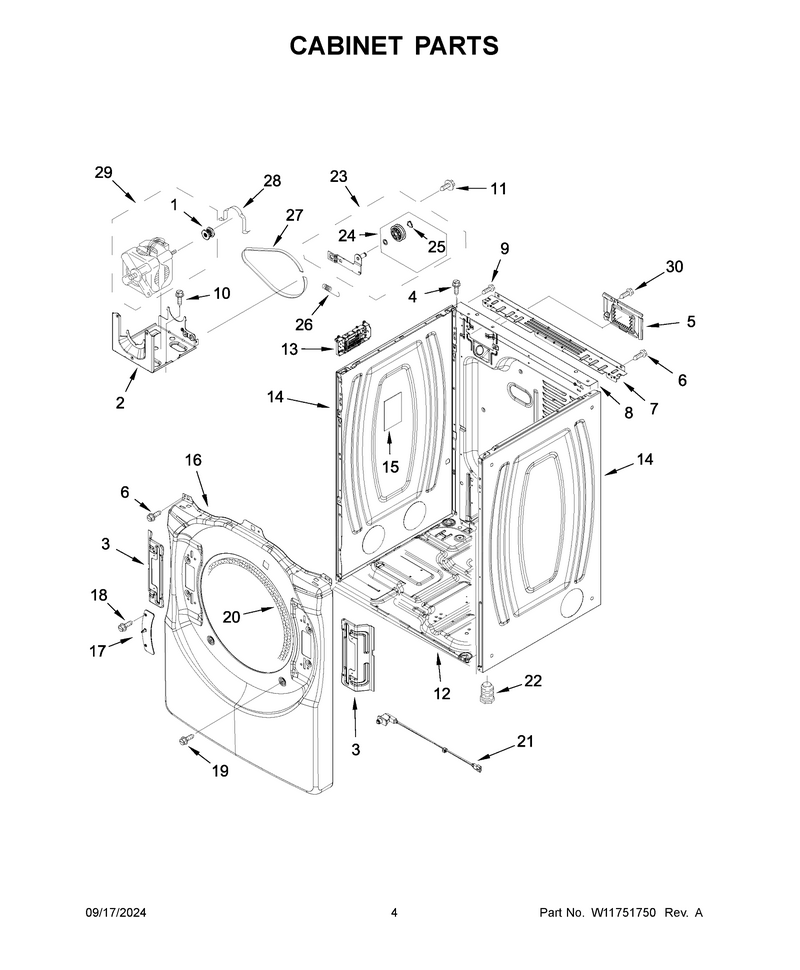

03 - Cabinet Parts

...
...
NI
Dryer Exhaust Kit Not Included, Kit, 4-Way Vent WPL-W10323246
...
1
Pulley-Mtr WPL-WP8066184
...
2
Bracket WPL-W11481730
...
3
Bracket WPL-W11747862
...
4
Screw WPL-WP489463
...
5
Cover WPL-W11662367
...
6
Screw WPL-WP488729
...
7
Bracket WPL-WPW10208382
...
8
Panel, Rear WPL-W10487430
...
9
Screw WPL-W10850756
...
10
Screw WPL-WP681414
...
11
Screw WPL-WP3389420
...
12
Base WPL-W11215531
...
13
Cntrl-Elec WPL-W11752182
...
14
Panel WPL-W11315732
...
15
Pad WPL-W11409002
...
16
Panel, Front (Black) WPL-W11413346
...
17
Strike WPL-W11310031
...
18
Screw WPL-W11661566
...
19
Screw WPL-WP308685
...
20
Seal WPL-WP3387242
...
21
Switch-Dor WPL-W11551763
...
22
Feet-Lvlng WPL-49621
...
23
Bracket WPL-W10837240
...
24
Pulley-Idr WPL-279640
...
25
Ring WPL-WPW10512946
...
26
Spring WPL-WPW10446781
...
27
Belt WPL-W11667280
...
28
Clamp WPL-WPW10121316
...
29
Motor-Drve WPL-W11364931
...
30
Screw WPL-WP308685

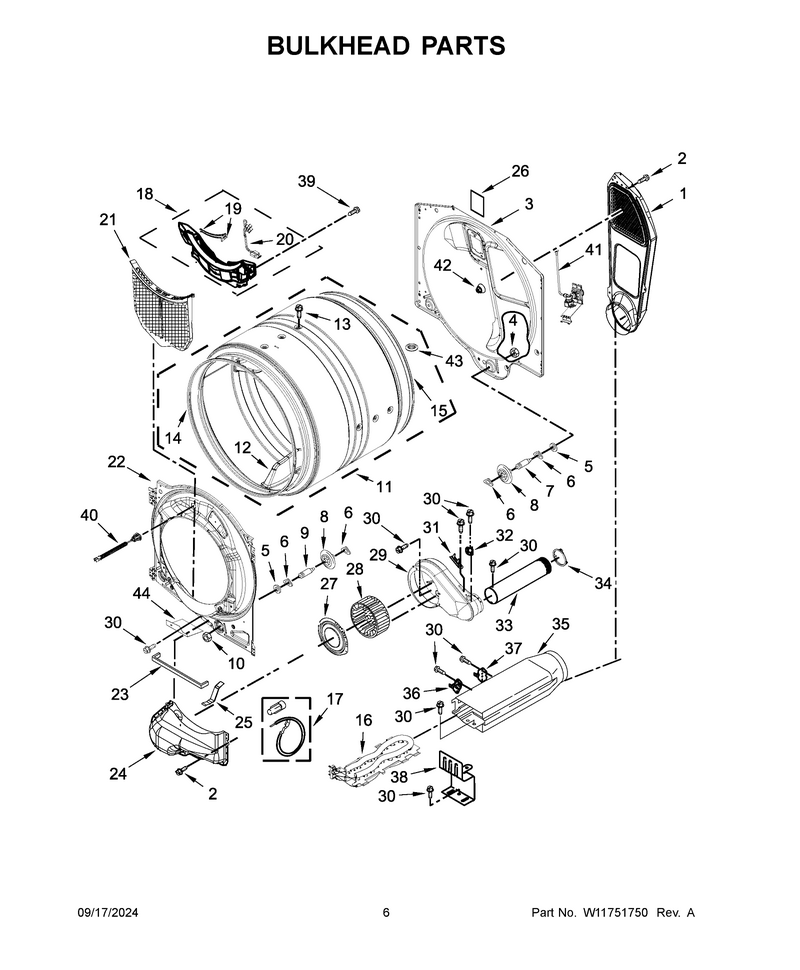

04 - Bulkhead Parts

...
...
1
Duct-Air WPL-W11677720
...
2
Screw WPL-WP488729
...
3
Bulkhead WPL-W11299321
...
4
Nut WPL-WPW10080190
...
5
Washer WPL-W11236646
...
6
Ring WPL-WPW10512946
...
7
Shaft WPL-WPW10359271
...
8
Support WPL-WPW10314173
...
9
Shaft WPL-WPW10359272
...
10
Nut WPL-WPW10080210
...
11
Assembly, Drum (Complete) WPL-W10381481
...
12
Bafffle, Drum WPL-W10416098
...
13
Screw WPL-W10853898
...
14
Seal WPL-W11193479
...
15
Seal WPL-280114
...
16
Element WPL-WP3387747
...
17
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
18
Housng-Out WPL-W10906551
...
19
Electrode WPL-WP3387223
...
20
Harns-Wire WPL-WPW10298258
...
21
Screen WPL-WPW10516085
...
22
Bulkhead, Front WPL-W10673491
...
23
Seal WPL-W11676493
...
24
Duct-Lint WPL-WPW10211896
...
25
Clip, Lint Duct WPL-W10414388
...
26
Pad WPL-W11409002
...
27
Collar WPL-W11688571
...
28
Wheel WPL-WP697772
...
29
Housing WPL-WPW10211911
...
30
Screw WPL-WP693995
...
31
Fuse-Thrml WPL-W10909685
...
32
Thermistor WPL-WP8577274
...
33
Pipe-Exhst WPL-WPW10342188
...
34
Collar WPL-WPW10344699
...
35
Box WPL-W10802681
...
36
Thrmst-Fix WPL-WP8557403
...
37
Kit, Thermal Cut-Off (Includes Thermostat) WPL-280148
...
38
Bracket, Heater Box WPL-8066099
...
39
Screw WPL-WP3387230
...
40
Light WPL-W11310048
...
41
Valve WPL-W11216837
...
42
Nozzle, Cap WPL-W11714516
...
43
Cap, Plug WPL-W10665050
...
44
Shield, Blower WPL-W11257251

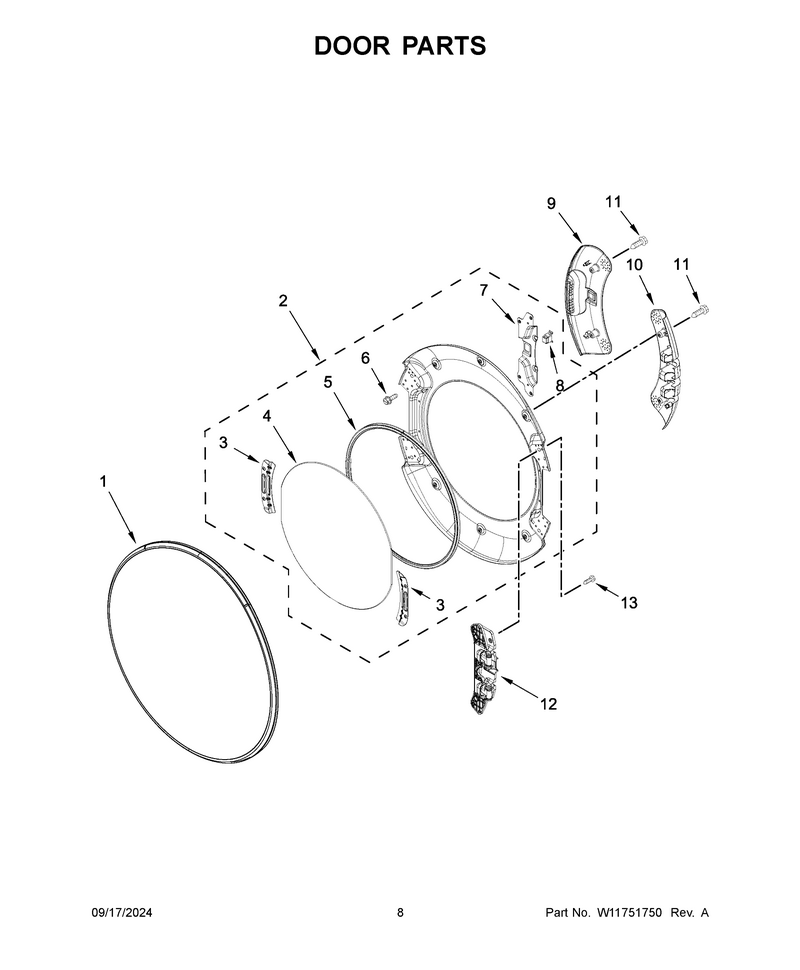

05 - Door Parts

...
...
1
Assembly, Outer Door (Chrome) WPL-W11711433
...
2
Door WPL-W11701947
...
3
Retainer WPL-W11310037
...
4
Window WPL-W11310036
...
5
Seal WPL-W11310035
...
6
Screw WPL-W11661566
...
7
Cover WPL-W11310039
...
8
Catch WPL-W11240283
...
9
Cover WPL-W11701949
...
10
Cover, Hinge WPL-W11120174
...
11
Screw WPL-W10850046
...
12
Hinge WPL-W11318815
...
13
Screw, Grounding WPL-8540479

...
...
NI
Power Cord, 6', 30 Amp, 4 Wire, Dryer Cord WPL-PT600L
