Whirlpool WDTA50SAKB1

Model: WDTA50SAKB1

Save Part Not Listed?
product name

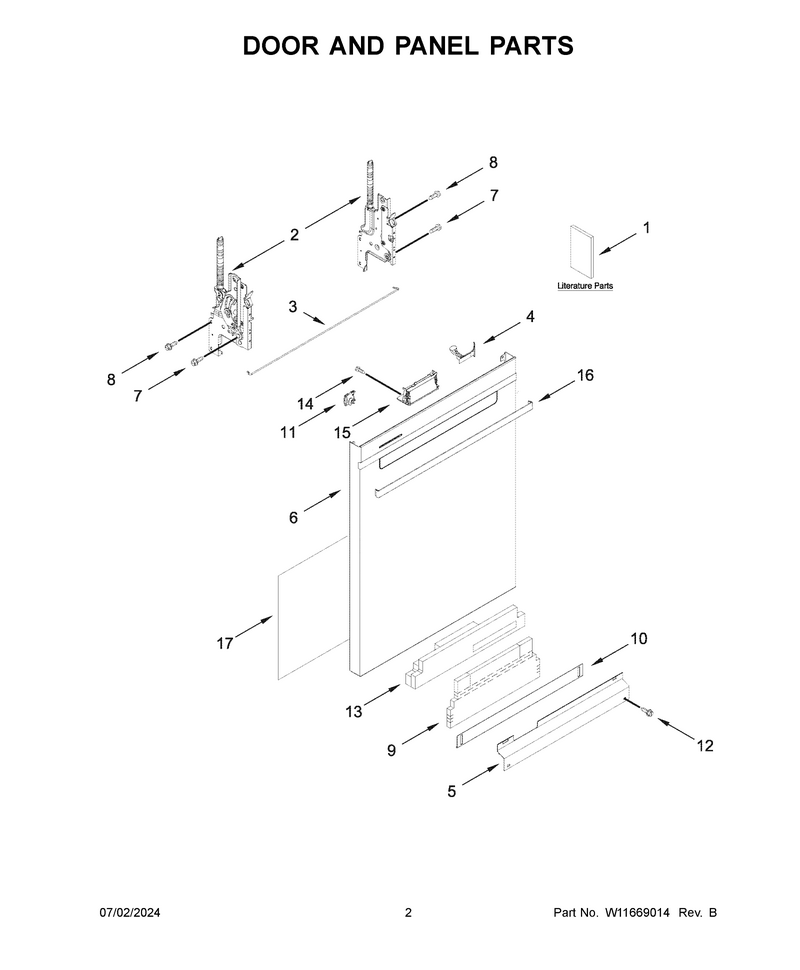

02 - Door And Panel Parts

...
...
1
Owners Manual WPL-W11323304
...
1A
Energy Guide WPL-W11419599
...
1B
Tech Sheet WPL-W11366143
...
2
Hinge-Door WPL-W11712995
...
2A
Hinge-Door WPL-W11712996
...
3
Cross Brace, Door WPL-W11377160
...
4
Light Pipe WPL-W11102920
...
5
Panel WPL-W11545318
...
5A
Access Panel (White) WPL-W11110746
...
6
Panel WPL-W11462454
...
6A
Panel WPL-W11461685
...
6B
Panel WPL-W11462449
...
6C
Panel WPL-W11461682
...
6D
Panel WPL-W11461683
...
7
Screw WPL-W11676450
...
8
Screw WPL-WPW10309090
...
9
Shield WPL-W11573704
...
10
Panel-Toe WPL-W11579528
...
10A
Toe Panel (White) WPL-W11467726
...
11
Barrel Nut, Front Panel WPL-W10692757
...
12
Screw WPL-W11551775
...
12A
Screw WPL-W11632695
...
13
Shield WPL-W11573700
...
14
Screw WPL-WP9741232
...
15
Pocket, Handle (Black) WPL-W10896300
...
15A
Pocket, Handle (White) WPL-W10896301
...
15B
Pocket, Handle () WPL-W10896302
...
16
Pocket-Hdl WPL-W11087930
...
17
Insulation, Front Panel WPL-W10919861

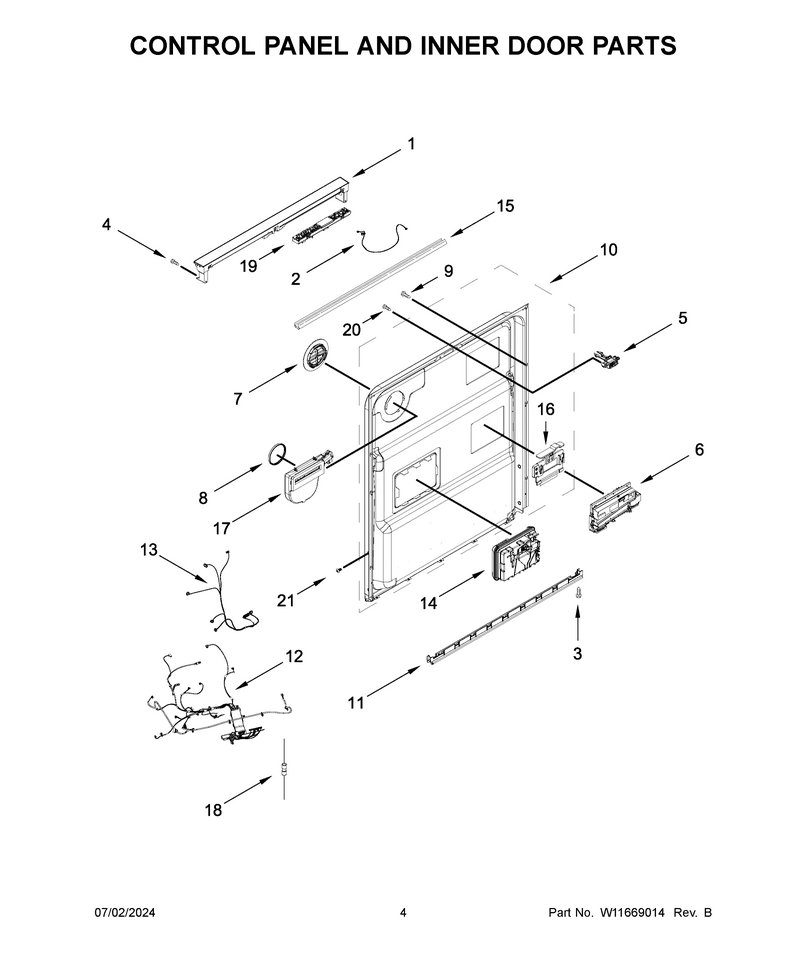

03 - Control Panel And Inner Door Parts

...
...
1
Console WPL-W11460908
...
1A
Console WPL-W11669197
...
1B
Console WPL-W11671483
...
2
Harns-Wire WPL-W11627526
...
3
Screw WPL-W11627527
...
4
Screw WPL-WPW10213953
...
5
Latch-Door WPL-W11412299
...
6
Cntrl-Elec WPL-W11672039
...
7
Deflector WPL-W11545290
...
8
Gasket WPL-W11545539
...
9
Screw WPL-WPW10348409
...
10
Door-Inner WPL-W11559689
...
11
Seal WPL-W11664713
...
12
Harns-Wire WPL-W11662348
...
13
Harns-Wire WPL-W11611303
...
14
Dispenser WPL-W11412300
...
15
Seal WPL-W11412696
...
16
Hanger, Control WPL-W11088985
...
17
Vent WPL-W11649995
...
18
Fuse, In-Line WPL-W11397505
...
19
Panel-Ui WPL-W11632709
...
20
Screw WPL-WPW10348408
...
21
Screw WPL-WP3400071

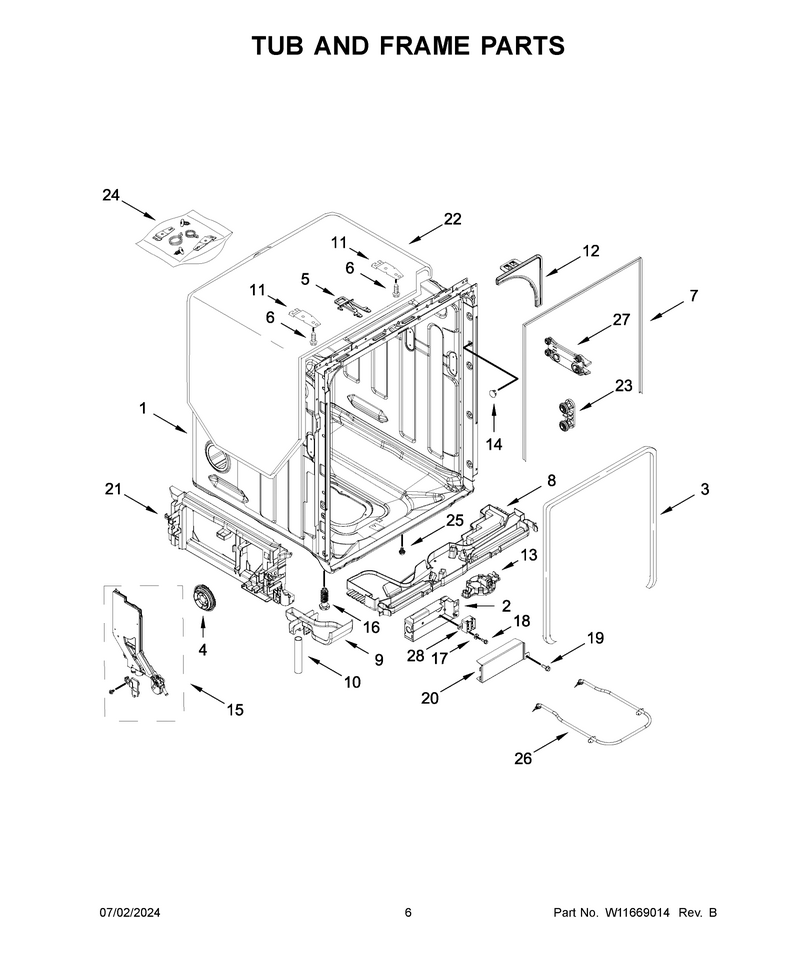

04 - Tub And Frame Parts

...
...
1
Tub-Dishwr WPL-W11409866
...
2
Base, Terminal Box WPL-W11226744
...
3
Gasket WPL-W11483553
...
4
Nut-Tube WPL-W11535081
...
5
Strike WPL-W11545309
...
6
Screw WPL-W11551549
...
7
Seal WPL-W11414078
...
8
Driptray WPL-W11550169
...
9
Funnel, Overfill Protection WPL-W11025986
...
10
Funnel Extension WPL-W11025988
...
11
Brckt-Mtg WPL-WP8269145
...
12
Insert WPL-W11579566
...
13
Switch WPL-W11545764
...
14
Cap WPL-W11573757
...
15
Inlet-Watr WPL-W11535094
...
16
Levler-Leg WPL-W11561254
...
17
Washer WPL-WP3378128
...
18
Screw WPL-WP3400014
...
19
Screw WPL-WPW10277003
...
20
Covr-Box WPL-W11407385
...
21
Support WPL-W11679658
...
21A
Support WPL-W11679657
...
22
Shield WPL-W11579564
...
23
Wheel-Tub WPL-W11614118
...
24
Parts-Misc WPL-W11502191
...
25
Screw WPL-WP3400892
...
26
Heater WPL-W11537778
...
27
Track WPL-W11579562
...
27A
Track WPL-W11596053
...
28
Term-Block WPL-W11573809

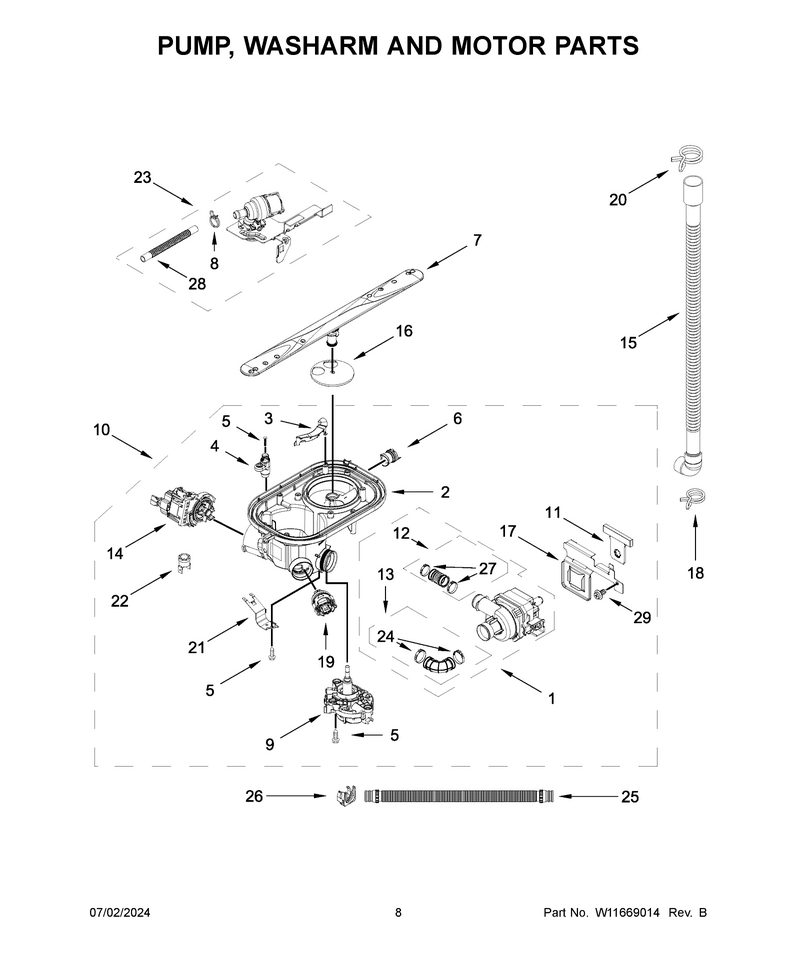

05 - Pump, Washarm And Motor Parts

...
...
1
Base-Pump WPL-W11460963
...
2
Sump WPL-W11443105
...
3
Diffuser, Inlet WPL-W10891543
...
4
Drain Vent Assembly WPL-W11050773
...
5
Screw WPL-WP9741232
...
6
Valve-Chek WPL-W11622925
...
7
Arm-Spray WPL-W11579565
...
8
Clamp WPL-WP596669
...
9
Diverter Valve Motor (Not Serviced) WPL---
...
10
Pump&motor WPL-W11460945
...
11
Isolator, Rear Motor WPL-W11450247
...
12
Hose WPL-W11419334
...
13
Hose WPL-W11460960
...
14
Pump-Drain WPL-W11412291
...
15
Hose-Drain WPL-W11414944
...
16
Diffuser WPL-W11580016
...
17
Bracket, Rear Motor WPL-W11497568
...
18
Clamp WPL-W11545578
...
19
Sensor WPL-W11410464
...
20
Clamp WPL-WP285655
...
21
Bracket, Thermostat WPL-W11163419
...
22
Thermostat WPL-W11573758
...
23
Valve-Inlt WPL-W11434044
...
24
Clamp WPL-W10783615
...
25
Hose-Drain WPL-W11614117
...
26
Clip WPL-W11596052
...
27
Clamp WPL-W10783615
...
28
Hose-Fill WPL-W11627534
...
29
Fastener WPL-W11104048

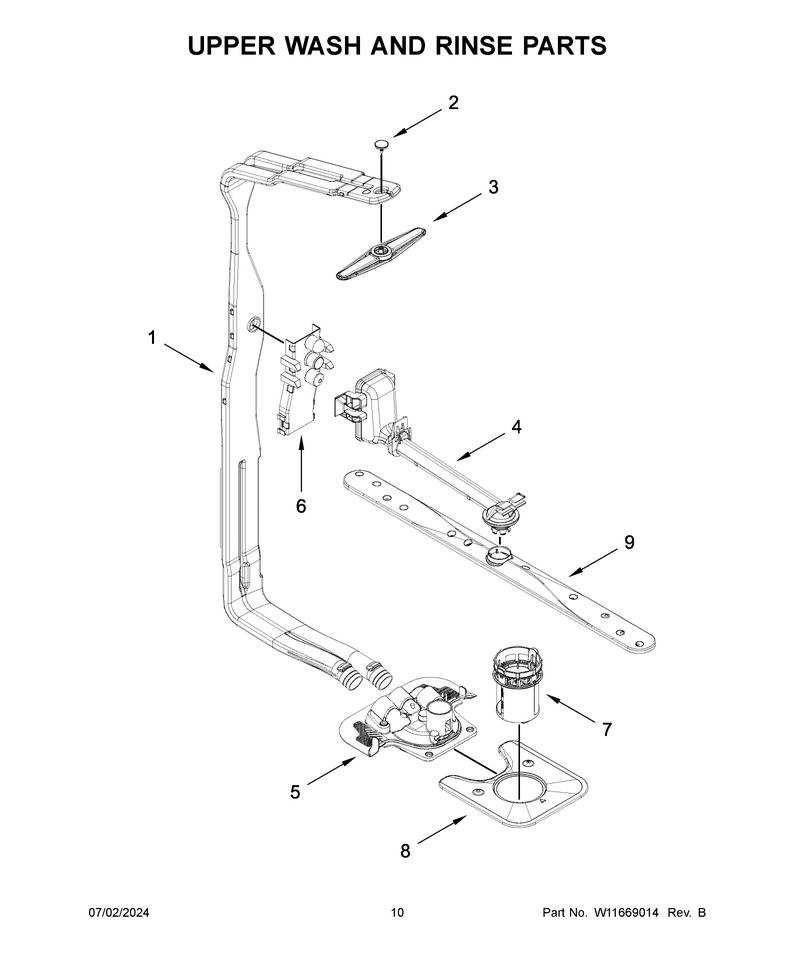

06 - Upper Wash And Rinse Parts

...
...
1
Feed Tube Assembly WPL-W11507999
...
2
Retainer WPL-W11590538
...
3
Arm-Spray WPL-W11573766
...
4
Manifold WPL-W11662109
...
5
Cover WPL-W11743983
...
6
Retainer WPL-W11690647
...
7
Filter WPL-W11460958
...
8
Screen WPL-W11590541
...
9
Arm-Spray WPL-W11627525

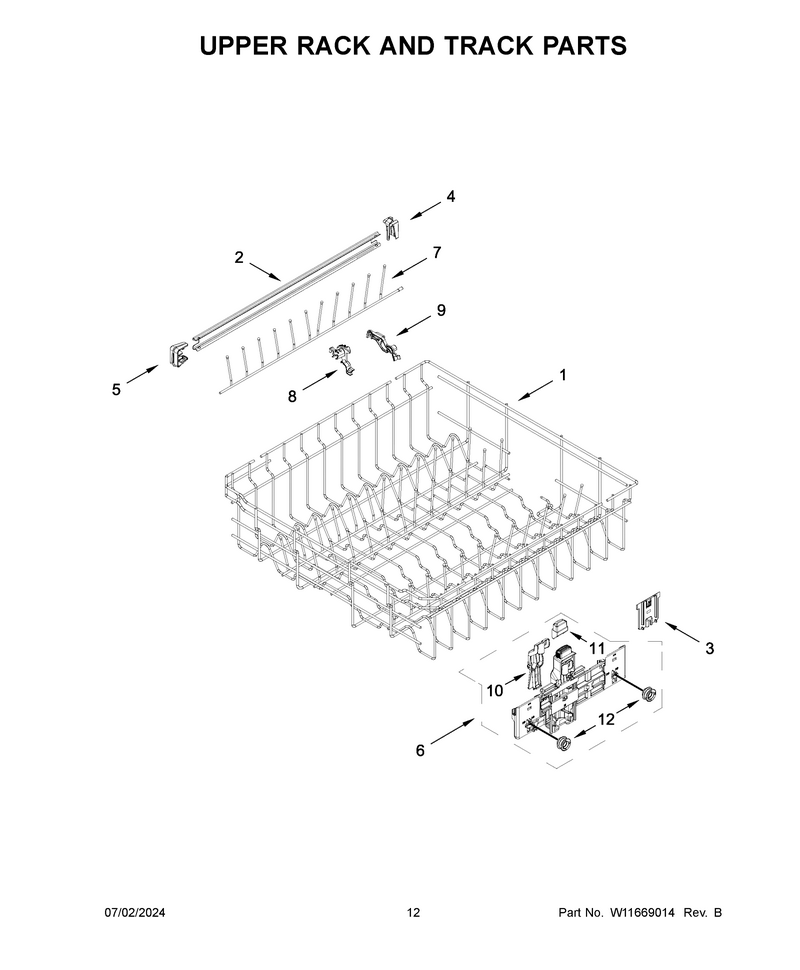

07 - Upper Rack And Track Parts

...
...
1
Dishrack WPL-W11672788
...
2
Track WPL-W11561204
...
3
Positioner WPL-W11580020
...
4
Stop WPL-W11579392
...
5
Stop WPL-W11545307
...
6
Adjuster WPL-W11545795
...
6A
Adjuster WPL-W11551541
...
7
Tine-Row WPL-W11727974
...
8
Positioner WPL-W11179794
...
9
Pivot-Tine WPL-W11627535
...
10
Leveler, Adjuster Arm WPL-W11180178
...
11
Button, Adjuster Arm WPL-W11267702
...
12
Wheel WPL-W11568789

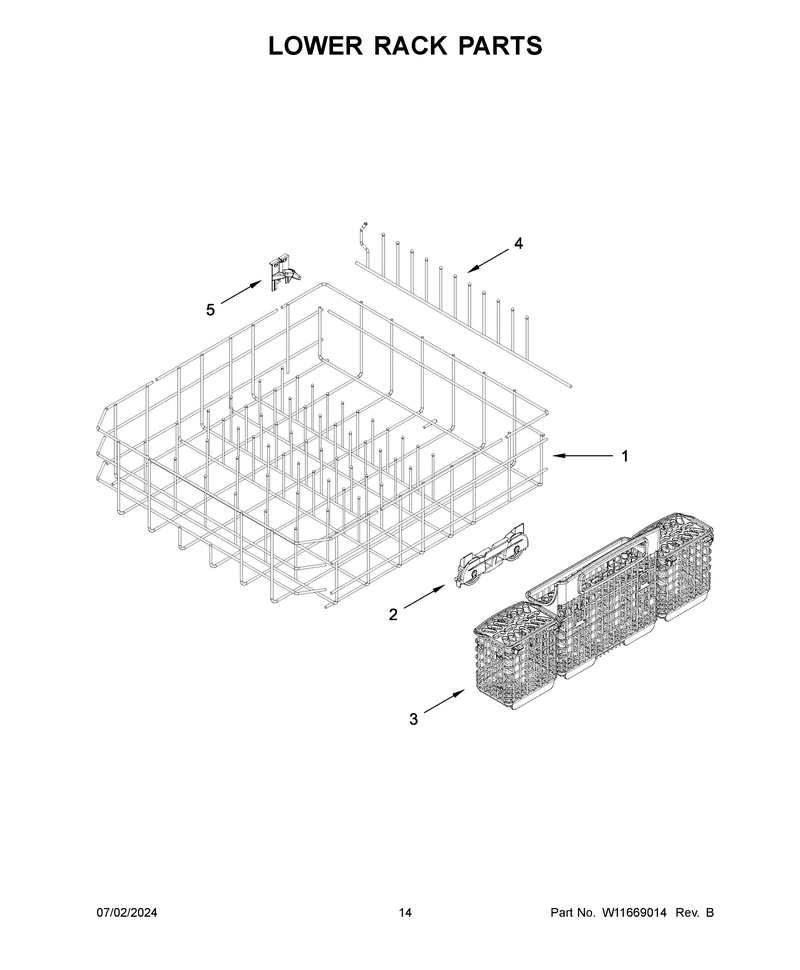

08 - Lower Rack Parts

...
...
1
Dishrack WPL-W10728159
...
2
Wheel WPL-W11551383
...
3
Baskt-Ware WPL-W11700632
...
4
Tine-Row WPL-W10728160
...
5
Retainer WPL-W11736466

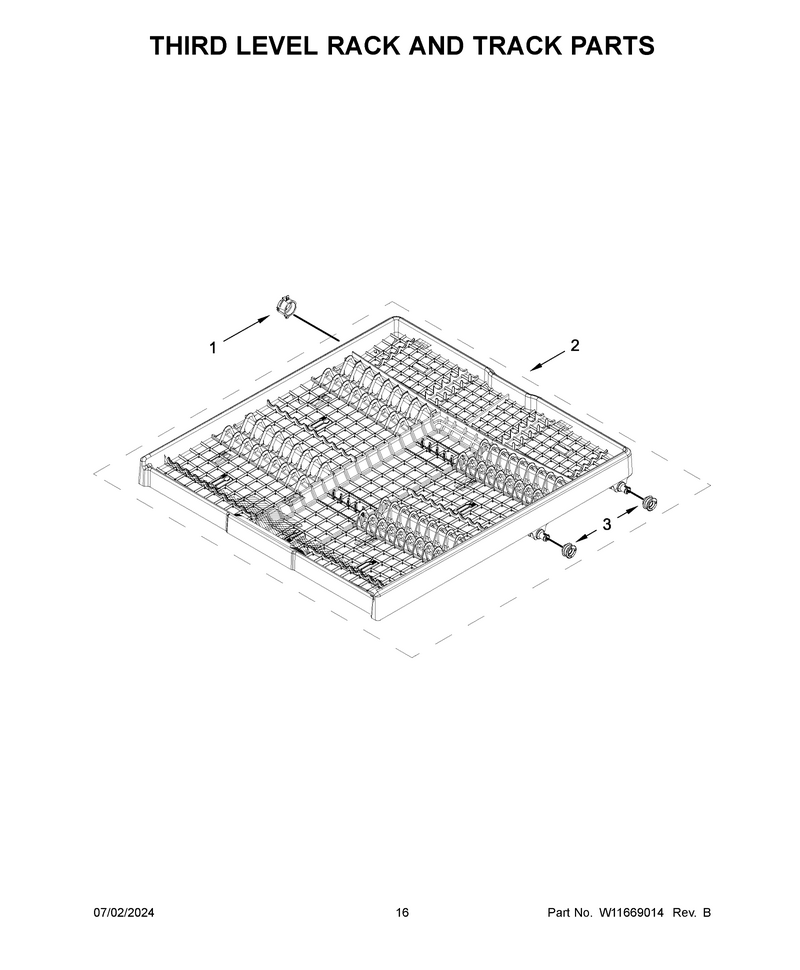

09 - Third Level Rack And Track Parts

...
...
1
Nut WPL-W11545286
...
2
Rack, Third Level WPL-W11540175
...
3
Wheel WPL-W11568789

...
...
NI
Fill Hose Kit WPL-W10278635RP
