Whirlpool UMV1170LB02

Model: UMV1170LB02

Save Part Not Listed?
product name

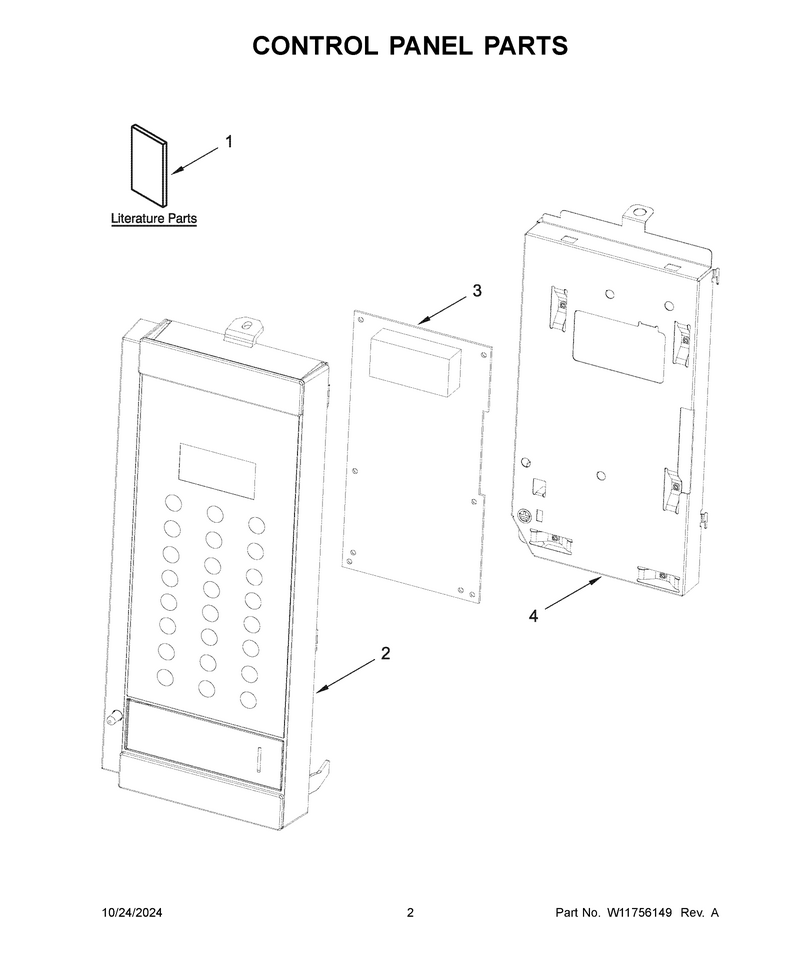

02 - Control Panel Parts

...
...
1
Installation Instructions WPL-W11485889
...
1C
Tech Sheet WPL-W11561753
...
1A
Owner's Manual WPL-W11505890
...
1B
Cook Guide Label WPL-W10835581
...
2
Panl-Cntrl WPL-W11565108
...
2A
Panl-Cntrl WPL-W11565107
...
2B
Panl-Cntrl WPL-W11565104
...
3
Cntrl-Elec WPL-W11552018
...
4
Backer, Control WPL-W11506749

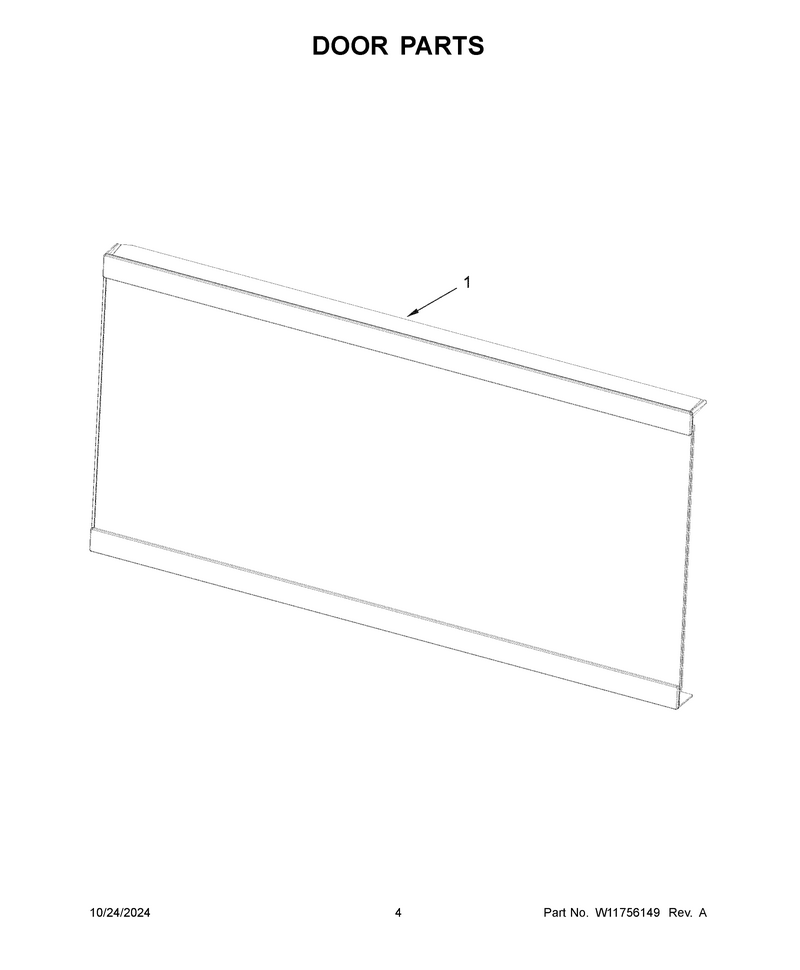

03 - Door Parts

...
...
1
Door/mw WPL-W11577152
...
1A
Door/mw WPL-W11577150
...
1B
Door/mw WPL-W11574188

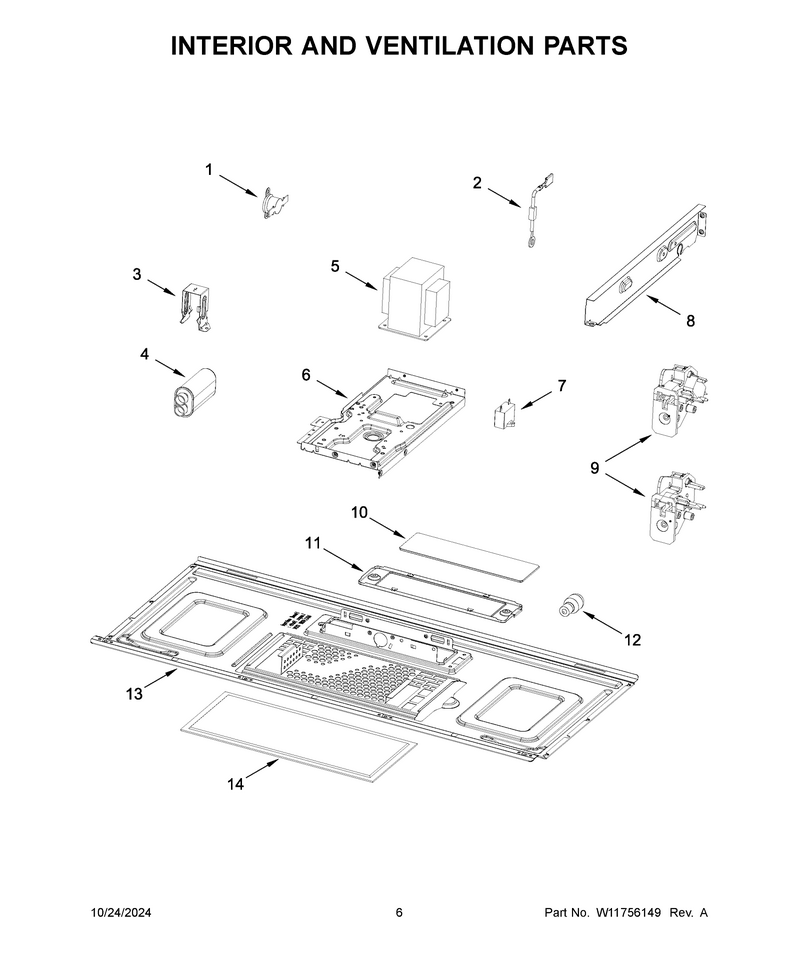

04 - Interior And Ventilation Parts

...
...
1
Thrmst-Fix WPL-W11574181
...
2
Diode WPL-W11256462
...
3
Bracket, Capacitor WPL-W10532063
...
4
Capactr-Mg WPL-WPW10574736
...
5
Transformr WPL-W11545872
...
6
Chassis WPL-W11520831
...
7
Capacitor, Hood Motor WPL-W11405830
...
8
Support, Ntc WPL-W11521327
...
9
Interlock WPL-W11551558
...
10
Glass-Lamp WPL-WPW10210875
...
11
Holder, Glass WPL-W10210873
...
12
Lamp, Halogen WPL-W11520384
...
13
Plate, Bottom WPL-W11450485
...
14
Filter WPL-W10208631A

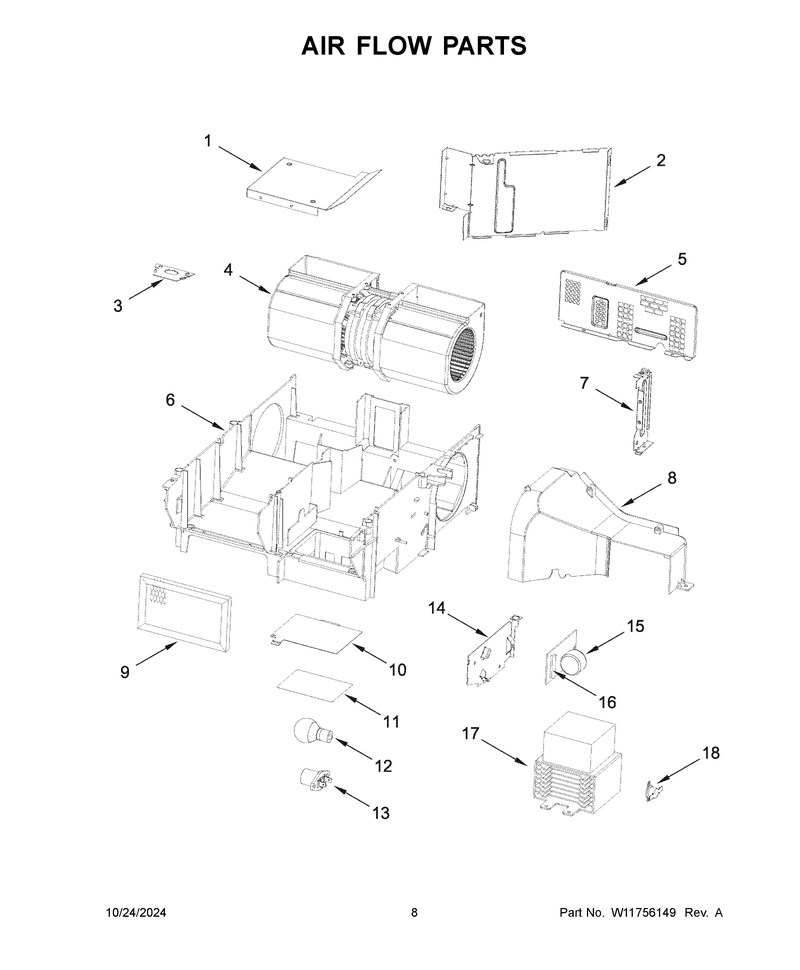

05 - Air Flow Parts

...
...
1
Guide, Air WPL-W10138797
...
2
Plate, Air Guide Sealing WPL-W10827148
...
3
Socket, Motor Wire WPL-W10810142
...
4
Motor-Fan WPL-W11441128
...
5
Shield, Finger WPL-W11520832
...
6
Baseplate, Air Guide WPL-W10828030
...
7
Bracket, Top Cavity WPL-W10313275
...
8
Deflector, Air WPL-W10471570
...
9
Filter WPL-W10892387
...
10
Cover, Lamp WPL-8206382
...
11
Foil, Lamp WPL-W10800392
...
12
Lamp-Asm WPL-W11574182
...
13
Housng-Lmp WPL-WPW10210878
...
14
Cover, Right Duct WPL-W11293488
...
15
Filter, Noise WPL-W10422269
...
16
Fuse-Thrml WPL-W11707984
...
17
Magnetron WPL-W11700338
...
18
Thermostat, Magnetron WPL-W10832024

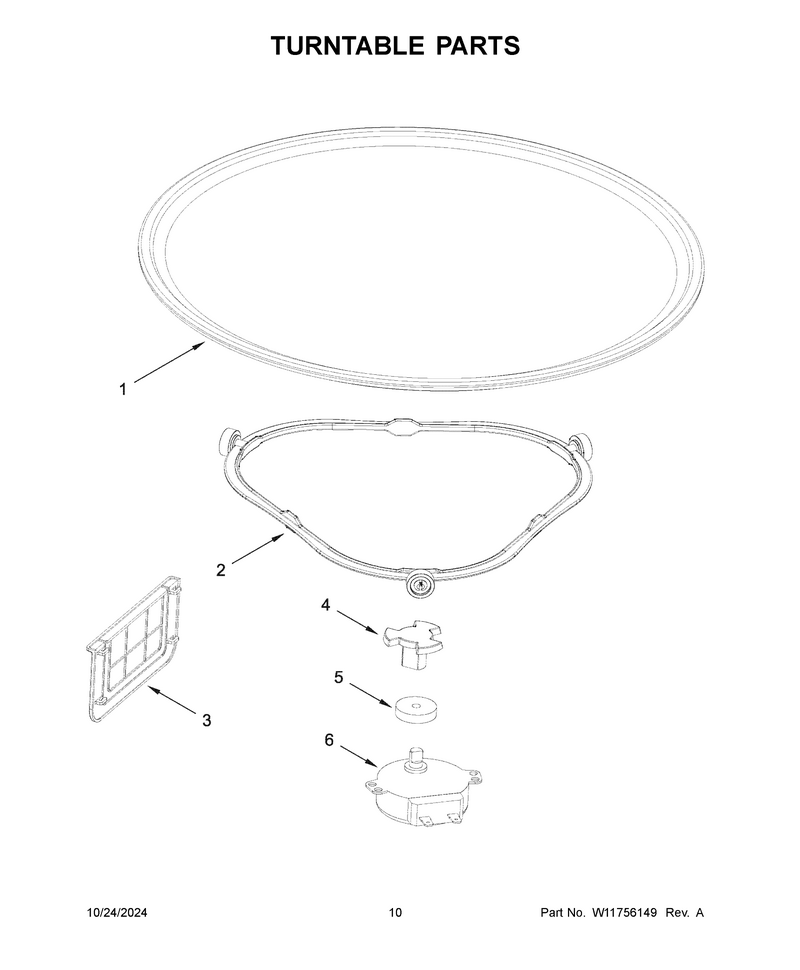

06 - Turntable Parts

...
...
1
Tray-Cook WPL-W11367904
...
2
Ring-Turn WPL-W11252182
...
3
Cover, Waveguide WPL-W11238817
...
4
Support WPL-W11245707
...
5
Seal, Waterproof WPL-8184109
...
6
Motor, Turntable WPL-W10642989

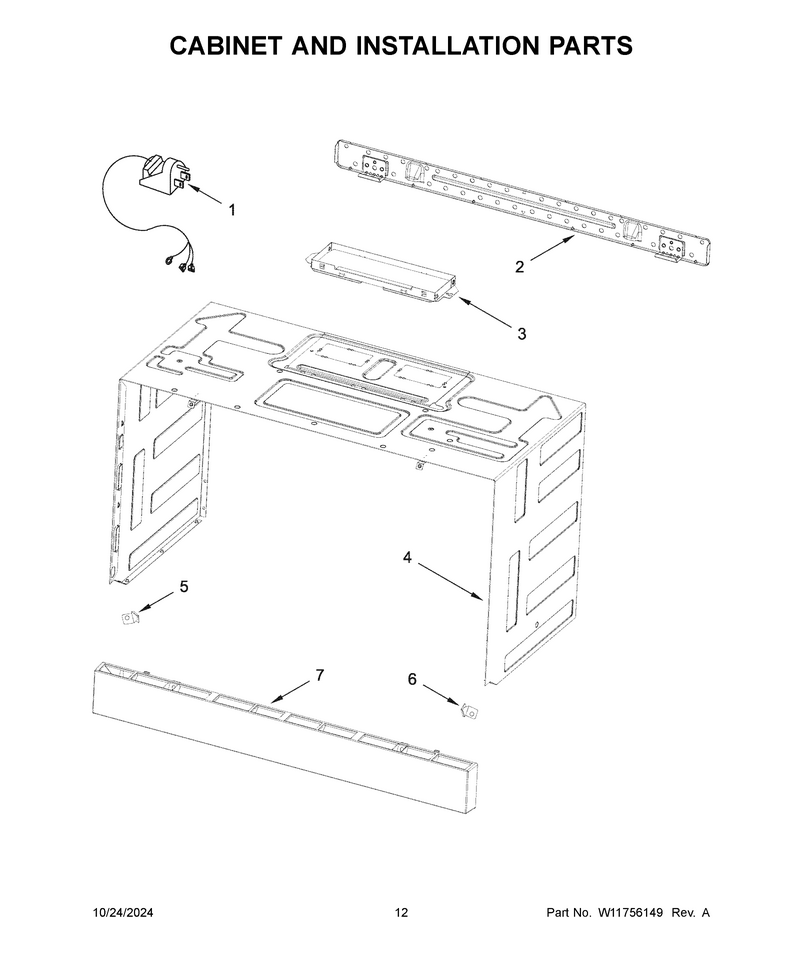

07 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer WPL-W11301790
...
1
Cord, Power WPL-W10708076
...
2
Plate, Mounting WPL-W11025649
...
3
Damper WPL-W10843943
...
4
Wraper-Cab WPL-W11574180
...
4A
Wraper-Cab WPL-W11574179
...
5
Vent Grid Holder, Left Side (Stainless) WPL-W10703282
...
5A
Brkt-Mount WPL-W10810989
...
6
Brkt-Mount WPL-W10830163
...
7
Grille, Vent (White) WPL-W11506733
...
7A
Grille, Vent (Black) WPL-W11506732
...
7B
Grille, Vent (Stainless) WPL-W11508360
