Whirlpool UCIG245KBL02

Model: UCIG245KBL02

Save Part Not Listed?
product name

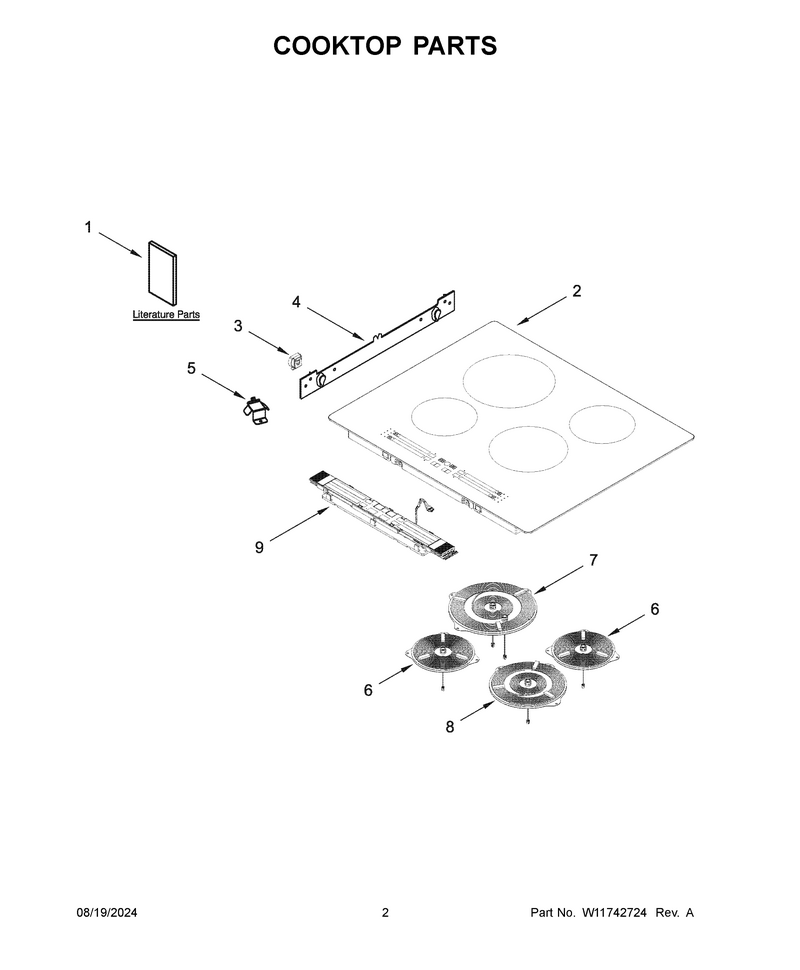

02 - Cooktop Parts

...
...
1
Installation Instructions WPL-W11362912
...
1A
Instructions, Undercounter Installation WPL-W11245478
...
1B
Owner's Manual WPL-W11459731
...
1C
Tech Manual WPL-W11362962
...
1D
Wiring Diagram WPL-W11202274
...
2
Cooktop WPL-W11495007
...
3
Spring WPL-W11495019
...
4
Brkt-Suprt WPL-W11495626
...
5
Filter Support WPL-W11302457
...
6
Hotplate WPL-W11560534
...
7
Hotplate WPL-W11586461
...
8
Hotplate WPL-W11560536
...
9
Display WPL-W11595237

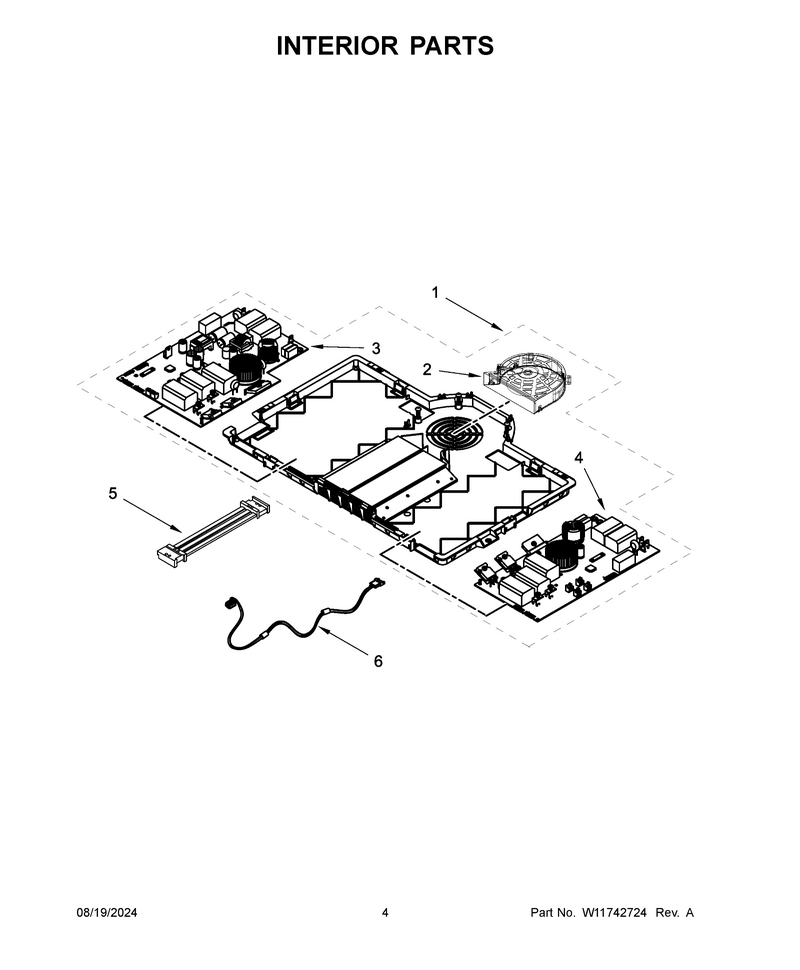

03 - Interior Parts

...
...
1
Module WPL-W11741355
...
2
Blower Assembly WPL-W11246545
...
3
Power Board Ascari (Not Serviced) WPL---
...
4
Power Board Farina (Not Serviced) WPL---
...
5
Communication Harness (Ipc1 To Ipc2) WPL-W11249830
...
6
Jumper Harness (Hmi To Ipc) WPL-W11347982

...
...
NI
Accessories, Cleaner, Cooktop WPL-W10355051
