Whirlpool SEP340XX0

Model: SEP340XX0

Save Part Not Listed?
product name

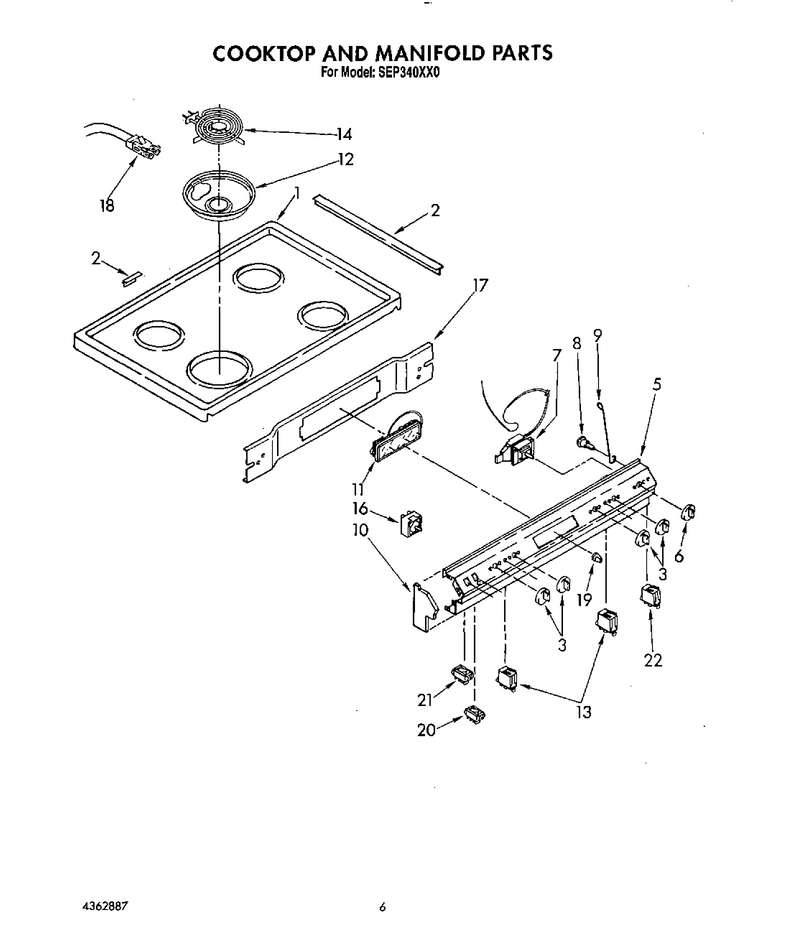

05 - Cooktop And Manifold

...
...
1
Cooktop (Chrome) WPL-4314944
...
2
Kit, Maintop Trim WPL-4362867
...
3
Knob- Infi WPL-Y0311518
...
5
Panl-Mnfld WPL-4363184
...
6
Screw (2) WPL-4320604
...
7
Thermostat WPL-4314949
...
8
Screw WPL-4157018
...
9
Rod, Support WPL-4157010
...
10
Endcap (L.h.) WPL-4314981
...
11
Clock WPL-4321163
...
12
Bowl-Drip WPL-W10196405RW
...
13
Light, Indicator (3) WPL-4315030
...
14
Unit, Surface (8``) WPL-4157980
...
16
Switch-Inf WPL-W10900107
...
17
Mounting Bracket WPL-4314915
...
18
Receptacle WPL-330031
...
19
Knob, Clock (3) WPL-4363358
...
20
Swtch-Lite WPL-WP4314961
...
21
Swtch-Lite WPL-WP4314961
...
22
Light, Indicator WPL-4314996

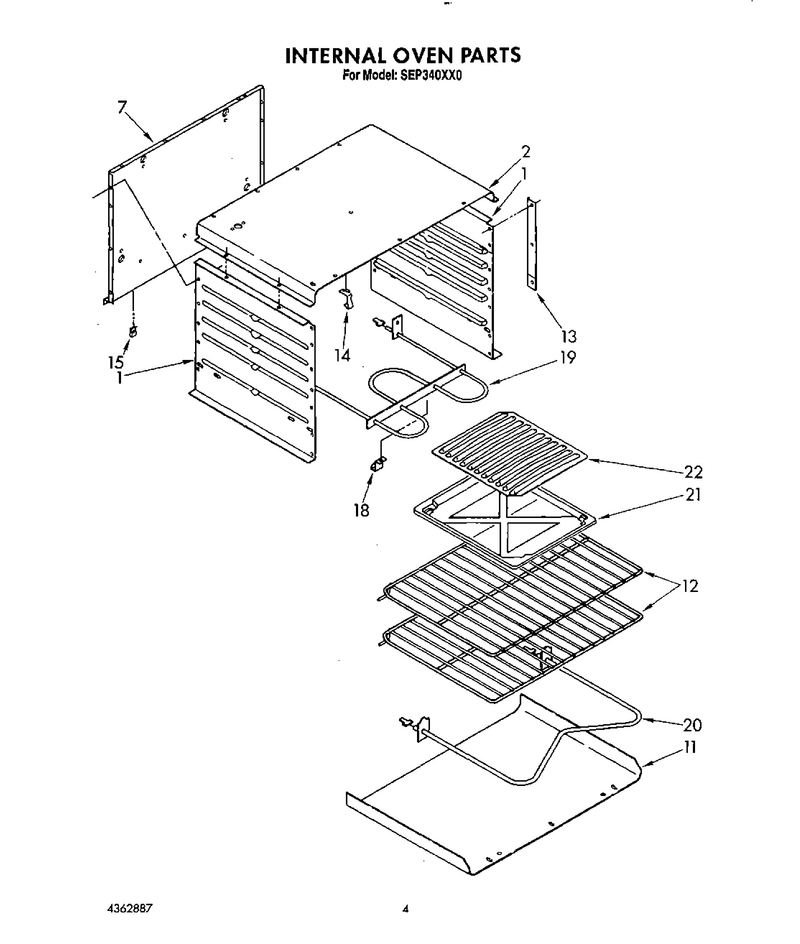

03 - Internal Oven

...
...
1
Liner, Oven Side (2) WPL-4315753
...
2
Oven, Top WPL-4315043
...
7
Screw WPL-WP308685
...
11
Bottom, Oven WPL-4320773
...
12
Rack, Oven (2) WPL-4320804
...
13
Support, Liner WPL-4363397
...
14
Clip, Therm Bulb WPL-98005642
...
15
Clip, Speed WPL-4157330
...
18
Support, Broil Element WPL-4157967
...
19
Element, Broiler WPL-4157977
...
20
Elmnt-Bake WPL-WP4314958
...
21
Procelain Broiler (Pan And Grid) WPL-4396923
...
22
Grid WPL-4315094

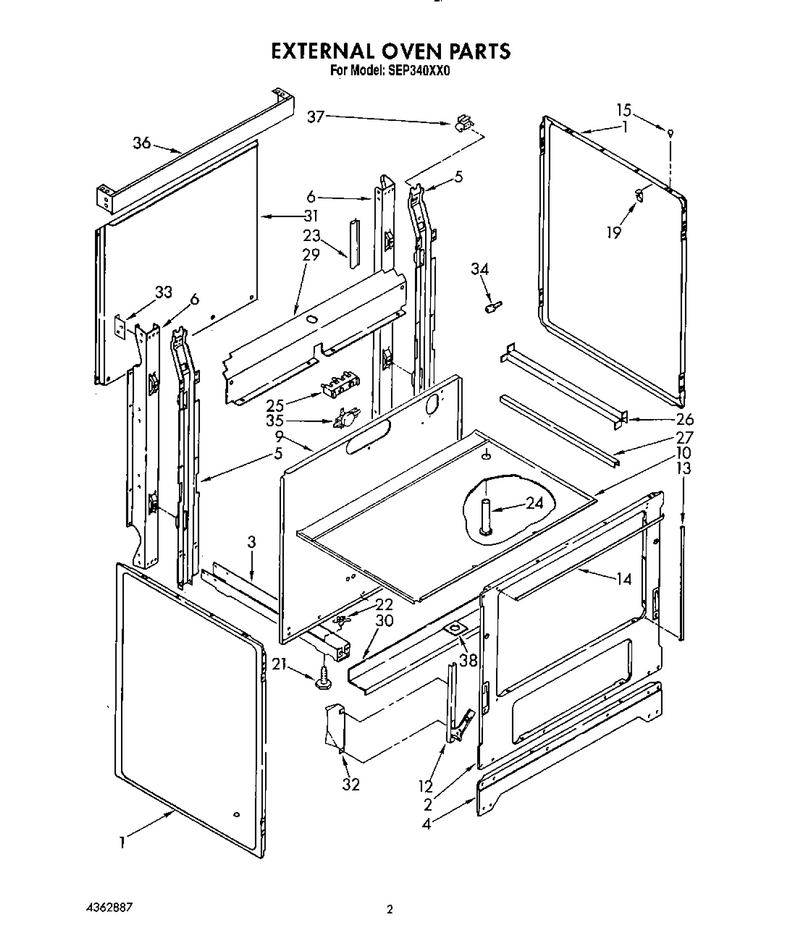

02 - External Oven, Lit/optional

...
...
List, Repair Parts WPL-LIT4362887
...
1
Panel, Side (2) WPL-4320455
...
2
Screw WPL-WP308685
...
3
Rail, Base (2) WPL-4363194
...
4
Base, Front WPL-4157006
...
5
Screw, 10-24 X 1/2 WPL-486146
...
6
Screw WPL-WP681414
...
9
Screw WPL-WP308685
...
10
Screw WPL-WP308685
...
12
Screw WPL-4159300
...
13
Seal, Door (2) (Side) WPL-4315334
...
14
Seal, Door (Top) WPL-4315335
...
15
Brkt-Suprt WPL-4157473
...
19
Cable Tie WPL-3405248
...
21
Leg, Leveler (4) WPL-4363195
...
22
Nut (4) WPL-4157332
...
23
Safe Edge WPL-4157132
...
24
Tube, Vent WPL-4314952
...
25
Block-Term WPL-WP8203546
...
26
Channel WPL-4157964
...
27
Support WPL-4157965
...
29
Cover, Rear WPL-4363286
...
30
Shield, Wire WPL-4320496
...
31
Cover, Rear WPL-4314943
...
32
Shield, Insulation WPL-4157325
...
33
Bracket, Mounting (R.h.) WPL-4314911
...
34
Stud, Locator (2) WPL-4315408
...
35
Disc, Thermo WPL-4179130
...
36
Back, Bar WPL-4314955
...
37
Bracket, Top Supt. WPL-4314992
...
38
Plate, Mounting WPL-4320523

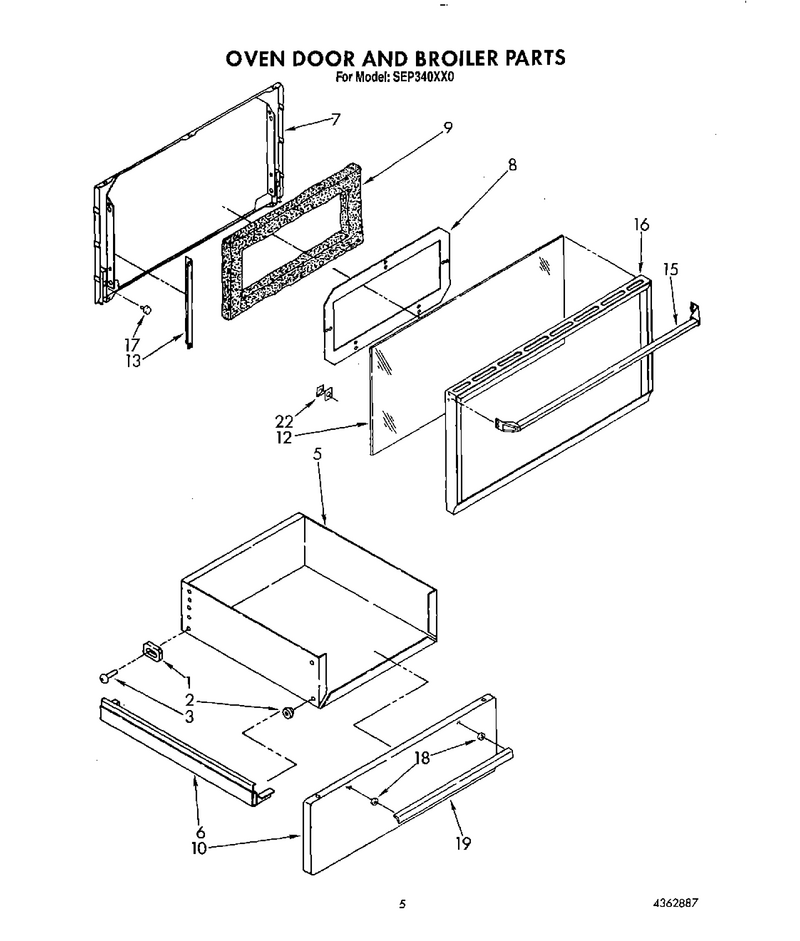

04 - Oven Door And Broiler

...
...
1
Glide, Stop (4) WPL-4321201
...
2
Roller (2) WPL-4315388
...
3
Rivet WPL-4315381
...
5
Drawer, Storage WPL-4363284
...
6
Track, Lower (Left Side) WPL-4320465
...
7
Liner, Door WPL-4321254
...
8
Screw WPL-WP308685
...
9
Insulation WPL-4157033
...
10
Panel, Drawer (Black) WPL-4314953
...
12
Glass WPL-4321253
...
13
Support WPL-4320536
...
15
Handle WPL-4157028
...
16
Frame, Door WPL-4321161
...
17
Bumper WPL-8189794
...
18
Spacer (2) WPL-4314916
...
19
Handle WPL-4157208
...
22
Bracket, ``z`` (2) WPL-4320477
