Whirlpool SEC350XX1

Model: SEC350XX1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

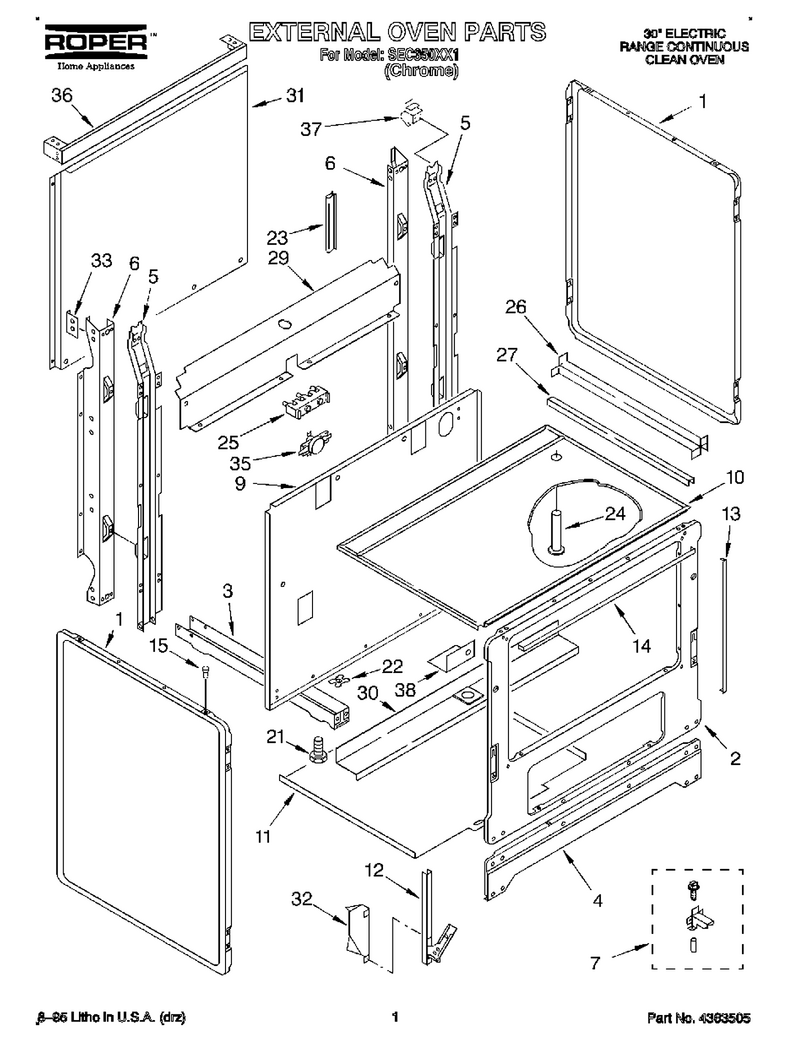

01 - External Oven, Literature

...
...
Instuctions, Installation WPL-LIT4320753
...
1
Panel, Side (2) WPL-4364022
...
2
Frame, Front WPL-4321257
...
3
Rail, Base (2) WPL-4363194
...
4
Base, Front WPL-4157006
...
5
Screw WPL-WP308685
...
6
Support, Rear (2) WPL-4315382
...
7
Anti-Tip Kit WPL-4320545
...
9
Screw WPL-WP308685
...
10
Screw WPL-WP308685
...
11
Screw WPL-WP308685
...
12
Hinge, Oven Door WPL-Y07489700
...
13
Seal, Door (2) (Side) WPL-4315334
...
14
Seal, Door (Top) WPL-4315335
...
15
Brkt-Suprt WPL-4157473
...
21
Leg, Leveler (4) WPL-4363195
...
22
Nut (4) WPL-4157332
...
23
Safe Edge WPL-4157132
...
24
Tube, Vent WPL-4314952
...
25
Screw, 10-32 X 1/2 Hex Washer Head W/ground Ring WPL-311996
...
26
Channel WPL-4363171
...
27
Support WPL-4157965
...
29
Screw WPL-WP308685
...
30
Shield, Wire WPL-4320496
...
31
Screw WPL-WP308685
...
32
Shield, Insulation WPL-4157325
...
33
Screw WPL-WP308685
...
35
Disc, Thermo WPL-4179130
...
36
Screw WPL-WP308685
...
37
Bracket, Top Supt. WPL-4314992
...
38
Foil, Aluminum Oven (18`` X 25') WPL-241430

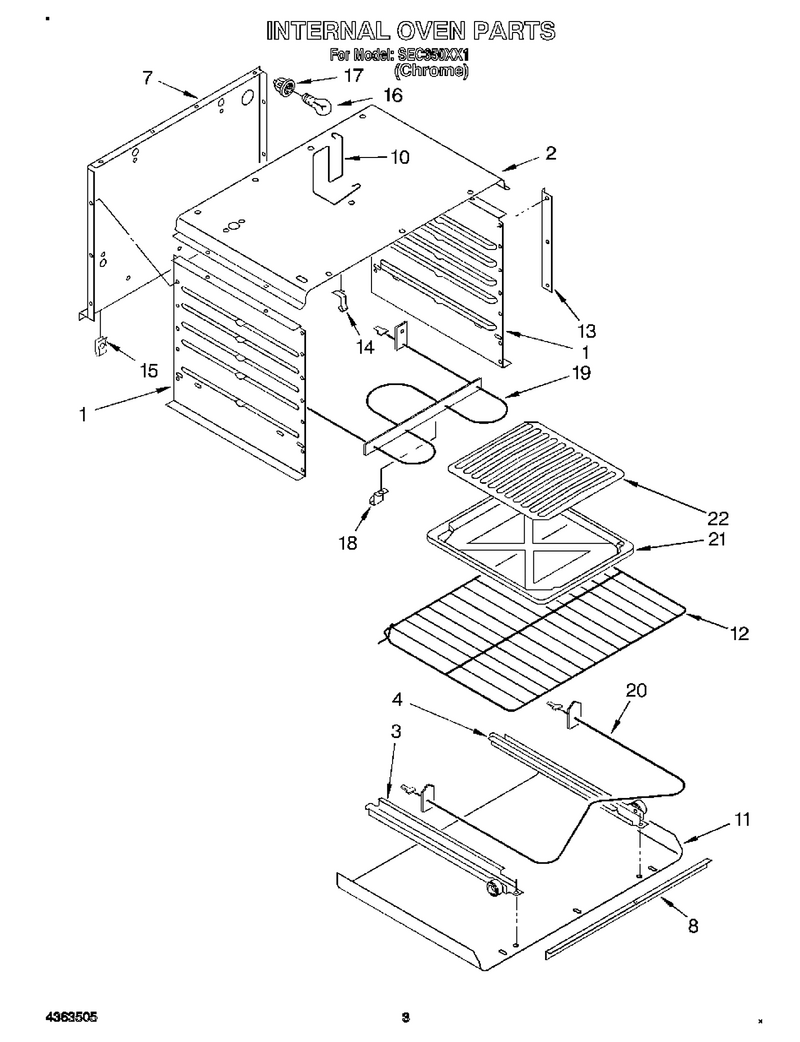

02 - Internal Oven

...
...
1
Screw, 10-16 X 3/4 WPL-489003
...
2
Screw WPL-WP308685
...
3
Track, L.h. WPL-4320465
...
4
Track, Right Side WPL-4320466
...
7
Liner, Oven Back WPL-4314989
...
8
Support, Oven Bottom WPL-4315213
...
10
Cage, Light WPL-4320570
...
11
Bottom, Oven WPL-4320773
...
12
Rack, Oven (2) WPL-4320804
...
13
Support, Liner WPL-4363397
...
14
Clip, Therm Bulb WPL-98005642
...
15
Clip, Speed WPL-4157330
...
16
Light Bulb WPL-8009
...
17
Sockt-Lite WPL-4363758
...
18
Support, Broil Element WPL-4157967
...
19
Element, Broiler WPL-4157977
...
20
Screw, 10-32 X 1/2 Hex Washer Head W/ground Ring WPL-311996
...
21
Procelain Broiler (Pan And Grid) WPL-4396923
...
22
Grid WPL-4315094

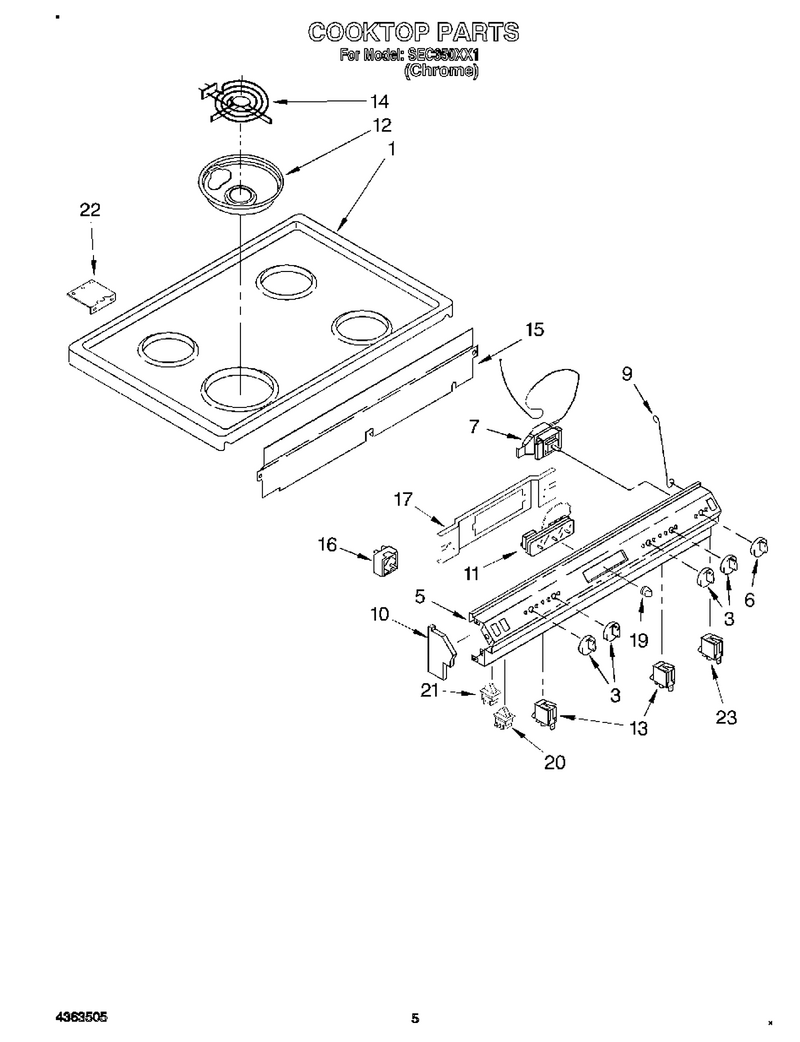

04 - Cooktop

...
...
1
Cooktop, Chrome WPL-4363212
...
3
Knob- Infi WPL-Y0311518
...
5
Panel, Manifold WPL-4321162
...
6
Knob, Thermostat WPL-4315514
...
7
Thermostat WPL-4314949
...
9
Rod, Support WPL-4157010
...
10
Endcap (L.h.) WPL-4314981
...
11
Clock WPL-4321163
...
12
Bowl-Drip WPL-W10196405RW
...
13
Light, Indicator (3) WPL-4315030
...
14
Unit, Surface (6``) WPL-4157979
...
15
Cover, Switch WPL-4315214
...
16
Screw WPL-4320604
...
17
Mounting Bracket WPL-4363064
...
19
Knob, Clock (3) WPL-4363358
...
20
Swtch-Lite WPL-WP4314961
...
21
Swtch-Lite WPL-WP4314961
...
22
Top WPL-4363800
...
23
Light, Indicator WPL-4314996

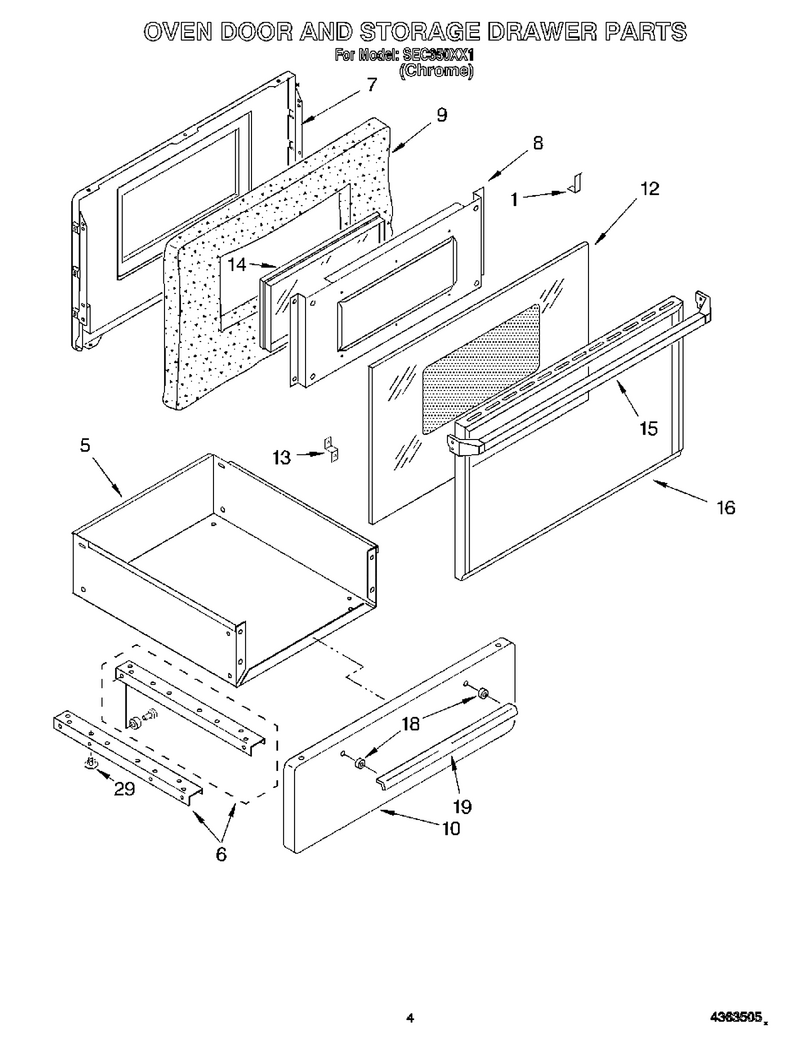

03 - Oven Door And Storage Drawer

...
...
1
Bumper, Rubber ``l`` Shaped WPL-4321083
...
5
Liner WPL-4363284
...
6
Track, Upper (Right) WPL-4364024
...
7
Liner, Door WPL-4363269
...
8
Ring, Hold Down WPL-4363238
...
9
Insulation, Wrap WPL-4454421
...
10
Screw WPL-WP308685
...
12
Glass WPL-4321160
...
13
Support WPL-4320536
...
14
Window WPL-4157032
...
15
Screw WPL-4320474
...
16
Screw WPL-WP308685
...
18
Spacer (2) WPL-4314916
...
19
Handle WPL-4157208
...
29
Glide Stop WPL-4321201
