Whirlpool RS25AWXZW00

Model: RS25AWXZW00

Save Part Not Listed?
product name

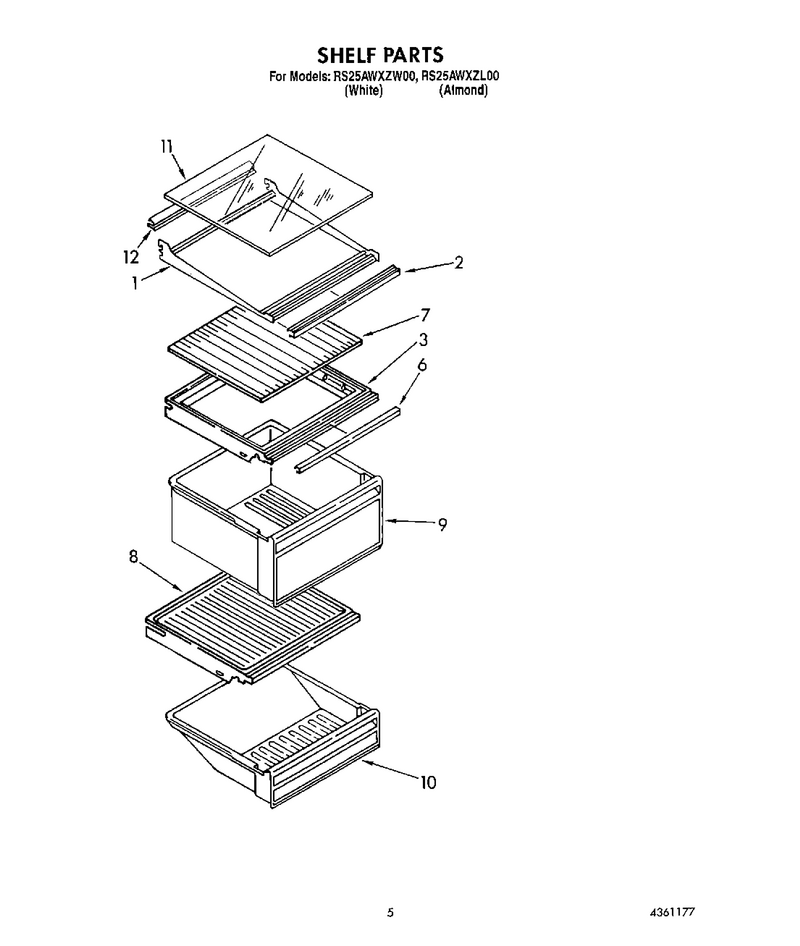

04 - Shelf

...
...
1
Shelf Assembly, Cantilever WPL-1118413
...
2
Trim, Shelf WPL-1124421
...
3
Cover WPL-WP1126289
...
6
Trim, Cover WPL-1110795
...
7
Shelf-Glas WPL-WP1114687
...
8
Cover WPL-WP2148298
...
9
Pan-Crispr WPL-WP2148279
...
10
Pan-Meat WPL-1128982
...
11
Glass, Shelf WPL-2148237
...
12
Retainer, Shelf WPL-1125525

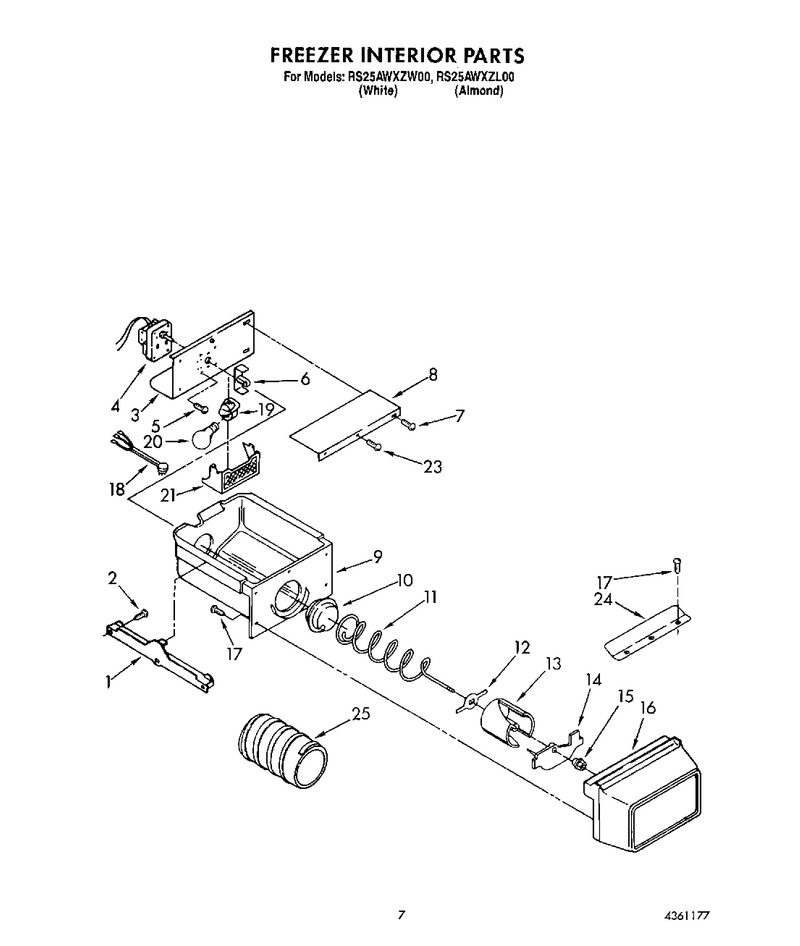

06 - Freezer Interior

...
...
1
Slide, Ice Container (Right) WPL-W10845583
...
2
Screw, 8-18 X 1.38 WPL-718257
...
3
Bracket, Motor WPL-W10304376
...
4
Motor WPL-851152
...
5
No Description Avaliable WPL-303776
...
6
Coupling WPL-WPW10169511
...
7
Screw WPL-WP489478
...
8
Bracket, Motor WPL-W10304376
...
9
Container WPL-WPW10670845
...
10
Coupling WPL-W10749708
...
11
Auger WPL-2196293
...
12
Drum WPL-4388736
...
13
Drum WPL-4388736
...
14
Baffle WPL-1115362
...
15
Nut, Bearing WPL-946195
...
16
Front Cover WPL-2163421
...
17
Screw WPL-WP488787
...
18
Harns-Disp WPL-4318034
...
19
Capacitor (Service) WPL-4387478
...
20
Light Bulb WPL-8009
...
21
Lens, Dispenser Light WPL-983359
...
23
Screw WPL-WP489128
...
24
Deflector, Ice Container WPL-1119043
...
25
Sleeve WPL-4317870

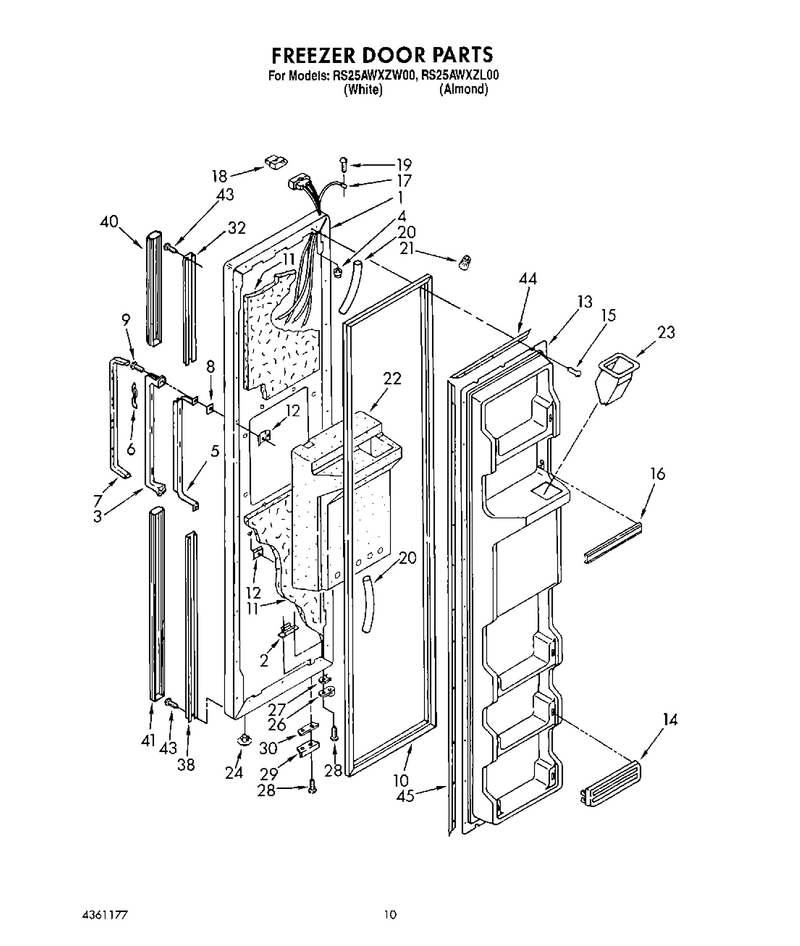

08 - Freezer Door

...
...
1
Freezer, Door Panel (Almond (Also Order Item 11)) WPL-2147506
...
2
Plate WPL-992245
...
3
Handle WPL-1127464
...
4
Seal, Hinge Pin WPL-939886
...
5
Reinforcement, Handle WPL-1127465
...
6
Clip, Handle (3) WPL-849445
...
7
Insert-Hdl WPL-4388238
...
8
Shim, Handle (2) WPL-2147097
...
9
Screw WPL-WPW10141645
...
10
Gasket-Dor WPL-2188434A
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
12
Plate WPL-WP939101
...
13
Panel, Interior Door WPL-1129231
...
14
Trim-Door WPL-1116982
...
15
Screw WPL-WP489069
...
16
Trim, Door (2) WPL-1120775
...
17
Harness, Door (Includes Illustration 18) WPL-1116960
...
18
Connector, Plug WPL-936183
...
19
Screw WPL-WP488234
...
20
Tube, Water Line WPL-2196117
...
21
Wire Connector WPL-227991
...
22
Insulation, Dispenser WPL-1115345
...
23
Chute, Ice WPL-987188
...
24
Plug, Hole WPL-534927
...
26
Cam-Door WPL-4318165
...
27
Shim WPL-WP1104787
...
28
Screw WPL-WP489069
...
29
Bracket WPL-WP2195950
...
30
Shim WPL-988421
...
32
Retainer (Top) WPL-2147895
...
38
Retainer (Bottom) WPL-2147896
...
40
Extension (Top) WPL-1127470
...
41
Extension (Bottom) WPL-1127473
...
43
Screw WPL-WP489478
...
44
Retainer, Gasket WPL-1118306
...
45
Retainer, Gasket WPL-1118302

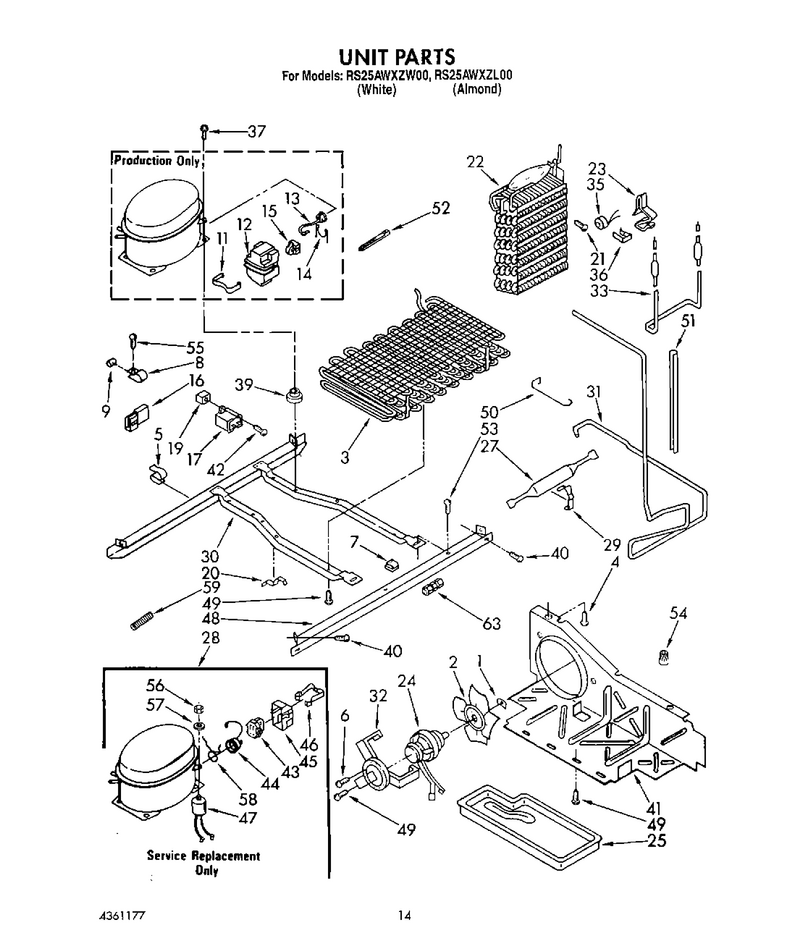

10 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-1105640
...
4
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
5
Clip, Wire WPL-548745
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Clip, Tube WPL-2200079
...
8
Tube Clamp WPL-510716
...
9
Dampener WPL-1108064
...
11
Spring, Relay Case WPL-943322
...
12
Case, Relay WPL-1105055
...
13
Overload WPL-819160
...
14
Overload Spring WPL-943320
...
15
Relay (Order Overload To Obtain Relay Key No. 13) WPL---
...
16
Housing Plug WPL-1118850
...
17
Capacitor WPL-WPW10662129
...
19
Grommet (4) WPL-937252
...
20
Clip, Unit Cover (2) WPL-548744
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-1110668
...
23
Clamp (4) WPL-1108431
...
24
Motor-Cond WPL-833697
...
25
Tray, Evaporator WPL-1110674
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10619807
...
29
Clamp, Dryer WPL-1127590
...
30
Unit Mounting Frame WPL-2304904
...
31
Exchanger, Heat WPL-1114662
...
32
Fan, Motor Bracket WPL-548695
...
33
Heater, Defrost WPL-2154543
...
35
Bimetl-Def WPL-WP4387499
...
36
Clamp WPL-513584
...
37
Grommet (4) ((Production)) WPL-876811
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-489340
...
41
Baffle, Air WPL-W10896764
...
42
Screw WPL-W11693756
...
43
Relay-Strt WPL-WP2262181
...
44
Overload WPL-WP2154697
...
45
Cover WPL-1108115
...
46
Strap WPL-938384
...
47
Capacitor WPL-WPW10662129
...
48
Unit Mounting Rail WPL-2305374
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1110663
...
51
Sleeve WPL-WP2002171
...
52
Strap WPL-851095
...
53
Screw WPL-WP489427
...
54
Wire Connector WPL-227991
...
55
Screw WPL-WPW10141625
...
56
Nut WPL-489142
...
57
Washer WPL-489143
...
58
Overload Spring WPL-1114190
...
59
Spring, Tube Forming WPL-983659
...
63
Valve, Access (1/2``) WPL-978028

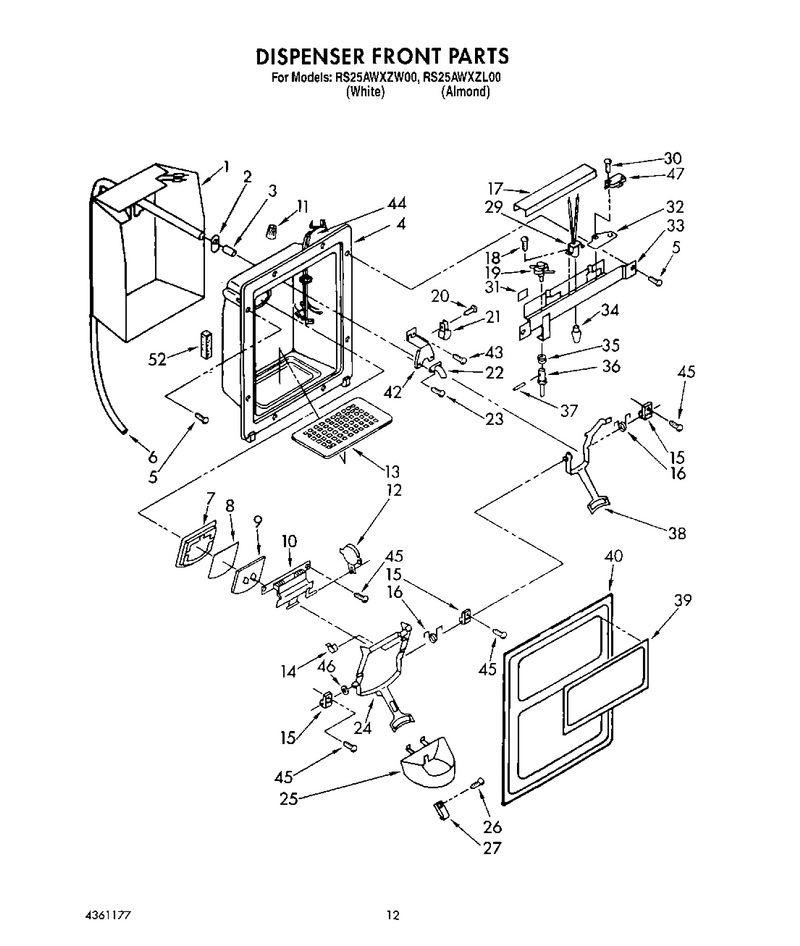

09 - Dispenser Front

...
...
1
Heater WPL-483058
...
2
Grommet WPL-987048
...
3
Insert, Tube WPL-4387491
...
4
Housing, Dispenser WPL-1107943
...
5
Screw WPL-W11693756
...
6
Tube, Water Inlet WPL-1114645
...
7
Gasket, Door WPL-983691
...
8
Shield, Ice Door WPL-987121
...
9
Door, Ice WPL-983690
...
10
Mechanism WPL-482722
...
11
Wire Connector WPL-227991
...
12
Mechanism WPL-WP1120581
...
13
Grille WPL-WP983900
...
14
Clip, Bearing (2) WPL-987917
...
15
Bearing, Lever (3) WPL-983697
...
16
Spring, Lever WPL-983696
...
17
Shield, Wiring WPL-984494
...
18
Screw WPL-WP489128
...
19
Switch, Light WPL-851386
...
20
Screw WPL-WP488787
...
21
Clamp WPL-WP488878
...
22
Fitting WPL-WP4388152
...
23
Screw WPL-WP965173
...
24
Lever, Ice Dispenser WPL-1127421
...
25
Guide, Ice WPL-985866
...
26
Screw WPL-489197
...
27
Stop, Glass WPL-1119056
...
29
Socket, Lamp WPL-2189755
...
30
Screw, 4-40 X 3/4 WPL-488362
...
31
Switch WPL-814037
...
32
Insulator, Switch (2) WPL-984683
...
33
Bracket, Control WPL-1107454
...
34
Bulb-Light WPL-WP22002263
...
35
Spring, Plunger WPL-983986
...
36
Plunger WPL-1116563
...
37
Pin, Retainer WPL-983987
...
38
Lever, Water Dispenser WPL-1115349
...
39
Plaque, Front Cover WPL-2152625
...
40
Front Cover, Housing WPL-2152627
...
42
Bracket, Water WPL-987049
...
43
Glass Shelf WPL-68139-1
...
44
Wiring Assembly, Door WPL-2149783
...
45
Screw WPL-WP3400906
...
46
Control Panel WPL-312025
...
47
Switch, S.p.d.t. WPL-625851
...
52
Seal WPL-482672

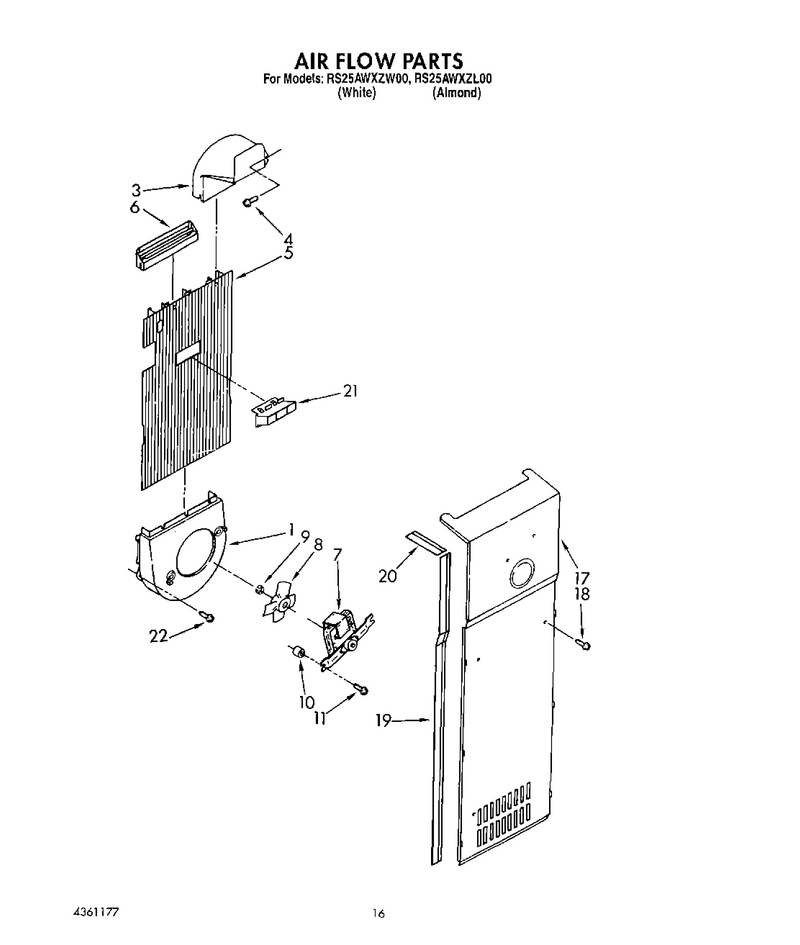

11 - Air Flow

...
...
1
Fan Scroll WPL-1127163
...
3
Scoop-Air WPL-WP2161231
...
4
Screw WPL-WP488729
...
5
Air Duct Freezer WPL-2157544
...
6
Diffuser Air Duct WPL-1110666
...
7
Motor-Evap WPL-4318017
...
8
Blade-Fan WPL-WP992920
...
9
Ring, Compression WPL-992953
...
10
Grommet WPL-WP531933
...
11
Screw (2) Harness WPL-489168
...
17
Cover, Evaporator WPL-1127167
...
18
Screw WPL-W11233072
...
19
Gasket, Evaporator Cover (2) WPL-2157554
...
20
Gasket, Evaporator Cover Top WPL-1110676
...
21
Duct, Icemaker WPL-2182146
...
22
Screw WPL-WP489478

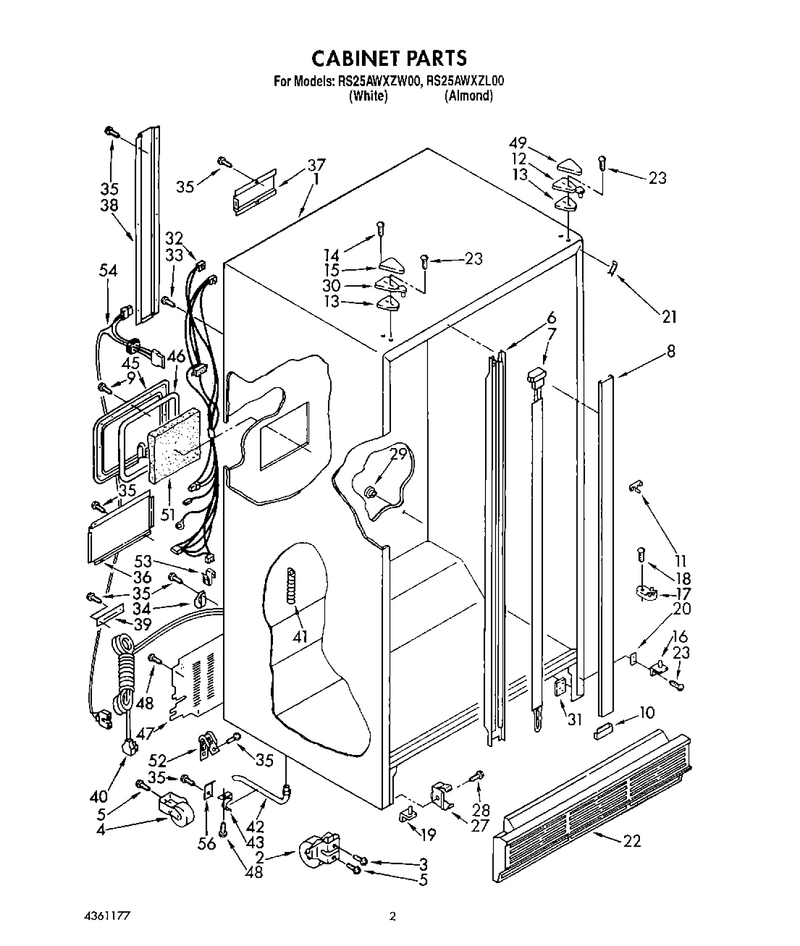

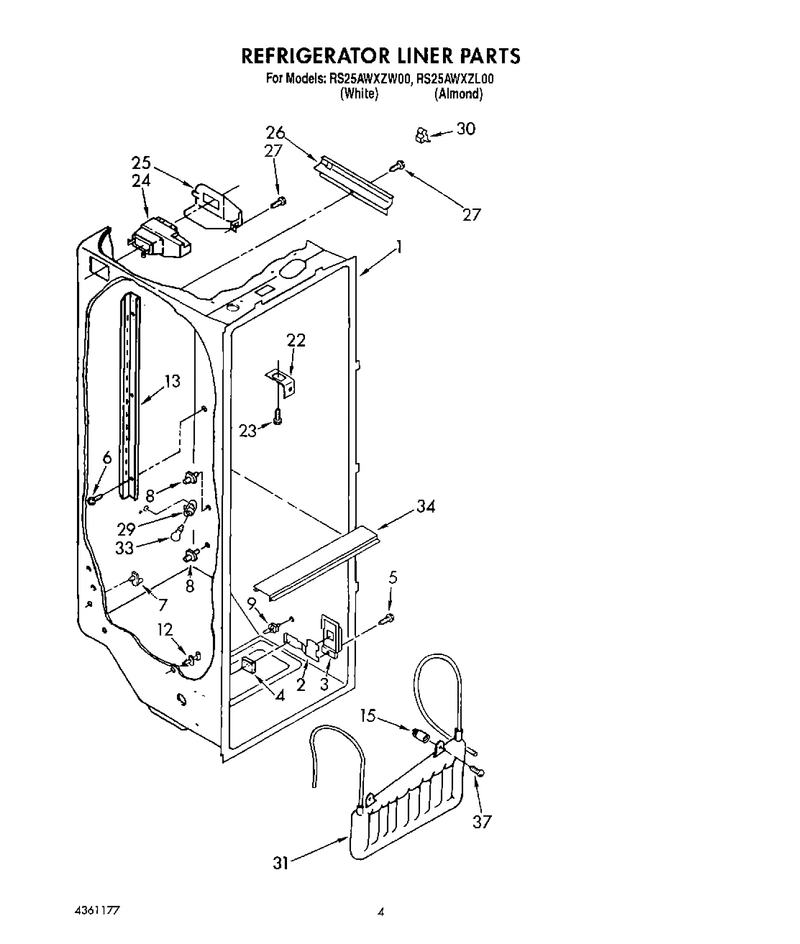

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Front Roller WPL-2152011
...
3
Screw, Adjusting WPL-488681
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw, (4) 1/4-28 X 1/2 WPL-488454
...
6
Mullion Rail WPL-2155016
...
7
Heater Mullion WPL-1129434
...
8
Rail-Mulln WPL-2147088
...
9
Screw WPL-WP489464
...
10
Filler Bottom Mullion (White) WPL-1118361
...
11
Clip, Ground WPL-1110607
...
12
Hinge, Top WPL-1123514
...
13
Shim, Hinge WPL-1123515
...
14
Screw, Hinge WPL-489284
...
15
Cover WPL-WP1129262
...
16
Hinge Bottom (R.h.) WPL-2151619
...
17
Cam-Door WPL-WPW10329686
...
18
Screw WPL-WP489399
...
19
Hinge Bottom (L.h.) WPL-2151620
...
20
Spacer, Hinge WPL-1129868
...
21
Filler, Wrapper (White) WPL-1110708
...
22
Grille (Black) WPL-2155485
...
23
Screw WPL-489327
...
27
Clip WPL-WP2155013
...
28
Screw WPL-WP489478
...
29
Grommet WPL-1115288
...
30
Hinge, Top (L.h.) WPL-1123510
...
31
Tap Plate WPL-2147310
...
32
Cabinet Harness WPL-2149745
...
33
Screw WPL-WP250830
...
34
Clamp WPL-937357
...
35
Screw WPL-WP489478
...
36
Cover, Wiring WPL-1129193
...
37
Wiring Shield, Short WPL-1108440
...
38
Wiring Shield, Long WPL-1119063
...
39
Tube Clamp WPL-1105607
...
40
Cord, Service WPL-937360
...
41
Drain, Ferrule Cap WPL-934607
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
45
Cover, Plug WPL-1110626
...
46
Sealing Gasket WPL-1115322
...
47
Cover, Unit WPL-2161317
...
48
Screw WPL-WPW10141645
...
49
Hinge Cover (White) WPL-1119787
...
51
Insulation WPL-1118237
...
52
Clamp, Service Cord WPL-549193
...
53
Clip, Wire WPL-548745
...
54
Harns-Wire WPL-WP2187501
...
56
Clamp, Water Line (2) WPL-836472

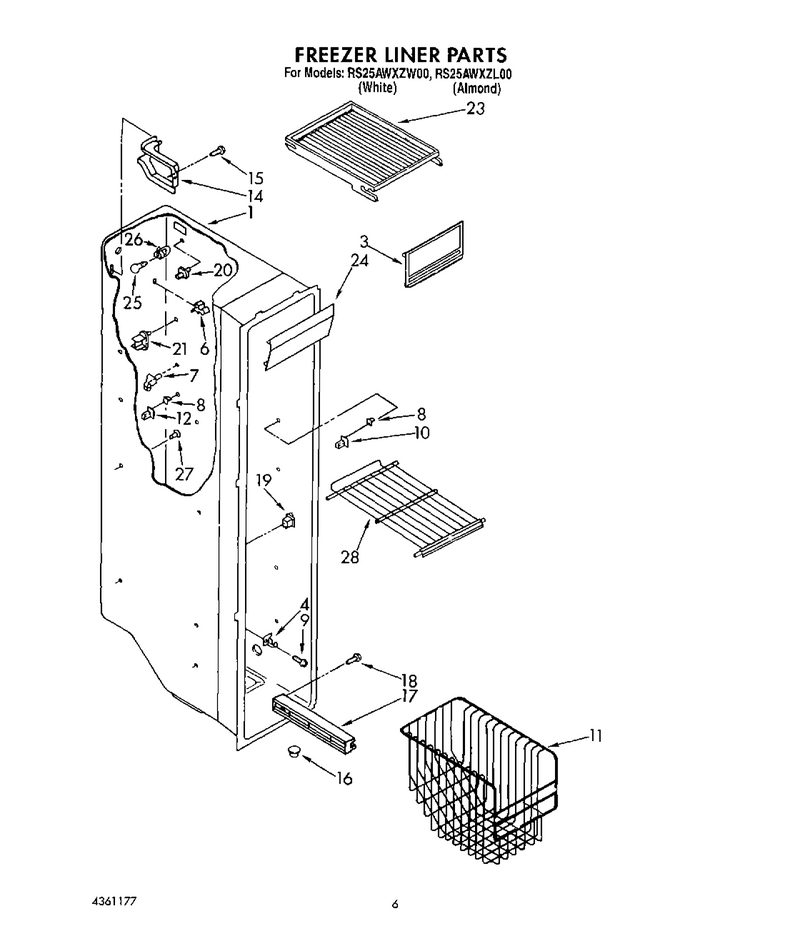

05 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
3
Door, Ice Compartment WPL-1124529
...
4
Evaporator, Support WPL-1108436
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
8
Stud-Shelf WPL-W11581579
...
9
Screw WPL-WP489478
...
10
Stud-Shelf WPL-W11581579
...
11
Basket, Slope WPL-2152090
...
12
Stud-Shelf WPL-W11581579
...
14
Wiring Cover WPL-1114607
...
15
Screw WPL-WP488729
...
16
Fitting, Drain WPL-942768
...
17
Shelf Track (Right Side) WPL-1126354
...
18
Screw WPL-W11693756
...
19
Switch WPL-W11457217
...
20
Stud-Shelf WPL-4388538
...
21
Stud-Shelf WPL-4388537
...
23
Shelf, Top Compartment WPL-1118294
...
24
Light Lens WPL-1115389
...
25
Light Bulb WPL-8009
...
26
Capacitor (Service) WPL-4387478
...
27
Grommet (8) WPL-1110779
...
28
Shelf (3) WPL-1116956

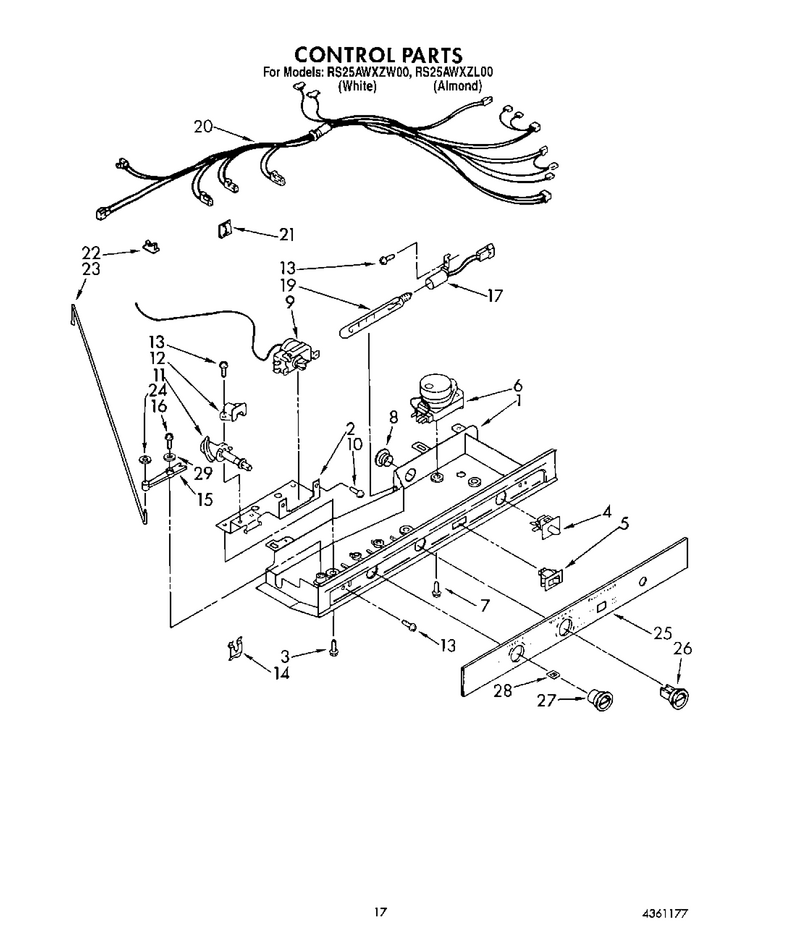

12 - Control

...
...
1
Contrl-Box WPL-4389197
...
2
Mounting Bracket WPL-1110629
...
3
Screw (2) WPL-489397
...
4
Switch WPL-WP2149705
...
5
Switch-Pm WPL-WP938213
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam Assembly WPL-1110566
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP489478
...
14
Retainer, Damper WPL-938439
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
17
Capacitor (Service) WPL-4387478
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2154763
...
21
Clip-Air, Duct WPL-2215823
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123960
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon WPL-1123995
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-1110562
...
28
Knob, Retainer WPL-837444
...
29
Spring, Washer WPL-489203

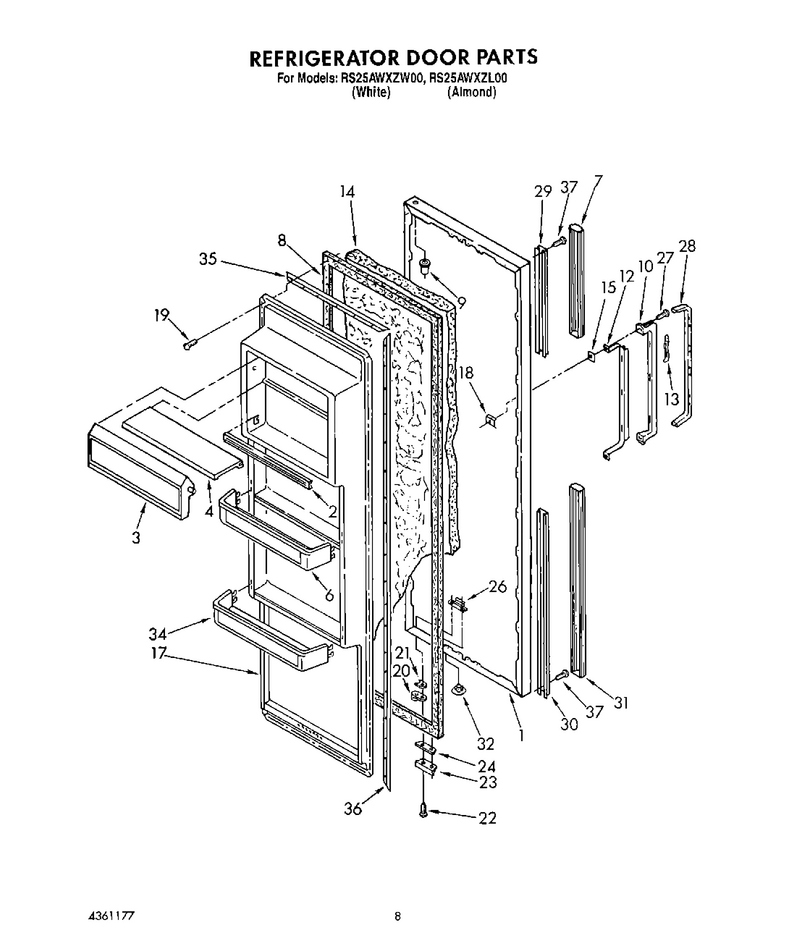

07 - Refrigerator Door

...
...
1
Refrigerator Door (Also Order Item 39) (Almond) WPL-2152459
...
2
Trim, Door (2) WPL-1120775
...
3
Door, Compartment WPL-1124511
...
4
Shelf, Compartment WPL-1116707
...
6
Trim-Door WPL-1116915
...
7
Extension (Top) WPL-1127470
...
8
Gasket-Dor WPL-2188433A
...
9
Cap, Hinge Sleeve WPL-509929
...
10
Handle WPL-1127464
...
12
Reinforcement, Handle WPL-1127465
...
13
Clip, Handle WPL-849445
...
14
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
15
Shim, Handle WPL-2147097
...
17
Panel, Interior WPL-2164045
...
18
Plate WPL-WP939101
...
19
Screw WPL-WP489069
...
20
Cam-Door WPL-4318165
...
21
Shim WPL-WP1104787
...
22
Screw WPL-WP489069
...
23
Bracket WPL-WP2195950
...
24
Shim WPL-988421
...
26
Plate WPL-992245
...
27
Screw WPL-WPW10141645
...
28
Insert-Hdl WPL-4388238
...
29
Retainer (Top) WPL-2147895
...
30
Retainer (Bottom) WPL-2147896
...
31
Extension (Bottom) WPL-1127473
...
32
Hole Plug WPL-534927
...
34
Trim, Shelf WPL-1124514
...
35
Gasket Retainer, Top & Bottom WPL-1118301
...
36
Gasket Retainer WPL-1118302
...
37
Screw WPL-WP489478

03 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-985468
...
3
Slide, Meat Pan Control WPL-984102
...
4
Pad, Foam WPL-992358
...
5
Screw 8-15 X 1/2 WPL-486214
...
6
Screw WPL-WP488729
...
7
Stud WPL-1116733
...
8
Stud-Shelf WPL-4388538
...
9
Stud-Shelf WPL-WP2149540
...
12
Stud-Shelf WPL-4388538
...
13
Ladder, Shelf WPL-2171996
...
15
Stud, Spacer WPL-1129178
...
22
Retainer WPL-WP2256085
...
23
Screw WPL-WP488488
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150331
...
27
Screw WPL-W10759522
...
29
Capacitor (Service) WPL-4387478
...
30
Clip-Air, Duct WPL-2215823
...
31
Reservoir WPL-WP2256126
...
33
Light Bulb WPL-8009
...
34
Lens WPL-1118315
...
37
Screw WPL-798639

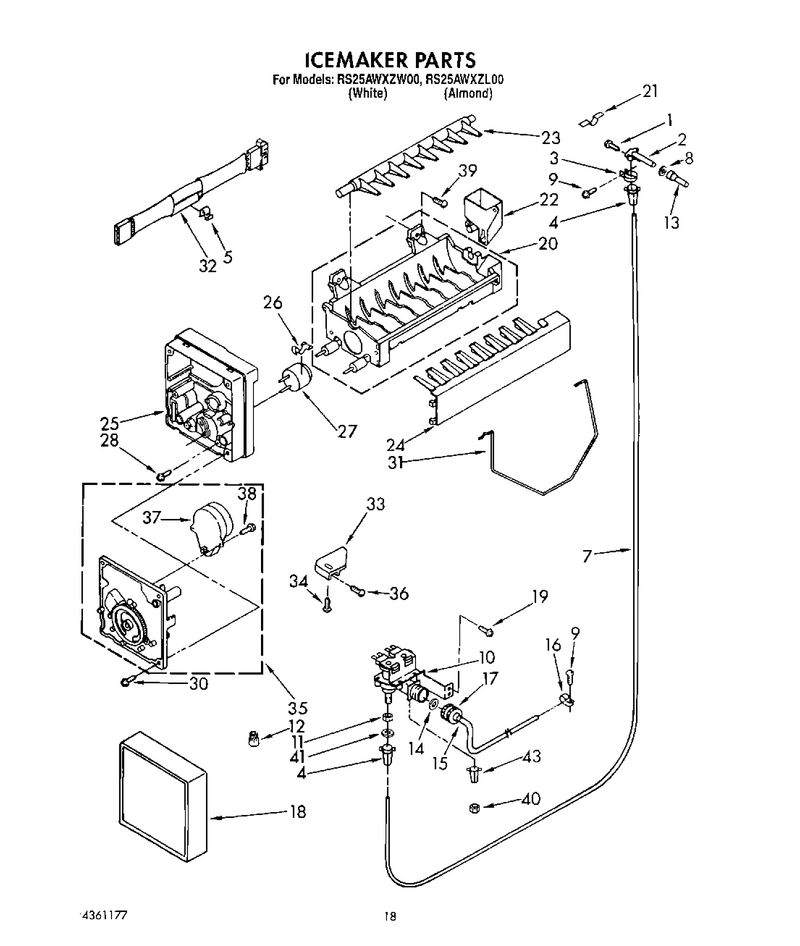

13 - Icemaker, Lit/optional

...
...
Torx Key WPL-1117510
...
1
Screw WPL-WPW10141645
...
2
Fitting WPL-WP2196157
...
3
Clamp WPL-WP488878
...
4
Insert, Tube WPL-4387491
...
5
Clip WPL-WP628379
...
6
Dampener WPL-WP2158826
...
7
Tube-Water WPL-W10823511
...
8
Gasket WPL-WP1106508
...
9
Screw WPL-WP489478
...
10
Valve-Inlt WPL-4318046
...
11
Nut WPL-WP627018
...
12
Connector Wire WPL-227991
...
13
Tube, Water Inlet WPL-1114644
...
14
Washer WPL-628337
...
15
Tube, Inlet Valve WPL-480389
...
16
Clamp Tube WPL-510716
...
17
Nut, Valve WPL-537588
...
18
Cover WPL-628355
...
19
Screw WPL-WPW10141625
...
20
Mold-Ice WPL-WPW10190929
...
21
Clip WPL-836676
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw (2) WPL-8533917
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
32
Harns-Wire WPL-WP2187464
...
33
Bracket WPL-W11500948
...
34
Screw, 8-32 X 27/64 WPL-489365
...
35
Motor-Modl WPL-W10190935
...
36
Screw 8-15 X 1/2 WPL-486214
...
37
Motor-Modl WPL-W10190935
...
38
Screw 3-24 X 23/64 WPL-489136
...
39
Screw WPL-WP488163
...
40
Nut WPL-4318011
...
41
``o`` Ring WPL-488794
...
43
Insert WPL-WP1129177
...
100
Cement, Alumilastic (1 1/4 Oz.) WPL-542639
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
