Whirlpool RS25AWXEN00

Model: RS25AWXEN00

Save Part Not Listed?
product name

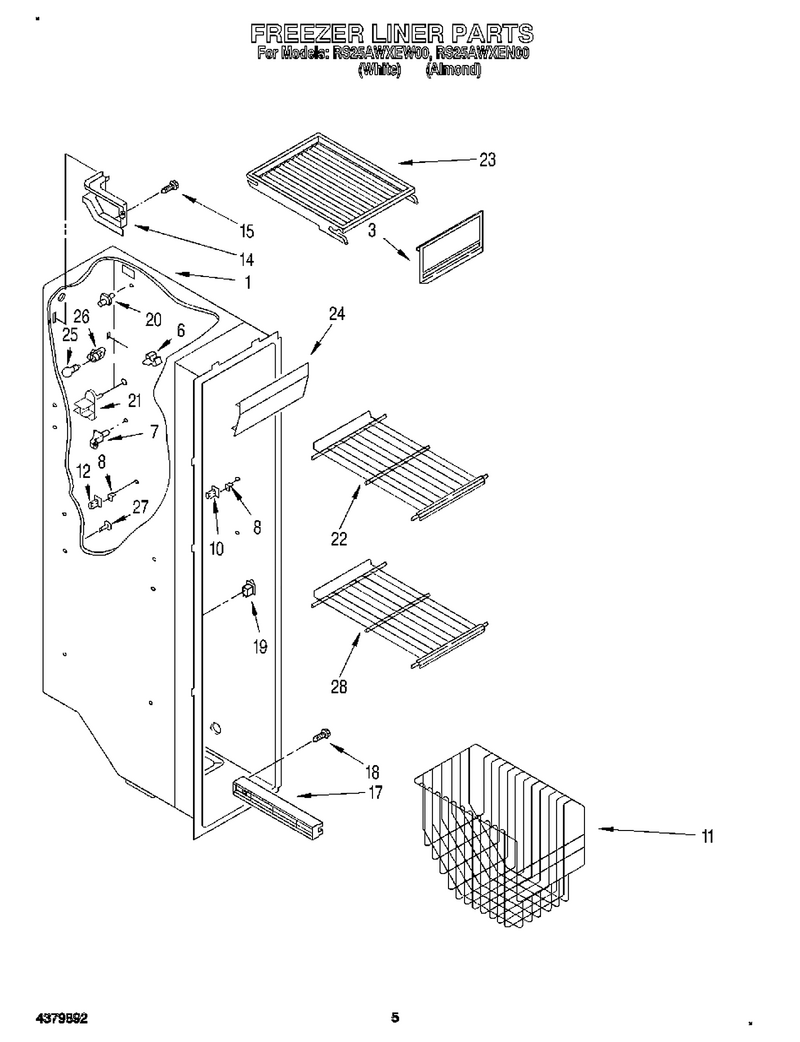

04 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
3
Door-Ice WPL-WP2171713
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
8
Stud-Shelf WPL-W11581579
...
10
Stud-Shelf WPL-W11581579
...
11
Basket, Slope WPL-2181764
...
12
Stud-Shelf WPL-W11581579
...
14
Cover, Wiring WPL-2155572
...
15
Screw WPL-WP488729
...
17
Shelf Track (Right Side) WPL-2181760
...
18
Screw WPL-W11693756
...
19
Switch WPL-W11457217
...
20
Stud-Shelf WPL-4388538
...
21
Stud-Shelf WPL-4388537
...
22
Shelf-Wire WPL-WP2174267
...
23
Shelf WPL-WP2194297K
...
24
Lens, Light WPL-2171705
...
25
Light Bulb WPL-8009
...
26
Capacitor (Service) WPL-4387478
...
27
Grommet (8) WPL-2176134
...
28
Shelf-Wire WPL-WP2174268

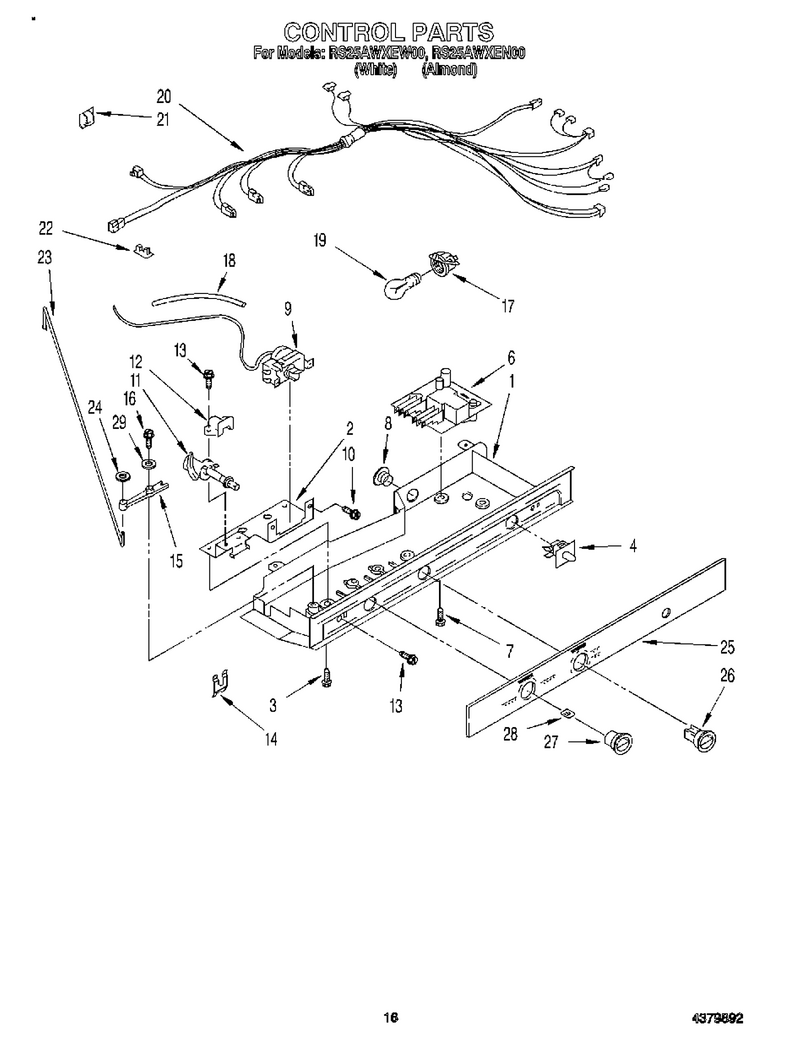

11 - Control

...
...
1
Contrl-Box WPL-4389197
...
2
Mounting Bracket WPL-1110629
...
3
Screw WPL-489397
...
4
Switch WPL-WP2149705
...
6
Electronic Control WPL-4388932
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam Assembly WPL-2161250
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP489478
...
14
Retainer, Damper WPL-938439
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
17
Capacitor (Service) WPL-4387478
...
18
Barrier WPL-WP2196003
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2195015
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123960
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon, Control Box WPL-2194977
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-1116853
...
28
Knob, Retainer WPL-837444
...
29
Spring, Washer WPL-489203

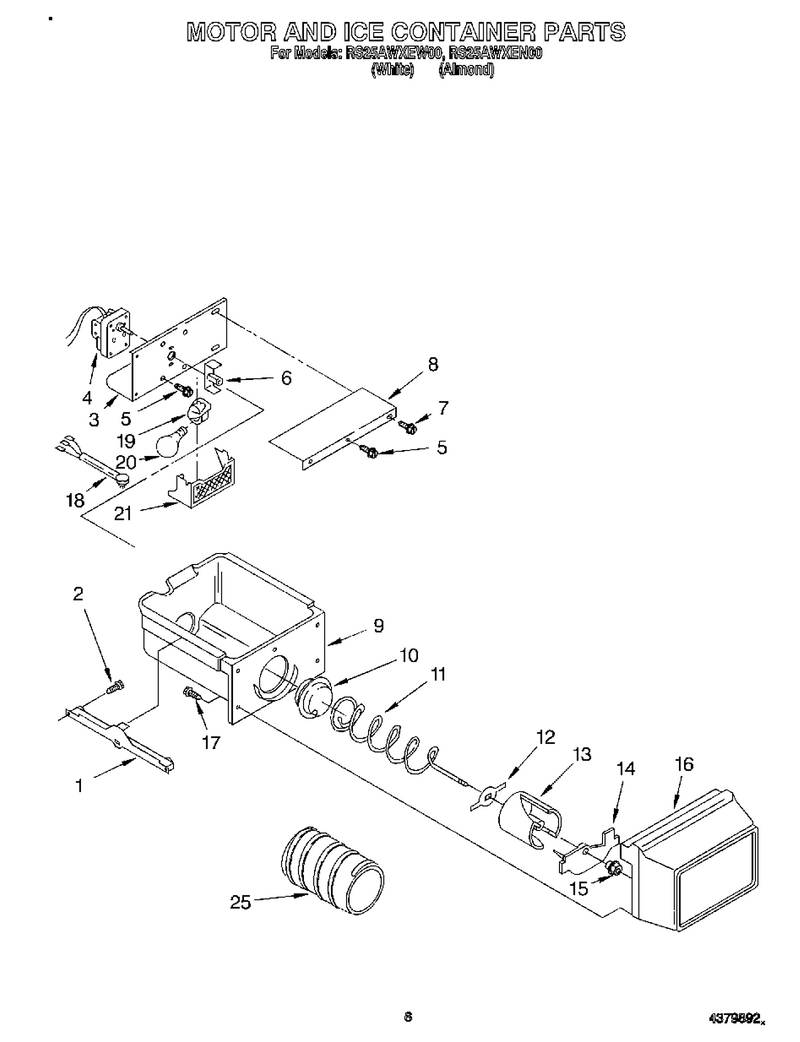

05 - Motor And Ice Container

...
...
1
Slide, Ice Container (Right) WPL-W10845583
...
2
Screw, 8-18 X 1.38 WPL-718257
...
3
Bracket, Motor WPL-W10304376
...
4
Motor WPL-2155262
...
5
Screw WPL-WP489399
...
6
Coupling WPL-WPW10169511
...
7
Screw WPL-WP489478
...
8
Bracket, Motor WPL-W10304376
...
9
Container WPL-WPW10670845
...
10
Coupling WPL-W10749708
...
11
Auger WPL-2196293
...
12
Drum WPL-4388736
...
13
Drum WPL-4388736
...
14
Baffle WPL-2181722
...
15
Nut, Bearing WPL-946195
...
16
Front Cover WPL-2174352
...
17
Screw WPL-WP488787
...
18
Wiring Assembly, Ice Dispenser WPL-2194732
...
19
Capacitor (Service) WPL-4387478
...
20
Light Bulb WPL-8009
...
21
Lens-Light WPL-WP2171706
...
25
Sleeve WPL-4317870

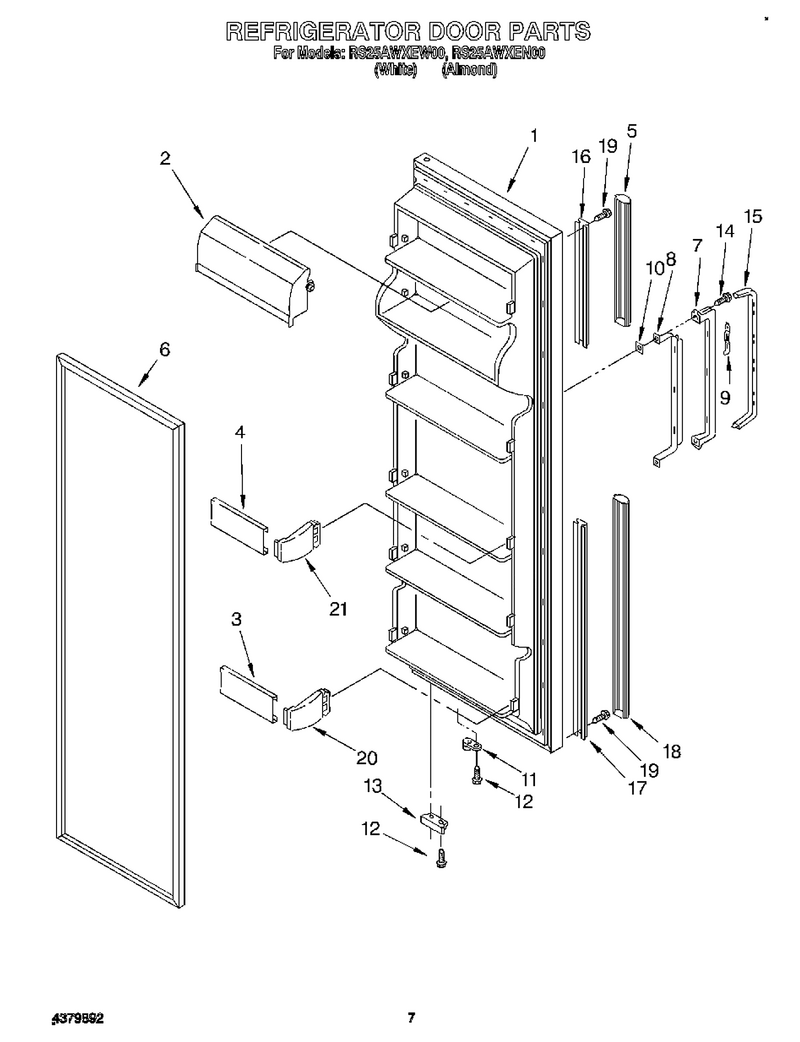

06 - Refrigerator Door

...
...
1
Dor-Fip Al WPL-4386895
...
2
Door-Comp WPL-WP2256101
...
3
Trim-Door WPL-WP2256010
...
4
Trim, Door WPL-2173390
...
5
Extension (Top) (White) WPL-2163432
...
6
Door, Gasket Magnetic (Service) WPL-2159075
...
7
Handle, Center WPL-1127464
...
8
Reinforcement, Handle WPL-1127465
...
9
Clip, Handle WPL-849445
...
10
Shim, Handle WPL-2147097
...
11
Cam-Door WPL-4318165
...
12
Screw WPL-WP489483
...
13
Bracket WPL-WP2195950
...
14
Screw WPL-WPW10141645
...
15
Insert-Hdl WPL-4388238
...
16
Retainer (Top) WPL-2147895
...
17
Retainer (Bottom) WPL-2147896
...
18
Extension, Bottom (Almond) WPL-2170068
...
19
Screw WPL-WP489478
...
20
Endcap WPL-WP2195916K
...
21
Endcap WPL-WP2195915

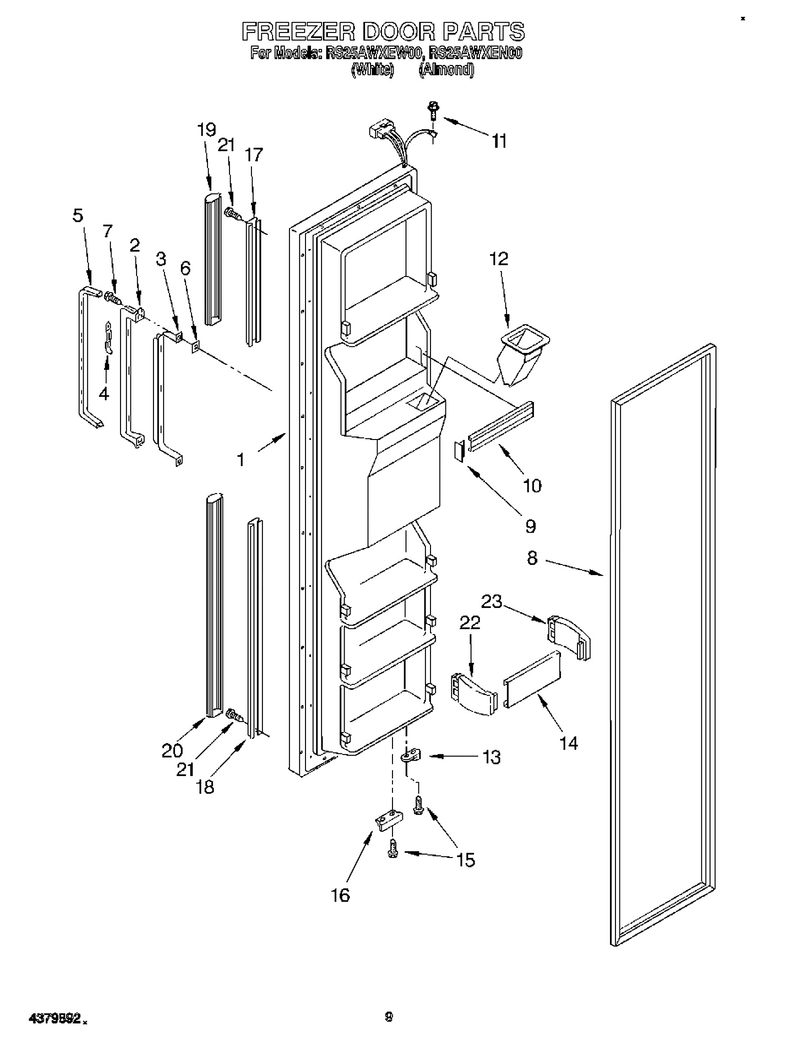

07 - Freezer Door

...
...
1
Dor-Fip Al WPL-4387229
...
2
Handle, Center WPL-1127464
...
3
Reinforcement, Handle WPL-1127465
...
4
Clip, Handle (3) WPL-849445
...
5
Insert-Hdl WPL-4388238
...
6
Shim, Handle (2) WPL-2147097
...
7
Screw WPL-WPW10141645
...
8
Door Gasket, Magnetic (Service) WPL-2159074
...
9
Endcap-Trm WPL-WP2156006
...
10
Trim-Door WPL-WPW10307490
...
11
Screw WPL-WP488234
...
12
Chute, Ice WPL-2156146
...
13
Cam-Door WPL-4318165
...
14
Trim, Shelf (6) WPL-2195927
...
15
Screw WPL-WP489483
...
16
Bracket WPL-WP2195950
...
17
Retainer (Top) WPL-2147895
...
18
Retainer (Bottom) WPL-2147896
...
19
Extension (Top) (Almond) WPL-2173176
...
20
Extension, Bottom (Almond) WPL-2170068
...
21
Screw WPL-WP489478
...
22
Endcap WPL-WP2195917K
...
23
Endcap WPL-WP2195916K

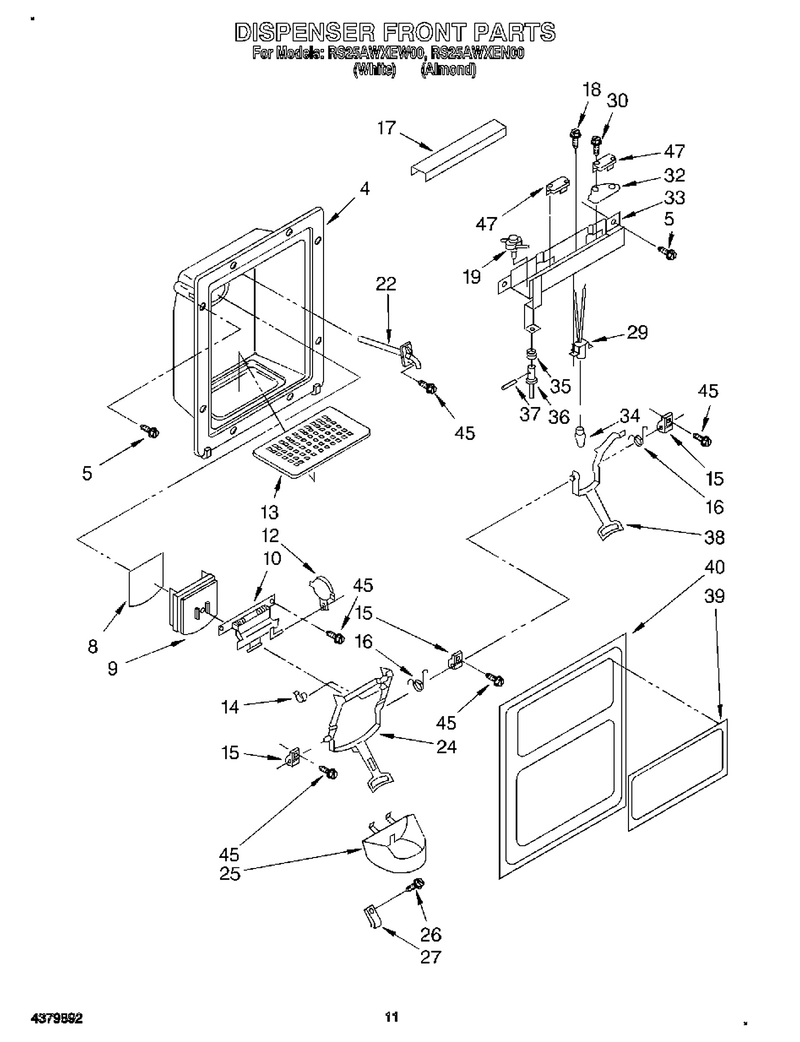

08 - Dispenser Front

...
...
4
Housing, Dispenser (Not A Serviceable Part) WPL---
...
5
Screw WPL-W11693756
...
8
Impact, Shield WPL-987121
...
9
Door-Chute WPL-WP2180353
...
10
Door Mechanism Assembly WPL-2157650
...
12
Mechanism WPL-WP1120581
...
13
Grille WPL-WP983900
...
14
Clip, Bearing (2) WPL-987917
...
15
Bearing, Lever (3) WPL-983697
...
16
Spring, Lever WPL-983696
...
17
Shield, Wiring WPL-984494
...
18
Screw WPL-WP489128
...
19
Switch, Light WPL-851386
...
22
Fitting WPL-WP4388152
...
24
Lever, Ice Dispenser (White) WPL-2177146
...
25
Guide, Ice WPL-985866
...
26
Screw WPL-488892
...
27
Stop, Glass (White) WPL-2147480
...
29
Socket, Lamp WPL-2189755
...
30
Screw WPL-488362
...
32
Insulator, Switch (2) WPL-984683
...
33
Bracket, Control WPL-1107454
...
34
Bulb-Light WPL-WP22002263
...
35
Spring, Plunger WPL-983986
...
36
Plunger WPL-1116563
...
37
Pin, Retainer WPL-983987
...
38
Lever, Water Dispenser (Almond) WPL-2177152
...
39
Plaque, Front Cover (Almond) WPL-2174333
...
40
Front Cover, Housing (Includes Item 39) (White) WPL-2174305
...
45
Screw WPL-WP3400906
...
47
Swtch-Micr WPL-WP2162361

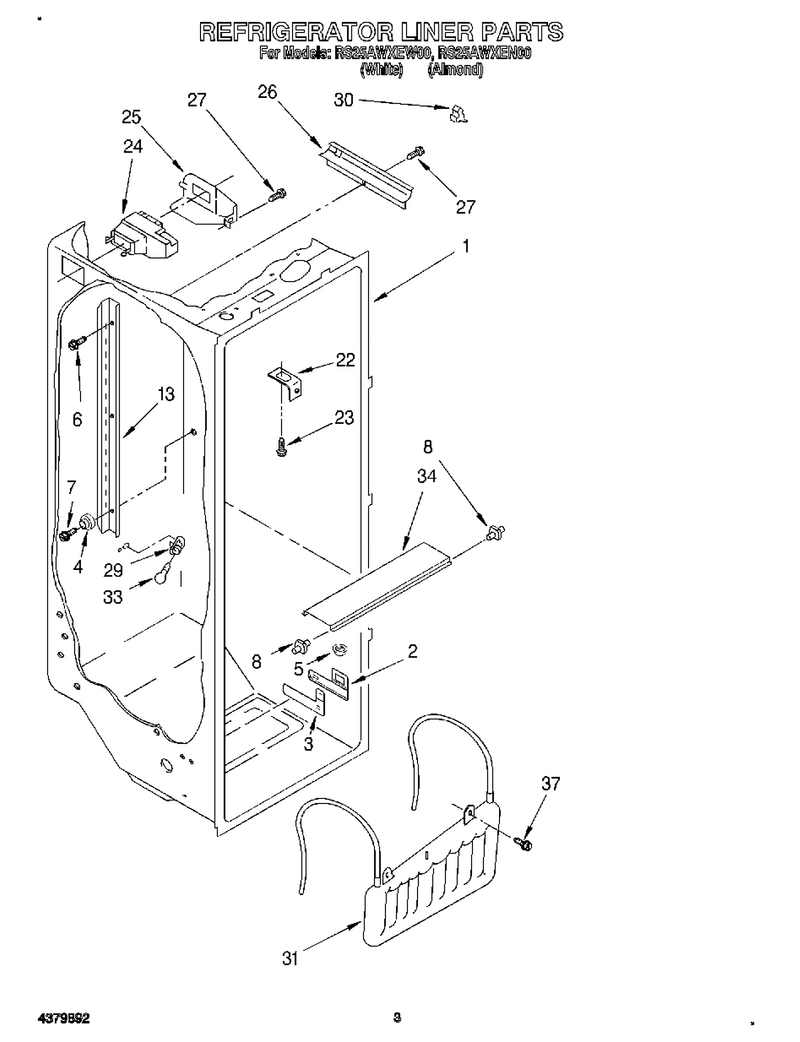

02 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-2194744
...
3
Slide Meat Pan Control WPL-2182757
...
4
Screw WPL-487559
...
5
Release Valve WPL-2171846
...
6
Screw WPL-WP488729
...
7
Stud WPL-658944
...
8
Stud-Shelf WPL-4388538
...
13
Ladder, Shelf (2) WPL-2171996
...
22
Retainer WPL-WP2256085
...
23
Screw WPL-WP488488
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150331
...
27
Screw WPL-W10759522
...
29
Capacitor (Service) WPL-4387478
...
30
Clip-Air, Duct WPL-2215823
...
31
Reservoir WPL-WP2256126
...
33
Light Bulb WPL-8009
...
34
Light Lens WPL-2174436
...
37
Screw WPL-798639

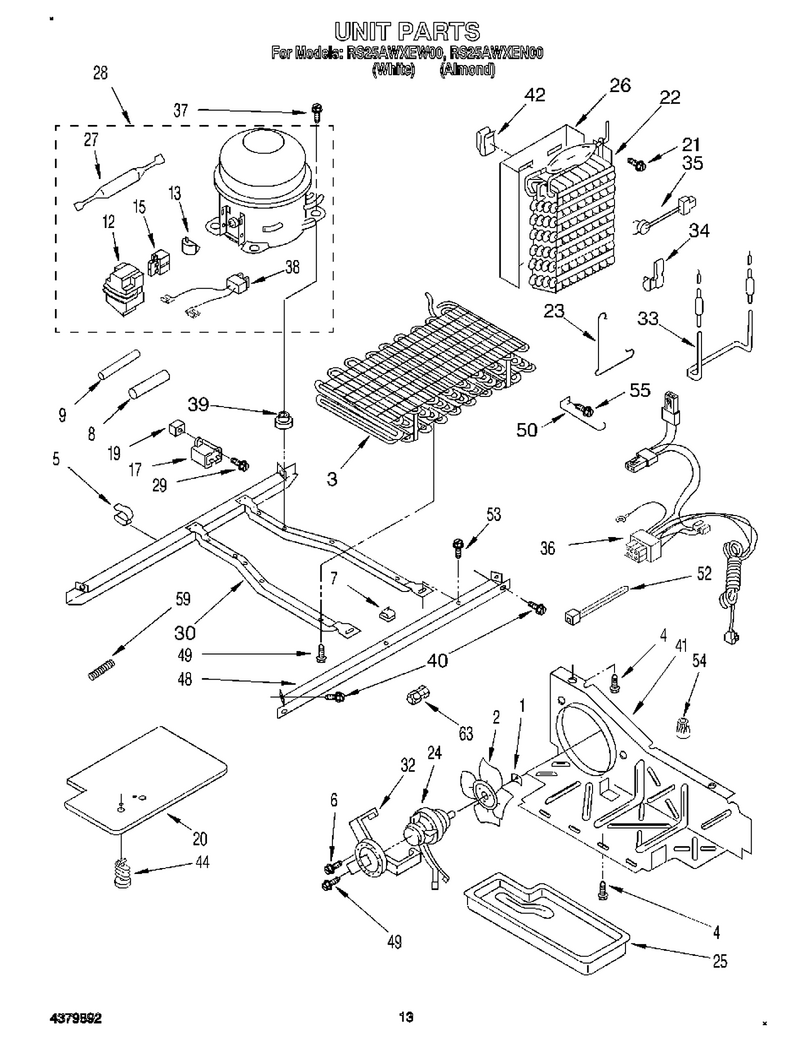

09 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-2198175
...
4
Screw WPL-WP489464
...
5
Clip, Wire & Tube WPL-2208280
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Clip, Tube WPL-2200079
...
8
Sleeve WPL-W11751592
...
9
Dampener WPL-WP2158826
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP2154697
...
15
Relay (See Overload) WPL---
...
17
Capacitor WPL-2169137
...
19
Grommet (4) WPL-937252
...
20
Unit Cover, Bottom WPL-W10466698
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-2155501
...
23
Clip WPL-WP2161324
...
24
Motor-Cond WPL-833697
...
25
Tray, Evaporator WPL-1110674
...
26
Heat Shield WPL-2149294
...
27
Drier-Tube WPL-W10843121
...
28
Tube Kit WPL-876765
...
29
Screw WPL-W11693756
...
30
Unit Mounting Frame WPL-2304904
...
32
Bracket, Fan Motor WPL-548695
...
33
Heater WPL-WP2323198
...
34
Clip WPL-2161330
...
35
Bimetl-Def WPL-WPW10225581
...
36
Unit, Harness WPL-2194749
...
37
Grommet (4) ((Production)) WPL-876811
...
38
Wire WPL-WP2172890
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-489340
...
41
Baffle, Air WPL-W10896764
...
42
Clip, Heat Sheild WPL-2155547
...
44
Clip WPL-489396
...
48
Unit Mounting Rail WPL-2305374
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1110663
...
52
Strap WPL-851095
...
53
Screw WPL-WP489427
...
54
Connector, Wire WPL-227991
...
55
Screw WPL-WPW10141625
...
59
Spring, Tube Forming WPL-983659
...
63
Valve, Access (5/8``) WPL-978029

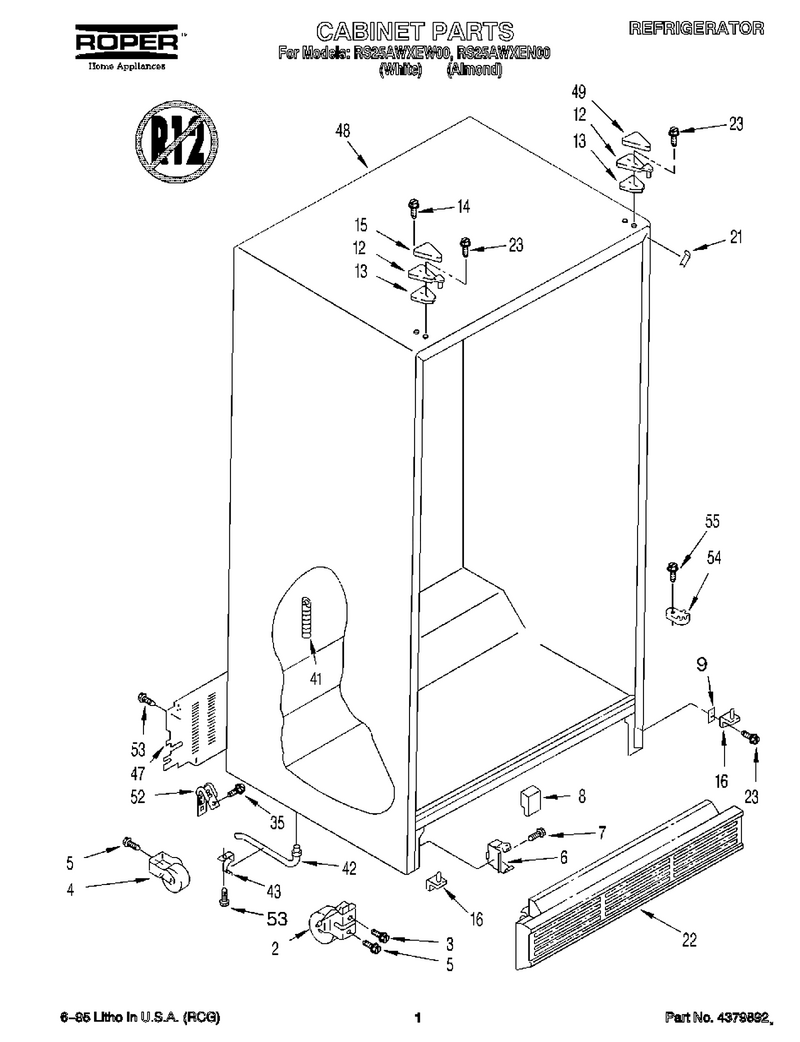

01 - Cabinet

...
...
2
Front Roller (2) WPL-4386774
...
3
Screw WPL-W10850698
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Clip WPL-WP2155013
...
7
Screw WPL-WP489478
...
8
Insert, Air Baffle WPL-2176796
...
9
Shim WPL-WP2181911
...
12
Hinge-Door WPL-WP2196046
...
13
Shim, Hinge Top WPL-2171868
...
14
Screw WPL-489284
...
15
Cover WPL-WP1129262
...
16
Hinge-Door WPL-8201707
...
21
Filler, Wrapper (White) WPL-1110708
...
22
Grille (Black) WPL-2155485
...
23
Screw WPL-WP999367
...
35
Screw WPL-WP489464
...
41
Fitting WPL-W11566763
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
47
Cover-Unit WPL-WP2188755
...
48
Cabinet (Not A Serviceable Part) WPL---
...
49
Hinge Cover (White) WPL-1119787
...
52
Clamp, Service Cord WPL-549193
...
53
Screw WPL-WPW10141645
...
54
Cam-Door WPL-WPW10329686
...
55
Screw WPL-WP489483

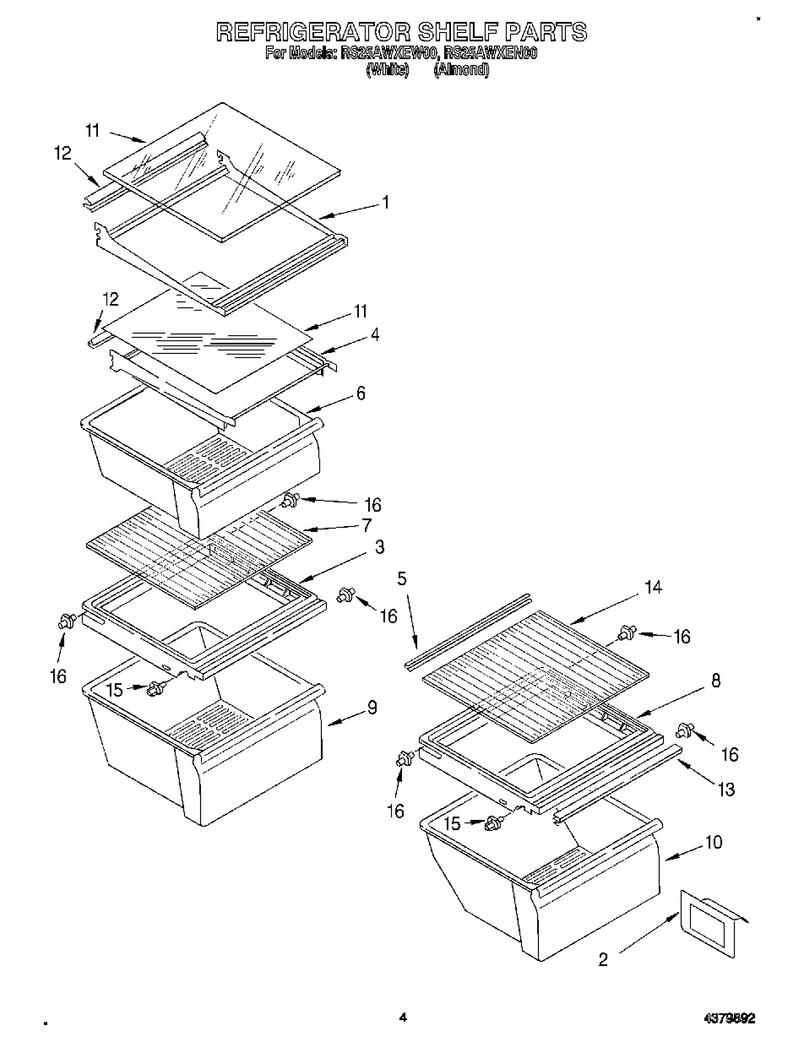

03 - Refrigerator Shelf

...
...
1
Shelf Assembly, Cantilever (2) WPL-2163572
...
2
Deflector WPL-2179350
...
3
Cover WPL-W10508993
...
4
Shelf, Cantilever (Snack Bin) WPL-2179443
...
5
Gasket, Rear WPL-2174483
...
6
Pan-Snack WPL-W11497323
...
7
Shelf-Glas WPL-W10864399
...
8
Cover WPL-W10508993
...
9
Pan-Crispr WPL-WP2188656
...
10
Pan-Meat WPL-WP2188664
...
11
Glass, Shelf WPL-2163573
...
12
Retainer, Shelf WPL-1125525
...
13
Gasket, Front WPL-2174442
...
14
Shelf-Glas WPL-W10864399
...
15
Stud-Shelf WPL-4388539
...
16
Stud-Shelf WPL-4388538

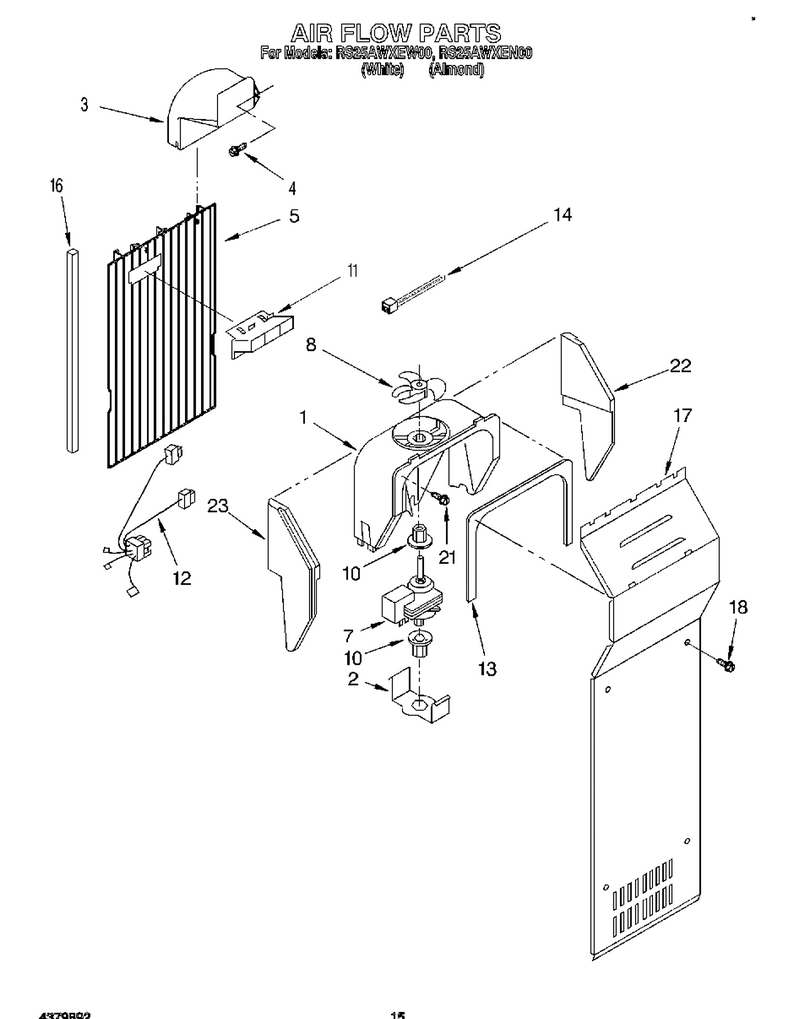

10 - Air Flow

...
...
1
Fan-Scroll WPL-WP2182120
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
4
Screw WPL-WP488729
...
5
Cover-Evap WPL-4388356
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
10
Grommet WPL-WP2176759
...
11
Duct, Icemaker WPL-2182146
...
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL-2161478
...
13
Gasket WPL-WP2155789
...
14
Tie-Wire WPL-WPW10339879
...
16
Gasket WPL-WP2304241
...
17
Cover-Evap WPL-4388356
...
18
Screw WPL-W11233072
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358

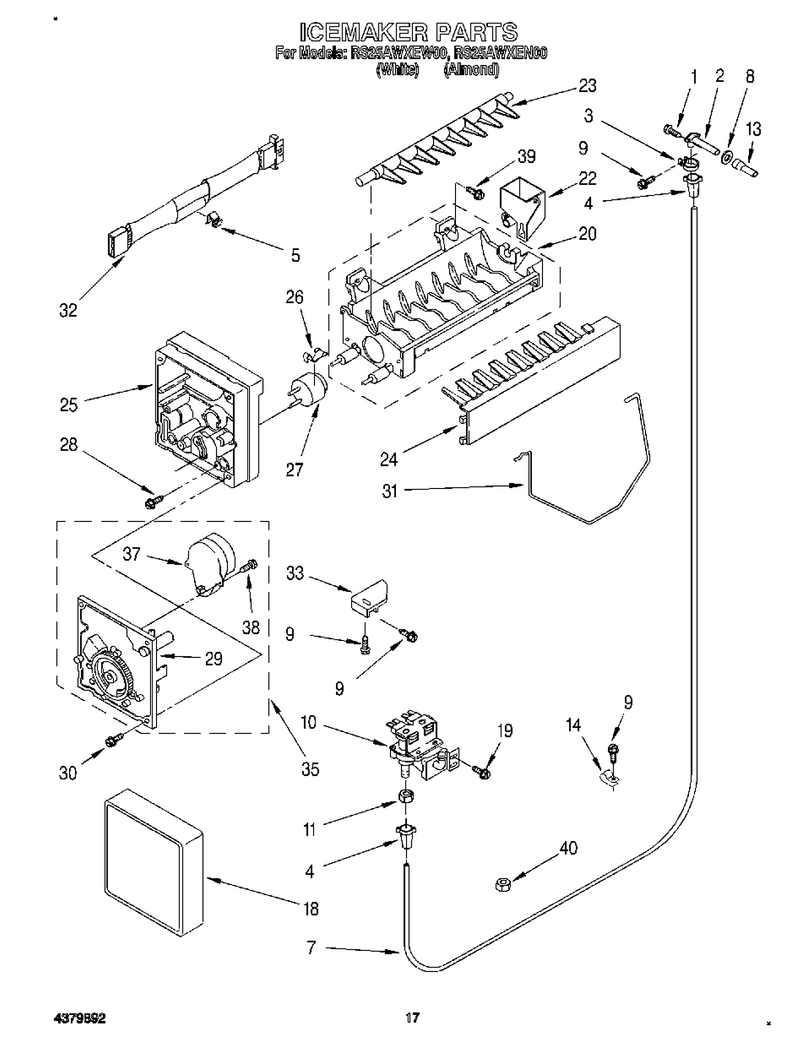

12 - Icemaker, Lit/optional

...
...
Energy Label WPL-LIT2182782
...
1
Screw WPL-WPW10141645
...
2
Fitting WPL-WP2196157
...
3
Clamp WPL-WP488878
...
4
Insert, Tube WPL-4387491
...
5
Clip WPL-WP628379
...
7
Tube-Water WPL-W10823511
...
8
Gasket WPL-WP1106508
...
9
Screw WPL-WP489478
...
10
Valve-Inlt WPL-W10853654
...
11
Nut WPL-WP627018
...
13
Tube, Water Inlet WPL-2171943
...
14
Clamp WPL-WP488366
...
18
Cover-Frnt WPL-WPW10289690
...
19
Screw WPL-WPW10141625
...
20
Grease WPL-WP542638
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw (2) WPL-8533917
...
29
Motor-Modl WPL-W10190935
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
32
Harns-Wire WPL-WP2187464
...
33
Bracket WPL-W11500948
...
35
Motor-Modl WPL-W10190935
...
37
Motor-Modl WPL-W10190935
...
38
Screw WPL-489136
...
39
Screw WPL-WP488163
...
40
Nut WPL-4318011
...
100
Kit, Insulation (2 Pcs. X 3`` X 24`` X 48``) WPL-876370
