Whirlpool RS25AQXGW00

Model: RS25AQXGW00

Save Part Not Listed?
product name

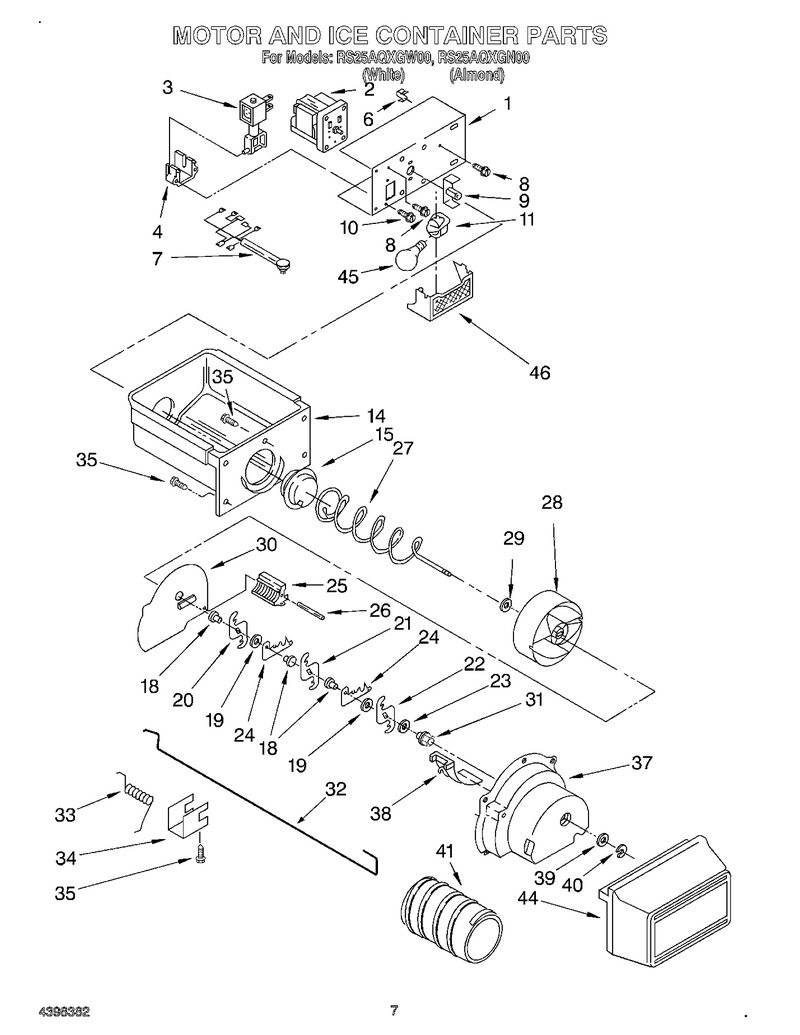

05 - Motor And Ice Container

...
...
1
Bracket, Motor WPL-W10304376
...
2
Motor WPL-WP2188242
...
3
Solenoid WPL-WP2152713
...
4
Guide WPL-W10850503
...
6
Clip WPL-WP1115374
...
7
Wiring Assembly, Ice Dispenser WPL-2186815
...
8
Screw WPL-WP489399
...
9
Coupling WPL-WPW10169511
...
10
Screw WPL-WP489478
...
11
Capacitor (Service) WPL-4387478
...
14
Container WPL-WPW10670845
...
15
Coupling WPL-W10749708
...
18
Spacer WPL-WP1119005
...
19
Spacer WPL-WP1119007
...
20
Blade, Rotary A WPL-W10278731
...
21
Blade, Rotary B WPL-W10278732
...
22
Blade, Rotary C WPL-W10278733
...
23
Washer WPL-WP489235
...
24
Blade, Fixed (2) WPL-1119009
...
25
Block Blade WPL-2157405
...
26
Roll Pin WPL-489229
...
27
Auger-Ice WPL-W10422851
...
28
Drum WPL-4388736
...
29
Washer WPL-WP3400912
...
30
Baffle WPL-W10852691
...
31
Bearing WPL-WP1119018
...
32
Arm-Contrl WPL-W11596045
...
33
Spring, Return WPL-1119020
...
34
Retainer Clip, Rod WPL-1119021
...
35
Screw WPL-WP488787
...
37
Housing WPL-WPW10185018
...
38
Deflector WPL-WP1119017
...
39
Washer, Plain WPL-489234
...
40
Ring-E WPL-WP489236
...
41
Sleeve WPL-4317870
...
44
Front Cover, Ice Container WPL-2204321
...
45
Light Bulb WPL-8009
...
46
Lens-Light WPL-WP2171706

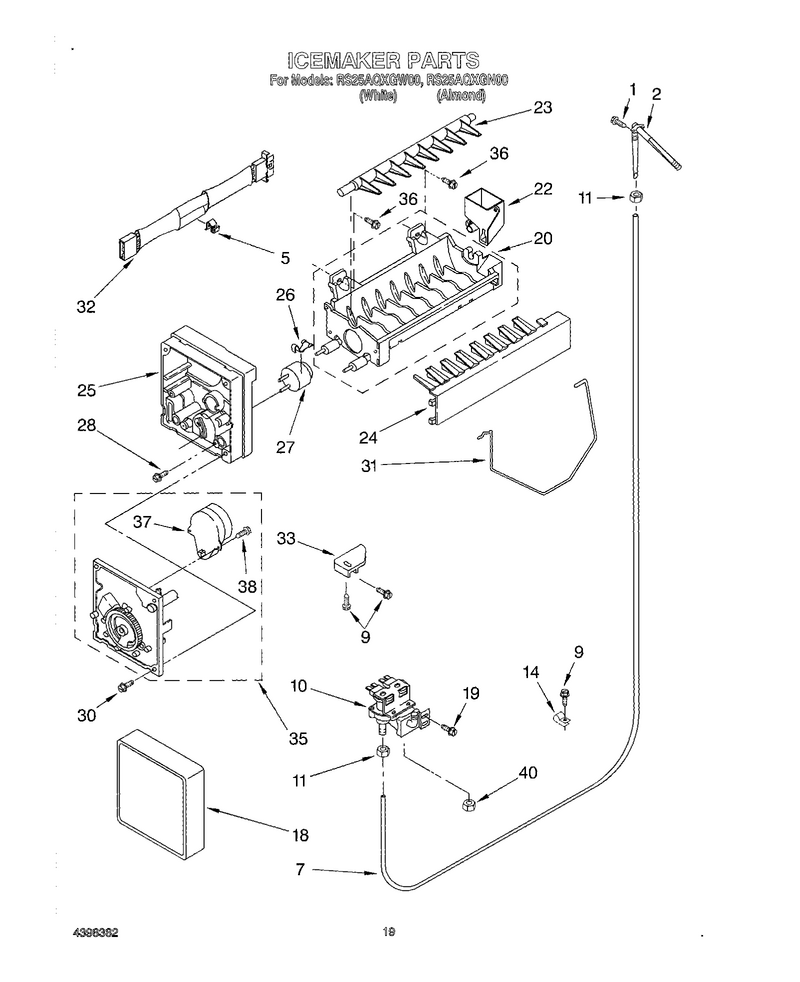

12 - Ice Maker, Optional

...
...
1
Screw WPL-WPW10141645
...
2
Fitting WPL-WP2196157
...
5
Clip WPL-WP628379
...
7
Tube-Water WPL-W10823511
...
9
Screw WPL-WP489478
...
10
Valve-Inlt WPL-W10853654
...
11
Nut WPL-WP627018
...
14
Clamp WPL-WP488366
...
18
Cover-Frnt WPL-WPW10289690
...
19
Screw WPL-WPW10141625
...
20
Mold-Ice WPL-WPW10190929
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Adhesive WPL-WP4317852
...
28
Screw (2) WPL-8533917
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
32
Harns-Wire WPL-WP2187464
...
33
Bracket WPL-W11500948
...
35
Motor-Modl WPL-W10190935
...
36
Screw WPL-WP488163
...
37
Motor-Modl WPL-W10190935
...
38
Screw WPL-489136
...
40
Nut WPL-4318011
...
100
Cement, Alumilastic (1 1/4 Oz.) WPL-542639

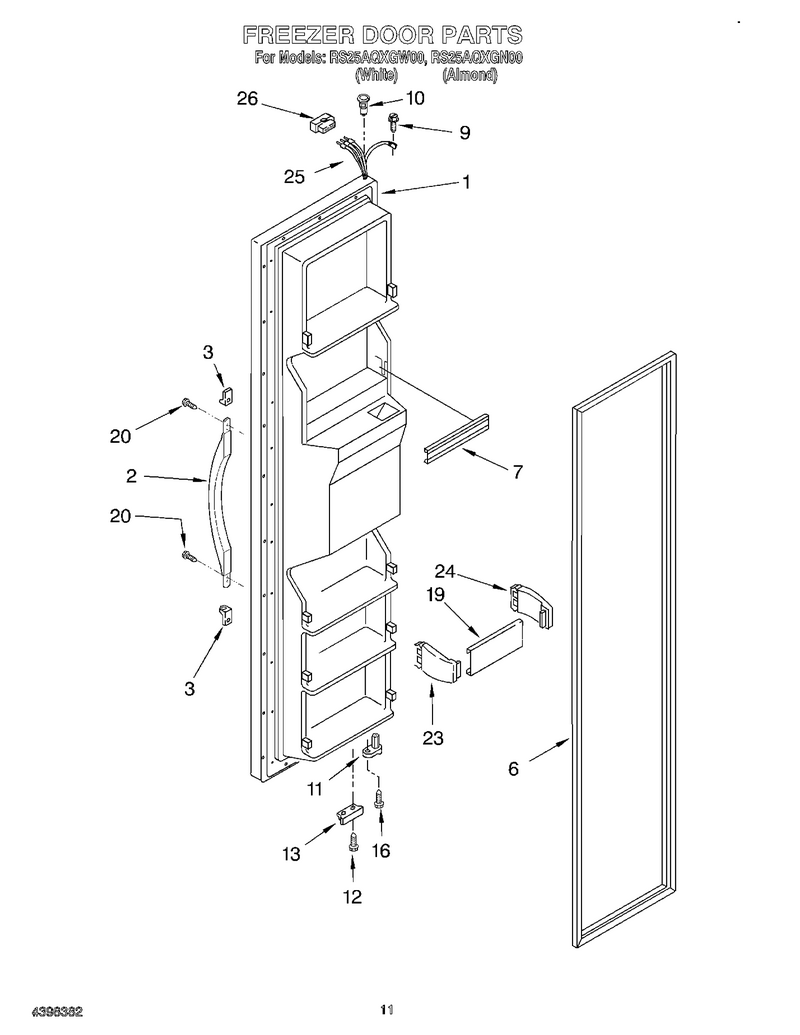

07 - Freezer Door

...
...
1
Dor-Fip Al WPL-4388404
...
2
Handle, Center (White) WPL-2186649W
...
3
Trim, Handle (Almond) WPL-2193353N
...
6
Door Gasket, Magnetic (Service) WPL-2159074
...
7
Trim-Door WPL-WPW10307490
...
9
Screw WPL-WP489128
...
10
Thimble WPL-WP2182181
...
11
Cam-Door WPL-WP2182179
...
12
Screw WPL-WP489483
...
13
Bracket WPL-WP2195950
...
16
Screw WPL-WP3400012
...
19
Door, Shelf (4) WPL-2195927
...
20
Screw WPL-WP489491
...
23
Endcap WPL-WP2195917K
...
24
Endcap WPL-WP2195916K
...
25
Wire Assembly WPL-2183713
...
26
Connector WPL-WP2154473

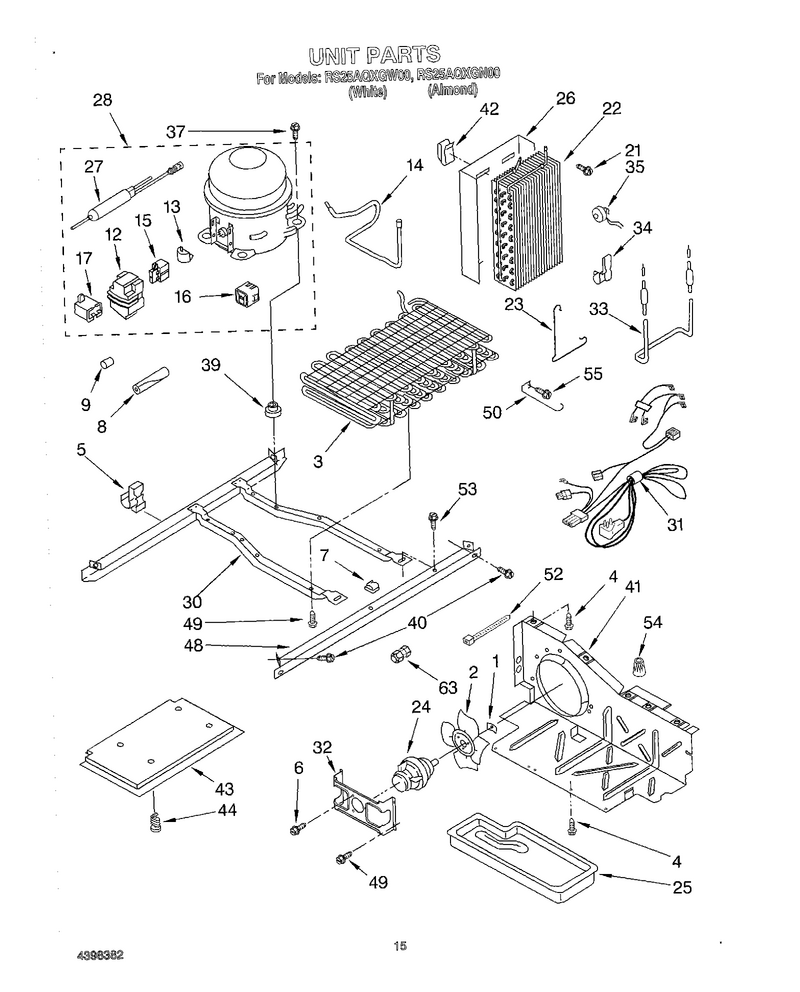

09 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP2190685
...
3
Condenser Assembly WPL-2204242B
...
4
Screw WPL-WP489464
...
5
Clip, Wire & Tube WPL-2208280
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Clip, Tube WPL-2200079
...
8
Sleeve WPL-W11751592
...
9
Dampener WPL-WP2158826
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP4387835
...
14
Tube WPL-WP2205765
...
15
Start-Dev WPL-8201799
...
16
Start-Dev WPL-8201799
...
17
Capacitor WPL-WP4387764
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-WP2188823
...
23
Clip WPL-WP2161324
...
24
Motor-Cond WPL-W10822259
...
25
Tray, Evaporator WPL-1110674
...
26
Heat Shield WPL-2149294
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10309994
...
30
Unit Mounting Frame WPL-2304904
...
31
Unit, Harness WPL-2188345
...
32
Bracket WPL-WP2181929
...
33
Heater WPL-WP2323198
...
34
Clip WPL-2161330
...
35
Bimetl-Def WPL-WPW10225581
...
37
Screw WPL-489387
...
39
Grommet WPL-W11661108
...
40
Screw WPL-489340
...
41
Baffle, Air WPL-W10896764
...
42
Clip, Heat Shield WPL-2155547
...
43
Unit Cover, Bottom WPL-W10466698
...
44
Clip WPL-489396
...
48
Unit Mounting Rail WPL-2305374
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1110663
...
52
Tie-Wire WPL-WPW10339879
...
53
Screw WPL-WP489427
...
54
Wire Connector WPL-227991
...
55
Screw WPL-WPW10141625
...
63
Valve, Access (3/4``) WPL-978030

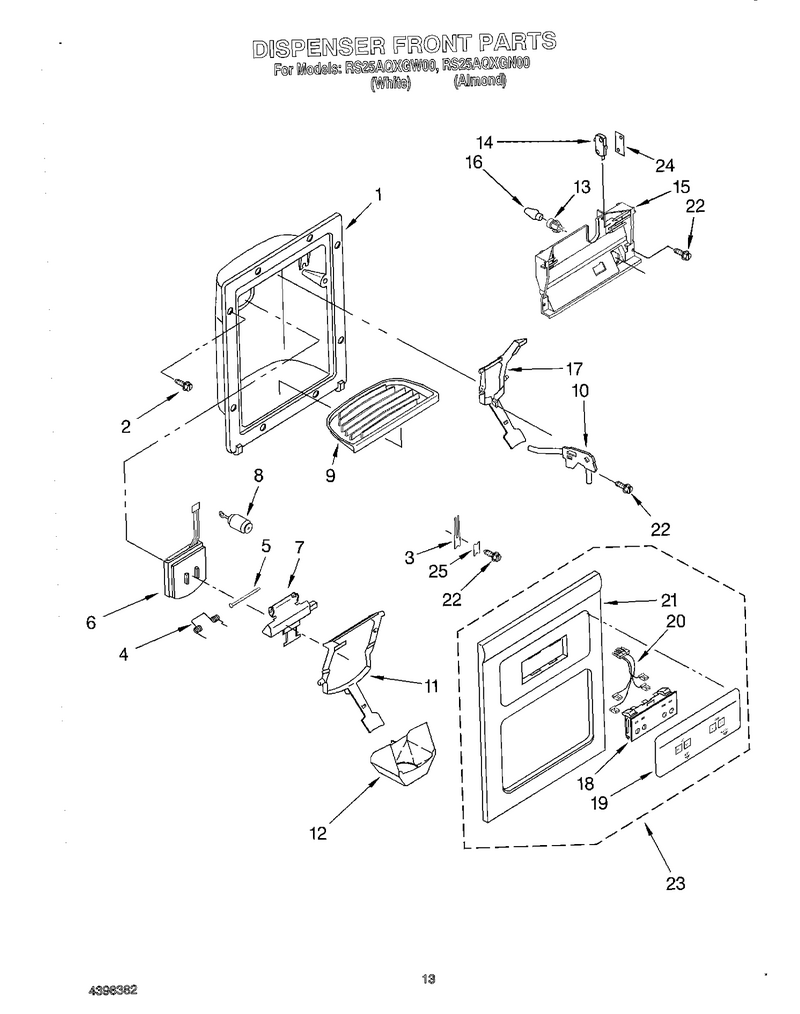

08 - Dispenser Front

...
...
1
Housing, Dispenser (Not A Serviceable Part) WPL---
...
2
Screw WPL-WP489069
...
3
Clip WPL-WP2194719
...
4
Spring WPL-WPW10224328
...
5
Pin-Door WPL-WP2196195
...
6
Door-Chute WPL-WP2180353
...
7
Ice Dor Kt WPL-W10823377
...
8
Ice Dor Kt WPL-W10823377
...
9
Grille, Overflow (White) WPL-2183787W
...
10
Fitting WPL-8201537
...
11
Arm-Dispsr WPL-WP2180259
...
12
Guide-Ice WPL-WP2180224
...
13
Lamp Holder WPL-2180200
...
14
Swtch-Micr WPL-WP2162361
...
15
Bracket WPL-WP2180226
...
16
Bulb-Light WPL-WP22002263
...
17
Arm-Dispsr WPL-WPW10152858
...
18
Switch WPL-WP2180279
...
19
Overlay, Front Cover (Almond) WPL-2211655N
...
20
Wire Assembly WPL-2187408
...
21
Front Cover, Housing (Not Available, Order No.23) WPL---
...
22
Screw WPL-WP3400906
...
23
Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White) WPL-2194836W
...
24
Spacer WPL-WP625834
...
25
Clip WPL-WP2195051

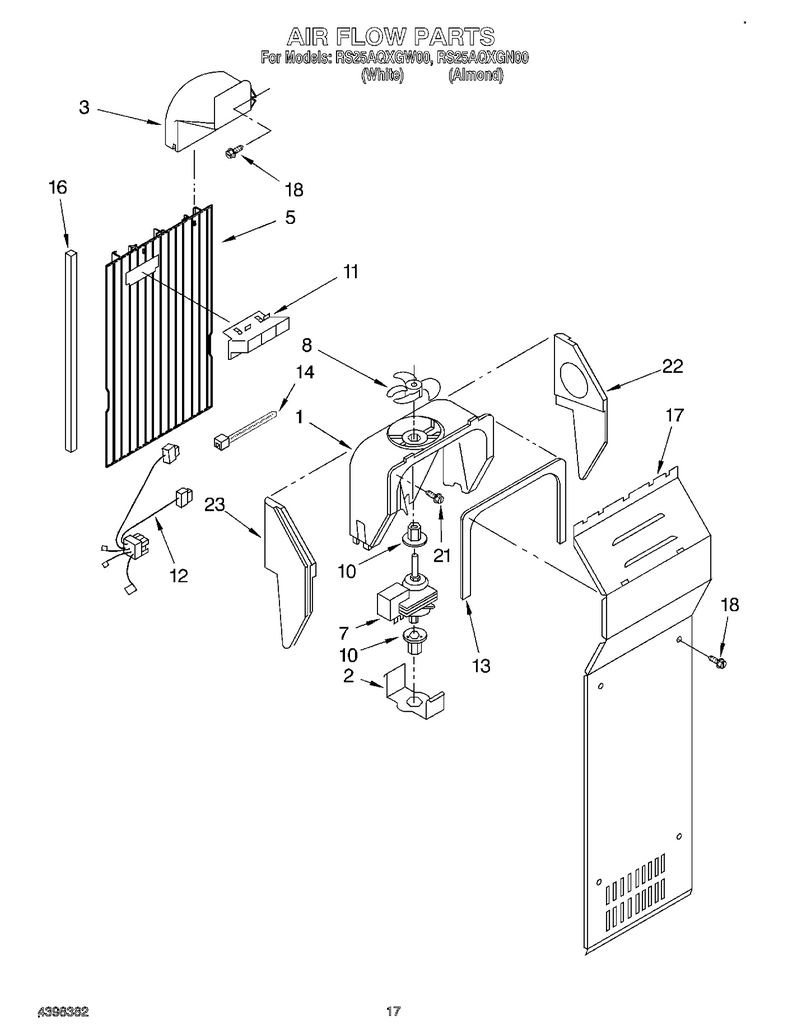

10 - Air Flow

...
...
1
Fan-Scroll WPL-WP2182120
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
5
Cover-Evap WPL-4388356
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
10
Grommet WPL-WP2176759
...
11
Duct, Icemaker WPL-2182146
...
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL-2186800
...
13
Gasket WPL-WP2155789
...
14
Tie-Wire WPL-WPW10339879
...
16
Gasket WPL-4388500
...
17
Cover-Evap WPL-4388356
...
18
Screw WPL-W11233072
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358

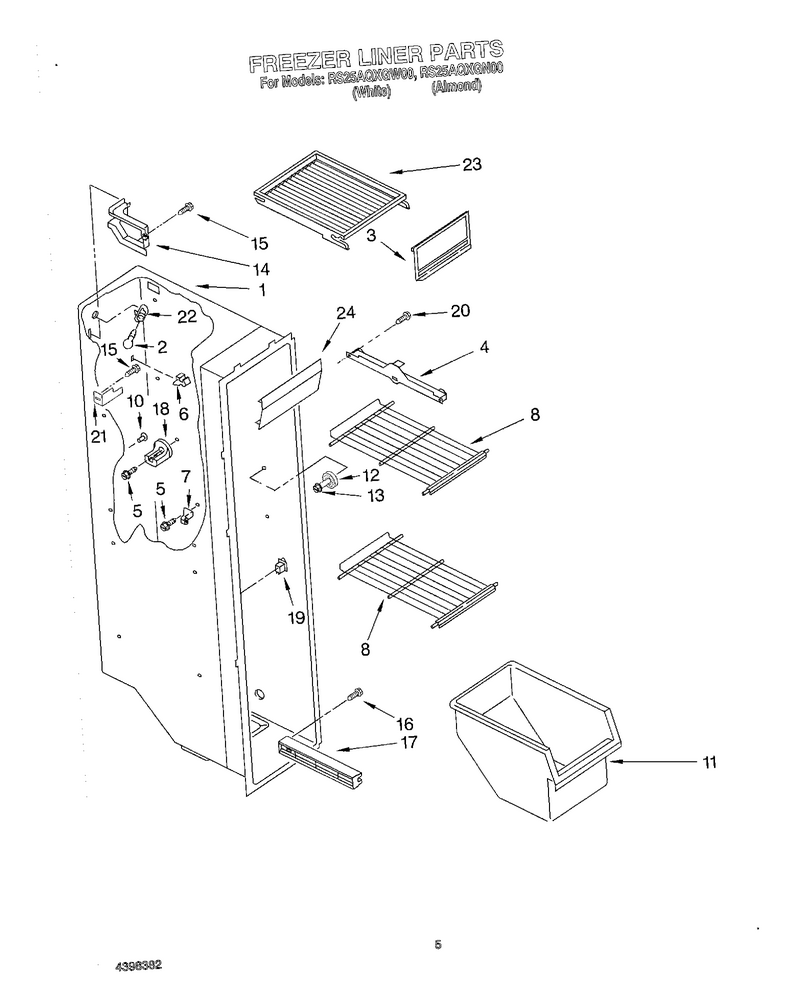

04 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Light Bulb WPL-8009
...
3
Door-Ice WPL-WP2171713
...
4
Slide, Ice Container (Right) WPL-W10845583
...
5
Screw 8-18 X 5/8 WPL-W10142289
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
8
Shelf-Wire WPL-WP2174267
...
10
Grommet WPL-2176134
...
11
Bin-Freezr WPL-WP2182971
...
12
Stud-Shelf WPL-WP2196483
...
13
Screw WPL-WP3400806
...
14
Cover, Wiring WPL-2155572
...
15
Screw WPL-W11233072
...
16
Screw WPL-W10759522
...
17
Slide, Freezer Bin (Left Side) WPL-2181759
...
18
Stud-Shelf WPL-WP2196207
...
19
Switch WPL-W11457217
...
20
Screw, 8-18 X 1.38 WPL-718257
...
21
Bracket, Fill Tube WPL-2209674
...
22
Capacitor (Service) WPL-4387478
...
23
Shelf WPL-WP2194297K
...
24
Lens, Light WPL-2171705

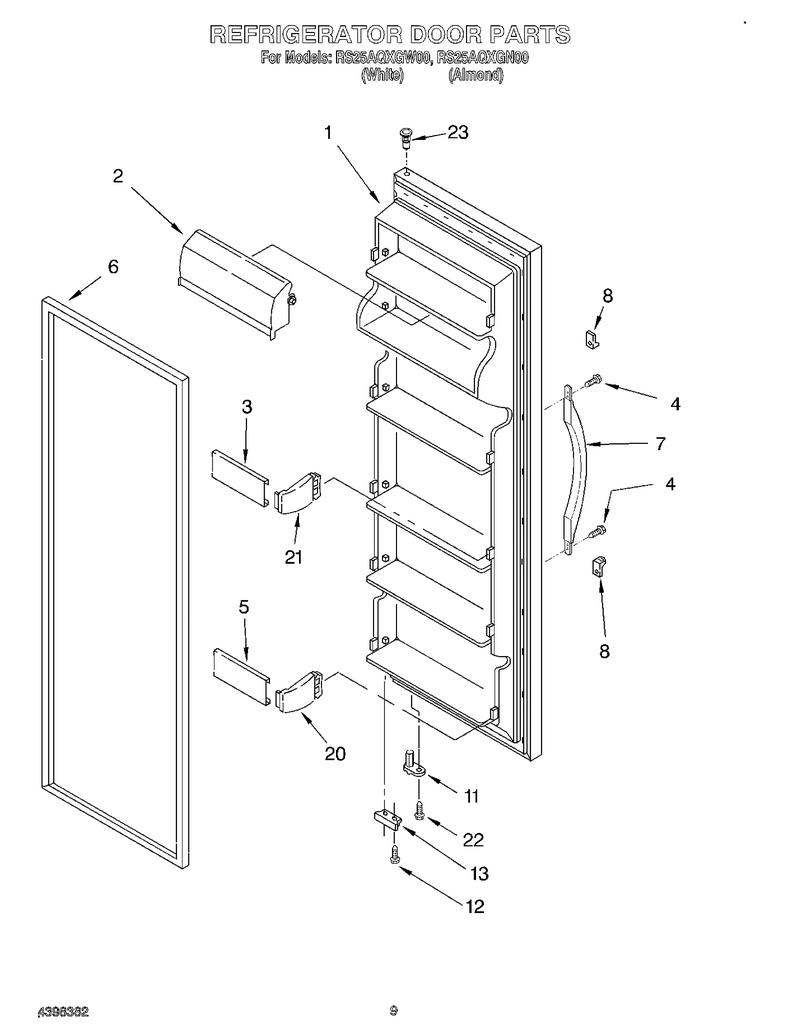

06 - Refrigerator Door

...
...
1
Dor-Fip Al WPL-4388092
...
2
Door-Comp WPL-WP2256101
...
3
Trim-Door WPL-WP2195934
...
4
Screw WPL-WP489491
...
5
Trim-Door WPL-WP2256010
...
6
Door, Gasket Magnetic (Service) WPL-2159075
...
7
Handle, Center (Almond) WPL-2186649N
...
8
Trim-Handl WPL-WP2193353W
...
11
Cam-Door WPL-WP2182179
...
12
Screw WPL-WP489483
...
13
Bracket WPL-WP2195950
...
20
Endcap WPL-WP2195916K
...
21
Endcap WPL-WP2195915
...
22
Screw WPL-WP3400012
...
23
Thimble WPL-WP2182181

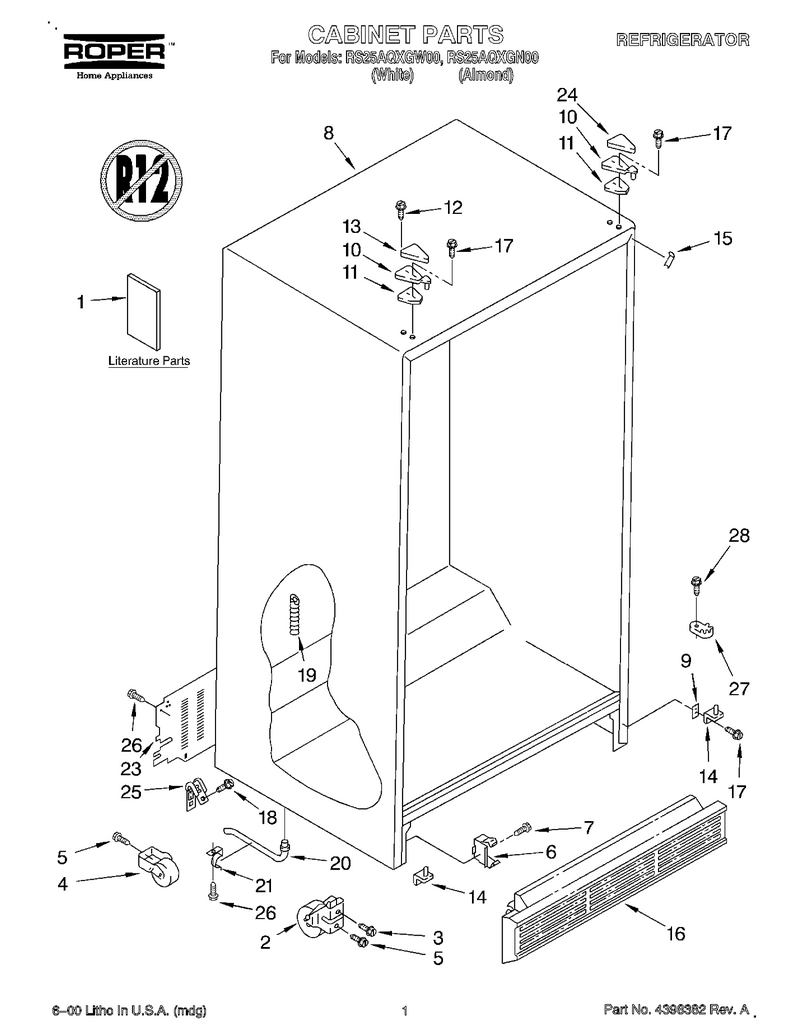

01 - Cabinet, Literature

...
...
1
Modular Icemaker Service Sheet WPL-LIT628370
...
2
Front Roller (2) WPL-4386774
...
3
Screw WPL-W10850698
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Clip WPL-WP2155013
...
7
Screw WPL-WP489478
...
8
Cabinet (Not A Serviceable Part) WPL---
...
9
Shim WPL-WP2181911
...
10
Hinge-Door WPL-WP2196046
...
11
Shim, Hinge Top WPL-2196048
...
12
Screw WPL-489284
...
13
Cover WPL-WP1129262
...
14
Hinge-Door WPL-8201707
...
15
Filler, Wrapper (White) WPL-2196094
...
16
Grille WPL-WPW10283946
...
17
Screw WPL-WP489497
...
18
Screw WPL-WP489464
...
19
Fitting WPL-W11566763
...
20
Extension WPL-WP1108438
...
21
Clip WPL-WP1108439
...
23
Cover-Unit WPL-WP2188755
...
24
Hinge Cover (White) WPL-1119787
...
25
Clamp, Service Cord WPL-549193
...
26
Screw WPL-WPW10141645
...
27
Cam-Door WPL-WPW10329686
...
28
Screw WPL-WP489483

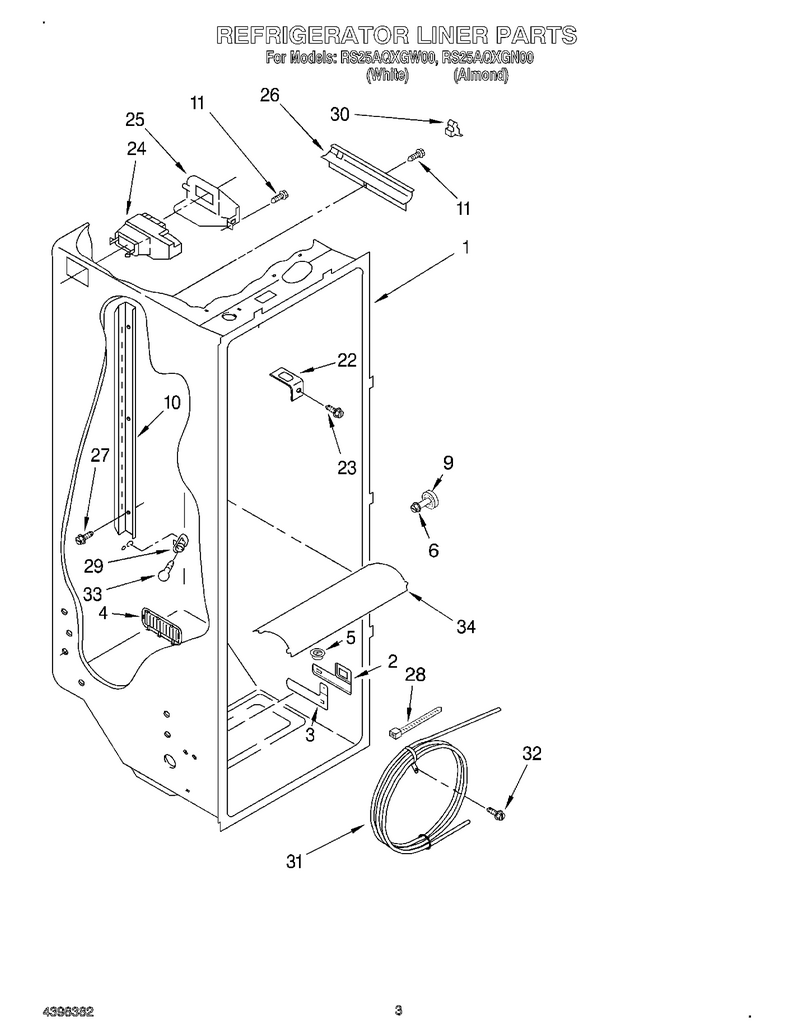

02 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-2194744
...
3
Slide Meat Pan Control WPL-2182757
...
4
Louver-Cab WPL-8201651
...
5
Release Valve WPL-2171846
...
6
Screw WPL-WP3400806
...
9
Stud-Shelf WPL-WP2196483
...
10
Ladder, Shelf WPL-2181796
...
11
Screw WPL-W10759522
...
22
Retainer WPL-WP2256085
...
23
Screw WPL-WP488488
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150331
...
27
Screw WPL-WP488729
...
28
Tie-Wire WPL-WP2205813
...
29
Capacitor (Service) WPL-4387478
...
30
Clip-Air, Duct WPL-2215823
...
31
Reservoir WPL-WP2256126
...
32
Screw WPL-798639
...
33
Light Bulb WPL-8009
...
34
Lens-Light WPL-WP2203266

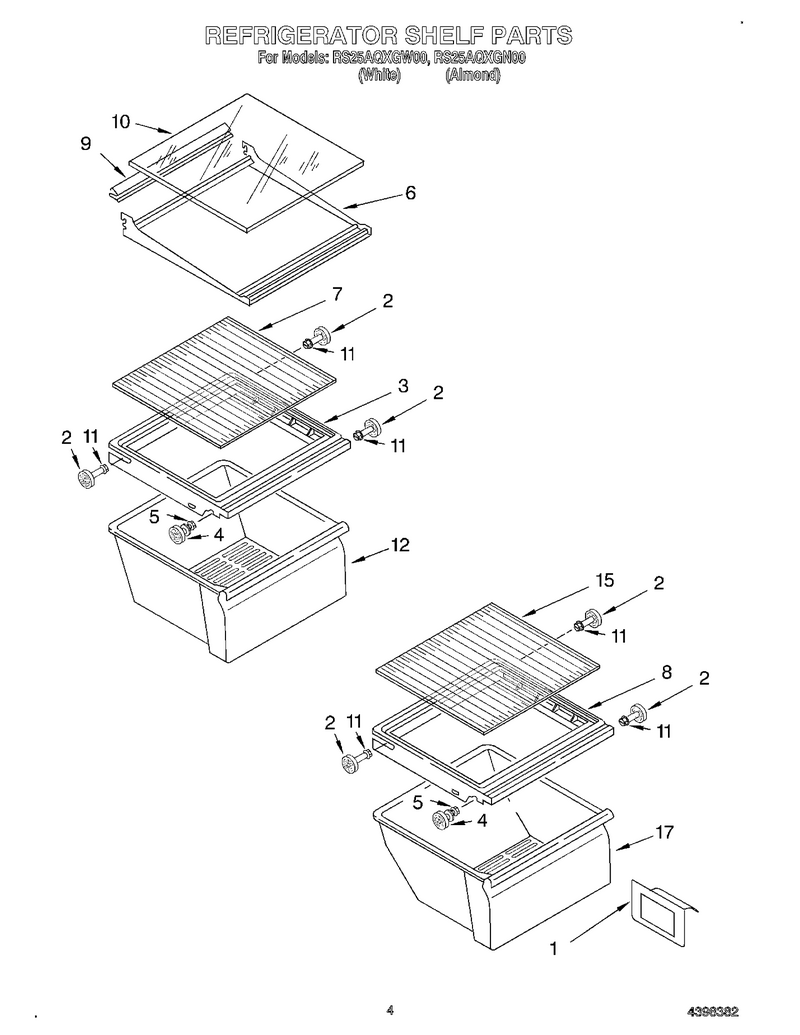

03 - Refrigerator Shelf

...
...
1
Deflector WPL-2179350
...
2
Stud-Shelf WPL-WP2196483
...
3
Cover WPL-W10508993
...
4
Stud-Shelf WPL-W11223328
...
5
Screw WPL-WP3-24004-109
...
6
Shelf Assembly, Cantilever (3) WPL-2163572
...
7
Shelf-Glas WPL-W10864399
...
8
Cover WPL-W10508993
...
9
Retainer, Shelf WPL-1125525
...
10
Glass (3) WPL-2177986
...
11
Screw WPL-WP3400806
...
12
Pan-Crispr WPL-WP2188661
...
15
Shelf-Glas WPL-W10864399
...
17
Pan-Meat WPL-WP2188664

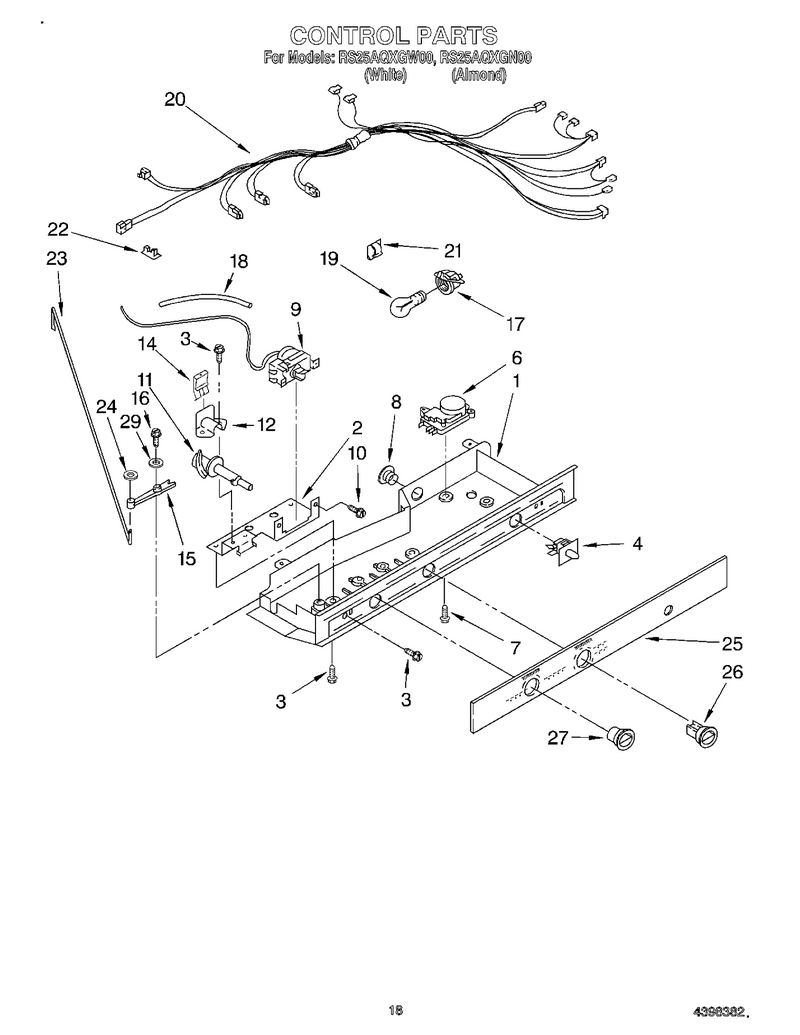

11 - Control

...
...
1
Control Box WPL-2200137
...
2
Mounting Bracket WPL-1110629
...
3
Screw WPL-WP3196557
...
4
Switch WPL-WP2149705
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam WPL-WP2182195
...
12
Bearing Body WPL-1110560
...
14
Clip WPL-WP2196062
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
17
Capacitor (Service) WPL-4387478
...
18
Barrier WPL-WP2196003
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2186802
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123960
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon, Control Box WPL-2194977
...
26
Knob, Thermostat WPL-2182111
...
27
Knob, Air Control WPL-2197871
...
29
Spring, Washer WPL-489203
